Sr. No. |
Image |
Model |
OEM Part No. |
Description |
|
|
1. |
|
RC9 |

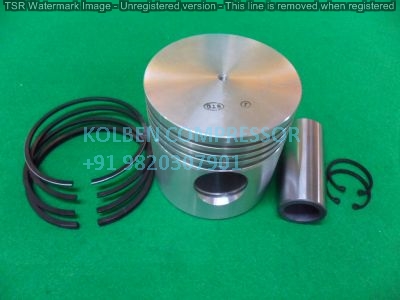

2406000 |
Piston - Pin - Circlip - Piston Ring Assy 109.8X39.9X 110-Cr/P/Uc/Oil-Oval-Hole-4090-To Fit Grasso Rc9
|
|
|
2. |
|
RC9 |
2420300 |
Gudgeon Pin 40.0X90.0-To Fit Grasso Rc9
|
|
|
3. |
|
RC9 |

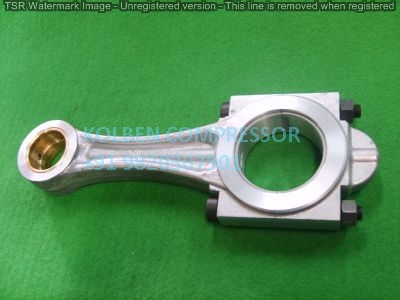

2406500 |
Conrod With Bearing Half 70.0(Std)X155.2X40.0-Lp-To Fit Grasso Rc9
|
|
|
4. |
|
RC9 |

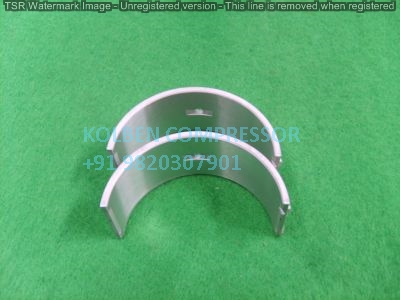

1144365 |
Bearing Shell(Pair) 30.0X2.46-Std-To Fit Grasso Rc9
|
|
|
5. |
|
RC9 |
1146440 |

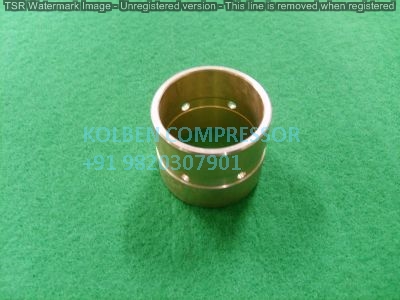

Bearing Bush(Bronze) 46.0X40.0X38.0-6 Hole-To Fit Grasso Rc9
|
|
|
6. |
|
RC9 |
974114 |

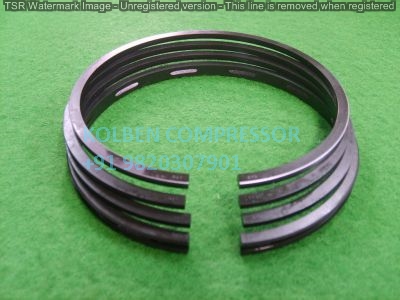

Piston Ring Set(4Pcs)110.0-Cr2.99/ 2Uc2.99/ Oil5.95-To Fit Grasso Rc9
|
|
|
7. |
|
RC9, RC219 |

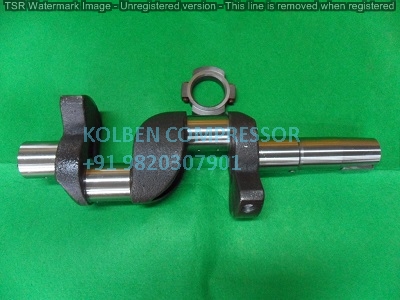

2215402 |
Crankshaft 64.99/64.99X4/64.99/60.00-Included Spacer-To Fit Grasso Rc219
|
|
|
8. |
|
RC9, RC49 |
|
Crankshaft 64.99/64.99X4/64.99/60.00-To Fit Grasso Rc49
|
|
|
9. |
|
RC9 |

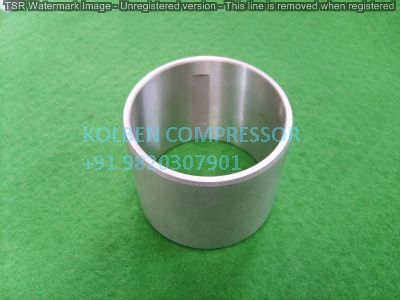

1146767 |
Bearing Bush 72X65(Std)X62-To Fit Grasso Rc9
|
|
|
10. |
|
RC9, AC80 |
1146766 |
Bearing Bush 88X72X65(Std)X65-To Fit Grasso Rc9,Ac80
|
|
|
11. |
|
RC9 |
962065 |

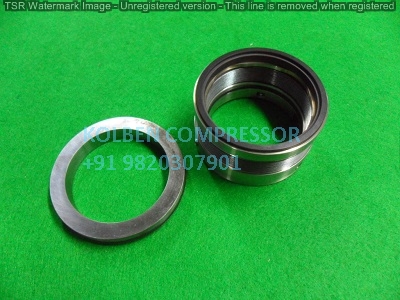

Shaft Seal Assy-Metal Bellow-To Fit Grasso Rc9
|
|
|
12. |
|
RC9 |
1168172 |

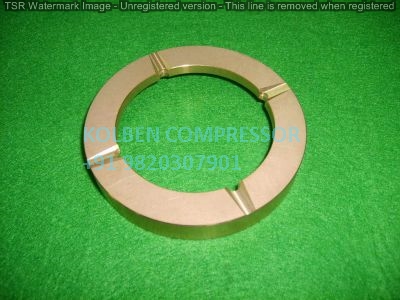

Thrust Ring-Bronze 102X72X15-To Fit Grasso Rc9
|
|
|

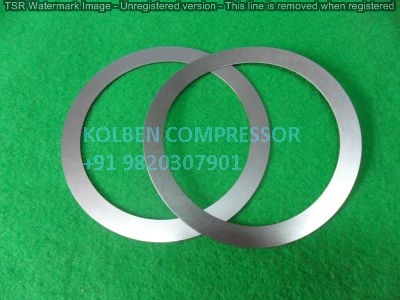

13. |
|
RC9 |
1134852 |
Suction Valve And Spring Set(For 1 Cylinder)-To Fit Grasso Rc9
|
|
|

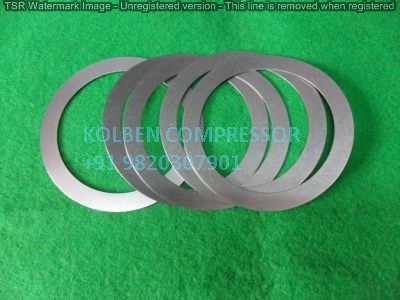

14. |
|
RC9 |
1134850 |
Discharge Valve And Spring Set(For 1 Cylinder)-To Fit Grasso Rc9
|
|
|
15. |
|
RC9 |

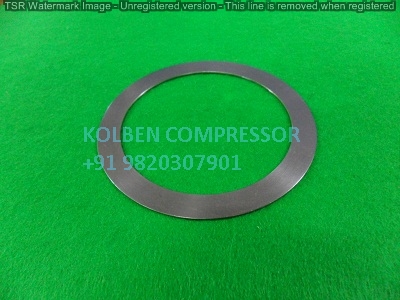

1134090 |
Discharge Valve Ring 114.8X90.1-To Fit Grasso Rc9
|
|
|
16. |
|
RC9 |
1133090 |
Sinusoidal Spring 114.8-To Fit Grasso Rc9
|
|
|
17. |
|
RC9 |
1134121 |
Suction Valve 149.7X121.1-To Fit Grasso Rc9
|
|
|
18. |
|
RC9 |
1133120 |

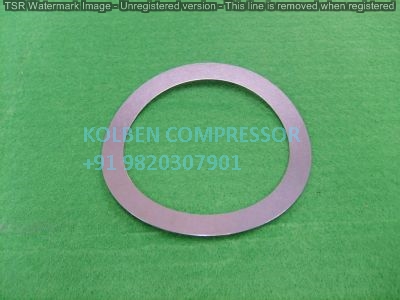

Sinusoidal Spring 149.6X121.5-To Fit Grasso Rc9
|
|
|
19. |
|
RC9 |
2721111 |
Discharge Valve Assy-To Fit Grasso Rc9 R502,R404A,R507 Only
|
|
|
20. |
|
RC9 |

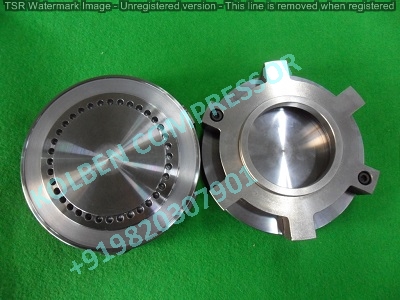

2721101 |
Discharge Valve Assy-To Fit Grasso Rc9 All Except R502,R404A,R507
|
|
|
21. |
|
RC9 |
2720350 |
Stroke Limitor-To Fit Grasso Rc9 All Except R502,R404A,R507
|
|
|
22. |
|
RC9 |
2720111 |
Valve Seat-To Fit Grasso Rc9 R502,R404A,R507
|
|
|
23. |
|
RC9 |

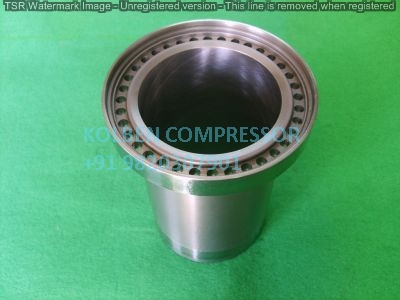

2306000 |
Cylinder Liner-Bare 110.0-To Fit Grasso Rc9
|
|
|
24. |
|
RC9, RC12 |
2038124 |
Discharge Oil Filter Set(Grey Marked)-To Fit Grasso Rc9,12,Rc412E
|
|
|
25. |
|
RC9, RC12 |
2038128 |
Suction Oil Filter Set(Blue Marked)-To Fit Grasso Rc9,12,Rc412E
|
|
|
26. |
|
RC9 |
711080 |

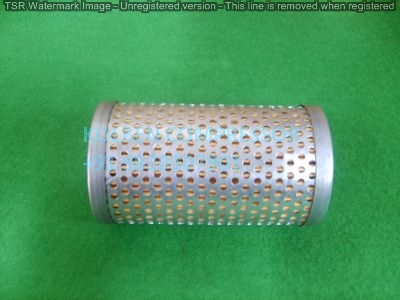

Paper Filter 60X106-To Fit Grasso Rc9
|
|
|
27. |
|
RC9 |
1810150 |

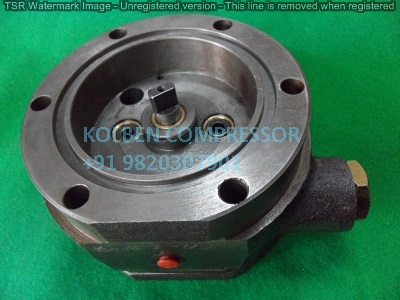

Oil Pump Complete-To Fit Grasso Rc9
|
|
|
28. |
|
RC9 |
|
Gasket And O-Ring Set-To Fit Grasso Rc69
|
|
