Sr. No. |
Image |
Model |
OEM Part No. |
Description |
|
|
1. |
|
RC11, RC12 |
2417011 |
Piston - Pin - Circlip - Piston Ring Assy 159.8X55.0X 160.0-Cr/P/Uc/2Oil-Hole- 500147-To Fit Grasso Rc11,Rc12
|
|
|
2. |
|
RC11, RC12 |
2418320 |

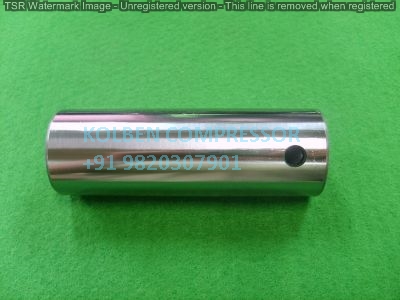

Gudgeon Pin 50.0X147.6-1Hole-To Fit Grasso Rc11,12
|
|
|
3. |
|
RC11, RC12 |

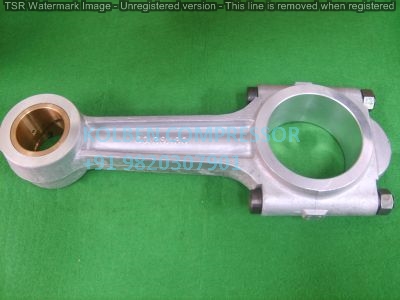

2419510 |
Conrod With Bearing Half 96.0X202.2X50.0-Lp-To Fit Grasso Rc11,12
|
|
|
4. |
|
RC11, RC12 |
1144590 |

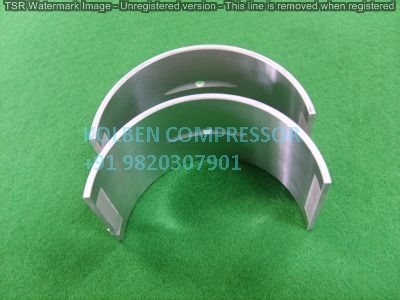

Bearing Shell(Pair) 53.0X2.93-Std-To Fit Grasso Rc11,12
|
|
|
5. |
|
RC11, RC12 |

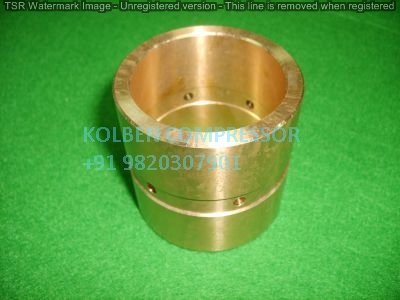

1146652 |
Bearing Bush(Bronze) 62.0X50.1X60.0-6 Hole-To Fit Grasso Rc11,12
|
|
|
6. |
|
RC11, RC12 |
974160 |

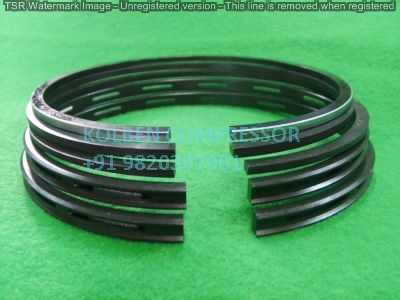

Piston Ring Set(5Pcs) 160.0-Cr3.98/ P3.98/Uc3.98/ 2Oil7.98-To Fit Grasso Rc11,12
|
|
|
7. |
|
RC11 |

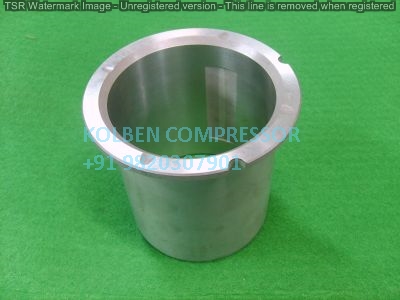

1146191 |
Bearing Bush(White Metal) 116X96X90(Std)X107-To Fit Grasso Rc11
|
|
|
8. |
|
RC11 |
|
Bearing Bush(White Metal) 116X96X90(-0.020)X107-To Fit Grasso Rc11
|
|
|
9. |
|
RC11 |

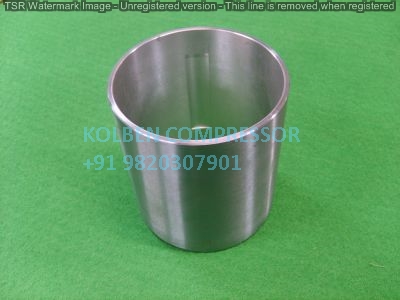

1146290 |
Bearing Bush 96.0X90.0(Std)X105.0-To Fit Grasso Rc11
|
|
|
10. |
|
RC11 |
|
Bearing Bush 96.0X90.0(-0.020)X105.0-To Fit Grasso Rc11
|
|
|
11. |
|
RC11 |
|
Bearing Bush 96.0X90.0(-0.040)X105.0-To Fit Grasso Rc11
|
|
|
12. |
|
RC11, RC12 |
1146291 |

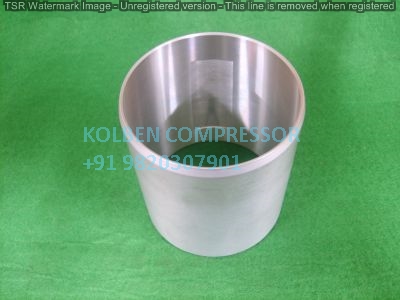

Bearing Bush 96X90(Std)X103-To Fit Grasso Rc11,12
|
|
|
13. |
|
RC11 |

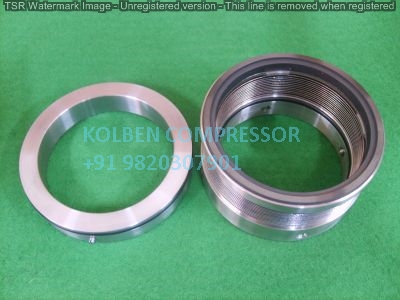

962920 |
Shaft Seal Assy-Metal Bellow-To Fit Grasso Rc11
|
|
|
14. |
|
RC11 |

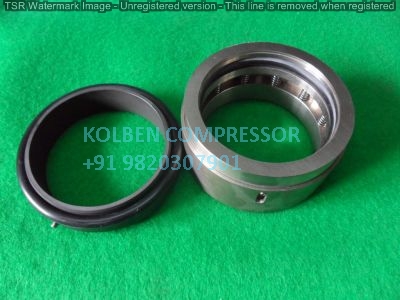

962086 |
Shaft Seal Assy 85.0-To Fit Grasso Rc11
|
|
|
15. |
|
RC11 |
962910 |

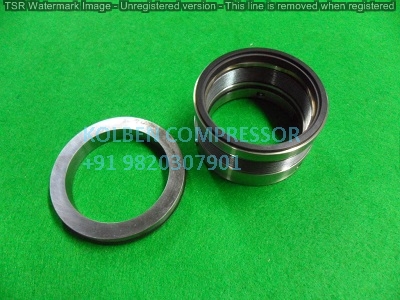

Shaft Seal Assy-Metal Bellow-To Fit Grasso
|
|
|
16. |
|
RC11 |
1.8 |
Thrust Ring-Steel 120X100X8-To Fit Grasso Rc11
|
|
|
17. |
|
RC11 |

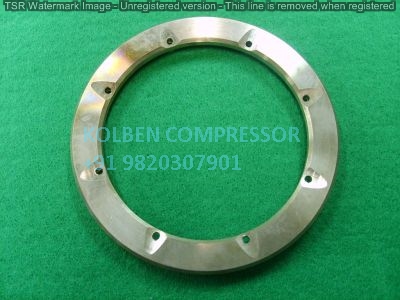

1168969 |
Thrust Ring-Bronze 125.5X96.0X9.4-To Fit Grasso Rc11
|
|
|
18. |
|
RC11 |

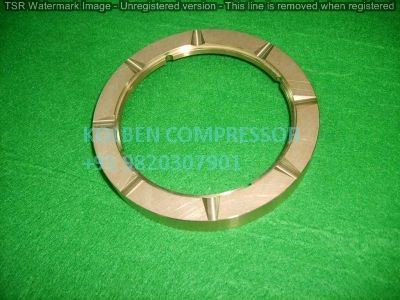

1168970 |
Thrust Ring-Bronze 126.0X96.2X16.0-To Fit Grasso Rc11
|
|
|
19. |
|
RC11 |
2038032 |
Suction Valve And Spring Set(For 1 Cylinder)-To Fit Grasso Rc11
|
|
|
20. |
|
RC11 |
2038031 |
Discharge Valve And Spring Set(For 1 Cylinder)-To Fit Grasso Rc11
|
|
|
21. |
|
RC11 |
1134040 |

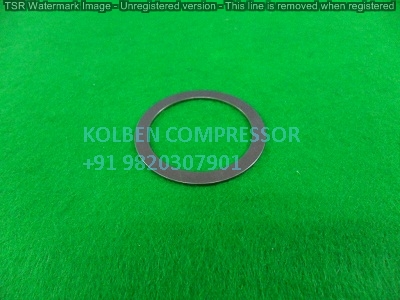

Valve Ring 50.9X40.1-To Fit Grasso Rc11
|
|
|
22. |
|
RC11 |
1133140 |
Sinusoidal Spring 50.5-To Fit Grasso Rc11
|
|
|
23. |
|
RC11, RC12 |
1134058 |

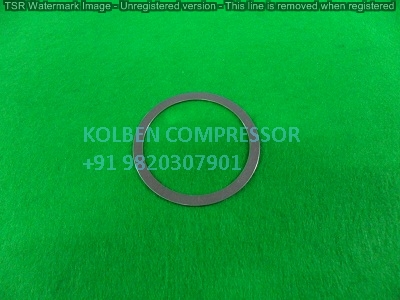

Valve Ring 68.9X58.1-To Fit Grasso Rc11,12
|
|
|
24. |
|
RC11, RC12 |
1133158 |
Discharge Sinusoidal Spring 68.5-To Fit Grasso Rc11,12
|
|
|
25. |
|
RC11, RC12 |
1134076 |

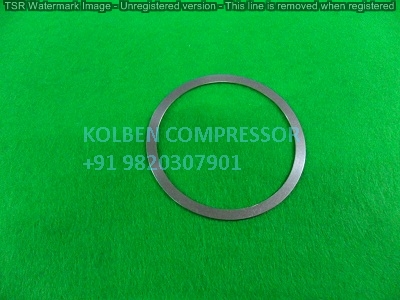

Valve Ring 87.0X76.1-To Fit Grasso Rc11,12
|
|
|
26. |
|
RC11, RC12 |
1133176 |
Sinusoidal Spring,Discharge 86.6-To Fit Grasso Rc11,12
|
|
|
27. |
|
RC11, RC12 |

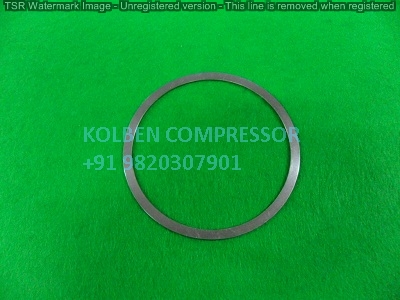

1134094 |
Discharge Valve Ring 104.8X94.1-To Fit Grasso Rc11,12
|
|
|
28. |
|
RC11, RC12 |
1133194 |
Discharge Sinusoidal Spring 104.4-To Fit Grasso Rc11,12
|
|
|
29. |
|
RC11, RC12 |

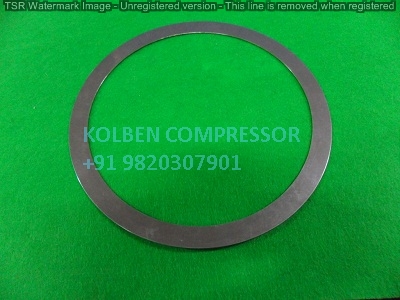

1134171 |
Suction Valve Ring 199.8X171.0-To Fit Grasso Rc11,12
|
|
|
30. |
|
RC11, RC12 |

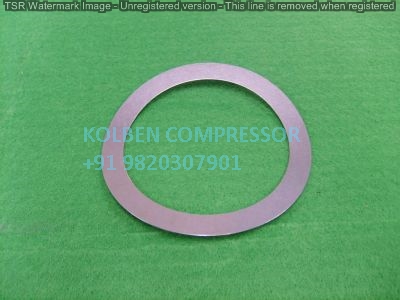

1133271 |
Suction Sinusoidal Spring 199.5-To Fit Grasso Rc11,12
|
|
|
31. |
|
RC11, RC12 |

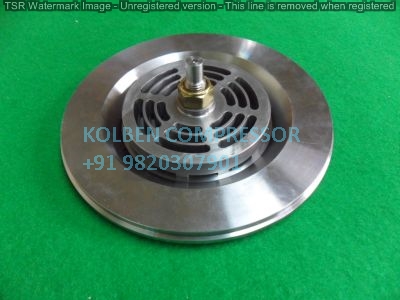

2719111 |
Discharge Valve Assy-To Fit Grasso Rc11,12
|
|
|
32. |
|
RC11 |

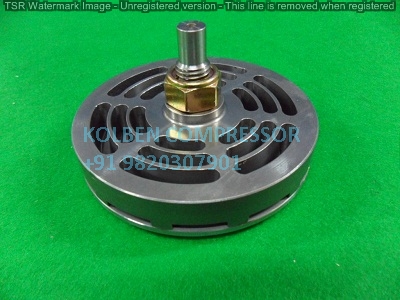

2719110 |
Discharge Valve Assy-To Fit Grasso Rc11
|
|
|
33. |
|
RC11, RC12 |

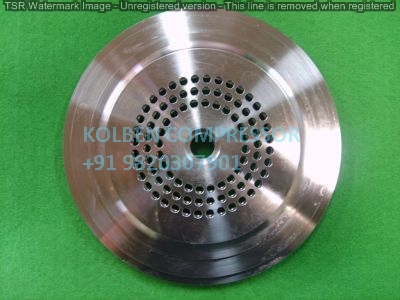

2718265 |
Valve Seat-To Fit Grasso Rc11,12
|
|
|
34. |
|
RC11, RC12 |

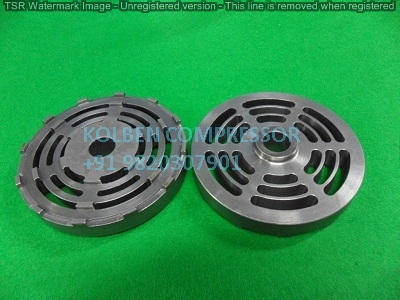

2718360 |
Stroke Limitor Discharge Valve-To Fit Grasso Rc11,12
|
|
|
35. |
|
RC11 |

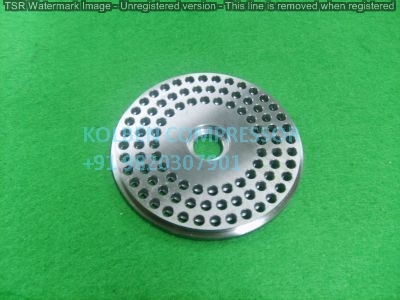

2718261 |
Valve Seat-To Fit Grasso Rc11
|
|
|
36. |
|
RC11, RC12 |

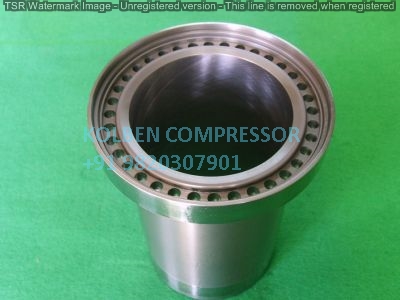

2318010 |
Cylinder Liner-Bare 160.0-To Fit Grasso Rc11,12
|
|
|
37. |
|
RC11 |

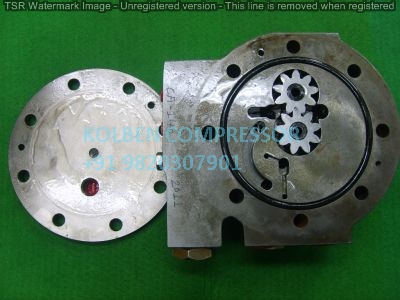

1810180 |
Oil Pump Complete-To Fit Grasso Rc11
|
|
|
38. |
|
RC11 , RC12 |

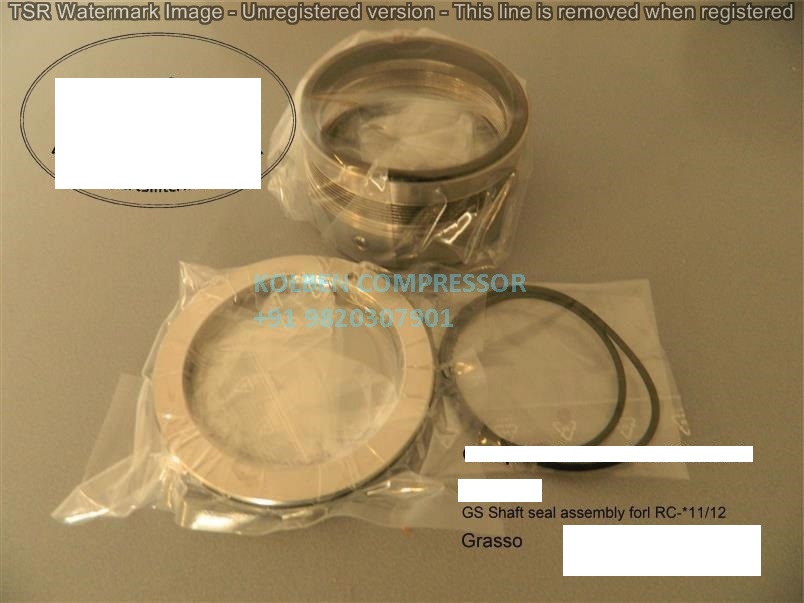

09-62-290 |
GS Shaft seal assembly forl RC-*11/12
|
|
|
39. |
|
RC11 |

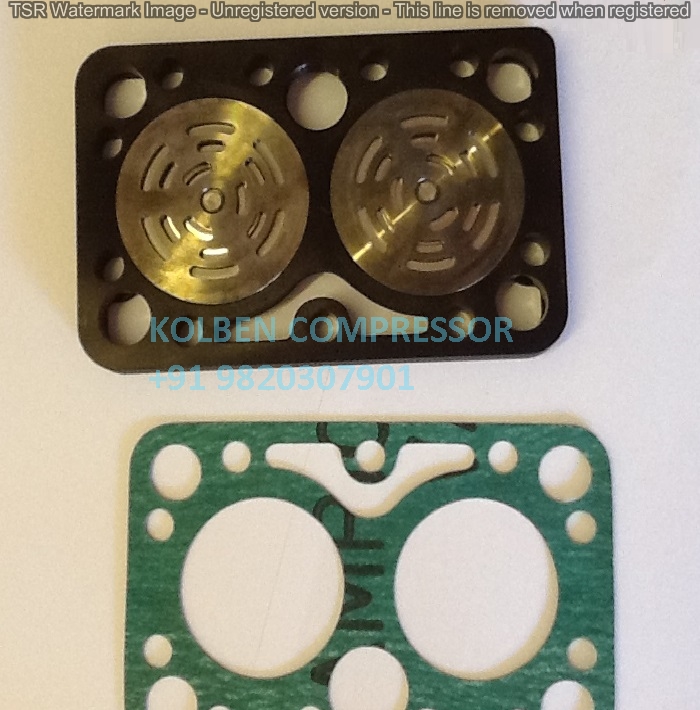

0 |
GS Valve ring suction model RC-*11
|
|
|
40. |
|
RC11 |
0 |
GS Valve spring suction (2) to fit RC-*11
|
|
|
41. |
|
RC11 |
0 |
GS Valve ring discharge (1) for RC-*11 58mm id
|
|
|
42. |
|
RC11 |
0 |
GS Valve ring discharge (1) for RC-*11 76mm id
|
|
|
43. |
|
RC11 |
0 |
GS Valve ring discharge (1) for RC-*11 94mm id
|
|
|
44. |
|
RC11 |
0 |
GS Valve spring discharge (2) for RC-*11 58mm id
|
|
|
45. |
|
RC11 |
0 |
GS Valve spring discharge (2) for RC-*11 76mm id
|
|
|
46. |
|
RC11 |
0 |
GS Valve spring discharge (2) for RC-*11 94mm id
|
|
