Sr. No. |
Image |
Model |
OEM Part No. |
Description |
|
|
1. |
|
5F |
5F20-482 |
Piston(Cast Iron)+Pin 63.45(Std)X 38.0X2/2Xhole-To Fit Carrier 5F20,5F30,5F40,5F60
|
|
|

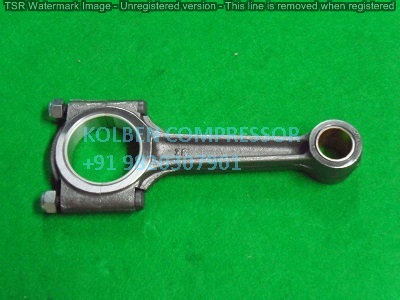

2. |
|
5F |
5F20103 |
Conrod(Ci) With Bearing Half 44.5(41.35)X99.9(101.65)X19.0-Std-To Fit Carrier 5F20,5F30,5F40,5F60
|
|
|
3. |
|
5F |
5F201002 |
Bearing Half(Pair) 16.56X1.58-To Fit Carrier 5F20,5F30,5F40
|
|
|
4. |
|
5F |
5F201071 |
Piston Ring Set(4Pcs) 63.5-2P2.36/2Oil3.93-To Fit Carrier 5F20,5F30,5F40,5F60
|
|
|
5. |
|
5F, 5F20 |
05HG660004 |
Crankshaft-To Fit Carrier 5F20
|
|
|
6. |
|
5F, 5F30 |
05HG660005 |
Crankshaft-To Fit Carrier 5F30
|
|
|
7. |
|
5F, 5F40 |
5F40114 |
Crankshaft-To Fit Carrier 5F40
|
|
|
8. |
|
5F, 5F60 |
5F60114 |
Crankshaft 41.2X41.2(3+3)X52.4 -To Fit Carrier 5F60
|
|
|

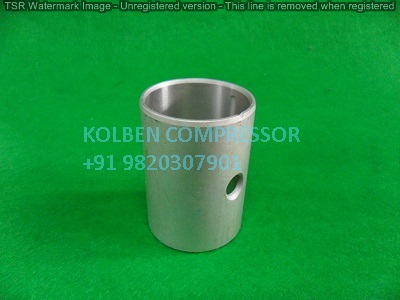

9. |
|
5F |
5F401022 |
Main Bearing,Pump End 46.1X41.4(Std)X63.5-1Hole-To Fit Carrier 5F20,5F30,5F40,5F60
|
|
|
10. |
|
5F, 5F20 |
5F201012 |
Bearing,Seal End Main 46.1X41.4X44.4-1Hole-To Fit Carrier 5F20,5F30
|
|
|
11. |
|
5F, 5F40, 5F60 |
5F401012 |
Bearing,Seal End Main 57.2X52.5X63.5-To Fit Carrier 5F40,5F60
|
|
|
12. |
|
5F, 5F40, 5F60 |
|
Main Bearing,Seal End 57.2X52.5(Std)X63.5-1Hole-To Fit Carrier 5F40,5F60
|
|
|
13. |
|
5F |
5F201022 |
Main Bearing,Pump End-To Fit Carrier 5F20,5F30
|
|
|
14. |
|
5F |
5F301012 |
Bearing,Seal End Main-To Fit Carrier 5F20,5F30
|
|
|
15. |
|
5F, 5F20, 5F30 |
5F20676 |
Shaft Seal Assy With Cover Plate 25.4(1Inch)-To Fit Carrier 5F20,5F30
|
|
|
16. |
|
5F, 5F40, 5F60 |
17-44145-00 |
Shaft Seal Assy 38.1(1.5Inch) With Cover Plate-To Fit Carrier 5F40,5F60,05G41,05G37
|
|
|

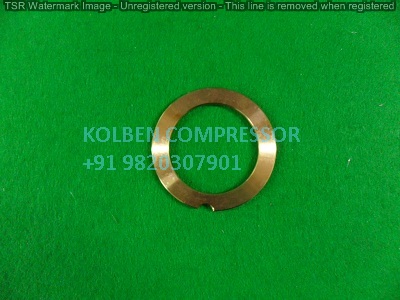

17. |
|
5F |
5F201741 |
Thrust Washer-Bronze,Pump End 63.7X46.0X3.3-To Fit Carrier 5F20,5F30,5F40,5F60
|
|
|
18. |
|
5F, 5F40, 5F60 |
5F401761 |
Thrust Washer-Steel,Seal End 85.5X52.4X4.0-To Fit Carrier 5F40,5F60
|
|
|
19. |
|
5F, 5F40, 5F60 |
5F401751 |
Thrust Washer-Bronze,Seal End 85.8X57.2X3.4-To Fit Carrier 5F40,5F60
|
|
|
20. |
|
5F, 5F20, 5F30 |
5F201761 |
Thurst Washer-Steel-To Fit Carrier 5F20,5F30
|
|
|
21. |
|
5F |
5F201132 |
Discharge Valve 59.5X42.0-To Fit Carrier 5F
|
|
|
22. |
|
5F |
5F201142 |
Suction Valve 83.1X66.6-To Fit[Place] Carrier 5F
|
|
|
23. |
|
5F, 5F40, 5F60 |
5F40120 |
Valve Plate Assy Without Gasket-To Fit Carrier 5F40,5F60
|
|
|
24. |
|
5F, 5F40, 5F60 |
5F401093 |
Cylinder Head Gasket 234.0-To Fit Carrier 5F40,5F60
|
|
|
25. |
|
5F, 5F40, 5F60 |
5F401083 |
Valve Plate Gasket 231.5X86.7-To Fit Carrier 5F40,5F60
|
|
|
26. |
|
5F, 5F20, 5F30 |
5F20120 |
Valve Plate Assy Without Gasket-To Fit Carrier 5F20,5F30
|
|
|
27. |
|
5F, 5F20, 5F30 |
5F201093 |
Cylinder Head Gasket 139.5-To Fit Carrier 5F20,5F30
|
|
|
28. |
|
5F, 5F20, 5F30 |
5F201083 |
Valve Plate Gasket 137.6X87.1-To Fit Carrier 5F20,5F30
|
|
|

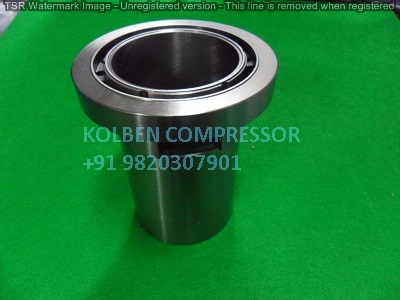

29. |
|
5F |
5F301003 |
Sleeve,Liner 63.5-To Fit Carrier 5F20,5F30,5F40,5F60
|
|
|

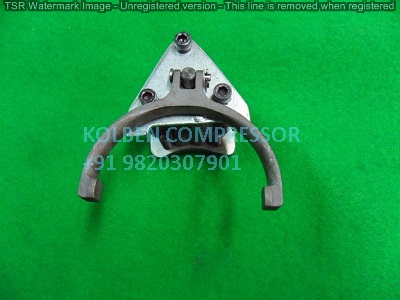

30. |
|
5F |
5F20153 |
Unloader Power Element Assy-To Fit Carrier 5F20,5F30,5F40,5F60
|
|
|
31. |
|
5F, 5F20, 5F30 |
5F202653 |
Screen Assy,Oil Filter-To Fit Carrier 5F20,5F30
|
|
|
32. |
|
5F, 5F40, 5F60 |
5F40237 |
Oil Filter Screen Package-To Fit Carrier 5F40,5F60
|
|
|
33. |
|
5F, 5F20 |
5F20132 |
Strainer Assy.Suction-To Fit Carrier 5F20
|
|
|
34. |
|
5F, 5F30 |
5F30132 |
Strainer Assy.Suction-To Fit Carrier 5F30
|
|
|
35. |
|
5F, 5F40 |
5F40132 |
Strainer Assy.Suction-To Fit Carrier 5F40
|
|
|
36. |
|
5F, 5F60 |
5F60132 |
Strainer Assy.Suction-To Fit Carrier 5F60
|
|
|
37. |
|
5F, 5F20, 5F30, 5F40, 5F60 |
5F60677 |
Oil Pump Assy And Bearing Head-To Fit Carrier 5F60
|
|
|
38. |
|
5F, 5F20, 5F30, 5F40, 5F60 |
5F20A272 |
Oil Pump Assy-To Fit Carrier 5F20,5F30,5F40
|
|
|
39. |
|
5F, 5F20 |
|
Gasket Set-To Fit Carrier 5F20
|
|
|
40. |
|
5F, 5F30 |
|
Gasket Set-To Fit Carrier 5F30
|
|
|
41. |
|
5F, 5F40 |
|
Gasket Set-To Fit Carrier 5F40
|
|
|
42. |
|
5F, 5F60 |
|
Gasket Set-To Fit Carrier 5F60
|
|
Manufacturers of CARRIER COMPRESSOR PARTS
|
|
|
