Sr. No. |
Image |
Model |
OEM Part No. |
Description |
|
|
1. |
|

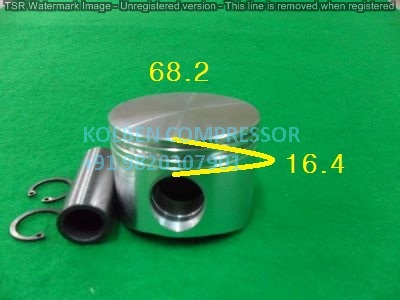

06E, 06ER275 |
06EA660025 |
Piston(Flat Top)+Pin 68.2(Std)X16.4Xp1.58Xuc2.35X222537 -To Fit Carrier 06Er275
|
|
|

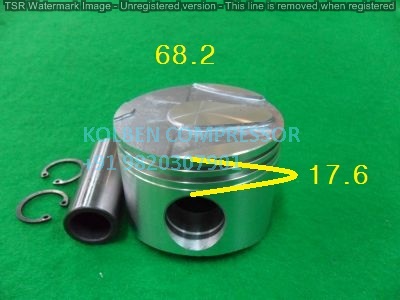

2. |
|
06E, 06E299 |
06EA660109 |
Piston(2 Step)+Pin 68.2(Std)X17.6Xp1.58Xuc2.38X 222537 -To Fit Carrier 06E250,06E265, 06E275,06E299,06Ea199
|
|
|
3. |
|
06E |
|
Piston - Pin 22.2X53.7-To Fit Carrier
|
|
|

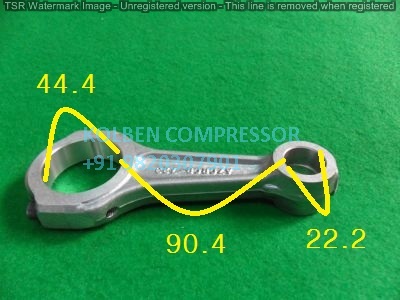

4. |
|
06E, 06E275 |
06EA660034 |
Conrod 44.4(Std)X90.4(Std)X22.2-To Fit Carrier 06E250,06E265,06E275
|
|
|
5. |
|
06E, 06E275 |
|
Conrod 44.4(+0.010,+0.25Mm)-To Fit Carrier 06E250,06E265,06E275
|
|
|
6. |
|
06E, 06E275 |
|
Conrod 44.4(+0.020,+0.50Mm)-To Fit Carrier 06E250,06E265,06E275
|
|
|

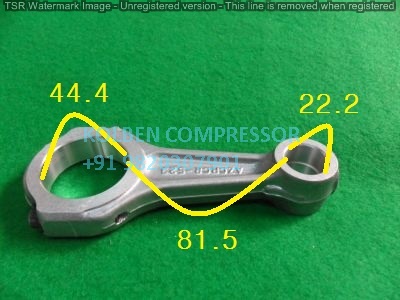

7. |
|
06E, 06E299 |
06EA660026 |
Conrod 44.4(Std)X81.5(Std)X22.2-To Fit Carrier 06E199,06Cc
|
|
|
8. |
|
06E, 06E299 |
|
Conrod 44.4(+0.010,+0.25Mm)-To Fit Carrier 06E299,06E199,06Cc
|
|
|
9. |
|
06E, 06E299 |
|
Conrod 44.4(+0.020,+0.50Mm)-To Fit Carrier 06E299,06E199,06Cc
|
|
|

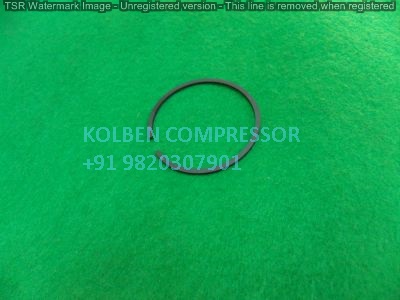

10. |
|
06E |
06EA500321 |
Piston Ring (2-11/16)68.2(Std)-P1.58-To Fit Carrier 06E,06Cc
|
|
|
11. |
|
06E |
06EA500331 |
Piston Ring (2-11/16)68.2(Std)-Uc2.38-To Fit Carrier 06E,06Cc
|
|
|
12. |
|
06E |
|
Discharge Reed 62.5X49.3X0.5-To Fit Carrier 06Er299
|
|
|

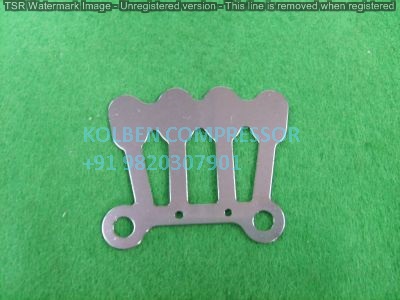

13. |
|
06E |
06EA504914 |
Discharge Reed 62.5X54.0X0.6-To Fit Carrier 06E
|
|
|

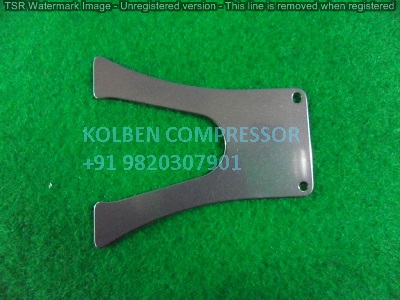

14. |
|
06E |
06DA501563 |
Suction Reed Backer 60.0X54.3X0.6-To Fit Carrier 06E,06Cc,06E275
|
|
|

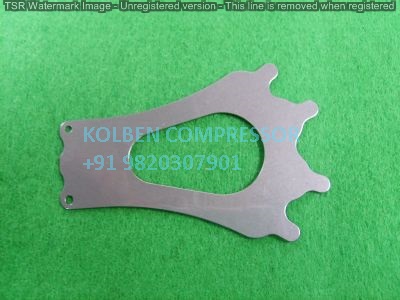

15. |
|
06E |
06EA660104 |
Suction Reed 91.5X63.8X0.6-To Fit Carrier
|
|
|

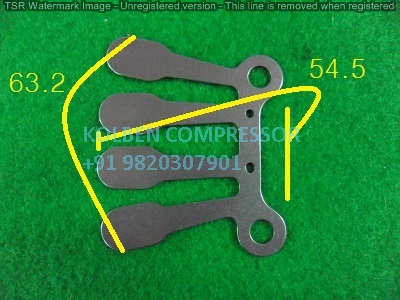

16. |
|
06E |
06EA506344 |
Discharge Reed 63.2X54.5X0.6-To Fit Carrier 06Er299H.F
|
|
|

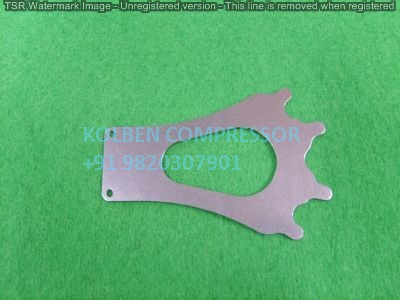

17. |
|
06E |
06EA500923 |
Suction Reed 91.5X63.8X0.8-To Fit Carrier 06E150,06E199,06E299
|
|
|

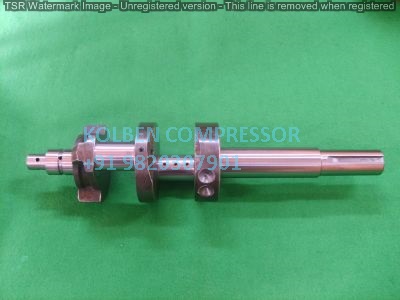

18. |
|
06E, 06EA299 |
06EA402043 |
Crankshaft 25.4X41.3X44.5(3+3)X47.6 X41.2-To Fit Carrier 06Ea299
|
|
|

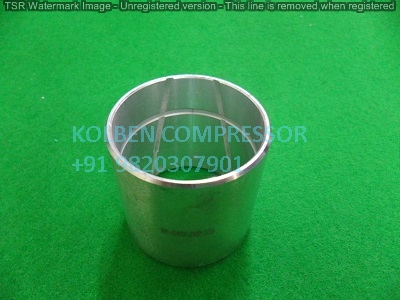

19. |
|
06E |
06EA500362 |
Bearing Bush Set(2Pcs) 52.4X47.8(Std)X50.8-To Fit Carrier 06E250,06E266,06E275,06E299, 06Cc899,06Cc550,06Cc675, 06Cc665
|
|
|
20. |
|
06E |
|
Pump End 52.4X47.8X50.8-To Fit Carrier 06E299
|
|
|

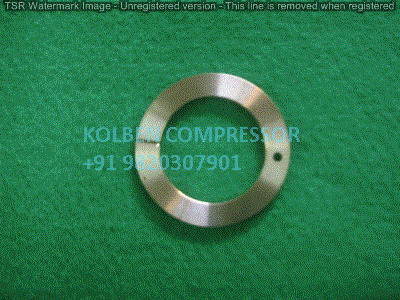

21. |
|
06E |
06EA500101 |
Thrust Washer-Bronze,Motor End 76.1X52.5X3.9-To Fit Carrier 06E250,06E265,06E275,06E299
|
|
|

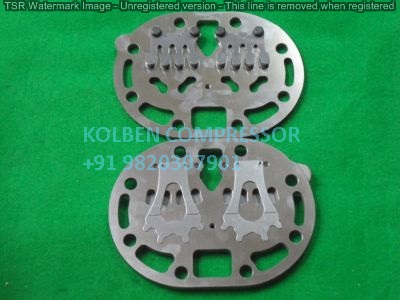

22. |
|
06E |
06EA660137 |
Valve Plate Assy Without Gasket- 8Hole-Load-To Fit Carrier 06E250, 06E265,06E275,06E299,06Cc
|
|
|

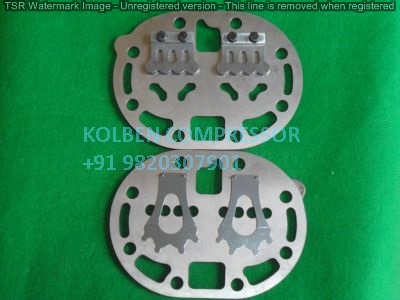

23. |
|
06E |
06EA660137old |
Valve Plate Assy Without Gasket-To Fit Carrier 06E
|
|
|

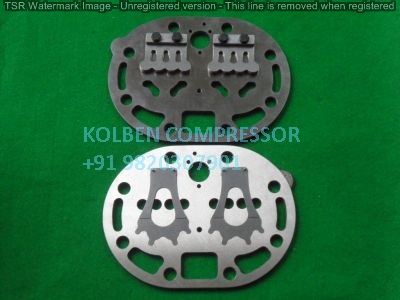

24. |
|
06E |
06EA660106 |
Valve Plate Assy Without Gasket-Loading-2 Step-To Fit Carrier 06E
|
|
|
25. |
|

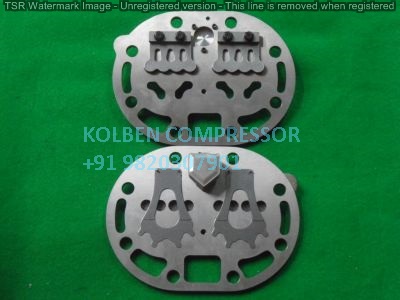

06E |
06EA660105 |
Valve Plate Assy(Hgbp) Without Gasket-To Fit Carrier 06E
|
|
|

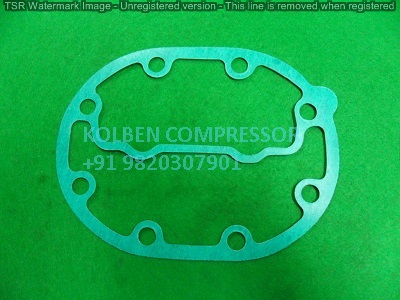

26. |
|
06E |
06EA500-204 |
Head Gasket 176.0-To Fit Carrier 6E
|
|
|
27. |
|
06E |
|
Head Gaske Unloading(Suction Cut-Off Design) 175.0-To Fit Carrier 06E
|
|
|

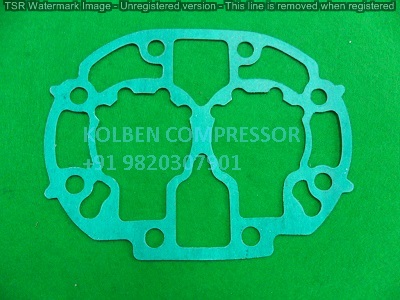

28. |
|
06E |
06EA500933 |
Valve Plate Gasket 176.0X70.0-To Fit Carrier 6E
|
|
|

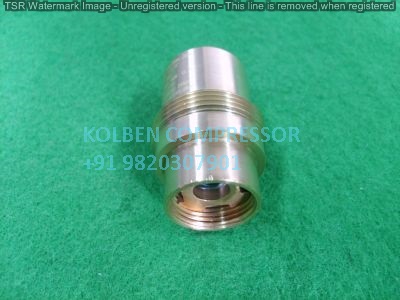

29. |
|
06E |
EB51FN272 |
Relief Valve-400 Psi-To Fit Carrier 06E
|
|
|

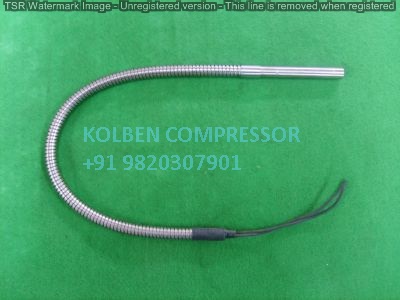

30. |
|
06E |
06EA660166 |
Crankcase Heater 240Volt-180Watt-To Fit Carrier 06E
|
|
|

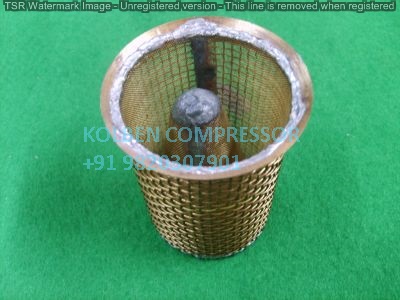

31. |
|
06E |
06EA400252 |
Suction Screen 67.5X56.7X87.2-To Fit Carrier 06E
|
|
|

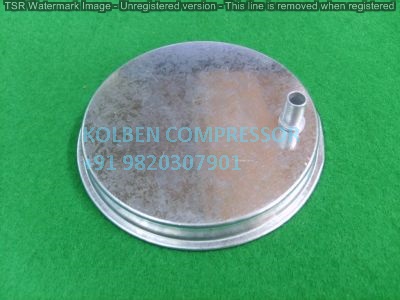

32. |
|
06D, 06E, 06CC |
174002000 |
Oil Screen-To Fit Carrier 06E299,05D,05G,06Cc
|
|
|
33. |
|

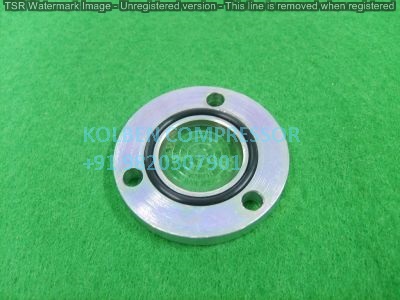

06E |
KM39BN010 |
Oil Sight Glass 59.7X7.3-To Fit Carrier 06E
|
|
|
34. |
|

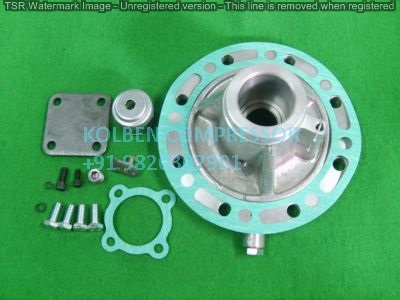

06E |
06EA660157 |
Oil Pump Kit-Std-To Fit Carrier 06E
|
|
|
35. |
|
06E |
PTFE |
CA Bearing crankcase and motor side (std) to fit models 06E
|
|
|
36. |
|

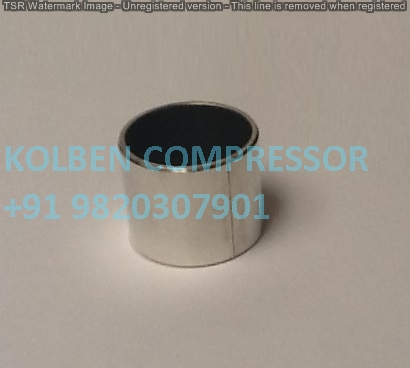

06E |
White metal |
CA Bearing crank-side (-.020" u/size) to fit 06E
|
|
|
37. |
|
06E |
White metal |
CA Bearing motor-side (-.020"u/size) to fit 06E
|
|
|
38. |
|
06E, 06E299 |
06EA-660-026 |
CA Con-rod (standard) for models 06E*099/199/299
|
|
|

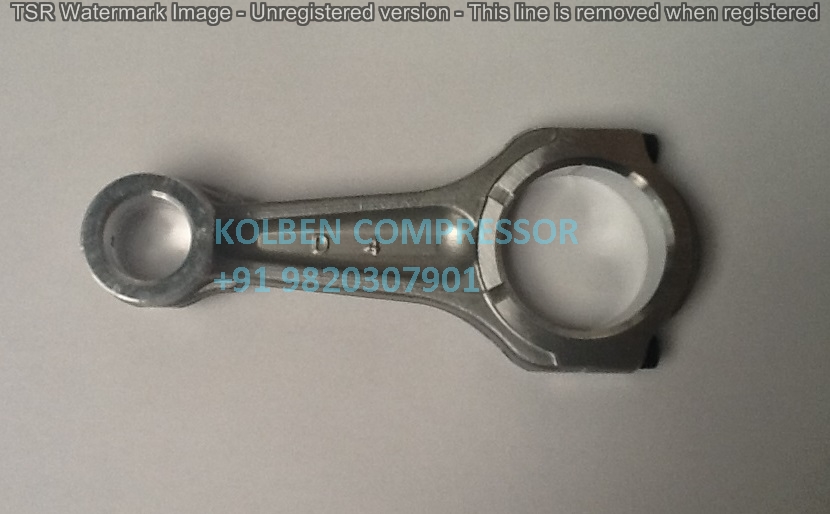

39. |
|
06E, 06E299 |
06EA-660-086-S2 |
CA Con-rod (-.020"u/size) for models 06E*099/199/299
|
|
|

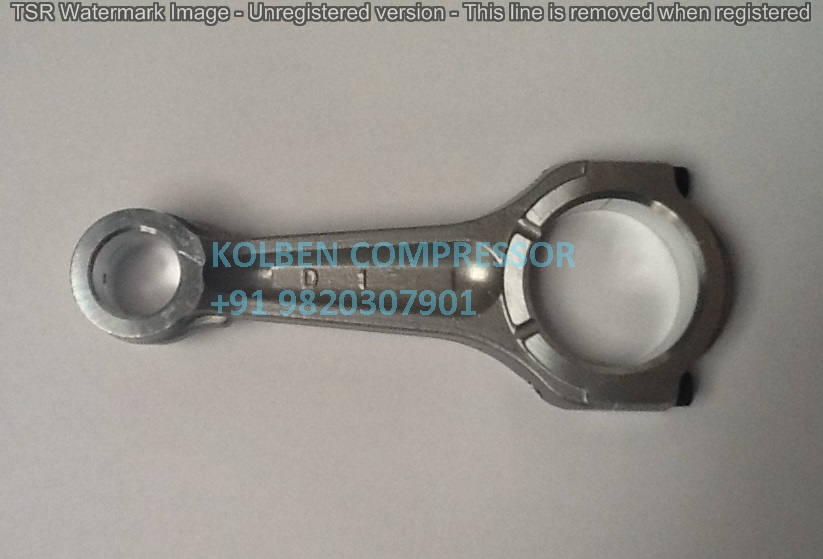

40. |
|
06E, 06E275 |
06EA-660-034 |
CA Con-rod (standard) for models 06E*150/250/175/275
|
|
|
41. |
|
06E,06E275 |
06EA-660-085-S2 |
CA Con-rod (-.020"u/size) for models 06E*150/250/175/275
|
|
|
42. |
|
06D , 06E |
|
CA Filter (oil) for models 06D/E
|
|
|
43. |
|
06E |
06EA-660-071 |
CA Gasket set for models 06E-A/M-Metal VP gkt
|
|
|
44. |
|
06E |
|
CA Gasket set for models 06E-A/M-Fibre VP gkt
|
|
|
45. |
|
06E |
|
CA Gasket set for models 06E-R
|
|
|
46. |
|
06E |

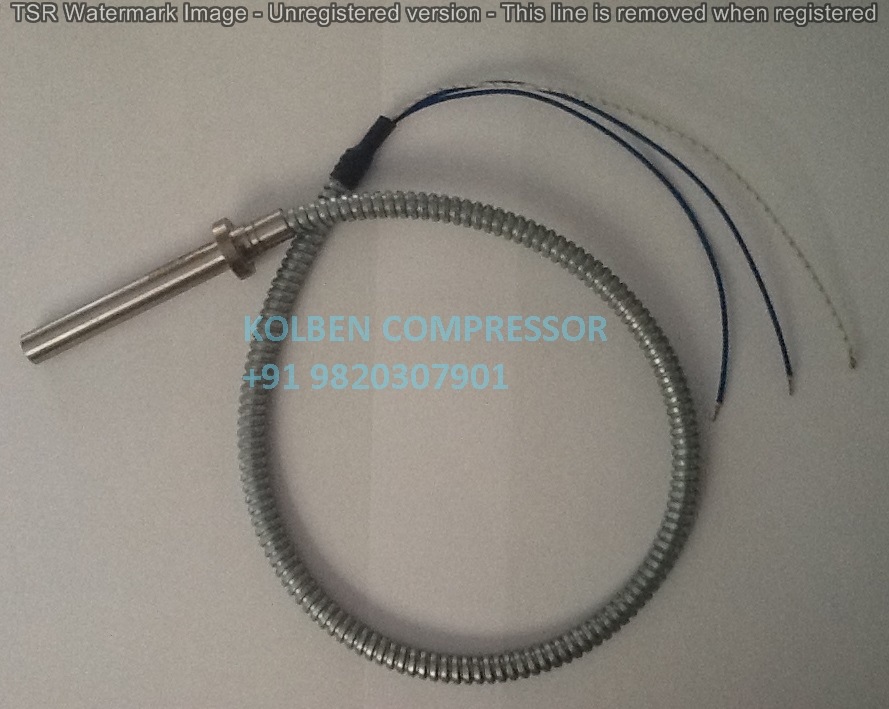

06EA-660-166 |
CA Heater (240v/200W) for models 06D/O6E
|
|
|
47. |
|
06E |

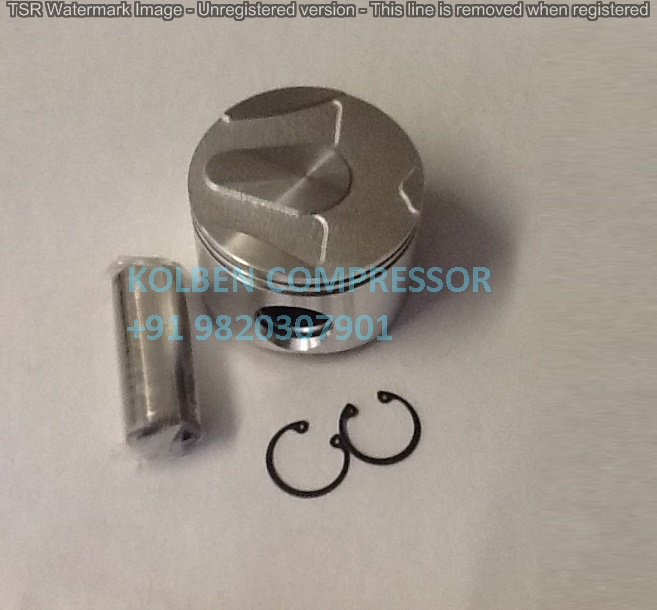

06EA-660-109 |
CA Piston & pin (standard contour top) for 06E-A/M 50/*75/*99
|
|
|

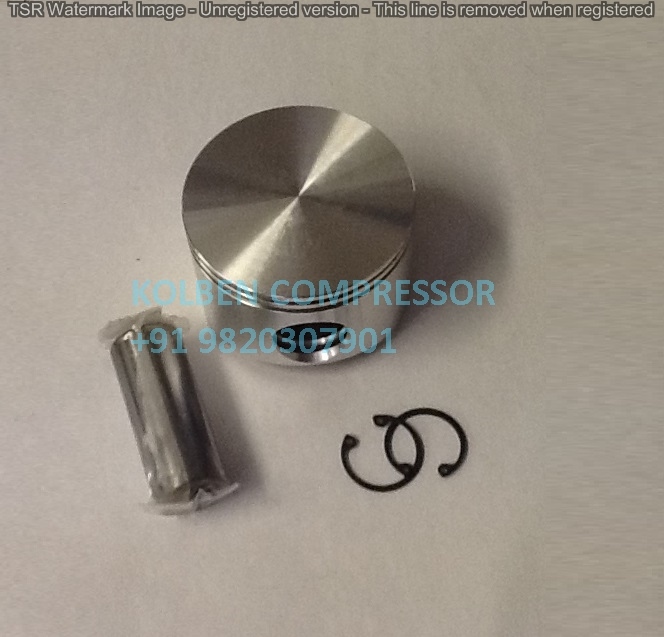

48. |
|
06E |
06EA-660-025 |
CA Piston & pin (standard flat top) for 06E-A/M 50/75/99
|
|
|

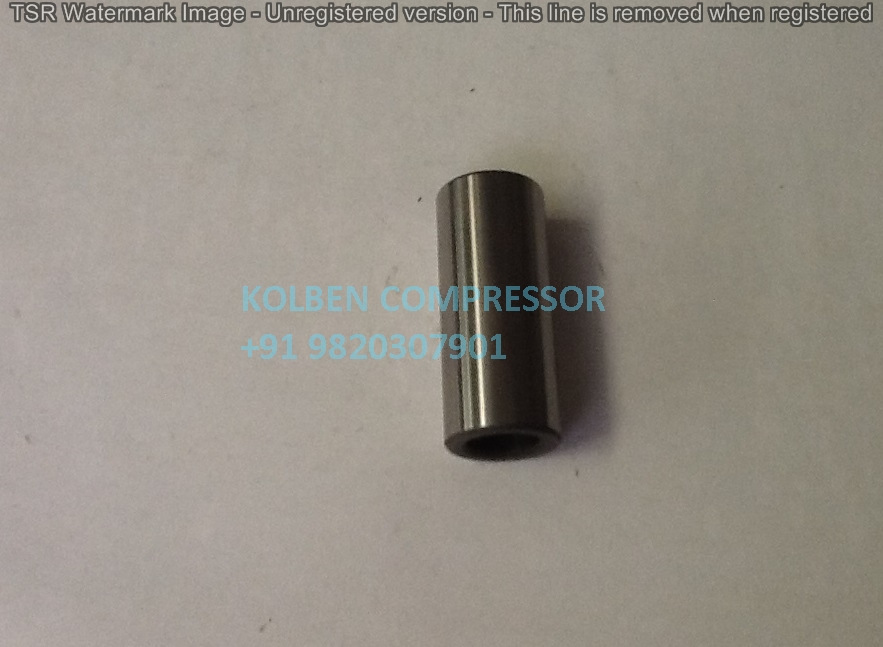

49. |
|
06E |
06EA-500-111 |
CA Piston pin for models 06E
|
|
|

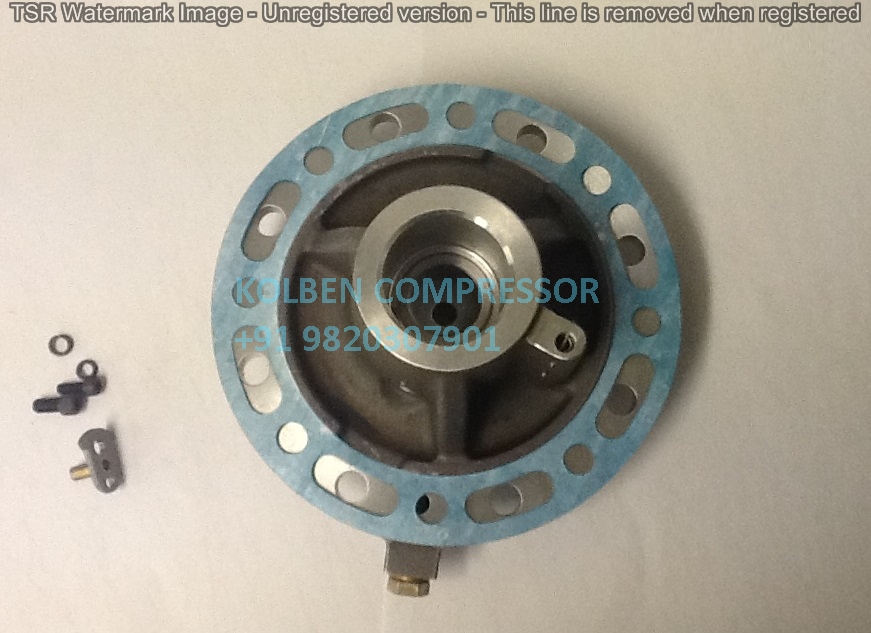

50. |
|
06E |
06EA-660-157 |
CA Pump & bearing housing for models 06E
|
|
|

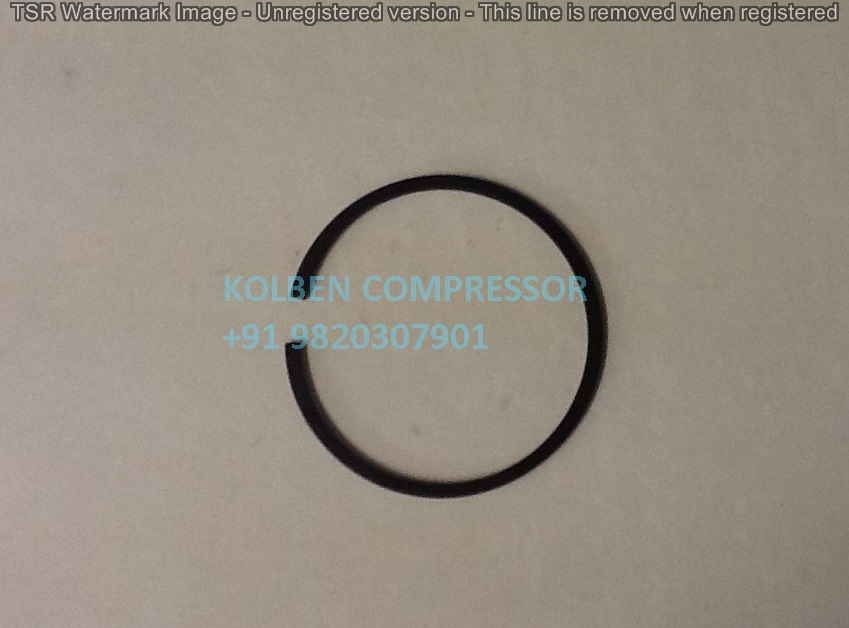

51. |
|
06E |
06EA-500-321 |
CA Ring compression (standard) for models 06E
|
|
|
52. |
|
06E |

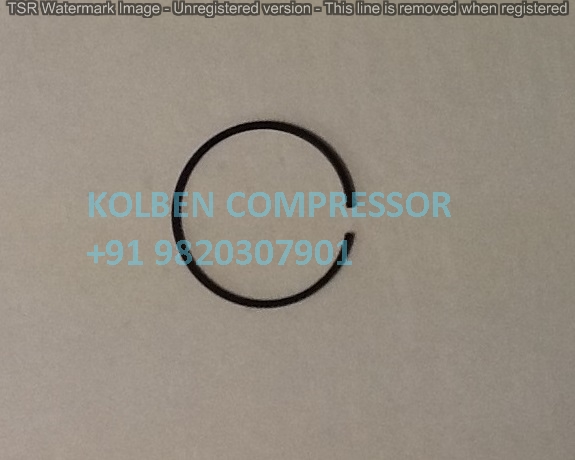

06EA-500-331 |
CA Ring oil scraper (standard) for models 06E
|
|
|

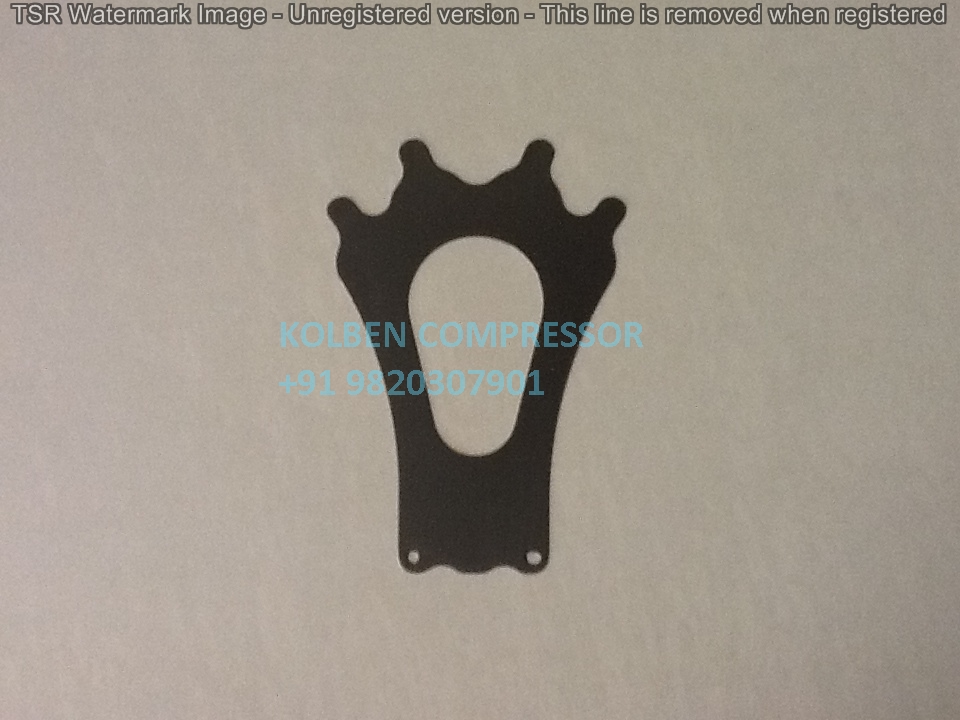

53. |
|
06E |
06EA-500-153 |
CA Valve reed suction for models 06E
|
|
|
54. |
|
06E |

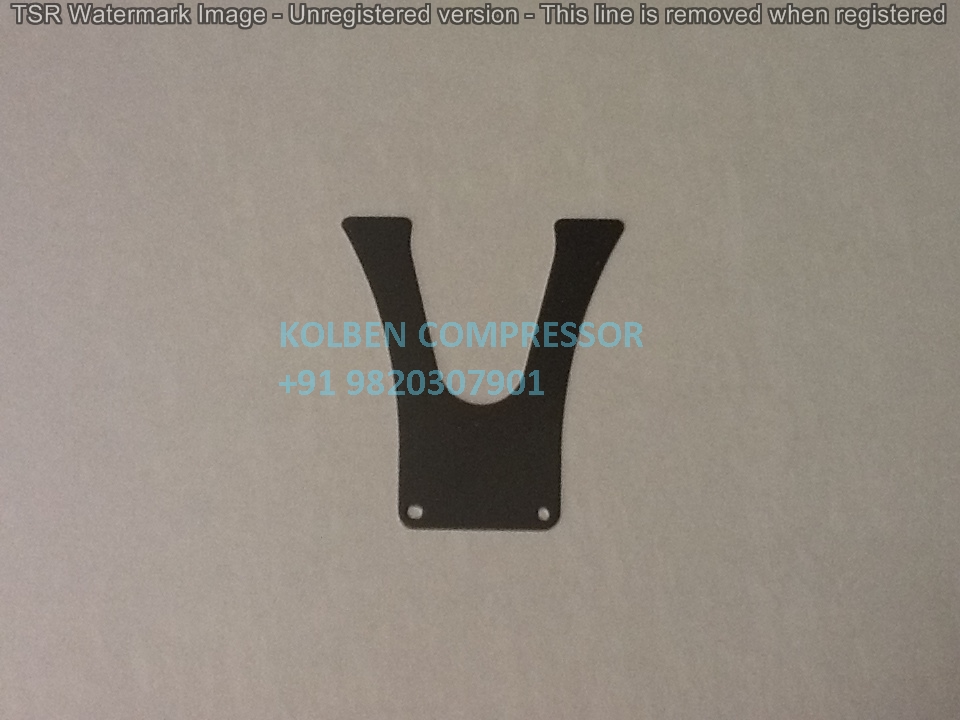

06EA-501-563 |
CA Valve reed suction backer for models 06E
|
|
|

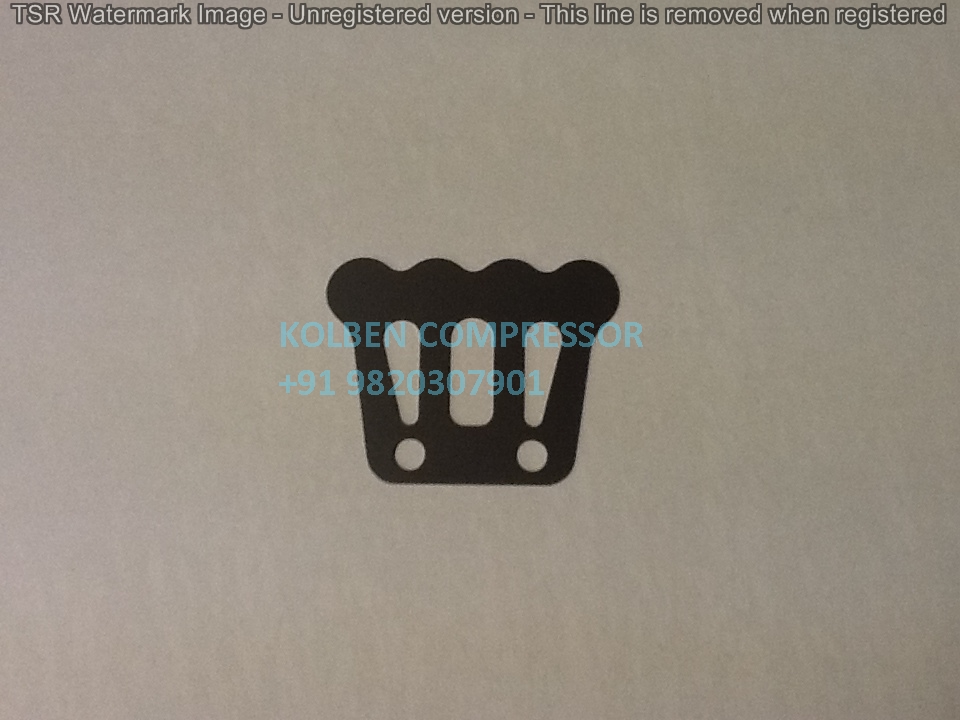

55. |
|
06E |
06EA-501-363 |
CA Valve reed discharge (standard) for models 06E
|
|
|

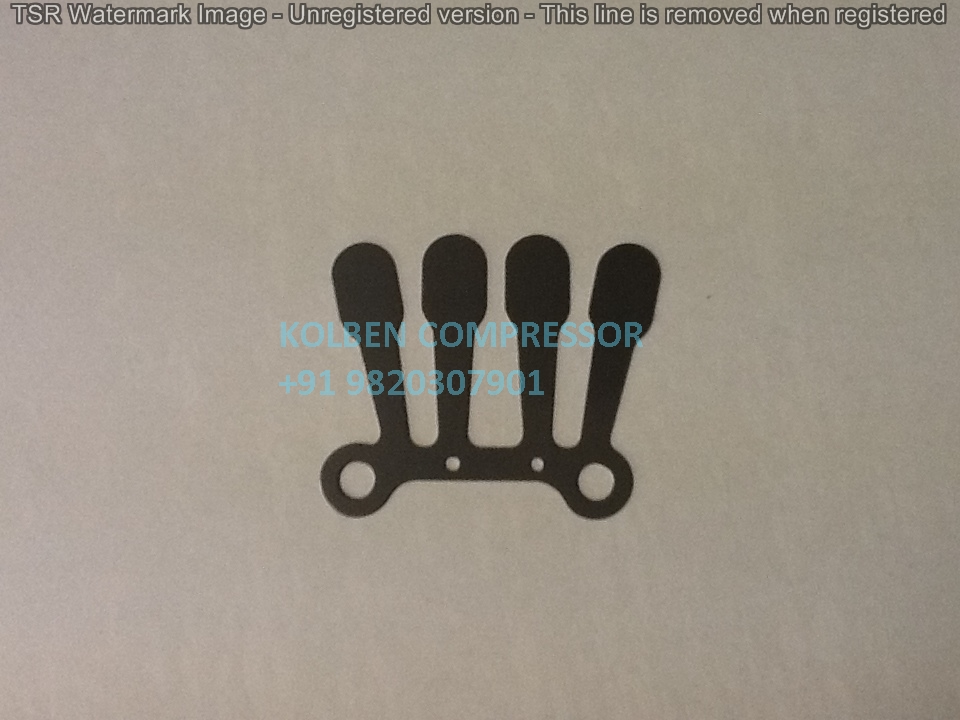

56. |
|
06E |
06EA-504-914 |
CA Valve reed discharge (high-efficiency) for models 06E
|
|
|

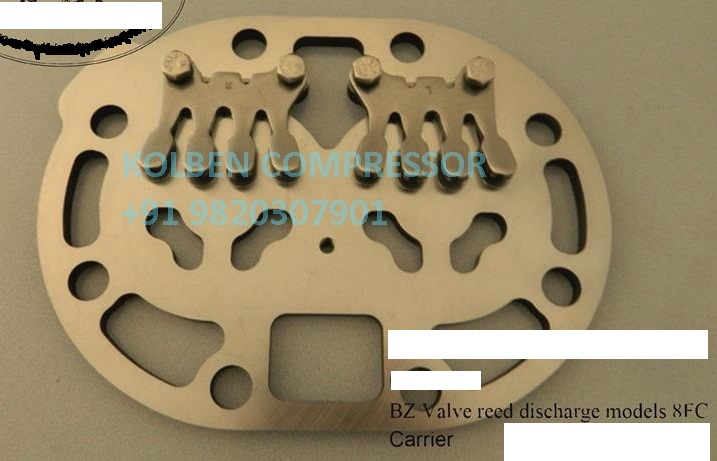

57. |
|
06E |
06EA-660-137 |
CA Valve plate assm (high efficiency) to fit 06E
|
|
