Sr. No. |
Image |
Model |
OEM Part No. |
Description |
|
|

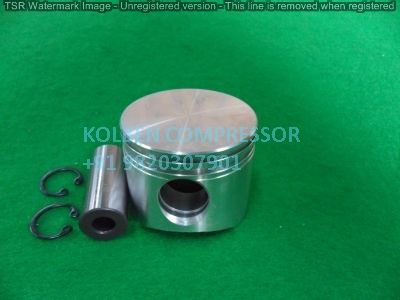

1. |
|
06D, 06D75 |
6D75181 |
Piston - Pin 50.8(Std)X11.7Xp1.58Xuc2.35X 174394-To Fit Carrier 06Cc337,06D137, 06Da1240,06D537,06D237
|
|
|
2. |
|
06D |
174005200 |
Piston - Pin 17.4X39.4-To Fit Carrier
|
|
|
3. |
|
06D, 06D75, 05K |
1740056-02 |

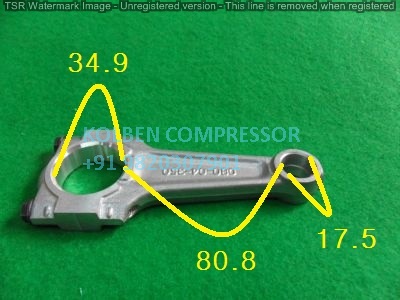

Conrod 34.9(Std)X80.8(Std)X17.5-To Fit Carrier 05G41,05K12,05K24, 05G37,06D228
|
|
|
4. |
|
06D, 06D75, 05K |
|
Conrod 34.9(-0.010,-0.25Mm)X80.8(+0.005,+0.12Mm)X17.5-To Fit Carrier 05G,06Dr
|
|
|
5. |
|
06D, 06D75, 05K |
|
Conrod 34.9(-0.020,-0.50Mm)-To Fit Carrier 05G,05K,06D75,06Dr228
|
|
|
6. |
|
06D, 06DA, 06D68, 06D67 |
6D681442 |
Conrod 56.0(Std)X52.7(Std)X17.5-To Fit Carrier 6Da,6D67
|
|
|
7. |
|
06D, 06DA, 06D68, 06D67 |
|
Conrod 56.0(+0.010Inch,+0.25Mm)X52.7(-0.005Inch,-0.12Mm)X17.5-To Fit Carrier 6Da,6D67
|
|
|
8. |
|
06D, 06DA, 06D68, 06D67 |
|
Conrod 56.0(+0.020Inch,+0.50Mm)X52.7(-0.010Inch,-0.25Mm)X17.5-To Fit Carrier 6Da,6D67
|
|
|
9. |
|
06D, 05G, 05K |
17-40055-00 |
Piston Ring (2.00)50.8(Std)-P1.58-To Fit Carrier 06D,05G,05K
|
|
|

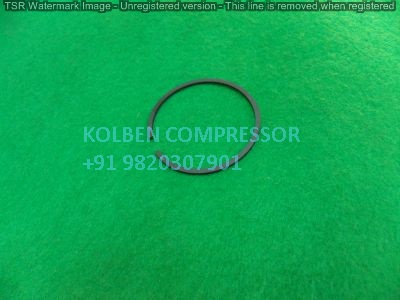

10. |
|
06D, 05G |
174005400 |
Piston Ring (2.00)50.8(Std)-Uc2.35-To Fit Carrier 06D,05G
|
|
|
11. |
|
06D |
|
Suction Reed 61.0X38.2X0.4-To Fit Carrier 06D,05G,05D,06Da718
|
|
|
12. |
|
06D |
|
Discharge Reed 43.5X36.0X0.4-To Fit Carrier 06D,05G,05K,06Dr537
|
|
|

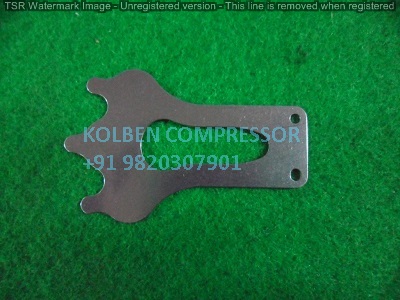

13. |
|
06D |
06DA502903 |
Suction Reed 61.3X39.2X0.4-To Fit Carrier 06Da,06Dr537 H.F
|
|
|
14. |
|
06D |
|
Discharge Reed 45.5X38.3X0.4-To Fit Carrier 06Da,06Dr537 H.F
|
|
|
15. |
|
06D, 06D75 |
|
Main Metal Bearing 46.1X41.3(-0.010,-0.25Mm)X38.1-To Fit Carrier 06D75
|
|
|
16. |
|
06D, 06D75 |
|
Main Metal Bearing 46.1X41.3(-0.020,-0.50Mm)X38.1-To Fit Carrier 06D75
|
|
|
17. |
|
06D, 06D75 |
|
Bearing Bush 46.1X41.3(Std)X38.1-To Fit Carrier 06D75,06Dr237
|
|
|
18. |
|
06D |

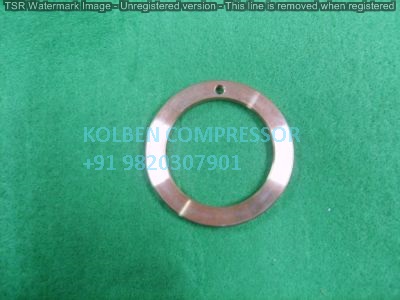

174005000 |
Thrust Washer-Bronze,Motor End 64.1X46.2X3.9-To Fit Carrier 05G,06D
|
|
|

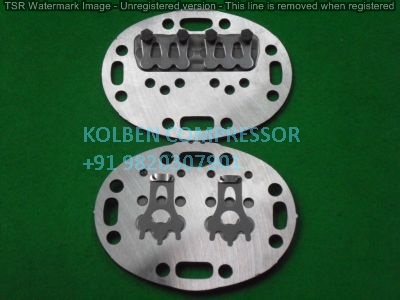

19. |
|
06D, 06DR, 05K |
17-44105-00 |
Valve Plate Assy Without Gasket-(Ref)-High Efficiency-To Fit Carrier 06Dr,05K
|
|
|

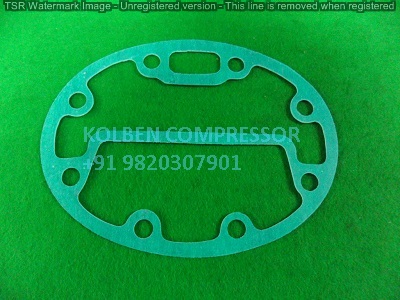

20. |
|
06D |
6D681053 |
Head Gasket 133.8-To Fit Carrier 06Dr241
|
|
|
21. |
|
06D |

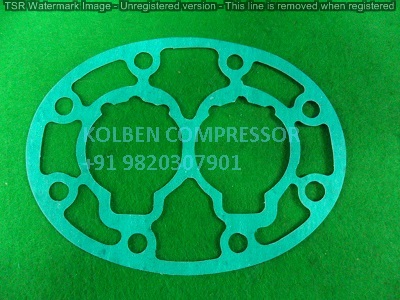

6D431073 |
Valve Plate Gasket 132.6X51.9-To Fit Carrier 06Dr241
|
|
|
22. |
|
06D |
06EA660108 |

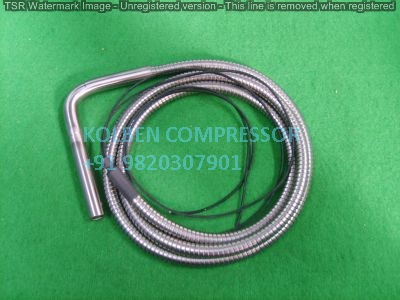

Crankcase Heater 240Volt-125Watt-To Fit Carrier 06D,06E
|
|
|
23. |
|
06D |
174009306 |

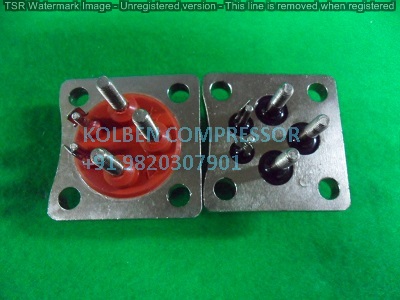

Terminal Kit, 5 Lead Fusite Terminal Plate-To Fit Carrier 06D
|
|
|
24. |
|
06D |

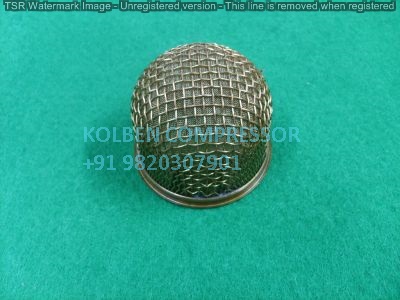

06DA402133 |
Suction Screen 61.9X55.8X52.0-To Fit Carrier 05G,05D,06D
|
|
|
25. |
|
06D, 06E, 06CC |
174002000 |
Oil Screen-To Fit Carrier 06E299,05D,05G,06Cc
|
|
|
26. |
|
06D |
172120100SV |
Oil Sight Glass-To Fit Carrier 06D,05D,05G
|
|
|
27. |
|
06D |

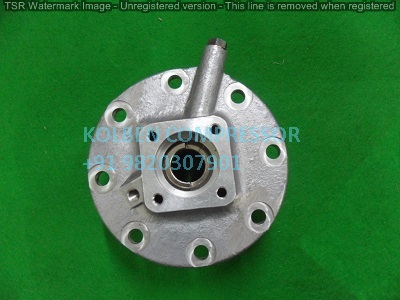

06DA660-126 |
Oil Pump Assy-Std-To Fit Carrier 06D537
|
|
|
28. |
|
06D |
|
Oil Pump-06D
|
|
|
29. |
|
06D, 6DR237, 6DR241 |
|
Gasket Set-To Fit Carrier 06Dr237(Container), 06Dr241(Container)
|
|
|
30. |
|
06D |

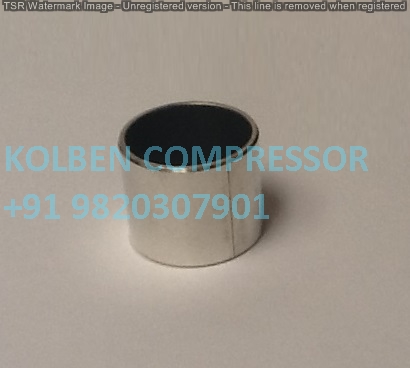

06DA-503-643 |
CA Bearing crankcase (std) to fit models 06D/Q 6-Cyl
|
|
|
31. |
|
06D |
PTFE |
CA Bearing crankcase (u/size-010") to fit models 06D/Q 6-Cyl
|
|
|
32. |
|
06D |
White metal |
CA Bearing crankcase (u/size-020") for models 06D/Q 6-Cyl
|
|
|
33. |
|
06D |
06DA-660-041 |

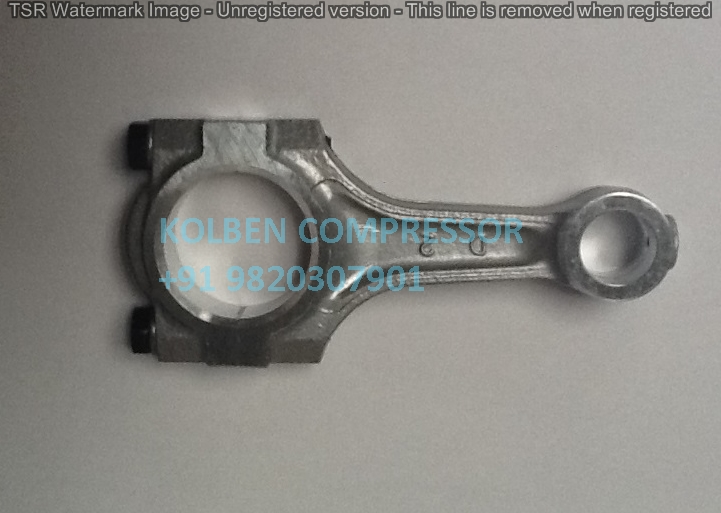

CA Con-rod (std) to fit models 06DA/M 318/518 (Split)
|
|
|
34. |
|
06D, 06D68 |
6D68-1442 |

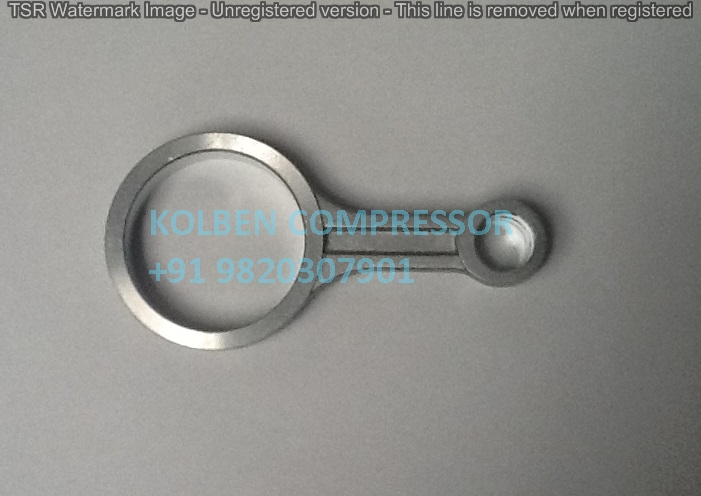

CA Con-rod (standard) for models 06DR724 & 06DA824
|
|
|
35. |
|
06D, 06D68 |
N/A |
CA Con-rod (-.020"u/size) for models 06DR724 & 06DA824
|
|
|
36. |
|
06D, 06DA |
06DA-660-042 |
CA Con-rod (standard) for models 06D*228/337/537 06Q-1515
|
|
|
37. |
|
06D, 06DA |
06DA-660-047 |
CA Con-rod (-.010" u/size) for models 06D*228/337/537
|
|
|
38. |
|
06D, 06DA |
N/A |
CA Con-rod (-.020"u/size) for models 06D*228/337/537
|
|
|
39. |
|
06D , 06E |
|
CA Filter (oil) for models 06D/E
|
|
|
40. |
|
06D |
6D43-172 |
CA Gasket set for models 06D 6cyl
|
|
|
41. |
|
06D, 06D68 |
6D68-0962 |

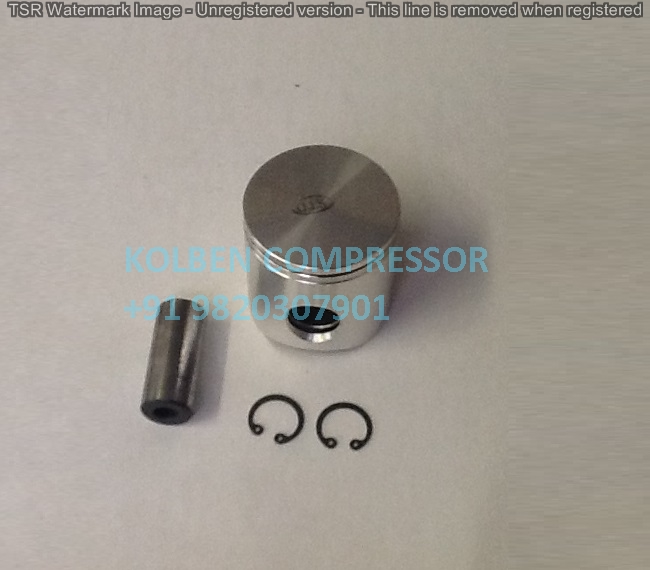

CA Piston & pin for models 06DM-316 &06DA-824
|
|
|
42. |
|
06D, 06D537 |

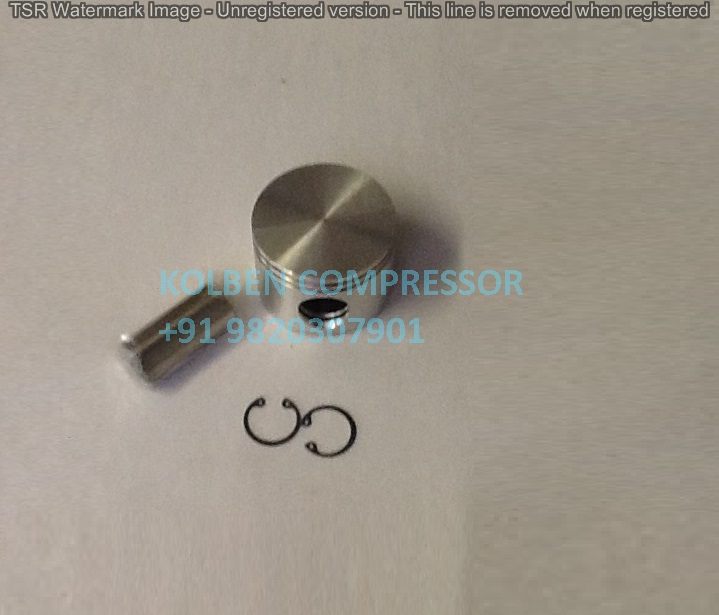

06DR-660-040 |
CA Piston & pin for models 06DM-337/537
|
|
|
43. |
|
06D, 06D75 |
6D75-181 |

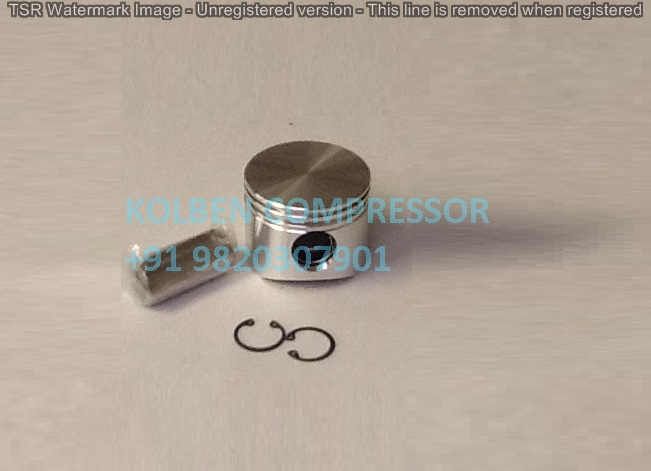

CA Piston & pin for models 06Q-0908 1512/1515
|
|
|
44. |
|
06D |

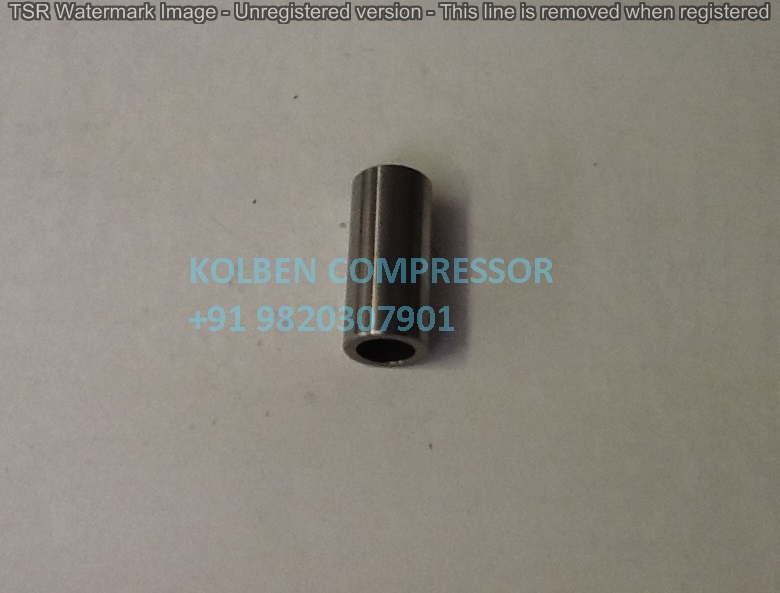

6D43-1661 |
CA Piston pin for models 06D/Q
|
|
|

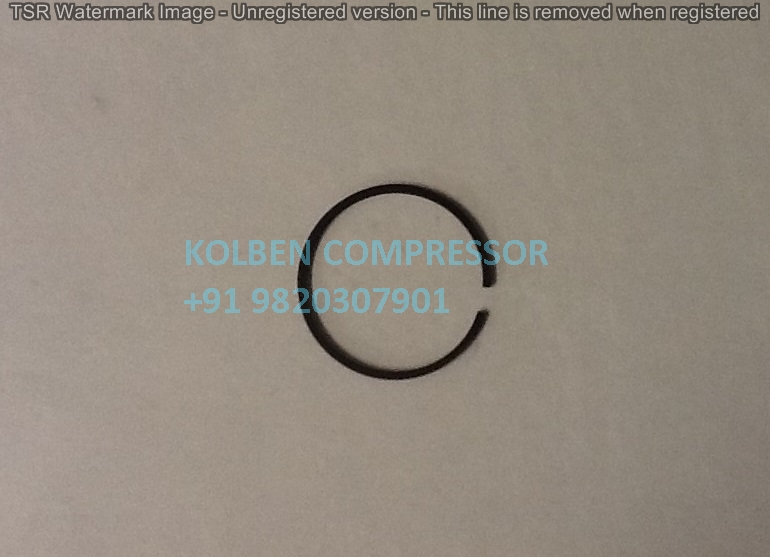

45. |
|
06D |
AU50CP-355 |
CA Ring compression (standard) for models 06D/Q
|
|
|
46. |
|
06D |

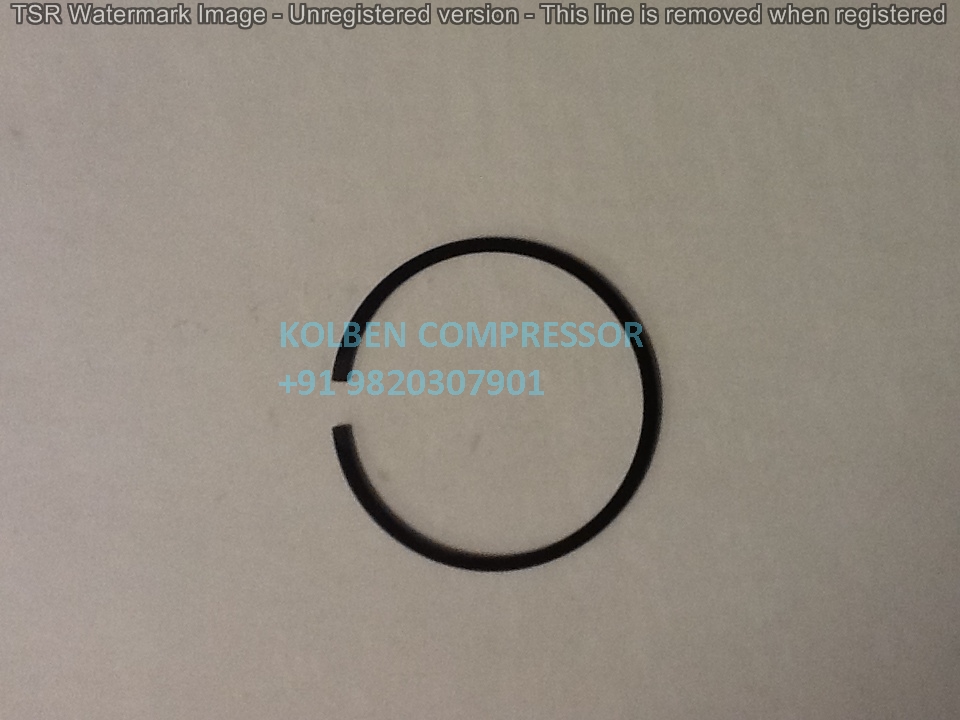

AU50CP-245 |
CA Ring oil scraper (standard) for models 06D/Q
|
|
|
47. |
|
06D48,06D |
6D48-1072 |

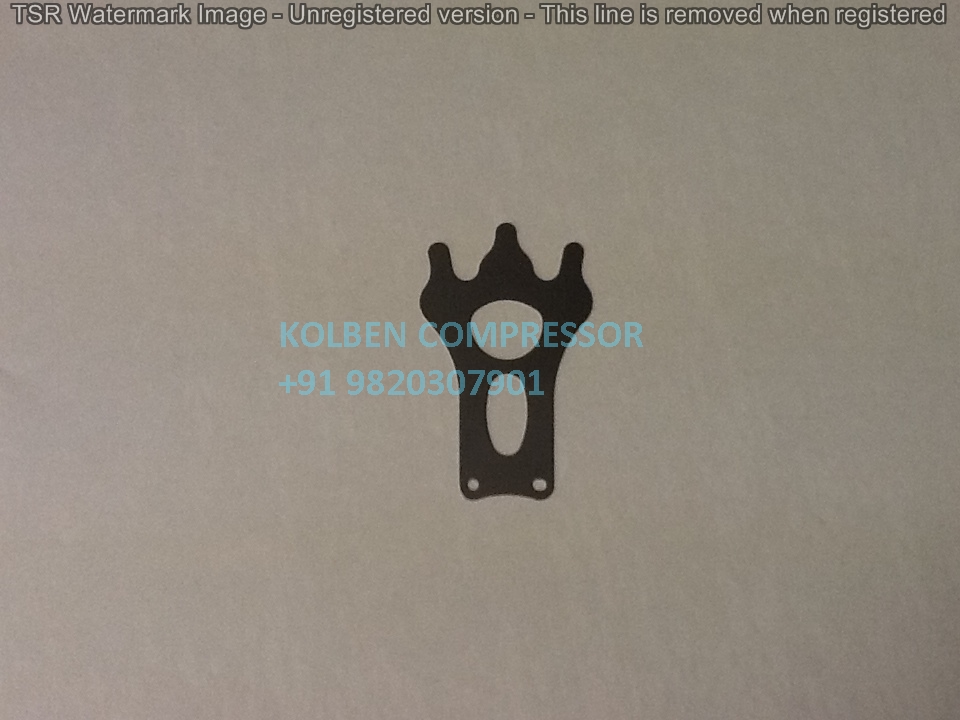

CA Valve reed suction (standard) for models 06D
|
|
|

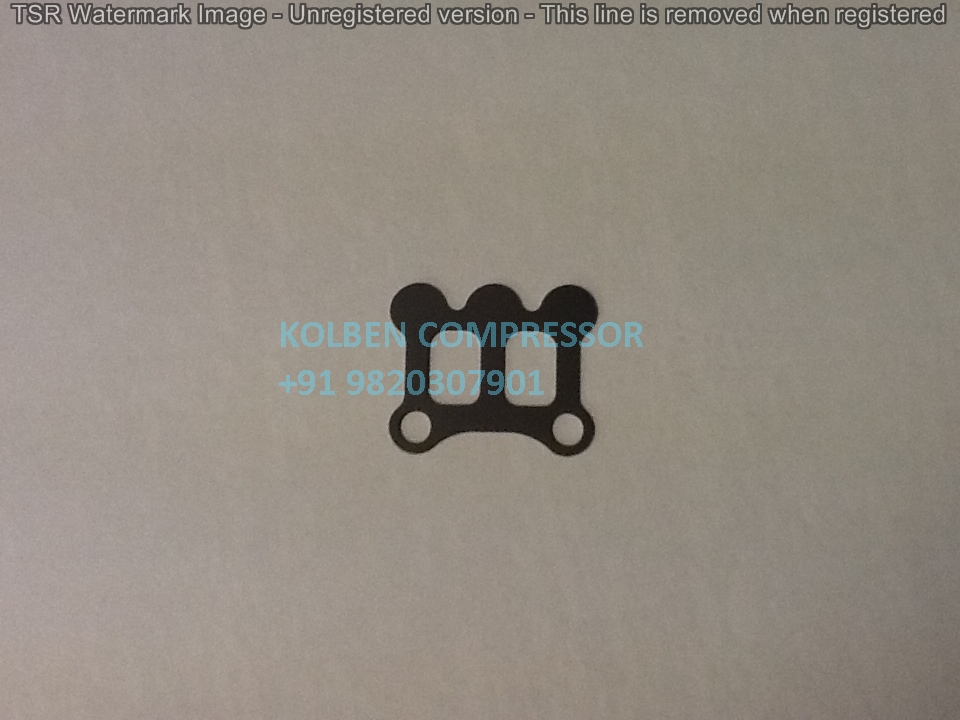

48. |
|
06D48,06D |
6D75-1062 |
CA Valve reed discharge (standard) for models 06D
|
|
|
49. |
|
06D, 06D75 |

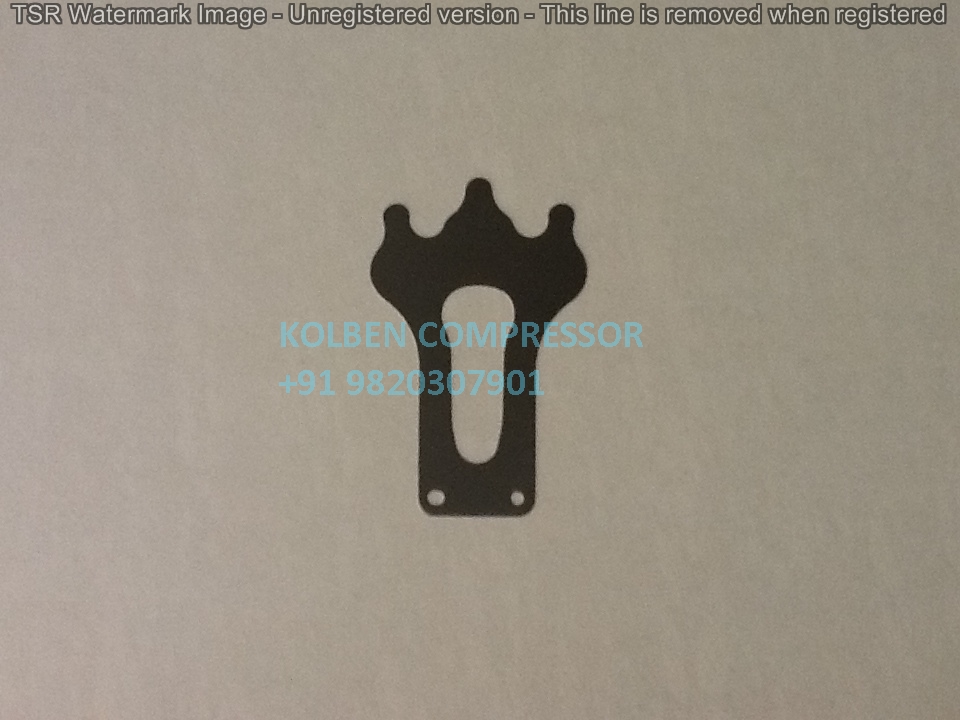

06DA-502-903 |
CA Valve reed suction (high-efficiency) for models 06D
|
|
|

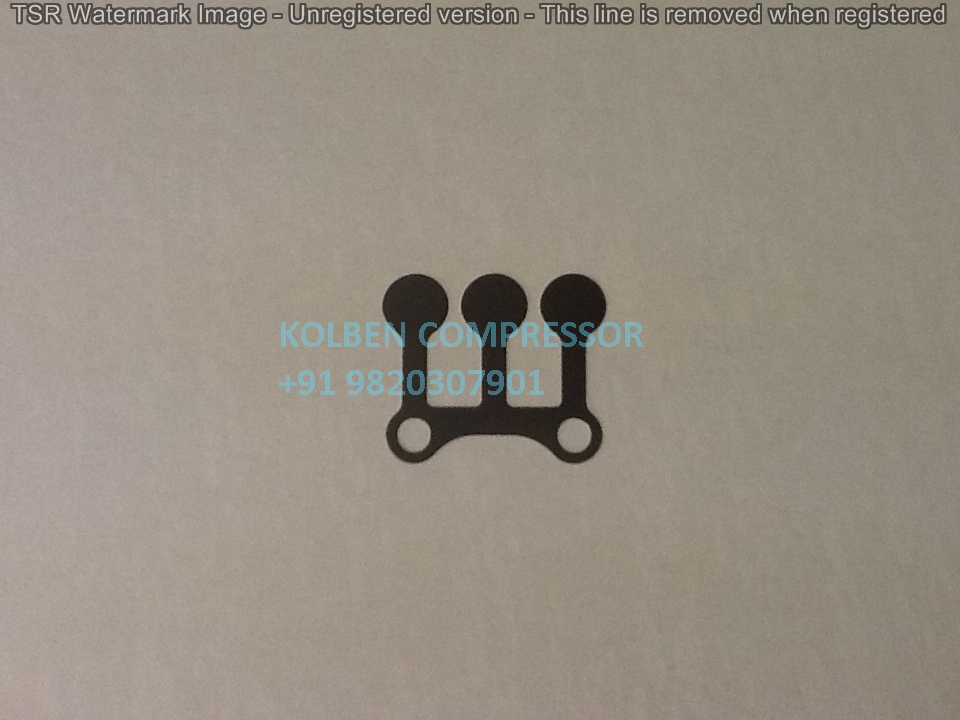

50. |
|
06D,06D75 |
06DA-502-913 |
CA Valve reed discharge (high efficiency) for models 06D
|
|
|
51. |
|
06D,06DA |
06DA-660-120 |
CA Valve plate assm (high efficiency) to fit 06D-A/M
|
|
|
52. |
|
06D,06DR |
06DA-660-094 |
CA Valve plate assm for models 06D-R
|
|
Manufacturers of CARRIER COMPRESSOR PARTS
|
|
|
