Sr. No.
Model
OEM Part No.
Description
1.
6G-40.2
311100-04
bearing bush Motor side Ø50 x Ø45 x 47,5 (31110004)
2.
6G-40.2
311100-05
bearing bush Crankcase side Ø50 x Ø45 x 47,5 (31110005)
3.
6G-40.2
320500-06
thrust washer Motor side Ø62 x Ø48 x 1,7 (32050006)
4.
6G-40.2
301007-16
crankshaft Stroke 55mm Ø45 x 603 (30100716)
5.
6G-40.2
366112-01
sealing screw conic DIN 906 M8 x 1 (36611201)

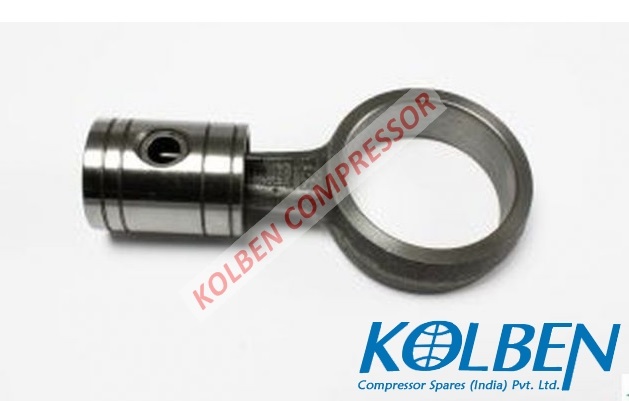

6.
6G-40.2
302297-40
connecting rod / piston Ø75 (30229740)

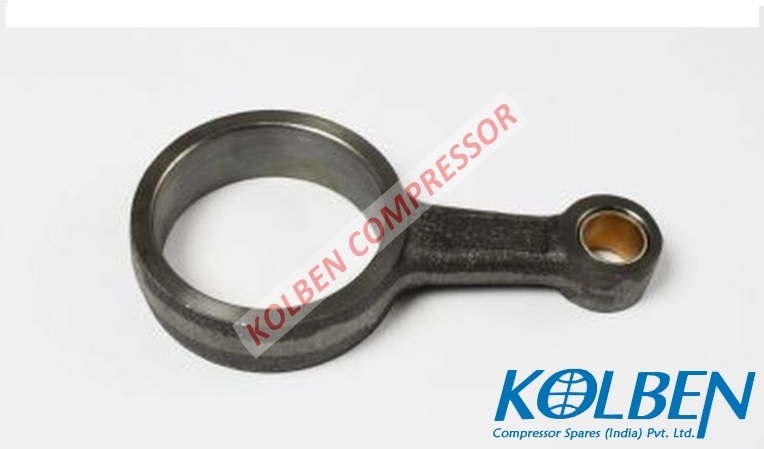

7.
6G-40.2
302115-50
connecting rod (30211550)
8.
6G-40.2
383021-11
clamping sleeve 10 x 0,75 x 29 (38302111)
9.
6G-40.2
382141-01
retaining ring with lugs spring steel DIN 6796 - FSt A8 (38214101)
10.
6G-40.2
380105-09
hexagon head screw DIN 933, 8.8 M8 x 45 (38010509)
11.
6G-40.2
311103-06
bearing bush connecting rod Ø23 x Ø19 x 22,5 (31110306)
12.
6G-40.2
302233-96
piston aluminium alloy Ø75 (30223396)
13.
6G-40.2
383401-06
wrist pin DIN 73126 Ø20 x Ø13 x 56 (38340106)
14.
6G-40.2
382231-04
retaining ring with lugs spring steel DIN 472 Ø20 x 1 (38223104)
15.
6G-40.2
382300-58
compression ring Piston diameter 74,96mm Ø75 x 1,5 (38230058)
16.
6G-40.2
382310-25
compression ring Piston diameter 74,96mm Ø75 x 1,5 (38231025)
17.
6G-40.2
372314-03
gasket bearing cover Ø182 x Ø133 x 1 (37231403)
18.
6G-40.2
305125-03
bearing cover complete inclusive oil pump (30512503)
19.
6G-40.2
361101-01
oil pressure relief valve SW17 x 29 (36110101)
20.
6G-40.2
382402-01
gasket ring aluminium DIN 7603 A10 x 15 x 1 (38240201)
21.
6G-40.2
320500-07
thrust washer oil pump side Ø62 x Ø48 x 1,7 (32050007)
22.
6G-40.2
380306-32
Cheese Head Screw bearing cover DIN 912, 10.9 DIN 912, 10.9 M10 x 30 (38030632)
23.
6G-40.2
372001-19
O-ring oil pump CR Ø74 x 2 (37200119)
24.
6G-40.2
380155-05
hexagon head screw oil pump DIN 933, 10.9 M8 x 20 (38015505)
25.
6G-40.2
380339-01
Hexsocket Cheese Head Screw ISO 4762, 10.9 - A2K M10 x 30 (38033901)
26.
6G-40.2
320314-01
fixing plate MP54 140 x 40 x 3 (32031401)
27.
6G-40.2
382002-01
washer brass DIN 125 A4, 3 (38200201)
28.
6G-40.2
382201-51
single coil spring washer spring steel galvanized DIN 127 A4, 3 (38220151)
29.
6G-40.2
380507-51
cheese head screw 4.8 galvanized M4 x 8 (38050751)
30.
6G-40.2
347319-11
differential oil pressure cut-out Delta-P II 230V-50/60Hz (34731911)
31.
6G-40.2
361500-22
Schrader valve (36150022)
32.
6G-40.2
312030-03
thrust collar Ø62 x 7 (31203003)
33.
6G-40.2
372001-13
O-ring CR Ø45 x 3 (37200113)
34.
6G-40.2
325900-02
spring washer Ø58,5 x Ø46 x 0,5 (32590002)
35.
6G-40.2
312006-05
ring spring washer Ø 42,1 x Ø 58 x 5 (31200605)
36.
6G-40.2
374027-03
shaft seal bearing bush (37402703)
37.
6G-40.2
384102-01
gib-headed key Stator steel DIN 6887 5 x 5 x 60 (38410201)
38.
6G-40.2
384001-24
parallel key steel DIN 6885 A12 x 8 x 125 (38400124)
39.
6G-40.2
320502-04
thrust washer steel Ø54 x Ø17 x 5 (32050204)
40.
6G-40.2
382150-04
thrust washer spring steel S16 (38215004)
41.
6G-40.2
380166-03
hexagon head screw coated DIN 933, 10.9 M16 x 40 (38016603)
42.
6G-40.2
325910-01
retaining ring with lugs spring steel Ø230 (32591001)
43.
6G-40.2
362004-02
suction gas filter Ø220 x 50 (36200402)
44.
6G-40.2
372315-03
gasket housing cover Ø286 x Ø236 x 0,38 (37231503)
45.
6G-40.2
305900-03
housing cover (30590003)
46.
6G-40.2
366110-02
Sealing Plug steel 1/4" - 18 NPTF (36611002)
47.
6G-40.2
380057-11
hexagon head screw housing cover DIN 931, 10.9 M12 x 150 (38005711)
48.
6G-40.2
380057-14
hexagon head screw housing cover DIN 931, 10.9 M12 x 180 (38005714)
49.
6G-40.2
372301-03
gasket suction shut-off valve Ø76 x Ø60 x 1 (37230103)
50.
6G-40.2
380009-53
hexagon head screw suction shut-off valve 8.8 galvanized DIN 931, 8.8 M16 x 100 (38000953)
51.
6G-40.2
361338-04
Shut-Off Valve suction side Ø54 (2 1/8") (36133804)
52.
6G-40.2
365321-03
Pipe Connection brazed and welding bush steel Ø54 (2 1/8") (36532103)
53.
6G-40.2
372303-02
Gasket Pipe connection Ø75 x Ø61 x 2 (37230302)
54.
6G-40.2
367121-02
Clamping Plate suction shut-off valve 110 x 110 (36712102)
55.
6G-40.2
380109-09
Hexagon Head Screw clamping plate DIN 933, 8.8 M16 x 55 (38010909)
56.
6G-40.2
375014-05
Protective Cap Span of the jaw: 36 Plastic - GRP M36 x 1,5 / L=67 mm (37501405)
57.
6G-40.2
366114-24
sealing screw with magnet oil drain inclusive O-Ring gasket M26 (36611424)
58.
6G-40.2
382403-04
Gasket Ring oil drain aluminium DIN 7603 A26 x 31 x 2 (38240304)
59.
6G-40.2
325000-34
pressure spring spring steel Ø23,5 x 28 x 1,8 (32500034)
60.
6G-40.2
362003-01
oil filter Ø20 x 200 (36200301)
61.
6G-40.2
360110-06
oil return system (36011006)
62.
6G-40.2
372003-15
O-ring sight glass CR Ø36,3 x 1,78 (37200315)
63.
6G-40.2
361802-02
sight glass steel / glass Ø67 x 8,5 (36180202)
64.
6G-40.2
380154-06
hexagon head screw DIN 933, 10.9 M6 x 20 (38015406)
65.
6G-40.2
366110-10
sealing plug oil equalising bore steel 1/2" - 14 NPTF (36611010)
66.
6G-40.2
366110-05
sealing plug gas equalising bore steel 3/4" - 14 NPTF (36611005)
67.
6G-40.2
372415-02
gasket bottom plate (37241502)
68.
6G-40.2
320307-04
bottom plate steel 270 x 360 x 12 (32030704)
69.
6G-40.2
380156-05
hexagon head screw bottom plate DIN 933, 10.9 M10 x 25 (38015605)
70.
6G-40.2
370004-01
vibration damper set Crankcase side spring brown Lo = 42 (37000401)
71.
6G-40.2
325002-01
damper element Crankcase side spring steel brown Lo=42 (32500201)
72.
6G-40.2
370004-03
vibration damper set Motor side spring blue Lo = 48 (37000403)
73.
6G-40.2
325002-03
damper element Motor side spring steel blue Lo=48 (32500203)
74.
6G-40.2
327309-01
foot 369 x 60 x 13 x Ø21 (32730901)
75.
6G-40.2
361110-01
gas equalising valve (36111001)
76.
6G-40.2
361100-21
pressure relief valve 34 bar 3/4" - 14 NPTF - p=34bar (36110021)
77.
6G-40.2
372704-01
Gasket blind flange 91 x 52 x 1 (37270401)
78.
6G-40.2
367015-15
blind flange steel 91 x 52 x 13. Bo. 1/8" NPTF (36701515)
79.
6G-40.2
380156-06
hexagon head screw blind flange coated DIN 933, 10.9 M10 x 30 (38015606)
80.
6G-40.2
380306-23
Cheese Head Screw discharge shut-off valve DIN 912, 10.9 M10 x 25 (38030623)
81.
6G-40.2
361311-02
shut-off valve Discharge side brazing and welding bush Ø35 (1 3/8") - 1 3/4" (36131102)
82.
6G-40.2
367023-01
flange steel 91 x 48 x 52, 1 3/4" (36702301)
83.
6G-40.2
372200-04
gasket teflon Ø38 x Ø35 x 1,5 (37220004)
84.
6G-40.2
366000-07
pipe connection discharge shut-off valve steel copper-plated brazed connection Ø35, 1 3/4" - 12 UN (36600007)
85.
6G-40.2
366201-19
Protective Cap Span of the jaw: 27 Plastic - GRP M24 x 2 / L=57,5 mm (36620119)
86.
6G-40.2
366202-01
sealing nut 7/16" - 20 UNF (36620201)
87.
6G-40.2
366110-01
Sealing plug steel 1/8“ - 27 NPTF (36611001)

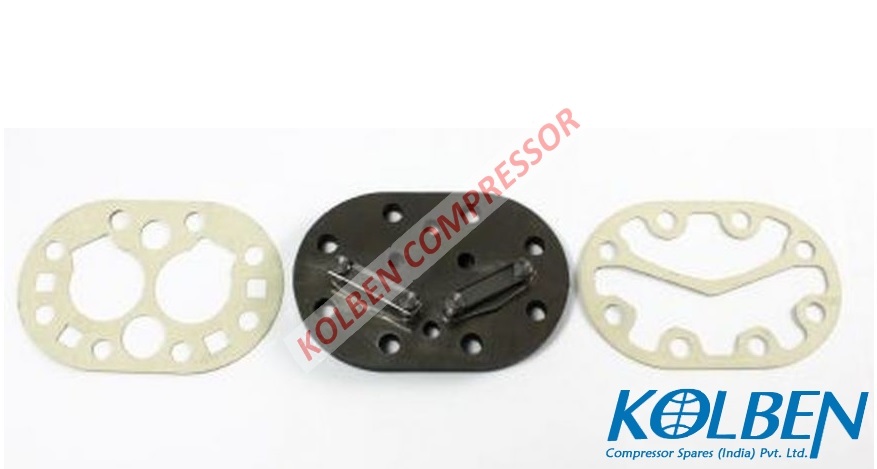

88.
6G-40.2
304051-03
valve plate Ø75 (30405103)
89.
6G-40.2
372511-11
gasket 253 x 155 x 1,0 Ø75 (37251111)
90.
6G-40.2
372616-03
gasket Retall 253 x 155 x 0,5 (37261603)
91.
6G-40.2
302360-22
cylinder head air-cooled (30236022)
92.
6G-40.2
380056-03
hexagon head screw DIN 931, 10.9 M10 x 60 (38005603)
93.
6G-40.2
302360-03
cylinder head water-cooled Water cooled 253 x 155 x 64 (30236003)
94.
6G-40.2
302326-02
cylinder head water-cooled grey cast iron253 x 155 x 64 (30232602)
95.
6G-40.2
380391-55
sealing screw conic brass R 3/4 (38039155)
96.
6G-40.2
327000-01
parallel pin 6H 11 x 20 (32700001)
97.
6G-40.2
380358-01
Set screw coated DIN 916 M10 x 12 (38035801)
98.
6G-40.2
343416-02
terminal plate kit (34341602)
99.
6G-40.2
372421-14
gasket 163 x 118 x 0,5 (37242114)
100.
6G-40.2
304900-01
terminal plate 165 x 120 x 15,5 (30490001)
101.
6G-40.2
343417-07
connection to ground, complete grounding (34341707)
102.
6G-40.2
372124-03
gasket only needed for terminal box IP66 165 x 120 x 3 (37212403)
103.
6G-40.2
375002-03
insulating plate 85 x 25 x 6 (37500203)
104.
6G-40.2
375001-03
pressure bush Ø8 x Ø24 x 8 (37500103)
105.
6G-40.2
375000-03
gasket ring Ø16 x Ø8 x 8,5 (37500003)
106.
6G-40.2
382042-03
washer copper 8 x 1,6 (38204203)
107.
6G-40.2
381301-05
hexagon nut brass M8 (38130105)
108.
6G-40.2
382002-02
washer brass DIN 125 A5, 3 (38200202)
109.
6G-40.2
381301-03
hexagon nut brass M5 (38130103)
110.
6G-40.2
382152-01
thrust washer DIN 127 DIN 127 S 8 (38215201)
111.
6G-40.2
302915-02
cable connector brass (30291502)
112.
6G-40.2
320318-03
connection bridge brass A 5,4 (32031803)
113.
6G-40.2
343414-08
terminal plate kit (34341408)
114.
6G-40.2
343414-07
terminal plate kit (34341407)
115.
6G-40.2
375002-01
insulating plate 53 x 18 x 6,5 (37500201)
116.
6G-40.2
375001-01
pressure bush Ø4,5 x Ø18,5 x 8,5 (37500101)
117.
6G-40.2
375000-01
gasket ring Ø4,5 x Ø18,5 x 8,5 (37500001)
118.
6G-40.2
345923-06
insulating plate (34592306)
119.
6G-40.2
343413-01
conversion kit (34341301)
120.
6G-40.2
380306-89
cheese head screw 10.9 galvanized DIN 912, 10.9M10 x 20 (38030689)
121.
6G-40.2
321202-01
centering plate steel 167 x 122 x 12 (32120201)
122.
6G-40.2
372120-01
gasket 133 x 117 x 2 (37212001)
123.
6G-40.2
300950-17
terminal box black aluminium cast 313 x 175 x 84 (30095017)
124.
6G-40.2
380508-51
Cheese head screw galvanized DIN 7985, 4.8 M5 x 20 (38050851)
125.
6G-40.2
305914-45
Cover black 313 x 175 x 11 (30591445)
126.
6G-40.2
347028-01
protection device SE-B2 230V-50/60Hz (34702801)
127.
6G-40.2
380507-52
Cross Recessed Raised Screw 4.8 galvanized M4 x 10 (38050752)
128.
6G-40.2
380501-54
Oval head screw galvanized DIN 7985, 4.8 M6 x 16 (38050154)
129.
6G-40.2

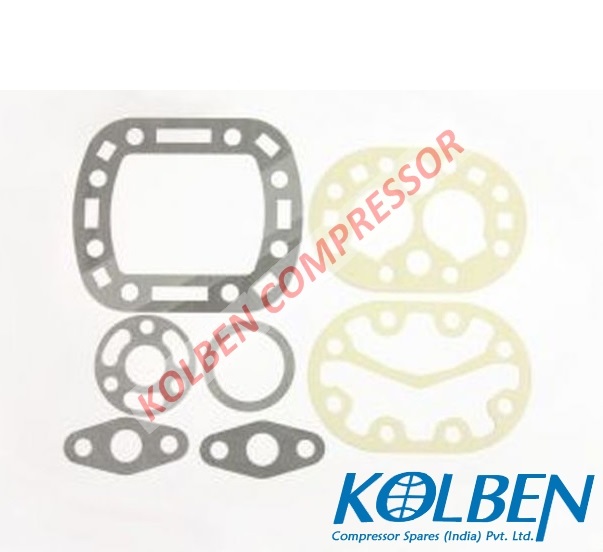

372811-08
gasket set (37281108)
130.
6G-40.2
346330-46
built-in motor 30 kW, 4-pole 380..420V Y/YY-3-50Hz, 440..480V Y/YY-3-60Hz Ø223 x 234,9 (34633046)
131.
6G-40.2
372124-01
gasket terminal box aluminium 165 x 120 x 3 (37212401)
132.
6G-40.2
372138-02
gasket terminal box aluminium (37213802)
133.
6G-40.2
343213-12
Crankcase heater heating capacity: 140W 230V-1-50/60Hz (34321312)
134.
6G-40.2
389002-01
electric connector of the machine / device capacity control DIN 43650 Typ GDM 209 (38900201)
135.
6G-40.2
345906-02
heater sleeve for 140W heater 43315 (34590602)
136.
6F-50.2
311100-04
bearing bush Motor side Ø50 x Ø45 x 47,5 (31110004)
137.
6F-50.2
311100-05
bearing bush Crankcase side Ø50 x Ø45 x 47,5 (31110005)
138.
6F-50.2
320500-06
thrust washer Motor side Ø62 x Ø48 x 1,7 (32050006)
139.
6F-50.2
301007-16
crankshaft Stroke 55mm Ø45 x 603 (30100716)
140.
6F-50.2
366112-01
sealing screw conic DIN 906 M8 x 1 (36611201)
141.
6F-50.2
302297-43
connecting rod / piston Ø82 (30229743)
142.
6F-50.2
302115-50
connecting rod (30211550)
143.
6F-50.2
383021-11
clamping sleeve 10 x 0,75 x 29 (38302111)
144.
6F-50.2
382141-01
retaining ring with lugs spring steel DIN 6796 - FSt A8 (38214101)
145.
6F-50.2
380105-09
hexagon head screw DIN 933, 8.8 M8 x 45 (38010509)
146.
6F-50.2
311103-06
bearing bush connecting rod Ø23 x Ø19 x 22,5 (31110306)
147.
6F-50.2
302233-95
Piston Ø82 (30223395)
148.
6F-50.2
383401-26
wrist pin Ø20 x Ø13 x 60 (38340126)
149.
6F-50.2
382231-04
retaining ring with lugs spring steel DIN 472 Ø20 x 1 (38223104)
150.
6F-50.2
382300-61
compression ring Piston diameter 81,96mm Ø82 x 1,5 (38230061)
151.
6F-50.2
382310-28
compression ring Piston diameter 81,96mm Ø82 x 1,5 (38231028)
152.
6F-50.2
372314-03
gasket bearing cover Ø182 x Ø133 x 1 (37231403)
153.
6F-50.2
305125-03
bearing cover complete inclusive oil pump (30512503)
154.
6F-50.2
361101-01
oil pressure relief valve SW17 x 29 (36110101)
155.
6F-50.2
382402-01
gasket ring aluminium DIN 7603 A10 x 15 x 1 (38240201)
156.
6F-50.2
320500-07
thrust washer oil pump side Ø62 x Ø48 x 1,7 (32050007)
157.
6F-50.2
380306-32
Cheese Head Screw bearing cover DIN 912, 10.9 DIN 912, 10.9 M10 x 30 (38030632)
158.
6F-50.2
372001-19
O-ring oil pump CR Ø74 x 2 (37200119)
159.
6F-50.2
380155-05
hexagon head screw oil pump DIN 933, 10.9 M8 x 20 (38015505)
160.
6F-50.2
380339-01
Hexsocket Cheese Head Screw ISO 4762, 10.9 - A2K M10 x 30 (38033901)
161.
6F-50.2
320314-01
fixing plate MP54 140 x 40 x 3 (32031401)
162.
6F-50.2
382002-01
washer brass DIN 125 A4, 3 (38200201)
163.
6F-50.2
382201-51
single coil spring washer spring steel galvanized DIN 127 A4, 3 (38220151)
164.
6F-50.2
380507-51
cheese head screw 4.8 galvanized M4 x 8 (38050751)
165.
6F-50.2
347320-33
differential oil pressure cut-out MP54 115V/230V-50/60Hz 100 x 50 x 130 (34732033)
166.
6F-50.2
361500-22
Schrader valve (36150022)
167.
6F-50.2
312030-03
thrust collar Ø62 x 7 (31203003)
168.
6F-50.2
372001-13
O-ring CR Ø45 x 3 (37200113)
169.
6F-50.2
325900-02
spring washer Ø58,5 x Ø46 x 0,5 (32590002)
170.
6F-50.2
312006-05
ring spring washer Ø 42,1 x Ø 58 x 5 (31200605)
171.
6F-50.2
374027-03
shaft seal bearing bush (37402703)
172.
6F-50.2
384102-01
gib-headed key Stator steel DIN 6887 5 x 5 x 60 (38410201)
173.
6F-50.2
384001-19
parallel key steel DIN 6885 A12 x 8 x 110 (38400119)
174.
6F-50.2
320502-04
thrust washer steel Ø54 x Ø17 x 5 (32050204)
175.
6F-50.2
382150-04
thrust washer spring steel S16 (38215004)
176.
6F-50.2
380166-03
hexagon head screw coated DIN 933, 10.9 M16 x 40 (38016603)
177.
6F-50.2
325910-01
retaining ring with lugs spring steel Ø230 (32591001)
178.
6F-50.2
362004-02
suction gas filter Ø220 x 50 (36200402)
179.
6F-50.2
372315-03
gasket housing cover Ø286 x Ø236 x 0,38 (37231503)
180.
6F-50.2
305900-03
housing cover (30590003)
181.
6F-50.2
366110-02
Sealing Plug steel 1/4" - 18 NPTF (36611002)
182.
6F-50.2
380057-11
hexagon head screw housing cover DIN 931, 10.9 M12 x 150 (38005711)
183.
6F-50.2
380057-14
hexagon head screw housing cover DIN 931, 10.9 M12 x 180 (38005714)
184.
6F-50.2
372301-03
gasket suction shut-off valve Ø76 x Ø60 x 1 (37230103)
185.
6F-50.2
380009-53
hexagon head screw suction shut-off valve 8.8 galvanized DIN 931, 8.8 M16 x 100 (38000953)
186.
6F-50.2
361338-04
Shut-Off Valve suction side Ø54 (2 1/8") (36133804)
187.
6F-50.2
365321-03
Pipe Connection brazed and welding bush steel Ø54 (2 1/8") (36532103)
188.
6F-50.2
372303-02
Gasket Pipe connection Ø75 x Ø61 x 2 (37230302)
189.
6F-50.2
367121-02
Clamping Plate suction shut-off valve 110 x 110 (36712102)
190.
6F-50.2
380109-09
Hexagon Head Screw clamping plate DIN 933, 8.8 M16 x 55 (38010909)
191.
6F-50.2
375014-05
Protective Cap Span of the jaw: 36 Plastic - GRP M36 x 1,5 / L=67 mm (37501405)
192.
6F-50.2
366114-24
sealing screw with magnet oil drain inclusive O-Ring gasket M26 (36611424)
193.
6F-50.2
382403-04
Gasket Ring oil drain aluminium DIN 7603 A26 x 31 x 2 (38240304)
194.
6F-50.2
325000-34
pressure spring spring steel Ø23,5 x 28 x 1,8 (32500034)
195.
6F-50.2
362003-01
oil filter Ø20 x 200 (36200301)
196.
6F-50.2
360110-06
oil return system (36011006)
197.
6F-50.2
372003-15
O-ring sight glass Ø36,3 x 1,78 (37200315)
198.
6F-50.2
361802-02
sight glass steel / glass Ø67 x 8,5 (36180202)
199.
6F-50.2
380154-06
hexagon head screw DIN 933, 10.9 M6 x 20 (38015406)
200.
6F-50.2
366110-10
sealing plug oil equalising bore steel 1/2" - 14 NPTF (36611010)
201.
6F-50.2
366110-05
sealing plug gas equalising bore steel 3/4" - 14 NPTF (36611005)
202.
6F-50.2
372415-02
gasket bottom plate (37241502)
203.
6F-50.2
320307-04
bottom plate steel 270 x 360 x 12 (32030704)
204.
6F-50.2
380156-05
hexagon head screw bottom plate DIN 933, 10.9 M10 x 25 (38015605)
205.
6F-50.2
370004-01
vibration damper set Crankcase side spring brown Lo = 42 (37000401)
206.
6F-50.2
325002-01
damper element Crankcase side spring steel brown Lo=42 (32500201)
207.
6F-50.2
370004-03
vibration damper set Motor side spring blue Lo = 48 (37000403)
208.
6F-50.2
325002-03
damper element Motor side spring steel blue Lo=48 (32500203)
209.
6F-50.2
327309-01
foot 369 x 60 x 13 x Ø21 (32730901)
210.
6F-50.2
361110-01
gas equalising valve (36111001)
211.
6F-50.2
361100-21
pressure relief valve 34 bar 3/4" - 14 NPTF - p=34bar (36110021)
212.
6F-50.2
372704-01
Gasket intermediate flange h=25 91 x 52 x 1 (37270401)
213.
6F-50.2
380306-23
Cheese Head Screw intermediate flange h=25 DIN 912, 10.9 M10 x 25 (38030623)
214.
6F-50.2
372301-02
gasket discharge shut-off valve Ø70 x Ø54 x 1 (37230102)
215.
6F-50.2
380007-52
hexagon head screw discharge shut-off valve galvanized DIN 931, 8.8 M12 x 80 (38000752)
216.
6F-50.2
361338-01
shut-off valve Discharge side Ø42 (1 5/8") (36133801)
217.
6F-50.2
365321-14
pipe connection discharge shut-off valve steel brazing and welding bush Ø42 (1 5/8") (36532114)
218.
6F-50.2
372303-01
gasket Ø52 x Ø37 x 2 (37230301)
219.
6F-50.2
366201-22
Protective Cap Span of the jaw: 27 Plastic - GRP M27 x 2 / L=70 mm (36620122)
220.
6F-50.2
366110-01
Sealing Plug steel 1/4" - 18 NPTF (36611001)
221.
6F-50.2
304051-15
valve plate Ø82 (30405115)
222.
6F-50.2
372511-07
gasket 253 x 155 x 1,0 Ø82 (37251107)
223.
6F-50.2
372616-03
gasket Retall 253 x 155 x 0,5 (37261603)
224.
6F-50.2
302360-22
cylinder head air-cooled (30236022)
225.
6F-50.2
380056-03
hexagon head screw DIN 931, 10.9 M10 x 60 (38005603)
226.
6F-50.2
302360-03
cylinder head water-cooled Water cooled 253 x 155 x 64 (30236003)
227.
6F-50.2
302326-02
cylinder head water-cooled grey cast iron 253 x 155 x 64 (30232602)
228.
6F-50.2
380391-55
sealing screw conic brass R 3/4 (38039155)
229.
6F-50.2
327000-01
parallel pin 6H 11 x 20 (32700001)
230.
6F-50.2
380358-01
Set screw coated DIN 916 M10 x 12 (38035801)
231.
6F-50.2
300903-01
intermediate flange grey cast iron 225 x 96 x 93 (30090301)
232.
6F-50.2
343416-02
terminal plate kit (34341602)
233.
6F-50.2
372421-14
gasket 163 x 118 x 0,5 (37242114)
234.
6F-50.2
304900-01
terminal plate 165 x 120 x 15,5 (30490001)
235.
6F-50.2
343417-07
connection to ground, complete grounding (34341707)
236.
6F-50.2
372124-03
gasket only needed for terminal box IP66 165 x 120 x 3 (37212403)
237.
6F-50.2
375002-03
insulating plate 85 x 25 x 6 (37500203)
238.
6F-50.2
375001-03
pressure bush Ø8 x Ø24 x 8 (37500103)
239.
6F-50.2
375000-03
gasket ring Ø16 x Ø8 x 8,5 (37500003)
240.
6F-50.2
382042-03
washer copper 8 x 1,6 (38204203)
241.
6F-50.2
381301-05
hexagon nut brass M8 (38130105)
242.
6F-50.2
382002-02
washer brass DIN 125 A5, 3 (38200202)
243.
6F-50.2
381301-03
hexagon nut brass M5 (38130103)
244.
6F-50.2
382152-01
thrust washer DIN 127 S 8 (38215201)
245.
6F-50.2
302915-02
cable connector brass (30291502)
246.
6F-50.2
320318-03
connection bridge brass A 5,4 (32031803)
247.
6F-50.2
343414-08
terminal plate kit (34341408)
248.
6F-50.2
343414-07
terminal plate kit (34341407)
249.
6F-50.2
375002-01
insulating plate 53 x 18 x 6,5 (37500201)
250.
6F-50.2
375001-01
pressure bush Ø4,5 x Ø18,5 x 8,5 (37500101)
251.
6F-50.2
375000-01
gasket ring Ø4,5 x Ø18,5 x 8,5 (37500001)
252.
6F-50.2
345923-06
insulating plate (34592306)
253.
6F-50.2
343413-01
conversion kit (34341301)
254.
6F-50.2
380306-89
cheese head screw 10.9 galvanized DIN 912, 10.9 M10 x 20 (38030689)
255.
6F-50.2
321202-01
centering plate steel 167 x 122 x 12 (32120201)
256.
6F-50.2
372120-01
gasket 133 x 117 x 2 (37212001)
257.
6F-50.2
300950-17
terminal box black aluminium cast 313 x 175 x 84 (30095017)
258.
6F-50.2
380508-51
Cheese head screw galvanized DIN 7985, 4.8 M5 x 20 (38050851)
259.
6F-50.2
305914-45
Cover black 313 x 175 x 11 (38050851)
260.
6F-50.2
347028-01
protection device SE-B2 230V-50/60Hz (34702801)
261.
6F-50.2
380507-52
Cross Recessed Raised Screw 4.8 galvanized M4 x 10 (38050752)
262.
6F-50.2
380501-54
Oval head screw galvanized DIN 7985, 4.8 M6 x 16 (38050154)
263.
6F-50.2
372811-09
gasket set (37281109)
264.
6F-50.2
346331-51
built-in motor 37 kW, 4-pole 380..400V Y/YY-3-50Hz, 440..460V Y/YY-3-60Hz Ø223 x 234,9 (34633151)
265.
6F-50.2
367121-01
clamping plate 80 x 80 (36712101)
266.
6F-50.2
380302-05
Cheese Head Screw DIN 912, 10.9 M12 x 50 (38030205)
267.
6F-50.2
372124-01
gasket terminal box aluminium 165 x 120 x 3 (37212401)
268.
6F-50.2
372138-02
gasket terminal box aluminium (37213802)
269.
6F-50.2
343213-12
Crankcase heater heating capacity: 140W 230V-1-50/60Hz (34321312)
270.
6F-50.2
345906-02
heater sleeve for 140W heater 43315 (34590602)
271.
6GE-40
311100-05
bearing bush Crankcase side Ø50 x Ø45 x 47,5 (31110005)
272.
6GE-40
320500-06
thrust washer Motor side Ø62 x Ø48 x 1,7 (32050006)
273.
6GE-40
301007-16
crankshaft Stroke 55mm Ø45 x 603 (30100716)
274.
6GE-40
366112-01
sealing screw conic DIN 906 M8 x 1 (36611201)
275.
6GE-40
302298-68
connecting rod / piston Ø75 (30229868)
276.
6GE-40
302115-52
connecting rod (30211552)
277.
6GE-40
382141-01
retaining ring with lugs spring steel DIN 6796 - FSt A8 (38214101)
278.
6GE-40
302233-96
piston aluminium alloy Ø75 (30223396)
279.
6GE-40
383401-06
wrist pin DIN 73126 Ø20 x Ø13 x 56 (38340106)
280.
6GE-40
382231-04
retaining ring with lugs spring steel DIN 472 Ø20 x 1 (38223104)
281.
6GE-40
382300-58
compression ring Piston diameter 74,96mm Ø75 x 1,5 (38230058)
282.
6GE-40
382310-25
compression ring Piston diameter 74,96mm Ø75 x 1,5 (38231025)
283.
6GE-40
372314-03
gasket bearing cover Ø182 x Ø133 x 1 (37231403)
284.
6GE-40
305125-03
bearing cover inclusive oil pump (30512503)
285.
6GE-40
361101-01
oil pressure relief valve SW17 x 29 (36110101)
286.
6GE-40
382402-01
gasket ring aluminium DIN 7603 A10 x 15 x 1 (38240201)
287.
6GE-40
311100-04
bearing bush Ø50 x Ø45 x 47,5 (31110004)
288.
6GE-40
320500-07
thrust washer oil pump side Ø62 x Ø48 x 1,7 (32050007)
289.
6GE-40
380306-32
Cheese Head Screw bearing cover DIN 912, 10.9 M10 x 30 (38030632)
290.
6GE-40
362503-02
oil pump (36250302)
291.
6GE-40
372001-19
O-ring oil pump Ø74 x 2 (37200119)
292.
6GE-40
380155-05
hexagon head screw oil pump DIN 933, 10.9 M8 x 20 (38015505)
293.
6GE-40
380339-01
Hexsocket Cheese Head Screw ISO 4762, 10.9 - A2K M10 x 30 (38033901)
294.
6GE-40
320314-01
fixing plate MP54 140 x 40 x 3 (32031401)
295.
6GE-40
382002-01
washer brass DIN 125 A4, 3 (38200201)
296.
6GE-40
382201-51
single coil spring washer spring steel galvanized DIN 127 A4, 3 (38220151)
297.
6GE-40
380507-51
cheese head screw 4.8 galvanized M4 x 8 (38050751)
298.
6GE-40
347320-33
differential oil pressure cut-out MP54 115V/230V-50/60Hz 100 x 50 x 130 (34732033)
299.
6GE-40
361500-22
Schrader valve (36150022)
300.
6GE-40
374027-03
shaft seal bearing bush (37402703)
301.
6GE-40
384102-01
gib-headed key Stator steel DIN 6887 5 x 5 x 60 (38410201)
302.
6GE-40
384001-24
parallel key steel DIN 6885 A12 x 8 x 125 (38400124)
303.
6GE-40
320502-04
thrust washer steel Ø54 x Ø17 x 5 (32050204)
304.
6GE-40
382150-04
thrust washer spring steel S16 (38215004)
305.
6GE-40
380166-03
hexagon head screw coated DIN 933, 10.9 M16 x 40 (38016603)
306.
6GE-40
325910-01
retaining ring with lugs spring steel Ø230 (32591001)
307.
6GE-40
362004-02
suction gas filter Ø220 x 50 (36200402)
308.
6GE-40
372315-03
gasket housing cover Ø286 x Ø236 x 0,38 (37231503)
309.
6GE-40
305900-03
housing cover (30590003)
310.
6GE-40
377108-52
Insulation for motor housing cover (37710852)
311.
6GE-40
366110-02
Sealing Plug steel 1/4" - 18 NPTF (36611002)
312.
6GE-40
380057-11
hexagon head screw housing cover DIN 931, 10.9 M12 x 150 (38005711)
313.
6GE-40
380057-14
hexagon head screw housing cover DIN 931, 10.9 M12 x 180 (38005714)
314.
6GE-40
372301-03
gasket suction shut-off valve Ø76 x Ø60 x 1 (37230103)
315.
6GE-40
380009-53
hexagon head screw suction shut-off valve 8.8 galvanized DIN 931, 8.8 M16 x 100 (38000953)
316.
6GE-40
361338-04
Shut-Off Valve suction side Ø54 (2 1/8") (36133804)
317.
6GE-40
365321-03
Pipe Connection brazed and welding bush steel Ø54 (2 1/8") (36532103)
318.
6GE-40
372303-02
Gasket Pipe connection Ø75 x Ø61 x 2 (37230302)
319.
6GE-40
367121-02
Clamping Plate suction shut-off valve 110 x 110 (36712102)
320.
6GE-40
380109-09
Hexagon Head Screw clamping plate DIN 933, 8.8 M16 x 55 (38010909)
321.
6GE-40
375014-05
Protective Cap Span of the jaw: 36 Plastic - GRP M36 x 1,5 / L=67 mm (37501405)
322.
6GE-40
366114-24
sealing screw with magnet oil drain inclusive O-Ring gasket M26 (36611424)
323.
6GE-40
382403-04
Gasket Ring oil drain aluminium DIN 7603 A26 x 31 x 2 (38240304)
324.
6GE-40
325000-34
pressure spring spring steel Ø23,5 x 28 x 1,8 (32500034)
325.
6GE-40
362003-01
oil filter Ø20 x 200 (36200301)
326.
6GE-40
360110-06
oil return system (36011006)
327.
6GE-40
372003-15
O-ring sight glass Ø36,3 x 1,78 (37200315)
328.
6GE-40
361802-02
sight glass steel / glass Ø67 x 8,5 (36180202)
329.
6GE-40
380154-06
hexagon head screw DIN 933, 10.9 M6 x 20 (38015406)
330.
6GE-40
366110-10
sealing plug oil equalising bore steel 1/2" - 14 NPTF (36611010)
331.
6GE-40
366110-05
sealing plug gas equalising bore steel 3/4" - 14 NPTF (36611005)
332.
6GE-40
372415-02
gasket bottom plate (37241502)
333.
6GE-40
320307-04
bottom plate steel 270 x 360 x 12 (32030704)
334.
6GE-40
380156-05
hexagon head screw bottom plate DIN 933, 10.9 M10 x 25 (38015605)
335.
6GE-40
370004-01
vibration damper set Crankcase side spring brown Lo = 42 (37000401)
336.
6GE-40
325002-01
damper element Crankcase side spring steel brown Lo=42 (32500201)
337.
6GE-40
370004-03
vibration damper set Motor side spring blue Lo = 48 (37000403)
338.
6GE-40
325002-03
damper element Motor side spring steel blue Lo=48 (32500203)
339.
6GE-40
327309-01
foot 369 x 60 x 13 x Ø21 (32730901)
340.
6GE-40
361110-01
gas equalising valve (36111001)
341.
6GE-40
361110-06
Pressure relief valve 37 bar 3/4" (36111006)
342.
6GE-40
372704-01
Gasket blind flange 91 x 52 x 1 (37270401)
343.
6GE-40
367015-15
blind flange steel 91 x 52 x 13. Bo. 1/8" NPTF (36701515)
344.
6GE-40
380156-06
hexagon head screw blind flange coated DIN 933, 10.9 M10 x 30 (38015606)
345.
6GE-40
372704-05
gasket discharge shut-off valve Ø34 x 1,0 - LA 66 (37270405)
346.
6GE-40
380306-23
Cheese Head Screw discharge shut-off valve DIN 912, 10.9 M10 x 25 (38030623)
347.
6GE-40
361354-05
shut-off valve Discharge side brazed connection Ø35 L (1 3/8") - 2" (36135405)
348.
6GE-40
367021-06
Flange with thread 91 x 48 x 52 , - 2" (36702106)
349.
6GE-40
372200-07
Gasket Ring Ø45,5 x Ø42,5 x 1,5 (37220007)
350.
6GE-40
366201-19
Protective Cap Span of the jaw: 27 Plastic - GRP M24 x 2 / L=57,5 mm (36620119)
351.
6GE-40
366110-01
Sealing plug steel 1/8“ - 27 NPTF (36611001)
352.
6GE-40
304063-34
valve plate complete (30406334)
353.
6GE-40
372511-11
gasket 253 x 155 x 1,0 Ø75 (37251111)
354.
6GE-40
372616-03
gasket Retall 253 x 155 x 0,5 (37261603)
355.
6GE-40
302360-38
cylinder head air-cooled (30236038)
356.
6GE-40
380056-14
hexagon head screw DIN 931, 10.9 M10 x 70 (38005614)
357.
6GE-40
380056-20
hexagon head screw DIN 931, 10.9 M10 x 90 (38005620)
358.
6GE-40
327000-01
parallel pin 6H 11 x 20 (32700001)
359.
6GE-40
380358-01
Set screw coated DIN 916 M10 x 12 (38035801)
360.
6GE-40
343416-02
terminal plate kit complete (34341602)
361.
6GE-40
372421-14
gasket Terminal plate 163 x 118 x 0,5 (37242114)
362.
6GE-40
345950-01
Metal Plate For Grounding aluminium M6 (34595001)
363.
6GE-40
382150-01
thrust washer spring steel S6 (38215001)
364.
6GE-40
380004-53
hexagon head screw grounding ISO 4014, 8.8 - A2K M6 x 35 (38000453)
365.
6GE-40
372124-03
gasket only needed for terminal box IP66 165 x 120 x 3 (37212403)
366.
6GE-40
311018-01
Spacer Sleeve Ø14 x Ø6,3 x 21,4 (31101801)
367.
6GE-40
382101-54
toothed washer spring steel galvanized DIN 6797 A6, 4 (38210154)
368.
6GE-40
345506-24
terminal plate optimized condensation sequence optimized condensation sequence (34550624)
369.
6GE-40
381108-01
hexagon nut M5 (38110801)
370.
6GE-40
382152-01
thrust washer DIN 127 S 8 (38215201)
371.
6GE-40
302915-02
cable connector brass (30291502)
372.
6GE-40
381301-05
hexagon nut brass M8 (38130105)
373.
6GE-40
343413-01
conversion kit (34341301)
374.
6GE-40
380306-89
cheese head screw 10.9 galvanized DIN 912, 10.9 M10 x 20 (38030689)
375.
6GE-40
321202-01
centering plate steel 167 x 122 x 12 (32120201)
376.
6GE-40
372120-01
gasket 133 x 117 x 2 (37212001)
377.
6GE-40
300950-17
terminal box black aluminium cast 313 x 175 x 84 (30095017)
378.
6GE-40
380508-51
Cheese head screw galvanized DIN 7985, 4.8 M5 x 20 (38050851)
379.
6GE-40
305914-45
Cover black 313 x 175 x 11 (30591445)
380.
6GE-40
347028-01
protection device SE-B2 230V-50/60Hz (34702801)
381.
6GE-40
380507-52
Cross Recessed Raised Screw 4.8 galvanized M4 x 10 (38050752)
382.
6GE-40
380501-54
Oval head screw galvanized DIN 7985, 4.8 M6 x 16 (38050154)
383.
6GE-40
372811-08
gasket set (3728)1108
384.
6GE-40
346330-46
built-in motor complete 30 kW, 4-pole 380..420V Y/YY-3-50Hz, 440..480V Y/YY-3-60Hz Ø223 x 234,9 (34633046)
385.
6GE-40
372124-01
gasket terminal box aluminium 165 x 120 x 3 (37212401)
386.
6GE-40
372138-02
gasket terminal box aluminium (37213802)
387.
6GE-40
343213-12
Crankcase heater heating capacity: 140W 230V-1-50/60Hz (34321312)
388.
6GE-40
389002-01
electric connector of the machine / device DIN 43650 Typ GDM 209 (38900201)
389.
6GE-40
345906-02
heater sleeve for 140W heater 43315 (34590602)
390.
6GE-40
344006-04
cable grounding for grounding M6 x 220 (34400604)
391.
6GE-40
380501-52
cross recessed raised screw grounding Cross recessed raised 4.8 galvanized M6 x 12 (38050152)
392.
6GE-40
382403-01
Gasket Ring aluminium DIN 7603 A20 x 24 x 1,5 (38240301)
393.
6GE-40
347319-11
differential oil pressure cut-out Delta-P II 230V-50/60Hz (34731911)
394.
6FE-50
311100-04
bearing bush Motor side Ø50 x Ø45 x 47,5 (31110004)
395.
6FE-50
311100-05
bearing bush Crankcase side Ø50 x Ø45 x 47,5 (31110005)
396.
6FE-50
320500-06
thrust washer Motor side Ø62 x Ø48 x 1,7 (32050006)
397.
6FE-50
301007-16
crankshaft Stroke 55mm Ø45 x 603 (30100716)
398.
6FE-50
366112-01
sealing screw conic DIN 906 M8 x 1 (36611201)
399.
6FE-50
302298-69
connecting rod / piston Ø82 (30229869)
400.
6FE-50
302115-52
connecting rod (30211552)
401.
6FE-50
302233-95
Piston Ø82 (30223395)
402.
6FE-50
383401-26
wrist pin Ø20 x Ø13 x 60 (38340126)
403.
6FE-50
382231-04
retaining ring with lugs spring stee DIN 472 Ø20 x 1 (38223104)
404.
6FE-50
382300-61
compression ring Piston diameter 81,96mm Ø82 x 1,5 (38230061)
405.
6FE-50
382310-28
compression ring Piston diameter 81,96mm Ø82 x 1,5 (38231028)
406.
6FE-50
372314-03
gasket bearing cover Ø182 x Ø133 x 1 (37231403)
407.
6FE-50
305125-03
bearing cover complete inclusive oil pump (30512503)
408.
6FE-50
361101-01
oil pressure relief valve SW17 x 29 (36110101)
409.
6FE-50
382402-01
gasket ring aluminium DIN 7603 A10 x 15 x 1 (38240201)
410.
6FE-50
320500-07
thrust washer oil pump side Ø62 x Ø48 x 1,7 (32050007)
411.
6FE-50
380306-32
Cheese Head Screw bearing cover DIN 912, 10.9 M10 x 30 (38030632)
412.
6FE-50
362503-02
oil pump (36250302)
413.
6FE-50
372001-19
O-ring oil pump Ø74 x 2 (37200119)
414.
6FE-50
380155-05
hexagon head screw oil pump DIN 933, 10.9 M8 x 20 (38015505)
415.
6FE-50
380339-01
Hexsocket Cheese Head Screw ISO 4762, 10.9 - A2K M10 x 30 (38033901)
416.
6FE-50
320314-01
fixing plate MP54 140 x 40 x 3 (32031401)
417.
6FE-50
382002-01
washer brass DIN 125 A4, 3 (38200201)
418.
6FE-50
382201-51
single coil spring washer spring steel galvanized DIN 127 A4, 3 (38220151)
419.
6FE-50
380507-51
cheese head screw 4.8 galvanized M4 x 8 (38050751)
420.
6FE-50
347320-33
differential oil pressure cut-out MP54 115V/230V-50/60Hz 100 x 50 x 130 (34732033)
421.
6FE-50
361500-22
Schrader valve (36150022)
422.
6FE-50
374027-03
shaft seal bearing bush (37402703)
423.
6FE-50
384102-01
gib-headed key Stator steel DIN 6887 5 x 5 x 60 (38410201)
424.
6FE-50
384001-24
parallel key steel DIN 6885 A12 x 8 x 125 (38400124)
425.
6FE-50
320502-04
thrust washer steel Ø54 x Ø17 x 5 (32050204)
426.
6FE-50
382150-04
thrust washer spring stee S16 (38215004)
427.
6FE-50
380166-03
hexagon head screw coated DIN 933, 10.9 M16 x 40 (38016603)
428.
6FE-50
325910-01
retaining ring with lugs spring stee Ø230 (32591001)
429.
6FE-50
362004-02
suction gas filter Ø220 x 50 (36200402)
430.
6FE-50
372315-03
gasket housing cover Ø286 x Ø236 x 0,38 (37231503)
431.
6FE-50
305900-03
housing cover (30590003)
432.
6FE-50
377108-52
Insulation for motor housing cover (37710852)
433.
6FE-50
366110-02
Sealing Plug steel 1/4" - 18 NPTF (36611002)
434.
6FE-50
380057-11
hexagon head screw housing cover DIN 931, 10.9 M12 x 150 (38005711)
435.
6FE-50
380057-14
hexagon head screw housing cover DIN 931, 10.9 M12 x 180 (38005714)
436.
6FE-50
372301-03
gasket suction shut-off valve Ø76 x Ø60 x 1 (37230103)
437.
6FE-50
380009-53
hexagon head screw suction shut-off valve 8.8 galvanized DIN 931, 8.8 M16 x 100 (38000953)
438.
6FE-50
361338-04
Shut-Off Valve suction side Ø54 (2 1/8") Ø54 (2 1/8") (36133804)
439.
6FE-50
365321-03
Pipe Connection brazed and welding bush steel Ø54 (2 1/8") (36532103)
440.
6FE-50
372303-02
Gasket Pipe connection Ø75 x Ø61 x 2 (37230302)
441.
6FE-50
367121-02
Clamping Plate suction shut-off valve 110 x 110 (36712102)
442.
6FE-50
380109-09
Hexagon Head Screw clamping plate DIN 933, 8.8 M16 x 55 (38010909)
443.
6FE-50
375014-05
Protective Cap Span of the jaw: 36 Plastic - GRP M36 x 1,5 / L=67 mm (37501405)
444.
6FE-50
366114-24
sealing screw with magnet oil drain inclusive O-Ring gasket M26 (36611424)
445.
6FE-50
382403-04
Gasket Ring oil drain aluminium DIN 7603 A26 x 31 x 2 (38240304)
446.
6FE-50
325000-34
pressure spring Ø23,5 x 28 x 1,8 (32500034)
447.
6FE-50
362003-01
oil filter Ø20 x 200 (36200301)
448.
6FE-50
360110-06
oil return system (36011006)
449.
6FE-50
372003-15
O-ring sight glass Ø36,3 x 1,78 (37200315)
450.
6FE-50
361802-02
sight glass steel / glass Ø67 x 8,5 (36180202)
451.
6FE-50
380154-06
hexagon head screw DIN 933, 10.9 M6 x 20 (38015406)
452.
6FE-50
366110-10
sealing plug oil equalising bore steel 1/2" - 14 NPTF (36611010)
453.
6FE-50
366110-05
sealing plug gas equalising bore steel 3/4" - 14 NPTF (36611005)
454.
6FE-50
372415-02
gasket bottom plate (37241502)
455.
6FE-50
320307-04
bottom plate steel 270 x 360 x 12 (32030704)
456.
6FE-50
380156-05
hexagon head screw bottom plate DIN 933, 10.9 M10 x 25 (38015605)
457.
6FE-50
370004-01
vibration damper set Crankcase side spring brown Lo = 42 (37000401)
458.
6FE-50
325002-01
damper element Crankcase side spring stee brown Lo=42 (32500201)
459.
6FE-50
370004-03
vibration damper set Motor side spring blue Lo = 48 (37000403)
460.
6FE-50
325002-03
damper element Motor side spring stee blue Lo=48 (32500203)
461.
6FE-50
327309-01
foot 369 x 60 x 13 x Ø21 (32730901)
462.
6FE-50
361110-01
gas equalising valve (36111001)
463.
6FE-50
361110-06
Pressure relief valve 37 bar 3/4" (36111006)
464.
6FE-50
372704-01
Gasket 91 x 52 x 1 (37270401)
465.
6FE-50
380306-23
Cheese Head Screw DIN 912, 10.9 M10 x 25 (38030623)
466.
6FE-50
372301-02
gasket discharge shut-off valve Ø70 x Ø54 x 1 (37230102)
467.
6FE-50
380007-52
hexagon head screw discharge shut-off valve galvanized DIN 931, 8.8 M12 x 80 (38000752)
468.
6FE-50
361338-01
shut-off valve Discharge side Ø42 (1 5/8") (36133801)
469.
6FE-50
365321-14
pipe connection discharge shut-off valve steel brazing and welding bush Ø42 (1 5/8") (36532114)
470.
6FE-50
372303-01
gasket discharge shut-off valve Ø52 x Ø37 x 2 (37230301)
471.
6FE-50
366201-22
Protective Cap Span of the jaw: 27 Plastic - GRP M27 x 2 / L=70 mm (36620122)
472.
6FE-50
366110-01
Sealing plug steel 1/8“ - 27 NPTF (36611001)
473.
6FE-50
304063-35
valve plate (30406335)
474.
6FE-50
372511-07
gasket 253 x 155 x 1,0 Ø82 (37251107)
475.
6FE-50
372616-03
gasket Retall 253 x 155 x 0,5 (37261603)
476.
6FE-50
302360-38
cylinder head air-cooled (302360380
477.
6FE-50
380056-14
hexagon head screw DIN 931, 10.9 M10 x 70 (38005614)
478.
6FE-50
380056-20
hexagon head screw DIN 931, 10.9 M10 x 90 (38005620)
479.
6FE-50
327000-01
parallel pin 6H 11 x 20 (32700001)
480.
6FE-50
380358-01
Set screw coated DIN 916 M10 x 12 (38035801)
481.
6FE-50
300903-01
intermediate flange grey cast iron 225 x 96 x 93 (30090301)
482.
6FE-50
343416-02
terminal plate kit (34341602)
483.
6FE-50
372421-14
gasket Terminal plate 163 x 118 x 0,5 (37242114)
484.
6FE-50
345950-01
Metal Plate For Grounding aluminium M6 (34595001)
485.
6FE-50
382150-01
thrust washer spring stee S6 (38215001)
486.
6FE-50
380004-53
hexagon head screw grounding ISO 4014, 8.8 - A2K M6 x 35 (38000453)
487.
6FE-50
372124-03
gasket only needed for terminal box IP66 165 x 120 x 3 (37212403)
488.
6FE-50
311018-01
Spacer Sleeve Ø14 x Ø6,3 x 21,4 (31101801)
489.
6FE-50
382101-54
toothed washer spring steel galvanized DIN 6797 A6, 4 (38210154)
490.
6FE-50
345506-24
terminal plate optimized condensation sequence optimized condensation sequence (34550624)
491.
6FE-50
381108-01
hexagon nut M5 (38110801)
492.
6FE-50
382152-01
thrust washer DIN 127 S 8 (38215201)
493.
6FE-50
302915-02
cable connector brass (30291502)
494.
6FE-50
381301-05
hexagon nut brass M8 (38130105)
495.
6FE-50
343413-01
conversion kit (34341301)
496.
6FE-50
380306-89
cheese head screw 10.9 galvanized DIN 912, 10.9 M10 x 20 (38030689)
497.
6FE-50
321202-01
centering plate steel 167 x 122 x 12 (3212)0201)
498.
6FE-50
372120-01
gasket 133 x 117 x 2 (37212001)
499.
6FE-50
300950-17
terminal box black aluminium cast 313 x 175 x 84 (30095017)
500.
6FE-50
380508-51
Cheese head screw galvanized DIN 7985, 4.8 M5 x 20 (38050851)
501.
6FE-50
305914-45
Cover black 313 x 175 x 11 (30591445)
502.
6FE-50
347028-01
protection device SE-B2 230V-50/60Hz (34702801)
503.
6FE-50
380507-52
Cross Recessed Raised Screw 4.8 galvanized M4 x 10 (38050752)
504.
6FE-50
380501-54
Oval head screw galvanized DIN 7985, 4.8 M6 x 16 (38050154)
505.
6FE-50
372811-09
gasket set (37281109)
506.
6FE-50
346331-51
built-in motor 37 kW, 4-pole 380..400V Y/YY-3-50Hz, 440..460V Y/YY-3-60Hz Ø223 x 234,9 (34633151)
507.
6FE-50
367121-01
clamping plate 80 x 80 (36712101)
508.
6FE-50
380302-05
Cheese Head Screw DIN 912, 10.9 M12 x 50 (38030205)
509.
6FE-50
372124-01
gasket terminal box aluminium 165 x 120 x 3 (37212401)
510.
6FE-50
372138-02
gasket terminal box aluminium (37213802)
511.
6FE-50
343213-12
Crankcase heater heating capacity: 140W 230V-1-50/60Hz (34321312)
512.
6FE-50
389002-01
electric connector of the machine / device DIN 43650 Typ GDM 209 (38900201)
513.
6FE-50
345906-02
heater sleeve for 140W heater 43315 (34590602)
514.
6FE-50
344006-04
cable grounding for grounding M6 x 220 (34400604)
515.
6FE-50
380501-52
cross recessed raised screw grounding Cross recessed raised 4.8 galvanized M6 x 12 (38050152)
516.
6FE-50
382403-01
Gasket Ring aluminium DIN 7603 A20 x 24 x 1,5 (38240301)
517.
6FE-50
347319-11
differential oil pressure cut-out Delta-P II 230V-50/60Hz (34731911)
518.
4G-30.2
311100-05
bearing bush Crankcase side Ø50 x Ø45 x 47,5 (31110005)
519.
4G-30.2
311100-04
bearing bush Ø50 x Ø45 x 47,5 (31110004)
520.
4G-30.2
311103-06
bearing bush connecting rod Ø23 x Ø19 x 22,5 (31110306)
521.
4G-30.2
305125-03
bearing cover complete inclusive oil pump (30512503)
522.
4G-30.2
367015-15
blind flange steel 91 x 52 x 13. Bo. 1/8" NPTF (36701515)
523.
4G-30.2
320307-04
bottom plate steel 270 x 360 x 12 (32030704)
524.
4G-30.2
346318-46
built-in motor 22.1 kW, 4-pole 380..420V Y/YY-3-50Hz, 440..480V Y/YY-3-60Hz Ø223 (34631846)
525.
4G-30.2
302915-02
cable connector brass (30291502)
526.
4G-30.2
321202-01
centering plate steel 167 x 122 x 12 (32120201)
527.
4G-30.2
380507-51
cheese head screw 4.8 galvanized M4 x 8 (38050751)
528.
4G-30.2
380306-89
cheese head screw 10.9 galvanized DIN 912, 10.9 M10 x 20 (38030689)
529.
4G-30.2
380306-32
Cheese Head Screw bearing cover DIN 912, 10.9 M10 x 30 (38030632)
530.
4G-30.2
380508-51
Cheese head screw galvanized DIN 7985, 4.8 M5 x 20 (38050851)
531.
4G-30.2
367121-02
Clamping Plate suction shut-off valve 110 x 110 (36712102)
532.
4G-30.2
383021-11
clamping sleeve 10 x 0,75 x 29 (38302111)
533.
4G-30.2
382310-25
compression ring Piston diameter 74,96mm Ø75 x 1,5 (38231025)
534.
4G-30.2
382300-58
compression ring Piston diameter 74,96mm Ø75 x 1,5 (38230058)
535.
4G-30.2
302115-50
connecting rod (30211550)
536.
4G-30.2
302297-40
connecting rod / pisto Ø75 (30229740)
537.
4G-30.2
320318-03
connection bridge brass A 5,4 (32031803)
538.
4G-30.2
343417-07
connection to ground, complete grounding (34341707)
539.
4G-30.2
343413-01
conversion kit (34341301)
540.
4G-30.2
305914-45
Cover black 313 x 175 x 11 (30591445)
541.
4G-30.2
343213-12
Crankcase heater heating capacity: 140W 230V-1-50/60Hz (34321312)
542.
4G-30.2
301007-07
crankshaft Stroke 55mm Ø45 x 522 (30100707)
543.
4G-30.2
380507-52
Cross Recessed Raised Screw 4.8 galvanized M4 x 10 (38050752)
544.
4G-30.2
302360-22
cylinder head air-cooled (30236022)
545.
4G-30.2
302326-02
cylinder head water-cooled grey cast iron 253 x 155 x 64 (30232602)
546.
4G-30.2
302360-03
cylinder head water-cooled Water cooled 253 x 155 x 64 (30236003)
547.
4G-30.2
325002-03
damper element Motor side spring steel blue Lo=48 (32500203)
548.
4G-30.2
325002-01
damper element Crankcase side spring steel brown Lo=42 (32500201)
549.
4G-30.2
347320-33
differential oil pressure cut-out MP54 115V/230V-50/60Hz 100 x 50 x 130 (34732033)
550.
4G-30.2
389002-01
electric connector of the machine / device capacity control DIN 43650 Typ GDM 209 (38900201)
551.
4G-30.2
320314-01
fixing plate MP54 140 x 40 x 3 (32031401)
552.
4G-30.2
327309-01
foot 369 x 60 x 13 x Ø21 (32730901)
553.
4G-30.2
361110-03
gas equalising valve (36111003)
554.
4G-30.2
372314-03
gasket bearing cover Ø182 x Ø133 x 1 (37231403)
555.
4G-30.2
372421-14
gaske 163 x 118 x 0,5 (37242114)
556.
4G-30.2
372415-02
gasket bottom plate (37241502)
557.
4G-30.2
372511-11
gasket 253 x 155 x 1,0 Ø75 (37251111)
558.
4G-30.2
372616-03
gasket Retall 253 x 155 x 0,5 (37261603)
559.
4G-30.2
372120-01
gasket 133 x 117 x 2 (37212001)
560.
4G-30.2
372124-01
gasket terminal box aluminium 165 x 120 x 3 (37212401)
561.
4G-30.2
372301-03
gasket suction shut-off valve Ø76 x Ø60 x 1 (37230103)
562.
4G-30.2
372704-01
Gasket blind flange 91 x 52 x 1 (37270401)
563.
4G-30.2
372303-02
Gasket Pipe connection Ø75 x Ø61 x 2 (37230302)
564.
4G-30.2
372315-03
gasket housing cover Ø286 x Ø236 x 0,38 (37231503)
565.
4G-30.2
372124-03
gasket only needed for terminal box IP66 165 x 120 x 3 (37212403)
566.
4G-30.2
372138-02
gasket terminal box aluminium (37213802)
567.
4G-30.2
372200-04
gasket Pipe connection teflon Ø38 x Ø35 x 1,5 (37220004)
568.
4G-30.2
375000-01
gasket ring Ø4,5 x Ø18,5 x 8,5 (37500001)
569.
4G-30.2
375000-03
gasket ring Ø16 x Ø8 x 8,5 (37500003)
570.
4G-30.2
382402-01
gasket ring aluminium DIN 7603 A10 x 15 x 1 (38240201)
571.
4G-30.2
382403-04
Gasket Ring oil drain aluminium DIN 7603 A26 x 31 x 2 (38240304)
572.
4G-30.2
372811-04
gasket set (37281104)
573.
4G-30.2
384102-01
gib-headed key Stator steel DIN 6887 5 x 5 x 60 (38410201)
574.
4G-30.2
345906-02
heater sleeve for 140W heater 43315 (34590602)
575.
4G-30.2
380156-06
hexagon head screw blind flange coated DIN 933, 10.9 M10 x 30 (38015606)
576.
4G-30.2
380156-05
hexagon head screw DIN 933, 10.9 M10 x 25 (38015605)
577.
4G-30.2
380057-11
hexagon head screw housing cover DIN 931, 10.9 M12 x 150 (38005711)
578.
4G-30.2
380109-09
Hexagon Head Screw clamping plate DIN 933, 8.8 M16 x 55 (38010909)
579.
4G-30.2
380009-53
hexagon head screw suction shut-off valve 8.8 galvanized DIN 931, 8.8 M16 x 100 (38000953)
580.
4G-30.2
380155-05
hexagon head screw oil pump DIN 933, 10.9 M8 x 20 (38015505)
581.
4G-30.2
380105-09
hexagon head screw DIN 933, 8.8 M8 x 45 (38010509)
582.
4G-30.2
380057-14
hexagon head screw housing cover DIN 931, 10.9 M12 x 180 (38005714)
583.
4G-30.2
380154-06
hexagon head screw DIN 933, 10.9 M6 x 20 (38015406)
584.
4G-30.2
380166-03
hexagon head screw coated DIN 933, 10.9 M16 x 40 (38016603)
585.
4G-30.2
380056-03
hexagon head screw DIN 931, 10.9 M10 x 60 (38005603)
586.
4G-30.2
381301-05
hexagon nut brass M8 (38130105)
587.
4G-30.2
381301-03
hexagon nut brass M5 (38130103)
588.
4G-30.2
380339-01
Hexsocket Cheese Head Screw ISO 4762, 10.9 - A2K M10 x 30 (38033901)
589.
4G-30.2
300028-03
housing Ø75 (30002803)
590.
4G-30.2
305900-03
housing cover (30590003)
591.
4G-30.2
345923-06
insulating plate (34592306)
592.
4G-30.2
375002-03
insulating plate 85 x 25 x 6 (37500203)
593.
4G-30.2
375002-01
insulating plate 53 x 18 x 6,5 (37500201)
594.
4G-30.2
372003-15
O-ring sight glass Ø36,3 x 1,78 (37200315)
595.
4G-30.2
372001-19
O-ring oil pump Ø74 x 2 (37200119)
596.
4G-30.2
372001-13
O-ring Ø45 x 3 (37200113)
597.
4G-30.2
362003-01
oil filter Ø20 x 200 (36200301)
598.
4G-30.2
361101-01
oil pressure relief valve SW17 x 29 (36110101)
599.
4G-30.2
360110-06
oil return system (36011006)
600.
4G-30.2
380501-54
Oval head screw galvanized DIN 7985, 4.8 M6 x 16 (38050154)
601.
4G-30.2
384001-24
parallel key steel DIN 6885 A12 x 8 x 125 (38400124)
602.
4G-30.2
327000-01
parallel pin 6H 11 x 20 (32700001)
603.
4G-30.2
366000-06
pipe connection discharge shut-off valve steel copper-plated brazed connection Ø28, 1 3/4" - 12 UN (36600006)
604.
4G-30.2
365321-03
Pipe Connection brazed and welding bush steel Ø54 (2 1/8") (36532103)
605.
4G-30.2
302233-96
piston aluminium alloy Ø75 (30223396)
606.
4G-30.2
375001-03
pressure bush Ø8 x Ø24 x 8 (37500103)
607.
4G-30.2
375001-01
pressure bush Ø4,5 x Ø18,5 x 8,5 (37500101)
608.
4G-30.2
361100-21
pressure relief valve 34 bar 3/4" - 14 NPTF - p=34bar (36110021)
609.
4G-30.2
325000-34
pressure spring spring steel Ø23,5 x 28 x 1,8 (32500034)
610.
4G-30.2
347028-01
protection device SE-B2 230V-50/60Hz (34702801)
611.
4G-30.2
366201-19
Protective Cap Span of the jaw: 27 Plastic - GRP M24 x 2 / L=57,5 mm (36620119)
612.
4G-30.2
375014-05
Protective Cap Span of the jaw: 36 Plastic - GRP M36 x 1,5 / L=67 mm (37501405)
613.
4G-30.2
325910-01
retaining ring with lugs spring steel Ø230 (32591001)
614.
4G-30.2
382231-04
retaining ring with lugs spring steel DIN 472 Ø20 x 1 (38223104)
615.
4G-30.2
382141-01
retaining ring with lugs spring steel DIN 6796 - FSt A8 (38214101)
616.
4G-30.2
312006-05
ring spring washer Ø 42,1 x Ø 58 x 5 (31200605)
617.
4G-30.2
361500-22
Schrader valve (36150022)
618.
4G-30.2
366202-01
sealing nut 7/16" - 20 UNF (36620201)
619.
4G-30.2
366110-01
Sealing plug steel 1/8“ - 27 NPTF (36611001)
620.
4G-30.2
366110-10
sealing plug oil equalising bore steel 1/2" - 14 NPTF (36611010)
621.
4G-30.2
366110-02
Sealing Plug oil fill connection steel 1/4" - 18 NPTF (36611002)
622.
4G-30.2
366110-05
sealing plug gas equalising bore steel 3/4" - 14 NPTF (36611005)
623.
4G-30.2
366112-01
sealing screw conic DIN 906 M8 x 1 (36611201)
624.
4G-30.2
380391-55
sealing screw conic brass R 3/4 (38039155)
625.
4G-30.2
366114-24
sealing screw with magnet oil drain inclusive O-Ring gasket M26 (36611424)
626.
4G-30.2
380358-01
Set screw coated DIN 916 M10 x 12 (38035801)
627.
4G-30.2
374027-03
shaft seal bearing bush (37402703)
628.
4G-30.2
361338-04
Shut-Off Valve suction side Ø54 (2 1/8") (36133804)
629.
4G-30.2
361310-07
shut-off valve Discharge side brazing and welding bush Ø28 (1 1/8") (36131007)
630.
4G-30.2
361802-02
sight glass steel / glass Ø67 x 8,5 (36180202)
631.
4G-30.2
382201-51
single coil spring washer spring steel galvanized DIN 127 A4, 3 (38220151)
632.
4G-30.2
325900-02
spring washer Ø58,5 x Ø46 x 0,5 (32590002)
633.
4G-30.2
362004-02
suction gas filter Ø220 x 50 (36200402)
634.
4G-30.2
300950-17
terminal box black aluminium cast 313 x 175 x 84 (30095017)
635.
4G-30.2
304900-01
terminal plate 165 x 120 x 15,5 (30490001)
636.
4G-30.2
343414-07
terminal plate kit (34341407)
637.
4G-30.2
343416-02
terminal plate kit (34341602)
638.
4G-30.2
343414-08
terminal plate kit (34341408)
639.
4G-30.2
312030-03
thrust collar Ø62 x 7 (31203003)
640.
4G-30.2
382150-04
thrust washer spring steel S16 (38215004)
641.
4G-30.2
382152-01
thrust washer DIN 127 S 8 (38215201)
642.
4G-30.2
320500-07
thrust washer oil pump side Ø62 x Ø48 x 1,7 (32050007)
643.
4G-30.2
320502-04
thrust washer steel Ø54 x Ø17 x 5 (32050204)
644.
4G-30.2
320500-06
thrust washer Crankcase side Ø62 x Ø48 x 1,7 (32050006)
645.
4G-30.2
304051-03
valve plate Ø75 (30405103)
646.
4G-30.2
370004-01
vibration damper set Crankcase side spring brown Lo = 42 (37000401)
647.
4G-30.2
370004-03
vibration damper set Motor side spring blue Lo = 48 (37000403)
648.
4G-30.2
382042-03
washer copper 8 x 1,6 (38204203)
649.
4G-30.2
382002-02
washer brass DIN 125 A5, 3 (38200202)
650.
4G-30.2
382002-01
washer brass DIN 125 A4, 3 (38200201)
651.
4G-30.2
383401-06
wrist pin DIN 73126 Ø20 x Ø13 x 56 (38340106)
652.
4GE-30
311100-05
bearing bush Crankcase side Ø50 x Ø45 x 47,5 (31110005)
653.
4GE-30
311100-04
bearing bush Ø50 x Ø45 x 47,5 (31110004)
654.
4GE-30
305125-03
bearing cover complete inclusive oil pump (30512503)
655.
4GE-30
367015-15
blind flange steel 91 x 52 x 13. Bo. 1/8" NPTF (36701515)
656.
4GE-30
320307-04
bottom plate steel 270 x 360 x 12 (32030704)
657.
4GE-30
346318-46
built-in motor 22.1 kW, 4-pole 380..420V Y/YY-3-50Hz, 440..480V Y/YY-3-60Hz Ø223 (34631846)
658.
4GE-30
344006-03
cable grounding for grounding (34400603)
659.
4GE-30
302915-02
cable connector brass (30291502)
660.
4GE-30
321202-01
centering plate steel 167 x 122 x 12 (32120201)
661.
4GE-30
380507-51
cheese head screw 4.8 galvanized M4 x 8 (38050751)
662.
4GE-30
380306-89
cheese head screw 10.9 galvanized DIN 912, 10.9 M10 x 20 (38030689)
663.
4GE-30
380508-51
Cheese head screw galvanized DIN 7985, 4.8 M5 x 20 (38050851)
664.
4GE-30
380306-32
Cheese Head Screw bearing cover DIN 912, 10.9 M10 x 30 (38030632)
665.
4GE-30
367121-02
Clamping Plate 110 x 110 (36712102)
666.
4GE-30
382300-58
compression ring Piston diameter 74,96mm Ø75 x 1,5 (38230058)
667.
4GE-30
382310-25
compression ring Piston diameter 74,96mm Ø75 x 1,5 (38231025)
668.
4GE-30
302115-52
connecting rod (30211552)
669.
4GE-30
302298-68
connecting rod / piston Ø75 (30229868)
670.
4GE-30
343413-01
conversion kit (34341301)
671.
4GE-30
305914-45
Cover black 313 x 175 x 11 (30591445)
672.
4GE-30
343213-12
Crankcase heater heating capacity: 140W 230V-1-50/60Hz (34321312)
673.
4GE-30
301007-07
crankshaft Stroke 55mm Ø45 x 522 (30100707)
674.
4GE-30
380507-52
Cross Recessed Raised Screw 4.8 galvanized M4 x 10 (38050752)
675.
4GE-30
380501-52
cross recessed raised screw grounding Cross recessed raised 4.8 galvanized M6 x 12 (38050152)
676.
4GE-30
302360-38
cylinder head air-cooled (30236038)
677.
4GE-30
325002-03
damper element Motor side spring steel blue Lo=48 (32500203)
678.
4GE-30
325002-01
damper element Crankcase side spring steel brown Lo=42 (32500201)
679.
4GE-30
347320-33
differential oil pressure cut-out MP54 115V/230V-50/60Hz 100 x 50 x 130 (34732033)
680.
4GE-30
347319-11
differential oil pressure cut-out Delta-P II 230V-50/60Hz (34731911)
681.
4GE-30
389002-01
electric connector of the machine / device DIN 43650 Typ GDM 209 (38900201)
682.
4GE-30
320314-01
fixing plate MP54 140 x 40 x 3 (32031401)
683.
4GE-30
327309-01
foot 369 x 60 x 13 x Ø21 (32730901)
684.
4GE-30
361110-03
gas equalising valve (36111003)
685.
4GE-30
372616-03
gasket Retall 253 x 155 x 0,5 (37261603)
686.
4GE-30
372704-01
Gasket blind flange91 x 52 x 1 (37270401)
687.
4GE-30
372704-05
gasket discharge shut-off valve Ø34 x 1,0 - LA 66 (37270405)
688.
4GE-30
372415-02
gasket (37241502)
689.
4GE-30
372120-01
gasket 133 x 117 x 2 (37212001)
690.
4GE-30
372511-11
gasket 253 x 155 x 1,0 Ø75 (37251111)
691.
4GE-30
372124-01
gasket terminal box aluminium 165 x 120 x 3 (37212401)
692.
4GE-30
372138-02
gasket terminal box aluminium (37213802)
693.
4GE-30
372303-02
Gasket Pipe connection Ø75 x Ø61 x 2 (37230302)
694.
4GE-30
372315-03
gasket housing cover Ø286 x Ø236 x 0,38 (37231503)
695.
4GE-30
372301-03
gasket suction shut-off valve Ø76 x Ø60 x 1 (37230103)
696.
4GE-30
372314-03
gasket bearing cover Ø182 x Ø133 x 1 (37231403)
697.
4GE-30
372124-03
gasket only needed for terminal box IP66 165 x 120 x 3 (37212403)
698.
4GE-30
372421-14
gasket 163 x 118 x 0,5 (37242114)
699.
4GE-30
382402-01
gasket ring aluminium DIN 7603 A10 x 15 x 1 (38240201)
700.
4GE-30
382403-04
Gasket Ring oil drain aluminium DIN 7603 A26 x 31 x 2 (38240304)
701.
4GE-30
382403-01
Gasket Ring aluminium DIN 7603 A20 x 24 x 1,5 (38240301)
702.
4GE-30
372811-04
gasket set (37281104)
703.
4GE-30
384102-01
gib-headed key Stator steel DIN 6887 5 x 5 x 60 (38410201)
704.
4GE-30
345906-02
heater sleeve for 140W heater 43315 (34590602)
705.
4GE-30
380009-53
hexagon head screw suction shut-off valve 8.8 galvanized DIN 931, 8.8 M16 x 100 (38000953)
706.
4GE-30
380156-06
hexagon head screw discharge shut-off valve coated DIN 933, 10.9 M10 x 30 (38015606)
707.
4GE-30
380156-05
hexagon head screw DIN 933, 10.9 M10 x 25 (38015605)
708.
4GE-30
380166-10
hexagon head screw coated DIN 933, 10.9 M16 x 70 (38016610)
709.
4GE-30
380154-06
hexagon head screw DIN 933, 10.9 M6 x 20 (38015406)
710.
4GE-30
380155-05
hexagon head screw oil pump DIN 933, 10.9 M8 x 20 (38015505)
711.
4GE-30
380056-14
hexagon head screw DIN 931, 10.9 M10 x 70 (38005614)
712.
4GE-30
380056-20
hexagon head screw DIN 931, 10.9 M10 x 90 (38005620)
713.
4GE-30
380004-53
hexagon head screw grounding ISO 4014, 8.8 - A2K M6 x 35 (38000453)
714.
4GE-30
380057-11
hexagon head screw housing cover DIN 931, 10.9 M12 x 150 (38005711)
715.
4GE-30
380057-14
hexagon head screw housing cover DIN 931, 10.9 M12 x 180 (38005714)
716.
4GE-30
380109-09
Hexagon Head Screw clamping plate DIN 933, 8.8 M16 x 55 (38010909)
717.
4GE-30
381301-05
hexagon nut brass M8 (38130105)
718.
4GE-30
381108-01
hexagon nut M5 (38110801)
719.
4GE-30
380339-01
Hexsocket Cheese Head Screw ISO 4762, 10.9 - A2K M10 x 30 (38033901)
720.
4GE-30
300028-03
housing Ø75 (30002803)
721.
4GE-30
305900-03
housing cover (30590003)
722.
4GE-30
377108-52
Insulation for motor housing cover (37710852)
723.
4GE-30
345950-01
Metal Plate For Grounding aluminium M6 (34595001)
724.
4GE-30
372001-19
O-ring oil pump Ø74 x 2 (37200119)
725.
4GE-30
372003-15
O-ring sight glass Ø36,3 x 1,78 (37200315)
726.
4GE-30
362003-01
oil filter Ø20 x 200 (36200301)
727.
4GE-30
361101-01
oil pressure relief valve SW17 x 29 (36110101)
728.
4GE-30
362503-02
oil pump (36250302)
729.
4GE-30
360110-06
oil return system (36011006)
730.
4GE-30
380501-54
Oval head screw galvanized DIN 7985, 4.8 M6 x 16 (38050154)
731.
4GE-30
384001-24
parallel key steel DIN 6885 A12 x 8 x 125 (38400124)
732.
4GE-30
327000-01
parallel pin 6H 11 x 20 (32700001)
733.
4GE-30
365321-03
Pipe Connection brazed and welding bush steel Ø54 (2 1/8") (36532103)
734.
4GE-30
302233-96
piston aluminium alloy Ø75 (30223396)
735.
4GE-30
361110-06
Pressure relief valve 37 bar 3/4" (36111006)
736.
4GE-30
325000-34
pressure spring spring steel Ø23,5 x 28 x 1,8 (32500034)
737.
4GE-30
347028-01
protection device SE-B2 230V-50/60Hz (34702801)
738.
4GE-30
366201-19
Protective Cap Span of the jaw: 27 Plastic - GRP M24 x 2 / L=57,5 mm (36620119)
739.
4GE-30
375014-05
Protective Cap Span of the jaw: 36 Plastic - GRP M36 x 1,5 / L=67 mm (37501405)
740.
4GE-30
325910-01
retaining ring with lugs spring steel Ø230 (32591001)
741.
4GE-30
382231-04
retaining ring with lugs spring steel DIN 472 Ø20 x 1 (38223104)
742.
4GE-30
361500-22
Schrader valve (36150022)
743.
4GE-30
366110-01
Sealing plug steel 1/8“ - 27 NPTF (36611001)
744.
4GE-30
366110-02
Sealing Plug steel 1/4" - 18 NPTF (36611002)
745.
4GE-30
366110-10
sealing plug oil equalising bore steel 1/2" - 14 NPTF (36611010)
746.
4GE-30
366110-05
sealing plug gas equalising bore steel 3/4" - 14 NPTF (36611005)
747.
4GE-30
366112-01
sealing screw conic DIN 906 M8 x 1 (36611201)
748.
4GE-30
366114-24
sealing screw with magnet oil drain inclusive O-Ring gasket M26 (36611424)
749.
4GE-30
380358-01
Set screw coated DIN 916 M10 x 12 (38035801)
750.
4GE-30
374027-03
shaft seal bearing bush (37402703)
751.
4GE-30
361315-13
shut-off valve Discharge side Ø28 (1 1/8") (36131513)
752.
4GE-30
361338-04
Shut-Off Valve suction side Ø54 (2 1/8") (36133804)
753.
4GE-30
361802-02
sight glass steel / glass Ø67 x 8,5 (36180202)
754.
4GE-30
382201-51
single coil spring washer spring steel galvanized DIN 127 A4, 3 (38220151)
755.
4GE-30
311018-01
Spacer Sleeve Ø14 x Ø6,3 x 21,4 (31101801)
756.
4GE-30
362004-02
suction gas filter Ø220 x 50 (36200402)
757.
4GE-30
300950-17
terminal box black aluminium cast 313 x 175 x 84 (30095017)
758.
4GE-30
345506-24
terminal plate optimized condensation sequence optimized condensation sequence (34550624)
759.
4GE-30
343416-02
terminal plate kit (34341602)
760.
4GE-30
320502-04
thrust washer steel Ø54 x Ø17 x 5 (32050204)
761.
4GE-30
382150-04
thrust washer spring steel S16 (38215004)
762.
4GE-30
320500-07
thrust washer oil pump side Ø62 x Ø48 x 1,7 (32050007)
763.
4GE-30
320500-06
thrust washer Crankcase side Ø62 x Ø48 x 1,7 (32050006)
764.
4GE-30
382150-01
thrust washer spring steel S6 (38215001)
765.
4GE-30
382152-01
thrust washer DIN 127 S 8 (38215201)
766.
4GE-30
382101-54
toothed washer grounding spring steel galvanized DIN 6797 A6, 4 (38210154)
767.
4GE-30
304063-34
valve plate (30406334)
768.
4GE-30
370004-01
vibration damper set Crankcase side spring brown Lo = 42 (37000401)
769.
4GE-30
370004-03
vibration damper set Motor side spring blue Lo = 48 (37000403)
770.
4GE-30
382002-01
washer brass DIN 125 A4, 3 (38200201)
771.
4GE-30
383401-06
wrist pin DIN 73126 Ø20 x Ø13 x 56 (38340106)
772.
4N-20.2
311100-17
bearing bush Ø50 x Ø45 x 40,7 (31110017)
773.
4N-20.2
311100-07
bearing bush Motor side Ø55 x Ø50 x 30 (31110007)
774.
4N-20.2
311100-14
bearing bush Crankcase side Ø55 x Ø50 x 30 (31110014)
775.
4N-20.2
305125-01
bearing cover (30512501)
776.
4N-20.2
320307-03
bottom plate steel 220 x 200 x 12 x Ø21 (32030703)
777.
4N-20.2
346294-46
built-in motor 14.7 kW, 4-pole 380..420V Y/YY-3-50Hz, 440..480V Y/YY-3-60Hz Ø223 (34629446)
778.
4N-20.2
302915-02
cable connector separate out using filters brass (30291502)
779.
4N-20.2
321202-01
centering plate steel 167 x 122 x 12 (32120201)
780.
4N-20.2
380508-51
Cheese head screw galvanized DIN 7985, 4.8 M5 x 20 (38050851)
781.
4N-20.2
380306-32
Cheese Head Screw DIN 912, 10.9 M10 x 30 (38030632)
782.
4N-20.2
380306-22
cheese head screw DIN 912, 10.9 M10 x 20 (38030622)
783.
4N-20.2
380507-51
cheese head screw 4.8 galvanized M4 x 8 (38050751)
784.
4N-20.2
367121-01
clamping plate 80 x 80 (36712101)
785.
4N-20.2
383021-10
clamping sleeve DIN 7346 Ø8 x 18 (38302110)
786.
4N-20.2
382300-52
compression ring Piston diameter 59,96mm Ø60 x 1,5 (38230052)
787.
4N-20.2
302117-05
connecting rod Ø45 x Ø20 x 112 (30211705)
788.
4N-20.2
302297-24
connecting rod / piston (30229724)
789.
4N-20.2
320318-03
connection bridge brass A 5,4 (32031803)
790.
4N-20.2
343417-07
connection to ground, complete (34341707)
791.
4N-20.2
343413-01
conversion kit violet (34341301)
792.
4N-20.2
305914-45
Cover black 313 x 175 x 11 (30591445)
793.
4N-20.2
343208-34
Crankcase Heater heating capacity: 100W 230V-1-50/60Hz (34320834)
794.
4N-20.2
301007-02
crankshaft Stroke 57mm Ø45 x 422 (30100702)
795.
4N-20.2
380507-52
Cross Recessed Raised Screw 4.8 galvanized M4 x 10 (38050752)
796.
4N-20.2
302360-01
cylinder head water-cooled Water cooled (30236001)
797.
4N-20.2
302360-11
cylinder head air-cooled Air cooled 196 x 127 x 55 (30236011)
798.
4N-20.2
325002-06
damper element green spring steel 46 mm (32500206)
799.
4N-20.2
325002-05
damper element yellow spring steel 42 mm (32500205)
800.
4N-20.2
347320-33
differential oil pressure cut-out MP54 115V/230V-50/60Hz 100 x 50 x 130 (34732033)
801.
4N-20.2
389002-01
electric connector of the machine / device DIN 43650 Typ GDM 209 (38900201)
802.
4N-20.2
320314-01
fixing plate MP54 140 x 40 x 3 (32031401)
803.
4N-20.2
327309-02
foot 315 x 40 x 8 x Ø21 (32730902)
804.
4N-20.2
361110-01
gas equalising valve (36111001)
805.
4N-20.2
372413-01
gasket 220 x 200 x 1 (37241301)
806.
4N-20.2
372510-12
gasket Ø60, 127 x 196 x 0,9 (37251012)
807.
4N-20.2
372704-01
Gasket discharge shut-off valve 91 x 52 x 1 (37270401)
808.
4N-20.2
372124-01
gasket violet 165 x 120 x 3 (37212401)
809.
4N-20.2
372611-01
gasket valve plate Capacity control 192 x 127 x 0,75 (37261101)
810.
4N-20.2
372303-01
gasket Ø52 x Ø37 x 2 (37230301)
811.
4N-20.2
372315-03
gasket Ø286 x Ø236 x 0,38 (37231503)
812.
4N-20.2
372314-03
gasket Ø182 x Ø133 x 1 (37231403)
813.
4N-20.2
372200-04
gasket teflon Ø38 x Ø35 x 1,5 (37220004)
814.
4N-20.2
372301-02
gasket Ø70 x Ø54 x 1 (37230102)
815.
4N-20.2
372138-02
gasket (37213802)
816.
4N-20.2
372421-14
gasket 163 x 118 x 0,5 (37242114)
817.
4N-20.2
372120-01
gasket 133 x 117 x 2 (37212001)
818.
4N-20.2
382403-05
Gasket Ring aluminium DIN 7603 A22 x 27 x 1,5 (38240305)
819.
4N-20.2
375000-01
gasket ring Ø4,5 x Ø18,5 x 8,5 (37500001)
820.
4N-20.2
375000-03
gasket ring Ø16 x Ø8 x 8,5 (37500003)
821.
4N-20.2
372808-08
gasket set (37280808)
822.
4N-20.2
384101-05
gib-headed key steel DIN 6887 5 x 5 x 36 (38410105)
823.
4N-20.2
345906-04
heater sleeve for 100W heater (34590604)
824.
4N-20.2
380156-05
hexagon head screw DIN 933, 10.9 M10 x 25 (38015605)
825.
4N-20.2
380057-15
hexagon head screw coated DIN 931, 10.9 M12 x 50 (38005715)
826.
4N-20.2
380056-07
hexagon head screw DIN 931, 10.9 M10 x 80 (38005607)
827.
4N-20.2
380155-05
hexagon head screw DIN 933, 10.9 M8 x 20 (38015505)
828.
4N-20.2
380057-03
hexagon head screw DIN 931, 10.9 M12 x 70 (38005703)
829.
4N-20.2
380069-04
Hexagon Head Screw coated DIN 933, 10.9 M16 x 80 (38006904)
830.
4N-20.2
380035-01
hexagon head screw M6 x 40 (38003501)
831.
4N-20.2
380154-06
hexagon head screw DIN 933, 10.9 M6 x 20 (38015406)
832.
4N-20.2
380057-52
hexagon head screw galvanized DIN 931, 10.9 M12 x 125 (38005752)
833.
4N-20.2
381301-05
hexagon nut brass M8 (38130105)
834.
4N-20.2
381301-03
hexagon nut brass M5 (38130103)
835.
4N-20.2
380339-01
Hexsocket Cheese Head Screw ISO 4762, 10.9 - A2K M10 x 30 (38033901)
836.
4N-20.2
300027-13
housing Ø60 (30002713)
837.
4N-20.2
305217-01
housing cover grey cast iron Ø286 x 82 (30521701)
838.
4N-20.2
375002-03
insulating plate 85 x 25 x 6 (37500203)
839.
4N-20.2
345923-06
insulating plate (34592306)
840.
4N-20.2
375002-01
insulating plate 53 x 18 x 6,5 (37500201)
841.
4N-20.2
311004-01
intermediary Ø60 x Ø42 x 31 (31100401)
842.
4N-20.2
372001-16
O-ring Ø50 x 3 (37200116)
843.
4N-20.2
372003-15
O-ring Ø36,3 x 1,78 (37200315)
844.
4N-20.2
372001-19
O-ring Ø74 x 2 (37200119)
845.
4N-20.2
362003-02
oil filter Ø14 x 105 (36200302)
846.
4N-20.2
362503-01
oil pump in view of grey cast iron (36250301)
847.
4N-20.2
360110-08
oil return system (36011008)
848.
4N-20.2
382310-19
oil scraper ring Piston diameter 59,96mm Ø60 x 1,5 (38231019)
849.
4N-20.2
380501-54
Oval head screw galvanized DIN 7985, 4.8 M6 x 16 (38050154)
850.
4N-20.2
384001-17
parallel key steel DIN 6885 A12 x 8 x 90 (38400117)
851.
4N-20.2
365321-14
pipe connection steel brazing and welding bush Ø42 (1 5/8") (36532114)
852.
4N-20.2
366000-06
pipe connection steel copper-plated brazed connection Ø28, 1 3/4" - 12 UN (36600006)
853.
4N-20.2
302232-16
piston aluminium alloy Ø55 (30223216)
854.
4N-20.2
375001-03
pressure bush Ø8 x Ø24 x 8 (37500103)
855.
4N-20.2
375001-01
pressure bush Ø4,5 x Ø18,5 x 8,5 (37500101)
856.
4N-20.2
325000-06
pressure spring steel Ø60 x 32 (32500006)
857.
4N-20.2
325000-01
pressure spring spring steel Ø18 x 28 x 1,25 (32500001)
858.
4N-20.2
347028-01
protection device SE-B2 230V-50/60Hz (34702801)
859.
4N-20.2
366201-22
Protective Cap Span of the jaw: 27 Plastic - GRP M27 x 2 / L=70 mm (36620122)
860.
4N-20.2
366201-19
Protective Cap Span of the jaw: 27 Plastic - GRP M24 x 2 / L=57,5 mm (36620119)
861.
4N-20.2
382231-04
retaining ring with lugs spring steel DIN 472 Ø20 x 1 (38223104)
862.
4N-20.2
361500-01
Schrader valve T-piece brass Jul-16 (36150001)
863.
4N-20.2
366202-01
sealing nut 7/16" - 20 UNF (36620201)
864.
4N-20.2
366100-01
Sealing Plug brass 1/8" - 27 NPTF (36610001)
865.
4N-20.2
366110-01
Sealing plug steel 1/8“ - 27 NPTF (36611001)
866.
4N-20.2
366110-10
sealing plug steel 1/2" - 14 NPTF (36611010)
867.
4N-20.2
366110-02
Sealing Plug steel 1/4" - 18 NPTF (36611002)
868.
4N-20.2
366110-08
Sealing Plug steel 1/4" - 18NPTF (36611008)
869.
4N-20.2
366124-01
sealing screw permanent magnet M22 x 1,5 (36612401)
870.
4N-20.2
366112-01
sealing screw conic DIN 906 M8 x 1 (36611201)
871.
4N-20.2
380358-01
Set screw coated DIN 916 M10 x 12 (38035801)
872.
4N-20.2
361338-01
shut-off valve Ø42 (1 5/8") (36133801)
873.
4N-20.2
361310-07
shut-off valve brazing and welding bush Ø28 (1 1/8") (36131007)
874.
4N-20.2
361802-02
sight glass steel / glass Ø67 x 8,5 (36180202)
875.
4N-20.2
382141-02
single coil spring washer spring steel A6 (38214102)
876.
4N-20.2
382201-51
single coil spring washer spring steel galvanized DIN 127 A4, 3 (38220151)
877.
4N-20.2
362001-08
suction gas filter Ø50 x 57 (36200108)
878.
4N-20.2
300950-17
terminal box black aluminium cast 313 x 175 x 84 (30095017)
879.
4N-20.2
304900-01
terminal plat 165 x 120 x 15,5 (30490001)
880.
4N-20.2
343414-08
terminal plate kit (34341408)
881.
4N-20.2
343414-07
terminal plate kit (34341407)
882.
4N-20.2
343416-02
terminal plate kit (34341602)
883.
4N-20.2
312030-02
thrust collar Ø65 x 7 (31203002)
884.
4N-20.2
382150-04
thrust washer spring steel S16 (38215004)
885.
4N-20.2
382152-01
thrust washer DIN 127 S 8 (38215201)
886.
4N-20.2
320502-04
thrust washer steel Ø54 x Ø17 x 5 (32050204)
887.
4N-20.2
320500-07
thrust washer Ø62 x Ø48 x 1,7 (32050007)
888.
4N-20.2
320500-05
thrust washer Motor side Ø62 x Ø50,5 x 1,7 (32050005)
889.
4N-20.2
304052-04
valve plate Ø60 (30405204)
890.
4N-20.2
370003-03
vibration damper set Motor side green spring Lo=46 (37000303)
891.
4N-20.2
370003-02
vibration damper set Crankcase side yellow spring Lo=42 (37000302)
892.
4N-20.2
382042-03
washer copper 8 x 1,6 (38204203)
893.
4N-20.2
382002-02
washer brass DIN 125 A5, 3 (38200202)
894.
4N-20.2
382002-01
washer brass DIN 125 A4, 3 (38200201)
895.
4N-20.2
383401-04
wrist pin Ø20 x Ø13 x 45 (38340104)
896.
4NC-20.2
302926-08
balance weight (30292608)
897.
4NC-20.2
311135-01
Bearing bush oil centrifuge Ø50 x Ø45 x 40 (31113501)
898.
4NC-20.2
305139-01
bearing cover (30513901)
899.
4NC-20.2
346294-46
built-in motor 14.7 kW, 4-pole 380..420V Y/YY-3-50Hz, 440..480V Y/YY-3-60Hz Ø223 (34629446)
900.
4NC-20.2
380508-51
Cheese head screw cover for terminal box galvanized DIN 7985, 4.8 M5 x 20 (38050851)
901.
4NC-20.2
380306-04
cheese head screw balance weight DIN 912, 10.9 M8 x 30 (38030604)
902.
4NC-20.2
380302-05
Cheese Head Screw suction shut-off valve DIN 912, 10.9 M12 x 50 (38030205)
903.
4NC-20.2
380402-06
cheese head screw protection device brass M4 x 16 (38040206)
904.
4NC-20.2
380306-32
Cheese Head Screw DIN 912, 10.9 M10 x 30 (38030632)
905.
4NC-20.2
367121-01
clamping plate suction shut-off valve 80 x 80 (36712101)
906.
4NC-20.2
302131-02
connecting rod Ø70 x Ø16 x 90 (30213102)
907.
4NC-20.2
302298-49
connecting rod / piston Kit - right / left Ø70 (30229849)
908.
4NC-20.2
343219-04
crankcase heater 0..140 W, 200-260 V (PTC) 200-260V (34321904)
909.
4NC-20.2
301117-02
crankshaft (30111702)
910.
4NC-20.2
302360-20
cylinder head air-cooled (30236020)
911.
4NC-20.2
382001-05
disk rotor spring steel DIN 125 A17 (38200105)
912.
4NC-20.2
380902-01
eye bolt DIN 580 M10 (38090201)
913.
4NC-20.2
372949-02
gasket housing cover 14 - Hole 275 x 275 x 0,38 (37294902)
914.
4NC-20.2
372421-14
gasket Terminal plate 163 x 118 x 0,5 (37242114)
915.
4NC-20.2
372623-01
gasket cylinder head Retall 191 x 115 x 0,49 (37262301)
916.
4NC-20.2
372301-02
gasket suction shut-off valve Ø70 x Ø54 x 1 (37230102)
917.
4NC-20.2
372303-01
gasket Pipe connection Ø52 x Ø37 x 2 (37230301)
918.
4NC-20.2
372200-01
Gasket PTFE Ø14,3 x 1,5 (37220001)
919.
4NC-20.2
372704-05
gasket discharge shut-off valve Ø34 x 1,0 - LA 66 (37270405)
920.
4NC-20.2
372145-01
gasket terminal box aluminium for terminal box 286 x 181 x 2 (37214501)
921.
4NC-20.2
372515-08
gasket valve plate 191 x 115 x 1,1 (37251508)
922.
4NC-20.2
382403-01
Gasket Ring oil pressure monitoring aluminium DIN 7603 A20 x 24 x 1,5 (38240301)
923.
4NC-20.2
382401-31
gasket ring copper A10 x 16 x 2 (38240131)
924.
4NC-20.2
382403-05
Gasket Ring oil drain aluminium DIN 7603 A22 x 27 x 1,5 (38240305)
925.
4NC-20.2
372841-01
gasket set (37284101)
926.
4NC-20.2
384101-05
gib-headed key Stator steel DIN 6887 5 x 5 x 36 (38410105)
927.
4NC-20.2
383103-04
half length reserve taper grooved dowel pin valve plate steel Ø3 x 8 (38310304)
928.
4NC-20.2
380056-14
hexagon head screw cylinder head DIN 931, 10.9 M10 x 70 (38005614)
929.
4NC-20.2
380104-05
Hexagon head screw sight glass DIN 933, 8.8 M6 x 18 (38010405)
930.
4NC-20.2
380056-21
hexagon head screw cylinder head DIN 931, 10.9 M10 x 50 (38005621)
931.
4NC-20.2
380156-06
hexagon head screw discharge shut-off valve coated DIN 933, 10.9 M10 x 30 (38015606)
932.
4NC-20.2
380007-52
hexagon head screw suction shut-off valve galvanized DIN 931, 8.8 M12 x 80 (38000752)
933.
4NC-20.2
380155-05
hexagon head screw oil pump DIN 933, 10.9 M8 x 20 (38015505)
934.
4NC-20.2
380166-10
hexagon head screw rotor coated DIN 933, 10.9 M16 x 70 (38016610)
935.
4NC-20.2
380056-04
hexagon head screw cylinder head DIN 931, 10.9 M10 x 65 (38005604)
936.
4NC-20.2
381101-56
hexagon nut screw for grounding DIN 934 M10 (38110156)
937.
4NC-20.2
380306-83
Hexsocket Cheese Head Screw Terminal plate DIN 912, 10.9 M10 x 25 (38030683)
938.
4NC-20.2
300085-04
housing Ø70 (30008504)
939.
4NC-20.2
305236-01
housing cover suction side grey cast iron 275 x 275 x 65 (30523601)
940.
4NC-20.2
345950-03
metal plate for grounding screw for grounding for grounding aluminium M10 (34595003)
941.
4NC-20.2
372003-27
O-ring Ø10,82 x 1,78 (37200327)
942.
4NC-20.2
372003-39
O-ring sight glass Ø33 x 2,5 (37200339)
943.
4NC-20.2
372001-19
O-ring oil pump Ø74 x 2 (37200119)
944.
4NC-20.2
362003-02
oil filter Ø14 x 105 (36200302)
945.
4NC-20.2
347334-03
oil level monitoring 230V 50/60 Hz (34733403)
946.
4NC-20.2
361101-01
oil pressure relief valve SW17 x 29 (36110101)
947.
4NC-20.2
362503-01
oil pump oil pump grey cast iron (36250301)
948.
4NC-20.2
361914-01
oil service valve (36191401)
949.
4NC-20.2
380501-54
Oval head screw terminal box aluminium galvanized DIN 7985, 4.8 M6 x 16 (38050154)
950.
4NC-20.2
384001-16
parallel key built-in motor steel DIN 6885 A12 x 8 x 80 (38400116)
951.
4NC-20.2
365321-14
pipe connection suction side steel brazing and welding bush Ø42 (1 5/8") (36532114)
952.
4NC-20.2
382310-43
piston ring Ø70 x 1,0 (38231043)
953.
4NC-20.2
382303-03
piston ring Ø70 x 1,0 (38230303)
954.
4NC-20.2
325000-01
pressure spring spring steel Ø18 x 28 x 1,25 (32500001)
955.
4NC-20.2
347019-01
protection device motor overheat protection SE-B1 230V-50/60Hz (34701901)
956.
4NC-20.2
366201-22
Protective Cap suction shut-off valve Span of the jaw: 27 Plastic - GRP M27 x 2 / L=70 mm (36620122)
957.
4NC-20.2
366201-19
Protective Cap Span of the jaw: 27 Plastic - GRP M24 x 2 / L=57,5 mm (36620119)
958.
4NC-20.2
382231-18
retaining ring with lugs spring steel DIN 472 Ø16 x 1 (38223118)
959.
4NC-20.2
361500-01
Schrader valve oil pressure connection T-piece brass Jul-16 (36150001)
960.
4NC-20.2
361501-01
Schrader Valve brass 1/8"-27 NPTF (36150101)
961.
4NC-20.2
314104-21
screwed nipple coated 1/2" - 14NPTF x 48 (31410421)
962.
4NC-20.2
366104-22
sealing plug brass 3/4" - 14 NPTF (36610422)
963.
4NC-20.2
366103-21
sealing plug oil service valve brass 1/2" - 14 NPTF (36610321)
964.
4NC-20.2
366110-08
Sealing Plug suction shut-off valve steel1/4" - 18NPTF (36611008)
965.
4NC-20.2
366100-01
Sealing Plug CIC system brass 1/8" - 27 NPTF (36610001)
966.
4NC-20.2
366110-02
Sealing Plug oil fill connection steel 1/4" - 18 NPTF (36611002)
967.
4NC-20.2
366124-01
sealing screw permanent magnet M22 x 1,5 (36612401)
968.
4NC-20.2
366123-01
sealing screw oil pressure monitoring M20 x 1,5 (36612301)
969.
4NC-20.2
380358-01
Set screw coated DIN 916 M10 x 12 (38035801)
970.
4NC-20.2
361338-01
shut-off valve suction side Ø42 (1 5/8") (36133801)
971.
4NC-20.2
361315-13
shut-off valve Discharge side Ø28 (1 1/8") (36131513)
972.
4NC-20.2
361802-03
sight glass steel / glass Ø60 x 7 (36180203)
973.
4NC-20.2
382201-55
Single Coil Spring Washer screw for grounding spring steel galvanized DIN 127 A6, 4 (38220155)
974.
4NC-20.2
382201-04
single coil spring washer balance weight spring steel DIN 127 B8 (38220104)
975.
4NC-20.2
311004-02
spacer sleeve steel Ø60 x Ø42,1 x 30,6 (31100402)
976.
4NC-20.2
311012-09
spacer sleeve screw for grounding Ø20 x Ø11 x 12 (31101209)
977.
4NC-20.2
362001-08
suction gas filter Ø50 x 57 (36200108)
978.
4NC-20.2
343507-02
terminal box standard 244 x 189 x 85 (34350702)
979.
4NC-20.2
345507-01
terminal plate 6-Lead 165 x 120 x 10 (34550701)
980.
4NC-20.2
345506-03
terminal plate cannot be delivered separately 165 x 120 x 11,5 (34550603)
981.
4NC-20.2
380912-01
threaded bolt grounding 6-Lead DIN 976 M10 x 80 (38091201)
982.
4NC-20.2
320500-10
thrust washer Crankcase side Ø66 x Ø48 x 1,6 (32050010)
983.
4NC-20.2
304063-08
valve plate Ø70 (30406308)
984.
4NC-20.2
370003-07
vibration damper set brown spring (37000307)
985.
4NC-20.2
370003-05
vibration damper set Crankcase side yellow spring (37000305)
986.
4NC-20.2
382002-04
Washer screw for grounding brass DIN 125 10,5 (38200204)
987.
4NC-20.2
382002-01
washer brass DIN 125 A4, 3 (38200201)
988.
4NC-20.2
383401-45
wrist pin connecting rod / piston DIN 73126 Ø16 x Ø9 x 55 (38340145)
989.
4NCS-20.2
302926-08
balance weight (30292608)
990.
4NCS-20.2
302952-03
balance weight rotor (30295203)
991.
4NCS-20.2
311135-01
Bearing bush oil centrifuge Ø50 x Ø45 x 40 (31113501)
992.
4NCS-20.2
305107-78
bearing cover Oil level monitoring (30510778)
993.
4NCS-20.2
346294-46
built-in motor 14.7 kW, 4-pole 380..420V Y/YY-3-50Hz, 440..480V Y/YY-3-60Hz Ø223 (34629446)
994.
4NCS-20.2
380402-06
cheese head screw protection device brass M4 x 16 (38040206)
995.
4NCS-20.2
380306-04
cheese head screw oil centrifuge DIN 912, 10.9 M8 x 30 (38030604)
996.
4NCS-20.2
380302-05
Cheese Head Screw suction shut-off valve DIN 912, 10.9 M12 x 50 (38030205)
997.
4NCS-20.2
380508-51
Cheese head screw cover for terminal box galvanized DIN 7985, 4.8 M5 x 20 (38050851)
998.
4NCS-20.2
380301-37
cheese head screw balance weight DIN 912, 8.8 M8 x 12 (38030137)
999.
4NCS-20.2
367121-01
clamping plate suction shut-off valve 80 x 80 (36712101)
1000.
4NCS-20.2
302131-02
connecting rod Ø70 x Ø16 x 90 (30213102)
1001.
4NCS-20.2
302298-49
connecting rod / piston Kit - right / left Ø70 (30229849)
1002.
4NCS-20.2
343219-04
crankcase heater 0..140 W, 200-260 V (PTC) 200-260V (34321904)
1003.
4NCS-20.2
302360-20
cylinder head air-cooled (30236020)
1004.
4NCS-20.2
382001-05
disk rotor spring steel DIN 125 A17 (38200105)
1005.
4NCS-20.2
301117-04
eccentric shaft (30111704)
1006.
4NCS-20.2
380902-01
eye bolt DIN 580 M10 (38090201)
1007.
4NCS-20.2
372200-01
Gasket PTFE Ø14,3 x 1,5 (37220001)
1008.
4NCS-20.2
372301-02
gasket suction shut-off valve Ø70 x Ø54 x 1 (37230102)
1009.
4NCS-20.2
372704-05
gasket discharge shut-off valve Ø34 x 1,0 - LA 66 (37270405)
1010.
4NCS-20.2
372949-02
gasket housing cover 14 - Hole 275 x 275 x 0,38 (37294902)
1011.
4NCS-20.2
372303-01
gasket Pipe connection Ø52 x Ø37 x 2 (37230301)
1012.
4NCS-20.2
372515-08
gasket valve plate 191 x 115 x 1,1 (37251508)
1013.
4NCS-20.2
372623-01
gasket cylinder head Retall 191 x 115 x 0,49 (37262301)
1014.
4NCS-20.2
372145-01
gasket terminal box aluminium for terminal box 286 x 181 x 2 (37214501)
1015.
4NCS-20.2
372421-14
gasket Terminal plate 163 x 118 x 0,5 (37242114)
1016.
4NCS-20.2
382403-05
Gasket Ring oil drain aluminium DIN 7603 A22 x 27 x 1,5 (38240305)
1017.
4NCS-20.2
382403-01
Gasket Ring oil supply monitoring aluminium DIN 7603 A20 x 24 x 1,5 (38240301)
1018.
4NCS-20.2
382401-31
gasket ring copper A10 x 16 x 2 (38240131)
1019.
4NCS-20.2
372841-01
gasket set (37284101)
1020.
4NCS-20.2
384101-05
gib-headed key Stator steel DIN 6887 5 x 5 x 36 (38410105)
1021.
4NCS-20.2
383103-04
half length reserve taper grooved dowel pin valve plate steel Ø3 x 8 (38310304)
1022.
4NCS-20.2
380007-52
hexagon head screw suction shut-off valve galvanized DIN 931, 8.8 M12 x 80 (38000752)
1023.
4NCS-20.2
380156-06
hexagon head screw discharge shut-off valve coated DIN 933, 10.9 M10 x 30 (38015606)
1024.
4NCS-20.2
380056-21
hexagon head screw cylinder head DIN 931, 10.9 M10 x 50 (38005621)
1025.
4NCS-20.2
380104-05
Hexagon head screw sight glass DIN 933, 8.8 M6 x 18 (38010405)
1026.
4NCS-20.2
380056-04
hexagon head screw cylinder head DIN 931, 10.9 M10 x 65 (38005604)
1027.
4NCS-20.2
380166-10
hexagon head screw rotor coated DIN 933, 10.9 M16 x 70 (38016610)
1028.
4NCS-20.2
380056-14
hexagon head screw cylinder head DIN 931, 10.9 M10 x 70 (38005614)
1029.
4NCS-20.2
381101-56
hexagon nut screw for grounding DIN 934 M10 (38110156)
1030.
4NCS-20.2
380306-83
Hexsocket Cheese Head Screw Terminal plate DIN 912, 10.9 M10 x 25 (38030683)
1031.
4NCS-20.2
300085-04
housing Ø70 (30008504)
1032.
4NCS-20.2
305236-01
housing cover suction side grey cast iron 275 x 275 x 65 (30523601)
1033.
4NCS-20.2
345950-03
metal plate for grounding screw for grounding aluminium M10 (34595003)
1034.
4NCS-20.2
372003-39
O-ring sight glass Ø33 x 2,5 (37200339)
1035.
4NCS-20.2
321105-06
oil centrifuge steel (32110506)
1036.
4NCS-20.2
362003-02
oil filter Ø14 x 105 (36200302)
1037.
4NCS-20.2
347334-03
oil level monitoring 230V 50/60 Hz (34733403)
1038.
4NCS-20.2
361914-01
oil service valve (36191401)
1039.
4NCS-20.2
380501-54
Oval head screw terminal box aluminium galvanized DIN 7985, 4.8 M6 x 16 (38050154)
1040.
4NCS-20.2
384001-16
parallel key built-in motor steel DIN 6885 A12 x 8 x 80 (38400116)
1041.
4NCS-20.2
365321-14
pipe connection suction side steel brazing and welding bush Ø42 (1 5/8") (36532114)
1042.
4NCS-20.2
382310-43
piston ring Ø70 x 1,0 (38231043)
1043.
4NCS-20.2
382303-03
piston ring Ø70 x 1,0 (38230303)
1044.
4NCS-20.2
325000-01
pressure spring steel Ø18 x 28 x 1,25 (32500001)
1045.
4NCS-20.2
347019-01
protection device motor overheat protection SE-B1 230V-50/60Hz (34701901)
1046.
4NCS-20.2
366201-22
Protective Cap suction shut-off valve Span of the jaw: 27 Plastic - GRP M27 x 2 / L=70 mm (36620122)
1047.
4NCS-20.2
366201-19
Protective Cap Span of the jaw: 27 Plastic - GRP M24 x 2 / L=57,5 mm (36620119)
1048.
4NCS-20.2
382231-18
retaining ring with lugs spring steel DIN 472 Ø16 x 1 (38223118)
1049.
4NCS-20.2
361501-01
Schrader Valve brass 1/8"-27 NPTF (36150101)
1050.
4NCS-20.2
314104-21
screwed nipple coated 1/2" - 14NPTF x 48 (31410421)
1051.
4NCS-20.2
366103-21
sealing plug oil service valve brass 1/2" - 14 NPTF (36610321)
1052.
4NCS-20.2
366110-08
Sealing Plug suction shut-off valve steel 1/4" - 18NPTF (36611008)
1053.
4NCS-20.2
366100-01
Sealing Plug CIC system brass 1/8" - 27 NPTF (36610001)
1054.
4NCS-20.2
366110-02
Sealing Plug oil fill connection steel 1/4" - 18 NPTF (36611002)
1055.
4NCS-20.2
366124-01
sealing screw oil drain permanent magnet M22 x 1,5(36612401)
1056.
4NCS-20.2
380910-03
Sealing Screw oil supply monitoring DIN 908, 5.8 M20 x 1,5 (38091003)
1057.
4NCS-20.2
380358-01
Set screw coated DIN 916 M10 x 12 (38035801)
1058.
4NCS-20.2
361315-13
shut-off valve Discharge side Ø28 (1 1/8") (36131513)
1059.
4NCS-20.2
361338-01
shut-off valve suction side Ø42 (1 5/8") (36133801)
1060.
4NCS-20.2
361802-03
sight glass steel / glass Ø60 x 7 (36180203)
1061.
4NCS-20.2
382201-04
single coil spring washer balance weight spring steel DIN 127 B8 (38220104)
1062.
4NCS-20.2
382201-55
Single Coil Spring Washer screw for grounding spring steel galvanized DIN 127 A6, 4 (38220155)
1063.
4NCS-20.2
311004-02
spacer sleeve steel Ø60 x Ø42,1 x 30,6 (31100402)
1064.
4NCS-20.2
311012-09
spacer sleeve screw for grounding Ø20 x Ø11 x 12 (31101209)
1065.
4NCS-20.2
362001-08
suction gas filter Ø50 x 57 (36200108)
1066.
4NCS-20.2
343507-02
terminal box standard 244 x 189 x 85 (34350702)
1067.
4NCS-20.2
345506-03
terminal plate cannot be delivered separately 165 x 120 x 11,5 (34550603)
1068.
4NCS-20.2
345507-01
terminal plate 6-Lead 165 x 120 x 10 (34550701)
1069.
4NCS-20.2
380912-01
threaded bolt grounding 6-Lead DIN 976 M10 x 80 (38091201)
1070.
4NCS-20.2
320500-10
thrust washer Motor side Ø66 x Ø48 x 1,6 (32050010)
1071.
4NCS-20.2
304063-08
valve plate Ø70 (30406308)
1072.
4NCS-20.2
370003-05
vibration damper set Crankcase side yellow spring (37000305)
1073.
4NCS-20.2
370003-07
vibrationdamper set brown spring (37000307)
1074.
4NCS-20.2
382002-04
Washer screw for grounding brass DIN 125 10,5 (38200204)
1075.
4NCS-20.2
382002-01
washer brass DIN 125 A4, 3 (38200201)
1076.
4NCS-20.2
383401-45
wrist pin connecting rod / piston DIN 73126 Ø16 x Ø9 x 55 (38340145)
1077.
4NE-20
302952-03
balance weight rotor (30295203)
1078.
4NE-20
302926-08
balance weight (30292608)
1079.
4NE-20
311135-01
Bearing bush oil centrifuge Ø50 x Ø45 x 40 (31113501)
1080.
4NE-20
305139-01
bearing cover (30513901)
1081.
4NE-20
305107-78
bearing cover Oil level monitoring (30510778)
1082.
4NE-20
346294-46
built-in motor 14.7 kW, 4-pole 380..420V Y/YY-3-50Hz, 440..480V Y/YY-3-60Hz Ø223 (34629446)
1083.
4NE-20
380302-05
Cheese Head Screw suction shut-off valve DIN 912, 10.9 M12 x 50 (38030205)
1084.
4NE-20
380344-01
Cheese Head Screw balance weight ISO 4762, 10.9 M8 x 30 (38034401)
1085.
4NE-20
380508-51
Cheese head screw cover for terminal box galvanized DIN 7985, 4.8 M5 x 20 (38050851)
1086.
4NE-20
380301-37
cheese head screw balance weight DIN 912, 8.8 M8 x 12 (38030137)
1087.
4NE-20
380306-04
cheese head screw oil centrifuge DIN 912, 10.9 M8 x 30 (38030604)
1088.
4NE-20
380402-06
cheese head screw protection device brass M4 x 16 (38040206)
1089.
4NE-20
367121-01
clamping plate suction shut-off valve 80 x 80 (36712101)
1090.
4NE-20
302131-02
connecting rod Ø70 x Ø16 x 90 (30213102)
1091.
4NE-20
302298-49
connecting rod / piston Kit - right / left Ø70 (30229849)
1092.
4NE-20
343219-04
crankcase heater 0..140 W, 200-260 V (PTC) 200-260V (34321904)
1093.
4NE-20
301117-02
crankshaft (30111702)
1094.
4NE-20
302360-37
cylinder head air-cooled (30236037)
1095.
4NE-20
382001-05
disk rotor spring steel DIN 125 A17 (38200105)
1096.
4NE-20
380902-01
eye bolt DIN 580 M10 (38090201)
1097.
4NE-20
372704-05
gasket discharge shut-off valve Ø34 x 1,0 - LA 66 (37270405)
1098.
4NE-20
372515-12
gasket valve plate Ø70, 191 x 115 x 1,0 (37251512)
1099.
4NE-20
372623-01
gasket cylinder head Retall 191 x 115 x 0,49 (37262301)
1100.
4NE-20
372200-01
Gasket PTFE Ø14,3 x 1,5 (37220001)
1101.
4NE-20
372949-02
gasket housing cover 14 - Hole 275 x 275 x 0,38 (37294902)
1102.
4NE-20
372303-01
gasket Pipe connection Ø52 x Ø37 x 2 (37230301)
1103.
4NE-20
372421-14
gasket Terminal plate 163 x 118 x 0,5 (37242114)
1104.
4NE-20
372301-02
gasket suction shut-off valve Ø70 x Ø54 x 1 (37230102)
1105.
4NE-20
372429-04
Gasket terminal Box standard for terminal box 360 x 290 x 2 (37242904)
1106.
4NE-20
382403-05
Gasket Ring aluminium DIN 7603 A22 x 27 x 1,5 (38240305)
1107.
4NE-20
382403-01
Gasket Ring oil supply monitoring aluminium DIN 7603 A20 x 24 x 1,5 (38240301)
1108.
4NE-20
382401-31
gasket ring oil drain copper A10 x 16 x 2 (38240131)
1109.
4NE-20
372841-01
gasket set (37284101)
1110.
4NE-20
384101-05
gib-headed key Stator steel DIN 6887 5 x 5 x 36 (38410105)
1111.
4NE-20
383103-04
half length reserve taper grooved dowel pin valve plate steel Ø3 x 8 (38310304)
1112.
4NE-20
380156-06
hexagon head screw discharge shut-off valve coated DIN 933, 10.9 M10 x 30 (38015606)
1113.
4NE-20
380056-21
hexagon head screw cylinder head DIN 931, 10.9 M10 x 50 (38005621)
1114.
4NE-20
380007-52
hexagon head screw suction shut-off valve galvanized DIN 931, 8.8 M12 x 80 (38000752)
1115.
4NE-20
380056-14
hexagon head screw cylinder head DIN 931, 10.9 M10 x 70 (38005614)
1116.
4NE-20
380104-05
Hexagon head screw sight glass DIN 933, 8.8 M6 x 18 (38010405)
1117.
4NE-20
380166-10
hexagon head screw rotor coated DIN 933, 10.9 M16 x 70 (38016610)
1118.
4NE-20
380155-05
hexagon head screw DIN 933, 10.9 M8 x 20 (38015505)
1119.
4NE-20
381101-56
hexagon nut screw for grounding DIN 934 M10 (38110156)
1120.
4NE-20
380306-83
Hexsocket Cheese Head Screw Terminal plate DIN 912, 10.9 M10 x 25 (38030683)
1121.
4NE-20
300085-04
housin Ø70 (30008504)
1122.
4NE-20
305236-01
housing cover suction side grey cast iron 275 x 275 x 65 (30523601)
1123.
4NE-20
345950-03
metal plate for grounding screw for grounding for grounding aluminium M10 (34595003)
1124.
4NE-20
372003-39
O-ring sight glass Ø33 x 2,5 (37200339)
1125.
4NE-20
372003-27
O-ring Ø10,82 x 1,78 (37200327)
1126.
4NE-20
372001-19
O-ring Ø74 x 2 (37200119)
1127.
4NE-20
321105-06
oil centrifuge steel (32110506)
1128.
4NE-20
362003-02
oil filter Ø14 x 105 (36200302)
1129.
4NE-20
347334-03
oil level monitoring 230V 50/60 Hz (34733403)
1130.
4NE-20
361101-01
oil pressure relief valve SW17 x 29 (36110101)
1131.
4NE-20
362503-01
oil pump grey cast iron (36250301)
1132.
4NE-20
361914-01
oil service valve (36191401)
1133.
4NE-20
380501-54
Oval head screw terminal box aluminium galvanized DIN 7985, 4.8 M6 x 16 (38050154)
1134.
4NE-20
384001-16
parallel key built-in motor steel DIN 6885 A12 x 8 x 80 (38400116)
1135.
4NE-20
365321-14
pipe connection suction side steel brazing and welding bush Ø42 (1 5/8") (36532114)
1136.
4NE-20
382303-03
piston ring Ø70 x 1,0 (38230303)
1137.
4NE-20
382310-43
piston ring Ø70 x 1,0 (38231043)
1138.
4NE-20
325000-01
pressure spring spring steel Ø18 x 28 x 1,25 (32500001)
1139.
4NE-20
347019-01
protection device motor overheat protection SE-B1 230V-50/60Hz (34701901)
1140.
4NE-20
366201-22
Protective Cap suction shut-off valve Span of the jaw: 27 Plastic - GRP M27 x 2 / L=70 mm (36620122)
1141.
4NE-20
366201-19
Protective Cap Span of the jaw: 27 Plastic - GRP M24 x 2 / L=57,5 mm (36620119)
1142.
4NE-20
382231-18
retaining ring with lugs spring steel DIN 472 Ø16 x 1 (38223118)
1143.
4NE-20
361501-01
Schrader Valve brass 1/8"-27 NPTF (36150101)
1144.
4NE-20
361500-01
Schrader valve T-piece brass Jul-16 (36150001)
1145.
4NE-20
314104-21
screwed nipple coated 1/2" - 14NPTF x 48 (31410421)
1146.
4NE-20
366100-01
Sealing Plug CIC system brass 1/8" - 27 NPTF (36610001)
1147.
4NE-20
366103-21
sealing plug oil service valve brass 1/2" - 14 NPTF (36610321)
1148.
4NE-20
366110-08
Sealing Plug suction shut-off valve steel 1/4" - 18NPTF (36611008)
1149.
4NE-20
366110-02
Sealing Plug oil fill connection steel 1/4" - 18 NPTF (36611002)
1150.
4NE-20
380910-03
Sealing Screw oil supply monitoring DIN 908, 5.8 M20 x 1,5 (38091003)
1151.
4NE-20
366124-01
sealing screw permanent magnet M22 x 1,5 (36612401)
1152.
4NE-20
380358-01
Set screw coated DIN 916 M10 x 12 (38035801)
1153.
4NE-20
361315-13
shut-off valve Discharge side Ø28 (1 1/8") (36131513)
1154.
4NE-20
361338-01
shut-off valve suction side Ø42 (1 5/8") (36133801)
1155.
4NE-20
361802-03
sight glass Ø60 x 7 (36180203)
1156.
4NE-20
382201-55
Single Coil Spring Washer screw for grounding spring steel galvanized DIN 127 A6, 4 (38220155)
1157.
4NE-20
382201-04
single coil spring washer spring steel DIN 127 B8 (38220104)
1158.
4NE-20
311004-02
spacer sleeve steel Ø60 x Ø42,1 x 30,6 (31100402)
1159.
4NE-20
311012-09
spacer sleeve screw for grounding Ø20 x Ø11 x 12 (31101209)
1160.
4NE-20
362001-08
suction gas filter Ø50 x 57 (36200108)
1161.
4NE-20
343507-02
terminal box standard 244 x 189 x 85 (34350702)
1162.
4NE-20
345507-01
terminal plate 6-Lead 165 x 120 x 10 (34550701)
1163.
4NE-20
345506-03
terminal plate cannot be delivered separately 165 x 120 x 11,5 (34550603)
1164.
4NE-20
380912-01
threaded bolt grounding 6-Lead DIN 976 M10 x 80 (38091201)
1165.
4NE-20
320500-10
thrust washer Crankcase side Ø66 x Ø48 x 1,6 (32050010)
1166.
4NE-20
304063-31
valve plate (30406331)
1167.
4NE-20
370003-05
vibration damper set Crankcase side yellow spring (37000305)
1168.
4NE-20
370003-07
vibration damper set brown spring (37000307)
1169.
4NE-20
382002-04
Washer screw for grounding brass DIN 125 10,5 (38200204)
1170.
4NE-20
382002-01
washer brass DIN 125 A4, 3 (38200201)
1171.
4NE-20
383401-45
wrist pin connecting rod / piston DIN 73126 Ø16 x Ø9 x 55 (38340145)
1172.
4NES-20
302926-08
balance weight (30292608)
1173.
4NES-20
302952-03
balance weight rotor (30295203)
1174.
4NES-20
311135-01
Bearing bush oil centrifuge Ø50 x Ø45 x 40 (31113501)
1175.
4NES-20
305107-78
bearing cover Oil level monitoring (30510778)
1176.
4NES-20
346294-46
built-in motor 14.7 kW, 4-pole 380..420V Y/YY-3-50Hz, 440..480V Y/YY-3-60Hz Ø223 (34629446)
1177.
4NES-20
380302-05
Cheese Head Screw suction shut-off valve DIN 912, 10.9 M12 x 50 (38030205)
1178.
4NES-20
380508-51
Cheese head screw cover for terminal box galvanized DIN 7985, 4.8 M5 x 20 (38050851)
1179.
4NES-20
380402-06
cheese head screw protection device brass M4 x 16 (38040206)
1180.
4NES-20
380344-01
Cheese Head Screw balance weight ISO 4762, 10.9 M8 x 30 (38034401)
1181.
4NES-20
367121-01
clamping plate suction shut-off valve 80 x 80 (36712101)
1182.
4NES-20
302131-02
connecting rod Ø70 x Ø16 x 90 (30213102)
1183.
4NES-20
302298-49
connecting rod / piston Kit - right / left Ø70 (30229849)
1184.
4NES-20
343219-04
crankcase heater 0..140 W, 200-260 V (PTC) 200-260V (34321904)
1185.
4NES-20
302360-37
cylinder head air-cooled (30236037)
1186.
4NES-20
382001-05
disk rotor spring steel DIN 125 A17 (38200105)
1187.
4NES-20
301117-04
eccentric shaft (30111704)
1188.
4NES-20
380902-01
eye bolt DIN 580 M10 (38090201)
1189.
4NES-20
372515-16
gasket valve plate 191 x 115 x 0,9 (37251516)
1190.
4NES-20
372301-02
gasket suction shut-off valve Ø70 x Ø54 x 1 (37230102)
1191.
4NES-20
372704-05
gasket discharge shut-off valve Ø34 x 1,0 - LA 66 (37270405)
1192.
4NES-20
372303-01
gasket Pipe connection Ø52 x Ø37 x 2 (37230301)
1193.
4NES-20
372623-01
gasket cylinder head Retall 191 x 115 x 0,49 (37262301)
1194.
4NES-20
372200-01
Gasket PTFE Ø14,3 x 1,5 (37220001)
1195.
4NES-20
372949-02
gasket housing cover 14 - Hole 275 x 275 x 0,38 (37294902)
1196.
4NES-20
372429-04
Gasket terminal Box standard for terminal box 360 x 290 x 2 (37242904)
1197.
4NES-20
372421-14
gasket Terminal plate 163 x 118 x 0,5 (37242114)
1198.
4NES-20
382401-31
gasket ring oil drain copper A10 x 16 x 2 (38240131)
1199.
4NES-20
382403-01
Gasket Ring oil level monitoring aluminium DIN 7603 A20 x 24 x 1,5 (38240301)
1200.
4NES-20
372841-01
gasket set (37284101)
1201.
4NES-20
384101-05
gib-headed key Stator steel DIN 6887 5 x 5 x 36 (38410105)
1202.
4NES-20
383103-04
half length reserve taper grooved dowel pin valve plate steel Ø3 x 8 (38310304)
1203.
4NES-20
380056-14
hexagon head screw cylinder head DIN 931, 10.9 M10 x 70 (38005614)
1204.
4NES-20
380166-10
hexagon head screw rotor coated DIN 933, 10.9 M16 x 70 (38016610)
1205.
4NES-20
380156-06
hexagon head screw coated DIN 933, 10.9 M10 x 30 (38015606)
1206.
4NES-20
380104-05
Hexagon head screw sight glass DIN 933, 8.8 M6 x 18 (38010405)
1207.
4NES-20
380056-21
hexagon head screw cylinder head DIN 931, 10.9 M10 x 50 (38005621)
1208.
4NES-20
380007-52
hexagon head screw suction shut-off valve galvanized DIN 931, 8.8 M12 x 80 (38000752)
1209.
4NES-20
381101-56
hexagon nut screw for grounding DIN 934 M10 (38110156)
1210.
4NES-20
380306-83
Hexsocket Cheese Head Screw Terminal plate DIN 912, 10.9 M10 x 25 (38030683)
1211.
4NES-20
300085-04
housing Ø70 (30008504)
1212.
4NES-20
305236-01
housing cover suction side grey cast iron 275 x 275 x 65 (30523601)
1213.
4NES-20
345950-03
metal plate for grounding screw for grounding for grounding aluminium M10 (34595003)
1214.
4NES-20
372003-39
O-ring sight glass Ø33 x 2,5 (37200339)
1215.
4NES-20
321105-06
oil centrifuge steel (32110506)
1216.
4NES-20
347334-03
oil level monitoring 230V 50/60 Hz (34733403)
1217.
4NES-20
361914-01
oil service valve (36191401)
1218.
4NES-20
380501-54
Oval head screw terminal box aluminium galvanized DIN 7985, 4.8 M6 x 16 (38050154)
1219.
4NES-20
384001-16
parallel key built-in motor steel DIN 6885 A12 x 8 x 80 (38400116)
1220.
4NES-20
365321-14
pipe connection suction side steel brazing and welding bush Ø42 (1 5/8") (36532114)
1221.
4NES-20
382310-43
piston ring Ø70 x 1,0 (38231043)
1222.
4NES-20
382303-03
piston ring Ø70 x 1,0 (38230303)
1223.
4NES-20
347019-01
protection device motor overheat protection SE-B1 230V-50/60Hz (34701901)
1224.
4NES-20
366201-19
Protective Cap Span of the jaw: 27 Plastic - GRP M24 x 2 / L=57,5 mm (36620119)
1225.
4NES-20
366201-22
Protective Cap suction shut-off valve Span of the jaw: 27 Plastic - GRP M27 x 2 / L=70 mm (36620122)
1226.
4NES-20
382231-18
retaining ring with lugs spring steel DIN 472 Ø16 x 1 (38223118)
1227.
4NES-20
361501-01
Schrader Valve brass 1/8"-27 NPTF (36150101)
1228.
4NES-20
314104-21
screwed nipple coated 1/2" - 14NPTF x 48 (31410421)
1229.
4NES-20
366100-01
Sealing Plug CIC system brass 1/8" - 27 NPTF (36610001)
1230.
4NES-20
366110-08
Sealing Plug suction shut-off valve steel 1/4" - 18NPTF (36611008)
1231.
4NES-20
366110-02
Sealing Plug oil fill connection steel 1/4" - 18 NPTF (36611002)
1232.
4NES-20
380910-03
Sealing Screw oil supply monitoring DIN 908, 5.8 M20 x 1,5 (38091003)
1233.
4NES-20
380358-01
Set screw coated DIN 916 M10 x 12 (38035801)
1234.
4NES-20
361338-01
shut-off valve suction side Ø42 (1 5/8") (36133801)
1235.
4NES-20
361315-13
shut-off valve Discharge side Ø28 (1 1/8") (36131513)
1236.
4NES-20
361802-03
sight glassMØ60 x 7 (36180203)
1237.
4NES-20
382201-55
Single Coil Spring Washer screw for grounding spring steel galvanized DIN 127 A6, 4 (38220155)
1238.
4NES-20
311004-02
spacer sleeve steel Ø60 x Ø42,1 x 30,6 (31100402)
1239.
4NES-20
311012-09
spacer sleeve screw for grounding Ø20 x Ø11 x 12 (31101209)
1240.
4NES-20
362001-08
suction gas filter Ø50 x 57 (36200108)
1241.
4NES-20
343507-02
terminal box standard 244 x 189 x 85 (34350702)
1242.
4NES-20
345507-01
terminal plate 6-Lead 165 x 120 x 10 (34550701)
1243.
4NES-20
345506-03
terminal plate cannot be delivered separately 165 x 120 x 11,5 (34550603)
1244.
4NES-20
380912-01
threaded bolt grounding 6-Lead DIN 976 M10 x 80 (38091201)
1245.
4NES-20
382152-01
thrust washer DIN 127 S 8 (38215201)
1246.
4NES-20
320500-10
thrust washer Crankcase side Ø66 x Ø48 x 1,6 (32050010)
1247.
4NES-20
304063-31
valve plate (30406331)
1248.
4NES-20
370003-07
vibration damper set brown spring (37000307)
1249.
4NES-20
370003-05
vibration damper set Crankcase side yellow spring (37000305)
1250.
4NES-20
382002-04
Washer screw for grounding brass DIN 125 10,5 (38200204)
1251.
4NES-20
382002-01
washer brass DIN 125 A4, 3 (38200201)
1252.
4NES-20
383401-45
wrist pin connecting rod / piston DIN 73126 Ø16 x Ø9 x 55 (38340145)
1253.
4V-10.2
302901-01
balance weight grey cast iron 119,5 x 33,5 x 100 (30290101)
1254.
4V-10.2
311100-17
bearing bush Ø50 x Ø45 x 40,7 (31110017)
1255.
4V-10.2
311100-07
bearing bush Motor side Ø55 x Ø50 x 30 (31110007)
1256.
4V-10.2
311100-14
bearing bush Crankcase side Ø55 x Ø50 x 30 (31110014)
1257.
4V-10.2
305125-02
bearing cover inclusive oil pump (30512502)
1258.
4V-10.2
320307-03
bottom plate steel 220 x 200 x 12 x Ø21 (32030703)
1259.
4V-10.2
346265-46
built-in motor 7.4 kW, 4-pole 380..420V Y/YY-3-50Hz, 440..480V Y/YY-3-60Hz Ø223 (34626546)
1260.
4V-10.2
302915-02
cable connector separate out using filters brass (30291502)
1261.
4V-10.2
321202-01
centering plate steel 167 x 122 x 12 (32120201)
1262.
4V-10.2
380508-51
Cheese head screw galvanized DIN 7985, 4.8 M5 x 20 (38050851)
1263.
4V-10.2
380306-32
Cheese Head Screw DIN 912, 10.9 M10 x 30 (38030632)
1264.
4V-10.2
380507-51
cheese head screw 4.8 galvanized M4 x 8 (38050751)
1265.
4V-10.2
380306-22
cheese head screw DIN 912, 10.9 M10 x 20 (38030622)
1266.
4V-10.2
382300-49
compression ring Ø55 x 1,5 (38230049)
1267.
4V-10.2
382310-16
Compression ring Piston diameter 54,96mm Ø55 x 1,5 (38231016)
1268.
4V-10.2
302114-02
connecting rod Ø70 x Ø15 x 117 (30211402)
1269.
4V-10.2
302297-20
connecting rod / piston (30229720)
1270.
4V-10.2
320318-03
connection bridge brass A 5,4 (32031803)
1271.
4V-10.2
343417-07
connection to ground, (34341707)
1272.
4V-10.2
343413-01
conversion kit violet (34341301)
1273.
4V-10.2
305914-45
Cover black 313 x 175 x 11 (30591445)
1274.
4V-10.2
343208-34
Crankcase Heater heating capacity: 100W 230V-1-50/60Hz (34320834)
1275.
4V-10.2
380507-52
Cross Recessed Raised Screw 4.8 galvanized M4 x 10 (38050752)
1276.
4V-10.2
302360-11
cylinder head air-cooled Air cooled 196 x 127 x 55 (30236011)
1277.
4V-10.2
302360-01
cylinder head Water cooled (30236001)
1278.
4V-10.2
325002-05
damper element yellow spring steel 42 mm (32500205)
1279.
4V-10.2
325002-06
damper element green spring steel 46 mm (32500206)
1280.
4V-10.2
347320-33
differential oil pressure cut-out MP54 115V/230V-50/60Hz 100 x 50 x 130 (34732033)
1281.
4V-10.2
301105-50
eccentric shaft Stroke 40mm Ø70 x 374 (30110550)
1282.
4V-10.2
389002-01
electric connector of the machine / device DIN 43650 Typ GDM 209 (38900201)
1283.
4V-10.2
320314-01
fixing plate MP54 140 x 40 x 3 (32031401)
1284.
4V-10.2
327309-02
foot 315 x 40 x 8 x Ø21 (32730902)
1285.
4V-10.2
361110-01
gas equalising valve (36111001)
1286.
4V-10.2
372314-03
gasket Ø182 x Ø133 x 1 (37231403)
1287.
4V-10.2
372704-01
Gasket discharge shut-off valve 91 x 52 x 1 (37270401)
1288.
4V-10.2
372510-11
gasket Ø55, 127 x 196 x 0,9 (37251011)
1289.
4V-10.2
372611-01
gasket valve plate Capacity control 192 x 127 x 0,75 (37261101)
1290.
4V-10.2
372200-03
Gasket teflon Ø25,4 x Ø22,2 x 1,5 (37220003)
1291.
4V-10.2
372421-14
gasket 163 x 118 x 0,5 (37242114)
1292.
4V-10.2
372124-01
gasket violet 165 x 120 x 3 (37212401)
1293.
4V-10.2
372138-02
gasket (37213802)
1294.
4V-10.2
372120-01
gasket 133 x 117 x 2 (37212001)
1295.
4V-10.2
372200-04
gasket teflon Ø38 x Ø35 x 1,5 (37220004)
1296.
4V-10.2
372315-03
gasket Ø286 x Ø236 x 0,38 (37231503)
1297.
4V-10.2
372413-01
gasket 220 x 200 x 1 (37241301)
1298.
4V-10.2
382403-05
Gasket Ring aluminium DIN 7603 A22 x 27 x 1,5 (38240305)
1299.
4V-10.2
375000-01
gasket ring Ø4,5 x Ø18,5 x 8,5 (37500001)
1300.
4V-10.2
375000-03
gasket ring Ø16 x Ø8 x 8,5 (37500003)
1301.
4V-10.2
372808-05
gasket set (37280805)
1302.
4V-10.2
384101-05
gib-headed key start menu steel DIN 6887 5 x 5 x 36 (38410105)
1303.
4V-10.2
345906-04
heater sleeve for 100W heater (34590604)
1304.
4V-10.2
380156-05
hexagon head screw DIN 933, 10.9 M10 x 25 (38015605)
1305.
4V-10.2
380155-05
hexagon head screw DIN 933, 10.9 M8 x 20 (38015505)
1306.
4V-10.2
380059-02
hexagon head screw DIN 931, 10.9 M16 x 60 (38005902)
1307.
4V-10.2
380057-02
hexagon head screw DIN 931, 10.9 M12 x 55 (38005702)
1308.
4V-10.2
380055-04
hexagon head screw DIN 931, 10.9 M8 x 55 (38005504)
1309.
4V-10.2
380154-06
hexagon head screw DIN 933, 10.9 M6 x 20 (38015406)
1310.
4V-10.2
380056-07
hexagon head screw DIN 931, 10.9 M10 x 80 (38005607)
1311.
4V-10.2
381301-05
hexagon nu brass M8 (38130105)
1312.
4V-10.2
381301-03
hexagon nut brass M5 (38130103)
1313.
4V-10.2
380339-01
Hexsocket Cheese Head Screw ISO 4762, 10.9 - A2K M10 x 30 (38033901)
1314.
4V-10.2
300027-12
housing Ø55 (30002712)
1315.
4V-10.2
305206-01
housing cover grey cast iron Ø286 x 38 (30520601)
1316.
4V-10.2
375002-03
insulating plate 85 x 25 x 6 (37500203)
1317.
4V-10.2
375002-01
insulating plate 53 x 18 x 6,5 (37500201)
1318.
4V-10.2
345923-06
insulating plate (34592306)
1319.
4V-10.2
372001-19
O-ring Ø74 x 2 (37200119)
1320.
4V-10.2
372003-15
O-ring Ø36,3 x 1,78 (37200315)
1321.
4V-10.2
372001-16
O-ring Ø50 x 3 (37200116)
1322.
4V-10.2
362003-02
oil filter Ø14 x 105 (36200302)
1323.
4V-10.2
362503-01
oil pump in view of grey cast iron (36250301)
1324.
4V-10.2
360110-08
oil return system (36011008)
1325.
4V-10.2
380501-54
Oval head screw galvanized DIN 7985, 4.8 M6 x 16 (38050154)
1326.
4V-10.2
384001-14
parallel key steel DIN 6885 A12 x 8 x 60 (38400114)
1327.
4V-10.2
366000-03
pipe connection Brazed connection steel copper-plated Ø22, 1 1/4" - 12 UNF (36600003)
1328.
4V-10.2
366000-06
pipe connection steel copper-plated brazed connection Ø28, 1 3/4" - 12 UN (36600006)
1329.
4V-10.2
302232-13
piston aluminium alloy Ø55 (30223213)
1330.
4V-10.2
375001-03
pressure bush Ø8 x Ø24 x 8 (37500103)
1331.
4V-10.2
375001-01
pressure bush Ø4,5 x Ø18,5 x 8,5 (37500101)
1332.
4V-10.2
325000-01
pressure spring steel Ø18 x 28 x 1,25 (32500001)
1333.
4V-10.2
347028-01
protection device SE-B2 230V-50/60Hz (34702801)
1334.
4V-10.2
366201-17
Protective Cap Span of the jaw: 20 Plastic - GRP 3/4"-16 UNF / L=43 mm (36620117)
1335.
4V-10.2
366201-19
Protective Cap Span of the jaw: 27 Plastic - GRP M24 x 2 / L=57,5 mm (36620119)
1336.
4V-10.2
312005-01
retaining ring Ø64 x 45 x 4,2 (31200501)
1337.
4V-10.2
382231-02
retaining ring with lugs spring steel DIN 472 Ø15 x 1 (38223102)
1338.
4V-10.2
312006-02
ring spring washer Ø58 x Ø42 x 8,6 (31200602)
1339.
4V-10.2
361500-01
Schrader valve T-piece brass Jul-16 (36150001)
1340.
4V-10.2
366202-01
sealing nut 7/16" - 20 UNF (36620201)
1341.
4V-10.2
366100-01
Sealing Plug brass 1/8" - 27 NPTF (36610001)
1342.
4V-10.2
366110-01
Sealing plug steel 1/8“ - 27 NPTF (36611001)
1343.
4V-10.2
366110-10
sealing plug steel 1/2" - 14 NPTF (36611010)
1344.
4V-10.2
366110-02
Sealing Plug steel 1/4" - 18 NPTF (36611002)
1345.
4V-10.2
366124-01
sealing screw permanent magnet M22 x 1,5 (36612401)
1346.
4V-10.2
380358-01
Set screw coated DIN 916 M10 x 12 (38035801)
1347.
4V-10.2
361310-06
shut-off valve brazing and welding bush Ø22 (7/8") (36131006)
1348.
4V-10.2
361310-07
shut-off valve brazing and welding bush Ø28 (1 1/8") (36131007)
1349.
4V-10.2
361802-02
sight glass Ø67 x 8,5 (36180202)
1350.
4V-10.2
382201-51
single coil spring washer spring steel galvanized DIN 127 A4, 3 (38220151)
1351.
4V-10.2
382201-04
single coil spring washer spring steel DIN 127 B8 (38220104)
1352.
4V-10.2
325900-02
spring washer Ø58,5 x Ø46 x 0,5 (32590002)
1353.
4V-10.2
362001-09
suction gas filte Ø30 x 105 (36200109)
1354.
4V-10.2
300950-17
terminal box black aluminium cast 313 x 175 x 84 (30095017)
1355.
4V-10.2
304900-01
terminal plate 165 x 120 x 15,5 (30490001)
1356.
4V-10.2
343414-07
terminal plate kit (34341407)
1357.
4V-10.2
343414-08
terminal plate kit (34341408)
1358.
4V-10.2
343416-02
terminal plate kit (34341602)
1359.
4V-10.2
312030-02
thrust collar Ø65 x 7 (31203002)
1360.
4V-10.2
320313-01
thrust segment 80 x 40 x 3,5 (32031301)
1361.
4V-10.2
320502-04
thrust washer steel Ø54 x Ø17 x 5 (32050204)
1362.
4V-10.2
382150-04
thrust washer spring steel S16 (38215004)
1363.
4V-10.2
320500-05
thrust washer Crankcase side Ø62 x Ø50,5 x 1,7 (32050005)
1364.
4V-10.2
382152-01
thrust washer DIN 127 S 8 (38215201)
1365.
4V-10.2
304052-01
valve plate Ø55 (30405201)
1366.
4V-10.2
370003-03
vibration damper set Motor side green spring Lo=46 (37000303)
1367.
4V-10.2
370003-02
vibration damper set Crankcase side yellow spring Lo=42 (37000302)
1368.
4V-10.2
382042-03
washer copper 8 x 1,6 (38204203)
1369.
4V-10.2
382002-02
washer brass DIN 125 A5, 3 (38200202)
1370.
4V-10.2
382002-01
washer brass DIN 125 A4, 3 (38200201)
1371.
4V-10.2
383401-25
wrist pin DIN 73126 Ø15 x Ø10 x 46 (38340125)
1372.
4VC-10.2
302952-03
balance weight rotor (30295203)
1373.
4VC-10.2
302926-07
balance weight (30292607)
1374.
4VC-10.2
311135-01
Bearing bush oil centrifuge Ø50 x Ø45 x 40 (31113501)
1375.
4VC-10.2
305139-01
bearing cover (30513901)
1376.
4VC-10.2
346265-46
built-in motor 7.4 kW, 4-pole 380..420V Y/YY-3-50Hz, 440..480V Y/YY-3-60Hz Ø223 (34626546)
1377.
4VC-10.2
380306-04
cheese head screw balance weight DIN 912, 10.9 M8 x 30 (38030604)
1378.
4VC-10.2
380306-23
Cheese Head Screw suction shut-off valve DIN 912, 10.9 M10 x 25 (38030623)
1379.
4VC-10.2
380306-32
Cheese Head Screw DIN 912, 10.9 M10 x 30 (38030632)
1380.
4VC-10.2
380508-51
Cheese head screw cover for terminal box galvanized DIN 7985, 4.8 M5 x 20 (38050851)
1381.
4VC-10.2
380402-06
cheese head screw protection device brass M4 x 16 (38040206)
1382.
4VC-10.2
382300-99
compression ring Ø55 x 1,0 (38230099)
1383.
4VC-10.2
382310-16
Compression ring Piston diameter 54,96mm Ø55 x 1,5 (38231016)
1384.
4VC-10.2
302131-02
connecting rod Ø70 x Ø16 x 90 (30213102)
1385.
4VC-10.2
302298-46
connecting rod / piston Kit - right / left Ø55 (30229846)
1386.
4VC-10.2
343219-04
crankcase heater 0..140 W, 200-260 V (PTC) 200-260V (34321904)
1387.
4VC-10.2
301117-01
crankshaft (30111701)
1388.
4VC-10.2
302360-20
cylinder head air-cooled (30236020)
1389.
4VC-10.2
382001-05
disk rotor spring steel DIN 125 A17 (38200105)
1390.
4VC-10.2
380902-01
eye bolt DIN 580 M10 (38090201)
1391.
4VC-10.2
372200-01
Gasket PTFE Ø14,3 x 1,5 (37220001)
1392.
4VC-10.2
372421-14
gasket Terminal plate 163 x 118 x 0,5 (37242114)
1393.
4VC-10.2
372145-01
gasket terminal box aluminium for terminal box 286 x 181 x 2 (37214501)
1394.
4VC-10.2
372704-01
Gasket suction shut-off valve 91 x 52 x 1 (37270401)
1395.
4VC-10.2
372949-02
gasket housing cover 14 - Hole 275 x 275 x 0,38 (37294902)
1396.
4VC-10.2
372704-05
gasket discharge shut-off valve Ø34 x 1,0 - LA 66 (37270405)
1397.
4VC-10.2
372515-09
gasket valve plate 191 x 115 x 1,1 (37251509)
1398.
4VC-10.2
372623-01
gasket cylinder head Retall 191 x 115 x 0,49 (37262301)
1399.
4VC-10.2
382401-31
gasket ring copper A10 x 16 x 2 (38240131)
1400.
4VC-10.2
382403-01
Gasket Ring oil pressure monitoring aluminium DIN 7603 A20 x 24 x 1,5 (38240301)
1401.
4VC-10.2
382403-05
Gasket Ring oil drain aluminium DIN 7603 A22 x 27 x 1,5 (38240305)
1402.
4VC-10.2
372841-04
gasket set (37284104)
1403.
4VC-10.2
384101-05
gib-headed key Stator steel DIN 6887 5 x 5 x 36 (38410105)
1404.
4VC-10.2
383103-04
half length reserve taper grooved dowel pin valve plate steel Ø3 x 8 (38310304)
1405.
4VC-10.2
380056-04
hexagon head screw cylinder head DIN 931, 10.9 M10 x 65 (38005604)
1406.
4VC-10.2
380104-05
Hexagon head screw sight glass DIN 933, 8.8 M6 x 18 (38010405)
1407.
4VC-10.2
380155-05
hexagon head screw oil pump DIN 933, 10.9 M8 x 20 (38015505)
1408.
4VC-10.2
380056-21
hexagon head screw housing cover DIN 931, 10.9 M10 x 50 (38005621)
1409.
4VC-10.2
380056-14
hexagon head screw cylinder head DIN 931, 10.9 M10 x 70 (38005614)
1410.
4VC-10.2
380156-06
hexagon head screw discharge shut-off valve coated DIN 933, 10.9 M10 x 30 (38015606)
1411.
4VC-10.2
380166-10
hexagon head screw rotor coated DIN 933, 10.9 M16 x 70 (38016610)
1412.
4VC-10.2
381101-56
hexagon nut screw for grounding DIN 934 M10 (38110156)
1413.
4VC-10.2
380306-83
Hexsocket Cheese Head Screw Terminal plate DIN 912, 10.9 M10 x 25 (38030683)
1414.
4VC-10.2
300085-01
housing Ø55 (30008501)
1415.
4VC-10.2
305235-01
housing cover suction side grey cast iron 275 x 275 x 45 (30523501)
1416.
4VC-10.2
345950-03
metal plate for grounding screw for grounding aluminium M10 (34595003)
1417.
4VC-10.2
372003-39
O-ring sight glass Ø33 x 2,5 (37200339)
1418.
4VC-10.2
372003-27
O-ring Ø10,82 x 1,78 (37200327)
1419.
4VC-10.2
372001-19
O-ring oil pump Ø74 x 2 (37200119)
1420.
4VC-10.2
362003-02
oil filter Ø14 x 105 (36200302)
1421.
4VC-10.2
347334-03
oil level monitoring 230V 50/60 Hz (34733403)
1422.
4VC-10.2
361101-01
oil pressure relief valve SW17 x 29 (36110101)
1423.
4VC-10.2
362503-01
oil pump grey cast iron (36250301)
1424.
4VC-10.2
361914-01
oil service valve (36191401)
1425.
4VC-10.2
380501-54
Oval head screw terminal box aluminium galvanized DIN 7985, 4.8 M6 x 16 (38050154)
1426.
4VC-10.2
384001-16
parallel key built-in motor steel DIN 6885 A12 x 8 x 80 (38400116)
1427.
4VC-10.2
325000-01
pressure spring steel Ø18 x 28 x 1,25 (32500001)
1428.
4VC-10.2
347019-01
protection device motor overheat protection SE-B1 230V-50/60Hz (34701901)
1429.
4VC-10.2
366201-17
Protective Cap Span of the jaw: 20 Plastic - GRP 3/4"-16 UNF / L=43 mm (36620117)
1430.
4VC-10.2
366201-19
Protective Cap Span of the jaw: 27 Plastic - GRP M24 x 2 / L=57,5 mm (36620119)
1431.
4VC-10.2
382231-18
retaining ring with lugs spring steel DIN 472 Ø16 x 1 (38223118)
1432.
4VC-10.2
361501-01
Schrader Valve brass 1/8"-27 NPTF (36150101)
1433.
4VC-10.2
361500-01
Schrader valve oil pressure connection T-piece brass Jul-16 (36150001)
1434.
4VC-10.2
314104-21
screwed nipple coated 1/2" - 14NPTF x 48 (31410421)
1435.
4VC-10.2
366103-21
sealing plug oil service valve brass 1/2" - 14 NPTF (36610321)
1436.
4VC-10.2
366100-01
Sealing Plug CIC system brass 1/8" - 27 NPTF (36610001)
1437.
4VC-10.2
366110-02
Sealing Plug oil fill connection steel 1/4" - 18 NPTF (36611002)
1438.
4VC-10.2
366124-01
sealing screw oil drain permanent magnet M22 x 1,5 (36612401)
1439.
4VC-10.2
366123-01
sealing screw oil pressure monitoring M20 x 1,5 (36612301)
1440.
4VC-10.2
380358-01
Set screw coated DIN 916 M10 x 12 (38035801)
1441.
4VC-10.2
361315-12
shut-off valve Discharge side brazing and welding bush PS45/DN20/S30TX/22 Ø22 (7/8) (36131512)
1442.
4VC-10.2
361315-18
shut-off valve suction side brazing and welding bush Ø28 (1 1/8") (36131518)
1443.
4VC-10.2
361802-03
sight glass Ø60 x 7(36180203)
1444.
4VC-10.2
382201-55
Single Coil Spring Washer screw for grounding spring steel galvanized DIN 127 A6, 4 (38220155)
1445.
4VC-10.2
382201-04
single coil spring washer balance weight spring steel DIN 127 B8 (38220104)
1446.
4VC-10.2
311012-09
spacer sleeve screw for grounding Ø20 x Ø11 x 12 (31101209)
1447.
4VC-10.2
311004-03
spacer sleeve steel Ø60 x Ø42,1 x 7,4 (31100403)
1448.
4VC-10.2
362001-15
suction gas filter Ø30 x 78 (36200115)
1449.
4VC-10.2
343507-02
terminal box standard 244 x 189 x 85 (34350702)
1450.
4VC-10.2
345507-01
terminal plate 6-Lead 165 x 120 x 10 (34550701)
1451.
4VC-10.2
345506-03
terminal plate cannot be delivered separately 165 x 120 x 11,5 (34550603)
1452.
4VC-10.2
380912-01
threaded bolt grounding 6-Lead DIN 976 M10 x 80 (38091201)
1453.
4VC-10.2
320500-10
thrust washer Crankcase side Ø66 x Ø48 x 1,6 (32050010)
1454.
4VC-10.2
304063-02
valve plate Ø55 (30406302)
1455.
4VC-10.2
370003-07
vibration damper set brown spring (37000307)
1456.
4VC-10.2
370003-05
vibration damper set Crankcase side yellow spring (37000305)
1457.
4VC-10.2
382002-01
washer brass DIN 125 A4, 3 (38200201)
1458.
4VC-10.2
382002-04
Washer screw for grounding brass DIN 125 10,5 (38200204)
1459.
4VC-10.2
383401-43
wrist pin connecting rod / piston DIN 73126 Ø16 x Ø9 x 46 (38340143)
1460.
4VCS-10.2
302926-07
balance weight (30292607)
1461.
4VCS-10.2
302952-03
balance weight rotor (30295203)
1462.
4VCS-10.2
311135-01
Bearing bush oil centrifuge Ø50 x Ø45 x 40 (31113501)
1463.
4VCS-10.2
305107-78
bearing cover Oil level monitoring (30510778)
1464.
4VCS-10.2
346265-46
built-in motor 7.4 kW, 4-pole 380..420V Y/YY-3-50Hz, 440..480V Y/YY-3-60Hz Ø223 (34626546)
1465.
4VCS-10.2
380306-23
Cheese Head Screw suction shut-off valve DIN 912, 10.9 M10 x 25 (38030623)
1466.
4VCS-10.2
380301-37
cheese head screw balance weight DIN 912, 8.8 M8 x 12 (38030137)
1467.
4VCS-10.2
380402-06
cheese head screw protection device brass M4 x 16 (38040206)
1468.
4VCS-10.2
380306-04
cheese head screw balance weight DIN 912, 10.9 M8 x 30 (38030604)
1469.
4VCS-10.2
380508-51
Cheese head screw cover for terminal box galvanized DIN 7985, 4.8 M5 x 20 (38050851)
1470.
4VCS-10.2
382310-16
Compression ring Piston diameter 54,96mm Ø55 x 1,5 (38231016)
1471.
4VCS-10.2
382300-99
compression ring Ø55 x 1,0 (38230099)
1472.
4VCS-10.2
302131-02
connecting rod Ø70 x Ø16 x 90 (30213102)
1473.
4VCS-10.2
302298-46
connecting rod / piston Kit - right / left Ø55 (30229846)
1474.
4VCS-10.2
343219-04
crankcase heater 0..140 W, 200-260 V (PTC) 200-260V (34321904)
1475.
4VCS-10.2
302360-20
cylinder head air-cooled (30236020)
1476.
4VCS-10.2
382001-05
disk rotor spring steel DIN 125 A17 (38200105)
1477.
4VCS-10.2
301117-03
eccentric shaft (30111703)
1478.
4VCS-10.2
380902-01
eye bolt DIN 580 M10 (38090201)
1479.
4VCS-10.2
372704-01
Gasket suction shut-off valve 91 x 52 x 1 (37270401)
1480.
4VCS-10.2
372515-09
gasket valve plate 191 x 115 x 1,1 (37251509)
1481.
4VCS-10.2
372949-02
gasket housing cover 14 - Hole 275 x 275 x 0,38 (37294902)
1482.
4VCS-10.2
372623-01
gasket cylinder head Retall 191 x 115 x 0,49 (37262301)
1483.
4VCS-10.2
372200-01
Gasket PTFE Ø14,3 x 1,5 (37220001)
1484.
4VCS-10.2
372145-01
gasket terminal box aluminium for terminal box 286 x 181 x 2 (37214501)
1485.
4VCS-10.2
372421-14
gasket Terminal plate 163 x 118 x 0,5 (37242114)
1486.
4VCS-10.2
372704-05
gasket discharge shut-off valve Ø34 x 1,0 - LA 66 (37270405)
1487.
4VCS-10.2
382403-01
Gasket Ring oil level monitoring aluminium DIN 7603 A20 x 24 x 1,5 (38240301)
1488.
4VCS-10.2
382403-05
Gasket Ring oil drain aluminium DIN 7603 A22 x 27 x 1,5 (38240305)
1489.
4VCS-10.2
382401-31
gasket ring copper A10 x 16 x 2 (38240131)
1490.
4VCS-10.2
372841-04
gasket set (37284104)
1491.
4VCS-10.2
384101-05
gib-headed key Stator steel DIN 6887 5 x 5 x 36 (38410105)
1492.
4VCS-10.2
383103-04
half length reserve taper grooved dowel pin valve plate steel Ø3 x 8 (38310304)
1493.
4VCS-10.2
380056-21
hexagon head screw cylinder head DIN 931, 10.9 M10 x 50 (38005621)
1494.
4VCS-10.2
380156-06
hexagon head screw coated DIN 933, 10.9 M10 x 30 (38015606)
1495.
4VCS-10.2
380166-10
hexagon head screw rotor coated DIN 933, 10.9 M16 x 70 (38016610)
1496.
4VCS-10.2
380056-04
hexagon head screw cylinder head DIN 931, 10.9 M10 x 65 (38005604)
1497.
4VCS-10.2
380056-14
hexagon head screw cylinder head DIN 931, 10.9 M10 x 70 (38005614)
1498.
4VCS-10.2
380104-05
Hexagon head screw sight glass DIN 933, 8.8 M6 x 18 (38010405)
1499.
4VCS-10.2
381101-56
hexagon nut screw for grounding DIN 934 M10 (38110156)
1500.
4VCS-10.2
380306-83
Hexsocket Cheese Head Screw Terminal plate DIN 912, 10.9 M10 x 25 (38030683)
1501.
4VCS-10.2
300085-01
housing Ø55 (30008501)
1502.
4VCS-10.2
305235-01
housing cover suction side grey cast iron 275 x 275 x 45 (30523501)
1503.
4VCS-10.2
345950-03
metal plate for grounding screw for grounding aluminium M10 (34595003)
1504.
4VCS-10.2
372003-39
O-ring sight glass Ø33 x 2,5 (37200339)
1505.
4VCS-10.2
321105-06
oil centrifuge steel (32110506)
1506.
4VCS-10.2
362003-02
oil filter Ø14 x 105 (36200302)
1507.
4VCS-10.2
347334-03
oil level monitoring 230V 50/60 Hz (34733403)
1508.
4VCS-10.2
361914-01
oil service valve (36191401)
1509.
4VCS-10.2
380501-54
Oval head screw terminal box aluminium galvanized DIN 7985, 4.8 M6 x 16 (38050154)
1510.
4VCS-10.2
384001-16
parallel key built-in motor steel DIN 6885 A12 x 8 x 80 (38400116)
1511.
4VCS-10.2
325000-01
pressure spring steel Ø18 x 28 x 1,25 (32500001)
1512.
4VCS-10.2
347019-01
protection device motor overheat protection SE-B1 230V-50/60Hz (34701901)
1513.
4VCS-10.2
366201-19
Protective Cap Span of the jaw: 27 Plastic - GRP M24 x 2 / L=57,5 mm (36620119)
1514.
4VCS-10.2
366201-17
Protective Cap Span of the jaw: 20 Plastic - GRP 3/4"-16 UNF / L=43 mm (36620117)
1515.
4VCS-10.2
382231-18
retaining ring with lugs spring steel DIN 472 Ø16 x 1 (38223118)
1516.
4VCS-10.2
361501-01
Schrader Valve brass 1/8"-27 NPTF (36150101)
1517.
4VCS-10.2
314104-21
screwed nipple coated 1/2" - 14NPTF x 48 (31410421)
1518.
4VCS-10.2
366100-01
Sealing Plug CIC system brass 1/8" - 27 NPTF (36610001)
1519.
4VCS-10.2
366110-02
Sealing Plug oil fill connection steel 1/4" - 18 NPTF (36611002)
1520.
4VCS-10.2
366103-21
sealing plug oil service valve brass 1/2" - 14 NPTF (36610321)
1521.
4VCS-10.2
380910-03
Sealing Screw oil supply monitoring DIN 908, 5.8 M20 x 1,5 (38091003)
1522.
4VCS-10.2
366124-01
sealing screw oil drain permanent magnet M22 x 1,5 (36612401)
1523.
4VCS-10.2
380358-01
Set screw coated DIN 916 M10 x 12 (38035801)
1524.
4VCS-10.2
361315-12
shut-off valve Discharge side brazing and welding bush PS45/DN20/S30TX/22 Ø22 (7/8) (36131512)
1525.
4VCS-10.2
361315-18
shut-off valve suction side brazing and welding bush Ø28 (1 1/8") (36131518)
1526.
4VCS-10.2
361802-03
sight glass Ø60 x 7 (36180203)
1527.
4VCS-10.2
382201-55
Single Coil Spring Washer screw for grounding spring steel galvanized DIN 127 A6, 4 (38220155)
1528.
4VCS-10.2
382201-04
single coil spring washer spring steel DIN 127 B8 (38220104)
1529.
4VCS-10.2
311004-03
spacer sleeve steel Ø60 x Ø42,1 x 7,4 (31100403)
1530.
4VCS-10.2
311012-09
spacer sleeve screw for grounding Ø20 x Ø11 x 12 (31101209)
1531.
4VCS-10.2
362001-15
suction gas filter Ø30 x 78 (36200115)
1532.
4VCS-10.2
343507-02
terminal box standard 244 x 189 x 85 (34350702)
1533.
4VCS-10.2
345507-01
terminal plate 6-Lead 165 x 120 x 10 (34550701)
1534.
4VCS-10.2
345506-03
terminal plate cannot be delivered separately 165 x 120 x 11,5 (34550603)
1535.
4VCS-10.2
380912-01
threaded bolt grounding 6-Lead DIN 976 M10 x 80 (38091201)
1536.
4VCS-10.2
320500-10
thrust washer Crankcase side Ø66 x Ø48 x 1,6 (32050010)
1537.
4VCS-10.2
304063-02
valve plate Ø55 (30406302)
1538.
4VCS-10.2
370003-05
vibration damper set Crankcase side yellow spring (37000305)
1539.
4VCS-10.2
370003-07
vibration damper set brown spring (37000307)
1540.
4VCS-10.2
382002-04
Washer screw for grounding brass DIN 125 10,5 (38200204)
1541.
4VCS-10.2
382002-01
washer brass DIN 125 A4, 3 (38200201)
1542.
4VCS-10.2
383401-43
wrist pin connecting rod / piston DIN 73126 Ø16 x Ø9 x 46 (38340143)
1543.
4VE-10
302952-03
balance weight rotor (30295203)
1544.
4VE-10
302926-06
balance weight (30292606)
1545.
4VE-10
311135-01
Bearing bush oil centrifuge Ø50 x Ø45 x 40 (31113501)
1546.
4VE-10
305139-01
bearing cover (30513901)
1547.
4VE-10
305107-78
bearing cover Oil level monitoring (30510778)
1548.
4VE-10
346265-46
built-in motor 7.4 kW, 4-pole 380..420V Y/YY-3-50Hz, 440..480V Y/YY-3-60Hz Ø223 (34626546)
1549.
4VE-10
380301-37
cheese head screw balance weight DIN 912, 8.8 M8 x 12 (38030137)
1550.
4VE-10
380402-06
cheese head screw protection device brass M4 x 16 (38040206)
1551.
4VE-10
380306-04
cheese head screw oil centrifuge DIN 912, 10.9 M8 x 30 (38030604)
1552.
4VE-10
380508-51
Cheese head screw cover for terminal box galvanized DIN 7985, 4.8 M5 x 20 (38050851)
1553.
4VE-10
380344-01
Cheese Head Screw balance weight ISO 4762, 10.9 M8 x 30 (38034401)
1554.
4VE-10
380306-23
Cheese Head Screw suction shut-off valve DIN 912, 10.9 M10 x 25 (38030623)
1555.
4VE-10
382300-99
compression ring Ø55 x 1,0 (38230099)
1556.
4VE-10
302131-02
connecting rod Ø70 x Ø16 x 90 (30213102)
1557.
4VE-10
302298-46
connecting rod / piston Kit - right / left Ø55 (30229846)
1558.
4VE-10
343219-04
crankcase heater 0..140 W, 200-260 V (PTC) 200-260V (34321904)
1559.
4VE-10
301117-01
crankshaft (30111701)
1560.
4VE-10
302360-37
cylinder head (30236037)
1561.
4VE-10
382001-05
disk rotor spring steel DIN 125 A17 (38200105)
1562.
4VE-10
380902-01
eye bolt DIN 580 M10 (38090201)
1563.
4VE-10
372704-01
Gasket suction shut-off valve 91 x 52 x 1 (37270401)
1564.
4VE-10
372704-05
gasket discharge shut-off valve Ø34 x 1,0 - LA 66 (37270405)
1565.
4VE-10
372949-02
gasket housing cover 14 - Hole 275 x 275 x 0,38 (37294902)
1566.
4VE-10
372145-01
gasket terminal box aluminium for terminal box 286 x 181 x 2 (37214501)
1567.
4VE-10
372200-01
Gasket PTFE Ø14,3 x 1,5 (37220001)
1568.
4VE-10
372515-13
gasket valve plate 191 x 115 x 0,9 (37251513)
1569.
4VE-10
372421-14
gasket Terminal plate 163 x 118 x 0,5 (37242114)
1570.
4VE-10
372623-01
gasket cylinder head Retall 191 x 115 x 0,49 (37262301)
1571.
4VE-10
382403-01
Gasket Ring oil supply monitoring aluminium DIN 7603 A20 x 24 x 1,5 (38240301)
1572.
4VE-10
382403-05
Gasket Ring aluminium DIN 7603 A22 x 27 x 1,5 (38240305)
1573.
4VE-10
382401-31
gasket ring oil drain copper A10 x 16 x 2 (38240131)
1574.
4VE-10
372841-04
gasket set (37284104)
1575.
4VE-10
384101-05
gib-headed key Stator steel DIN 6887 5 x 5 x 36 (38410105)
1576.
4VE-10
383103-04
half length reserve taper grooved dowel pin valve plate steel Ø3 x 8 (38310304)
1577.
4VE-10
380166-10
hexagon head screw rotor coated DIN 933, 10.9 M16 x 70 (38016610)
1578.
4VE-10
380056-14
hexagon head screw cylinder head DIN 931, 10.9 M10 x 70 (38005614)
1579.
4VE-10
380056-21
hexagon head screw cylinder head DIN 931, 10.9 M10 x 50 (38005621)
1580.
4VE-10
380156-06
hexagon head screw discharge shut-off valve coated DIN 933, 10.9 M10 x 30 (38015606)
1581.
4VE-10
380155-05
hexagon head screw DIN 933, 10.9 M8 x 20 (38015505)
1582.
4VE-10
380104-05
Hexagon head screw sight glass DIN 933, 8.8 M6 x 18 (38010405)
1583.
4VE-10
381101-56
hexagon nut screw for grounding DIN 934 M10 (38110156)
1584.
4VE-10
380306-83
Hexsocket Cheese Head Screw Terminal plate DIN 912, 10.9 M10 x 25 (38030683)
1585.
4VE-10
300085-01
housing Ø55 (30008501)
1586.
4VE-10
305235-01
housing cover suction side grey cast iron 275 x 275 x 45 (30523501)
1587.
4VE-10
345950-03
metal plate for grounding screw for grounding aluminium M10 (34595003)
1588.
4VE-10
372003-39
O-ring sight glass Ø33 x 2,5 (37200339)
1589.
4VE-10
372003-27
O-ring Ø10,82 x 1,78 (37200327)
1590.
4VE-10
372001-19
O-ring Ø74 x 2 (37200119)
1591.
4VE-10
321105-06
oil centrifuge steel (32110506)
1592.
4VE-10
362003-02
oil filter Ø14 x 105 (36200302)
1593.
4VE-10
347334-03
oil level monitoring 230V 50/60 Hz (34733403)
1594.
4VE-10
361101-01
oil pressure relief valve SW17 x 29 (36110101)
1595.
4VE-10
362503-01
oil pump grey cast iron (36250301)
1596.
4VE-10
361914-01
oil service valve (36191401)
1597.
4VE-10
380501-54
Oval head screw terminal box aluminium galvanized DIN 7985, 4.8 M6 x 16 (38050154)
1598.
4VE-10
384001-23
parallel key built-in motor steel DIN 6885 A12 x 8 x 56 (38400123)
1599.
4VE-10
382310-40
piston ring Ø55 x 1,0 (38231040)
1600.
4VE-10
325000-01
pressure spring steel Ø18 x 28 x 1,25 (32500001)
1601.
4VE-10
347019-01
protection device SE-B1 230V-50/60Hz (34701901)
1602.
4VE-10
366201-17
Protective Cap Span of the jaw: 20 Plastic - GRP 3/4"-16 UNF / L=43 mm (36620117)
1603.
4VE-10
366201-19
Protective Cap Span of the jaw: 27 Plastic - GRP M24 x 2 / L=57,5 mm (36620119)
1604.
4VE-10
382231-18
retaining ring with lugs spring steel DIN 472 Ø16 x 1 (38223118)
1605.
4VE-10
361501-01
Schrader Valve brass 1/8"-27 NPTF (36150101)
1606.
4VE-10
361500-01
Schrader valve bearing cover T-piece brass Jul-16 (36150001)
1607.
4VE-10
314104-21
screwed nipple coated 1/2" - 14NPTF x 48 (31410421)
1608.
4VE-10
366110-02
Sealing Plug oil fill connection steel 1/4" - 18 NPTF (36611002)
1609.
4VE-10
366100-01
Sealing Plug CIC system brass 1/8" - 27 NPTF (36610001)
1610.
4VE-10
380910-03
Sealing Screw oil supply monitoring DIN 908, 5.8 M20 x 1,5 (38091003)
1611.
4VE-10
366124-01
sealing screw permanent magnet M22 x 1,5 (36612401)
1612.
4VE-10
380358-01
Set screw coated DIN 916 M10 x 12 (38035801)
1613.
4VE-10
361315-18
shut-off valve suction side brazing and welding bush Ø28 (1 1/8") (36131518)
1614.
4VE-10
361315-12
shut-off valve Discharge side brazing and welding bush PS45/DN20/S30TX/22 Ø22 (7/8) (36131512)
1615.
4VE-10
361802-03
sight glass Ø60 x 7 (36180203)
1616.
4VE-10
382201-04
single coil spring washer balance weight spring steel DIN 127 B8 (38220104)
1617.
4VE-10
382201-55
Single Coil Spring Washer screw for grounding spring steel galvanized DIN 127 A6, 4 (38220155)
1618.
4VE-10
311012-09
spacer sleeve screw for grounding Ø20 x Ø11 x 12 (31101209)
1619.
4VE-10
311004-03
spacer sleeve steel Ø60 x Ø42,1 x 7,4 (31100403)
1620.
4VE-10
362001-15
suction gas filter Ø30 x 78 (36200115)
1621.
4VE-10
343507-02
terminal box standard 244 x 189 x 85 (34350702)
1622.
4VE-10
345506-03
terminal plate cannot be delivered separately 165 x 120 x 11,5 (34550603)
1623.
4VE-10
345507-01
terminal plate 6-Lead 165 x 120 x 10 (34550701)
1624.
4VE-10
380912-01
threaded bolt grounding 6-Lead DIN 976 M10 x 80 (38091201)
1625.
4VE-10
320500-10
thrust washer Crankcase side Ø66 x Ø48 x 1,6 (32050010)
1626.
4VE-10
304063-28
valve plate (30406328)
1627.
4VE-10
370003-07
vibration damper set brown spring (37000307)
1628.
4VE-10
370003-05
vibration damper set Crankcase side yellow spring (37000305)
1629.
4VE-10
382002-01
washer brass DIN 125 A4, 3 (38200201)
1630.
4VE-10
382002-04
Washer screw for grounding brass DIN 125 10,5 (38200204)
1631.
4VE-10
383401-43
wrist pin connecting rod / piston DIN 73126 Ø16 x Ø9 x 46 (38340143)
1632.
4VES-10
302952-03
balance weight rotor (30295203)
1633.
4VES-10
302926-06
balance weight (30292606)
1634.
4VES-10
311135-01
Bearing bush oil centrifuge Ø50 x Ø45 x 40 (31113501)
1635.
4VES-10
305107-78
bearing cover Oil level monitoring (30510778)
1636.
4VES-10
346265-46
built-in motor 7.4 kW, 4-pole 380..420V Y/YY-3-50Hz, 440..480V Y/YY-3-60Hz Ø223 (34626546)
1637.
4VES-10
380306-23
Cheese Head Screw suction shut-off valve DIN 912, 10.9 M10 x 25 (38030623)
1638.
4VES-10
380508-51
Cheese head screw cover for terminal box galvanized DIN 7985, 4.8 M5 x 20 (38050851)
1639.
4VES-10
380402-06
cheese head screw protection device brass M4 x 16 (38040206)
1640.
4VES-10
380344-01
Cheese Head Screw balance weight ISO 4762, 10.9 M8 x 30 (38034401)
1641.
4VES-10
382300-99
compression ring Ø55 x 1,0 (38230099)
1642.
4VES-10
302131-02
connecting rod Ø70 x Ø16 x 90 (30213102)
1643.
4VES-10
302298-46
connecting rod / piston Kit - right / left Ø55 (30229846)
1644.
4VES-10
343219-04
crankcase heater 0..140 W, 200-260 V (PTC) 200-260V (34321904)
1645.
4VES-10
302360-37
cylinder head air-cooled (30236037)
1646.
4VES-10
382001-05
disk rotor spring steel DIN 125 A17 (38200105)
1647.
4VES-10
301117-03
eccentric shaft (30111703)
1648.
4VES-10
380902-01
eye bolt DIN 580 M10 (38090201)
1649.
4VES-10
372421-14
gasket Terminal plate 163 x 118 x 0,5 (37242114)
1650.
4VES-10
372704-05
gasket discharge shut-off valve Ø34 x 1,0 - LA 66 (37270405)
1651.
4VES-10
372515-13
gasket valve plate 191 x 115 x 0,9 (37251513)
1652.
4VES-10
372949-02
gasket bearing cover 14 - Hole 275 x 275 x 0,38 (37294902)
1653.
4VES-10
372623-01
gasket cylinder head Retall 191 x 115 x 0,49 (37262301)
1654.
4VES-10
372145-01
gasket terminal box aluminium for terminal box 286 x 181 x 2 (37214501)
1655.
4VES-10
372200-01
Gasket PTFE Ø14,3 x 1,5 (37220001)
1656.
4VES-10
372704-01
Gasket suction shut-off valve 91 x 52 x 1 (37270401)
1657.
4VES-10
382401-31
gasket ring oil drain copper A10 x 16 x 2 (38240131)
1658.
4VES-10
382403-01
Gasket Ring oil supply monitoring aluminium DIN 7603 A20 x 24 x 1,5 (38240301)
1659.
4VES-10
372841-04
gasket set (37284104)
1660.
4VES-10
384101-05
gib-headed key Stator steel DIN 6887 5 x 5 x 36 (38410105)
1661.
4VES-10
383103-04
half length reserve taper grooved dowel pin valve plate steel Ø3 x 8 (38310304)
1662.
4VES-10
380056-21
hexagon head screw cylinder head DIN 931, 10.9 M10 x 50 (38005621)
1663.
4VES-10
380156-06
hexagon head screw coated DIN 933, 10.9 M10 x 30 (38015606)
1664.
4VES-10
380104-05
Hexagon head screw sight glass DIN 933, 8.8 M6 x 18 (38010405)
1665.
4VES-10
380056-14
hexagon head screw cylinder head DIN 931, 10.9 M10 x 70 (38005614)
1666.
4VES-10
380166-10
hexagon head screw rotor coated DIN 933, 10.9 M16 x 70 (38016610)
1667.
4VES-10
381101-56
hexagon nut screw for grounding DIN 934 M10 (38110156)
1668.
4VES-10
380306-83
Hexsocket Cheese Head Screw Terminal plate DIN 912, 10.9 M10 x 25 (38030683)
1669.
4VES-10
300085-01
housing Ø55 (30008501)
1670.
4VES-10
305235-01
housing cover suction side grey cast iron 275 x 275 x 45 (30523501)
1671.
4VES-10
345950-03
metal plate for grounding screw for grounding aluminium M10 (34595003)
1672.
4VES-10
372003-39
O-ring sight glass Ø33 x 2,5 (37200339)
1673.
4VES-10
321105-06
oil centrifuge steel (32110506)
1674.
4VES-10
347334-03
oil level monitoring 230V 50/60 Hz (34733403)
1675.
4VES-10
361914-01
oil service valve (36191401)
1676.
4VES-10
380501-54
Oval head screw terminal box aluminium galvanized DIN 7985, 4.8 M6 x 16 (38050154)
1677.
4VES-10
384001-23
parallel key built-in motor steel DIN 6885 A12 x 8 x 56 (38400123)
1678.
4VES-10
382310-40
piston ring Ø55 x 1,0 (38231040)
1679.
4VES-10
347019-01
protection device motor overheat protection SE-B1 230V-50/60Hz (34701901)
1680.
4VES-10
366201-17
Protective Cap Span of the jaw: 20 Plastic - GRP 3/4"-16 UNF / L=43 mm (36620117)
1681.
4VES-10
366201-19
Protective Cap Span of the jaw: 27 Plastic - GRP M24 x 2 / L=57,5 mm (36620119)
1682.
4VES-10
382231-18
retaining ring with lugs spring steel DIN 472 Ø16 x 1 (38223118)
1683.
4VES-10
361501-01
Schrader Valve brass 1/8"-27 NPTF (36150101)
1684.
4VES-10
314104-21
screwed nipple coated 1/2" - 14NPTF x 48 (31410421)
1685.
4VES-10
366110-02
Sealing Plug oil fill connection steel 1/4" - 18 NPTF (36611002)
1686.
4VES-10
366100-01
Sealing Plug CIC system brass 1/8" - 27 NPTF (36610001)
1687.
4VES-10
380910-03
Sealing Screw oil supply monitoring DIN 908, 5.8 M20 x 1,5 (38091003)
1688.
4VES-10
380358-01
Set screw coated DIN 916 M10 x 12 (38035801)
1689.
4VES-10
361315-12
shut-off valve Discharge side brazing and welding bush PS45/DN20/S30TX/22 Ø22 (7/8) (36131512)
1690.
4VES-10
361315-18
shut-off valve suction side brazing and welding bush Ø28 (1 1/8") (36131518)
1691.
4VES-10
361802-03
sight glass Ø60 x 7 (36180203)
1692.
4VES-10
382201-55
Single Coil Spring Washer screw for grounding spring steel galvanized DIN 127 A6, 4 (38220155)
1693.
4VES-10
311012-09
spacer sleeve screw for grounding Ø20 x Ø11 x 12 (31101209)
1694.
4VES-10
311004-03
spacer sleeve steel Ø60 x Ø42,1 x 7,4 (31100403)
1695.
4VES-10
362001-15
suction gas filter Ø30 x 78 (36200115)
1696.
4VES-10
343507-02
terminal box standard 244 x 189 x 85 (34350702)
1697.
4VES-10
345507-01
terminal plate 6-Lead 165 x 120 x 10 (34550701)
1698.
4VES-10
345506-03
terminal plate cannot be delivered separately 165 x 120 x 11,5 (34550603)
1699.
4VES-10
380912-01
threaded bolt grounding 6-Lead DIN 976 M10 x 80 (38091201)
1700.
4VES-10
382152-01
thrust washer balance weight DIN 127 S 8 (38215201)
1701.
4VES-10
320500-10
thrust washer Crankcase side Ø66 x Ø48 x 1,6 (32050010)
1702.
4VES-10
304063-28
valve plate (30406328)
1703.
4VES-10
370003-07
vibration damper set brown spring (37000307)
1704.
4VES-10
370003-05
vibration damper set Crankcase side yellow spring (37000305)
1705.
4VES-10
382002-04
Washer screw for grounding brass DIN 125 10,5 (38200204)
1706.
4VES-10
382002-01
washer brass DIN 125 A4, 3 (38200201)
1707.
4VES-10
383401-43
wrist pin connecting rod / piston DIN 73126 Ø16 x Ø9 x 46 (38340143)
1708.
2KC-05.2
346004-12
built-in motor 0.37 kW, 4-pole 220..240V D-3-50Hz, 380..420V Y-3-50Hz, 265..290V D-3-60Hz, 440..480V Y-3-60Hz Ø160 (34600412)
1709.
2KC-05.2
343610-18
rotor fixing built-in motor (34361018)
1710.
2KC-05.2
384001-03
Parallel key built-in motor steel DIN 6885 A6 x 6 x 45 (38400103)
1711.
2KC-05.2
313000-17
Disk built-in motor Ø30 x Ø10,5 x 6 (31300017)
1712.
2KC-05.2
382201-05
Single coil spring washer built-in motor spring steel DIN 127 A10 (38220105)
1713.
2KC-05.2
380169-01
Hexagon head screw built-in motor coated DIN 933, 10.9 M10 x 30 (38016901)
1714.
2KC-05.2
380155-54
hexagon head screw DIN 933, 10.9 M8 x 25 (38015554)
1715.
2KC-05.2
382401-30
Gasket ring oil drain copper A8 x 14 x 2 (38240130)
1716.
2KC-05.2
305107-73
bearing cover Crankcase side (30510773)
1717.
2KC-05.2
311112-15
bearing bush Crankcase sideØ23 x Ø20 x 25 (31111215)
1718.
2KC-05.2
372937-01
Gasket bearing cover Retall 202 x 202 x 0,38 (37293701)
1719.
2KC-05.2
321105-02
oil splasher plate steel Ø156 x 33 (32110502)
1720.
2KC-05.2
380153-02
Hexagon head screw oil splasher plate steel DIN 933, 10.9 M5 x 10 (38015302)
1721.
2KC-05.2
382150-05
thrust washer spring steel Ø9 (38215005)
1722.
2KC-05.2
302297-93
connecting rod / piston (30229793)
1723.
2KC-05.2
302132-01
connecting rod Ø55 x Ø10 x 72 (30213201)
1724.
2KC-05.2
302233-88
Piston Ø30 (30223388)
1725.
2KC-05.2
383401-41
Wrist pin DIN 73126 Ø10 x Ø6 x 24 (38340141)
1726.
2KC-05.2
382231-22
Retaining ring with lugs wrist pin spring steel DIN 472 Ø10 x 1 (38223122)
1727.
2KC-05.2
325900-05
spring washer wrist pin Ø19 x Ø10,5 x 0,15 (32590005)
1728.
2KC-05.2
382300-88
compression ring piston Ø30 x 1,5 (38230088)
1729.
2KC-05.2
301109-50
Eccentric shaft Ø55 x 245 (30110950)
1730.
2KC-05.2
312103-01
Thrust washer Motor side Ø33 x Ø26,5 x 3 (31210301)
1731.
2KC-05.2
311112-16
bearing bush Motor side Ø25 x Ø28 x 25 (31111216)
1732.
2KC-05.2
382091-11
Adjusting washer Motor side Ø32 x Ø22 x 2 (38209111)
1733.
2KC-05.2
361315-11
shut-off valve Discharge side brazed connection Ø12 L (36131511)
1734.
2KC-05.2
372713-01
Gasket discharge shut-off valve 24 x 52 x 1 (37271301)
1735.
2KC-05.2
380306-02
Cheese head screw discharge shut-off valve DIN 912, 10.9 M8 x 20 (38030602)
1736.
2KC-05.2
302360-12
cylinder head 152 x 102 x 51,5 (30236012)
1737.
2KC-05.2
366100-01
Sealing Plug cylinder head brass 1/8" - 27 NPTF (36610001)
1738.
2KC-05.2
380056-04
hexagon head screw cylinder head DIN 931, 10.9 M10 x 65 (38005604)
1739.
2KC-05.2
304055-04
valve plate Ø30 (30405504)
1740.
2KC-05.2
372617-01
Gasket cylinder head Retall 152 x 102 x 0,38 (37261701)
1741.
2KC-05.2
372516-01
Gasket valve plate 152 x 102 x 0,7 (37251601)
1742.
2KC-05.2
361315-10
shut-off valve suction side brazed connection Ø16 L (36131510)
1743.
2KC-05.2
372702-03
gasket suction shut-off valve 35 x 60 x 1 (37270203)
1744.
2KC-05.2
362012-01
suction gas filter suction shut-off valve Ø34 x 62 x 41,7 (36201201)
1745.
2KC-05.2
343428-01
terminal plate kit (34342801)
1746.
2KC-05.2
345500-15
Terminal plate 6-Lead 52 x 52 x 39 (34550015)
1747.
2KC-05.2
380104-05
Hexagon head screw Terminal plate DIN 933, 8.8 M6 x 18 (38010405)
1748.
2KC-05.2
315027-01
Screw for grounding Terminal plate M6 x 40 (31502701)
1749.
2KC-05.2
372938-01
Gasket Terminal plate 52 x 52 x 0,38 (37293801)
1750.
2KC-05.2
345504-01
Terminal plate 48 x 32 x 39 (34550401)
1751.
2KC-05.2
372718-01
Gasket Terminal plate Retall 32 x 48 x 0,38 (37271801)
1752.
2KC-05.2
372200-10
gasket ring sight glass teflon Ø31,9 x 1,6 x 1,8 (37220010)
1753.
2KC-05.2
361815-01
Sight Glass steel / glass 1 1/8" - 18 UNEF (36181501)
1754.
2KC-05.2
361501-22
Schrader valve 1/4" - 18 NPTF (36150122)
1755.
2KC-05.2
343509-01
terminal box 202 x 95 x 57 (34350901)
1756.
2KC-05.2
380501-54
Oval head screw terminal box aluminium galvanized DIN 7985, 4.8 M6 x 16 (38050154)
1757.
2KC-05.2
344119-01
cable 1 x 2,5, 2 x 100 (34411901)
1758.
2KC-05.2
347019-01
protection device SE-B1 230V-50/60Hz (34701901)
1759.
2KC-05.2
305227-01
housing cover Motor side grey cast iron 202 x 202 x 18 (30522701)
1760.
2KC-05.2
380155-07
Hexagon head screw housing cover DIN 933, 10.9 M8 x 25 (38015507)
1761.
2KC-05.2
343224-02
crankcase heater 100-240V-60W-PTC Ø11 x 95 (34322402)
1762.
2KC-05.2
375030-25
sealing plug Ø11,2 x 13,0 x 10 (37503025)
1763.
2KC-05.2
370000-19
vibration damper set rubber (37000019)
1764.
2KC-05.2
320354-02
Eyebolt 51 x 30 x 4 (32035402)
1765.
2KC-05.2
343417-14
connection to ground, complete (34341714)
1766.
2KC-05.2
326919-02
adaptor (32691902)
1767.
2KC-05.2
343021-01
additional fan 230V-1-50/60Hz (34302101)
1768.
2KC-05.2
366201-16
Protective Cap Span of the jaw: 20 Plastic - GRP 3/4"-16 UNF / L=36 mm (36620116)
1769.
2JC-07.2
343021-01
additional fan 230V-1-50/60Hz 230V-1-50/60Hz (34302101)
1770.
2JC-07.2
382091-11
Adjusting washer Motor side Ø32 x Ø22 x 2 (38209111)
1771.
2JC-07.2
311112-16
bearing bush Motor side Ø25 x Ø28 x 25 (31111216)
1772.
2JC-07.2
311112-15
bearing bush Crankcase side Ø23 x Ø20 x 25 (31111215)
1773.
2JC-07.2
305107-73
bearing cover Crankcase side (30510773)
1774.
2JC-07.2
346002-12
built-in motor 0.56 kW, 4-pole 220..240V D-3-50Hz, 380..420V Y-3-50Hz, 265..290V D-3-60Hz, 440..480V Y-3-60Hz Ø160 (34600212)
1775.
2JC-07.2
344119-01
cable 1 x 2,5, 2 x 100 (34411901)
1776.
2JC-07.2
380306-02
Cheese head screw suction shut-off valve DIN 912, 10.9 M8 x 20 (38030602)
1777.
2JC-07.2
382300-91
compression ring piston Ø34 x 1,5 (38230091)
1778.
2JC-07.2
302132-01
connecting rod Ø55 x Ø10 x 72 (30213201)
1779.
2JC-07.2
302297-94
connecting rod / piston (30229794)
1780.
2JC-07.2
343417-14
connection to ground, complete (34341714)
1781.
2JC-07.2
343224-02
crankcase heater 100-240V-60W-PTC Ø11 x 95 (34322402)
1782.
2JC-07.2
302360-12
cylinder head 152 x 102 x 51,5 (30236012)
1783.
2JC-07.2
313000-17
Disk built-in motor Ø30 x Ø10,5 x 6 (31300017)
1784.
2JC-07.2
301109-50
Eccentric shaft Ø55 x 245 (30110950)
1785.
2JC-07.2
320354-02
Eyebolt 51 x 30 x 4 (32035402)
1786.
2JC-07.2
372937-01
Gasket housing cover Retall 202 x 202 x 0,38 (37293701)
1787.
2JC-07.2
372702-03
gasket suction shut-off valve 35 x 60 x 1 (37270203)
1788.
2JC-07.2
372938-01
Gasket Terminal plate 52 x 52 x 0,38 (37293801)
1789.
2JC-07.2
372516-02
gasket valve plate 152 x 102 x 0,7 (37251602)
1790.
2JC-07.2
372617-01
Gasket cylinder head Retall 152 x 102 x 0,38 (37261701)
1791.
2JC-07.2
372713-01
Gasket discharge shut-off valve 24 x 52 x 1 (37271301)
1792.
2JC-07.2
372718-01
Gasket Terminal plate Retall 32 x 48 x 0,38 (37271801)
1793.
2JC-07.2
382401-30
Gasket ring oil drain copper A8 x 14 x 2 (38240130)
1794.
2JC-07.2
372200-10
gasket ring sight glass teflon Ø31,9 x 1,6 x 1,8 (37220010)
1795.
2JC-07.2
372834-02
gasket set (37283402)
1796.
2JC-07.2
380155-07
Hexagon head screw housing cover DIN 933, 10.9 M8 x 25 (38015507)
1797.
2JC-07.2
380104-05
Hexagon head screw Terminal plate DIN 933, 8.8 M6 x 18 (38010405)
1798.
2JC-07.2
380155-54
hexagon head screw DIN 933, 10.9 M8 x 25 (38015554)
1799.
2JC-07.2
380153-02
Hexagon head screw oil splasher plate steel DIN 933, 10.9 M5 x 10 (38015302)
1800.
2JC-07.2
380056-04
hexagon head screw cylinder head DIN 931, 10.9 M10 x 65 (38005604)
1801.
2JC-07.2
380169-01
Hexagon head screw built-in motor coated DIN 933, 10.9 M10 x 30 (38016901)
1802.
2JC-07.2
305227-01
housing cover Motor side grey cast iron 02 x 202 x 18 (30522701)
1803.
2JC-07.2
321105-02
oil splasher plate steel Ø156 x 33 (32110502)
1804.
2JC-07.2
380501-54
Oval head screw terminal box aluminium galvanized DIN 7985, 4.8 M6 x 16 (38050154)
1805.
2JC-07.2
384001-03
Parallel key built-in motor steel DIN 6885 A6 x 6 x 45 (38400103)
1806.
2JC-07.2
302233-91
piston aluminium alloy Ø34 (30223391)
1807.
2JC-07.2
347019-01
protection device SE-B1 230V-50/60Hz (34701901)
1808.
2JC-07.2
366201-16
Protective Cap Span of the jaw: 20 Plastic - GRP 3/4"-16 UNF / L=36 mm (36620116)
1809.
2JC-07.2
382231-22
Retaining ring with lugs wrist pin spring steel DIN 472 Ø10 x 1 (38223122)
1810.
2JC-07.2
343610-16
rotor fixing built-in motor (34361016)
1811.
2JC-07.2
361501-22
Schrader valve oil fill connection 1/4" - 18 NPTF (36150122)
1812.
2JC-07.2
315027-01
Screw for grounding Terminal plate M6 x 40 (31502701)
1813.
2JC-07.2
366100-01
Sealing Plug cylinder head brass 1/8" - 27 NPTF (36610001)
1814.
2JC-07.2
375030-25
sealing plug Ø11,2 x 13,0 x 10 (37503025)
1815.
2JC-07.2
361315-11
shut-off valve Discharge side brazed connection Ø12 L (36131511)
1816.
2JC-07.2
361315-10
shut-off valve suction side brazed connection Ø16 L (36131510)
1817.
2JC-07.2
361815-01
Sight Glass steel / glass 1 1/8" - 18 UNEF (36181501)
1818.
2JC-07.2
382201-05
Single coil spring washer built-in motor spring steel DIN 127 A10 (38220105)
1819.
2JC-07.2
325900-05
spring washer wrist pin Ø19 x Ø10,5 x 0,15 (32590005)
1820.
2JC-07.2
362012-01
suction gas filter suction shut-off valve Ø34 x 62 x 41,7 (36201201)
1821.
2JC-07.2
343509-01
terminal box 202 x 95 x 57 (34350901)
1822.
2JC-07.2
345500-15
Terminal plate 6-Lead 52 x 52 x 39 (34550015)
1823.
2JC-07.2
345504-01
Terminal plate 48 x 32 x 39 (34550401)
1824.
2JC-07.2
343428-01
terminal plate kit (34342801)
1825.
2JC-07.2
312103-01
Thrust washer Motor side Ø33 x Ø26,5 x 3 (31210301)
1826.
2JC-07.2
382150-05
thrust washer spring steel Ø9 (38215005)
1827.
2JC-07.2
304055-05
valve plate Ø34 (30405505)
1828.
2JC-07.2
370000-19
vibration damper set rubber (37000019)
1829.
2JC-07.2
383401-42
wrist pin DIN 73126 Ø10 x Ø6 x 28 (38340142)
1830.
2JES-07
311112-16
bearing bush Motor side Ø25 x Ø28 x 25 (31111216)
1831.
2JES-07
311112-15
bearing bush Crankcase side Ø23 x Ø20 x 25 (31111215)
1832.
2JES-07
305107-74
bearing cover Crankcase side (30510774)
1833.
2JES-07
346002-12
built-in motor 0.56 kW, 4-pole 220..240V D-3-50Hz, 380..420V Y-3-50Hz, 265..290V D-3-60Hz, 440..480V Y-3-60Hz Ø160 (34600212)
1834.
2JES-07
380306-02
Cheese head screw discharge shut-off valve DIN 912, 10.9 M8 x 20 (38030602)
1835.
2JES-07
382300-91
compression ring piston Ø34 x 1,5 (38230091)
1836.
2JES-07
302132-01
connecting rod Ø55 x Ø10 x 72 (30213201)
1837.
2JES-07
302297-94
connecting rod / piston (30229794)
1838.
2JES-07
343417-14
connection to ground, complete (34341714)
1839.
2JES-07
343224-02
crankcase heater 100-240V-60W-PTC Ø11 x 95 (34322402)
1840.
2JES-07
302360-12
cylinder head 152 x 102 x 51,5 (30236012)
1841.
2JES-07
313000-17
Disk built-in motor Ø30 x Ø10,5 x 6 (31300017)
1842.
2JES-07
301109-50
Eccentric shaft Ø55 x 245 (30110950)
1843.
2JES-07
320354-02
Eye bolt 51 x 30 x 4 (32035402)
1844.
2JES-07
372718-01
Gasket Terminal plate Retall 32 x 48 x 0,38 (37271801)
1845.
2JES-07
372938-01
Gasket Terminal plate 52 x 52 x 0,38 (37293801)
1846.
2JES-07
372702-03
gasket suction shut-off valve 35 x 60 x 1 (37270203)
1847.
2JES-07
372713-01
Gasket discharge shut-off valve 24 x 52 x 1 (37271301)
1848.
2JES-07
372617-01
Gasket cylinder head Retall 152 x 102 x 0,38 (37261701)
1849.
2JES-07
372516-02
gasket valve plate 152 x 102 x 0,7 (37251602)
1850.
2JES-07
372937-02
gasket bearing cover 202 x 202 x 0,38 (37293702)
1851.
2JES-07
372200-10
gasket ring sight glass teflon Ø31,9 x 1,6 x 1,8 (37220010)
1852.
2JES-07
382401-30
Gasket ring oil drain copper A8 x 14 x 2 (38240130)
1853.
2JES-07
372834-02
gasket set (37283402)
1854.
2JES-07
380155-54
hexagon head screw housing cover DIN 933, 10.9 M8 x 25 (38015554)
1855.
2JES-07
380056-04
hexagon head screw cylinder head DIN 931, 10.9 M10 x 65 (38005604)
1856.
2JES-07
380056-14
hexagon head screw cylinder head DIN 931, 10.9 M10 x 70 (38005614)
1857.
2JES-07
380153-02
Hexagon head screw oil splasher plate steel DIN 933, 10.9 M5 x 10 (38015302)
1858.
2JES-07
380169-01
Hexagon head screw built-in motorcoated DIN 933, 10.9 M10 x 30 (38016901)
1859.
2JES-07
380104-05
Hexagon head screw Terminal plate DIN 933, 8.8 M6 x 18 (38010405)
1860.
2JES-07
305227-02
housing cover Motor side 202 x 202 x 18 (30522702)
1861.
2JES-07
321105-02
oil splasher plate steel Ø156 x 33 (32110502)
1862.
2JES-07
380501-54
Oval head screw terminal box aluminium galvanized DIN 7985, 4.8 M6 x 16 (38050154)
1863.
2JES-07
384001-03
Parallel key built-in motor steel DIN 6885 A6 x 6 x 45 (38400103)
1864.
2JES-07
302233-91
piston aluminium alloy Ø34 (30223391)
1865.
2JES-07
347019-01
protection device SE-B1 230V-50/60Hz (34701901)
1866.
2JES-07
366201-16
Protective Cap Span of the jaw: 20 Plastic - GRP 3/4"-16 UNF / L=36 mm (36620116)
1867.
2JES-07
382231-22
Retaining ring with lugs wrist pin spring steel DIN 472 Ø10 x 1 (38223122)
1868.
2JES-07
361501-22
Schrader valve oil fill connection 1/4" - 18 NPTF (36150122)
1869.
2JES-07
315027-01
Screw for grounding Terminal plate M6 x 40 (31502701)
1870.
2JES-07
366100-01
Sealing Plug cylinder head brass 1/8" - 27 NPTF (36610001)
1871.
2JES-07
361315-10
shut-off valve suction side brazed connection Ø16 L (36131510)
1872.
2JES-07
361315-11
shut-off valve Discharge side brazed connection Ø12 L (36131511)
1873.
2JES-07
361815-01
Sight Glass steel / glass 1 1/8" - 18 UNEF (36181501)
1874.
2JES-07
382201-05
Single coil spring washer built-in motor spring steel DIN 127 A10 (38220105)
1875.
2JES-07
325900-05
spring washer wrist pin Ø19 x Ø10,5 x 0,15 (32590005)
1876.
2JES-07
362012-04
suction gas filter suction shut-off valve LA 42 (36201204)
1877.
2JES-07
343509-01
terminal box 202 x 95 x 57 (34350901)
1878.
2JES-07
345504-01
Terminal plate 48 x 32 x 39 (34550401)
1879.
2JES-07
345500-15
Terminal plate 6-Lead 52 x 52 x 39 (34550015)
1880.
2JES-07
343428-01
terminal plate kit (34342801)
1881.
2JES-07
312103-01
Thrust washer Motor side Ø33 x Ø26,5 x 3 (31210301)
1882.
2JES-07
382150-05
thrust washer spring steel Ø9 (38215005)
1883.
2JES-07
375079-01
Train plug (37507901)
1884.
2JES-07
304055-05
valve plate Ø34 (30405505)
1885.
2JES-07
370000-19
vibration damper set rubber (37000019)
1886.
2JES-07
383401-42
wrist pin DIN 73126 Ø10 x Ø6 x 28 (38340142)
1887.
2KES-05
311112-16
bearing bush Motor side Ø25 x Ø28 x 25 (31111216)
1888.
2KES-05
311112-15
bearing bush Crankcase side Ø23 x Ø20 x 25 (31111215)
1889.
2KES-05
305107-74
bearing cover Crankcase side (30510774)
1890.
2KES-05
346004-12
built-in motor 0.37 kW, 4-pole 220..240V D-3-50Hz, 380..420V Y-3-50Hz, 265..290V D-3-60Hz, 440..480V Y-3-60Hz Ø160 (34600412)
1891.
2KES-05
380306-02
Cheese head screw DIN 912, 10.9 M8 x 20 (38030602)
1892.
2KES-05
382300-88
compression ring piston Ø30 x 1,5 (38230088)
1893.
2KES-05
302132-01
connecting rod Ø55 x Ø10 x 72 (30213201)
1894.
2KES-05
302297-93
connecting rod / piston (30229793)
1895.
2KES-05
343417-14
connection to ground, complete (34341714)
1896.
2KES-05
343224-02
crankcase heater 100-240V-60W-PTC Ø11 x 95 (34322402)
1897.
2KES-05
302360-12
cylinder head 152 x 102 x 51,5 (30236012)
1898.
2KES-05
313000-17
Disk built-in motor Ø30 x Ø10,5 x 6 (31300017)
1899.
2KES-05
301109-50
Eccentric shaft Ø55 x 245 (30110950)
1900.
2KES-05
320354-02
Eye bolt 51 x 30 x 4 (32035402)
1901.
2KES-05
372516-01
Gasket valve plate 152 x 102 x 0,7 (37251601)
1902.
2KES-05
372617-01
Gasket cylinder head Retall 152 x 102 x 0,38 (37261701)
1903.
2KES-05
372702-03
gasket suction shut-off valve 35 x 60 x 1 (37270203)
1904.
2KES-05
372938-01
Gasket Terminal plate 52 x 52 x 0,38 (37293801)
1905.
2KES-05
372718-01
Gasket Terminal plate Retall 32 x 48 x 0,38 (37271801)
1906.
2KES-05
372713-01
Gasket discharge shut-off valve 24 x 52 x 1 (37271301)
1907.
2KES-05
372937-02
gasket housing cover 202 x 202 x 0,38 (37293702)
1908.
2KES-05
382401-30
Gasket ring oil drain copper A8 x 14 x 2 (38240130)
1909.
2KES-05
372200-10
gasket ring sight glass teflon Ø31,9 x 1,6 x 1,8 (37220010)
1910.
2KES-05
372834-01
gasket set (37283401)
1911.
2KES-05
380056-04
hexagon head screw cylinder head DIN 931, 10.9 M10 x 65 (38005604)
1912.
2KES-05
380056-14
hexagon head screw cylinder head DIN 931, 10.9 M10 x 70 (38005614)
1913.
2KES-05
380169-01
Hexagon head screw built-in motor coated DIN 933, 10.9 M10 x 30 (38016901)
1914.
2KES-05
380155-54
hexagon head screw bearing cover DIN 933, 10.9 M8 x 25 (38015554)
1915.
2KES-05
380104-05
Hexagon head screw Terminal plate DIN 933, 8.8 M6 x 18 (38010405)
1916.
2KES-05
380153-02
Hexagon head screw oil splasher plate steel DIN 933, 10.9 M5 x 10 (38015302)
1917.
2KES-05
305227-02
housing cover Motor side 202 x 202 x 18 (30522702)
1918.
2KES-05
321105-02
oil splasher plate steel Ø156 x 33 (32110502)
1919.
2KES-05
380501-54
Oval head screw terminal box aluminium galvanized DIN 7985, 4.8 M6 x 16 (38050154)
1920.
2KES-05
384001-03
Parallel key built-in motor steel DIN 6885 A6 x 6 x 45 (38400103)
1921.
2KES-05
302233-88
Piston Ø30 (30223388)
1922.
2KES-05
347019-01
protection device SE-B1 230V-50/60Hz (34701901)
1923.
2KES-05
366201-16
Protective Cap Span of the jaw: 20 Plastic - GRP 3/4"-16 UNF / L=36 mm (36620116)
1924.
2KES-05
382231-22
Retaining ring with lugs wrist pin spring steel DIN 472 Ø10 x 1 (38223122)
1925.
2KES-05
361501-22
Schrader valve oil fill connection 1/4" - 18 NPTF (36150122)
1926.
2KES-05
315027-01
Screw for grounding Terminal plate M6 x 40 (31502701)
1927.
2KES-05
366100-01
Sealing Plug cylinder head brass 1/8" - 27 NPTF (36610001)
1928.
2KES-05
361315-11
shut-off valve Discharge side brazed connection Ø12 L (36131511)
1929.
2KES-05
361315-10
shut-off valve suction side brazed connection Ø16 L (36131510)
1930.
2KES-05
361815-01
Sight Glass steel / glass 1 1/8" - 18 UNEF (36181501)
1931.
2KES-05
382201-05
Single coil spring washer built-in motor spring steel DIN 127 A10 (38220105)
1932.
2KES-05
325900-05
spring washer wrist pin Ø19 x Ø10,5 x 0,15 (32590005)
1933.
2KES-05
362012-04
suction gas filter suction shut-off valve LA 42 (36201204)
1934.
2KES-05
343509-01
terminal box 202 x 95 x 57 (34350901)
1935.
2KES-05
345504-01
Terminal plate 48 x 32 x 39 (34550401)
1936.
2KES-05
345500-15
Terminal plate 6-Lead 52 x 52 x 39 (34550015)
1937.
2KES-05
343428-01
terminal plate kit (34342801)
1938.
2KES-05
382150-05
thrust washer spring steel Ø9 (38215005)
1939.
2KES-05
312103-01
Thrust washer Motor side Ø33 x Ø26,5 x 3 (31210301)
1940.
2KES-05
375079-01
Train plug (37507901)
1941.
2KES-05
304055-04
valve plate Ø30 (30405504)
1942.
2KES-05
370000-19
vibration damper set rubber (37000019)
1943.
2KES-05
383401-41
Wrist pin DIN 73126 Ø10 x Ø6 x 24 (38340141)
1944.
8FC-60.2
311100-18
bearing bush oil pump side Ø50 x Ø55 x 50 (31110018)
1945.
8FC-60.2
305107-21
bearing cover oil pump cannot be delivered separately (30510721)
1946.
8FC-60.2
305138-01
bearing cover (30513801)
1947.
8FC-60.2
320307-09
bottom plate steel 345 x 320 x 12 , Ø21 (32030709)
1948.
8FC-60.2
346550-46
built-in motor Standard voltages 44 kW, 4-pole 380..420V Y/YY-3-50Hz, 440..480V Y/YY-3-60Hz Ø260 x 240 (34655046)
1949.
8FC-60.2
380402-06
cheese head screw protection device brass M4 x 16 (38040206)
1950.
8FC-60.2
380306-82
Cheese Head Screw terminal box aluminium 10.9 galvanized DIN 912, 10.9 M10 x 16 (38030682)
1951.
8FC-60.2
380306-32
Cheese Head Screw DIN 912, 10.9 M10 x 30 (38030632)
1952.
8FC-60.2
367121-03
Clamping Plate suction shut-off valve 142 x 142 x 33 (36712103)
1953.
8FC-60.2
367121-02
Clamping Plate discharge shut-off valve 110 x 110 (36712102)
1954.
8FC-60.2
383021-16
clamping sleeve 10 * 29 (38302116)
1955.
8FC-60.2
382300-61
compression ring Piston diameter 81,96mm Ø82 x 1,5 (38230061)
1956.
8FC-60.2
382310-28
compression ring Piston diameter 81,96mm Ø82 x 1,5 (38231028)
1957.
8FC-60.2
302136-50
connecting rod (30213650)
1958.
8FC-60.2
302280-02
connecting rod / piston Standard piston marking, when stamped with another diameter, indicate this in addition to spare part no. Ø82 (30228002)
1959.
8FC-60.2
324942-01
cover terminal box aluminium steel 361 x 291 x 7 (32494201)
1960.
8FC-60.2
343213-12
Crankcase heater heating capacity: 140W 230V-1-50/60Hz (34321312)
1961.
8FC-60.2
301016-01
crankshaft Stroke 60mm (30101601)
1962.
8FC-60.2
380501-52
cross recessed raised screw Cross recessed raised 4.8 galvanized M6 x 12 (38050152)
1963.
8FC-60.2
302360-44
cylinder head air-cooled (30236044)
1964.
8FC-60.2
389002-01
electric connector of the machine / devic DIN 43650 Typ GDM 209 (38900201)
1965.
8FC-60.2
380902-02
eye bolt DIN 580 M12 (38090202)
1966.
8FC-60.2
324391-03
eye bolt steel 49 x 50 x 135 (32439103)
1967.
8FC-60.2
327309-01
foot 369 x 60 x 13 x Ø21 (32730901)
1968.
8FC-60.2
361110-01
gas equalising valve (36111001)
1969.
8FC-60.2
372944-01
gasket cylinder head Retall (37294401)
1970.
8FC-60.2
372518-03
gasket valve plate (37251803)
1971.
8FC-60.2
372301-03
gasket discharge shut-off valve Ø76 x Ø60 x 1 (37230103)
1972.
8FC-60.2
372303-02
Gasket Pipe connection Ø75 x Ø61 x 2 (37230302)
1973.
8FC-60.2
372421-03
gasket Terminal plate 222 x 140 x 1 (37242103)
1974.
8FC-60.2
372303-03
Gasket Pipe connection Ø105 x Ø85 x 2 (37230303)
1975.
8FC-60.2
372301-05
gasket suction shut-off valve Ø105 x Ø86 x 1 (37230105)
1976.
8FC-60.2
372927-05
gasket housing cover 335 x Ø316 x 1 (37292705)
1977.
8FC-60.2
372416-01
gasket bottom plate 295 x 250 x 1 (37241601)
1978.
8FC-60.2
372429-04
Gasket for terminal box 360 x 290 x 2 (37242904)
1979.
8FC-60.2
372927-06
gasket bearing cover Ø182 x Ø182 x 0,8 (37292706)
1980.
8FC-60.2
372126-01
gasket terminal box aluminium EPDM 222 x 140 x 3 (37212601)
1981.
8FC-60.2
382403-04
Gasket Ring oil drain aluminium DIN 7603 A26 x 31 x 2 (38240304)
1982.
8FC-60.2
382403-01
Gasket Ring oil pressure monitoring aluminium DIN 7603 A20 x 24 x 1,5 (38240301)
1983.
8FC-60.2
372839-02
gasket set (37283902)
1984.
8FC-60.2
345906-02
heater sleeve crankcase heater for 140W heater 43315 (34590602)
1985.
8FC-60.2
380154-06
hexagon head screw sight glass DIN 933, 10.9 M6 x 20 (38015406)
1986.
8FC-60.2
380056-20
hexagon head screw cylinder head DIN 931, 10.9 M10 x 90 (38005620)
1987.
8FC-60.2
380057-17
hexagon head screw housing cover DIN 931, 10.9 M12 x 200 (38005717)
1988.
8FC-60.2
380169-03
hexagon head screw DIN 933, 10.9 M10 x 22 (38016903)
1989.
8FC-60.2
380056-07
hexagon head screw cylinder head DIN 931, 10.9 M10 x 80 (38005607)
1990.
8FC-60.2
380109-09
Hexagon Head Screw clamping plat DIN 933, 8.8 M16 x 55 (38010909)
1991.
8FC-60.2
380156-06
hexagon head screw bottom plate coated DIN 933, 10.9 M10 x 30 (38015606)
1992.
8FC-60.2
380195-01
Hexagon Head Screw DIN 933, 8.8 M8 x 45 (38019501)
1993.
8FC-60.2
380009-60
hexagon head screw discharge shut-off valve 8.8 galvanized DIN 931, 8.8 M16 x 90 (38000960)
1994.
8FC-60.2
380009-54
Hexagon Head Screw suction shut-off valve galvanized DIN 931, 8.8 M16 x 140 (38000954)
1995.
8FC-60.2
380009-62
hexagon head screw suction shut-off valve 8.8 galvanized DIN 931, 8.8 M16 x 130 (38000962)
1996.
8FC-60.2
380111-01
Hexagon Head Screw suction shut-off valve DIN 933, 8.8 M18 x 70 (38011101)
1997.
8FC-60.2
380155-05
hexagon head screw oil pump DIN 933, 10.9 M8 x 20 (38015505)
1998.
8FC-60.2
380166-07
hexagon head screw rotor coated DIN 933, 10.9 M16 x 45 (38016607)
1999.
8FC-60.2
345122-02
hexagon nut terminal box aluminium plastic M20 x 1,5 (34512202)
2000.
8FC-60.2
345122-03
hexagon nut terminal box aluminium plastic M25 x 1,5 (34512203)
2001.
8FC-60.2
345122-04
hexagon nut terminal box aluminium plastic M63 x 1,5 (34512204)
2002.
8FC-60.2
381101-56
hexagon nut screw for grounding DIN 934 M10 (38110156)
2003.
8FC-60.2
345122-01
Hexagon Nut terminal box aluminium plastic M16 x 1,5 (34512201
2004.
8FC-60.2
380306-83
Hexsocket Cheese Head Screw Terminal plate DIN 912, 10.9 M10 x 25 (38030683)
2005.
8FC-60.2
300074-01
housing Ø82 (30007401)
2006.
8FC-60.2
305233-11
housing cover grey cast iron 345 x 316 x 194 (30523311)
2007.
8FC-60.2
375907-05
insulating foil terminal box aluminium Y/D (37590705)
2008.
8FC-60.2
375051-02
insulating plate 40 x 39,5 (37505102)
2009.
8FC-60.2
345950-03
metal plate for grounding screw for grounding aluminium M10 (34595003)
2010.
8FC-60.2
389007-01
notch-type cable lug 6 R/10, Ø10 x 35 MM2 (38900701)
2011.
8FC-60.2
372003-39
O-ring sight glass Ø33 x 2,5 (37200339)
2012.
8FC-60.2
372003-27
O-ring Ø10,82 x 1,78 (37200327)
2013.
8FC-60.2
372001-19
O-ring oil pump Ø74 x 2 (37200119)
2014.
8FC-60.2
362003-01
oil filter Ø20 x 200 (36200301)
2015.
8FC-60.2
361101-01
oil pressure relief valve SW17 x 29 (36110101)
2016.
8FC-60.2
362503-02
oil pump (36250302)
2017.
8FC-60.2
360117-01
oil return system (36011701)
2018.
8FC-60.2
384007-02
parallel key Stator steel A5,3 x 4,63 x 100 (38400702)
2019.
8FC-60.2
384007-03
parallel key built-in motor steel A9,56 x 9,15 x 140 (38400703)
2020.
8FC-60.2
327000-01
parallel pin valve plate 6H 11 x 20 (32700001)
2021.
8FC-60.2
365321-03
Pipe Connection discharge shut-off valve brazed and welding bush steel Ø54 (2 1/8") (36532103)
2022.
8FC-60.2
365321-05
Pipe Connection suction side Brazed and welding bush steel Ø76 (3 1/8") DN 80 (36532105)
2023.
8FC-60.2
302296-16
piston Standard piston marking, when stamped with another diameter, indicate this in addition to spare part no. Ø82 (30229616)
2024.
8FC-60.2
361100-29
pressure relief valve (36110029)
2025.
8FC-60.2
325000-34
pressure spring steel Ø23,5 x 28 x 1,8 (32500034)
2026.
8FC-60.2
347028-01
protection device SE-B2 230V-50/60Hz (34702801)
2027.
8FC-60.2
375014-05
Protective Cap discharge shut-off valve Span of the jaw: 36 Plastic - GRP M36 x 1,5 / L=67 mm (37501405)
2028.
8FC-60.2
347023-03
PTC-sensor 140° C (34702303)
2029.
8FC-60.2
382231-04
retaining ring with lugs spring steel DIN 472 Ø20 x 1 (38223104)
2030.
8FC-60.2
382141-01
retaining ring with lugs spring steel DIN 6796 - FSt A 8 (38214101)
2031.
8FC-60.2
361500-22
Schrader valve oil pressure connection (36150022)
2032.
8FC-60.2
366100-01
Sealing Plug oil fill connection bras 1/8" - 27 NPTF (36610001)
2033.
8FC-60.2
345126-04
Sealing Plug terminal box aluminium plastic M63 x 1,5 (34512604)
2034.
8FC-60.2
366104-22
sealing plug valve plate brass 3/4" - 14 NPTF (36610422)
2035.
8FC-60.2
366110-02
Sealing Plug steel 1/4" - 18 NPTF (36611002)
2036.
8FC-60.2
366103-21
sealing plug oil equalisation brass 1/2" - 14 NPTF (36610321)
2037.
8FC-60.2
345126-01
Sealing Plug terminal box aluminium plastic M16 x 1,5 (34512601)
2038.
8FC-60.2
366110-08
Sealing Plug discharge shut-off valve steel 1/4" - 18NPTF (36611008)
2039.
8FC-60.2
366104-21
sealing plug gas equalisation brass 3/4" - 14NPTF (36610421)
2040.
8FC-60.2
345126-02
Sealing Plug terminal box aluminium plastic M20 x 1,5 (34512602)
2041.
8FC-60.2
345126-03
Sealing Plug terminal box aluminium plastic M25 x 1,5 (34512603)
2042.
8FC-60.2
366123-01
sealing screw oil pressure monitoring M20 x 1,5 (36612301)
2043.
8FC-60.2
366112-01
sealing screw conic DIN 906 M8 x 1 (36611201)
2044.
8FC-60.2
366114-24
sealing screw with magnet oil drain inclusive O-Ring gasket M26 (36611424)
2045.
8FC-60.2
380354-09
set screw DIN 916 M10 x 20 (38035409)
2046.
8FC-60.2
374026-01
shaft seal Motor side (37402601)
2047.
8FC-60.2
361338-04
Shut-Off Valve Discharge side Ø54 (2 1/8") (36133804)
2048.
8FC-60.2
361339-14
shut-off valve suction side (36133914)
2049.
8FC-60.2
361802-03
sight glass Ø60 x 7 (36180203)
2050.
8FC-60.2
382201-55
Single Coil Spring Washer terminal box aluminium spring steel galvanized DIN 127 A6, 4 (38220155)
2051.
8FC-60.2
382062-01
single coil spring washer eye bolt steel galvanized DIN 127 18 x 30 x 8 (38206201)
2052.
8FC-60.2
311012-09
spacer sleeve screw for grounding Ø20 x Ø11 x 12 (31101209)
2053.
8FC-60.2
362004-03
suction gas filter Ø267,5 x 74,5 (36200403)
2054.
8FC-60.2
324500-46
terminal box 360 x 290 x 90 (32450046)
2055.
8FC-60.2
345500-10
terminal plate 220 x 140 x 50 (34550010)
2056.
8FC-60.2
345902-01
terminal strip terminal box aluminium 12-polig (34590201)
2057.
8FC-60.2
380912-01
threaded bolt grounding 6-Lead DIN 976 M10 x 80 (38091201)
2058.
8FC-60.2
382150-04
thrust washer rotor spring steel S16 (38215004)
2059.
8FC-60.2
320502-05
thrust washer steel Ø61 x 5 (32050205)
2060.
8FC-60.2
320500-09
thrust washer oil pump side Ø65 x Ø53 x 1, (32050009)
2061.
8FC-60.2
370002-06
vibration damper set Motor side black (75 Shore) rubber (37000206)
2062.
8FC-60.2
370002-02
vibration damper set Crankcase side red (60 Shore) rubber (37000202)
2063.
8FC-60.2
382041-54
washer screw for grounding steel galvanized DIN 433 A6, 4 (38204154)
2064.
8FC-60.2
382002-01
washer start unloading brass DIN 125 A4, 3 (38200201)
2065.
8FC-60.2
383401-46
wrist pin connecting rod / piston DIN 73126 Ø20 x 13 x 70 (38340146)
2066.
8FC-70.2
311100-18
bearing bush oil pump side Ø50 x Ø55 x 50 (31110018)
2067.
8FC-70.2
305107-21
bearing cover oil pump cannot be delivered separately (30510721)
2068.
8FC-70.2
305138-01
bearing cover (30513801)
2069.
8FC-70.2
320307-09
bottom plate steel 345 x 320 x 12 , Ø21 (32030709)
2070.
8FC-70.2
346562-46
built-in motor Standard voltages 51 kW, 4-pole 380..420V Y/YY-3-50Hz, 440..480V Y/YY-3-60Hz Ø260 x 280 (34656246)
2071.
8FC-70.2
380402-06
cheese head screw protection device brass M4 x 16 (38040206)
2072.
8FC-70.2
380306-82
Cheese Head Screw terminal box aluminium 10.9 galvanized DIN 912, 10.9 M10 x 16 (38030682)
2073.
8FC-70.2
380306-32
Cheese Head Screw DIN 912, 10.9 M10 x 30 (38030632)
2074.
8FC-70.2
367121-03
Clamping Plate suction shut-off valve 142 x 142 x 33 (36712103)
2075.
8FC-70.2
367121-02
Clamping Plate discharge shut-off valve 110 x 110 (36712102)
2076.
8FC-70.2
383021-16
clamping sleeve 10 * 29 (38302116)
2077.
8FC-70.2
382300-61
compression ring Piston diameter 81,96mm Ø82 x 1,5 (38230061)
2078.
8FC-70.2
382310-28
compression ring Piston diameter 81,96mm Ø82 x 1,5 (38231028)
2079.
8FC-70.2
302136-50
connecting rod (30213650
2080.
8FC-70.2
302280-02
connecting rod / piston Standard piston marking, when stamped with another diameter, indicate this in addition to spare part no Ø82 (30228002)
2081.
8FC-70.2
324942-01
cover terminal box aluminium steel 361 x 291 x 7 (32494201)
2082.
8FC-70.2
343213-12
Crankcase heate heating capacity: 140W 230V-1-50/60Hz (34321312)
2083.
8FC-70.2
301016-01
crankshaft Stroke 60mm (30101601)
2084.
8FC-70.2
380501-52
cross recessed raised screw Cross recessed raised 4.8 galvanized M6 x 12 (38050152)
2085.
8FC-70.2
302360-44
cylinder head air-cooled (30236044)
2086.
8FC-70.2
389002-01
electric connector of the machine / device DIN 43650 Typ GDM 209 (38900201)
2087.
8FC-70.2
380902-02
eye bolt DIN 580 M12 (38090202)
2088.
8FC-70.2
324391-03
eye bolt steel 49 x 50 x 135 (32439103)
2089.
8FC-70.2
327309-01
foot 369 x 60 x 13 x Ø21 (32730901)
2090.
8FC-70.2
361110-01
gas equalising valve (36111001)
2091.
8FC-70.2
372944-01
gasket cylinder head Retall (37294401)
2092.
8FC-70.2
372518-03
gasket valve plate (37251803)
2093.
8FC-70.2
372301-03
gasket discharge shut-off valve Ø76 x Ø60 x 1 (37230103)
2094.
8FC-70.2
372303-02
Gasket Pipe connection Ø75 x Ø61 x 2 (37230302)
2095.
8FC-70.2
372421-03
gasket Terminal plate 222 x 140 x 1 (37242103)
2096.
8FC-70.2
372303-03
Gasket Pipe connection Ø105 x Ø85 x 2 (37230303)
2097.
8FC-70.2
372301-05
gasket suction shut-off valve Ø105 x Ø86 x 1 (37230105)
2098.
8FC-70.2
372927-05
gasket housing cover 335 x Ø316 x 1 (37292705)
2099.
8FC-70.2
372416-01
gasket bottom plate 295 x 250 x 1 (37241601)
2100.
8FC-70.2
372429-04
Gasket for terminal box 360 x 290 x 2 (37242904)
2101.
8FC-70.2
372927-06
gasket bearing cover Ø182 x Ø182 x 0,8 (37292706)
2102.
8FC-70.2
372126-01
gasket terminal box aluminium EPDM 222 x 140 x (37212601)
2103.
8FC-70.2
382403-04
Gasket Ring oil drain aluminium DIN 7603 A26 x 31 x 2 (38240304)
2104.
8FC-70.2
382403-01
Gasket Ring oil pressure monitoring aluminium DIN 7603 A20 x 24 x 1,5 (38240301)
2105.
8FC-70.2
372839-02
gasket set (37283902)
2106.
8FC-70.2
345906-02
heater sleeve crankcase heater for 140W heater 43315 (34590602)
2107.
8FC-70.2
380154-06
hexagon head screw sight glass DIN 933, 10.9 M6 x 20 (38015406)
2108.
8FC-70.2
380056-20
hexagon head screw cylinder head DIN 931, 10.9 M10 x 90 (38005620)
2109.
8FC-70.2
380057-17
hexagon head screw housing cover DIN 931, 10.9 M12 x 200 (38005717)
2110.
8FC-70.2
380169-03
hexagon head screw DIN 933, 10.9 M10 x 22 (38016903)
2111.
8FC-70.2
380056-07
hexagon head screw cylinder head DIN 931, 10.9 M10 x 80 (38005607)
2112.
8FC-70.2
380109-09
Hexagon Head Screw clamping plate DIN 933, 8.8 M16 x 55 (38010909)
2113.
8FC-70.2
380156-06
hexagon head screw bottom plate coated DIN 933, 10.9 M10 x 30 (38015606)
2114.
8FC-70.2
380195-01
Hexagon Head Screw DIN 933, 8.8 M8 x 45 (38019501)
2115.
8FC-70.2
380009-60
hexagon head screw discharge shut-off valve 8.8 galvanized DIN 931, 8.8 M16 x 90 (38000960)
2116.
8FC-70.2
380009-54
Hexagon Head Screw suction shut-off valve galvanized DIN 931, 8.8 M16 x 140 (38000954)
2117.
8FC-70.2
380009-62
hexagon head screw suction shut-off valve 8.8 galvanized DIN 931, 8.8 M16 x 130 (38000962)
2118.
8FC-70.2
380111-01
Hexagon Head Screw suction shut-off valve DIN 933, 8.8 M18 x 70 (38011101)
2119.
8FC-70.2
380155-05
hexagon head screw oil pump DIN 933, 10.9 M8 x 20 (38015505)
2120.
8FC-70.2
380166-07
hexagon head screw rotor coated DIN 933, 10.9 M16 x 45 (38016607)
2121.
8FC-70.2
345122-02
hexagon nut terminal box aluminium plastic M20 x 1,5 (34512202)
2122.
8FC-70.2
345122-03
hexagon nut terminal box aluminium plastic M25 x 1,5 (34512203)
2123.
8FC-70.2
345122-04
hexagon nut terminal box aluminium plastic M63 x 1,5 (34512204)
2124.
8FC-70.2
381101-56
hexagon nut screw for grounding DIN 934 M10 (38110156)
2125.
8FC-70.2
345122-01
Hexagon Nut terminal box aluminium plastic M16 x 1,5 (34512201)
2126.
8FC-70.2
380306-83
Hexsocket Cheese Head Screw Terminal plate DIN 912, 10.9 M10 x 25 (38030683)
2127.
8FC-70.2
300074-01
housing Ø82 (30007401)
2128.
8FC-70.2
305233-11
housing cover grey cast iron 345 x 316 x 194 (30523311)
2129.
8FC-70.2
375907-05
insulating foil terminal box aluminium Y/D (37590705)
2130.
8FC-70.2
375051-02
insulating plate 40 x 39,5 (37505102)
2131.
8FC-70.2
345950-03
metal plate for grounding screw for grounding aluminium M10 (34595003)
2132.
8FC-70.2
389007-01
notch-type cable lug 6 R/10, Ø10 x 35 MM2 (38900701)
2133.
8FC-70.2
372003-39
O-ring sight glass Ø33 x 2,5 (37200339)
2134.
8FC-70.2
372003-27
O-ring Ø10,82 x 1,78 (37200327)
2135.
8FC-70.2
372001-19
O-ring oil pump Ø74 x 2 (37200119)
2136.
8FC-70.2
362003-01
oil filter Ø20 x 200 (36200301)
2137.
8FC-70.2
361101-01
oil pressure relief valve SW17 x 29 (36110101)
2138.
8FC-70.2
362503-02
oil pump (36250302)
2139.
8FC-70.2
360117-01
oil return syste (36011701)
2140.
8FC-70.2
384007-02
parallel key Stato steel A5,3 x 4,63 x 100 (38400702)
2141.
8FC-70.2
384007-03
parallel key built-in motor steel A9,56 x 9,15 x 140 (38400703)
2142.
8FC-70.2
327000-01
parallel pin valve plate 6H 11 x 20 (32700001)
2143.
8FC-70.2
365321-03
Pipe Connection discharge shut-off valve brazed and welding bush steel Ø54 (2 1/8") (36532103)
2144.
8FC-70.2
365321-05
Pipe Connection suction side Brazed and welding bush steel Ø76 (3 1/8") DN 80 (36532105)
2145.
8FC-70.2
302296-16
piston Standard piston marking, when stamped with another diameter, indicate this in addition to spare part no. Ø82 (30229616)
2146.
8FC-70.2
361100-29
pressure relief valve (36110029)
2147.
8FC-70.2
325000-34
pressure spring steel Ø23,5 x 28 x 1,8 (32500034)
2148.
8FC-70.2
347028-01
protection device SE-B2 230V-50/60Hz (34702801)
2149.
8FC-70.2
375014-05
Protective Cap discharge shut-off valve Span of the jaw: 36 Plastic - GRP M36 x 1,5 / L=67 mm (37501405)
2150.
8FC-70.2
347023-03
PTC-sensor 140° C (34702303)
2151.
8FC-70.2
382231-04
retaining ring with lugs spring steel DIN 472 Ø20 x 1 (38223104)
2152.
8FC-70.2
382141-01
retaining ring with lugs spring steel DIN 6796 - FSt A 8 (38214101)
2153.
8FC-70.2
361500-22
Schrader valve oil pressure connection (36150022)
2154.
8FC-70.2
366100-01
Sealing Plug oil fill connection brass 1/8" - 27 NPTF (36610001)
2155.
8FC-70.2
345126-04
Sealing Plug terminal box aluminium plastic M63 x 1,5 (34512604)
2156.
8FC-70.2
366104-22
sealing plug valve plate brass 3/4" - 14 NPTF (36610422)
2157.
8FC-70.2
366110-02
Sealing Plug steel 1/4" - 18 NPTF (36611002)
2158.
8FC-70.2
366103-21
sealing plug oil equalisation brass 1/2" - 14 NPTF (36610321)
2159.
8FC-70.2
345126-01
Sealing Plug terminal box aluminium plastic M16 x 1,5 (34512601)
2160.
8FC-70.2
366110-08
Sealing Plug discharge shut-off valve steel 1/4" - 18NPTF (36611008)
2161.
8FC-70.2
366104-21
sealing plug gas equalisation brass 3/4" - 14NPTF (36610421)
2162.
8FC-70.2
345126-02
Sealing Plug terminal box aluminium plastic M20 x 1,5 (34512602)
2163.
8FC-70.2
345126-03
Sealing Plug terminal box aluminium plastic M25 x 1,5 (34512603)
2164.
8FC-70.2
366123-01
sealing screw oil pressure monitoring M20 x 1,5 (36612301)
2165.
8FC-70.2
366112-01
sealing screw conic DIN 906 M8 x 1 (36611201)
2166.
8FC-70.2
366114-24
sealing screw with magnet oil drain inclusive O-Ring gasket M26 (36611424)
2167.
8FC-70.2
380354-09
set screw DIN 916 M10 x 20 (38035409)
2168.
8FC-70.2
374026-01
shaft seal Motor side (37402601)
2169.
8FC-70.2
361338-04
Shut-Off Valve Discharge side Ø54 (2 1/8") (36133804)
2170.
8FC-70.2
361339-14
shut-off valve suction side (36133914)
2171.
8FC-70.2
361802-03
sight glass Ø60 x 7 (36180203)
2172.
8FC-70.2
382201-55
Single Coil Spring Washer terminal box aluminium spring steel galvanized DIN 127 A6, 4 (38220155)
2173.
8FC-70.2
382062-01
single coil spring washer eyebolt steel galvanized DIN 127 18 x 30 x 8 (38206201)
2174.
8FC-70.2
311012-09
spacer sleeve screw for grounding Ø20 x Ø11 x 12 (31101209)
2175.
8FC-70.2
362004-03
suction gas filter Ø267,5 x 74,5 (36200403)
2176.
8FC-70.2
324500-46
terminal box 360 x 290 x 90 (32450046)
2177.
8FC-70.2
345500-10
terminal plate 220 x 140 x 50 (34550010)
2178.
8FC-70.2
345902-01
terminal strip terminal box aluminium 12-polig (34590201)
2179.
8FC-70.2
380912-01
threaded bolt grounding 6-Lead DIN 976 M10 x 80 (38091201)
2180.
8FC-70.2
382150-04
thrust washer rotor spring steel S16 (38215004)
2181.
8FC-70.2
320502-05
thrust washer steel Ø61 x 5 (32050205)
2182.
8FC-70.2
320500-09
thrust washer oil pump side Ø65 x Ø53 x 1,9 (32050009)
2183.
8FC-70.2
370002-06
vibration damper set Motor side black (75 Shore) rubber (37000206)
2184.
8FC-70.2
370002-02
vibration damper set Crankcase side red (60 Shore) rubber (37000202)
2185.
8FC-70.2
382041-54
washer screw for grounding steel galvanized DIN 433 A6, 4 (38204154)
2186.
8FC-70.2
382002-01
washer start unloading brass DIN 125 A4, 3 (38200201)
2187.
8FC-70.2
383401-46
wrist pin connecting rod / piston DIN 73126 Ø20 x 13 x 70 (38340146)
2188.
8FE-70
311100-18
bearing bush Crankcase side Ø50 x Ø55 x 50 (31110018)
2189.
8FE-70
305138-01
bearing cover (30513801)
2190.
8FE-70
320307-09
bottom plate steel 345 x 320 x 12 , Ø21 (32030709)
2191.
8FE-70
346562-46
built-in motor Standard voltages 51 kW, 4-pole 380..420V Y/YY-3-50Hz, 440..480V Y/YY-3-60Hz Ø260 x 280 (34656246)
2192.
8FE-70
380402-06
cheese head screw protection device brass M4 x 16 (38040206)
2193.
8FE-70
380306-32
Cheese Head Screw DIN 912, 10.9 M10 x 30 (38030632)
2194.
8FE-70
380306-82
Cheese Head Screw terminal box aluminium 10.9 galvanized DIN 912, 10.9 M10 x 16 (38030682)
2195.
8FE-70
367121-02
Clamping Plate discharge shut-off valve 110 x 110 (36712102)
2196.
8FE-70
367121-14
clamping plate suction shut-off valve 141 x 141 x 23 (36712114)
2197.
8FE-70
382300-61
compression ring Piston diameter 81,96mm Ø82 x 1,5 (38230061)
2198.
8FE-70
382310-28
compression ring Piston diameter 81,96mm Ø82 x 1,5 (38231028)
2199.
8FE-70
302280-02
connecting rod / piston complete Standard piston marking, when stamped with another diameter, indicate this in addition to spare part no. Ø82 (30228002)
2200.
8FE-70
324942-01
cover terminal box aluminium steel 361 x 291 x 7 (32494201)
2201.
8FE-70
343213-12
Crankcase heater heating capacity: 140W 230V-1-50/60Hz (34321312)
2202.
8FE-70
301016-01
crankshaft Stroke 60mm (30101601)
2203.
8FE-70
380501-52
cross recessed raised screw Cross recessed raised 4.8 galvanized M6 x 12 (38050152)
2204.
8FE-70
302360-44
cylinder head air-cooled (30236044)
2205.
8FE-70
389002-01
electric connector of the machine / device DIN 43650 Typ GDM 209 (38900201)
2206.
8FE-70
380902-02
eye bolt DIN 580 M12 (38090202)
2207.
8FE-70
324391-03
eyebolt steel 49 x 50 x 135 (32439103)
2208.
8FE-70
327309-01
foot 369 x 60 x 13 x Ø21 (32730901)
2209.
8FE-70
372301-05
gasket suction shut-off valve Ø105 x Ø86 x 1 (37230105)
2210.
8FE-70
372303-02
Gasket Pipe connection Ø75 x Ø61 x 2 (37230302)
2211.
8FE-70
372421-03
gasket Terminal plate 222 x 140 x 1 (37242103)
2212.
8FE-70
372301-03
gasket discharge shut-off valve Ø76 x Ø60 x 1 (37230103)
2213.
8FE-70
372303-03
Gasket Pipe connection Ø105 x Ø85 x 2 (37230303)
2214.
8FE-70
372518-03
gasket valve plate (37251803)
2215.
8FE-70
372944-01
gasket cylinder head Retall (37294401)
2216.
8FE-70
372416-01
gasket bottom plate 295 x 250 x 1 (37241601)
2217.
8FE-70
372927-05
gasket housing cover 335 x Ø316 x 1 (37292705)
2218.
8FE-70
372927-06
gasket bearing cover Ø182 x Ø182 x 0,8 (37292706)
2219.
8FE-70
372126-01
gasket terminal box aluminium EPDM 222 x 140 x 3 (37212601)
2220.
8FE-70
372429-04
Gasket for terminal box 360 x 290 x 2 (37242904)
2221.
8FE-70
382403-04
Gasket Ring oil drain aluminium DIN 7603 A26 x 31 x 2 (38240304)
2222.
8FE-70
382403-01
Gasket Ring oil pressure monitoring aluminium DIN 7603 A20 x 24 x 1,5 (38240301)
2223.
8FE-70
372839-02
gasket set (37283902)
2224.
8FE-70
345906-02
heater sleeve crankcase heater for 140W heater 43315 (34590602)
2225.
8FE-70
380056-20
hexagon head screw cylinder head DIN 931, 10.9 M10 x 90 (38005620)
2226.
8FE-70
380009-60
hexagon head screw discharge shut-off valve 8.8 galvanized DIN 931, 8.8 M16 x 90 (38000960)
2227.
8FE-70
380166-07
hexagon head screw rotor coated DIN 933, 10.9 M16 x 45 (38016607)
2228.
8FE-70
380109-09
Hexagon Head Screw clamping plate DIN 933, 8.8 M16 x 55 (38010909)
2229.
8FE-70
380056-07
hexagon head screw cylinder head DIN 931, 10.9 M10 x 80 (38005607)
2230.
8FE-70
380155-05
hexagon head screw oil pump DIN 933, 10.9 M8 x 20 (38015505)
2231.
8FE-70
380009-54
Hexagon Head Screw suction shut-off valve galvanized DIN 931, 8.8 M16 x 140 (38000954)
2232.
8FE-70
380009-62
hexagon head screw suction shut-off valve 8.8 galvanized DIN 931, 8.8 M16 x 130 (38000962)
2233.
8FE-70
380109-55
hexagon head screw suction shut-off valve galvanized DIN 933, 8.8 M16 x 60 (38010955)
2234.
8FE-70
380169-03
hexagon head screw DIN 933, 10.9 M10 x 22 (38016903)
2235.
8FE-70
380156-06
hexagon head screw bottom plate coated DIN 933, 10.9 M10 x 30 (38015606)
2236.
8FE-70
380154-06
hexagon head screw sight glas DIN 933, 10.9 M6 x 20 (38015406)
2237.
8FE-70
380057-17
hexagon head screw housing cover DIN 931, 10.9 M12 x 200 (38005717)
2238.
8FE-70
381101-56
hexagon nut screw for grounding DIN 934 M10 (38110156)
2239.
8FE-70
345122-02
hexagon nut terminal box aluminium plastic M20 x 1,5 (34512202)
2240.
8FE-70
345122-01
Hexagon Nut terminal box aluminium plastic M16 x 1,5 (34512201)
2241.
8FE-70
345122-03
hexagon nut terminal box aluminium plastic M25 x 1,5 (34512203)
2242.
8FE-70
345122-04
hexagon nut terminal box aluminium plastic M63 x 1,5 (34512204)
2243.
8FE-70
380306-83
Hexsocket Cheese Head Screw Terminal plate DIN 912, 10.9 M10 x 25 (38030683)
2244.
8FE-70
300074-01
housing Ø82 (30007401)
2245.
8FE-70
305233-11
housing cover grey cast iron 345 x 316 x 194 (30523311)
2246.
8FE-70
375907-05
insulating foil terminal box aluminium Y/D (37590705)
2247.
8FE-70
375051-02
insulating plate 40 x 39,5 (37505102)
2248.
8FE-70
345950-03
metal plate for grounding screw for grounding aluminium M10 (34595003)
2249.
8FE-70
389007-01
notch-type cable lug 6 R/10, Ø10 x 35 MM2 (38900701)
2250.
8FE-70
372003-27
O-ring Ø10,82 x 1,78 (37200327)
2251.
8FE-70
372003-39
O-ring sight glass Ø33 x 2,5 (37200339)
2252.
8FE-70
372001-19
O-ring oil pump Ø74 x 2 (37200119)
2253.
8FE-70
362003-01
oil filter Ø20 x 200 (36200301)
2254.
8FE-70
361101-01
oil pressure relief valve SW17 x 29 (36110101)
2255.
8FE-70
384007-03
parallel key built-in motor steel A9,56 x 9,15 x 140 (38400703)
2256.
8FE-70
384007-02
parallel key Stator steel A5,3 x 4,63 x 100 (38400702)
2257.
8FE-70
327000-01
parallel pin valve plate 6H 11 x 20 (32700001)
2258.
8FE-70
365321-05
Pipe Connection suction side Brazed and welding bush steel Ø76 (3 1/8") DN 80 (36532105)
2259.
8FE-70
365321-03
Pipe Connection discharge shut-off valve brazed and welding bush steel Ø54 (2 1/8") (36532103)
2260.
8FE-70
302296-16
piston Standard piston marking, when stamped with another diameter, indicate this in addition to spare part no. Ø82 (30229616)
2261.
8FE-70
325000-34
pressure spring steel Ø23,5 x 28 x 1,8 (32500034)
2262.
8FE-70
347028-01
protection device SE-B2 230V-50/60Hz (34702801)
2263.
8FE-70
375014-19
Protective Cap suction shut-off valve Plastic - GRP (37501419)
2264.
8FE-70
375014-05
Protective Cap discharge shut-off valve Span of the jaw: 36 Plastic - GRP M36 x 1,5 / L=67 mm (37501405)
2265.
8FE-70
347023-03
PTC-sensor 140° C (34702303)
2266.
8FE-70
382231-04
retaining ring with lugs spring steel DIN 472 Ø20 x 1 (38223104)
2267.
8FE-70
361500-22
Schrader valve oil pressure connection (36150022)
2268.
8FE-70
366110-02
Sealing Plug steel 1/4" - 18 NPTF (36611002)
2269.
8FE-70
345126-02
Sealing Plug terminal box aluminium plastic M20 x 1,5 (34512602)
2270.
8FE-70
366104-21
sealing plug gas equalisation brass 3/4" - 14NPTF (36610421)
2271.
8FE-70
345126-01
Sealing Plug terminal box aluminium plastic M16 x 1,5 (34512601)
2272.
8FE-70
366100-01
Sealing Plug brass 1/8" - 27 NPTF (36610001)
2273.
8FE-70
366103-21
sealing plug oil equalisation brass 1/2" - 14 NPTF (36610321)
2274.
8FE-70
345126-04
Sealing Plug terminal box aluminium plastic M63 x 1,5 (34512604)
2275.
8FE-70
366104-22
sealing plug valve plate brass 3/4" - 14 NPTF (36610422)
2276.
8FE-70
366110-08
Sealing Plug discharge shut-off valve steel 1/4" - 18NPTF (36611008)
2277.
8FE-70
345126-03
Sealing Plug terminal box aluminium plastic M25 x 1,5 (34512603)
2278.
8FE-70
366112-01
sealing screw conic DIN 906 M8 x 1 (36611201)
2279.
8FE-70
366123-01
sealing screw oil pressure monitoring M20 x 1,5 (36612301)
2280.
8FE-70
366114-24
sealing screw with magnet oil drain inclusive O-Ring gasket M26 (36611424)
2281.
8FE-70
380354-09
set screw DIN 916 M10 x 20 (38035409)
2282.
8FE-70
374026-01
shaft seal Motor side (37402601)
2283.
8FE-70
361338-04
Shut-Off Valve Discharge side Ø54 (2 1/8") (36133804)
2284.
8FE-70
361339-38
shut-off valve suction side (36133938)
2285.
8FE-70
361802-03
sight glass Ø60 x 7 (36180203)
2286.
8FE-70
382201-55
Single Coil Spring Washer terminal box aluminium spring steel galvanized DIN 127 A6, 4 (38220155)
2287.
8FE-70
382062-01
single coil spring washer eye bolt steel galvanized DIN 127 18 x 30 x 8 (38206201)
2288.
8FE-70
311012-09
spacer sleeve screw for grounding Ø20 x Ø11 x 12 (31101209)
2289.
8FE-70
362004-03
suction gas filter Ø267,5 x 74,5 (36200403)
2290.
8FE-70
324500-46
terminal box 360 x 290 x 90 (32450046)
2291.
8FE-70
345500-10
terminal plate 220 x 140 x 50 (34550010)
2292.
8FE-70
345902-01
terminal strip terminal box aluminium 12-polig (34590201)
2293.
8FE-70
380912-01
threaded bolt grounding 6-Lead DIN 976 M10 x 80 (38091201)
2294.
8FE-70
320500-09
thrust washer Motor side Ø65 x Ø53 x 1,9 (32050009)
2295.
8FE-70
320502-05
thrust washer steel Ø61 x 5 (32050205)
2296.
8FE-70
382150-04
thrust washer rotor spring steel S16 (38215004)
2297.
8FE-70
370002-02
vibration damper set Crankcase side red (60 Shore) rubber (37000202)
2298.
8FE-70
370002-06
vibration damper set Motor side black (75 Shore) rubber (37000206)
2299.
8FE-70
382041-54
washer screw for grounding steel galvanized DIN 433 A6, 4 (38204154)
2300.
8FE-70
382002-01
washer start unloading brass DIN 125 A4, 3 (38200201)
2301.
8FE-70
383401-46
wrist pin connecting rod / piston DIN 73126 Ø20 x 13 x 70 (38340146)
2302.
80GC-60.2
311100-18
bearing bush oil pump side Ø50 x Ø55 x 50 (31110018)
2303.
80GC-60.2
305107-21
bearing cover oil pump cannot be delivered separately (30510721)
2304.
80GC-60.2
320307-09
bottom plate steel 345 x 320 x 12 , Ø21 (32030709)
2305.
80GC-60.2
346550-46
built-in motor Standard voltages 44 kW, 4-pole 380..420V Y/YY-3-50Hz, 440..480V Y/YY-3-60Hz Ø260 x 240 (34655046)
2306.
80GC-60.2
380402-06
cheese head screw protection device brass M4 x 16 (38040206)
2307.
80GC-60.2
380306-82
Cheese Head Screw terminal box aluminium 10.9 galvanized DIN 912, 10.9 M10 x 16 (38030682)
2308.
80GC-60.2
380302-05
Cheese Head Screw clamping plate DIN 912, 10.9 M12 x 50 (38030205)
2309.
80GC-60.2
380306-32
Cheese Head Scre DIN 912, 10.9 M10 x 30 (38030632)
2310.
80GC-60.2
367121-03
Clamping Platesuction shut-off valve 142 x 142 x 33 (36712103)
2311.
80GC-60.2
367121-01
clamping plate discharge shut-off valve 80 x 80 (3671201)
2312.
80GC-60.2
383021-16
clamping sleeve 10 * 29 (38302116)
2313.
80GC-60.2
382310-25
compression ring Piston diameter 74,96mm Ø75 x 1,5 (38231025)
2314.
80GC-60.2
382300-58
compression ring Piston diameter 74,96mm Ø75 x 1,5 (38230058)
2315.
80GC-60.2
302280-01
connecting rod / piston Standard piston marking, when stamped with another diameter, indicate this in addition to spare part no. Ø75 (30228001)
2316.
80GC-60.2
324942-01
cover terminal box aluminium steel 361 x 291 x 7 (32494201)
2317.
80GC-60.2
343213-12
Crankcase heater heating capacity: 140W 230V-1-50/60Hz (34321312)
2318.
80GC-60.2
301016-01
crankshaft Stroke 60mm (30101601)
2319.
80GC-60.2
380501-52
cross recessed raised screw Cross recessed raised 4.8 galvanized M6 x 12 (38050152)
2320.
80GC-60.2
302360-44
cylinder head air-cooled (30236044)
2321.
80GC-60.2
389002-01
electric connector of the machine / device DIN 43650 Typ GDM 209 (38900201)
2322.
80GC-60.2
380902-02
eye bolt DIN 580 M12 (38090202)
2323.
80GC-60.2
324391-03
eye bolt steel 49 x 50 x 135 (32439103)
2324.
80GC-60.2
327309-01
foot 369 x 60 x 13 x Ø21 (32730901)
2325.
80GC-60.2
372301-05
gasket suction shut-off valve Ø105 x Ø86 x 1 (37230105)
2326.
80GC-60.2
372944-01
gasket cylinder head Retal (37294401)
2327.
80GC-60.2
372303-03
Gasket Pipe connection Ø105 x Ø85 x 2 (37230303)
2328.
80GC-60.2
372303-01
gasket Pipe connection Ø52 x Ø37 x 2 (37230301)
2329.
80GC-60.2
372301-02
gasket discharge shut-off valve
2330.
80GC-60.2
372518-05
gasket valve plate Ø75, 248 x 135 x 1 (37251805)
2331.
80GC-60.2
372416-01
gasket bottom plate 295 x 250 x 1 (37241601)
2332.
80GC-60.2
372927-05
gasket housing cover 335 x Ø316 x 1 (37292705)
2333.
80GC-60.2
372421-03
gasket Terminal plate 222 x 140 x 1 (37242103)
2334.
80GC-60.2
372429-04
Gasket for terminal box 360 x 290 x 2 (37242904)
2335.
80GC-60.2
372927-06
gasket bearing cover Ø182 x Ø182 x 0,8 (37292706)
2336.
80GC-60.2
372126-01
gasket terminal box aluminium
2337.
80GC-60.2
382403-04
Gasket Ring oil drain aluminium DIN 7603 A26 x 31 x 2 (38240304)
2338.
80GC-60.2
382403-01
Gasket Ring oil pressure monitoring aluminium DIN 7603 A20 x 24 x 1,5 (38240301)
2339.
80GC-60.2
345906-02
heater sleeve crankcase heater
2340.
80GC-60.2
380154-06
hexagon head screw sight glass DIN 933, 10.9 M6 x 20 (38015406)
2341.
80GC-60.2
380056-20
hexagon head screw cylinder head DIN 931, 10.9 M10 x 90 (38005620)
2342.
80GC-60.2
380195-01
Hexagon Head Screw DIN 933, 8.8 M8 x 45 (38019501)
2343.
80GC-60.2
380007-52
hexagon head screw discharge shut-off valve galvanized DIN 931, 8.8 M12 x 80 (38000752)
2344.
80GC-60.2
380056-07
hexagon head screw cylinder head DIN 931, 10.9 M10 x 80 (38005607)
2345.
80GC-60.2
380155-05
hexagon head screw oil pump DIN 933, 10.9 M8 x 20 (38015505)
2346.
80GC-60.2
380009-54
Hexagon Head Screw suction shut-off valve galvanized DIN 931, 8.8 M16 x 140 (38000954)
2347.
80GC-60.2
380156-06
hexagon head screw bottom plate coated DIN 933, 10.9 M10 x 30 (38015606)
2348.
80GC-60.2
380009-62
hexagon head screw suction shut-off valve 8.8 galvanized DIN 931, 8.8 M16 x 130 (38000962)
2349.
80GC-60.2
380111-01
Hexagon Head Screw suction shut-off valve DIN 933, 8.8 M18 x 70 (38011101)
2350.
80GC-60.2
380169-03
hexagon head screw DIN 933, 10.9 M10 x 22 (38016903)
2351.
80GC-60.2
380057-17
hexagon head screw housing cover DIN 931, 10.9 M12 x 200 (38005717)
2352.
80GC-60.2
380166-07
hexagon head screw rotor coated DIN 933, 10.9 M16 x 45 (38016607)
2353.
80GC-60.2
381101-56
hexagon nut screw for grounding DIN 934 M10 (38110156)
2354.
80GC-60.2
345122-04
hexagon nut terminal box aluminium plastic M63 x 1,5 (34512204)
2355.
80GC-60.2
345122-02
hexagon nut terminal box aluminium plastic M20 x 1,5 (34512202)
2356.
80GC-60.2
345122-03
hexagon nut terminal box aluminium plastic M25 x 1,5 (34512203)
2357.
80GC-60.2
345122-01
Hexagon Nut terminal box aluminium plastic M16 x 1,5 (34512201)
2358.
80GC-60.2
380306-83
Hexsocket Cheese Head Screw Terminal plate DIN 912, 10.9 M10 x 25 (38030683)
2359.
80GC-60.2
300074-02
housing Ø75 (30007402)
2360.
80GC-60.2
305233-11
housing cover grey cast iron 345 x 316 x 194 (30523311)
2361.
80GC-60.2
375907-05
insulating foil terminal box aluminium Y/D (37590705)
2362.
80GC-60.2
375051-02
insulating plate
2363.
80GC-60.2
345950-03
metal plate for grounding screw for grounding
2364.
80GC-60.2
389007-01
notch-type cable lug 6 R/10, Ø10 x 35 MM2 (38900701)
2365.
80GC-60.2
372001-19
O-ring oil pump Ø74 x 2 (37200119)
2366.
80GC-60.2
372003-27
O-ring Ø10,82 x 1,78 (37200327)
2367.
80GC-60.2
372003-39
O-ring sight glass Ø33 x 2,5 (37200339)
2368.
80GC-60.2
362003-01
oil filter
2369.
80GC-60.2
361101-01
oil pressure relief valve SW17 x 29 (36110101)
2370.
80GC-60.2
384007-03
parallel key built-in motor steel A9,56 x 9,15 x 140 (38400703)
2371.
80GC-60.2
384007-02
parallel key Stator steel A5,3 x 4,63 x 100 (38400702)
2372.
80GC-60.2
327000-01
parallel pin valve plate 6H 11 x 20 (32700001)
2373.
80GC-60.2
365321-14
pipe connection discharge shut-off valve steel
2374.
80GC-60.2
365321-05
Pipe Connection suction side Brazed and welding bush steel Ø76 (3 1/8") DN 80 (36532105)
2375.
80GC-60.2
302296-19
piston Standard piston marking, when stamped with another diameter, indicate this in addition to spare part no. Ø75 (30229619)
2376.
80GC-60.2
325000-34
pressure spring steel Ø23,5 x 28 x 1,8 (32500034)
2377.
80GC-60.2
347028-01
protection device SE-B2 230V-50/60Hz
2378.
80GC-60.2
375014-05
Protective Cap suction shut-off valve Span of the jaw: 36 Plastic - GRP M36 x 1,5 / L=67 mm (37501405)
2379.
80GC-60.2
366201-22
Protective Ca Discharge shut-off valve Span of the jaw: 27 Plastic - GRP M27 x 2 / L=70 mm (36620122)
2380.
80GC-60.2
347023-03
PTC-sensor 140° (34702303)
2381.
80GC-60.2
382231-04
retaining ring with lugs spring steel DIN 472 Ø20 x 1 (38223104)
2382.
80GC-60.2
382141-01
retaining ring with lug spring steel DIN 6796 - FSt A 8 (38214101)
2383.
80GC-60.2
361500-22
Schrader valve oil pressure connection
2384.
80GC-60.2
345126-03
Sealing Plug terminal box aluminium plastic M25 x 1,5 (34512603)
2385.
80GC-60.2
366100-01
Sealing Plug bras 1/8" - 27 NPTF (36610001)
2386.
80GC-60.2
345126-01
Sealing Plug terminal box aluminium plastic M16 x 1,5 (34512601)
2387.
80GC-60.2
345126-04
Sealing Plug terminal box aluminium plastic M63 x 1,5 (34512604)
2388.
80GC-60.2
345126-02
Sealing Plug terminal box aluminium plastic M20 x 1,5 (34512602)
2389.
80GC-60.2
366104-22
sealing plug valve plate brass 3/4" - 14 NPTF (36610422)
2390.
80GC-60.2
366104-21
sealing plug gas equalisation brass 3/4" - 14NPTF (36610421)
2391.
80GC-60.2
366110-02
Sealing Plug steel 1/4" - 18 NPTF (36611002)
2392.
80GC-60.2
366110-08
Sealing Plug discharge shut-off valve steel 1/4" - 18NPTF (36611008)
2393.
80GC-60.2
366103-21
sealing plug oil equalisation brass 1/2" - 14 NPTF (36610321)
2394.
80GC-60.2
366112-01
sealing screw conic DIN 906 M8 x 1 (36611201)
2395.
80GC-60.2
366123-01
sealing screw oil pressure monitoring M20 x 1,5 (36612301)
2396.
80GC-60.2
366114-24
sealing screw with magnet oil drain inclusive O-Ring gasket M26 (36611424)
2397.
80GC-60.2
380354-09
set screw DIN 916 M10 x 20 (38035409)
2398.
80GC-60.2
374026-01
shaft seal Motor side (37402601)
2399.
80GC-60.2
361339-14
shut-off valve suction side (36133914)
2400.
80GC-60.2
361338-01
shut-off valve Discharge side Ø42 (1 5/8") (36133801)
2401.
80GC-60.2
361802-03
sight glass Ø60 x 7 (36180203)
2402.
80GC-60.2
382201-55
Single Coil Spring Washer terminal box aluminium spring steel galvanized DIN 127 A6, 4 (38220155)
2403.
80GC-60.2
382062-01
single coil spring washer eye bolt steel galvanized DIN 127 18 x 30 x 8 (38206201)
2404.
80GC-60.2
311012-09
spacer sleeve screw for grounding Ø20 x Ø11 x 12 (31101209)
2405.
80GC-60.2
362004-03
suction gas filter Ø267,5 x 74,5 (36200403)
2406.
80GC-60.2
324500-46
terminal box 360 x 290 x 90 (32450046)
2407.
80GC-60.2
345500-10
terminal plate 220 x 140 x 50 (34550010)
2408.
80GC-60.2
345902-01
terminal strip terminal box aluminium 12-polig (34590201)
2409.
80GC-60.2
380912-01
threaded bolt grounding 6-Lead DIN 976 M10 x 80 (38091201)
2410.
80GC-60.2
382150-04
thrust washer rotor spring steel S16 (38215004)
2411.
80GC-60.2
320502-05
thrust washer steel Ø61 x 5 (32050205)
2412.
80GC-60.2
320500-09
thrust washer oil pump side Ø65 x Ø53 x 1,9 (32050009)
2413.
80GC-60.2
304060-02
valve plate Ø75 (30406002)
2414.
80GC-60.2
304060-01
valve plate Ø75 (30406001)
2415.
80GC-60.2
370002-06
vibration damper set Motor side black (75 Shore) rubber (37000206)
2416.
80GC-60.2
370002-02
vibration damper set Crankcase side red (60 Shore) rubber (37000202)
2417.
80GC-60.2
382041-54
washer
2418.
80GC-60.2
382002-01
washer
2419.
80GC-60.2
383401-06
wrist pin connecting rod / piston DIN 73126 Ø20 x Ø13 x 56 (38340106)
2420.
8GE-60
311100-18
bearing bush oil pump side Ø50 x Ø55 x 50 (31110018)
2421.
8GE-60
320307-09
bottom plate steel 345 x 320 x 12 , Ø21 (32030709)
2422.
8GE-60
346550-46
built-in motor Standard voltages 44 kW, 4-pole 380..420V Y/YY-3-50Hz, 440..480V Y/YY-3-60Hz Ø260 x 240 (34655046)
2423.
8GE-60
380402-06
cheese head screw cable connector brass M4 x 16 (38040206)
2424.
8GE-60
380302-05
Cheese Head Screw clamping plate DIN 912, 10.9 M12 x 50 (38030205)
2425.
8GE-60
380306-82
Cheese Head Screw 10.9 galvanized DIN 912, 10.9 M10 x 16 (38030682)
2426.
8GE-60
380306-32
Cheese Head Screw DIN 912, 10.9 M10 x 30 (38030632)
2427.
8GE-60
367121-01
clamping plate discharge shut-off valve 80 x 80 (36712101)
2428.
8GE-60
367121-14
clamping plate suction shut-off valve 141 x 141 x 23 (36712114)
2429.
8GE-60
382310-25
compression ring Piston diameter 74,96mm Ø75 x 1,5 (38231025)
2430.
8GE-60
382300-58
compression ring Piston diameter 74,96mm Ø75 x 1,5 (38230058)
2431.
8GE-60
302280-01
connecting rod / piston Standard piston marking, when stamped with another diameter, indicate this in addition to spare part no. Ø75 (30228001)
2432.
8GE-60
324942-01
cover terminal box aluminium steel 361 x 291 x 7 (32494201)
2433.
8GE-60
343213-12
Crankcase heater heating capacity: 140W 230V-1-50/60Hz (34321312)
2434.
8GE-60
301016-01
crankshaft Stroke 60mm (30101601)
2435.
8GE-60
380501-52
cross recessed raised screw Cross recessed raised 4.8 galvanized M6 x 12 (38050152)
2436.
8GE-60
302360-44
cylinder head air-cooled (30236044)
2437.
8GE-60
389002-01
electric connector of the machine / device DIN 43650 Typ GDM 209 (38900201)
2438.
8GE-60
380902-02
eye bolt DIN 580 M12 (38090202)
2439.
8GE-60
324391-03
eye bolt steel 49 x 50 x 135 (32439103)
2440.
8GE-60
327309-01
foot 369 x 60 x 13 x Ø21 (32730901)
2441.
8GE-60
372518-05
gasket valve plate Ø75, 248 x 135 x 1 (37251805)
2442.
8GE-60
372944-01
gasket cylinder head Retall (37294401)
2443.
8GE-60
372421-03
gasket Terminal plate 222 x 140 x 1 (37242103)
2444.
8GE-60
372301-02
gasket discharge shut-off valve Ø70 x Ø54 x 1 (37230102)
2445.
8GE-60
372303-01
gasket Pipe connection Ø52 x Ø37 x 2 (37230301)
2446.
8GE-60
372301-05
gasket suction shut-off valve Ø105 x Ø86 x 1 (37230105)
2447.
8GE-60
372416-01
gasket bottom plate 295 x 250 x 1 (37241601)
2448.
8GE-60
372303-03
Gasket Pipe connection Ø105 x Ø85 x 2 (37230303)
2449.
8GE-60
372927-05
gasket housing cover 335 x Ø316 x 1 (37292705)
2450.
8GE-60
372927-06
gasket bearing cover Ø182 x Ø182 x 0,8 (37292706)
2451.
8GE-60
372126-01
gasket terminal box aluminium EPDM 222 x 140 x 3 (37212601)
2452.
8GE-60
372429-04
Gasket for terminal box 360 x 290 x 2 (37242904)
2453.
8GE-60
382403-04
Gasket Ring oil drain aluminium DIN 7603 A26 x 31 x 2 (38240304)
2454.
8GE-60
382403-01
Gasket Ring oil pressure monitoring aluminium DIN 7603 A20 x 24 x 1,5 (38240301)
2455.
8GE-60
345906-02
heater sleeve crankcase heater for 140W heater 43315 (34590602)
2456.
8GE-60
380009-54
Hexagon Head Screw suction shut-off valve galvanized DIN 931, 8.8 M16 x 140 (38000954)
2457.
8GE-60
380156-06
hexagon head screw bottom plate coated DIN 933, 10.9 M10 x 30 (38015606)
2458.
8GE-60
380056-07
hexagon head screw cylinder head DIN 931, 10.9 M10 x 80 (38005607)
2459.
8GE-60
380056-20
hexagon head screw cylinder head DIN 931, 10.9 M10 x 90 (38005620)
2460.
8GE-60
380154-06
hexagon head screw sight glass DIN 933, 10.9 M6 x 20 (38015406)
2461.
8GE-60
380057-17
hexagon head screw housing cover DIN 931, 10.9 M12 x 200 (38005717)
2462.
8GE-60
380169-03
hexagon head screw DIN 933, 10.9 M10 x 22 (38016903)
2463.
8GE-60
380009-62
hexagon head screw suction shut-off valve 8.8 galvanized DIN 931, 8.8 M16 x 130 (38000962)
2464.
8GE-60
380007-52
hexagon head screw discharge shut-off valve galvanized DIN 931, 8.8 M12 x 80 (38000752)
2465.
8GE-60
380109-55
hexagon head screw suction shut-off valve galvanized DIN 933, 8.8 M16 x 60 (38010955)
2466.
8GE-60
380155-05
hexagon head screw oil pump DIN 933, 10.9 M8 x 20 (38015505)
2467.
8GE-60
380166-07
hexagon head screw rotor coated DIN 933, 10.9 M16 x 45 (38016607)
2468.
8GE-60
381101-56
hexagon nut screw for grounding DIN 934 M10 (38110156)
2469.
8GE-60
345122-01
Hexagon Nut terminal box aluminium plastic M16 x 1,5 (34512201)
2470.
8GE-60
345122-04
hexagon nut terminal box aluminium plastic M63 x 1,5 (34512204)
2471.
8GE-60
345122-03
hexagon nut terminal box aluminium plastic M25 x 1,5 (34512203)
2472.
8GE-60
345122-02
hexagon nut terminal box aluminium plastic M20 x 1,5 (34512202)
2473.
8GE-60
380306-83
Hexsocket Cheese Head Screw Terminal plate DIN 912, 10.9 M10 x 25 (38030683)
2474.
8GE-60
300074-02
housing Ø75 (30007402)
2475.
8GE-60
305233-11
housing cover grey cast iron 345 x 316 x 194 (30523311)
2476.
8GE-60
375907-05
insulating foil terminal box aluminium Y/D (37590705)
2477.
8GE-60
375051-02
insulating plate 40 x 39,5 (37505102)
2478.
8GE-60
345950-03
metal plate for grounding screw for grounding aluminium M10 (34595003)
2479.
8GE-60
389007-01
notch-type cable lug 6 R/10, Ø10 x 35 MM2 (38900701)
2480.
8GE-60
372003-39
O-ring sight glass Ø33 x 2,5 (37200339)
2481.
8GE-60
372001-19
O-ring oil pump Ø74 x 2 (37200119)
2482.
8GE-60
372003-27
O-ring Ø10,82 x 1,78 (37200327)
2483.
8GE-60
362003-01
oil filter Ø20 x 200 (36200301)
2484.
8GE-60
361101-01
oil pressure relief valve SW17 x 29 (36110101)
2485.
8GE-60
362503-02
oil pump (36250302)
2486.
8GE-60
360117-01
oil return system (36011701)
2487.
8GE-60
384007-02
parallel key Stator steel A5,3 x 4,63 x 100 (38400702)
2488.
8GE-60
384007-03
parallel key built-in motor steel A9,56 x 9,15 x 140 (38400703)
2489.
8GE-60
327000-01
parallel pin valve plate 6H 11 x 20 (32700001)
2490.
8GE-60
365321-05
Pipe Connection suction side Brazed and welding bush steel Ø76 (3 1/8") DN 80 (36532105)
2491.
8GE-60
365321-14
pipe connection discharge shut-off valve steel brazing and welding bush Ø42 (1 5/8") (36532114)
2492.
8GE-60
302296-19
piston Standard piston marking, when stamped with another diameter, indicate this in addition to spare part no. Ø75 (30229619)
2493.
8GE-60
361100-29
pressure relief valve (36110029)
2494.
8GE-60
325000-34
pressure spring steel Ø23,5 x 28 x 1,8 (32500034)
2495.
8GE-60
347028-01
protection device SE-B2 230V-50/60Hz (34702801)
2496.
8GE-60
375014-19
Protective Cap suction shut-off valve Plastic - GRP (37501419)
2497.
8GE-60
366201-22
Protective Cap Discharge shut-off valve Span of the jaw: 27 Plastic - GRP M27 x 2 / L=70 mm (36620122)
2498.
8GE-60
347023-03
PTC-sensor 140° C (34702303)
2499.
8GE-60
382231-04
retaining ring with lugs spring steel DIN 472 Ø20 x 1 (38223104)
2500.
8GE-60
361500-22
Schrader valve oil pressure connection (36150022)
2501.
8GE-60
345126-02
Sealing Plug terminal box aluminium plastic M20 x 1,5 (34512602)
2502.
8GE-60
345126-03
Sealing Plug terminal box aluminium plastic M25 x 1,5 (34512603)
2503.
8GE-60
345126-01
Sealing Plug terminal box aluminium plastic M16 x 1,5 (34512601)
2504.
8GE-60
345126-04
Sealing Plug terminal box aluminium plastic M63 x 1,5 (34512604)
2505.
8GE-60
366100-01
Sealing Plug brass 1/8" - 27 NPTF (36610001)
2506.
8GE-60
366110-02
Sealing Plug steel 1/4" - 18 NPTF (36611002)
2507.
8GE-60
366104-22
sealing plug valve plate brass 3/4" - 14 NPTF (36610422)
2508.
8GE-60
366110-08
Sealing Plug suction shut-off valv steel 1/4" - 18NPTF (36611008)
2509.
8GE-60
366103-21
sealing plug oil equalisation brass 1/2" - 14 NPTF (36610321)
2510.
8GE-60
366104-21
sealing plug gas equalisation brass 3/4" - 14NPTF (36610421)
2511.
8GE-60
366123-01
sealing screw oil pressure monitoring M20 x 1,5 (36612301)
2512.
8GE-60
366112-01
sealing screw conic DIN 906 M8 x 1 (36611201)
2513.
8GE-60
366114-24
sealing screw with magnet oil drain inclusive O-Ring gasket M26 (36611424)
2514.
8GE-60
380354-09
set screw DIN 916 M10 x 20 (38035409)
2515.
8GE-60
374026-01
shaft seal Motor side (37402601)
2516.
8GE-60
361338-01
shut-off valve Discharge side Ø42 (1 5/8") (36133801)
2517.
8GE-60
361339-38
shut-off valve suction side (36133938)
2518.
8GE-60
361802-03
sight glass Ø60 x 7 (36180203)
2519.
8GE-60
382062-01
single coil spring washer eye bolt steel galvanized DIN 127 18 x 30 x 8 (38206201)
2520.
8GE-60
382201-55
Single Coil Spring Washer spring steel galvanized DIN 127 A6, 4 (38220155)
2521.
8GE-60
311012-09
spacer sleeve screw for grounding Ø20 x Ø11 x 12 (31101209)
2522.
8GE-60
362004-03
suction gas filte Ø267,5 x 74,5 (36200403)
2523.
8GE-60
324500-46
terminal box 360 x 290 x 90 (32450046)
2524.
8GE-60
345500-10
terminal plate 220 x 140 x 50 (34550010)
2525.
8GE-60
345902-01
terminal strip terminal box aluminium 12-polig (34590201)
2526.
8GE-60
380912-01
threaded bolt grounding 6-Lead DIN 976 M10 x 80 (38091201)
2527.
8GE-60
320502-05
thrust washer steel Ø61 x 5 (32050205)
2528.
8GE-60
320500-09
thrust washer Crankcase side Ø65 x Ø53 x 1,9 (32050009)
2529.
8GE-60
382150-04
thrust washer rotor spring steel S16 (38215004)
2530.
8GE-60
304060-01
valve plate Ø75 (30406001)
2531.
8GE-60
304060-02
valve plate Ø75 (30406002)
2532.
8GE-60
370002-06
vibration damper set Motor side black (75 Shore) rubber (37000206)
2533.
8GE-60
370002-02
vibration damper set Crankcase side red (60 Shore) rubber (37000202)
2534.
8GE-60
382041-54
washer screw for grounding steel galvanized DIN 433 A6, 4 (38204154)
2535.
8GE-60
382002-01
washer start unloading brass DIN 125 A4, 3 (38200201)
2536.
8GE-60
383401-06
wrist pin connecting rod / piston DIN 73126 Ø20 x Ø13 x 56 (38340106)
2537.
0
311107-02
bearing bush connecting rod Ø14 x Ø12 x 12 (31110702)
2538.
0
315020-01
cheese head screw M2,3 x 3,5 (31502001)
2539.
0
302118-05
connecting rod using utmost care Ø45 x Ø12 x 68 (30211805)
2540.
0
302239-01
connecting rod / piston (30223901)
2541.
0
320316-01
covering plate for cylinder 10 x 10 x 1 (32031601)
2542.
0
300108-01
cylinder 116 x 110 x 57,2 (30010801)
2543.
0
302300-01
cylinder head air-cooled grey cast iron 110 x 74 x 30 (30230001)
2544.
0
383023-02
dowel pin 2,5 x 26 (38302302)
2545.
0
302000-01
eccentric Ø45 x 56 (30200001)
2546.
0
310000-01
eccentric shaft steel Ø23 x 178 (31000001)
2547.
0
303125-01
flywheel Ø180 x 28 (30312501)
2548.
0
372300-01
gasket side cover Ø45 x Ø35 x 5 (37230001)
2549.
0
372400-01
gasket 116 x 100 x 0,5 (37240001)
2550.
0
372701-01
gasket 61 x 28 x 1 (37270101)
2551.
0
372600-01
gasket cylinder head 110 x 74 x 0,5 (37260001)
2552.
0
372310-01
gasket sealing cover Ø50 x Ø20 x 0,5 (37231001)
2553.
0
372500-01
gasket valve plate 74 x 110 x 0,5 (37250001)
2554.
0
372800-01
gasket set (37280001)
2555.
0
380155-05
hexagon head screw DIN 933, 10.9 M8 x 20 (38015505)
2556.
0
315000-01
hexagon head screw M4 x 14 (31500001)
2557.
0
380154-06
hexagon head screw DIN 933, 10.9 M6 x 20 (38015406)
2558.
0
380154-04
hexagon head screw DIN 933, 10.9 M6 x 16 (38015404)
2559.
0
380055-02
hexagon head screw DIN 931, 10.9 M8 x 40 (38005502)
2560.
0
381101-04
hexagon nut DIN 934, 8.8 M6 (38110104)
2561.
0
300000-01
housing grey cast iron 139,5 x 150 x 92 (30000001)
2562.
0
313100-01
insert plate Ø10 x 4,5 (31310001)
2563.
0
324018-01
locking plate 39,5 x 8,2 x 2,6 (32401801)
2564.
0
314005-01
nozzle, Ø14 x 5 (31400501)
2565.
0
372001-01
O-ring violet HCFC, (CFC) Ø14 x 3 (37200101)
2566.
0
372001-02
O-ring violet HCFC, (CFC) Ø18 x 3 (37200102)
2567.
0
320308-01
oil splasher plate 50 x 12,5 x 1 (32030801)
2568.
0
302200-01
piston grey cast iron Ø30 x 40 x Ø12 (30220001)
2569.
0
325000-23
pressure spring steel 2,0 x Ø10,5 x 20 (32500023)
2570.
0
325000-18
pressure spring steel 0,8 x Ø6,2 x 10,5 (32500018)
2571.
0
366201-17
Protective Cap Span of the jaw: 20 Plastic - GRP 3/4"-16 UNF / L=43 mm (36620117)
2572.
0
320230-01
retainer 39,6 x 14,5 x 1,3 (32023001)
2573.
0
305412-01
sealing cover Ø50 x 10 (30541201)
2574.
0
366202-01
sealing nut 7/16" - 20 UNF (36620201)
2575.
0
366111-21
sealing plug 1/4" - 18 NPTF (36611121)
2576.
0
366110-01
Sealing plug steel 1/8“ - 27 NPTF (36611001)
2577.
0
366110-08
Sealing Plug steel 1/4" - 18NPTF (36611008)
2578.
0
374008-01
shaft seal (37400801)
2579.
0
361315-01
shut-off valve brazed connection PS45/DN8/S19(10/2LA42)TX/AF1 Ø10 (3/8) (36131501)
2580.
0
305300-01
side cover Ø70 x 10 (30530001)
2581.
0
362000-01
suction gas filter Ø17 x 38 (36200001)
2582.
0
315100-01
threaded key M6, Ø10 x 52 (31510001)
2583.
0
315107-06
threaded key eccentric (31510706)
2584.
0
315107-01
threaded key flywheel (31510701)
2585.
0
382150-01
thrust washer spring steel S6 (38215001)
2586.
0
304050-01
valve plate Ø30 (30405001)
2587.
0
320210-01
valve reed 39,6 x 14,3 x 0,3 (32021001)
2588.
0
320200-01
valve reed 35 x 17,4 x 0,2 (32020001)
2589.
0
382001-03
washer brass DIN 125 A6, 4 (38200103)
2590.
0
383401-08
wrist pin Ø12 x 8 x 26 (38340108)
