Sr. No. |
Image |
Model |
OEM Part No. |
Description |
|
|
1. |
|
8GE-60 |
311100-18 |

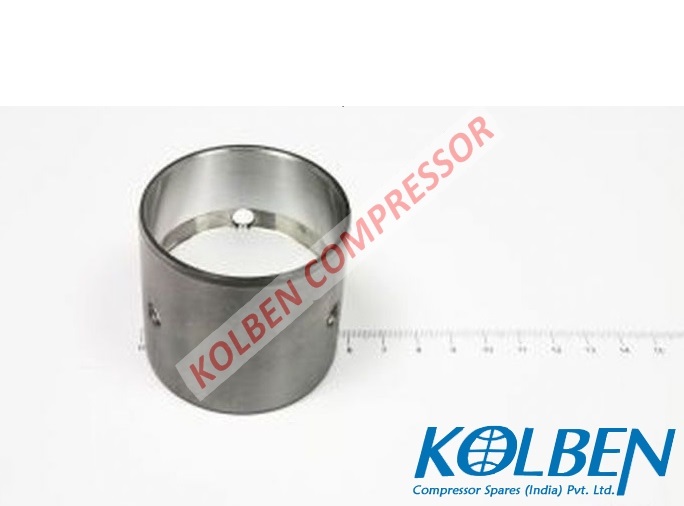

bearing bush oil pump side Ø50 x Ø55 x 50 (31110018)
|
|
|
2. |
|
8GE-60 |

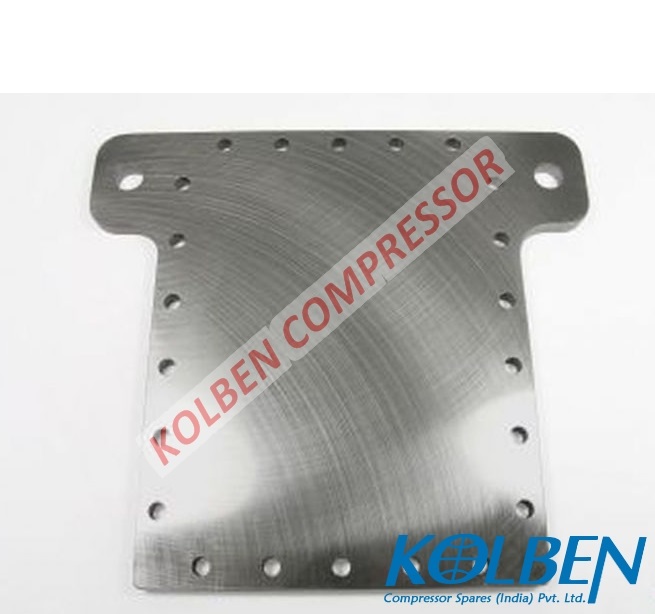

320307-09 |
bottom plate steel 345 x 320 x 12 , Ø21 (32030709)
|
|
|
3. |
|
8GE-60 |
346550-46 |
built-in motor Standard voltages 44 kW, 4-pole 380..420V Y/YY-3-50Hz, 440..480V Y/YY-3-60Hz Ø260 x 240 (34655046)
|
|
|
4. |
|
8GE-60 |
380402-06 |
cheese head screw cable connector brass M4 x 16 (38040206)
|
|
|
5. |
|
8GE-60 |
380302-05 |
Cheese Head Screw clamping plate DIN 912, 10.9 M12 x 50 (38030205)
|
|
|
6. |
|
8GE-60 |

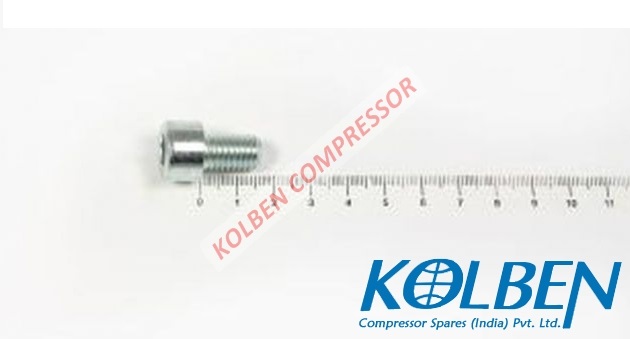

380306-82 |
Cheese Head Screw 10.9 galvanized DIN 912, 10.9 M10 x 16 (38030682)
|
|
|
7. |
|
8GE-60 |
380306-32 |
Cheese Head Screw DIN 912, 10.9 M10 x 30 (38030632)
|
|
|
8. |
|
8GE-60 |
367121-01 |
clamping plate discharge shut-off valve 80 x 80 (36712101)
|
|
|
9. |
|
8GE-60 |

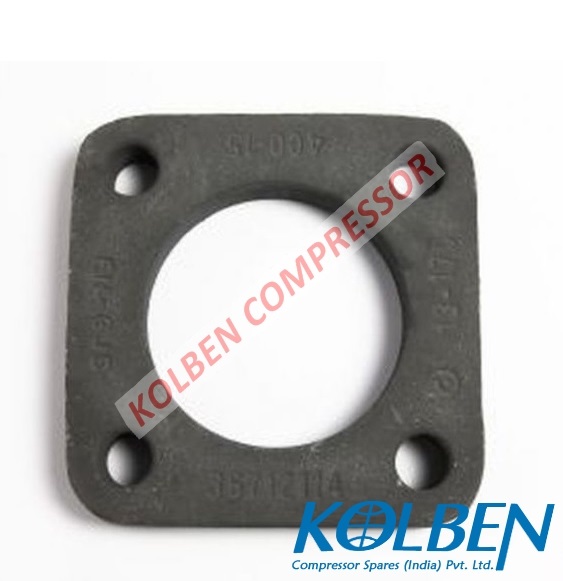

367121-14 |
clamping plate suction shut-off valve 141 x 141 x 23 (36712114)
|
|
|
10. |
|
8GE-60 |
382310-25 |
compression ring Piston diameter 74,96mm Ø75 x 1,5 (38231025)
|
|
|
11. |
|
8GE-60 |
382300-58 |
compression ring Piston diameter 74,96mm Ø75 x 1,5 (38230058)
|
|
|
12. |
|
8GE-60 |
302280-01 |

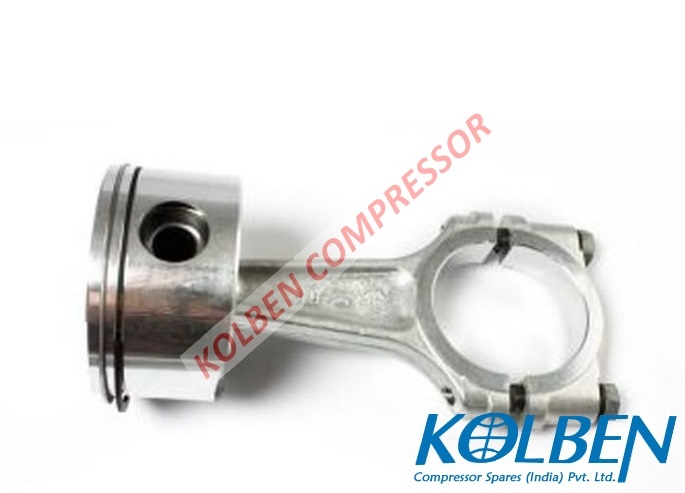

connecting rod / piston Standard piston marking, when stamped with another diameter, indicate this in addition to spare part no. Ø75 (30228001)
|
|
|
13. |
|
8GE-60 |
324942-01 |
cover terminal box aluminium steel 361 x 291 x 7 (32494201)
|
|
|
14. |
|
8GE-60 |
343213-12 |
Crankcase heater heating capacity: 140W 230V-1-50/60Hz (34321312)
|
|
|
15. |
|
8GE-60 |
301016-01 |

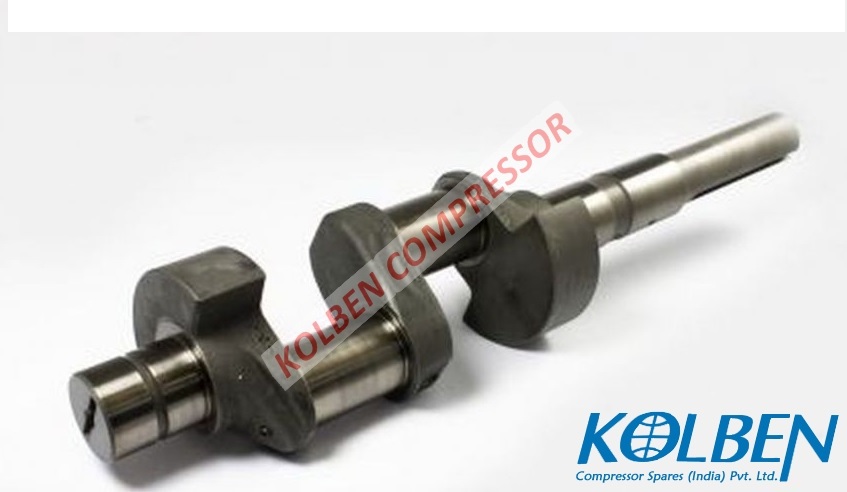

crankshaft Stroke 60mm (30101601)
|
|
|
16. |
|
8GE-60 |
380501-52 |
cross recessed raised screw Cross recessed raised 4.8 galvanized M6 x 12 (38050152)
|
|
|
17. |
|
8GE-60 |
302360-44 |
cylinder head air-cooled (30236044)
|
|
|
18. |
|
8GE-60 |
389002-01 |
electric connector of the machine / device DIN 43650 Typ GDM 209 (38900201)
|
|
|
19. |
|
8GE-60 |
380902-02 |
eye bolt DIN 580 M12 (38090202)
|
|
|
20. |
|
8GE-60 |

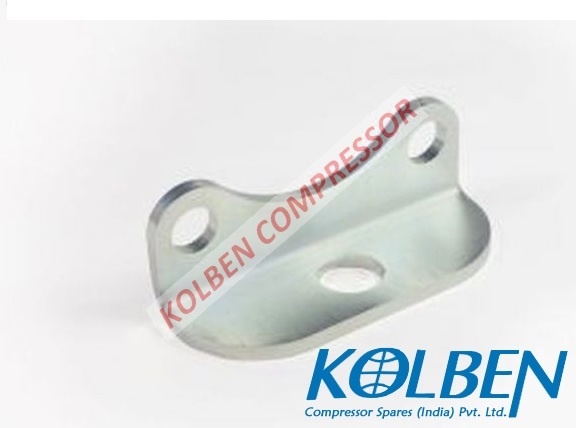

324391-03 |
eye bolt steel 49 x 50 x 135 (32439103)
|
|
|
21. |
|
8GE-60 |
327309-01 |
foot 369 x 60 x 13 x Ø21 (32730901)
|
|
|
22. |
|
8GE-60 |

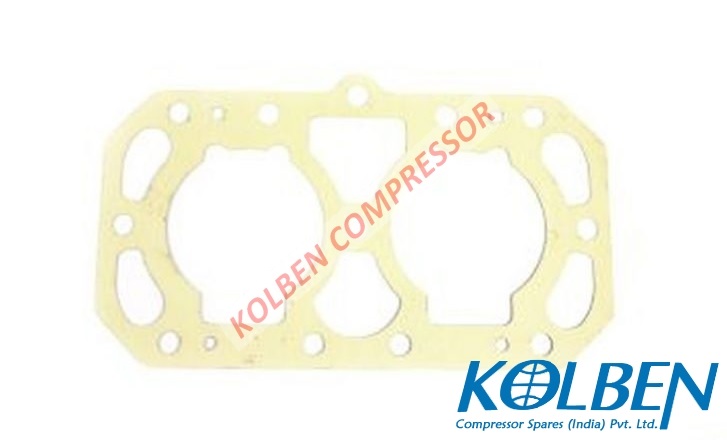

372518-05 |
gasket valve plate Ø75, 248 x 135 x 1 (37251805)
|
|
|
23. |
|
8GE-60 |
372944-01 |

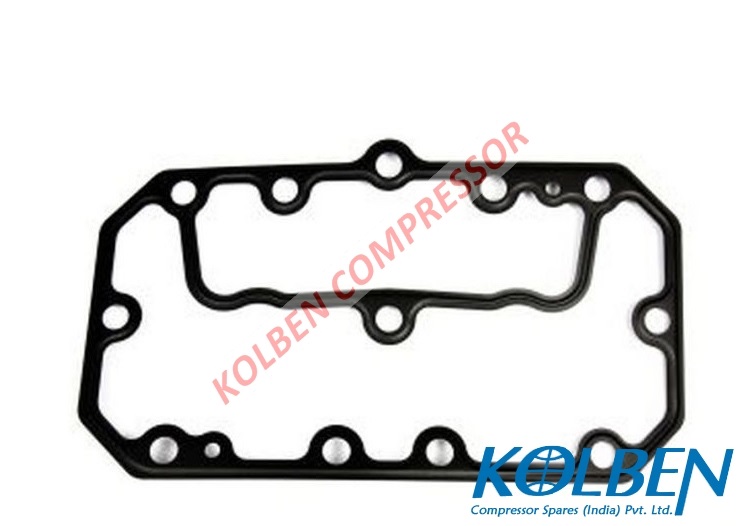

gasket cylinder head Retall (37294401)
|
|
|
24. |
|
8GE-60 |

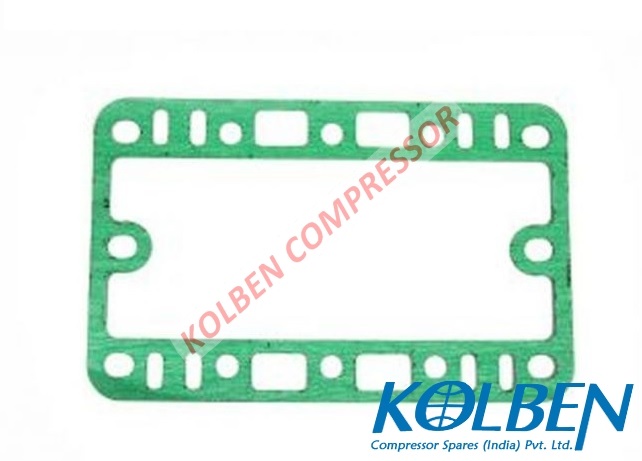

372421-03 |
gasket Terminal plate 222 x 140 x 1 (37242103)
|
|
|
25. |
|
8GE-60 |
372301-02 |
gasket discharge shut-off valve Ø70 x Ø54 x 1 (37230102)
|
|
|
26. |
|
8GE-60 |
372303-01 |
gasket Pipe connection Ø52 x Ø37 x 2 (37230301)
|
|
|
27. |
|
8GE-60 |
372301-05 |

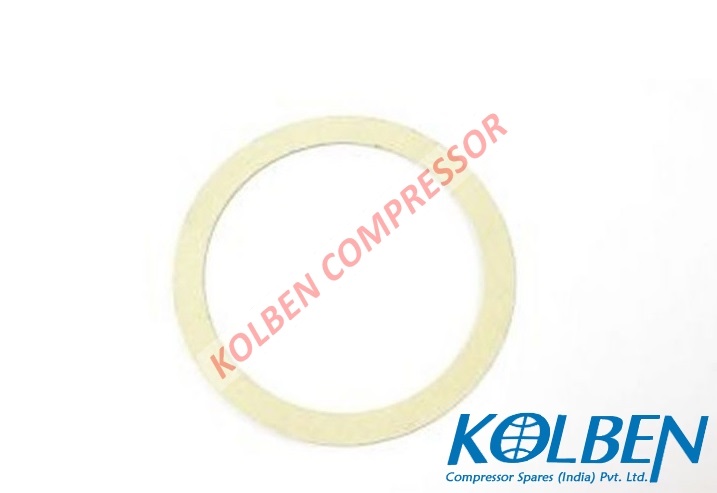

gasket suction shut-off valve Ø105 x Ø86 x 1 (37230105)
|
|
|
28. |
|
8GE-60 |

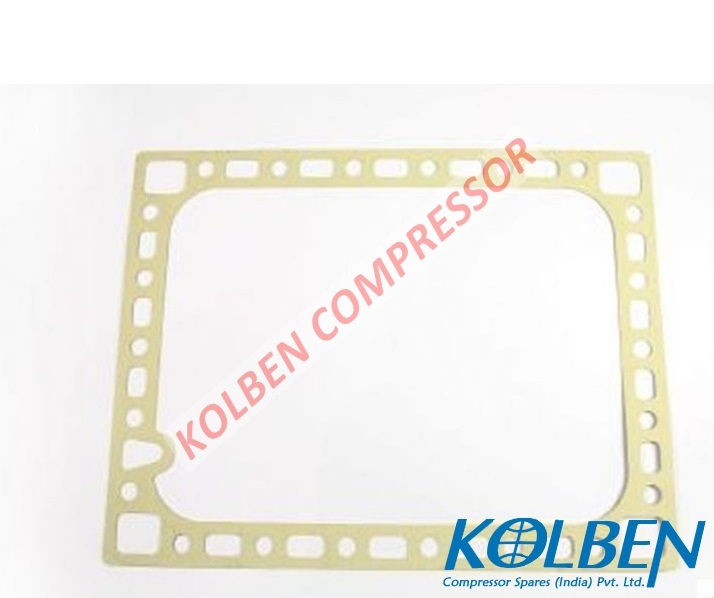

372416-01 |
gasket bottom plate 295 x 250 x 1 (37241601)
|
|
|
29. |
|
8GE-60 |
372303-03 |

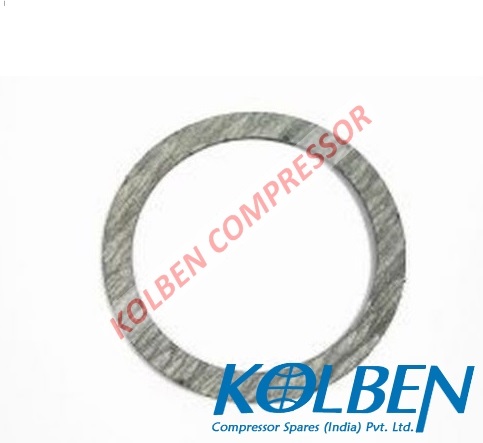

Gasket Pipe connection Ø105 x Ø85 x 2 (37230303)
|
|
|
30. |
|
8GE-60 |
372927-05 |

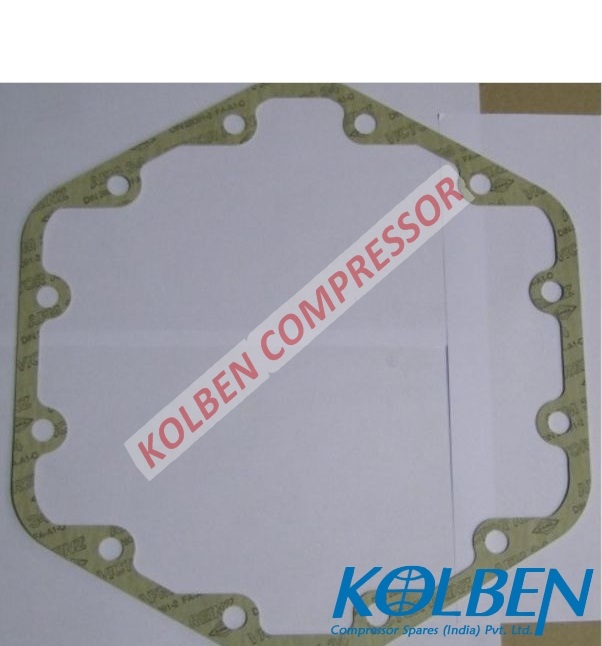

gasket housing cover 335 x Ø316 x 1 (37292705)
|
|
|
31. |
|
8GE-60 |
372927-06 |

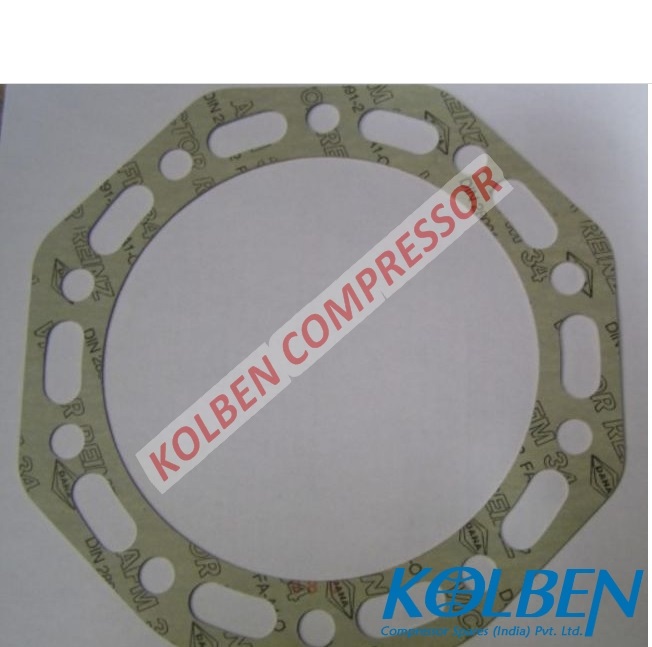

gasket bearing cover Ø182 x Ø182 x 0,8 (37292706)
|
|
|
32. |
|
8GE-60 |
372126-01 |

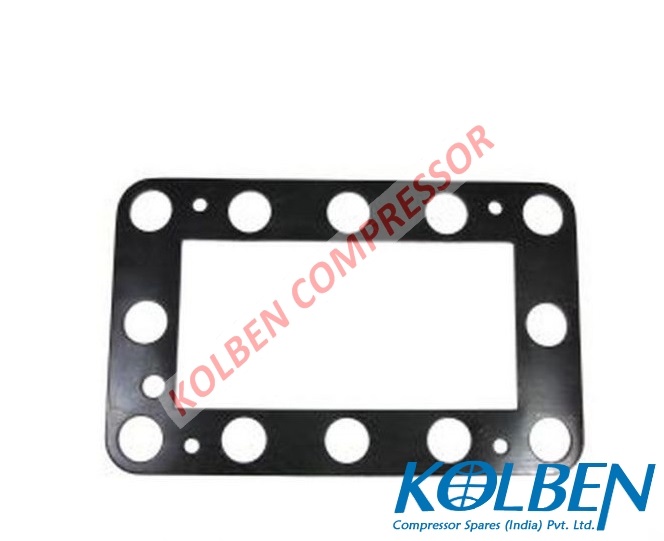

gasket terminal box aluminium EPDM 222 x 140 x 3 (37212601)
|
|
|
33. |
|
8GE-60 |
372429-04 |

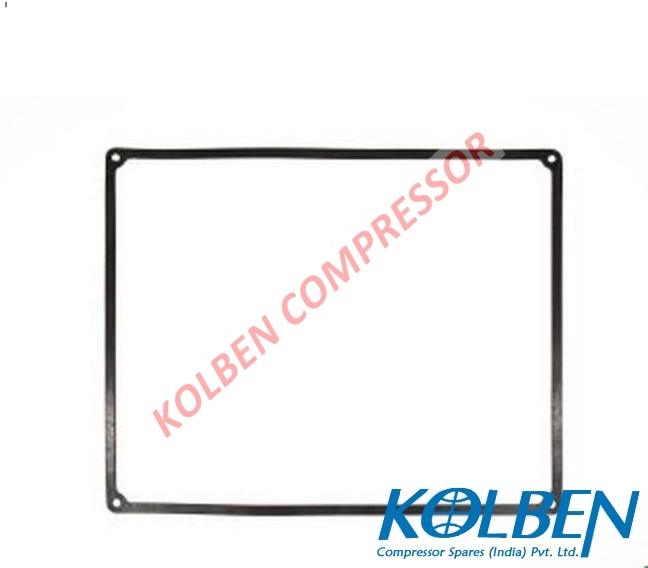

Gasket for terminal box 360 x 290 x 2 (37242904)
|
|
|
34. |
|
8GE-60 |
382403-04 |
Gasket Ring oil drain aluminium DIN 7603 A26 x 31 x 2 (38240304)
|
|
|
35. |
|
8GE-60 |
382403-01 |
Gasket Ring oil pressure monitoring aluminium DIN 7603 A20 x 24 x 1,5 (38240301)
|
|
|
36. |
|
8GE-60 |
345906-02 |
heater sleeve crankcase heater for 140W heater 43315 (34590602)
|
|
|
37. |
|
8GE-60 |
380009-54 |

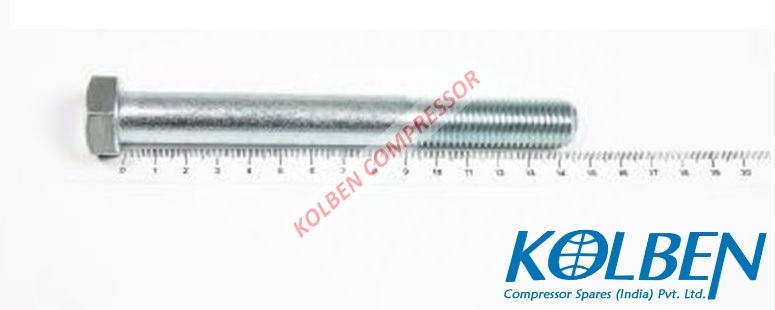

Hexagon Head Screw suction shut-off valve galvanized DIN 931, 8.8 M16 x 140 (38000954)
|
|
|
38. |
|
8GE-60 |
380156-06 |
hexagon head screw bottom plate coated DIN 933, 10.9 M10 x 30 (38015606)
|
|
|
39. |
|
8GE-60 |
380056-07 |

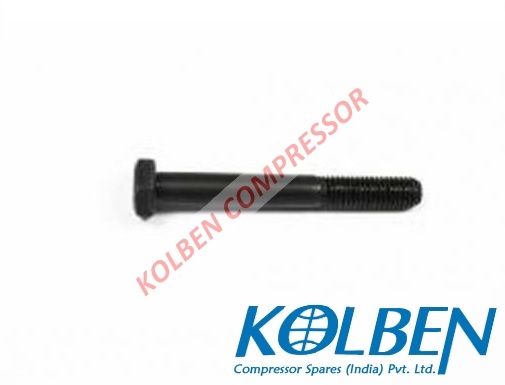

hexagon head screw cylinder head DIN 931, 10.9 M10 x 80 (38005607)
|
|
|
40. |
|
8GE-60 |
380056-20 |
hexagon head screw cylinder head DIN 931, 10.9 M10 x 90 (38005620)
|
|
|
41. |
|
8GE-60 |
380154-06 |
hexagon head screw sight glass DIN 933, 10.9 M6 x 20 (38015406)
|
|
|
42. |
|
8GE-60 |
380057-17 |

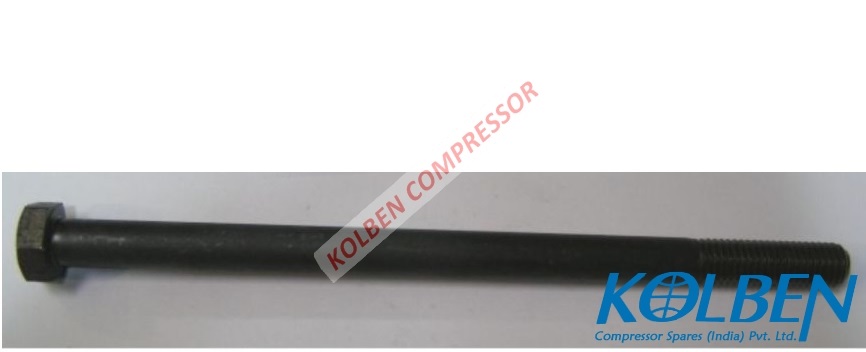

hexagon head screw housing cover DIN 931, 10.9 M12 x 200 (38005717)
|
|
|
43. |
|
8GE-60 |

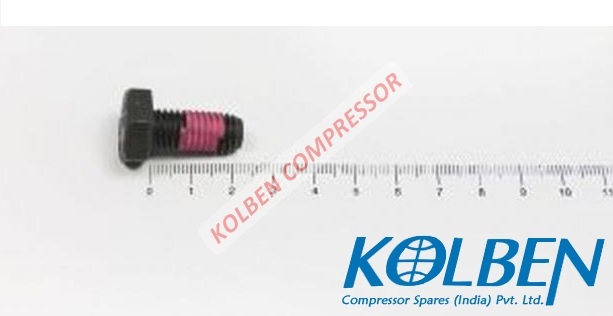

380169-03 |
hexagon head screw DIN 933, 10.9 M10 x 22 (38016903)
|
|
|
44. |
|
8GE-60 |

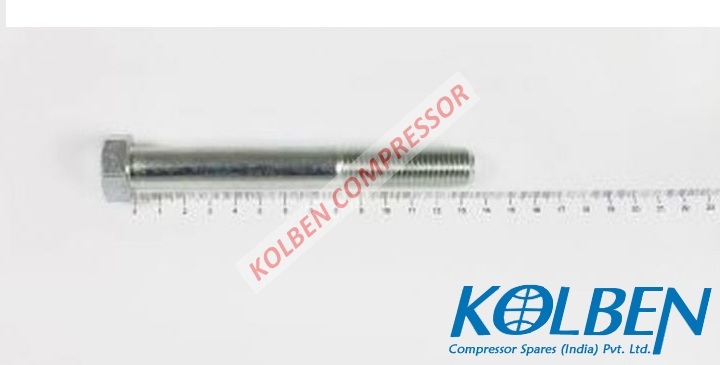

380009-62 |
hexagon head screw suction shut-off valve 8.8 galvanized DIN 931, 8.8 M16 x 130 (38000962)
|
|
|
45. |
|
8GE-60 |
380007-52 |
hexagon head screw discharge shut-off valve galvanized DIN 931, 8.8 M12 x 80 (38000752)
|
|
|
46. |
|
8GE-60 |
380109-55 |

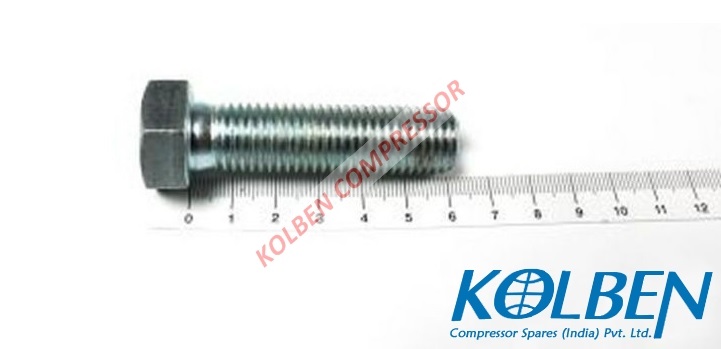

hexagon head screw suction shut-off valve galvanized DIN 933, 8.8 M16 x 60 (38010955)
|
|
|
47. |
|
8GE-60 |
380155-05 |
hexagon head screw oil pump DIN 933, 10.9 M8 x 20 (38015505)
|
|
|
48. |
|
8GE-60 |

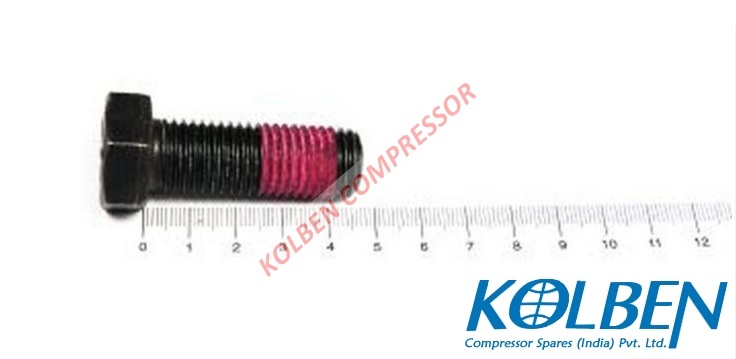

380166-07 |
hexagon head screw rotor coated DIN 933, 10.9 M16 x 45 (38016607)
|
|
|
49. |
|
8GE-60 |
381101-56 |
hexagon nut screw for grounding DIN 934 M10 (38110156)
|
|
|
50. |
|
8GE-60 |
345122-01 |

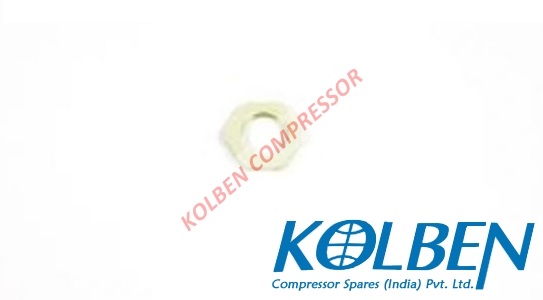

Hexagon Nut terminal box aluminium plastic M16 x 1,5 (34512201)
|
|
|
51. |
|
8GE-60 |
345122-04 |

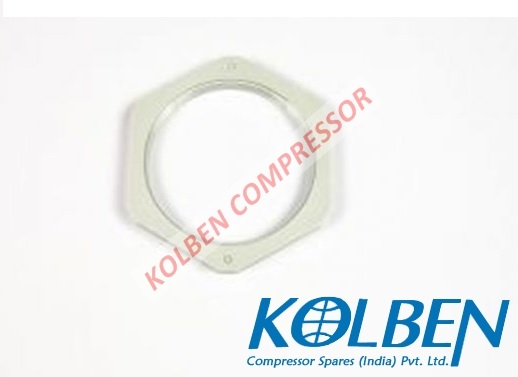

hexagon nut terminal box aluminium plastic M63 x 1,5 (34512204)
|
|
|
52. |
|
8GE-60 |
345122-03 |

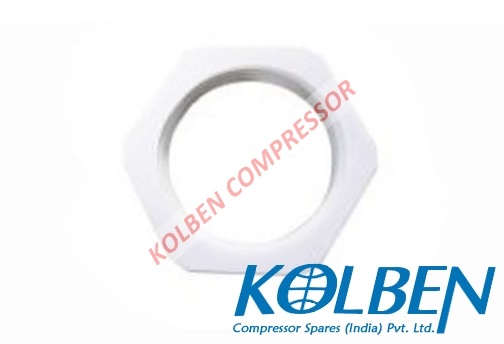

hexagon nut terminal box aluminium plastic M25 x 1,5 (34512203)
|
|
|
53. |
|
8GE-60 |
345122-02 |
hexagon nut terminal box aluminium plastic M20 x 1,5 (34512202)
|
|
|
54. |
|
8GE-60 |
380306-83 |
Hexsocket Cheese Head Screw Terminal plate DIN 912, 10.9 M10 x 25 (38030683)
|
|
|
55. |
|
8GE-60 |
300074-02 |
housing Ø75 (30007402)
|
|
|
56. |
|
8GE-60 |
305233-11 |
housing cover grey cast iron 345 x 316 x 194 (30523311)
|
|
|
57. |
|
8GE-60 |
375907-05 |
insulating foil terminal box aluminium Y/D (37590705)
|
|
|
58. |
|
8GE-60 |
375051-02 |

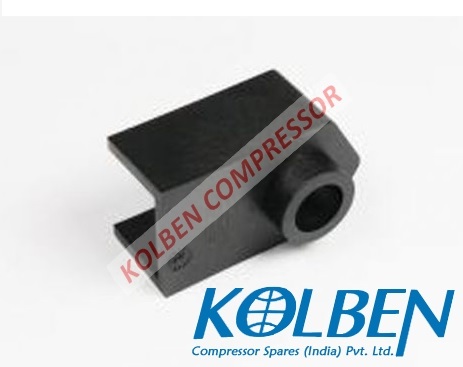

insulating plate 40 x 39,5 (37505102)
|
|
|
59. |
|
8GE-60 |
345950-03 |
metal plate for grounding screw for grounding aluminium M10 (34595003)
|
|
|
60. |
|
8GE-60 |
389007-01 |

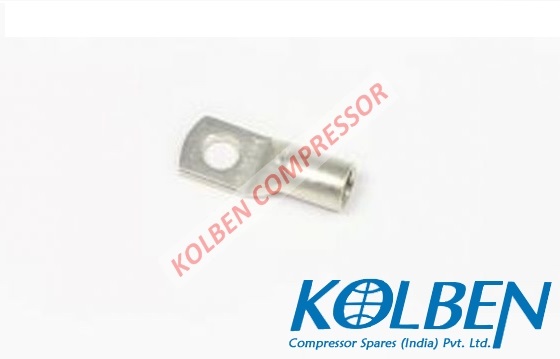

notch-type cable lug 6 R/10, Ø10 x 35 MM2 (38900701)
|
|
|
61. |
|
8GE-60 |
372003-39 |
O-ring sight glass Ø33 x 2,5 (37200339)
|
|
|
62. |
|
8GE-60 |
372001-19 |
O-ring oil pump Ø74 x 2 (37200119)
|
|
|
63. |
|
8GE-60 |
372003-27 |
O-ring Ø10,82 x 1,78 (37200327)
|
|
|
64. |
|
8GE-60 |
362003-01 |
oil filter Ø20 x 200 (36200301)
|
|
|
65. |
|
8GE-60 |
361101-01 |
oil pressure relief valve SW17 x 29 (36110101)
|
|
|
66. |
|
8GE-60 |
362503-02 |
oil pump (36250302)
|
|
|
67. |
|
8GE-60 |
360117-01 |
oil return system (36011701)
|
|
|
68. |
|
8GE-60 |
384007-02 |

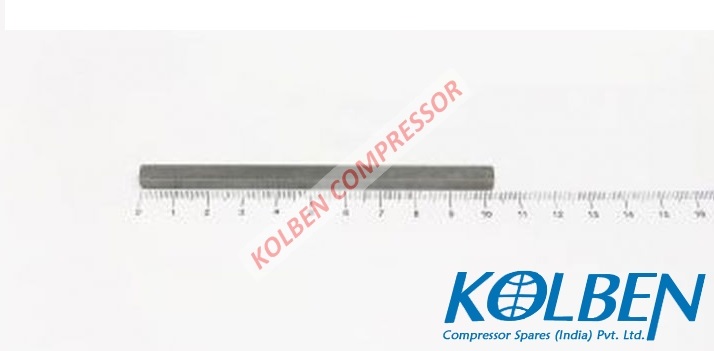

parallel key Stator steel A5,3 x 4,63 x 100 (38400702)
|
|
|
69. |
|
8GE-60 |
384007-03 |

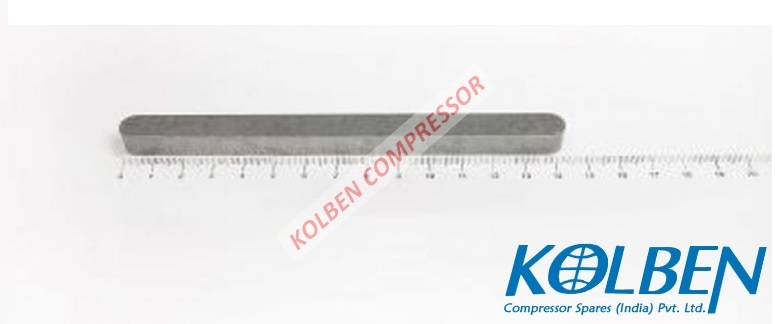

parallel key built-in motor steel A9,56 x 9,15 x 140 (38400703)
|
|
|
70. |
|
8GE-60 |
327000-01 |
parallel pin valve plate 6H 11 x 20 (32700001)
|
|
|
71. |
|
8GE-60 |
365321-05 |

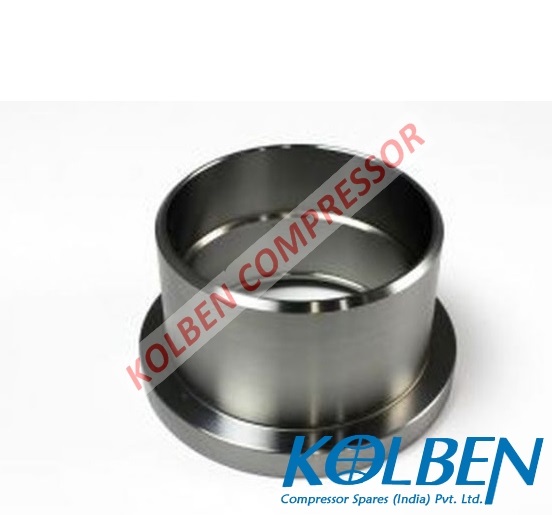

Pipe Connection suction side Brazed and welding bush steel Ø76 (3 1/8") DN 80 (36532105)
|
|
|
72. |
|
8GE-60 |
365321-14 |
pipe connection discharge shut-off valve steel brazing and welding bush Ø42 (1 5/8") (36532114)
|
|
|
73. |
|
8GE-60 |
302296-19 |

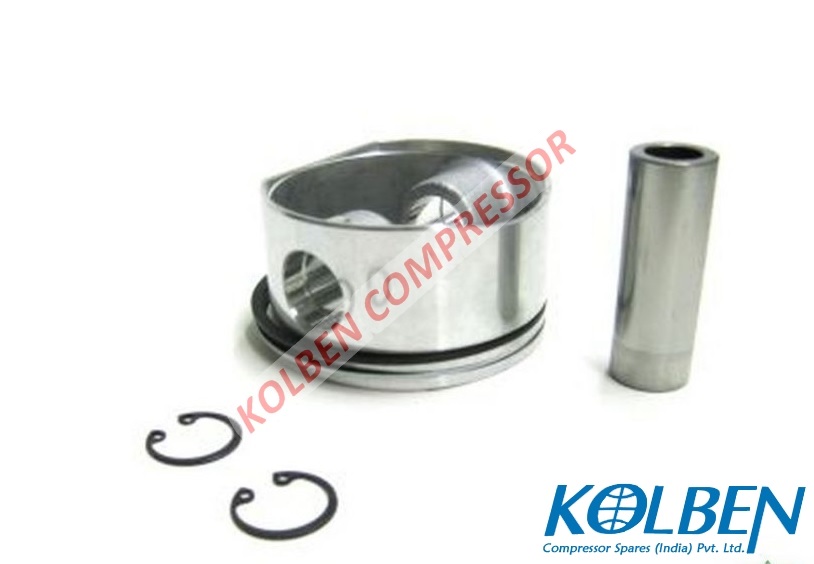

piston Standard piston marking, when stamped with another diameter, indicate this in addition to spare part no. Ø75 (30229619)
|
|
|
74. |
|
8GE-60 |
361100-29 |

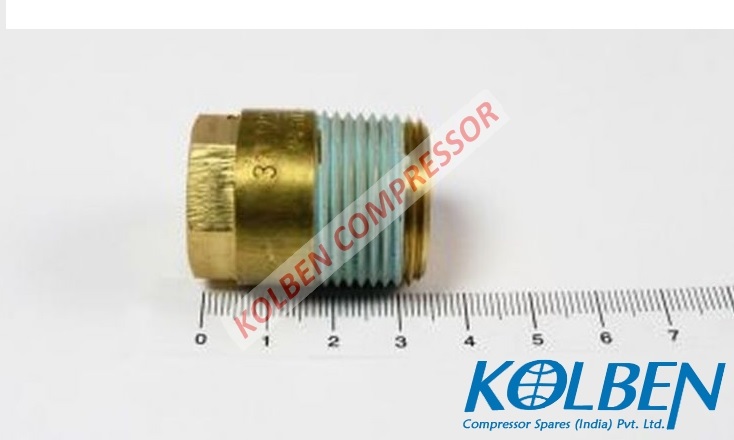

pressure relief valve (36110029)
|
|
|
75. |
|
8GE-60 |
325000-34 |
pressure spring steel Ø23,5 x 28 x 1,8 (32500034)
|
|
|
76. |
|
8GE-60 |
347028-01 |
protection device SE-B2 230V-50/60Hz (34702801)
|
|
|
77. |
|
8GE-60 |
375014-19 |

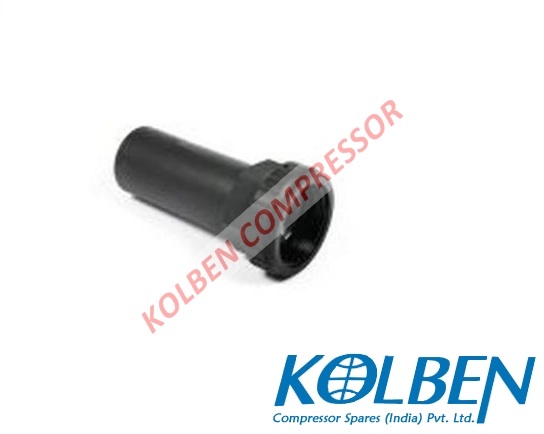

Protective Cap suction shut-off valve Plastic - GRP (37501419)
|
|
|
78. |
|
8GE-60 |
366201-22 |
Protective Cap Discharge shut-off valve Span of the jaw: 27 Plastic - GRP M27 x 2 / L=70 mm (36620122)
|
|
|
79. |
|
8GE-60 |
347023-03 |
PTC-sensor 140° C (34702303)
|
|
|
80. |
|
8GE-60 |
382231-04 |
retaining ring with lugs spring steel DIN 472 Ø20 x 1 (38223104)
|
|
|
81. |
|
8GE-60 |
361500-22 |
Schrader valve oil pressure connection (36150022)
|
|
|
82. |
|
8GE-60 |
345126-02 |

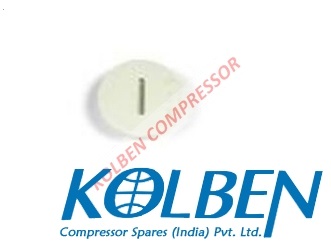

Sealing Plug terminal box aluminium plastic M20 x 1,5 (34512602)
|
|
|
83. |
|
8GE-60 |

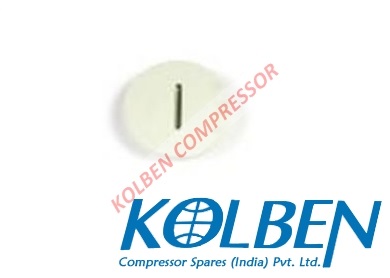

345126-03 |
Sealing Plug terminal box aluminium plastic M25 x 1,5 (34512603)
|
|
|
84. |
|
8GE-60 |
345126-01 |

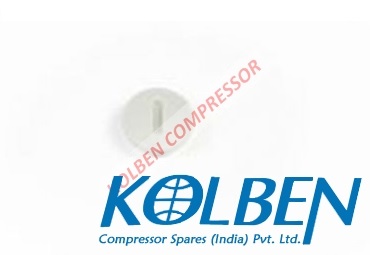

Sealing Plug terminal box aluminium plastic M16 x 1,5 (34512601)
|
|
|
85. |
|
8GE-60 |
345126-04 |

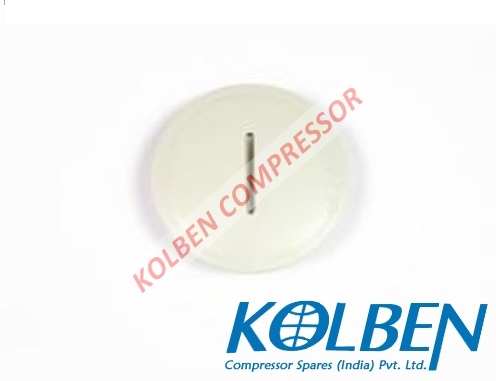

Sealing Plug terminal box aluminium plastic M63 x 1,5 (34512604)
|
|
|
86. |
|
8GE-60 |
366100-01 |
Sealing Plug brass 1/8" - 27 NPTF (36610001)
|
|
|
87. |
|
8GE-60 |
366110-02 |
Sealing Plug steel 1/4" - 18 NPTF (36611002)
|
|
|
88. |
|
8GE-60 |
366104-22 |
sealing plug valve plate brass 3/4" - 14 NPTF (36610422)
|
|
|
89. |
|
8GE-60 |
366110-08 |

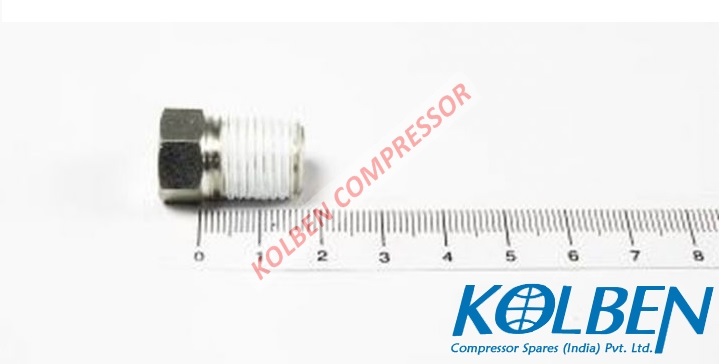

Sealing Plug suction shut-off valv steel 1/4" - 18NPTF (36611008)
|
|
|
90. |
|
8GE-60 |
366103-21 |

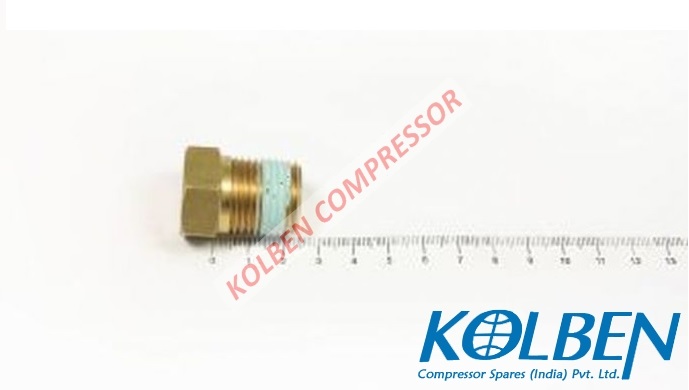

sealing plug oil equalisation brass 1/2" - 14 NPTF (36610321)
|
|
|
91. |
|
8GE-60 |
366104-21 |

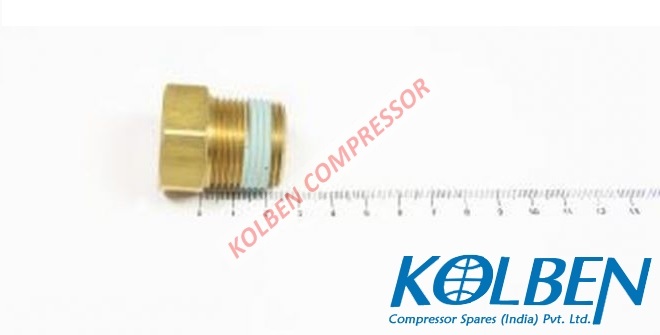

sealing plug gas equalisation brass 3/4" - 14NPTF (36610421)
|
|
|
92. |
|
8GE-60 |

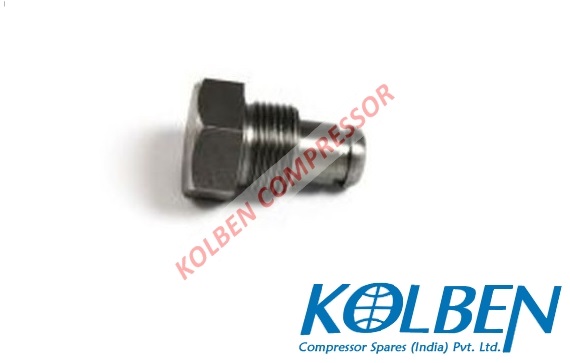

366123-01 |
sealing screw oil pressure monitoring M20 x 1,5 (36612301)
|
|
|
93. |
|
8GE-60 |
366112-01 |
sealing screw conic DIN 906 M8 x 1 (36611201)
|
|
|
94. |
|
8GE-60 |
366114-24 |
sealing screw with magnet oil drain inclusive O-Ring gasket M26 (36611424)
|
|
|
95. |
|
8GE-60 |
380354-09 |

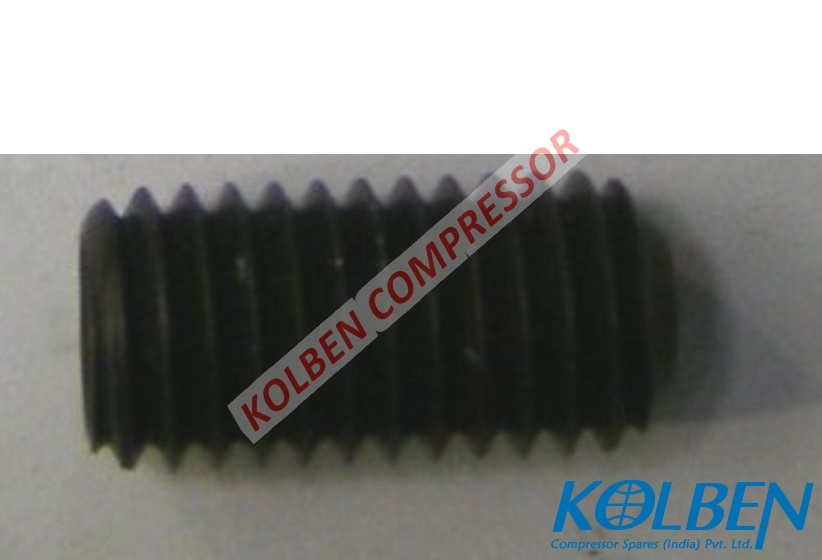

set screw DIN 916 M10 x 20 (38035409)
|
|
|
96. |
|
8GE-60 |
374026-01 |

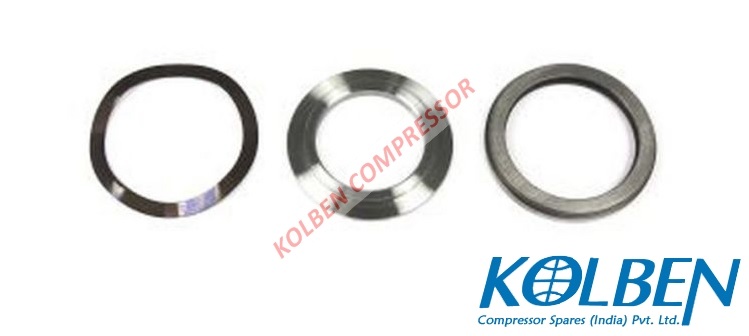

shaft seal Motor side (37402601)
|
|
|
97. |
|
8GE-60 |
361338-01 |
shut-off valve Discharge side Ø42 (1 5/8") (36133801)
|
|
|
98. |
|
8GE-60 |
361339-38 |
shut-off valve suction side (36133938)
|
|
|
99. |
|
8GE-60 |
361802-03 |
sight glass Ø60 x 7 (36180203)
|
|
|
100. |
|
8GE-60 |
382062-01 |

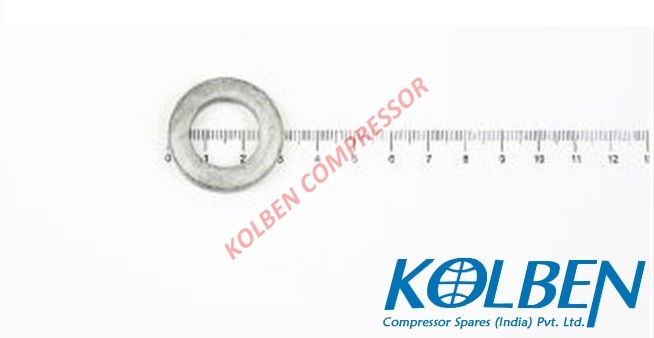

single coil spring washer eye bolt steel galvanized DIN 127 18 x 30 x 8 (38206201)
|
|
|
101. |
|
8GE-60 |
382201-55 |
Single Coil Spring Washer spring steel galvanized DIN 127 A6, 4 (38220155)
|
|
|
102. |
|
8GE-60 |
311012-09 |
spacer sleeve screw for grounding Ø20 x Ø11 x 12 (31101209)
|
|
|
103. |
|
8GE-60 |

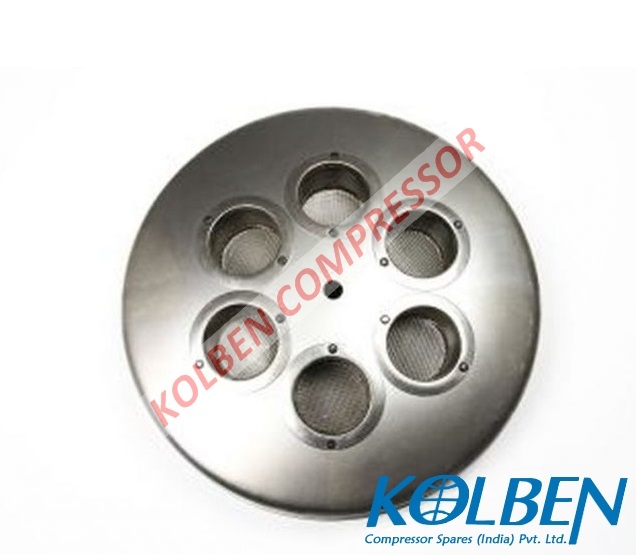

362004-03 |
suction gas filte Ø267,5 x 74,5 (36200403)
|
|
|
104. |
|
8GE-60 |
324500-46 |
terminal box 360 x 290 x 90 (32450046)
|
|
|
105. |
|
8GE-60 |

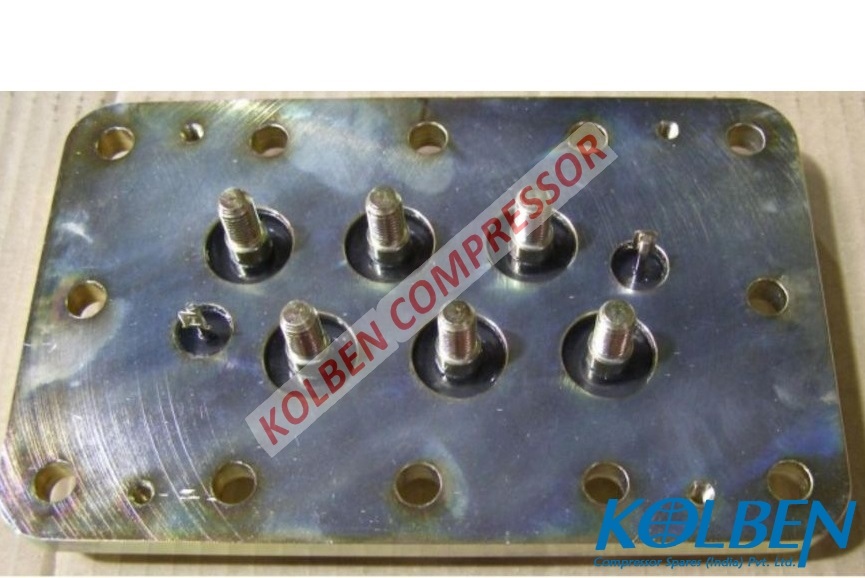

345500-10 |
terminal plate 220 x 140 x 50 (34550010)
|
|
|
106. |
|
8GE-60 |
345902-01 |

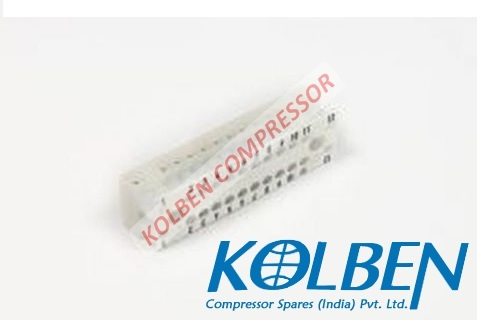

terminal strip terminal box aluminium 12-polig (34590201)
|
|
|
107. |
|
8GE-60 |
380912-01 |
threaded bolt grounding 6-Lead DIN 976 M10 x 80 (38091201)
|
|
|
108. |
|
8GE-60 |
320502-05 |

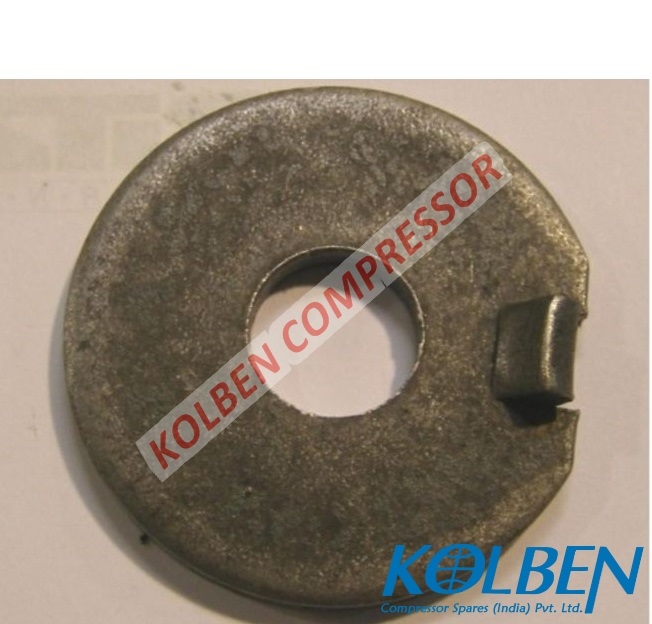

thrust washer steel Ø61 x 5 (32050205)
|
|
|
109. |
|
8GE-60 |
320500-09 |

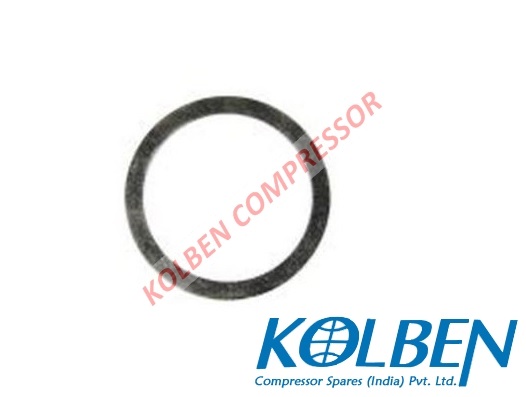

thrust washer Crankcase side Ø65 x Ø53 x 1,9 (32050009)
|
|
|
110. |
|
8GE-60 |
382150-04 |
thrust washer rotor spring steel S16 (38215004)
|
|
|
111. |
|
8GE-60 |

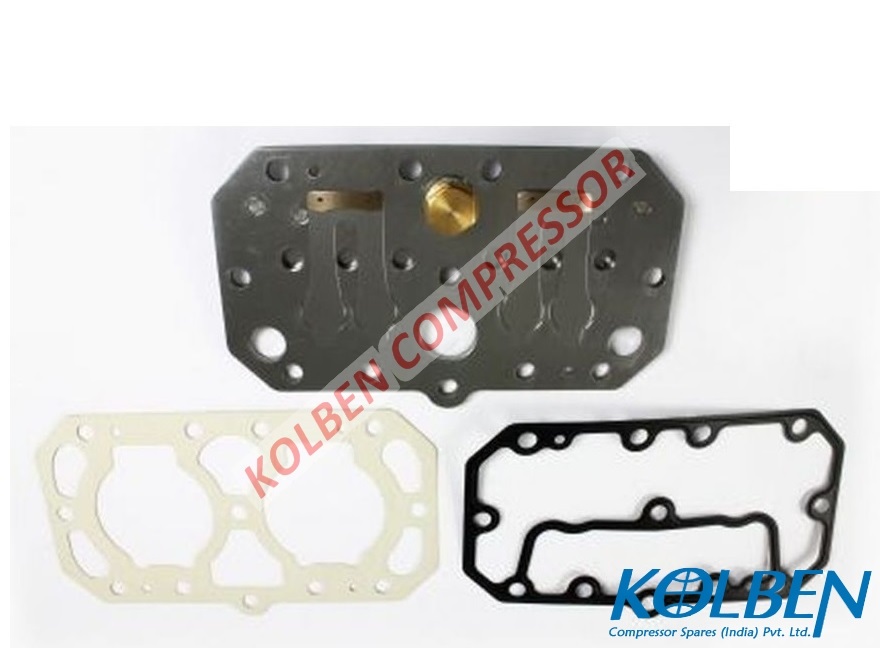

304060-01 |
valve plate Ø75 (30406001)
|
|
|
112. |
|
8GE-60 |
304060-02 |

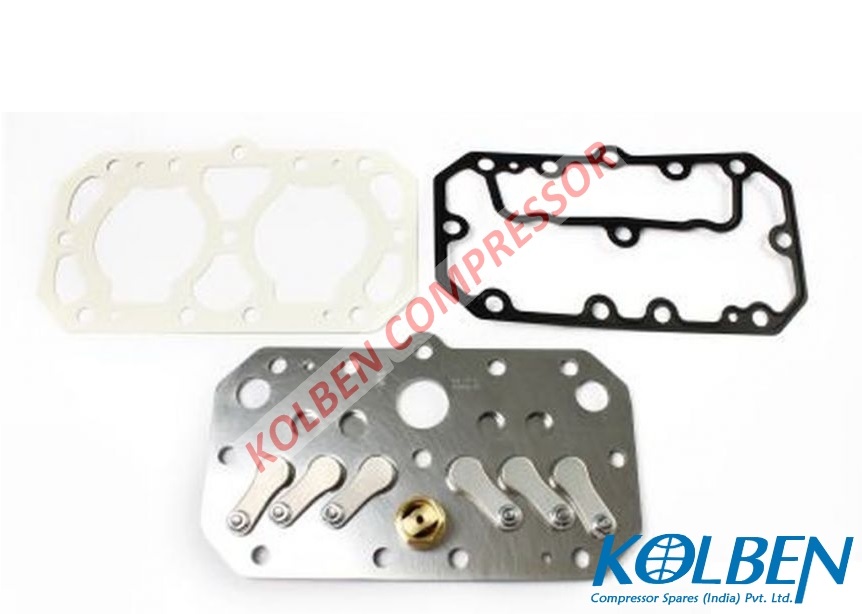

valve plate Ø75 (30406002)
|
|
|
113. |
|
8GE-60 |

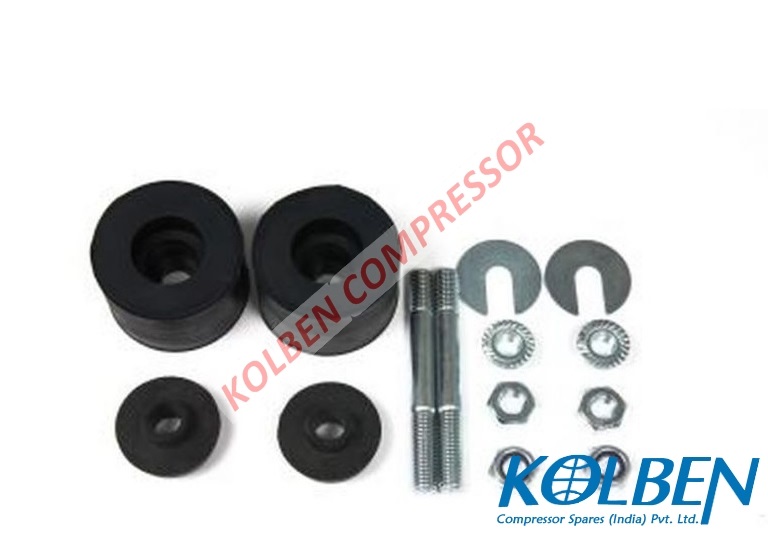

370002-06 |
vibration damper set Motor side black (75 Shore) rubber (37000206)
|
|
|
114. |
|
8GE-60 |
370002-02 |

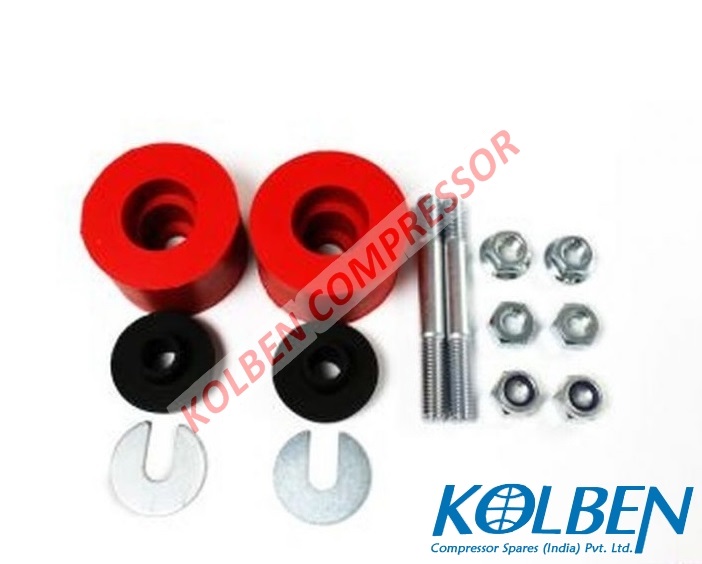

vibration damper set Crankcase side red (60 Shore) rubber (37000202)
|
|
|
115. |
|
8GE-60 |
382041-54 |

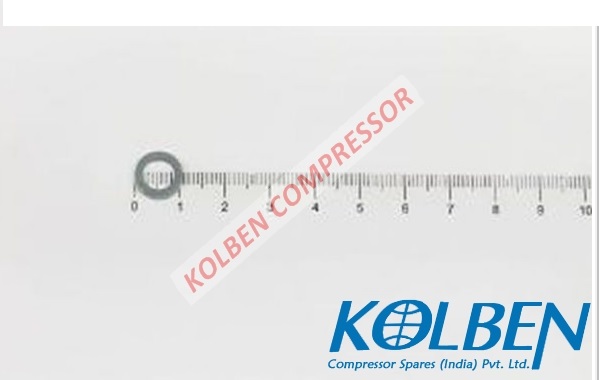

washer screw for grounding steel galvanized DIN 433 A6, 4 (38204154)
|
|
|
116. |
|
8GE-60 |
382002-01 |
washer start unloading brass DIN 125 A4, 3 (38200201)
|
|
|
117. |
|
8GE-60 |
383401-06 |
wrist pin connecting rod / piston DIN 73126 Ø20 x Ø13 x 56 (38340106)
|
|
