COMPRESSOR PARTS > BITZER > 2KES-05

Sr. No.


Model

OEM Part No.

Description

1.



2KES-05


311112-16


bearing bush Motor side Ø25 x Ø28 x 25 (31111216)






2.



2KES-05


311112-15


bearing bush Crankcase side Ø23 x Ø20 x 25 (31111215)






3.



2KES-05


305107-74


bearing cover Crankcase side (30510774)






4.



2KES-05


346004-12


built-in motor 0.37 kW, 4-pole 220..240V D-3-50Hz, 380..420V Y-3-50Hz, 265..290V D-3-60Hz, 440..480V Y-3-60Hz Ø160 (34600412)






5.



2KES-05


380306-02


Cheese head screw DIN 912, 10.9 M8 x 20 (38030602)

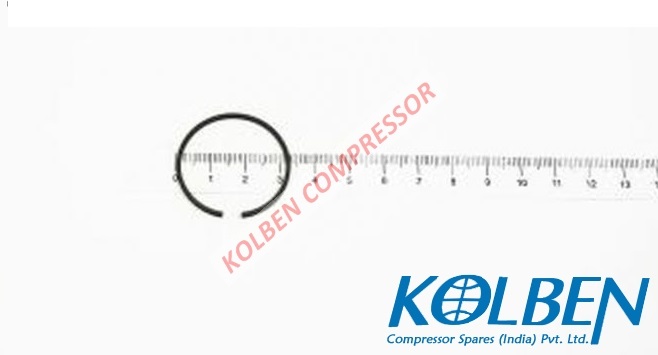

6.



2KES-05


382300-88


compression ring piston Ø30 x 1,5 (38230088)






7.



2KES-05


302132-01


connecting rod Ø55 x Ø10 x 72 (30213201)

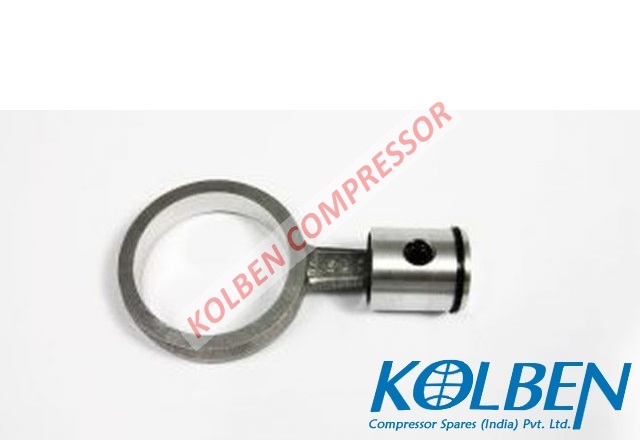

8.



2KES-05


302297-93


connecting rod / piston (30229793)






9.



2KES-05


343417-14


connection to ground, complete (34341714)






10.



2KES-05


343224-02


crankcase heater 100-240V-60W-PTC Ø11 x 95 (34322402)






11.



2KES-05


302360-12


cylinder head 152 x 102 x 51,5 (30236012)






12.



2KES-05


313000-17


Disk built-in motor Ø30 x Ø10,5 x 6 (31300017)






13.



2KES-05


301109-50


Eccentric shaft Ø55 x 245 (30110950)






14.



2KES-05


320354-02


Eye bolt 51 x 30 x 4 (32035402)

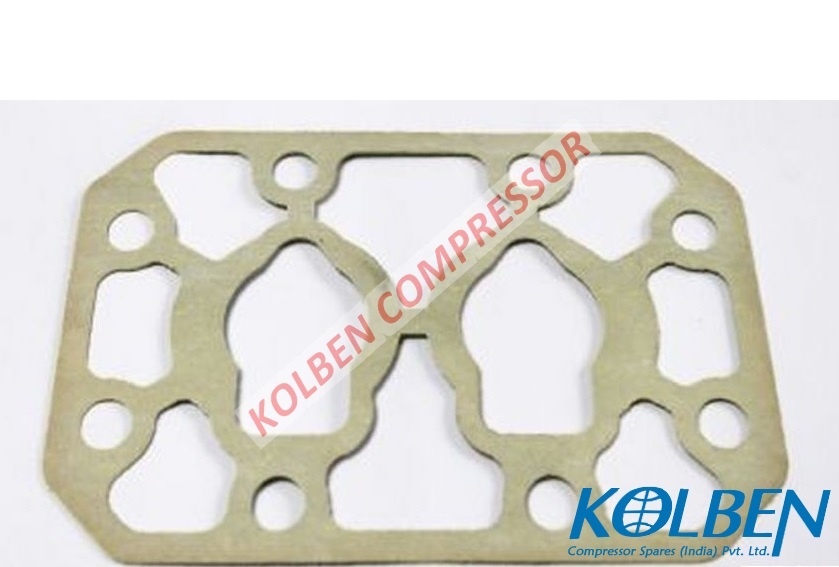

15.



2KES-05


372516-01


Gasket valve plate 152 x 102 x 0,7 (37251601)






16.



2KES-05


372617-01


Gasket cylinder head Retall 152 x 102 x 0,38 (37261701)






17.



2KES-05


372702-03


gasket suction shut-off valve 35 x 60 x 1 (37270203)






18.



2KES-05


372938-01


Gasket Terminal plate 52 x 52 x 0,38 (37293801)






19.



2KES-05


372718-01


Gasket Terminal plate Retall 32 x 48 x 0,38 (37271801)






20.



2KES-05


372713-01


Gasket discharge shut-off valve 24 x 52 x 1 (37271301)






21.



2KES-05


372937-02


gasket housing cover 202 x 202 x 0,38 (37293702)






22.



2KES-05


382401-30


Gasket ring oil drain copper A8 x 14 x 2 (38240130)






23.



2KES-05


372200-10


gasket ring sight glass teflon Ø31,9 x 1,6 x 1,8 (37220010)

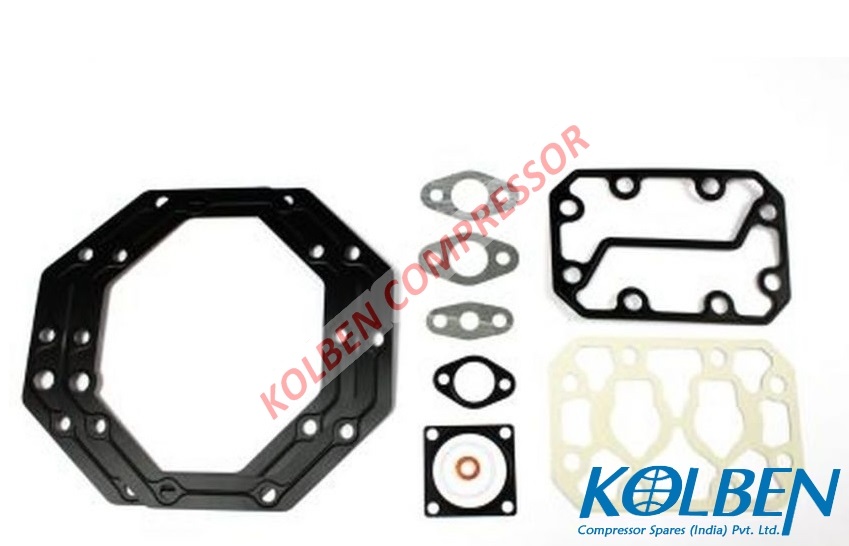

24.



2KES-05


372834-01


gasket set (37283401)






25.



2KES-05


380056-04


hexagon head screw cylinder head DIN 931, 10.9 M10 x 65 (38005604)






26.



2KES-05


380056-14


hexagon head screw cylinder head DIN 931, 10.9 M10 x 70 (38005614)






27.



2KES-05


380169-01


Hexagon head screw built-in motor coated DIN 933, 10.9 M10 x 30 (38016901)






28.



2KES-05


380155-54


hexagon head screw bearing cover DIN 933, 10.9 M8 x 25 (38015554)






29.



2KES-05


380104-05


Hexagon head screw Terminal plate DIN 933, 8.8 M6 x 18 (38010405)






30.



2KES-05


380153-02


Hexagon head screw oil splasher plate steel DIN 933, 10.9 M5 x 10 (38015302)






31.



2KES-05


305227-02


housing cover Motor side 202 x 202 x 18 (30522702)






32.



2KES-05


321105-02


oil splasher plate steel Ø156 x 33 (32110502)






33.



2KES-05


380501-54


Oval head screw terminal box aluminium galvanized DIN 7985, 4.8 M6 x 16 (38050154)






34.



2KES-05


384001-03


Parallel key built-in motor steel DIN 6885 A6 x 6 x 45 (38400103)






35.



2KES-05


302233-88


Piston Ø30 (30223388)






36.



2KES-05


347019-01


protection device SE-B1 230V-50/60Hz (34701901)






37.



2KES-05


366201-16


Protective Cap Span of the jaw: 20 Plastic - GRP 3/4"-16 UNF / L=36 mm (36620116)






38.



2KES-05


382231-22


Retaining ring with lugs wrist pin spring steel DIN 472 Ø10 x 1 (38223122)






39.



2KES-05


361501-22


Schrader valve oil fill connection 1/4" - 18 NPTF (36150122)






40.



2KES-05


315027-01


Screw for grounding Terminal plate M6 x 40 (31502701)






41.



2KES-05


366100-01


Sealing Plug cylinder head brass 1/8" - 27 NPTF (36610001)






42.



2KES-05


361315-11


shut-off valve Discharge side brazed connection Ø12 L (36131511)






43.



2KES-05


361315-10


shut-off valve suction side brazed connection Ø16 L (36131510)






44.



2KES-05


361815-01


Sight Glass steel / glass 1 1/8" - 18 UNEF (36181501)






45.



2KES-05


382201-05


Single coil spring washer built-in motor spring steel DIN 127 A10 (38220105)






46.



2KES-05


325900-05


spring washer wrist pin Ø19 x Ø10,5 x 0,15 (32590005)






47.



2KES-05


362012-04


suction gas filter suction shut-off valve LA 42 (36201204)






48.



2KES-05


343509-01


terminal box 202 x 95 x 57 (34350901)






49.



2KES-05


345504-01


Terminal plate 48 x 32 x 39 (34550401)






50.



2KES-05


345500-15


Terminal plate 6-Lead 52 x 52 x 39 (34550015)






51.



2KES-05


343428-01


terminal plate kit (34342801)






52.



2KES-05


382150-05


thrust washer spring steel Ø9 (38215005)






53.



2KES-05


312103-01


Thrust washer Motor side Ø33 x Ø26,5 x 3 (31210301)






54.



2KES-05


375079-01


Train plug (37507901)

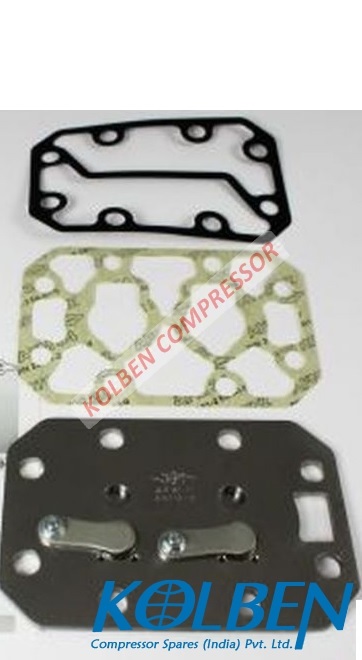

55.



2KES-05


304055-04


valve plate Ø30 (30405504)






56.



2KES-05


370000-19


vibration damper set rubber (37000019)

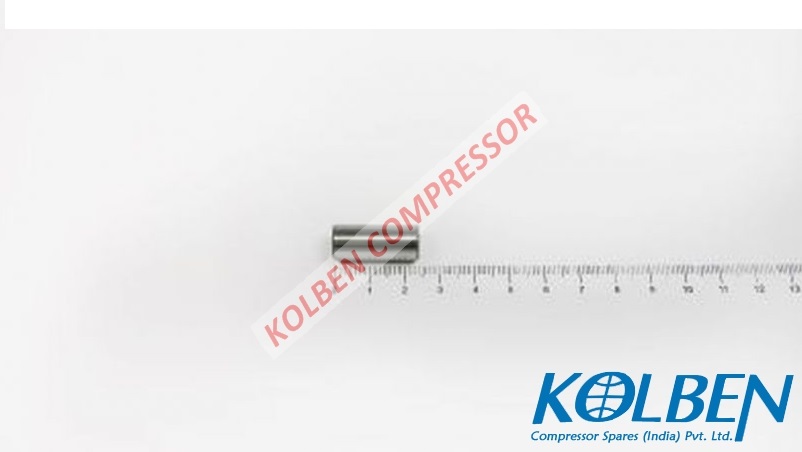

57.



2KES-05


383401-41


Wrist pin DIN 73126 Ø10 x Ø6 x 24 (38340141)
