Sr. No. |
Image |
Model |
OEM Part No. |
Description |
|
1. |
|
IV, V, VI, VII |
320200-04 |
Suction Reed 54.4X29.8X0.4-To Fit Bitzer Ⅳ,Ⅴ,Ⅵ,Ⅶ |
|
2. |
|
2N, 2T, V, VI |
362001-01 |
Suction Gas Filter 35.0X29.0X40.1-To Fit Bitzer 2N2,2N,2Q,2T2,2U,Ⅴ,Ⅵ |
|
3. |
|
4N, 4NC , 4NCS, 4PC, 4PCS, VII |
362001-08 |
Suction Gas Filter 70.0X49.3X55.2-To Fit Bitzer 4Ncs20,4N,4Nc20, 4Ncs,4Pc15,4Pcs,Ⅶ |
|
4. |
|
VI |
372800-07 |

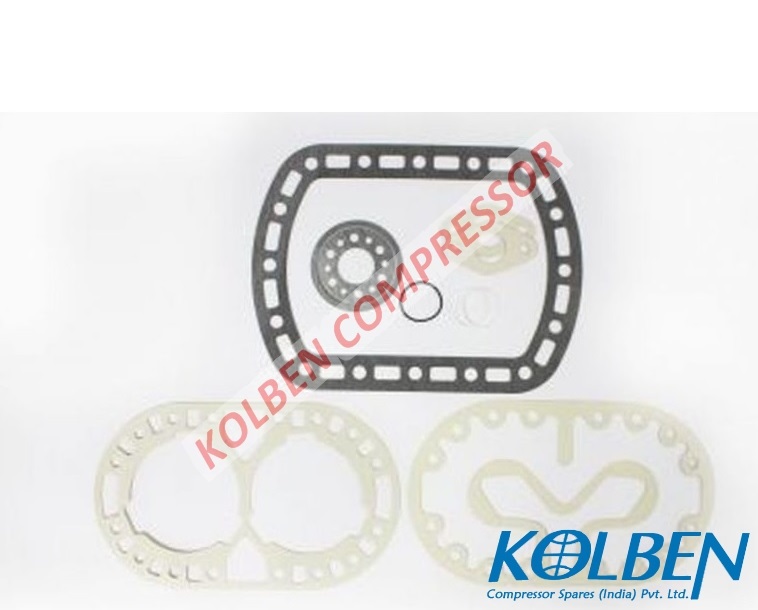

Gasket Set-To Fit Bitzer Vi |
|
5. |
|
VIW |
313100-01 |
insert plate Ø10 x 4,5 (31310001) |
|
6. |
|
VIW |
324018-02 |
locking plate 53,5 x 8,2 x 2,6 (32401802) |
|
7. |
|
VIW |
372001-11 |
O-ring violet HCFC, (CFC) Ø40 x 5 (37200111) |
|
8. |
|
VIW |

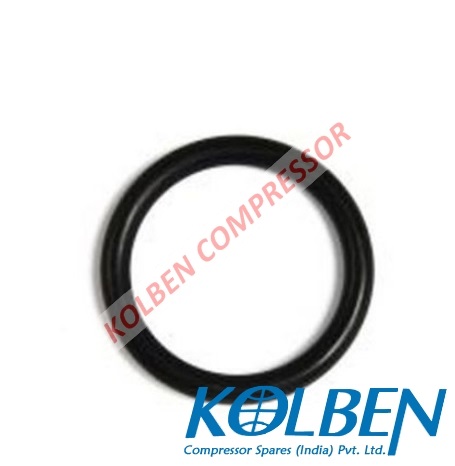

372001-08 |
O-ring violet HCFC, (CFC) Ø35 x 5 (37200108) |
|
9. |
|
VIW |
372003-15 |
O-ring sight glassMØ36,3 x 1,78M(37200315) |
|
10. |
|
VIW |

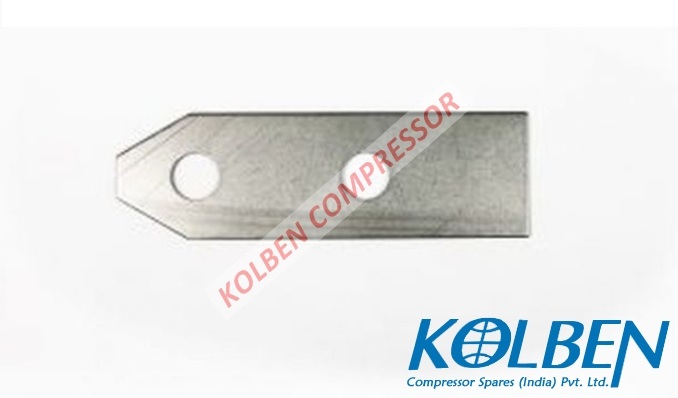

320308-06 |
oil splasher plate 114 x 35 x 1,5 (32030806) |
|
11. |
|
VIW |
366000-07 |
pipe connection steel copper-plated brazed connection Ø35, 1 3/4" - 12 UN (36600007) |
|
12. |
|
VIW |
366000-06 |
pipe connection steel copper-plated brazed connection Ø28, 1 3/4" - 12 UN (36600006) |
|
13. |
|
VIW |
302233-18 |

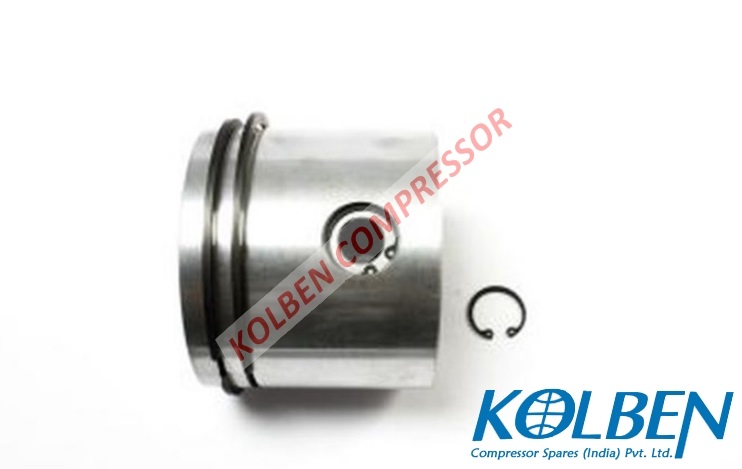

piston aluminium alloy Ø105 x 90 x Ø25 (30223318) |
|
14. |
|
VIW |

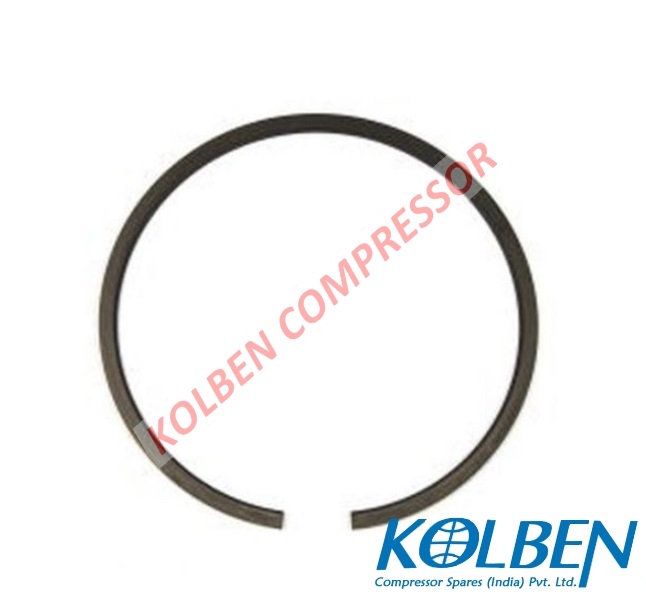

382300-39 |
piston ring Ø105 x 2,5 (38230039) |
|
15. |
|
VIW |
325000-21 |
pressure spring steel 3,5 x Ø18 x 31,5 (32500021) |
|
16. |
|
VIW |
325000-20 |
pressure spring steel 1,2 x Ø7 x 15,5 (32500020) |
|
17. |
|
VIW |
366201-19 |
Protective Cap Span of the jaw: 27 Plastic - GRP M24 x 2 / L=57,5 mm (36620119) |
|
18. |
|
VIW |
320230-03 |
retainer 55 x 19,2 x 2 (32023003) |
|
19. |
|
VIW |
382231-06 |
retaining ring with lugs spring steel DIN 472 Ø25 x 1,2 (38223106) |
|
20. |
|
VIW |

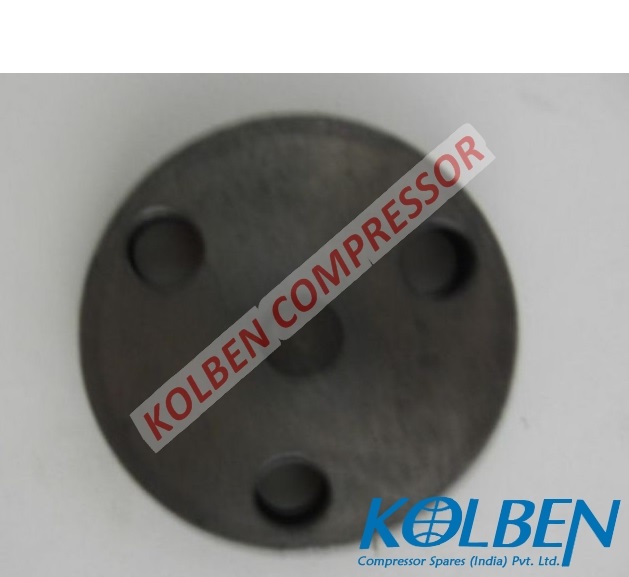

305412-02 |
sealing cover Ø55 x 10 (30541202) |
|
21. |
|
VIW |
366202-01 |
sealing nut 7/16" - 20 UNF (36620201) |
|
22. |
|
VIW |
366111-23 |
sealing plug 1/2" - 14 NPTF (36611123) |
|
23. |
|
VIW |
366110-08 |
Sealing Plug steel 1/4" - 18NPTF (36611008) |
|
24. |
|
VIW |
366110-09 |
sealing plug steel 3/8" - 18 NPTF (36611009) |
|
25. |
|
VIW |
366110-01 |
Sealing plug steel 1/8“ - 27 NPTF (36611001) |
|
26. |
|
VIW |

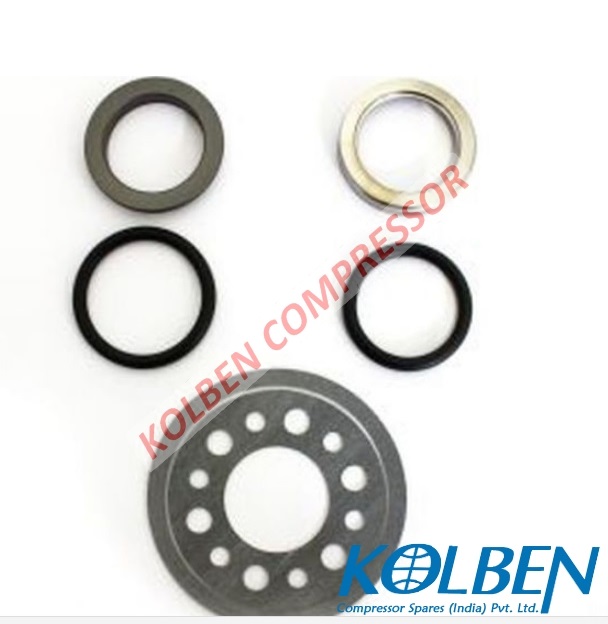

374008-05 |
shaft seal (37400805) |
|
27. |
|
VIW |
361310-08 |
shut-off valve brazing and welding bush Ø35 (1 3/8") (36131008) |
|
28. |
|
VIW |
361310-07 |
shut-off valve brazing and welding bush Ø28 (1 1/8") (36131007) |
|
29. |
|
VIW |

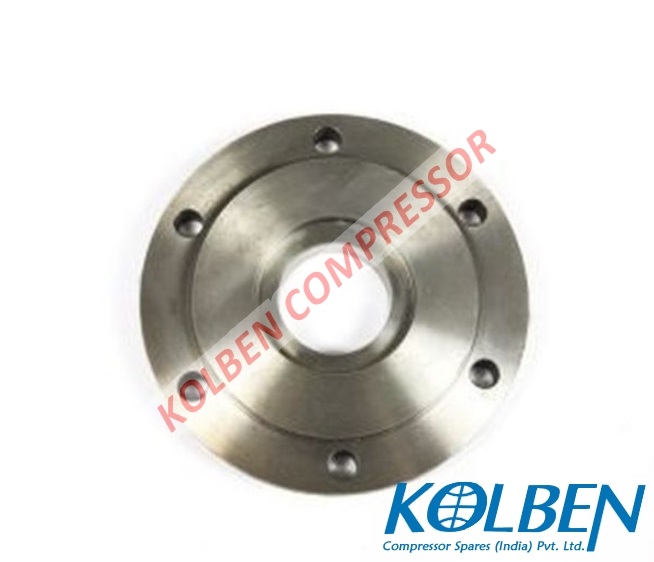

305304-01 |
side cover Ø125 x 18 (30530401) |
|
30. |
|
VIW |
361802-02 |
sight glass Ø67 x 8,5 (36180202) |
|
31. |
|
VIW |
382201-06 |
single coil spring washer spring steel DIN 127 A12 (38220106) |
|
32. |
|
VIW |
320501-04 |
spacer washer spring compensation Ø22 x 0,5 (32050104) |
|
33. |
|
VIW |
362001-01 |
suction gas filter Ø30 x 40 (36200101) |
|
34. |
|
VIW |
315100-08 |
threaded key flywheel M12, Ø22 x 118 (31510008) |
|
35. |
|
VIW |
315107-12 |
threaded key eccentric (31510712) |
|
36. |
|
VIW |
315107-05 |
threaded key flywheel (31510705) |
|
37. |
|
VIW |

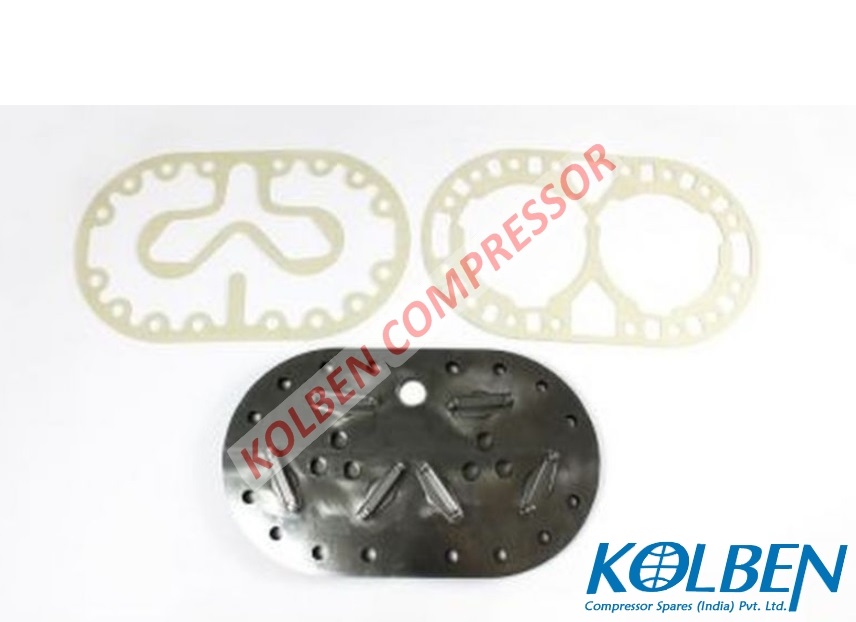

304050-07 |
valve plate Ø105 (30405007) |
|
38. |
|
VIW |
320200-04 |
valve reed 44 x 24,1 x 0,25 (32020004) |
|
39. |
|
VIW |
320210-03 |
valve reed 55 x 19 x 0,5 (32021003) |
|
40. |
|
VIW |
382011-04 |
washer steel DIN 134 A13 (38201104) |
|
41. |
|
VIW |

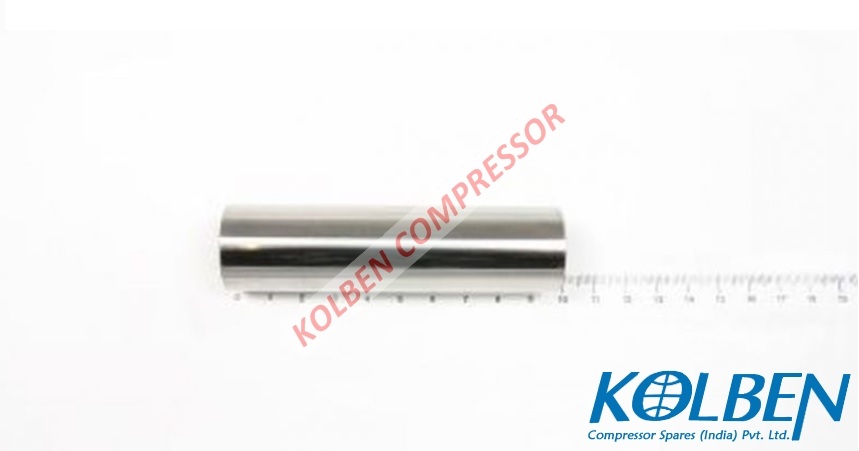

383401-20 |
wrist pin Ø25 x 16 x 94 (38340120) |
|
42. |
|
VIIW |
311100-13 |
bearing bush Ø44 x Ø40 x 50N (31110013) |
|
43. |
|
VIIW |
311103-05 |
bearing bush connecting rod Ø33 x Ø27,8 x 50 (31110305) |
|
44. |
|
VIIW |
311100-10 |
bearing bush face side Ø60 x Ø55 x 40 (31110010) |
|
45. |
|
VIIW |
315020-02 |
cheese head screw M4 x 4 (31502002) |
|
46. |
|
VIIW |
380603-01 |
cheese head screw DIN 912, 8.8 M12 x 50 (38060301) |
|
47. |
|
VIIW |
367121-01 |
clamping plate 80 x 80 (36712101) |
|
48. |
|
VIIW |
302118-04 |
connecting rod using utmost care Ø135 x Ø28 x 260 (30211804) |
|
49. |
|
VIIW |
302239-08 |
connecting rod / piston (30223908) |
|
50. |
|
VIIW |
320315-03 |
covering plate for cylinder 48 x 32 x 0,3 (32031503) |
|
51. |
|
VIIW |
300107-01 |
cylinder grey cast iron 360 x 270 x 231,5 (30010701) |
|
52. |
|
VIIW |
302310-01 |
cylinder head water-cooled grey cast iron 335 x 200 x 77 (30231001) |
|
53. |
|
VIIW |
302007-01 |
eccentric Ø135 x 200 (30200701) |
|
54. |
|
VIIW |
310005-01 |
eccentric shaft steel Ø55 x 578 (31000501) |
|
55. |
|
VIIW |
303404-51 |
flywheel Ø500 x 91 (30340451) |
|
56. |
|
VIIW |
372407-01 |
gasket 320 x 260 x 1 (37240701) |
|
57. |
|
VIIW |
372303-01 |
gasket Ø52 x Ø37 x 2 (37230301) |
|
58. |
|
VIIW |
372301-02 |
gasket Ø70 x Ø54 x 1 (37230102) |
|
59. |
|
VIIW |
372507-01 |
gasket valve plate 200 x 335 x 1 (37250701) |
|
60. |
|
VIIW |
372607-01 |
gasket cylinder head 335 x 200 x 1 (37260701) |
|
61. |
|
VIIW |
372301-06 |
gasket ide cover Ø100 x Ø95 x 1 (37230106) |
|
62. |
|
VIIW |
372704-01 |
Gasket discharge shut-off valve 91 x 52 x 1 (37270401) |
|
63. |
|
VIIW |
372312-03 |
gasket sealing cover Ø80 x Ø60 x 1 (37231203) |
|
64. |
|
VIIW |
372200-04 |
gasket eflon Ø38 x Ø35 x 1,5 (37220004) |
|
65. |
|
VIIW |
372800-08 |
gasket set (37280008) |
|
66. |
|
VIIW |
380155-08 |
hexagon head screw DIN 933, 10.9 M8 x 30 (38015508) |
|
67. |
|
VIIW |
380057-05 |
hexagon head screw DIN 931, 10.9 M12 x 90 (38005705) |
|
68. |
|
VIIW |
380154-06 |
hexagon head screw DIN 933, 10.9 M6 x 20 (38015406) |
|
69. |
|
VIIW |
380157-03 |
hexagon head screw coated DIN 933, 10.9 M12 x 35 (38015703) |
|
70. |
|
VIIW |
380007-52 |
hexagon head screw galvanized DIN 931, 8.8 M12 x 80 (38000752) |
|
71. |
|
VIIW |
380153-02 |
Hexagon head screw steel DIN 933, 10.9 M5 x 10 (38015302) |
|
72. |
|
VIIW |
315000-03 |
hexagon head screw M5 x 21,5 (31500003) |
|
73. |
|
VIIW |
380156-05 |
hexagon head screw DIN 933, 10.9 M10 x 25 (38015605) |
|
74. |
|
VIIW |
380102-91 |
hexagon head screw coated DIN 933, 8.8 M4 x 6 (38010291) |
|
75. |
|
VIIW |
381101-07 |
hexagon nut DIN 934, 8.8 M12 (38110107) |
|
76. |
|
VIIW |
381107-07 |
hexagon nut DIN 934, 8.8 M12 (38110707) |
|
77. |
|
VIIW |
300025-04 |
housing 445 x 380 x 320 (30002504) |
|
78. |
|
VIIW |
313100-01 |
insert plate Ø10 x 4,5 (31310001) |
|
79. |
|
VIIW |
324018-02 |
locking plate 53,5 x 8,2 x 2,6 (32401802) |
|
80. |
|
VIIW |
372001-14 |
O-ring violet HCFC, (CFC) Ø45 x 5 (37200114) |
|
81. |
|
VIIW |
372003-15 |
O-ring sight glass Ø36,3 x 1,78 (37200315) |
|
82. |
|
VIIW |
372001-11 |
O-ring violet HCFC, (CFC) Ø40 x 5 (37200111) |
|
83. |
|
VIIW |
320308-07 |
oil splasher plate 127 x 40 x 1,5 (32030807) |
|
84. |
|
VIIW |
365321-14 |
pipe connection steel brazing and welding bush Ø42 (1 5/8") (36532114) |
|
85. |
|
VIIW |
366000-07 |
pipe connection steel copper-plated brazed connection Ø35, 1 3/4" - 12 UN (36600007) |
|
86. |
|
VIIW |
302233-20 |
piston aluminium alloy Ø120 x 100 x Ø28 (30223320) |
|
87. |
|
VIIW |
382300-41 |
piston ring Ø120 x 2,5 (38230041) |
|
88. |
|
VIIW |
325000-21 |
pressure spring steel 3,5 x Ø18 x 31,5 (32500021) |
|
89. |
|
VIIW |
325000-20 |
pressure spring steel 1,2 x Ø7 x 15,5 (32500020) |
|
90. |
|
VIIW |
366201-22 |
Protective Cap Span of the jaw: 27 Plastic - GRP M27 x 2 / L=70 mm (36620122) |
|
91. |
|
VIIW |
366201-19 |
Protective Cap Span of the jaw: 27 Plastic - GRP M24 x 2 / L=57,5 mm (36620119) |
|
92. |
|
VIIW |
320230-03 |
retainer 55 x 19,2 x 2 (32023003) |
|
93. |
|
VIIW |
382231-07 |
retaining ring with lugs spring steel DIN 472 Ø28 x 1,2 (38223107) |
|
94. |
|
VIIW |
305412-05 |
sealing cover Ø80 x 16 (30541205) |
|
95. |
|
VIIW |
366202-01 |
sealing nut 7/16" - 20 UNF (36620201) |
|
96. |
|
VIIW |
366110-09 |
sealing plug steel 3/8" - 18 NPTF (36611009) |
|
97. |
|
VIIW |
366110-08 |
Sealing Plug steel 1/4" - 18NPTF (36611008) |
|
98. |
|
VIIW |
366111-23 |
sealing plug 1/2" - 14 NPTF (36611123) |
|
99. |
|
VIIW |
366110-10 |
sealing plug steel 1/2" - 14 NPTF (36611010) |
|
100. |
|
VIIW |
366110-01 |
sealing plug steel 1/8“ - 27 NPTF (36611001) |
|
101. |
|
VIIW |
374008-06 |
shaft seal (37400806) |
|
102. |
|
VIIW |
361338-01 |
shut-off valve Ø42 (1 5/8") (36133801) |
|
103. |
|
VIIW |
361310-08 |
shut-off valve brazing and welding bush Ø35 (1 3/8") (36131008) |
|
104. |
|
VIIW |
305305-01 |
side cover Ø150 x 18 (30530501) |
|
105. |
|
VIIW |
361802-02 |
sight glass Ø67 x 8,5 (36180202) |
|
106. |
|
VIIW |
382201-06 |
single coil spring washer spring steel DIN 127 A12 (38220106) |
|
107. |
|
VIIW |
320501-04 |
spacer washer spring compensation Ø22 x 0,5 (32050104) |
|
108. |
|
VIIW |
320321-01 |
stopper plate 190 x 73,5 x 0,75 (32032101) |
|
109. |
|
VIIW |
362001-08 |
suction gas filter Ø50 x 57 (36200108) |
|
110. |
|
VIIW |
315107-12 |
threaded key eccentric (31510712) |
|
111. |
|
VIIW |
315100-08 |
threaded key M12, Ø22 x 118 (31510008) |
|
112. |
|
VIIW |
315107-05 |
threaded key flywheel (31510705) |
|
113. |
|
VIIW |
382150-05 |
thrust washer spring steel Ø9 (38215005) |
|
114. |
|
VIIW |
304050-08 |
valve plate Ø120 (30405008) |
|
115. |
|
VIIW |
320200-04 |
valve reed 44 x 24,1 x 0,25 (32020004) |
|
116. |
|
VIIW |
320210-03 |
valve reed 55 x 19 x 0,5 (32021003) |
|
117. |
|
VIIW |
382011-04 |
washer steel DIN 134 A13 (38201104) |
|
118. |
|
VIIW |
382001-02 |
washer brass DIN 125 A5, 3 (38200102) |
|
119. |
|
VIIW |
383401-22 |
wrist pin Ø28 x 19 x 108 (38340122) |
|
120. |
|
VIW |

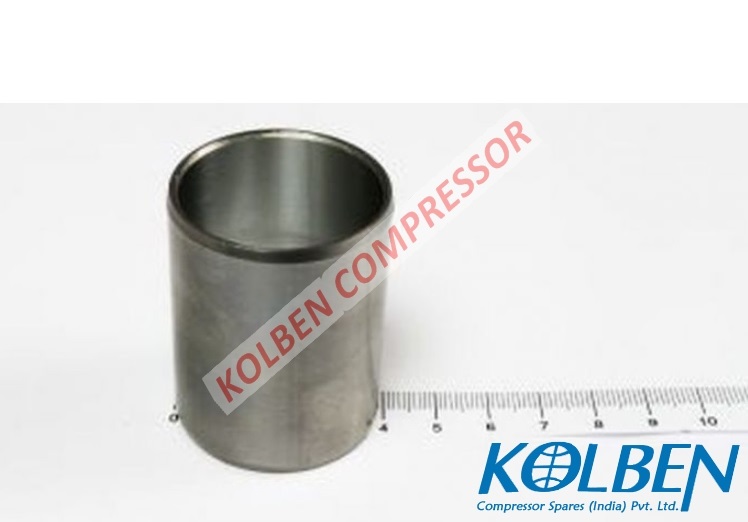

311100-12 |
bearing bush Ø39 x Ø35 x 50 (31110012) |
|
121. |
|
VIW |
311103-04 |
bearing bush connecting rod Ø30 x Ø24,8 x 45 (31110304) |
|
122. |
|
VIW |
311100-09 |
bearing bush face side Ø55 x Ø50 x 30 (31110009) |
|
123. |
|
VIW |
315020-02 |
cheese head screw M4 x 4 (31502002) |
|
124. |
|
VIW |

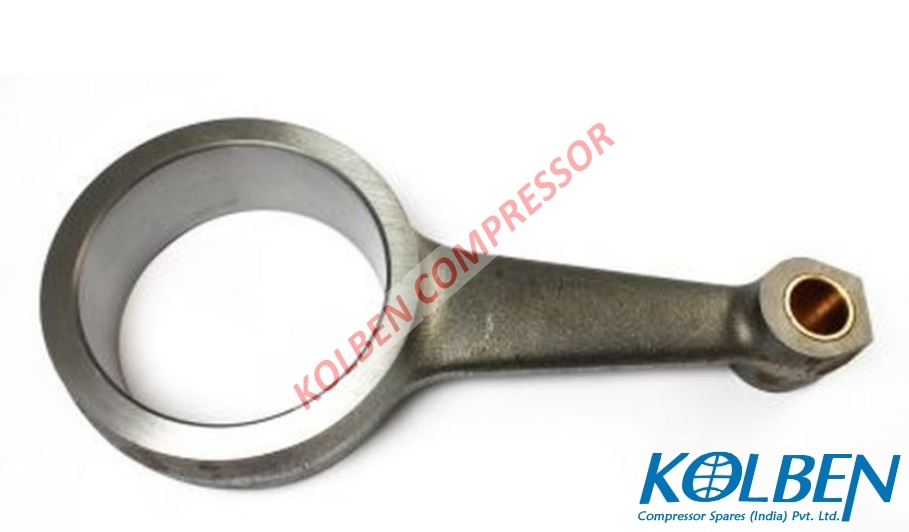

302118-03 |
connecting rod using utmost care Ø120 x Ø25 x 235 (30211803) |
|
125. |
|
VIW |

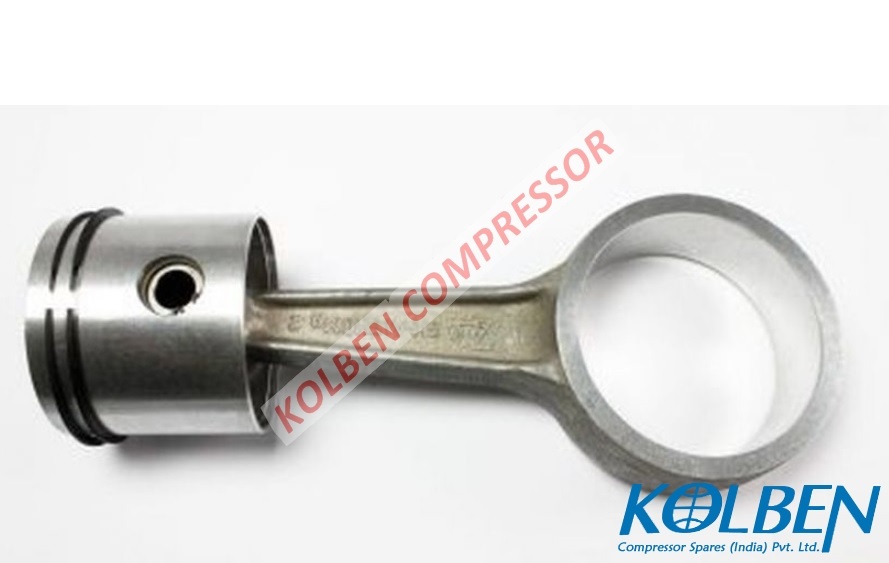

302239-07 |
connecting rod / piston (30223907) |
|
126. |
|
VIW |
320315-03 |
covering plate for cylinder 48 x 32 x 0,3 (32031503) |
|
127. |
|
VIW |

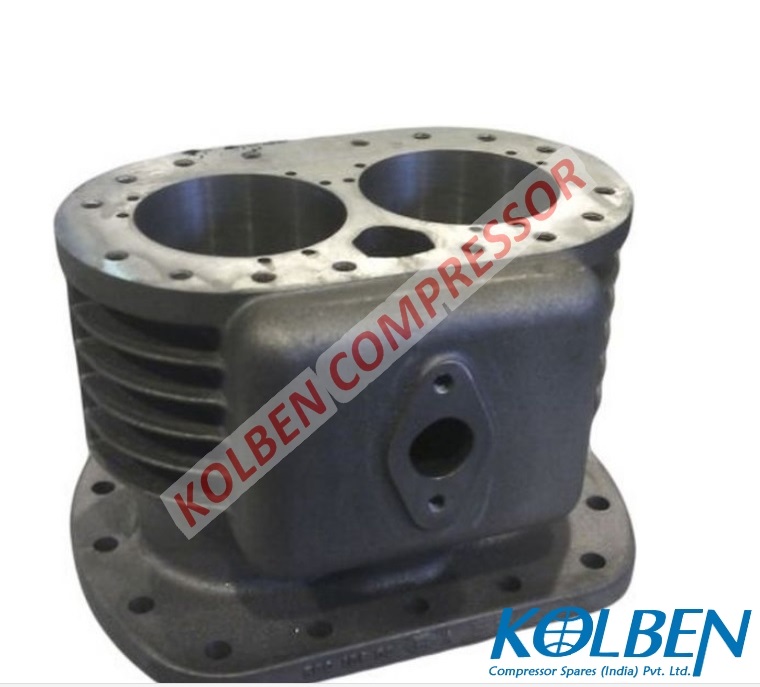

300106-01 |
cylinder grey cast iron 320 x 243 x 204 (30010601) |
|
128. |
|
VIW |

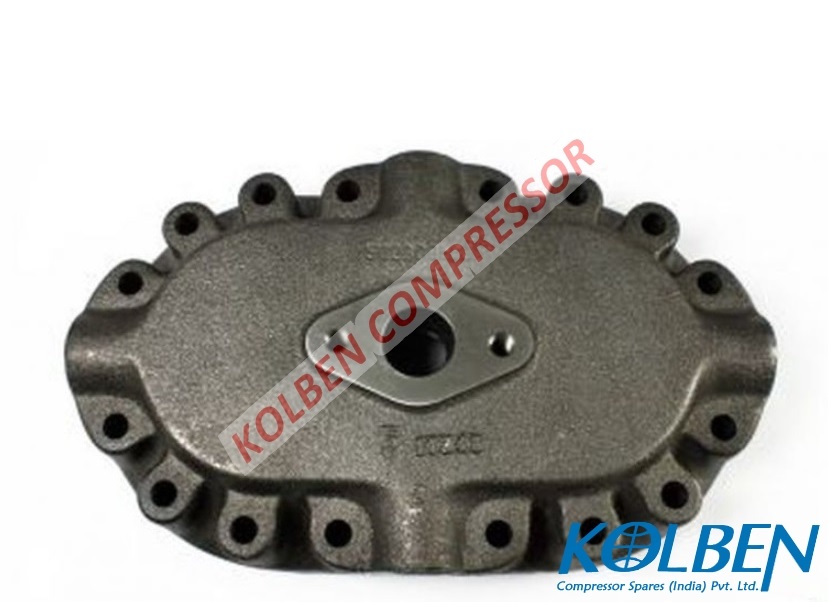

302309-01 |
cylinder head water-cooled grey cast iron 298 x 180 x 70 (30230901) |
|
129. |
|
VIW |

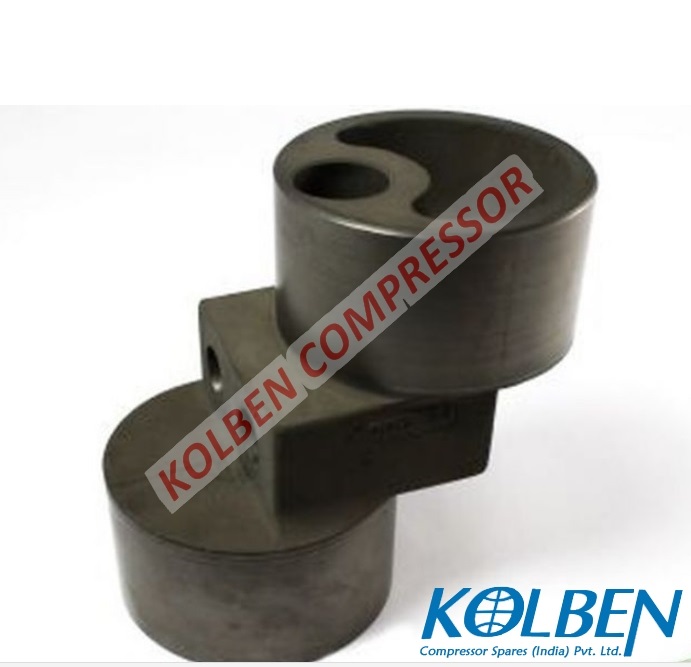

302006-01 |
eccentric Ø120 x 178 (30200601) |
|
130. |
|
VIW |

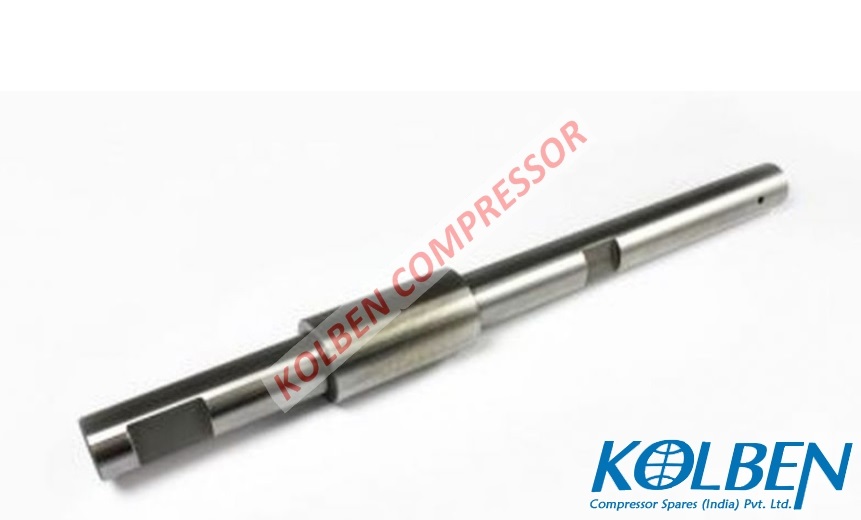

310004-01 |
eccentric shaft Ø50 x 505 (31000401) |
|
131. |
|
VIW |

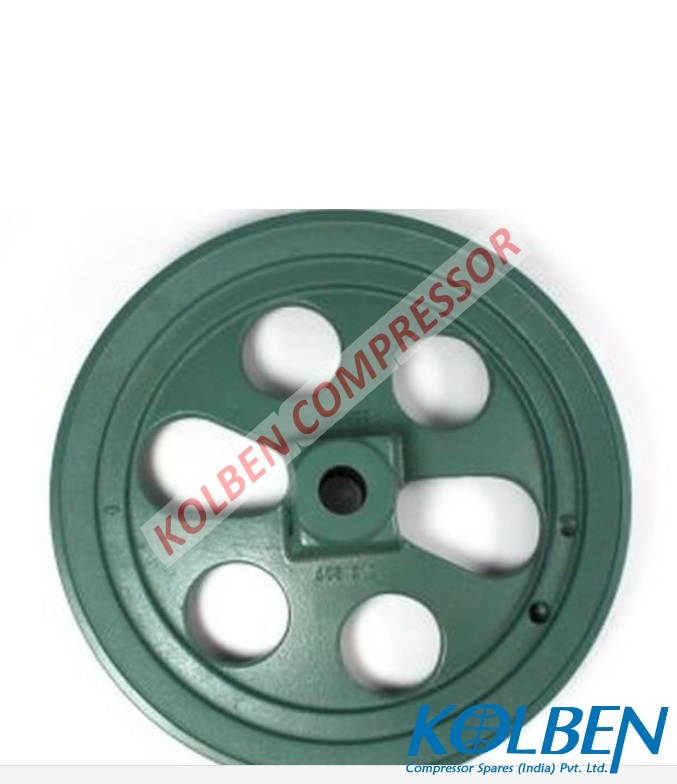

303316-51 |
flywheel Ø450 x 69 (30331651) |
|
132. |
|
VIW |

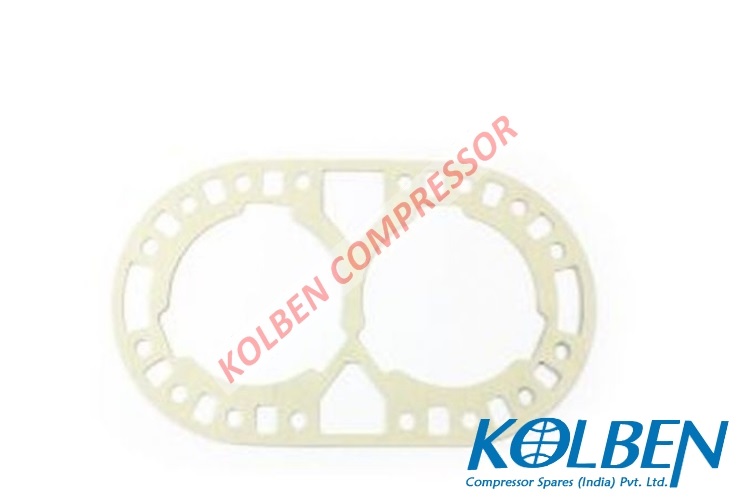

372506-01 |
gasket valve plate 180 x 298 x 1 (37250601) |
|
133. |
|
VIW |

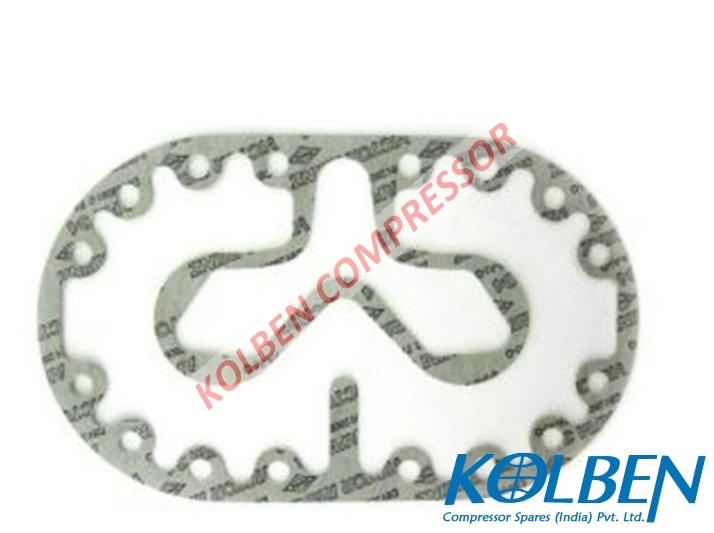

372606-01 |
gasket cylinder head 298 x 180 x 1 (37260601) |
|
134. |
|
VIW |

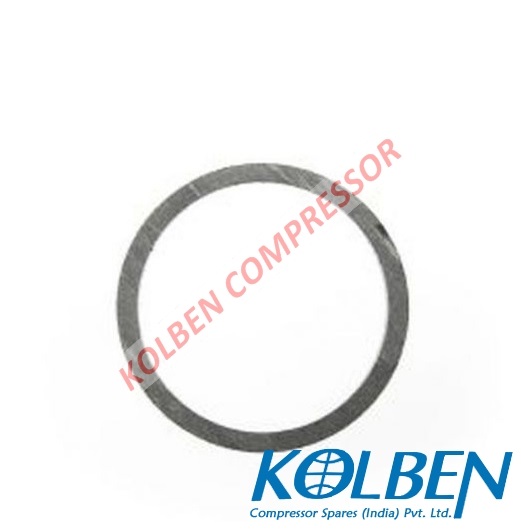

372301-04 |
gasket side cover Ø89 x Ø77 x 1 (37230104) |
|
135. |
|
VIW |
372310-02 |
gasket sealing cover Ø56 x Ø22 x 0,5 (37231002) |
|
136. |
|
VIW |
372704-01 |
Gasket discharge shut-off valve 91 x 52 x 1 (37270401) |
|
137. |
|
VIW |

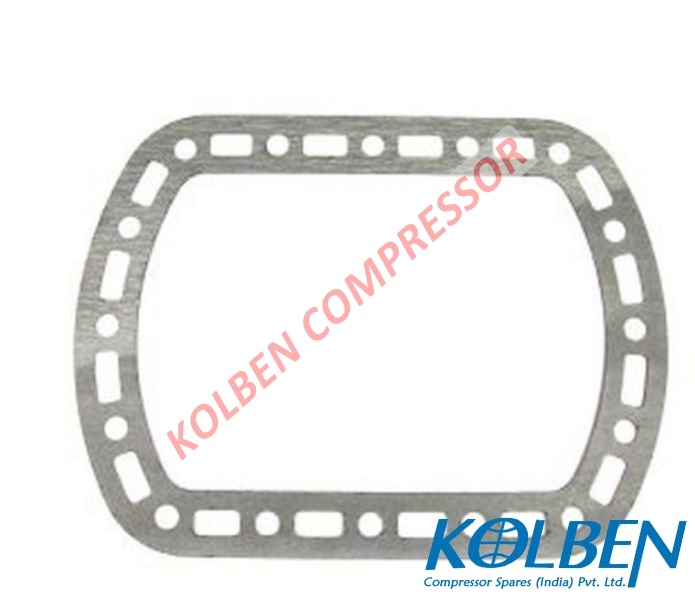

372406-01 |
gasket 320 x 240 x 1 (37240601) |
|
138. |
|
VIW |
372200-04 |
gasket teflon Ø38 x Ø35 x 1,5 (37220004) |
|
139. |
|
VIW |
372800-07 |
gasket set (37280007) |
|
140. |
|
VIW |
380056-08 |
hexagon head screw DIN 931, 10.9 M10 x 85 (38005608) |
|
141. |
|
VIW |
380157-03 |
hexagon head screw coated DIN 933, 10.9 M12 x 35 (38015703) |
|
142. |
|
VIW |
380156-05 |
hexagon head screw DIN 933, 10.9 M10 x 25 (38015605) |
|
143. |
|
VIW |
380102-91 |
hexagon head screw coated DIN 933, 8.8 M4 x 6 (38010291) |
|
144. |
|
VIW |
380155-05 |
hexagon head screw DIN 933, 10.9 M8 x 20 (38015505) |
|
145. |
|
VIW |
380154-06 |
hexagon head screw DIN 933, 10.9 M6 x 20 (38015406) |
|
146. |
|
VIW |
380155-08 |
hexagon head screw DIN 933, 10.9 M8 x 30 (38015508) |
|
147. |
|
VIW |
315000-03 |
hexagon head screw M5 x 21,5 (31500003) |
|
148. |
|
VIW |
381101-07 |
hexagon nut DIN 934, 8.8 M12 (38110107) |
|
149. |
|
VIW |
381107-07 |
hexagon nut DIN 934, 8.8 M12 (38110707) |
|
150. |
|
VIW |
300025-03 |
housing 398 x 330 x 292 (30002503) |
|
