COMPRESSOR PARTS > BITZER > T

Sr. No.


Model

OEM Part No.

Description

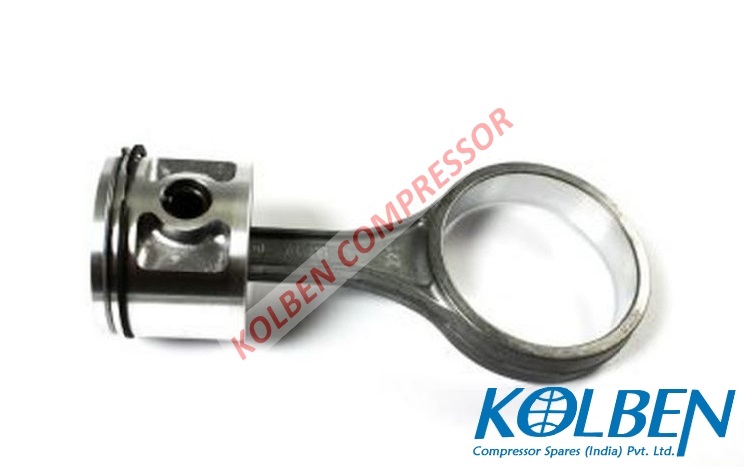

1.



2T, 4T


302297-25


Piston - Piston Ring - Conrod Assy -Std-L-To Fit Bitzer 2T2,4T2,4T,S4T ( 60 Mm )






2.



4TC, 4TCS


302297-10


Piston - Piston Ring - Conrod Assy (60.0X1.50X70)-(Right+Left=Set)-Std -To Fit Bitzer 4Tc,4Tcs






3.



2T, 4T

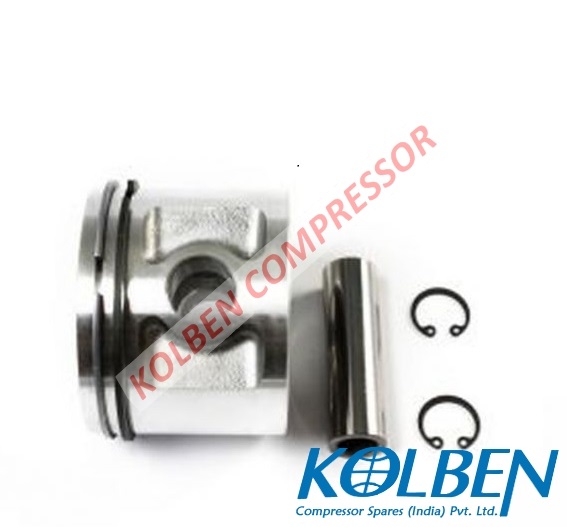

302232-19


Piston - Pin 60.0(Std)X 19.9Xcr1.50Xp1.50X150498-To Fit Bitzer 4T8,4T12,4T,S4T5,2T






4.



4TES, 4TCS


302297-10R


Piston - Pin(Right) 59.9(Std)X 12.5Xcr1.50Xp1.50X160489 -To Fit Bitzer 4Tes8,4Tes12,4Tc8, 4Tc12,4Tcs8,4Tcs12






5.



4TES, 4TCS


302297-10L


Piston - Pin(Left) 59.9(Std)X 12.5Xcr1.50Xp1.50X160489 -To Fit Bitzer 4Tes8,4Tes12,4Tc8, 4Tc12,4Tcs8,4Tcs12






6.



4TC, 4TCS


E


Piston - Pin(Right) E 59.9(Std)X 12.5Xcr1.00Xp1.00X160519-To Fit Bitzer 4Tcs






7.



4TC, 4TCS


E


Piston - Pin(Left) E 59.9(Std)X 12.5Xcr1.00Xp1.00X160519-To Fit Bitzer 4Tcs






8.



4TC, 4TCS



Piston - Pin 16.0X48.9-To Fit Bitzer

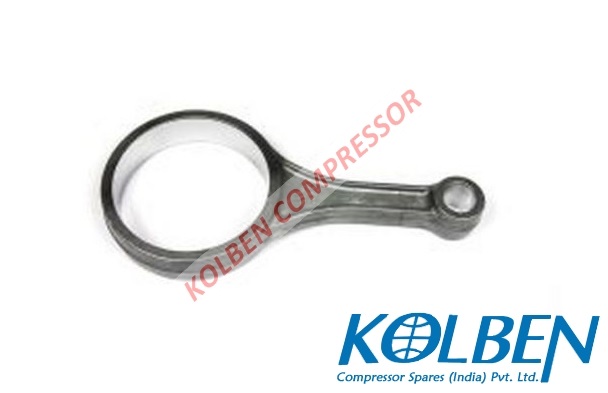

9.



2T, 4T


302114-01


Conrod 70.0(Std)-77.0(Std)-15.0 -To Fit Bitzer T,S4T






10.



2T, 4T



Conrod 70.0(-0.25Mm)-To Fit Bitzer T,S4T






11.



2T, 4T



Conrod 70.0(-0.50Mm) -77.0(+0.25Mm)X15.0-To Fit Bitzer T,S4T






12.



4VC, 4TC, 4PC, 4NC


302131-02


Conrod 70.0(Std)-46.9(Std)-16.0-To Fit Bitzer 4Vc,4Tc,4Pc, 4Tcs,4Nc,4Ves,4Tes,4Nes






13.



4VC, 4TC, 4PC, 4NC



Conrod 70.0(-0.25Mm)-To Fit Bitzer 4Vc6,4Tc12,4Pc10,4Nc12, 4Ves6,4Tes12






14.



4VC, 4TC, 4PC, 4NC



Conrod 70.0(-0.50Mm) -46.9(+0.25Mm)-16.0-To Fit Bitzer 4Vc6,4Tc12,4Pc10,4Nc12, 4Ves6,4Tes12






15.



2N, 4T, 4N, 2T, 2N


382300-52

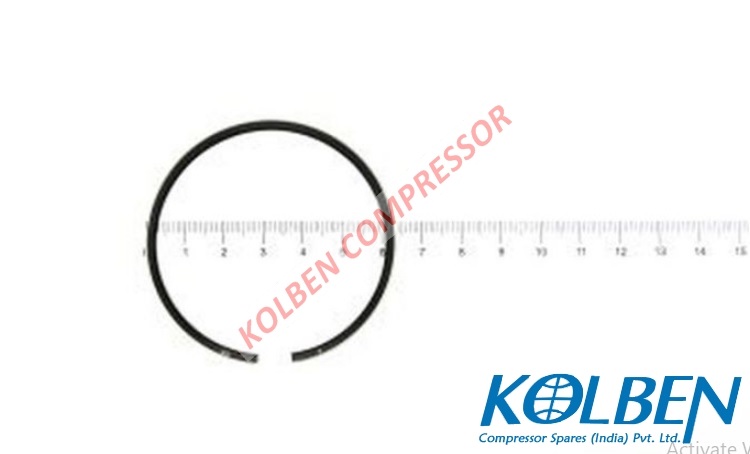

Piston Ring 60.0(Std)-Cr1.50-To Fit Bitzer 2Q,2N,4Tcs,4Tc,4Tes,4Te,4T,4N, S4T,S4N, S4G,2T.2,2N.2,4T.2,4N.2,






16.



2N, 4T, 4N, 2T, 2N


382310-19

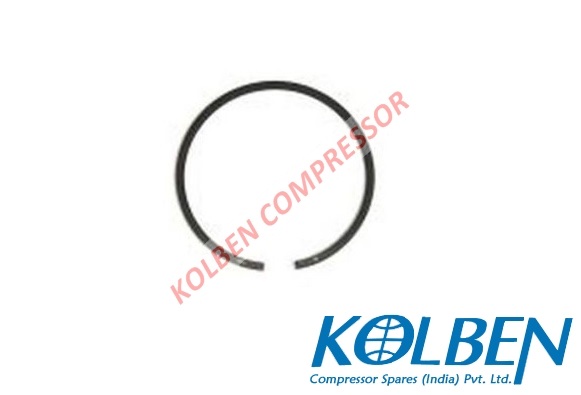

Piston Ring 60.0(Std)-P1.50-To Fit Bitzer 2Q,2N,4Tcs,4Tc,4Tes,4Te,4T,4N, S4T,S4N,S4G,2T.2,2N.2,4T.2,4N.2,






17.



4TC, 4TCS


382303-01


Piston Ring 60.0(Std)-Cr1.00-To Fit Bitzer 4Tcs,4Tc,4Tes,4Te






18.



4TC, 4TCS


382310-41


Piston Ring 60.0(Std)-P1.00-To Fit Bitzer 4Tcs,4Tc,4Tes,4Te






19.



4P, 4N, 4T



Discharge Reed 42.5X16.0-To Fit Bitzer 2Hc2,4P10,4N12,2Q4,4T8,2U5,4Z5, 4V10






20.



4VC, 4TC , 4NC



Discharge Reed 43.9X16.8X0.3-To Fit Bitzer 4Vc6,4Tc8,4Pc10






21.



4VC, 4TC , 4NC



Discharge Spring 43.9X16.8X0.3-To Fit Bitzer 4Vc6,4Tc8,4Pc10






22.



N, P, T,



Discharge Valve 44.0X16.0X0.4-To Fit Bitzer N,T,P 2,4Cyl






23.



4TC, 4N



Suction Reed 72.0X35.0-To Fit Bitzer 4Tc8,4N12,2Q4,4T8,S4T5






24.



4N, 4P, 4T, 2N, 2P, 2T



Suction Reed 72.0X33.5X0.5-To Fit Bitzer 2,4 N,T,P






25.



4NCS, 4PCS, 4TCS


301117-04

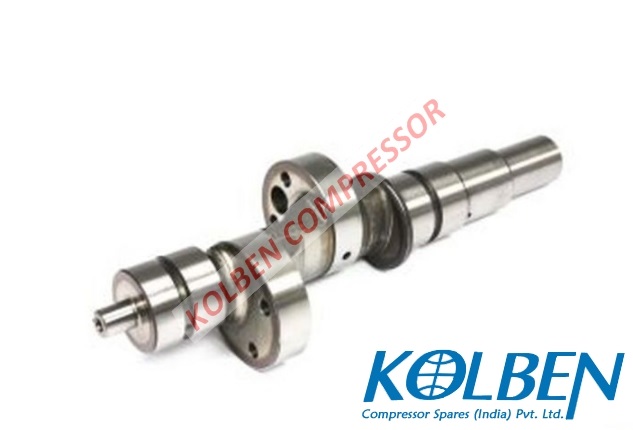

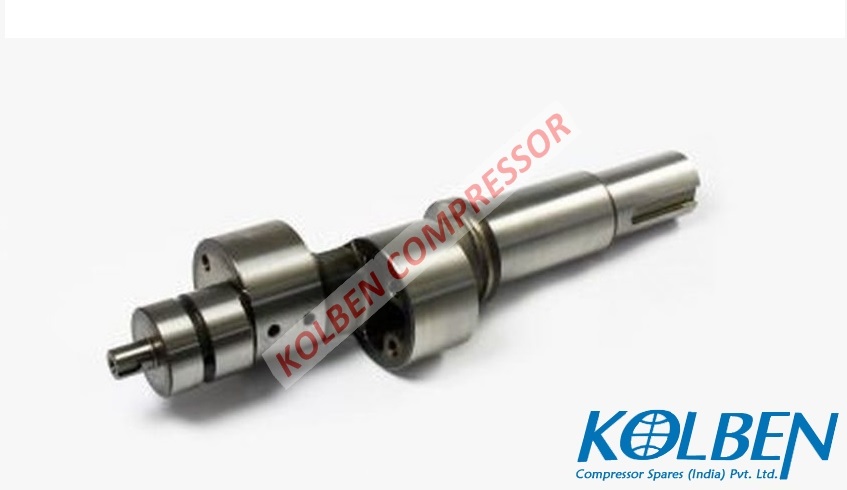

Crankshaft 44.9X69.9(2+2)X44.9 -376Mm-To Fit Bitzer 4Ncs-12.2, 4Pcs-15.2,4Tcs12,4Ncs20






26.



4NC, 4PC, 4TC


301117-02

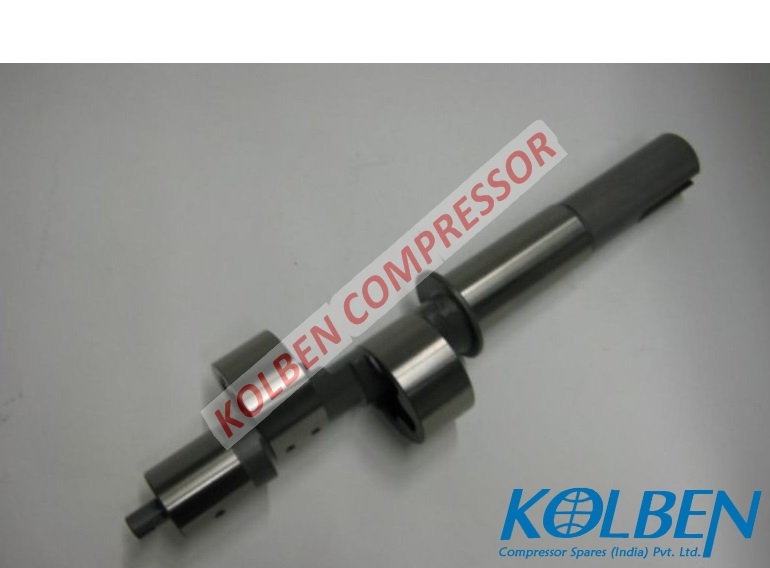

Crankshaft 44.9X69.9(2+2)X44.9 -413Mm-To Fit Bitzer 4Nc-12.2,4Nc-20.2,4Pc15,4Tc-12.2






27.



N, T, F, G, H, J



Main Bushing Insert 50.0X45.0(-0.25Mm) -To Fit Bitzer N,T,F,G,H,J, S4G,S6F,S6H,S6J






28.



N, T, F, G, H, J



Main Bushing Insert 50.0X45.0(-0.50Mm) -To Fit Bitzer N,T,F,G,H,J, S4G,S6F,S6H,S6J






29.



N, T, F, G, H, J


311100-04


Main Bush Insert 50.0X45.0(Std)X47.0- 3Hole-To Fit Bitzer N,T,F,G,H, J,S4G,S6F,S6H,S6J

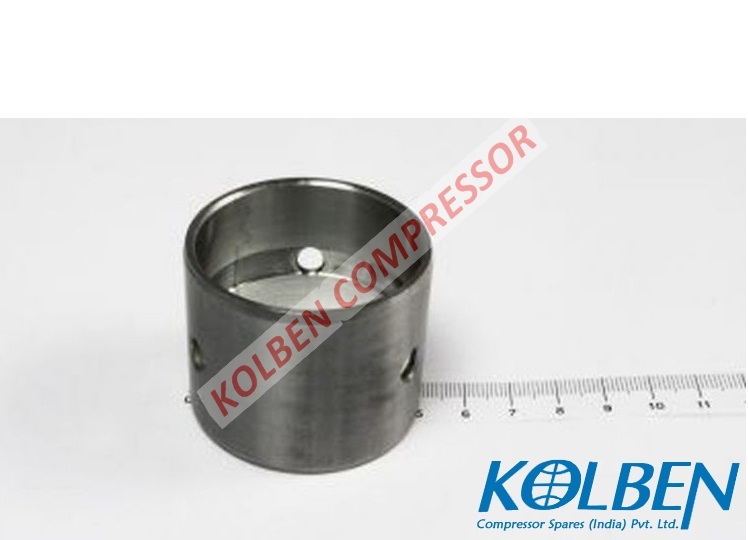

30.



2N, 4T, 4N, 2T


311100-17


Bearing Bush 50.0X45.1(Std)X40.6 -3Hole-To Fit Bitzer 2N,2Q,2T,2U,4P, 4V-10.2,4Z,S4N,S4T






31.



2N, 2T


374011-10

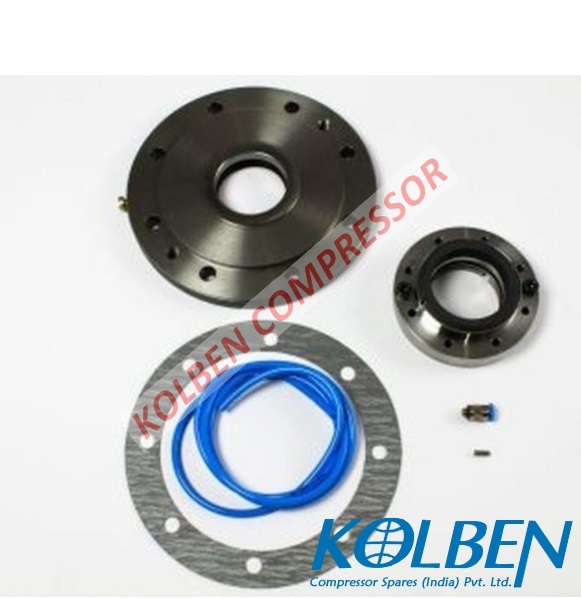

Shaft Seal Complete 41.0-To Fit Bitzer 2N.2,2T.2






32.



4N, 4P, 4T


374011-11


Shaft Seal Assy 42.7-To Fit Bitzer 4N,4P,4T






33.



4NC, 4NCS, 4PC, 4PCS, 4VC, 4VCS, 4TC, 4TCS


320500-10


Thrust Washer 66.0X48.0X1.6-To Fit Bitzer 4Nc,4Ncs,4Pc,4Pcs, 4Tc,4Tcs,4Vc,4Vcs

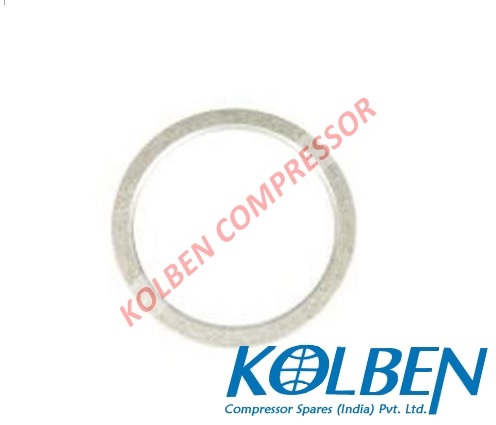

34.



4T, 4N


320500-05


Thrust Washer 62.0X50.5X1.7-To Fit Bitzer 4Z5,4N20,4T,4N

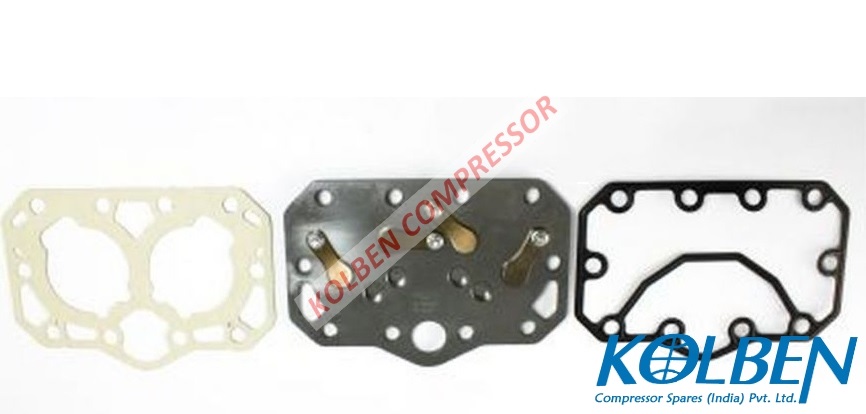

35.



4TC, 4TCS


304063-04


Valve Plate Assy Without Gasket(60.0) 10.5X4-13.0X4-To Fit Bitzer 4Tc8,4Tcs12






36.



4VC, 4TCS, 4PC, 4PCS, 4NC


372623-01


Head Gasket 168.4-To Fit Bitzer 4Vc, 4Tcs,4Pc, 4Pcs,4Nc






37.



4TC, 4TCS


372515-10

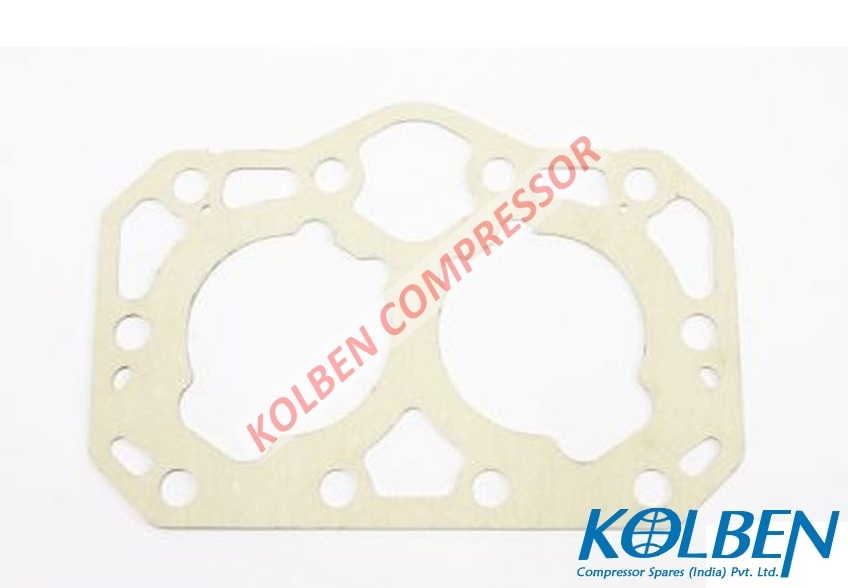

Valve Plate Gasket(60.0) 167.5X61.0-To Fit Bitzer 4Tc8,4Tcs12






38.



2T, 4T,


304017-03L

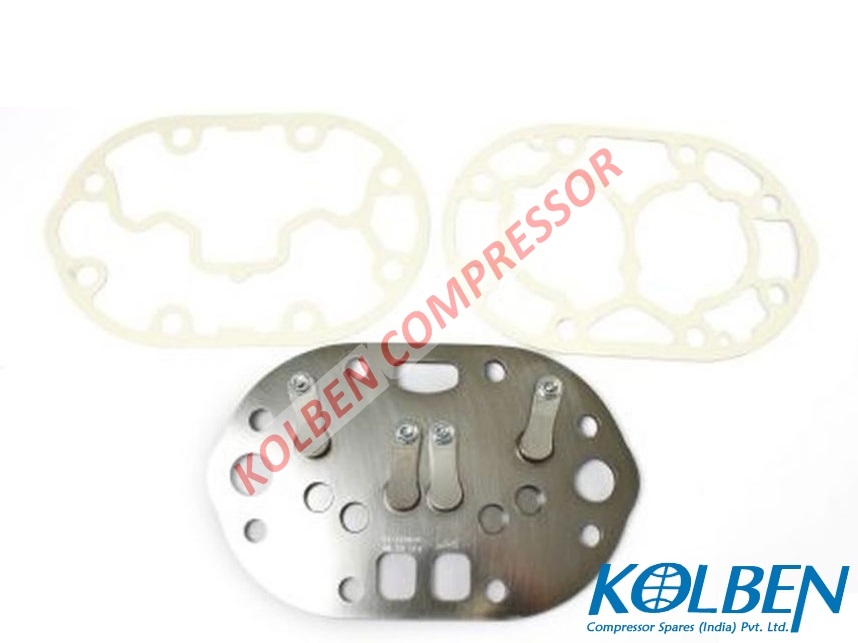

Valve Plate Assy Without Gasket(60.0) 9.53X4-13.05X4-To Fit Bitzer 2Q4,2Q6,2T,4T,4T4T8,4T12,S4T5

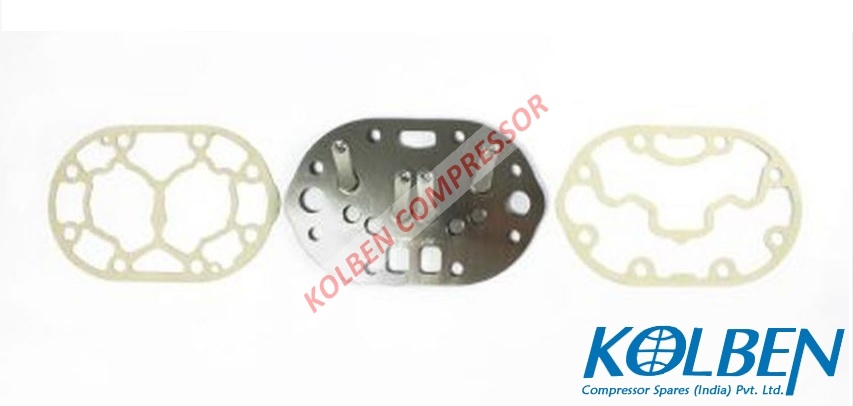

39.

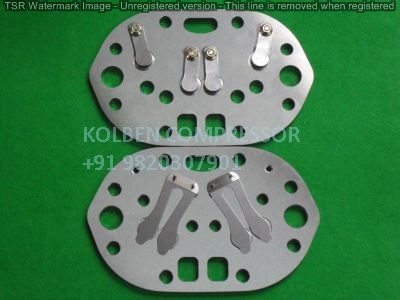

4T


304017-01


Valve Plate Assy Without Gasket 9.53X4-13.05X4-To Fit Bitzer






40.



4P, 4N, 4T


372611-05


Head Gasket 153.0-To Fit Bitzer 4P10,4N12,S4T5,2Q6,4T8,4T

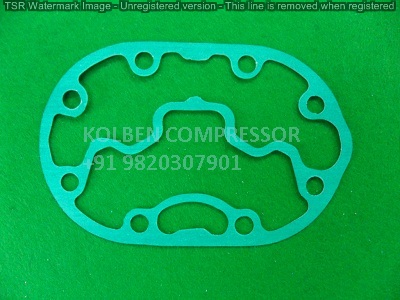

41.



4N, 4T


372611-03

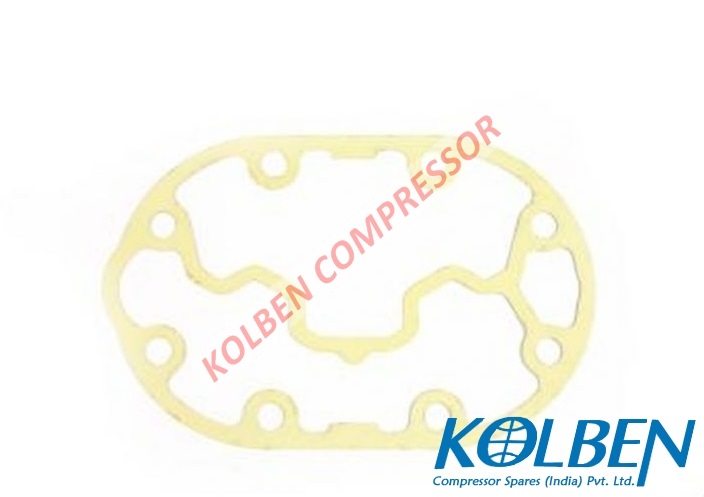

Head Gasket 152.8-To Fit Bitzer S4N,S4T






42.



4N, 4T


372611-02

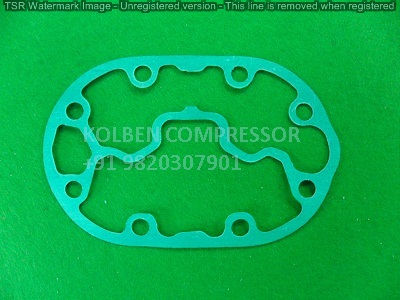

Head Gasket 152.8-To Fit Bitzer S4T,S4N






43.



2N, 4N, 4T


372510-12

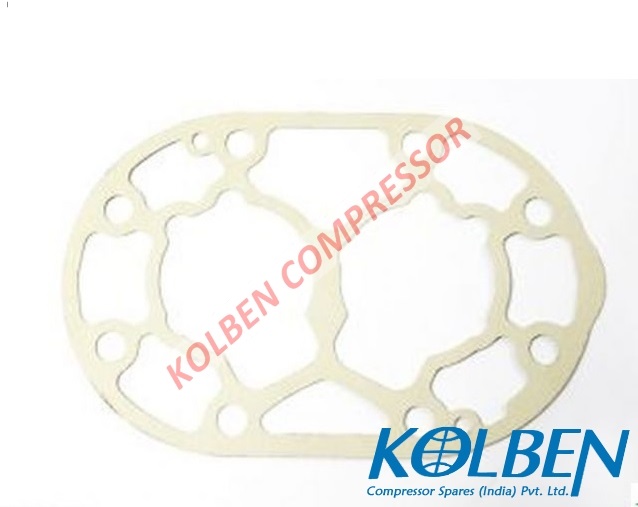

Valve Plate Gasket(60.0) 153.0X61.6-To Fit Bitzer 4N12,2Q6,2N5,S4T5,4T8.4T






44.



6F, 4N, 4P, 4T


304051-15


Valve Plate Assy Without Gasket,Relief Valve(82.0) 10.0X8-18.5X4-3/4Nptf-To Fit Bitzer S6F30,S6F






45.



6F, 4N, 4P, 4T


304016-08


Valve Plate Assy Without Gasket,Seal Plug(82.0) 10.0X8-18.5X4-3/4Nptf-31.0-To Fit Bitzer S6F,S6F30






46.



4TES

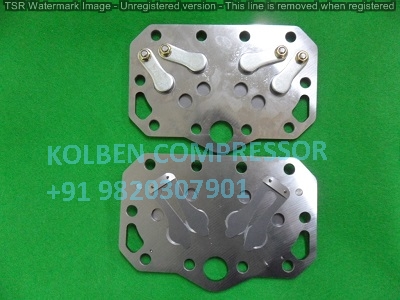

304063-20


Valve Plate(60.0) Complete-To Fit Bitzer 4Tes






47.



4TE


304063-29


Valve Plate(60.0) Complete- To Fit Bitzer 4Te






48.



4N, 4P, 4T, 4F


361100-21


Pressure Relief Valve-34Bar-3/4Nptf-To Fit Bitzer






49.



4N, 4P, 4T, 4F


361100-23


Pressure Relief Valve-15Bar-3/4Nptf-To Fit Bitzer






50.



4VC, 4VCS, 4PC, 4TC, 4TCS, 4NC, 4NCS


345506-01


Terminal Plate-To Fit Bitzer 4Vc,4Vcs,4Ve,4Tc, 4Tcs,4Pc,4Pcs,4Pe,4Nc,4Ncs






51.



4T

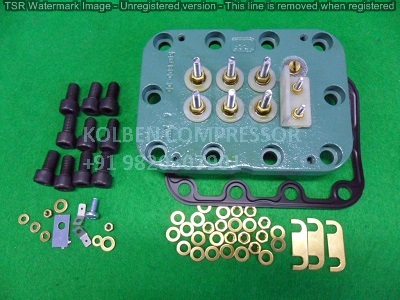

343416-04

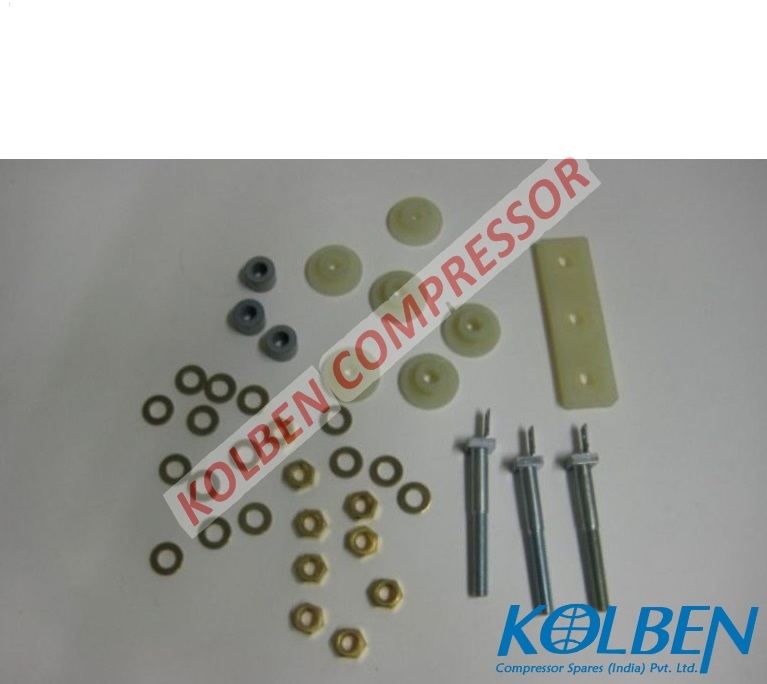

Terminal Plate Kit--To Fit Bitzer S4T5.2






52.



2N, 2T, V, VI


362001-01


Suction Gas Filter 35.0X29.0X40.1-To Fit Bitzer 2N2,2N,2Q,2T2,2U,?,?

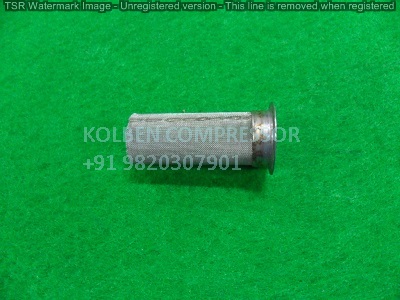

53.



4N, 4T

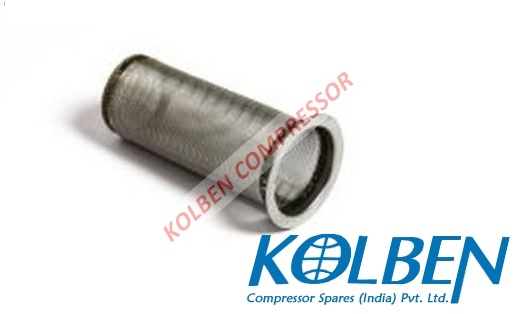

362001-11


Suction Gas Filter 25.0X19.0X50.0-To Fit Bitzer S4N,S4T






54.



4NCS, 4NC, 4PC, 4TC, 4VC


362001-15


Suction Gas Filter 70.0X50.0X54.5-To Fit Bitzer 4Ncs,4Nc,4Pc,4Tc,4Tc,4Vc, 4Vc






55.



4N, 4P, 4T


362001-09


Suction Gas Filter 35.0X29.0X105.0-To Fit Bitzer 4N2,4P2,4P,4T2,4T,4V,4Z






56.



2N, 2T, 4VC, 4TC, 4PC


362003-02

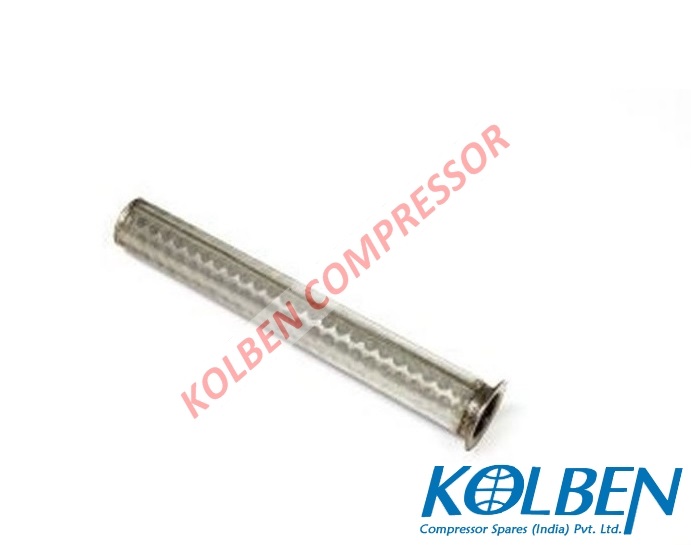

Oil Filter 20.0X13.5X105.0-To Fit Bitzer 2U3,2N7,2T,2N,4Vc10,4Tc12, 4Pc10,4Ncs20






57.



2T, 4NC, 4P, 4PC, 4TC, 4VC,


362503-01

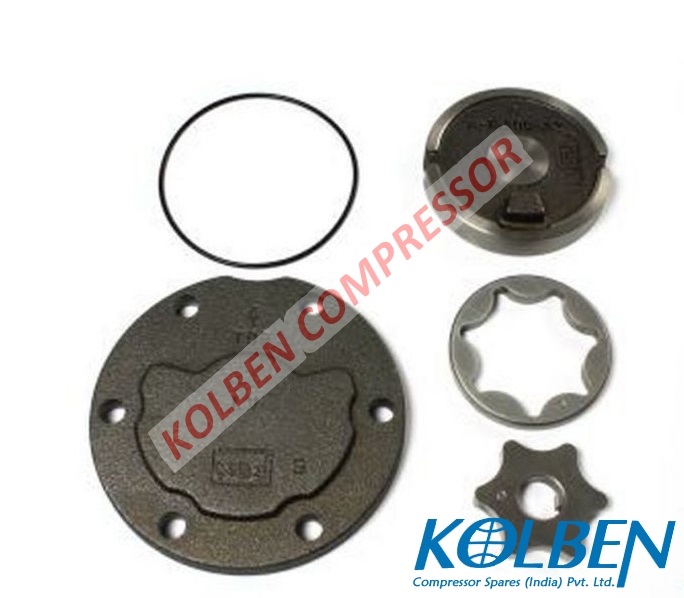

Oil Pump Assy-To Fit Bitzer 2T,4Nc12,4P15, 4Pc10,4Tc12,4Vc6,S4Bcf-5.2Y-25.D,4V-10.2






58.



2T

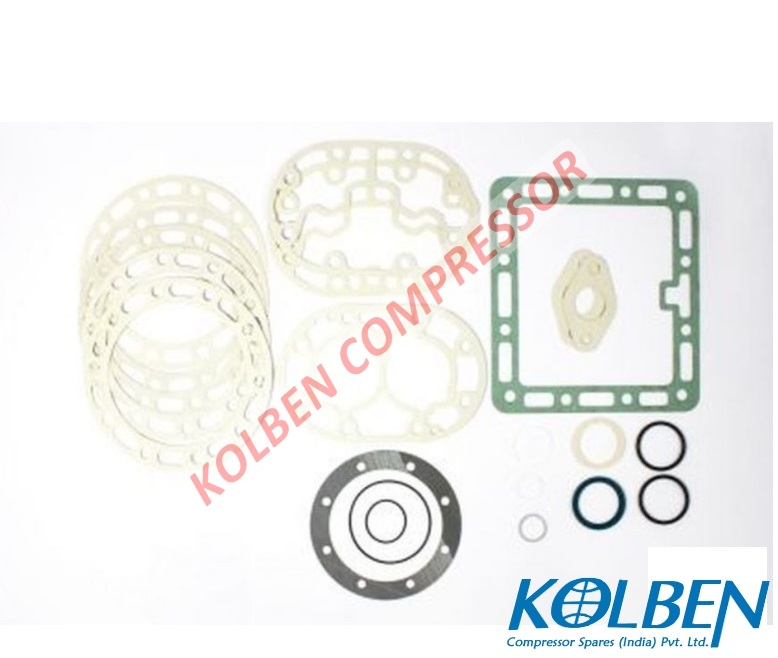

372805-02


Gasket Set(60.0)-To Fit Bitzer 2T.2






59.



4T


372841-02


Gasket Set(65.0)-To Fit Bitzer 4Pcs

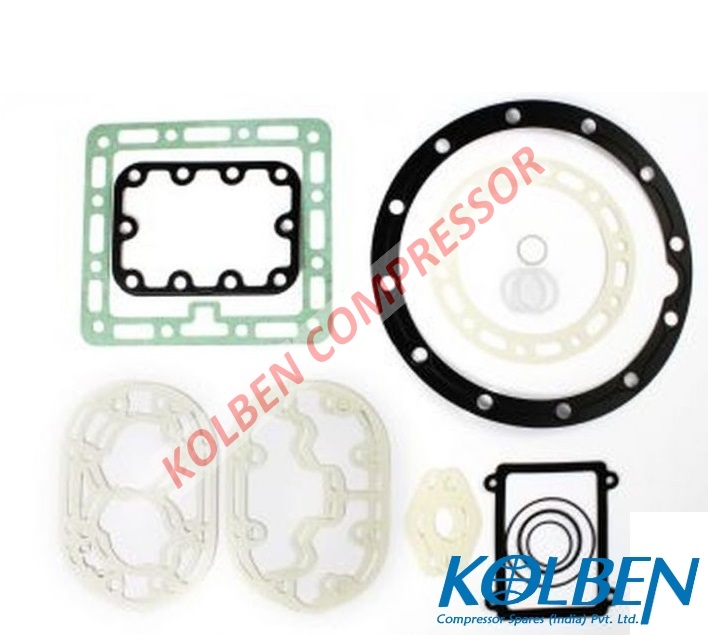

60.



4T


372808-07


Gasket Set(60.0)-To Fit Bitzer 4T-8.2






61.



4T, 4N


372810-02

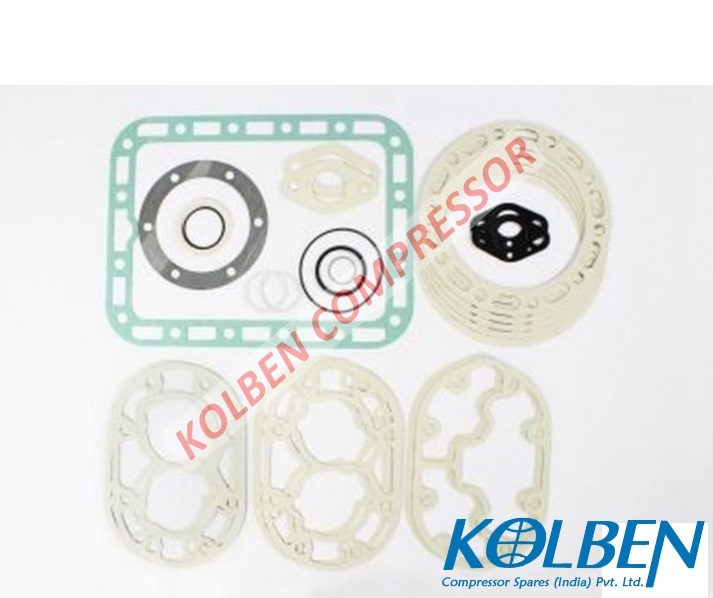

Gasket Set(60.0)-To Fit Bitzer 4T.2,4N.2






62.



4T, 4N


372817-01


Gasket Set(48.0,60.0)-To Fit Bitzer S4T-5.2,S4N-8.2






63.



4TC


372841-03


Gasket Set(60.0)-To Fit Bitzer 4Tc-12.2






64.



4TCS


372841-03


Gasket Set(60.0)-To Fit Bitzer 4Tcs






65.



4N , 4P, 4T


311100-07


Bearing crankcase 4N>4Z






66.



4N, 4P, 4T


311100-17


Bearing pump-end 4N>4Z






67.



4T


302114-01


Con-rod 4T S4T (LP)






68.



4VC , 4TC , 4PC , 4NC


302131-02


Con-rod for models 4VC/4TC/4PC/4NC






69.



4P , 4T , 4N


372810-02


Gasket set for 4P/4T/4N.2 open drive






70.



4VC , 4TC


372841-03/04


Gasket kit 4VC/4TC






71.



4N , 4P , 4T , 4V


0


Heater 240v/100W for models 4N/P/T/V/Z






72.



2T,4T


302232-19


Piston & pin (standard) 2T/4T






73.



4TC,4TCS


N/A


Piston & pin (left-hand) 60mm 4TC






74.



4TC,4TCS


N/A


Piston & pin (right-hand) 60mm 4TC






75.



4T , 4N


382300-64

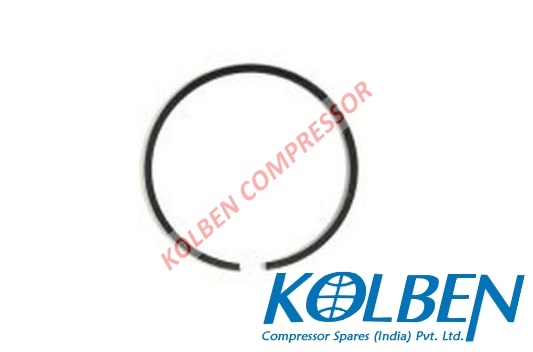

Piston ring 48.00mm x 2mm (std) H/S S4T/S4N






76.



4N , 2N , 4T


382300-14

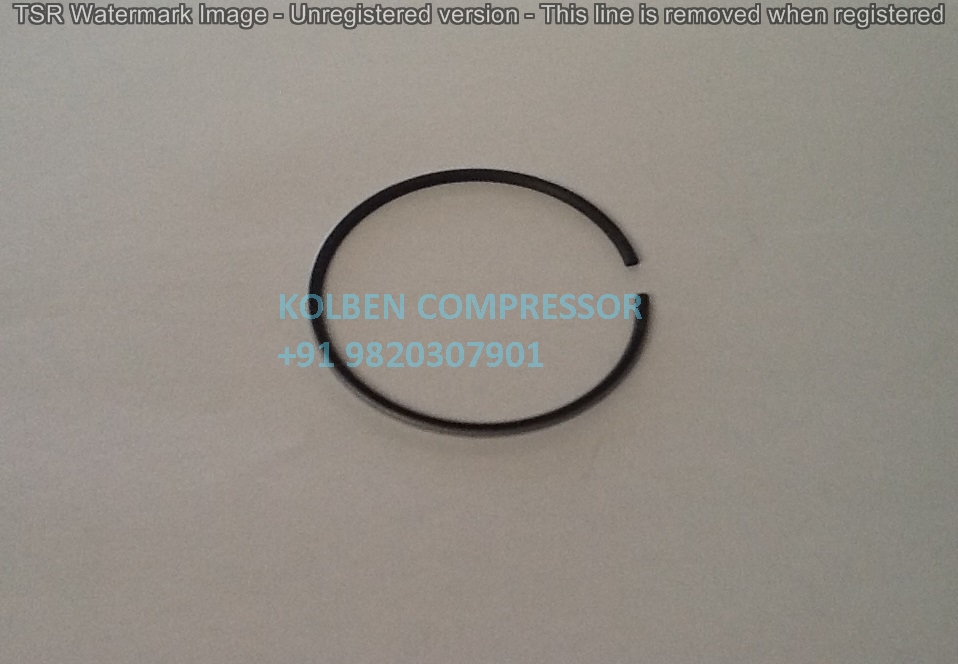

Ring 60.00mm (std) top chrome 2Q,2/4N,4T






77.



4T , 4N


N/A


Ring 60.50mm (o/size) top chrome 2Q,4T,4N






78.



4T , 4N , 2N


382310-19


Ring 60.00mm (std) 2nd phos.2Q,2N/4N,4T






79.



4T , 4N , 2N


N/A


Ring 60.50mm (o/size) 2nd phos. 2Q,2N/4N,4T






80.



2N , 2T


374011-10


Shaft Seal assembly for models 2N/2T






81.



4N , 4T


374011-11


Shaft Seal assembly for models 4N/4T






82.



4N , 4P , 4T , 4V , 4NC


345506-01


Terminal plate assm octagon 4T/V/P/NC






83.



2N , 4T , 4N

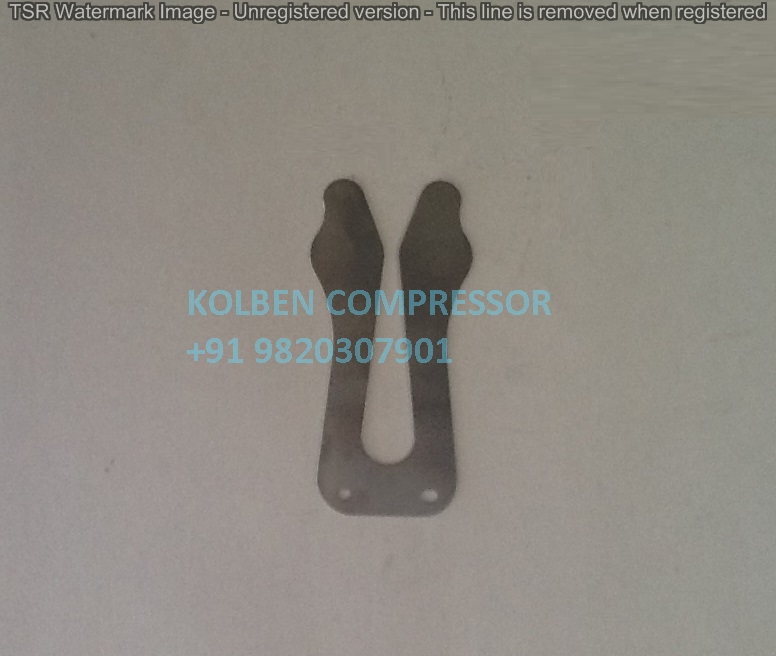

320202-02


Valve reed suction (60.00mm bore) 2Q/2N/4T/4N






84.



4N , 4P , 4T , 4V , 2N , 2P , 2T, TV



Valve reed discharge (flat) 2-4V/T/N/P






85.



4N , 4P , 4T , 4V , 2N , 2P , 2T, TV



Valve reed discharge (spring) 2-4V/T/P/N






86.



4TC


304063-04


Valve plate assembly for models 4TC






87.



4T


304052-01


Valve plate assm for models 2U/Q/4T/4V/4Z







Manufacturers of BITZER COMPRESSOR PARTS
