COMPRESSOR PARTS > BITZER > N

Sr. No.


Model

OEM Part No.

Description

1.



2N, 4N


302297-24


Piston - Piston Ring - Conrod Assy -Std-To Fit Bitzer 2N (60 Mm )






2.



4NC, 4NCS


302297-12


Piston - Piston Ring - Conrod Assy -(Right+Left=Set)-Std-To Fit Bitzer 4Nc12,4Nc20,4Nes ( 70 Mm )






3.



4NC, 4NCS


302.97-12R


Piston - Pin(Right) 69.9(Std)X 12.4Xcr1.48Xp1.48X160550 -To Fit Bitzer 4Nc12,4Nc20, 4Ncs12,4Ncs10,4Ncs20






4.



4NC, 4NCS


302.97-12L


Piston - Pin(Left) 69.9(Std)X 12.4Xcr1.48Xp1.48X160550 -To Fit Bitzer 4Nc12,4Nc20, 4Ncs12,4Ncs10,4Ncs20






5.



4NE, 4NES



Piston - Pin(Right)70.0X 12.5Xcr0.97Xp0.97X160550- To Fit Bitzer 4Nes12 Ecoline






6.



4NE, 4NES



Piston - Pin(Left) 70.0X 12.5Xcr0.97Xp0.97X160550- To Fit Bitzer 4Nes12 Ecoline






7.



4NC, 4NCS


383401-45


Piston - Pin 16.0X55.0-To Fit Bitzer






8.



2N, 4N


383401-04


Piston - Pin 20.0X44.7-To Fit Bitzer






9.



2N, 4N, 4P


302117-05


Conrod 45.00(Std)/79.4(Std)X112.0/20.0 -To Fit Bitzer S4N-Low,2N,4N,4P






10.



2N, 4N, 4P



Conrod 45.00(-0.25)/79.4(+0.12)X112.0/20.0 -To Fit Bitzer S4N-Low,2N,4N,4P






11.



2N, 4N, 4P



Conrod 45.00(-0.50)/79.4(+0.25)X112.0/20.0 -To Fit Bitzer S4N-Low,2N,4N,4P






12.



4VC, 4TC, 4PC, 4NC


302131-02


Conrod 70.0(Std)-46.9(Std)-16.0-To Fit Bitzer 4Vc,4Tc,4Pc, 4Tcs,4Nc,4Ves,4Tes,4Nes






13.



4VC, 4TC, 4PC, 4NC



Conrod 70.0(-0.25Mm)-To Fit Bitzer 4Vc6,4Tc12,4Pc10,4Nc12, 4Ves6,4Tes12






14.



4VC, 4TC, 4PC, 4NC



Conrod 70.0(-0.50Mm) -46.9(+0.25Mm)-16.0-To Fit Bitzer 4Vc6,4Tc12,4Pc10,4Nc12, 4Ves6,4Tes12






15.



2N, 4T, 4N, 2T, 2N


382300-52


Piston Ring 60.0(Std)-Cr1.50-To Fit Bitzer 2Q,2N,4Tcs,4Tc,4Tes,4Te,4T,4N, S4T,S4N, S4G,2T.2,2N.2,4T.2,4N.2,






16.



2N, 4T, 4N, 2T, 2N


382310-19


Piston Ring 60.0(Std)-P1.50-To Fit Bitzer 2Q,2N,4Tcs,4Tc,4Tes,4Te,4T,4N, S4T,S4N,S4G,2T.2,2N.2,4T.2,4N.2,






17.



4NC, 4NCS, 4HE, 6HE


382300-55


Piston Ring 70.0(Std)-Cr1.50-To Fit Bitzer 4Ncs,4Nc,4Nes,4Ne,4H, 4He,6H,6He,S6H,4H.2,6H.2






18.



4NC, 4NCS, 4HE, 6HE


382310-22


Piston Ring 70.0(Std)-P1.50-To Fit Bitzer 4Ncs,4Nc,4Nes,4Ne,4H,4He,6H, 6He,S6H,4H.2,6H.2






19.



4NC, 4NCS


382303-03


Piston Ring 70.0(Std)-Cr1.00-To Fit Bitzer 4Ncs,4Nc,4Nes,4Ne






20.



4NC, 4NCS


382310-43


Piston Ring 70.0(Std)-P1.00-To Fit Bitzer 4Ncs,4Nc,4Nes,4Ne






21.



4P, 4N, 4T



Discharge Reed 42.5X16.0-To Fit Bitzer 2Hc2,4P10,4N12,2Q4,4T8,2U5,4Z5, 4V10






22.



N, P



Discharge Spring 42.5X16.0X0.3-To Fit Bitzer N,P






23.



4VC, 4TC , 4NC



Discharge Reed 43.9X16.8X0.3-To Fit Bitzer 4Vc6,4Tc8,4Pc10






24.



4VC, 4TC , 4NC



Discharge Spring 43.9X16.8X0.3-To Fit Bitzer 4Vc6,4Tc8,4Pc10






25.



N, P, T,



Discharge Valve 44.0X16.0X0.4-To Fit Bitzer N,T,P 2,4Cyl






26.



4TC, 4N



Suction Reed 72.0X35.0-To Fit Bitzer 4Tc8,4N12,2Q4,4T8,S4T5






27.



4N, 4P, 4T, 2N, 2P, 2T



Suction Reed 72.0X33.5X0.5-To Fit Bitzer 2,4 N,T,P






28.



4N



Suction Reed 69.3X33.2X0.5-To Fit Bitzer 4N-Old






29.



4NC, 6H



Suction Reed 82.0X19.0X0.6 For Piston 65,70-To Fit Bitzer 4Nc12,,6J22,4H15, 6H25,S6J16,S6H20






30.



4NCS, 4PCS, 4TCS


301117-04

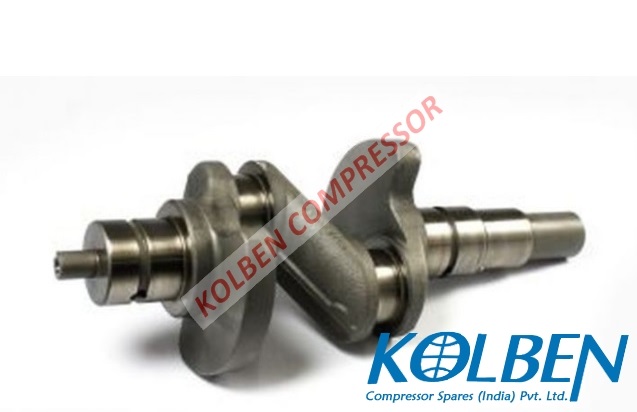

Crankshaft 44.9X69.9(2+2)X44.9 -376Mm-To Fit Bitzer 4Ncs-12.2, 4Pcs-15.2,4Tcs12,4Ncs20






31.



4NC, 4PC, 4TC


301117-02


Crankshaft 44.9X69.9(2+2)X44.9 -413Mm-To Fit Bitzer 4Nc-12.2,4Nc-20.2,4Pc15,4Tc-12.2






32.



2N


311100-06


Main Bush(White Metal) 46.0/42.0(Std)/30.0-To Fit Bitzer 2U3,2N7






33.



N, T, F, G, H, J



Main Bushing Insert 50.0X45.0(-0.25Mm) -To Fit Bitzer N,T,F,G,H,J, S4G,S6F,S6H,S6J






34.



N, T, F, G, H, J



Main Bushing Insert 50.0X45.0(-0.50Mm) -To Fit Bitzer N,T,F,G,H,J, S4G,S6F,S6H,S6J






35.



N, T, F, G, H, J


311100-04


Main Bush Insert 50.0X45.0(Std)X47.0- 3Hole-To Fit Bitzer N,T,F,G,H, J,S4G,S6F,S6H,S6J






36.



2N, 4T, 4N, 2T


311100-17


Bearing Bush 50.0X45.1(Std)X40.6 -3Hole-To Fit Bitzer 2N,2Q,2T,2U,4P, 4V-10.2,4Z,S4N,S4T






37.



4N, 4V


311100-14


Bearing Bush 55.0X50.0(Std)X30.0-To Fit Bitzer 4Z5,4N20,4V-10.2






38.



2N, 2T


374011-10


Shaft Seal Complete 41.0-To Fit Bitzer 2N.2,2T.2






39.



4N, 4P, 4T


374011-11


Shaft Seal Assy 42.7-To Fit Bitzer 4N,4P,4T






40.



2N


320500-04


Thrust Washer 52.0X42.5X1.7-To Fit Bitzer 2N,2Q,2U






41.



4NC, 4NCS, 4PC, 4PCS, 4VC, 4VCS, 4TC, 4TCS


320500-10


Thrust Washer 66.0X48.0X1.6-To Fit Bitzer 4Nc,4Ncs,4Pc,4Pcs, 4Tc,4Tcs,4Vc,4Vcs






42.



4T, 4N


320500-05


Thrust Washer 62.0X50.5X1.7-To Fit Bitzer 4Z5,4N20,4T,4N






43.



4NC, 4NCS


304063-08


Valve Plate Assy Without Gasket(70.0) 10.5X6-15.5X4-To Fit Bitzer 4Nc12,4Ncs10,4Ncs20






44.



4NE, 4NES


304063-31


Valve Plate Assy(70.0)-To Fit Bitzer 4Ne12, 4Nes12 Ecoline From 2013.April






45.



4NE, 4NES


304063-27


Valve Plate Assy(70.0)-To Fit Bitzer 4Ne20, 4Nes12 Until 2013.March






46.



4VC, 4TCS, 4PC, 4PCS, 4NC


372623-01


Head Gasket 168.4-To Fit Bitzer 4Vc, 4Tcs,4Pc, 4Pcs,4Nc






47.



4NC, 4NCS


372515-08


Valve Plate Gasket(70.0) 167.2X70.1-To Fit Bitzer 4Nc12,4Ncs10,4Ncs20






48.



4N, 2N


304056-03


Valve Plate Assy Without Gasket(60.0) 9.6X6-13.0X4-To Fit Bitzer 4N,4N12,4N20,2N,2N5,2N7






49.



4P, 4N, 4T


372611-05


Head Gasket 153.0-To Fit Bitzer 4P10,4N12,S4T5,2Q6,4T8,4T






50.



4N, 4T


372611-03


Head Gasket 152.8-To Fit Bitzer S4N,S4T






51.



4N, 4T


372611-02


Head Gasket 152.8-To Fit Bitzer S4T,S4N






52.



2N, 4N, 4T


372510-12


Valve Plate Gasket(60.0) 153.0X61.6-To Fit Bitzer 4N12,2Q6,2N5,S4T5,4T8.4T






53.



6F, 4N, 4P, 4T


304051-15


Valve Plate Assy Without Gasket,Relief Valve(82.0) 10.0X8-18.5X4-3/4Nptf-To Fit Bitzer S6F30,S6F






54.



6F, 4N, 4P, 4T


304016-08


Valve Plate Assy Without Gasket,Seal Plug(82.0) 10.0X8-18.5X4-3/4Nptf-31.0-To Fit Bitzer S6F,S6F30






55.



4N, 4P, 4T, 4F


361100-21


Pressure Relief Valve-34Bar-3/4Nptf-To Fit Bitzer






56.



4N, 4P, 4T, 4F


361100-23


Pressure Relief Valve-15Bar-3/4Nptf-To Fit Bitzer






57.



4VC, 4VCS, 4PC, 4TC, 4TCS, 4NC, 4NCS


345506-01


Terminal Plate-To Fit Bitzer 4Vc,4Vcs,4Ve,4Tc, 4Tcs,4Pc,4Pcs,4Pe,4Nc,4Ncs






58.



4J, 4P, 4N, 4V, 4G, 6H, 6G, 4H, 6J, 6F


343416-02


Terminal Plate Kit-To Fit Bitzer 4J,4P,4N,4V,4G,6H,6G,4H,6J,6F






59.



2N, 2T, V, VI


362001-01


Suction Gas Filter 35.0X29.0X40.1-To Fit Bitzer 2N2,2N,2Q,2T2,2U,?,?






60.



4N, 4T


362001-11


Suction Gas Filter 25.0X19.0X50.0-To Fit Bitzer S4N,S4T






61.



4NCS, 4NC, 4PC, 4TC, 4VC


362001-15


Suction Gas Filter 70.0X50.0X54.5-To Fit Bitzer 4Ncs,4Nc,4Pc,4Tc,4Tc,4Vc, 4Vc






62.



4N, 4NC , 4NCS, 4PC, 4PCS, VII


362001-08


Suction Gas Filter 70.0X49.3X55.2-To Fit Bitzer 4Ncs20,4N,4Nc20, 4Ncs,4Pc15,4Pcs,?






63.



4N, 4P, 4T


362001-09


Suction Gas Filter 35.0X29.0X105.0-To Fit Bitzer 4N2,4P2,4P,4T2,4T,4V,4Z






64.



2N, 2T, 4VC, 4TC, 4PC


362003-02


Oil Filter 20.0X13.5X105.0-To Fit Bitzer 2U3,2N7,2T,2N,4Vc10,4Tc12, 4Pc10,4Ncs20






65.



2T, 4NC, 4P, 4PC, 4TC, 4VC,


362503-01


Oil Pump Assy-To Fit Bitzer 2T,4Nc12,4P15, 4Pc10,4Tc12,4Vc6,S4Bcf-5.2Y-25.D,4V-10.2






66.



F, G, H, J, N


361802-02


Sight Glass 67X8.5-To Fit Bitzer H,J,F,G,N






67.



2N


372804-04


Gasket Set(60.0)-To Fit Bitzer 2N-5.2






68.



4N


372808-08


Gasket Set(60.0)-To Fit Bitzer 4N20






69.



4NC


372841-01


Gasket Set(70.0)-To Fit Bitzer 4Nc






70.



4T, 4N


372810-02


Gasket Set(60.0)-To Fit Bitzer 4T.2,4N.2






71.



4T, 4N


372817-01


Gasket Set(48.0,60.0)-To Fit Bitzer S4T-5.2,S4N-8.2






72.



4N , 4P, 4T


311100-07


Bearing crankcase 4N>4Z






73.



4N, 4P, 4T


311100-17


Bearing pump-end 4N>4Z






74.



4NC , 4VC


311112-07


Bearing main for models 4VC>4NC






75.



4N


320500-05


Thrust-washer crankcase 4N>4Z






76.



4NC , 4VC


320500-10


Thrust washer 4NC>4VC






77.



4N , 4P


302117-01


Con-rod (standard) 4N/4P






78.



4N , 4P


N/A


Con-rod (-0.50mm u/size) 4N/4P






79.



4VC , 4TC , 4PC , 4NC


302131-02


Con-rod for models 4VC/4TC/4PC/4NC






80.



2N


372805-02


Gasket set 2N Open-Drive






81.



4N


372810-02


Gasket set 4N12/20






82.



4P , 4T , 4N


372810-02


Gasket set for 4P/4T/4N.2 open drive






83.



4PC , 4NC


372841-01/02


Gasket kit 4PC/4NC






84.



2N


0


Heater 240v/75W for modes 2U/2Q/2N






85.



4N , 4P , 4T , 4V


0


Heater 240v/100W for models 4N/P/T/V/Z






86.



2N,4N


302232-16


Piston & pin (standard) 2Q/2N/4N






87.



4NC,4NCS


N/A


Piston & pin (left-hnd) 70mm 4NC






88.



4NC,4NCS


N/A


Piston & pin (right-hand) 70mm 4NC






89.



4N, 4P,


383401-04


Pin for 55/60mm piston 20mm o/d x 45mm long






90.



4N , 4P , 4V


362503-01


Pump for models 4N/P/V/Z






91.



8N


361500-01


Pump/brg hsg Schrader 'T' fit 1/8NPTFx7/16"UNF"






92.



4T , 4N


382300-64


Piston ring 48.00mm x 2mm (std) H/S S4T/S4N






93.



4N , 2N , 4T


382300-14


Ring 60.00mm (std) top chrome 2Q,2/4N,4T






94.



4T , 4N


N/A


Ring 60.50mm (o/size) top chrome 2Q,4T,4N






95.



4T , 4N , 2N


382310-19


Ring 60.00mm (std) 2nd phos.2Q,2N/4N,4T






96.



4T , 4N , 2N


N/A


Ring 60.50mm (o/size) 2nd phos. 2Q,2N/4N,4T






97.



2N , 2T


374011-10


Shaft Seal assembly for models 2N/2T






98.



4N , 4T


374011-11


Shaft Seal assembly for models 4N/4T






99.



4N , 4P , 4T , 4V , 4NC


345506-01


Terminal plate assm octagon 4T/V/P/NC






100.



2N , 4T , 4N


320202-02


Valve reed suction (60.00mm bore) 2Q/2N/4T/4N






101.



4N , 4P , 4T , 4V , 2N , 2P , 2T, TV



Valve reed discharge (flat) 2-4V/T/N/P






102.



4N , 4P , 4T , 4V , 2N , 2P , 2T, TV



Valve reed discharge (spring) 2-4V/T/P/N






103.



4PC , 4NC



Valve reed discharge (flat) 4PC 4NC






104.



4NC


304063-08


Valve plate assembly for models 4NC






105.



2N,4N


304052-02


Valve plate assm for models 2N/4N/4P







Manufacturers of BITZER COMPRESSOR PARTS
