COMPRESSOR PARTS > BITZER > J

Sr. No.


Model

OEM Part No.

Description

1.



4J, 6J


302297-46


Piston - Piston Ring - Conrod Assy -Std-To Fit Bitzer 4J13,S6J16,,6J22, 6J33 ( 65 Mm )






2.



4J, 6J


302233-98


Piston - Pin 65.0(Std)X 18.1Xcr1.50Xp1.50X200559-To Fit Bitzer S6J16,J






3.



4J, 6J, 4H, 6H, 4G, 6G


383401-06


Piston - Pin 20.0X55.9-To Fit Bitzer M,J,H,G






4.



4J, 6J, 4H, 6H, 4G, 6G


302115-01


Conrod 45.0(Std)/79.4(Std)/20.0/Bush -To Fit Bitzer S4G12,J,F,H,G






5.



4J, 6J, 4H, 6H, 4G, 6G



Conrod 45.0(-0.250)/79.4(+0.125)/ 20.0/Bush-To Fit Bitzer S4G12,J,F,H






6.



4J, 6J, 4H, 6H, 4G, 6G



Conrod 45.0(-0.500)/79.4(+0.250)/ 20.0/Bush-To Fit Bitzer S4G12,J,F,H






7.



4J, 6J, 4H, 6H, 4G, 6G



Conrod 45.0(-1.000)/79.4(+0.500)/ 20.0/Bush-To Fit Bitzer S4G12,J,F,H






8.



4G, 4H, 4J



Discharge Reed 43.5X16.0X0.3-To Fit Bitzer 4J13,4H15,4G20,6F50,S6J16






9.



F, G, H, J, P



Discharge Spring 43.5X16.0X0.3-To Fit Bitzer G,H,J,M,F,P,S6H






10.



F, G, H, J



Discharge Reed 50.0X16.5X0.3-To Fit Bitzer J,M,H,G,F






11.



J, H



Suction Reed 82.8X19.0-To Fit Bitzer M,J,H






12.



4H, 4J


301007-06


Crankshaft 44.9X44.9(2+2)X44.9 -467Mm-To Fit Bitzer4H-15.2,S4G12, 4J13






13.



N, T, F, G, H, J



Main Bushing Insert 50.0X45.0(-0.25Mm) -To Fit Bitzer N,T,F,G,H,J, S4G,S6F,S6H,S6J






14.



N, T, F, G, H, J



Main Bushing Insert 50.0X45.0(-0.50Mm) -To Fit Bitzer N,T,F,G,H,J, S4G,S6F,S6H,S6J






15.



N, T, F, G, H, J


311100-04


Main Bush Insert 50.0X45.0(Std)X47.0- 3Hole-To Fit Bitzer N,T,F,G,H, J,S4G,S6F,S6H,S6J






16.



4J, 4H, 6F, 6G


374027-01


Shaft Seal,Thrust Collar And Spring Set 42.1-To Fit Bitzer 4J-13.2,4H-25.2,6F-40.2,6G-40.2






17.



4J, 6J, 4H, 6H


304016-01


Valve Plate Assy Without Gasket 10.0X8-15.4X4-24.0-To Fit Bitzer 65.0=4J13,4J22,6J22,6J33






18.



4G, 4H, 6F, 6G, 6H, 6J


372616-03


Head Gasket 224.3-To Fit Bitzer 4G2,4H2,4H,4J,6F2,6F,6G2, 6G,6H,6J,S4G,S6F2,S6F, S6G2,S6G,S6H2,S6H,S6J






19.



6J, 6H, 6G, 6F


372616-04


Head Gasket 224.3-To Fit Bitzer S6J16,S6H20,S6H,S6G25,S6F30






20.



6J


372511-05


Valve Plate Gasket(65.0) 224.0X66.8-To Fit Bizer S6J16






21.



4J, 4P, 4N, 4V, 4G, 6H, 6G, 4H, 6J, 6F


343416-02


Terminal Plate Kit-To Fit Bitzer 4J,4P,4N,4V,4G,6H,6G,4H,6J,6F






22.



4J, 6F


362003-01


Oil Filter 23.1X19.0X200.0-To Fit Bitzer 4J13,6F50,6F






23.



F, G, H, J


362004-02


Suction Gas Filter-To Fit Bitzer F,G,H,J






24.



G, H, F, 4J


305125-03


Bearing Cover Complete Included Oil Pump-To Fit Bitzer G,H,F,4J






25.



4G, 4H, 4J, 6F, 6J, 6GC, 4HE


362503-02


Oil Pump Assy-To Fit Bitzer 4G20,4H15,4J13,6F40,6J33,8Gc50, 4He15






26.



F, G, H, J, N


361802-02


Sight Glass 67X8.5-To Fit Bitzer H,J,F,G,N






27.



4J


372811-02


Gasket Set(65.0)-To Fit Bitzer 4J-13.2






28.



6J


372811-05


Gasket Set(65.0)-To Fit Bitzer 6J-33.2






29.



6J


372816-01


Gasket Set(65.0)-To Fit Bitzer S6J-16.2






30.



4J , 4H , 4G , 4F , 6J , 6H , 6G , 6F


311110-04


Bearing crankcase/pump (standard) 4/6-J/H/G/F






31.



4J , 4H , 4G , 4F , 6J , 6H , 6G , 6F


N/A


Bearing crankcase/pump (-25mm u/size) J/H/G/F






32.



4J , 4H , 4G , 4F , 6J , 6H , 6G , 6F


N/A


Bearing crankcase/pump (-50mm u/size) J/H/G/F






33.



4J , 4H , 4G , 4F , 6J , 6H , 6G , 6F


320500-06


Thrust-washer crankcase 4/6- J/H/G/F






34.



4J , 4H , 4G , 4F , 6J , 6H , 6G , 6F


320500-07


Thrust-washer pump-end 4/6- J/H/G/F






35.



4J , 4H , 4G , 4F , 6J , 6H , 6G , 6F


320500-08


Thrust-washer seal-end 4/6- J/H/G/F






36.



4J , 4H , 4G , 4F , 6J , 6H , 6G , 6F


374027-01


Thrust-collar & spring assy for models 4-6/J/H/G/F






37.



4J , 4H , 4G , 4F , 6J , 6H , 6G , 6F


302115-01


Con-rod (standard) 4/6-J/H/G/F






38.



4J , 4H , 4G , 4F , 6J , 6H , 6G , 6F


N/A


Con-rod (-0.25mm u/size) 4-6-J/H/G/F






39.



4J , 4H , 4G , 4F , 6J , 6H , 6G , 6F


N/A


Con-rod (-0.50mm u/size) 4-6-J/H/G/F






40.



6J , 4J


372811-05


Gasket set for 65mm bore 4/6-J






41.



4J , 4H , 4G , 4F , 6J , 6H , 6G , 6F


343213-04


Heater 240v/140W 4/6- J/H/G/F






42.



6J , 6H


346306-46


Stator & Rotor set 380/420v PWS 18.5kw/25HP for 6J/H






43.



4J,6J


302232-22

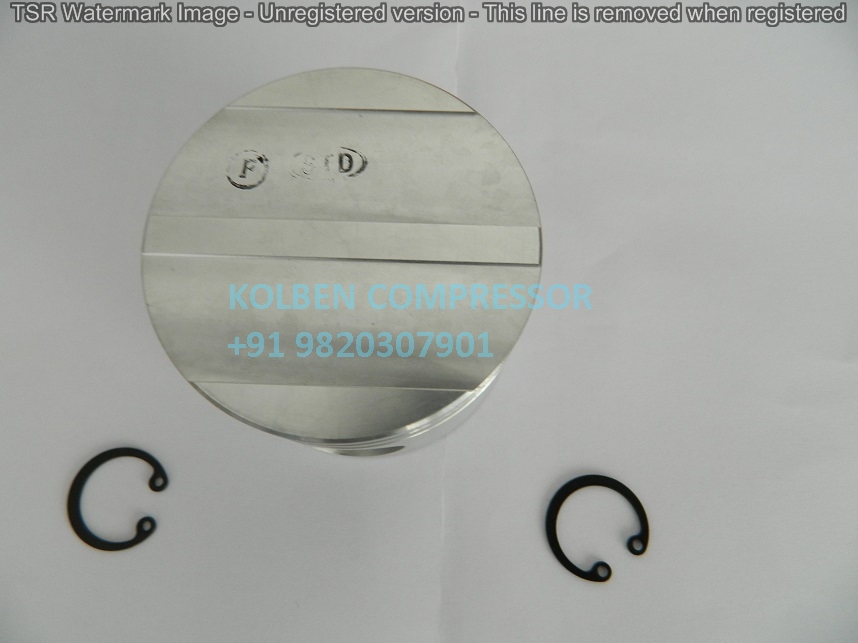

Piston & pin (standard) 4/6-J






44.



4J,6J,4H,6H,4G,6G


383401-06


Pin for 65/70/75mm piston 20mm o/dx56mm long






45.



4J , 4H , 4G , 4F , 6J , 6H , 6G , 6F


362500-01


Pump (1st Generation) for models 4/6-J/H/G/F






46.



4J , 4H , 4G , 4F , 6J , 6H , 6G , 6F


362503-02


Pump (2nd Generation) for models 4/6J/H/G/F






47.



6J , 4J


382300-46


Ring 65.00mm (std) top chrome 4-6 J/M






48.



6J , 4J


N/A


Ring 65.50mm (o/size) top chrome 4-6 J/M






49.



6J , 4J


382310-13


Ring 65.00mm (std) 2nd phos.4-6J/M






50.



4J , 4H , 4G , 4F , 6J , 6H , 6G , 6F


374017-03


Shaft Seal assembly for models 4/6-H-G-F






51.



4J , 4H , 4G , 4F , 6J , 6H , 6G , 6F


343416-02


Electrical plate assm 10HP+ models 4-6/J/H/G/F






52.



6J , 6H , 4J , 4H


320201-08


Valve reed suction (65/70mm bore) 4/6-M/J/H






53.



4F , 4J , 6J , 6F


320210-09


Valve reed discharge (flat) 4-6J>F






54.



4F , 4J , 6J , 6F


320210-08


Valve reed discharge (spring) 4-6J>F






55.



4F , 4J , 6J , 6F


320210-06


Valve reed discharge for 1st Gen 4-6/J>F






56.



4H,6H,4J,6J


304051-02


Valve plate assm for models 4-6J/H






57.



4J , 4H , 4G , 4F , 6J , 6H , 6G , 6F


383013-03


Valve reed suction pin (2.5x8mm) for models 2/4/6






58.



4J , 4H , 4G , 4F , 6J , 6H , 6G , 6F


383011-02


Valve plate locating pin (6x20mm) models 4-6/J>F






59.



6J , 6F , 4J , 4F


361100-01


Valve pressure relief (34bar discharge) for 4-6J>F






60.



6J , 6F , 4J , 4F


361100-03


Valve pressure relief (15bar diff) for 4-6J>F






61.



4J , 4H , 4G , 4F , 6J , 6H , 6G , 6F


374017-03


BZ Shaft Seal assembly for models 4/6-H-G-F






62.



6JE-33


311100-04


bearing bush Motor side Ø50 x Ø45 x 47,5 (31110004)






63.



6JE-33


311100-05


bearing bush Crankcase side Ø50 x Ø45 x 47,5 (31110005)






64.



6JE-33


320500-06


thrust washer Motor side Ø62 x Ø48 x 1,7 (32050006)






65.



6JE-33


301007-10


crankshaft Stroke 55mm Ø45 x 570 (30100710)






66.



6JE-33


366112-01


sealing screw conic DIN 906 M8 x 1 (36611201)






67.



6JE-33


302298-66

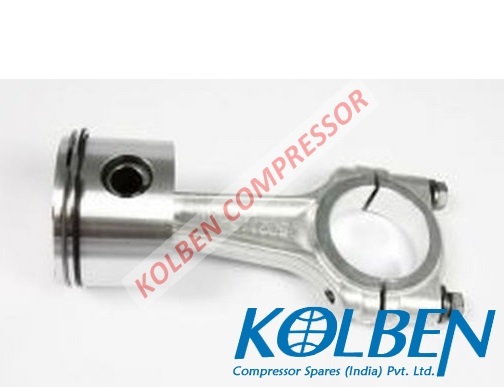

connecting rod / piston Ø65 (30229866)






68.



6JE-33


302115-52


connecting rod (30211552)






69.



6JE-33


302233-98


piston aluminium alloy Ø65 (30223398)






70.



6JE-33


383401-06


wrist pin DIN 73126 Ø20 x Ø13 x 56 (38340106 )






71.



6JE-33


382231-04


retaining ring with lugs spring steel DIN 472 Ø20 x 1 (38223104)






72.



6JE-33


382300-46


compression ring Ø65 x 1,5 (38230046)






73.



6JE-33


382310-13


compression ring Ø65 x 1,5 (38231013)






74.



6JE-33


372314-03


gasket bearing cover Ø182 x Ø133 x 1 (37231403






75.



6JE-33


305125-03


bearing cover complete inclusive oil pump (30512503)






76.



6JE-33


361101-01


oil pressure relief valve SW17 x 29 (36110101)






77.



6JE-33


382402-01


gasket ring aluminium DIN 7603 A10 x 15 x 1 (38240201)






78.



6JE-33


320500-07


thrust washer oil pump side Ø62 x Ø48 x 1,7 (32050007)






79.



6JE-33


380306-32


Cheese Head Screw bearing cover DIN 912, 10.9 M10 x 30 (38030632)






80.



6JE-33


362503-02


oil pump (36250302)






81.



6JE-33


372001-19


O-ring oil pump CR Ø74 x 2 (37200119)






82.



6JE-33


380155-05


hexagon head screw oil pump DIN 933, 10.9 M8 x 20 (38015505)






83.



6JE-33


380339-01


Hexsocket Cheese Head Screw ISO 4762, 10.9 - A2K M10 x 30 (38033901)






84.



6JE-33


320314-01


fixing plate MP54 140 x 40 x 3 (32031401)






85.



6JE-33


382002-01


washer brass DIN 125 A4, 3 (38200201)






86.



6JE-33


382201-51


single coil spring washer spring steel galvanized DIN 127 A4, 3 (38220151)






87.



6JE-33


380507-51


cheese head screw 4.8 galvanized M4 x 8 (38050751)






88.



6JE-33


347320-33


differential oil pressure cut-out MP54 115V/230V-50/60Hz 100 x 50 x 130 (34732033)






89.



6JE-33


361500-22


Schrader valve (36150022)






90.



6JE-33


374027-03


shaft seal bearing bush (37402703)






91.



6JE-33


384102-01


gib-headed key Stator steel DIN 6887 5 x 5 x 60






92.



6JE-33


384001-19


parallel key steel DIN 6885 A12 x 8 x 110 (38400119)






93.



6JE-33


320502-04


thrust washer steel Ø54 x Ø17 x 5 (32050204)






94.



6JE-33


382150-04


thrust washer spring steel S16 (38215004)






95.



6JE-33


380166-04


hexagon head screw DIN 931, 10.9 M16 x 60 (38016604)






96.



6JE-33


325910-01


retaining ring with lugs spring steel Ø230 (32591001)






97.



6JE-33


362004-02


suction gas filter Ø220 x 50 (36200402)






98.



6JE-33


372315-03


gasket housing cover Ø286 x Ø236 x 0,38 (37231503)






99.



6JE-33


305900-03


housing cover (30590003)






100.



6JE-33


377108-52


Insulation for motor housing cover (37710852)






101.



6JE-33


366110-02


Sealing Plug steel 1/4" - 18 NPTF (36611002






102.



6JE-33


380057-11


hexagon head screw housing cover DIN 931, 10.9 M12 x 150 (38005711)






103.



6JE-33


380057-14


hexagon head screw housing cover DIN 931, 10.9 M12 x 180 (38005714)






104.



6JE-33


372301-03


gasket suction shut-off valve Ø76 x Ø60 x 1 (37230103)






105.



6JE-33


380009-53


hexagon head screw suction shut-off valve 8.8 galvanized DIN 931, 8.8 M16 x 100 (38000953)






106.



6JE-33


361338-04


Shut-Off Valve suction side Ø54 (2 1/8") (36133804)






107.



6JE-33


365321-03


Pipe Connection brazed and welding bush steel Ø54 (2 1/8") (36532103)






108.



6JE-33


372303-02


Gasket Pipe connection Ø75 x Ø61 x 2 (37230302)






109.



6JE-33


367121-02


Clamping Plate suction shut-off valve 110 x 110 (36712102)






110.



6JE-33


380109-09


Hexagon Head Screw clamping plate DIN 933, 8.8 M16 x 55 (38010909)






111.



6JE-33


375014-05


Protective Cap Span of the jaw: 36 Plastic - GRP M36 x 1,5 / L=67 mm (37501405)






112.



6JE-33


366114-24


sealing screw with magnet oil drain inclusive O-Ring gasket M26 (36611424)






113.



6JE-33


382403-04


Gasket Ring oil drain aluminium DIN 7603 A26 x 31 x 2 (38240304)






114.



6JE-33


325000-34


pressure spring spring steel Ø23,5 x 28 x 1,8 (32500034)






115.



6JE-33


362003-01


oil filter Ø20 x 200 (36200301)






116.



6JE-33


360110-06


oil return system (36011006)






117.



6JE-33


372003-15


O-ring sight glass CR Ø36,3 x 1,78 (37200315)






118.



6JE-33


361802-02


sight glass steel / glass Ø67 x 8,5 (36180202)






119.



6JE-33


380154-06


hexagon head screw DIN 933, 10.9 M6 x 20 (38015406)






120.



6JE-33


366110-10


sealing plug oil equalising bore steel 1/2" - 14 NPTF (36611010)






121.



6JE-33


366110-05


sealing plug gas equalising bore steel 3/4" - 14 NPTF (36611005)






122.



6JE-33


372415-02


gasket bottom plate (37241502)






123.



6JE-33


320307-04


bottom plate steel 270 x 360 x 12 (32030704)






124.



6JE-33


380156-05


hexagon head screw bottom plate DIN 933, 10.9 M10 x 25 (38015605)






125.



6JE-33


370004-01


vibration damper set Crankcase side spring brown Lo = 42 (37000401)






126.



6JE-33


325002-01


damper element Crankcase side spring steel brown Lo=42 (32500201)






127.



6JE-33


370004-03


vibration damper set Motor side spring blue Lo = 48 (37000403)






128.



6JE-33


325002-03


damper element Motor side spring steel blue Lo=48 (32500203)






129.



6JE-33


327309-01


foot 369 x 60 x 13 x Ø21 (32730901)






130.



6JE-33


361110-01


gas equalising valve (36111001)






131.



6JE-33


361110-06


Pressure relief valve 37 bar 3/4" (36111006)






132.



6JE-33


372704-01


Gasket blind flange 91 x 52 x 1 (37270401)






133.



6JE-33


367015-15


blind flange steel 91 x 52 x 13. Bo. 1/8" NPTF (36701515)






134.



6JE-33


380156-06


hexagon head screw blind flange coated DIN 933, 10.9 M10 x 30 (38015606)






135.



6JE-33


372704-05


gasket discharge shut-off valve Ø34 x 1,0 - LA 66 (37270405)






136.



6JE-33


380306-23


Cheese Head Screw discharge shut-off valve DIN 912, 10.9 M10 x 25 (38030623)






137.



6JE-33


361354-05


shut-off valve Discharge side brazed connection Ø35 L (1 3/8") - 2" (36135405)






138.



6JE-33


367021-06


Flange with thread 91 x 48 x 52 , - 2" (36702106)






139.



6JE-33


372200-07


Gasket Ring Ø45,5 x Ø42,5 x 1,5 (37220007)






140.



6JE-33


366201-19


Protective Cap Span of the jaw: 27 Plastic - GRP M24 x 2 / L=57,5 mm (36620119)






141.



6JE-33


366110-01


Sealing plug steel 1/8“ - 27 NPTF (36611001)






142.



6JE-33


304063-32


valve plate (30406332)






143.



6JE-33


372511-10


gasket 253 x 155 x 1,0 Ø65 (37251110)






144.



6JE-33


372616-03


gasket Retall 253 x 155 x 0,5 (37261603)






145.



6JE-33


302360-38


cylinder head air-cooled (30236038)






146.



6JE-33


380056-14


hexagon head screw DIN 931, 10.9 M10 x 70 (38005614)






147.



6JE-33


380056-20


hexagon head screw DIN 931, 10.9 M10 x 90 (38005620)






148.



6JE-33


327000-01


parallel pin 6H 11 x 20 (32700001)






149.



6JE-33


380358-01


Set screw coated DIN 916 M10 x 12 (38035801)






150.



6JE-33


343416-02


terminal plate kit (34341602)






151.



6JE-33


372421-14


gasket Terminal plate 163 x 118 x 0,5 (37242114)






152.



6JE-33


345950-01


Metal Plate For Grounding aluminium M6 (34595001)






153.



6JE-33


382150-01


thrust washer spring steel S6 (38215001)






154.



6JE-33


380004-53


hexagon head screw ISO 4014, 8.8 - A2K M6 x 35 (38000453)






155.



6JE-33


372124-03


gasket only needed for terminal box IP66 165 x 120 x 3 (37212403)






156.



6JE-33


311018-01


Spacer Sleeve Ø14 x Ø6,3 x 21,4 (31101801)






157.



6JE-33


382101-54


toothed washer spring steel galvanized DIN 6797 A6, 4 (38210154)






158.



6JE-33


345506-24


terminal plate optimized condensation sequence (34550624)






159.



6JE-33


381108-01


hexagon nut M5 (38110801)






160.



6JE-33


382152-01


thrust washer DIN 127 S 8 (38215201)






161.



6JE-33


302915-02


cable connector brass (30291502)






162.



6JE-33


381301-05


hexagon nut brass M8 (38130105)






163.



6JE-33


343413-01


conversion kit (34341301)






164.



6JE-33


380306-89


cheese head screw 10.9 galvanized DIN 912, 10.9 M10 x 20 (38030689)






165.



6JE-33


321202-01


centering plate steel 167 x 122 x 12 (32120201)






166.



6JE-33


372120-01


gasket 133 x 117 x 2 (37212001)






167.



6JE-33


300950-17


terminal box black aluminium cast 313 x 175 x 84 (30095017)






168.



6JE-33


380508-51


Cheese head screw galvanized DIN 7985, 4.8 M5 x 20 (38050851)






169.



6JE-33


305914-45


Cover black 313 x 175 x 11 (30591445)






170.



6JE-33


347028-01


protection device SE-B2 230V-50/60Hz (34702801)






171.



6JE-33


380507-52


Cross Recessed Raised Screw 4.8 galvanized M4 x 10 (38050752)






172.



6JE-33


380501-54


Oval head screw galvanized DIN 7985, 4.8 M6 x 16 (38050154)






173.



6JE-33


372811-05


gasket set (37281105)






174.



6JE-33


346332-46


built-in motor 24 kW, 4-pole 380..420V Y/YY-3-50Hz, 440..480V Y/YY-3-60Hz Ø223 x 222 (34633246)






175.



6JE-33


372124-01


gasket terminal box aluminium 165 x 120 x 3 (37212401)






176.



6JE-33


372138-02


gasket terminal box aluminium (37213802)






177.



6JE-33


343213-12


Crankcase heater heating capacity: 140W 230V-1-50/60Hz (34321312)






178.



6JE-33


389002-01


electric connector of the machine / device DIN 43650 Typ GDM 209 (38900201)






179.



6JE-33


345906-02


heater sleeve for 140W heater 43315 (34590602)






180.



6JE-33


344006-04


cable for grounding M6 x 220 (34400604)






181.



6JE-33


380501-52


cross recessed raised screw grounding Cross recessed raised 4.8 galvanized M6 x 12 (38050152)






182.



6JE-33


382403-01


Gasket Ring aluminium DIN 7603 A20 x 24 x 1,5 (38240301)






183.



6JE-33


347319-11


differential oil pressure cut-out Delta-P II 230V-50/60Hz (34731911)






184.



6J-33.2


311100-04


bearing bush Motor side Ø50 x Ø45 x 47,5 (31110004)






185.



6J-33.2


311100-05


bearing bush Crankcase side Ø50 x Ø45 x 47,5 (31110005)






186.



6J-33.2


320500-06


thrust washer Motor side Ø62 x Ø48 x 1,7 (32050006)






187.



6J-33.2


301007-10


crankshaft Stroke 55mm Ø45 x 570 (30100710)






188.



6J-33.2


366112-01


sealing screw conic DIN 906 M8 x 1 (36611201)






189.



6J-33.2


302297-46


connecting rod / piston complete Ø65 (30229746)






190.



6J-33.2


302115-50


connecting rod (30211550)






191.



6J-33.2


383021-11


clamping sleeve 10 x 0,75 x 29 (38302111)






192.



6J-33.2


382141-01


retaining ring with lugs spring steel DIN 6796 - FSt A8 (38214101)






193.



6J-33.2


380105-09


hexagon head screw DIN 933, 8.8 M8 x 45 (38010509)






194.



6J-33.2


311103-06


bearing bush connecting rod Ø23 x Ø19 x 22,5 (31110306)






195.



6J-33.2


302233-98


piston aluminium alloy Ø65 (30223398)






196.



6J-33.2


383401-06


wrist pin DIN 73126 Ø20 x Ø13 x 56 (38340106)






197.



6J-33.2


382231-04


retaining ring with lugs spring steel DIN 472 Ø20 x 1 ( 38223104)






198.



6J-33.2


382300-46


compression ring Ø65 x 1,5 ( 38230046)






199.



6J-33.2


382310-13


compression ring Ø65 x 1,5 (38231013)






200.



6J-33.2


372314-03


gasket bearing cover Ø182 x Ø133 x 1 (37231403)






201.



6J-33.2


305125-03


bearing cover complete inclusive oil pump (30512503)






202.



6J-33.2


361101-01


oil pressure relief valve SW17 x 29 (36110101)






203.



6J-33.2


382402-01


gasket ring aluminium DIN 7603 A10 x 15 x 1 (38240201)






204.



6J-33.2


320500-07


thrust washer oil pump side Ø62 x Ø48 x 1,7 (32050007)






205.



6J-33.2


380306-32


Cheese Head Screw bearing cover DIN 912, 10.9 DIN 912, 10.9 M10 x 30 (38030632)






206.



6J-33.2


372001-19


O-ring oil pump CR Ø74 x 2 (37200119)






207.



6J-33.2


380155-05


hexagon head screw oil pump DIN 933, 10.9 M8 x 20 (38015505)






208.



6J-33.2


380339-01


Hexsocket Cheese Head Screw ISO 4762, 10.9 - A2K M10 x 30 (38033901)






209.



6J-33.2


320314-01


fixing plate MP54 140 x 40 x 3 (32031401)






210.



6J-33.2


382002-01


washer brass DIN 125 A4, 3 (38200201)






211.



6J-33.2


382201-51


single coil spring washer spring steel galvanized DIN 127 A4, 3 (38220151)






212.



6J-33.2


380507-51


cheese head screw 4.8 galvanized M4 x 8 (38050751)






213.



6J-33.2


347320-33


differential oil pressure cut-out MP54 115V/230V-50/60Hz 100 x 50 x 130 (34732033)






214.



6J-33.2


361500-22


Schrader valve (36150022)






215.



6J-33.2


312030-03


thrust collar Ø62 x 7 (31203003)






216.



6J-33.2


372001-13


O-ring CR Ø45 x 3 (37200113)






217.



6J-33.2


325900-02


spring washer Ø58,5 x Ø46 x 0,5 (32590002)






218.



6J-33.2


312006-05


ring spring washer Ø 42,1 x Ø 58 x 5 (31200605)






219.



6J-33.2


374027-03


shaft seal bearing bush (37402703)






220.



6J-33.2


384102-01


gib-headed key Stator steel DIN 6887 5 x 5 x 60 (38410201)






221.



6J-33.2


384001-19


parallel key steel DIN 6885 A12 x 8 x 110 (38400119)






222.



6J-33.2


382150-04


thrust washer spring steel S16 (38215004)






223.



6J-33.2


380166-04


hexagon head screw DIN 931, 10.9 M16 x 60 (38016604)






224.



6J-33.2


325910-01


retaining ring with lugs spring steel Ø230 (32591001)






225.



6J-33.2


362004-02


suction gas filter Ø220 x 50 (36200402)






226.



6J-33.2


372315-03


gasket housing cover Ø286 x Ø236 x 0,38 (37231503)






227.



6J-33.2


305900-03


housing cover (30590003)






228.



6J-33.2


366110-02


Sealing Plug steel 1/4" - 18 NPTF (36611002)






229.



6J-33.2


380057-11


hexagon head screw housing cover DIN 931, 10.9M12 x 150 (38005711)






230.



6J-33.2


380057-14


hexagon head screw housing cover DIN 931, 10.9 M12 x 180 (38005714)






231.



6J-33.2


372301-03


gasket suction shut-off valve Ø76 x Ø60 x 1 (37230103)






232.



6J-33.2


380009-53


hexagon head screw suction shut-off valve 8.8 galvanized DIN 931, 8.8 M16 x 100 (38000953)






233.



6J-33.2


361338-04


Shut-Off Valve suction side Ø54 (2 1/8") (36133804)






234.



6J-33.2


365321-03


Pipe Connection brazed and welding bush steel Ø54 (2 1/8") (36532103)






235.



6J-33.2


372303-02


Gasket Pipe connection Ø75 x Ø61 x 2 (37230302)






236.



6J-33.2


367121-02


Clamping Plate suction shut-off valve 110 x 110 (36712102)






237.



6J-33.2


380109-09


Hexagon Head Screw clamping plate DIN 933, 8.8 M16 x 55 (38010909)






238.



6J-33.2


375014-05


Protective Cap Span of the jaw: 36 Plastic - GRP M36 x 1,5 / L=67 mm (37501405)






239.



6J-33.2


366114-24


sealing screw with magnet oil drain inclusive O-Ring gasket M26 (36611424)






240.



6J-33.2


382403-04


Gasket Ring oil drain aluminium DIN 7603 A26 x 31 x 2 (38240304)






241.



6J-33.2


325000-34


pressure spring spring steel Ø23,5 x 28 x 1,8 (32500034)






242.



6J-33.2


362003-01


oil filter Ø20 x 200 (36200301)






243.



6J-33.2


360110-06


oil return system (36011006)






244.



6J-33.2


372003-15


O-ring sight glass CR Ø36,3 x 1,78 (37200315)






245.



6J-33.2


361802-02


sight glass steel / glass Ø67 x 8,5 (36180202)






246.



6J-33.2


380154-06


hexagon head screw DIN 933, 10.9 M6 x 20 (38015406)






247.



6J-33.2


366110-10


sealing plug oil equalising bore steel 1/2" - 14 NPTF (36611010)






248.



6J-33.2


366110-05


sealing plug gas equalising bore steel 3/4" - 14 NPTF (36611005)






249.



6J-33.2


372415-02


gasket bottom plate (37241502)






250.



6J-33.2


320307-04


bottom plate steel 270 x 360 x 12 (32030704)






251.



6J-33.2


380156-05


hexagon head screw bottom plate DIN 933, 10.9 M10 x 25 (38015605)






252.



6J-33.2


370004-01


vibration damper set Crankcase side spring brown Lo = 42 (37000401)






253.



6J-33.2


325002-01


damper element Crankcase side spring steel brown Lo=42 (32500201)






254.



6J-33.2


370004-03


vibration damper set Motor side spring blue Lo = 48 (37000403)






255.



6J-33.2


325002-03


damper element Motor side spring steel blue Lo=48 (32500203)






256.



6J-33.2


327309-01


foot 369 x 60 x 13 x Ø21 (32730901)






257.



6J-33.2


361110-01


gas equalising valve (36111001)






258.



6J-33.2


361100-21


pressure relief valve 34 bar 3/4" - 14 NPTF - p=34bar (36110021)






259.



6J-33.2


372704-01


Gasket blind flange 91 x 52 x 1 (37270401)






260.



6J-33.2


367015-15


blind flange steel 91 x 52 x 13. Bo. 1/8" NPTF (36701515)






261.



6J-33.2


380156-06


hexagon head screw blind flange coated DIN 933, 10.9 M10 x 30 (38015606)






262.



6J-33.2


380306-23


Cheese Head Screw discharge shut-off valve DIN 912, 10.9 M10 x 25 (38030623)






263.



6J-33.2


361311-02


shut-off valve Discharge side brazing and welding bush Ø35 (1 3/8") - 1 3/4" (36131102)






264.



6J-33.2


367023-01


flange steel 91 x 48 x 52, 1 3/4" (36702301)






265.



6J-33.2


372200-04


gasket teflon Ø38 x Ø35 x 1,5 (37220004)






266.



6J-33.2


366000-07


pipe connection discharge shut-off valve steel copper-plated brazed connection Ø35, 1 3/4" - 12 UN (36600007)






267.



6J-33.2


366201-19


Protective Cap Span of the jaw: 27 Plastic - GRP M24 x 2 / L=57,5 mm (36620119)






268.



6J-33.2


366202-01


sealing nut 7/16" - 20 UNF (36620201)






269.



6J-33.2


366110-01


Sealing plug steel 1/8“ - 27 NPTF (36611001)






270.



6J-33.2


304051-01


valve plate Ø65 (30405101)






271.



6J-33.2


372511-10


gasket 253 x 155 x 1,0 Ø65 (37251110)






272.



6J-33.2


372616-03


gasket Retall 253 x 155 x 0,5 (37261603)






273.



6J-33.2


302360-22


cylinder head air-cooled (30236022)






274.



6J-33.2


380056-03


hexagon head screw DIN 931, 10.9 M10 x 60 (38005603)






275.



6J-33.2


302360-03


cylinder head water-cooled Water cooled 253 x 155 x 64 (30236003)






276.



6J-33.2


302326-02


cylinder head water-cooled grey cast iron 253 x 155 x 64 (30232602)






277.



6J-33.2


380391-55


sealing screw conic brass R 3/4 (38039155)






278.



6J-33.2


327000-01


parallel pin 6H 11 x 20 (32700001)






279.



6J-33.2


380358-01


Set screw coated DIN 916 M10 x 12 (38035801)






280.



6J-33.2


343416-02


terminal plate kit (34341602)






281.



6J-33.2


372421-14


asket 163 x 118 x 0,5 (37242114)






282.



6J-33.2


304900-01


terminal plate 165 x 120 x 15,5 (30490001)






283.



6J-33.2


343417-07


connection to ground, complete grounding (34341707)






284.



6J-33.2


372124-03


gasket only needed for terminal box IP66 165 x 120 x 3 (37212403)






285.



6J-33.2


375002-03


insulating plate 85 x 25 x 6 (37500203)






286.



6J-33.2


375001-03


pressure bush Ø8 x Ø24 x 8 (37500103)






287.



6J-33.2


375000-03


gasket ring Ø16 x Ø8 x 8,5 (37500003)






288.



6J-33.2


382042-03


washer copper 8 x 1,6 (38204203)






289.



6J-33.2


381301-05


hexagon nut brass M8 (38130105)






290.



6J-33.2


382002-02


washer brass DIN 125 A5, 3 (38200202)






291.



6J-33.2


381301-03


hexagon nut brass M5 (38130103)






292.



6J-33.2


382152-01


thrust washer DIN 127 DIN 127 S 8 (38215201)






293.



6J-33.2


302915-02


cable connector brass (30291502)






294.



6J-33.2


320318-03


connection bridge brass A 5,4 (32031803)






295.



6J-33.2


343414-08


terminal plate kit (34341408)






296.



6J-33.2


343414-07


terminal plate kit (34341407)






297.



6J-33.2


375002-01


insulating plate 53 x 18 x 6,5 (37500201)






298.



6J-33.2


375001-01


pressure bush Ø4,5 x Ø18,5 x 8,5 (37500101)






299.



6J-33.2


375000-01


gasket ring Ø4,5 x Ø18,5 x 8,5 (37500001)






300.



6J-33.2


345923-06


insulating plate (34592306)






301.



6J-33.2


343413-01


conversion kit (34341301)






302.



6J-33.2


380306-89


cheese head screw 10.9 galvanized DIN 912, 10.9 M10 x 20 (38030689)






303.



6J-33.2


321202-01


centering plate steel 167 x 122 x 12 (32120201)






304.



6J-33.2


372120-01


gasket 133 x 117 x 2 (37212001)






305.



6J-33.2


300950-17


terminal box black aluminium cast 313 x 175 x 84 (30095017)






306.



6J-33.2


380508-51


Cheese head screw galvanized DIN 7985, 4.8 M5 x 20 (38050851)






307.



6J-33.2


305914-45


Cover black 313 x 175 x 11 (30591445)






308.



6J-33.2


347028-01


protection device SE-B2 230V-50/60Hz (34702801)






309.



6J-33.2


380507-52


Cross Recessed Raised Screw 4.8 galvanized M4 x 10 (38050752)






310.



6J-33.2


380501-54


Oval head screw galvanized DIN 7985, 4.8 M6 x 16 (38050154)






311.



6J-33.2


372811-05


gasket set (37281105)






312.



6J-33.2


346332-46


built-in motor 24 kW, 4-pole 380..420V Y/YY-3-50Hz, 440..480V Y/YY-3-60Hz Ø223 x 222 (34633246)






313.



6J-33.2


372124-01


gasket terminal box aluminium 165 x 120 x 3 (37212401)






314.



6J-33.2


372138-02


gasket terminal box aluminium (37213802)






315.



6J-33.2


343213-12


Crankcase heater heating capacity: 140W 230V-1-50/60Hz (34321312)






316.



6J-33.2


389002-01


electric connector of the machine / device capacity control DIN 43650 DIN 43650 Typ GDM 209 (38900201)






317.



6J-33.2


345906-02


heater sleeve for 140W heater 43315 (34590602)






318.



4J-22.2


311103-06


bearing bush connecting rod Ø23 x Ø19 x 22,5 (31110306)






319.



4J-22.2


311100-05


bearing bush Crankcase side Ø50 x Ø45 x 47,5 (31110005)






320.



4J-22.2


311100-04


bearing bush Motor side Ø50 x Ø45 x 47,5 (31110004)






321.



4J-22.2


305125-03


bearing cover complete inclusive oil pump (30512503)






322.



4J-22.2


367015-15


blind flange steel 91 x 52 x 13. Bo. 1/8" NPTF (36701515)






323.



4J-22.2


320307-04


bottom plate steel 270 x 360 x 12 (32030704)






324.



4J-22.2


346294-46


built-in motor 14.7 kW, 4-pole 380..420V Y/YY-3-50Hz, 440..480V Y/YY-3-60Hz Ø223 (34629446)






325.



4J-22.2


302915-02


cable connector brass (30291502)






326.



4J-22.2


321202-01


centering plate steel 167 x 122 x 12 (32120201)






327.



4J-22.2


380306-32


Cheese Head Screw bearing cover DIN 912, 10.9 M10 x 30 (38030632)






328.



4J-22.2


380507-51


cheese head screw 4.8 galvanized M4 x 8 (38050751)






329.



4J-22.2


380306-89


cheese head screw 10.9 galvanized DIN 912, 10.9 M10 x 20 (38030689)






330.



4J-22.2


380508-51


Cheese head screw galvanized DIN 7985, 4.8 M5 x 20 (38050851)






331.



4J-22.2


380603-01


cheese head screw DIN 912, 8.8 M12 x 50 (38060301)






332.



4J-22.2


367121-01


clamping plate suction shut-off valve 80 x 80 (36712101)






333.



4J-22.2


383021-11


clamping sleeve 10 x 0,75 x 29 (38302111)






334.



4J-22.2


382300-46


compression ring Ø65 x 1,5 (38230046






335.



4J-22.2


382310-13


compression ring Ø65 x 1,5 (38231013)






336.



4J-22.2


302115-50


connecting rod (30211550)






337.



4J-22.2


302297-46


connecting rod / piston Ø65 (30229746)






338.



4J-22.2


320318-03


connection bridge brass A 5,4 (32031803)






339.



4J-22.2


343417-07


connection to ground, complete grounding (34341707)






340.



4J-22.2


343413-01


conversion kit (34341301)






341.



4J-22.2


305914-45


Cover black 313 x 175 x 11 (30591445)






342.



4J-22.2


343213-12


Crankcase heater heating capacity: 140W 230V-1-50/60Hz (34321312)






343.



4J-22.2


301007-07


crankshaft Stroke 55mm Ø45 x 522 (30100707)






344.



4J-22.2


380507-52


Cross Recessed Raised Screw 4.8 galvanized M4 x 10 (38050752)






345.



4J-22.2


302360-22


cylinder head air-cooled (30236022)






346.



4J-22.2


302360-03


cylinder head water-cooled Water cooled 253 x 155 x 64 (30236003)






347.



4J-22.2


302326-05


cylinder head water-cooled Water cooled 253 x 155 x 60,5 (30232605)






348.



4J-22.2


325002-02


damper element Motor side spring steel red Lo=42 (32500202)






349.



4J-22.2


325002-01


damper element Crankcase side spring steel brown Lo=42 (32500201)






350.



4J-22.2


347320-33


differential oil pressure cut-out MP54 115V/230V-50/60Hz 100 x 50 x 130 (34732033)






351.



4J-22.2


389002-01


electric connector of the machine / device capacity control DIN 43650 Typ GDM 209 (38900201)






352.



4J-22.2


320314-01


fixing plate MP54 140 x 40 x 3 (32031401)






353.



4J-22.2


327309-01


foot 369 x 60 x 13 x Ø21 (32730901)






354.



4J-22.2


361110-03


gas equalising valve (36111003)






355.



4J-22.2


372511-10


gasket 253 x 155 x 1,0 Ø65 (37251110)






356.



4J-22.2


372415-02


gasket bottom plate (37241502)






357.



4J-22.2


372120-01


gasket 133 x 117 x 2 (37212001)






358.



4J-22.2


372301-02


gasket suction shut-off valve Ø70 x Ø54 x 1 (37230102)






359.



4J-22.2


372124-03


gasket only needed for terminal box IP66 165 x 120 x 3 (37212403)






360.



4J-22.2


372616-03


gasket Retall 253 x 155 x 0,5 (37261603)






361.



4J-22.2


372421-14


gasket 163 x 118 x 0,5 (37242114)






362.



4J-22.2


372200-04


gasket Pipe connection teflon Ø38 x Ø35 x 1,5 (37220004)






363.



4J-22.2


372138-02


gasket terminal box aluminium (37213802)






364.



4J-22.2


372124-01


gasket terminal box aluminium 165 x 120 x 3 (37212401)






365.



4J-22.2


372315-03


gasket housing cover Ø286 x Ø236 x 0,38 (37231503)






366.



4J-22.2


372704-01


Gasket discharge shut-off valve 91 x 52 x 1 (37270401)






367.



4J-22.2


372314-03


gasket bearing cover Ø182 x Ø133 x 1 (37231403)






368.



4J-22.2


372303-01


gasket Pipe connection Ø52 x Ø37 x 2 (37230301)






369.



4J-22.2


375000-01


gasket ring Ø4,5 x Ø18,5 x 8,5 (37500001)






370.



4J-22.2


382403-04


GasketRing oil drain aluminium DIN 7603 A26 x 31 x 2 (38240304)






371.



4J-22.2


382402-01


gasket ring aluminium DIN 7603 A10 x 15 x 1 (38240201)






372.



4J-22.2


375000-03


gasket ring Ø16 x Ø8 x 8,5 (37500003)






373.



4J-22.2


372811-02


gasket set (37281102)






374.



4J-22.2


384102-01


gib-headed key Stator steel DIN 6887 5 x 5 x 60 (38410201)






375.



4J-22.2


383101-08


half length taper-grooved dowel pin spacer sleeve DIN 1472 5 x 20 (38310108)






376.



4J-22.2


345906-02


heater sleeve for 140W heater 43315 (34590602)






377.



4J-22.2


380007-52


hexagon head screw suction shut-off valve galvanized DIN 931, 8.8 M12 x 80 (38000752)






378.



4J-22.2


380156-06


hexagon head screw blind flange coated DIN 933, 10.9 M10 x 30 (38015606)






379.



4J-22.2


380156-05


hexagon head screw DIN 933, 10.9 M10 x 25 (38015605)






380.



4J-22.2


380105-09


hexagon head screw DIN 933, 8.8 M8 x 45 (38010509)






381.



4J-22.2


380166-03


hexagon head screw coated DIN 933, 10.9 M16 x 40 (38016603)






382.



4J-22.2


380057-09


hexagon head screw housing cover DIN 931, 10.9 M12 x 130 (38005709)






383.



4J-22.2


380057-07


hexagon head screw housing cover DIN 931, 10.9 M12 x 110 (38005707)






384.



4J-22.2


380056-03


hexagon head screw DIN 931, 10.9 M10 x 60 (38005603)






385.



4J-22.2


380155-05


hexagon head screw oil pump DIN 933, 10.9 M8 x 20 (38015505)






386.



4J-22.2


380154-06


hexagon head screw DIN 933, 10.9 M6 x 20 (38015406)






387.



4J-22.2


381301-05


hexagon nut brass M8 (38130105)






388.



4J-22.2


381301-03


hexagon nut brass M5 (38130103)






389.



4J-22.2


380339-01


Hexsocket Cheese Head Screw ISO 4762, 10.9 - A2K M10 x 30 (38033901)






390.



4J-22.2


300028-01


housing Ø65 (30002801)






391.



4J-22.2


305900-04


housing cove (30590004)






392.



4J-22.2


375002-01


insulating plate 53 x 18 x 6,5 (37500201)






393.



4J-22.2


375002-03


insulating plate 85 x 25 x 6 (37500203)






394.



4J-22.2


345923-06


insulating plate (34592306)






395.



4J-22.2


372001-13


O-ring Ø45 x 3 (37200113)






396.



4J-22.2


372001-19


O-ring oil pump Ø74 x 2 (37200119)






397.



4J-22.2


372003-15


O-ring sight glass Ø36,3 x 1,78 (37200315)






398.



4J-22.2


362003-01


oil filter Ø20 x 200 (36200301)






399.



4J-22.2


361101-01


oil pressure relief valve SW17 x 29 (36110101)






400.



4J-22.2


360110-06


oil return system (36011006)






401.



4J-22.2


380501-54


Oval head screw galvanized DIN 7985, 4.8 M6 x 16 (38050154)






402.



4J-22.2


384001-16


parallel key steel DIN 6885 A12 x 8 x 80 (38400116)






403.



4J-22.2


327000-01


parallel pin 6H 11 x 20 (32700001)






404.



4J-22.2


365321-14


pipe connection steel brazing and welding bush Ø42 (1 5/8") (36532114)






405.



4J-22.2


366000-06


pipe connection discharge shut-off valve steel copper-plated brazed connection Ø28, 1 3/4" - 12 UN (36600006)






406.



4J-22.2


302233-98


piston aluminium alloy Ø65 (30223398)






407.



4J-22.2


375001-01


pressure bush Ø4,5 x Ø18,5 x 8,5 (37500101)






408.



4J-22.2


375001-03


pressure bush Ø8 x Ø24 x 8 (37500103)






409.



4J-22.2


361100-21


pressure relief valve 34 bar 3/4" - 14 NPTF - p=34bar (36110021)






410.



4J-22.2


325000-34


pressure spring spring steel Ø23,5 x 28 x 1,8 (32500034)






411.



4J-22.2


347028-01


protection device SE-B2 230V-50/60Hz (34702801)






412.



4J-22.2


366201-22


Protective Cap Span of the jaw: 27 Plastic - GRP M27 x 2 / L=70 mm (36620122)






413.



4J-22.2


366201-19


Protective Cap Span of the jaw: 27 Plastic - GRP M24 x 2 / L=57,5 mm (36620119)






414.



4J-22.2


382141-01


retaining ring with lugs spring steel DIN 6796 - FSt A8 (38214101)






415.



4J-22.2


382231-04


retaining ring with lugs spring steel DIN 472 Ø20 x 1 (38223104)






416.



4J-22.2


325910-01


retaining ring with lugs spring steel Ø230 (32591001)






417.



4J-22.2


312006-05


ring spring washer Ø 42,1 x Ø 58 x 5 (31200605)






418.



4J-22.2


361500-22


Schrader valve (36150022)






419.



4J-22.2


366202-01


sealing nut 7/16" - 20 UNF (36620201)






420.



4J-22.2


366110-02


Sealing Plug steel 1/4" - 18 NPTF (36611002)






421.



4J-22.2


366110-05


sealing plug gas equalising bore steel 3/4" - 14 NPTF (36611005)






422.



4J-22.2


366110-10


sealing plug oil equalising bore steel 1/2" - 14 NPTF (36611010)






423.



4J-22.2


366110-01


Sealing plug steel 1/8“ - 27 NPTF (36611001)






424.



4J-22.2


380391-55


sealing screw conic brass R 3/4 (38039155)






425.



4J-22.2


366112-01


sealing screw conic DIN 906 M8 x 1 (36611201)






426.



4J-22.2


366114-24


sealing screw with magnet oil drain inclusive O-Ring gasket M26 (36611424)






427.



4J-22.2


380358-01


Set screw coated DIN 916 M10 x 12 (38035801)






428.



4J-22.2


374027-03


shaft seal bearing bush (37402703)






429.



4J-22.2


361310-07


shut-off valve Discharge side brazing and welding bush Ø28 (1 1/8") (36131007)






430.



4J-22.2


361338-01


shut-off valve suction side Ø42 (1 5/8") (36133801)






431.



4J-22.2


361802-02


sight glass Ø67 x 8,5 (36180202)






432.



4J-22.2


382201-51


single coil spring washer spring steel galvanized DIN 127 A4, 3 (38220151)






433.



4J-22.2


313007-01


spacer washer Ø60 x 14 (31300701)






434.



4J-22.2


325900-02


spring washer Ø58,5 x Ø46 x 0,5 (32590002)






435.



4J-22.2


362004-02


suction gas filter Ø220 x 50 (36200402)






436.



4J-22.2


300950-17


terminal box black aluminium cast 313 x 175 x 84 (30095017)






437.



4J-22.2


304900-01


terminal plate 165 x 120 x 15,5 (30490001)






438.



4J-22.2


343416-02


terminal plate kit (34341602)






439.



4J-22.2


343414-08


terminal plate kit (34341408)






440.



4J-22.2


343414-07


terminal plate kit (34341407)






441.



4J-22.2


312030-03


thrust collar Ø62 x 7 (31203003)






442.



4J-22.2


320500-06


thrust washer Motor side Ø62 x Ø48 x 1,7 (32050006)






443.



4J-22.2


382152-01


thrust washer DIN 127 S 8 (38215201)






444.



4J-22.2


320500-07


thrust washer oil pump side Ø62 x Ø48 x 1,7 (32050007)






445.



4J-22.2


382150-04


thrust washer spring steel S16 (38215004)






446.



4J-22.2


304051-01


valve plat Ø65 (30405101)






447.



4J-22.2


370004-01


vibration damper set Crankcase side spring brown Lo = 42 (37000401)






448.



4J-22.2


370004-02


vibration damper set Motor side spring red Lo=42 (37000402)






449.



4J-22.2


382002-01


washer brass DIN 125 A4, 3 (38200201)






450.



4J-22.2


382042-03


washer copper 8 x 1,6 (38204203)






451.



4J-22.2


382002-02


washer brass DIN 125 A5, 3 (38200202)






452.



4J-22.2


383401-06


wrist pin DIN 73126 Ø20 x Ø13 x 56 (38340106)






453.



4JE-22


311100-04


bearing bush Ø50 x Ø45 x 47,5 (31110004)






454.



4JE-22


305125-03


bearing cover complete inclusive oil pump (30512503)






455.



4JE-22


367015-15


blind flange steel 91 x 52 x 13. Bo. 1/8" NPTF (36701515)






456.



4JE-22


320307-04


bottom plate steel 270 x 360 x 12 (32030704)






457.



4JE-22


346399-16


built-in motor 380..420V Y/YY-3-50Hz, 440..480V Y/YY-3-60Hz Ø223 (34639916)






458.



4JE-22


344006-03


cable grounding for grounding (34400603)






459.



4JE-22


302915-02


cable connector brass (30291502)






460.



4JE-22


321202-01


centering plate steel 167 x 122 x 12 (32120201)






461.



4JE-22


380508-51


Cheese head screw galvanized DIN 7985, 4.8 M5 x 20 (38050851)






462.



4JE-22


380306-32


Cheese Head Screw bearing cover DIN 912, 10.9 M10 x 30 (38030632)






463.



4JE-22


380302-05


Cheese Head Screw clamping plate DIN 912, 10.9 M12 x 50 (38030205)






464.



4JE-22


380507-51


cheese head screw 4.8 galvanized M4 x 8 (38050751)






465.



4JE-22


380306-89


cheese head screw 10.9 galvanized DIN 912, 10.9 M10 x 20 (38030689)






466.



4JE-22


367121-01


clamping plate 80 x 80 (36712101)






467.



4JE-22


382310-13


compression ring Ø65 x 1,5 (38231013)






468.



4JE-22


382300-46


compression ring Ø65 x 1,5 (38230046)






469.



4JE-22


302115-52


connecting rod (30211552)






470.



4JE-22


302298-66


connecting rod / piston Ø65 (30229866)






471.



4JE-22


343413-01


conversion kit (34341301)






472.



4JE-22


305914-45


Cover black 313 x 175 x 11 (30591445)






473.



4JE-22


343213-12


Crankcase heater heating capacity: 140W 230V-1-50/60Hz (34321312)






474.



4JE-22


301007-07


crankshaft Stroke 55mm Ø45 x 522 (30100707)






475.



4JE-22


380501-52


cross recessed raised screw grounding Cross recessed raised 4.8 galvanized M6 x 12 (38050152)






476.



4JE-22


380507-52


Cross Recessed Raised Screw 4.8 galvanized M4 x 10 (38050752)






477.



4JE-22


302360-38


cylinder head air-cooled (30236038)






478.



4JE-22


325002-01


damper element Crankcase side spring steel brown Lo=42 (32500201)






479.



4JE-22


325002-02


damper element Motor side spring steel red Lo=42 (32500202)






480.



4JE-22


347319-11


differential oil pressure cut-out Delta-P II 230V-50/60Hz (34731911)






481.



4JE-22


347320-33


differential oil pressure cut-out MP54 115V/230V-50/60Hz 100 x 50 x 130 (34732033)






482.



4JE-22


389002-01


electric connector of the machine / device DIN 43650 Typ GDM 209 (38900201)






483.



4JE-22


320314-01


fixing plate MP54 140 x 40 x 3 (32031401)






484.



4JE-22


327309-01


foot 369 x 60 x 13 x Ø21 (32730901)






485.



4JE-22


361110-03


gas equalising valve (36111003)






486.



4JE-22


372303-01


gasket Pipe connection Ø52 x Ø37 x 2 (37230301)






487.



4JE-22


372138-02


gasket terminal box aluminium (37213802)






488.



4JE-22


372301-02


gasket suction shut-off valve Ø70 x Ø54 x 1 (37230102)






489.



4JE-22


372704-01


Gasket blind flange 91 x 52 x 1 (37270401)






490.



4JE-22


372124-01


gasket terminal box aluminium 165 x 120 x 3 (37212401)






491.



4JE-22


372616-03


gasket Retall 253 x 155 x 0,5 (37261603)






492.



4JE-22


372314-03


gasket bearing cover Ø182 x Ø133 x 1 (37231403)






493.



4JE-22


372704-05


gasket discharge shut-off valve Ø34 x 1,0 - LA 66 (37270405)






494.



4JE-22


372124-03


gasket only needed for terminal box IP66 165 x 120 x 3 (37212403)






495.



4JE-22


372120-01


gasket 133 x 117 x 2 (37212001)






496.



4JE-22


372421-14


gasket 163 x 118 x 0,5 (37242114)






497.



4JE-22


372415-02


gasket (37241502)






498.



4JE-22


372511-10


gasket 253 x 155 x 1,0 Ø65 (37251110)






499.



4JE-22


372315-03


gasket housing cover Ø286 x Ø236 x 0,38 37231503)






500.



4JE-22


382403-01


Gasket Ring aluminium DIN 7603 A20 x 24 x 1,5 (38240301)






501.



4JE-22


382402-01


gasket ring aluminium DIN 7603 A10 x 15 x 1 (38240201)






502.



4JE-22


382403-04


Gasket Ring oil drain aluminium DIN 7603 A26 x 31 x 2 (38240304)






503.



4JE-22


372811-02


gasket set (37281102)






504.



4JE-22


384102-01


gib-headed key Stator steel DIN 6887 5 x 5 x 60 (38410201)






505.



4JE-22


345906-02


heater sleeve for 140W heater 43315 (34590602)






506.



4JE-22


380056-14


hexagon head screw DIN 931, 10.9 M10 x 70 (38005614)






507.



4JE-22


380156-05


hexagon head screw DIN 933, 10.9 M10 x 25 (38015605)






508.



4JE-22


380156-06


hexagon head screw discharge shut-off valve coated DIN 933, 10.9 M10 x 30 (38015606)






509.



4JE-22


380056-20


hexagon head screw DIN 931, 10.9 M10 x 90 (38005620)






510.



4JE-22


380004-53


hexagon head screw grounding ISO 4014, 8.8 - A2K M6 x 35 (38000453)






511.



4JE-22


380057-07


hexagon head screw housing cover DIN 931, 10.9 M12 x 110 (38005707)






512.



4JE-22


380155-05


hexagon head screw oil pump DIN 933, 10.9 M8 x 20 (38015505)






513.



4JE-22


380154-06


hexagon head screw DIN 933, 10.9 M6 x 20 (38015406)






514.



4JE-22


380166-03


hexagon head screw coated DIN 933, 10.9 M16 x 40 (38016603)






515.



4JE-22


380007-52


hexagon head screw suction shut-off valve galvanized DIN 931, 8.8 M12 x 80 (38000752)






516.



4JE-22


380057-09


hexagon head screw housing cover DIN 931, 10.9 M12 x 130 (38005709)






517.



4JE-22


381301-05


hexagon nut brass M8 (38130105)






518.



4JE-22


381108-01


hexagon nut M5 (38110801)






519.



4JE-22


380339-01


Hexsocket Cheese Head Screw ISO 4762, 10.9 - A2K M10 x 30 (38033901)






520.



4JE-22


300028-01


housing Ø65 (30002801)






521.



4JE-22


305900-04


housing cover (30590004)






522.



4JE-22


377108-56


Insulation for motor housing cover (37710856)






523.



4JE-22


345950-01


Metal Plate For Grounding aluminium M6 (34595001)






524.



4JE-22


372001-19


O-ring oil pump Ø74 x 2 (37200119)






525.



4JE-22


372003-15


O-ring sight glass Ø36,3 x 1,78 (37200315)






526.



4JE-22


362003-01


oil filter Ø20 x 200 (36200301)






527.



4JE-22


361101-01


oil pressure relief valve SW17 x 29 (36110101)






528.



4JE-22


362503-02


oil pump (36250302)






529.



4JE-22


360110-06


oil return system (36011006)






530.



4JE-22


380501-54


Oval head screw galvanized DIN 7985, 4.8 M6 x 16 (38050154)






531.



4JE-22


384001-16


parallel key steel DIN 6885 A12 x 8 x 80 (3840011)






532.



4JE-22


327000-01


parallel pin 6H 11 x 20 (32700001)






533.



4JE-22


365321-14


pipe connection steel brazing and welding bush Ø42 (1 5/8") (36532114)






534.



4JE-22


302233-98


piston aluminium alloy Ø65 (30223398)






535.



4JE-22


361110-06


Pressure relief valve 37 bar 3/4" (36111006)






536.



4JE-22


325000-34


pressure spring steel Ø23,5 x 28 x 1,8 (32500034)






537.



4JE-22


347028-01


protection device SE-B2 230V-50/60Hz (34702801)






538.



4JE-22


366201-22


Protective Cap Span of the jaw: 27 Plastic - GRP M27 x 2 / L=70 mm (36620122)






539.



4JE-22


366201-19


Protective Cap Span of the jaw: 27 Plastic - GRP M24 x 2 / L=57,5 mm (36620119)






540.



4JE-22


325910-01


retaining ring with lugs spring steel Ø230 (32591001)






541.



4JE-22


382231-04


retaining ring with lugs spring steel DIN 472 Ø20 x 1 (38223104)






542.



4JE-22


361500-22


Schrader valve (36150022)






543.



4JE-22


366110-05


sealing plug gas equalising bore steel 3/4" - 14 NPTF (36611005)






544.



4JE-22


366110-01


Sealing plug steel 1/8“ - 27 NPTF (36611001)






545.



4JE-22


366110-02


Sealing Plug steel 1/4" - 18 NPTF (36611002)






546.



4JE-22


366110-10


sealing plug oil equalising bore steel 1/2" - 14 NPTF (36611010)






547.



4JE-22


366112-01


sealing screw conic DIN 906 M8 x 1 (36611201)






548.



4JE-22


366114-24


sealing screw with magnet oil drain inclusive O-Ring gasket M26 (36611424)






549.



4JE-22


380358-01


Set screw coated DIN 916 M10 x 12 (38035801)






550.



4JE-22


374027-03


shaft seal bearing bush (37402703)






551.



4JE-22


361338-01


shut-off valve suction side Ø42 (1 5/8") (36133801)






552.



4JE-22


361315-13


shut-off valve Discharge side Ø28 (1 1/8") (36131513)






553.



4JE-22


361802-02


sight glass steel / glass Ø67 x 8,5 (36180202)






554.



4JE-22


382201-51


single coil spring washer spring steel galvanized DIN 127 A4, 3 (38220151)






555.



4JE-22


311018-01


Spacer Sleeve Ø14 x Ø6,3 x 21,4 (31101801)






556.



4JE-22


313007-01


spacer washer Ø60 x 14 (31300701)






557.



4JE-22


362004-02


suction gas filter Ø220 x 50 (36200402)






558.



4JE-22


300950-17


terminal box black aluminium cast 313 x 175 x 84 (30095017)






559.



4JE-22


345506-24


terminal plate optimized condensation sequence optimized condensation sequence (34550624)






560.



4JE-22


343416-02


terminal plate kit (34341602)






561.



4JE-22


382152-01


thrust washer DIN 127 S 8 (38215201)






562.



4JE-22


320500-06


thrust washer Motor side Ø62 x Ø48 x 1,7 (32050006)






563.



4JE-22


382150-01


thrust washer spring steel S6 (38215001)






564.



4JE-22


320500-07


thrust washer oil pump side Ø62 x Ø48 x 1,7 (32050007)






565.



4JE-22


382150-04


thrust washer spring steel S16 (38215004)






566.



4JE-22


382101-54


toothed washer spring steel galvanized DIN 6797 A6, 4 (38210154)






567.



4JE-22


304063-32


valve plate (30406332)






568.



4JE-22


370004-02


vibration damper set Motor side spring red Lo=42 (37000402)






569.



4JE-22


370004-01


vibration damper set Crankcase side spring brown Lo = 42 (37000401)






570.



4JE-22


382002-01


washer brass DIN 125 A4, 3 (38200201)






571.



4JE-22


383401-06


wrist pin DIN 73126 Ø20 x Ø13 x 56 (38340106)






572.



2JC-07.2


343021-01


additional fan 230V-1-50/60Hz 230V-1-50/60Hz (34302101)






573.



2JC-07.2


382091-11


Adjusting washer Motor side Ø32 x Ø22 x 2 (38209111)






574.



2JC-07.2


311112-16


bearing bush Motor side Ø25 x Ø28 x 25 (31111216)






575.



2JC-07.2


311112-15


bearing bush Crankcase side Ø23 x Ø20 x 25 (31111215)






576.



2JC-07.2


305107-73


bearing cover Crankcase side (30510773)






577.



2JC-07.2


346002-12


built-in motor 0.56 kW, 4-pole 220..240V D-3-50Hz, 380..420V Y-3-50Hz, 265..290V D-3-60Hz, 440..480V Y-3-60Hz Ø160 (34600212)






578.



2JC-07.2


344119-01


cable 1 x 2,5, 2 x 100 (34411901)






579.



2JC-07.2


380306-02


Cheese head screw suction shut-off valve DIN 912, 10.9 M8 x 20 (38030602)






580.



2JC-07.2


382300-91


compression ring piston Ø34 x 1,5 (38230091)






581.



2JC-07.2


302132-01


connecting rod Ø55 x Ø10 x 72 (30213201)






582.



2JC-07.2


302297-94


connecting rod / piston (30229794)






583.



2JC-07.2


343417-14


connection to ground, complete (34341714)






584.



2JC-07.2


343224-02


crankcase heater 100-240V-60W-PTC Ø11 x 95 (34322402)






585.



2JC-07.2


302360-12


cylinder head 152 x 102 x 51,5 (30236012)






586.



2JC-07.2


313000-17


Disk built-in motor Ø30 x Ø10,5 x 6 (31300017)






587.



2JC-07.2


301109-50


Eccentric shaft Ø55 x 245 (30110950)






588.



2JC-07.2


320354-02


Eyebolt 51 x 30 x 4 (32035402)






589.



2JC-07.2


372937-01


Gasket housing cover Retall 202 x 202 x 0,38 (37293701)






590.



2JC-07.2


372702-03


gasket suction shut-off valve 35 x 60 x 1 (37270203)






591.



2JC-07.2


372938-01


Gasket Terminal plate 52 x 52 x 0,38 (37293801)






592.



2JC-07.2


372516-02


gasket valve plate 152 x 102 x 0,7 (37251602)






593.



2JC-07.2


372617-01


Gasket cylinder head Retall 152 x 102 x 0,38 (37261701)






594.



2JC-07.2


372713-01


Gasket discharge shut-off valve 24 x 52 x 1 (37271301)






595.



2JC-07.2


372718-01


Gasket Terminal plate Retall 32 x 48 x 0,38 (37271801)






596.



2JC-07.2


382401-30


Gasket ring oil drain copper A8 x 14 x 2 (38240130)






597.



2JC-07.2


372200-10


gasket ring sight glass teflon Ø31,9 x 1,6 x 1,8 (37220010)






598.



2JC-07.2


372834-02


gasket set (37283402)






599.



2JC-07.2


380155-07


Hexagon head screw housing cover DIN 933, 10.9 M8 x 25 (38015507)






600.



2JC-07.2


380104-05


Hexagon head screw Terminal plate DIN 933, 8.8 M6 x 18 (38010405)






601.



2JC-07.2


380155-54


hexagon head screw DIN 933, 10.9 M8 x 25 (38015554)






602.



2JC-07.2


380153-02


Hexagon head screw oil splasher plate steel DIN 933, 10.9 M5 x 10 (38015302)






603.



2JC-07.2


380056-04


hexagon head screw cylinder head DIN 931, 10.9 M10 x 65 (38005604)






604.



2JC-07.2


380169-01


Hexagon head screw built-in motor coated DIN 933, 10.9 M10 x 30 (38016901)






605.



2JC-07.2


305227-01


housing cover Motor side grey cast iron 02 x 202 x 18 (30522701)






606.



2JC-07.2


321105-02


oil splasher plate steel Ø156 x 33 (32110502)






607.



2JC-07.2


380501-54


Oval head screw terminal box aluminium galvanized DIN 7985, 4.8 M6 x 16 (38050154)






608.



2JC-07.2


384001-03


Parallel key built-in motor steel DIN 6885 A6 x 6 x 45 (38400103)






609.



2JC-07.2


302233-91


piston aluminium alloy Ø34 (30223391)






610.



2JC-07.2


347019-01


protection device SE-B1 230V-50/60Hz (34701901)






611.



2JC-07.2


366201-16


Protective Cap Span of the jaw: 20 Plastic - GRP 3/4"-16 UNF / L=36 mm (36620116)






612.



2JC-07.2


382231-22


Retaining ring with lugs wrist pin spring steel DIN 472 Ø10 x 1 (38223122)






613.



2JC-07.2


343610-16


rotor fixing built-in motor (34361016)






614.



2JC-07.2


361501-22


Schrader valve oil fill connection 1/4" - 18 NPTF (36150122)






615.



2JC-07.2


315027-01


Screw for grounding Terminal plate M6 x 40 (31502701)






616.



2JC-07.2


366100-01


Sealing Plug cylinder head brass 1/8" - 27 NPTF (36610001)






617.



2JC-07.2


375030-25


sealing plug Ø11,2 x 13,0 x 10 (37503025)






618.



2JC-07.2


361315-11


shut-off valve Discharge side brazed connection Ø12 L (36131511)






619.



2JC-07.2


361315-10


shut-off valve suction side brazed connection Ø16 L (36131510)






620.



2JC-07.2


361815-01


Sight Glass steel / glass 1 1/8" - 18 UNEF (36181501)






621.



2JC-07.2


382201-05


Single coil spring washer built-in motor spring steel DIN 127 A10 (38220105)






622.



2JC-07.2


325900-05


spring washer wrist pin Ø19 x Ø10,5 x 0,15 (32590005)






623.



2JC-07.2


362012-01


suction gas filter suction shut-off valve Ø34 x 62 x 41,7 (36201201)






624.



2JC-07.2


343509-01


terminal box 202 x 95 x 57 (34350901)






625.



2JC-07.2


345500-15


Terminal plate 6-Lead 52 x 52 x 39 (34550015)






626.



2JC-07.2


345504-01


Terminal plate 48 x 32 x 39 (34550401)






627.



2JC-07.2


343428-01


terminal plate kit (34342801)






628.



2JC-07.2


312103-01


Thrust washer Motor side Ø33 x Ø26,5 x 3 (31210301)






629.



2JC-07.2


382150-05


thrust washer spring steel Ø9 (38215005)






630.



2JC-07.2


304055-05


valve plate Ø34 (30405505)






631.



2JC-07.2


370000-19


vibration damper set rubber (37000019)






632.



2JC-07.2


383401-42


wrist pin DIN 73126 Ø10 x Ø6 x 28 (38340142)






633.



2JES-07


311112-16


bearing bush Motor side Ø25 x Ø28 x 25 (31111216)






634.



2JES-07


311112-15


bearing bush Crankcase side Ø23 x Ø20 x 25 (31111215)






635.



2JES-07


305107-74


bearing cover Crankcase side (30510774)






636.



2JES-07


346002-12


built-in motor 0.56 kW, 4-pole 220..240V D-3-50Hz, 380..420V Y-3-50Hz, 265..290V D-3-60Hz, 440..480V Y-3-60Hz Ø160 (34600212)






637.



2JES-07


380306-02


Cheese head screw discharge shut-off valve DIN 912, 10.9 M8 x 20 (38030602)






638.



2JES-07


382300-91


compression ring piston Ø34 x 1,5 (38230091)






639.



2JES-07


302132-01


connecting rod Ø55 x Ø10 x 72 (30213201)






640.



2JES-07


302297-94


connecting rod / piston (30229794)






641.



2JES-07


343417-14


connection to ground, complete (34341714)






642.



2JES-07


343224-02


crankcase heater 100-240V-60W-PTC Ø11 x 95 (34322402)






643.



2JES-07


302360-12


cylinder head 152 x 102 x 51,5 (30236012)






644.



2JES-07


313000-17


Disk built-in motor Ø30 x Ø10,5 x 6 (31300017)






645.



2JES-07


301109-50


Eccentric shaft Ø55 x 245 (30110950)






646.



2JES-07


320354-02


Eye bolt 51 x 30 x 4 (32035402)






647.



2JES-07


372718-01


Gasket Terminal plate Retall 32 x 48 x 0,38 (37271801)






648.



2JES-07


372938-01


Gasket Terminal plate 52 x 52 x 0,38 (37293801)






649.



2JES-07


372702-03


gasket suction shut-off valve 35 x 60 x 1 (37270203)






650.



2JES-07


372713-01


Gasket discharge shut-off valve 24 x 52 x 1 (37271301)






651.



2JES-07


372617-01


Gasket cylinder head Retall 152 x 102 x 0,38 (37261701)






652.



2JES-07


372516-02


gasket valve plate 152 x 102 x 0,7 (37251602)






653.



2JES-07


372937-02


gasket bearing cover 202 x 202 x 0,38 (37293702)






654.



2JES-07


372200-10


gasket ring sight glass teflon Ø31,9 x 1,6 x 1,8 (37220010)






655.



2JES-07


382401-30


Gasket ring oil drain copper A8 x 14 x 2 (38240130)






656.



2JES-07


372834-02


gasket set (37283402)






657.



2JES-07


380155-54


hexagon head screw housing cover DIN 933, 10.9 M8 x 25 (38015554)






658.



2JES-07


380056-04


hexagon head screw cylinder head DIN 931, 10.9 M10 x 65 (38005604)






659.



2JES-07


380056-14


hexagon head screw cylinder head DIN 931, 10.9 M10 x 70 (38005614)






660.



2JES-07


380153-02


Hexagon head screw oil splasher plate steel DIN 933, 10.9 M5 x 10 (38015302)






661.



2JES-07


380169-01


Hexagon head screw built-in motorcoated DIN 933, 10.9 M10 x 30 (38016901)






662.



2JES-07


380104-05


Hexagon head screw Terminal plate DIN 933, 8.8 M6 x 18 (38010405)






663.



2JES-07


305227-02


housing cover Motor side 202 x 202 x 18 (30522702)






664.



2JES-07


321105-02


oil splasher plate steel Ø156 x 33 (32110502)






665.



2JES-07


380501-54


Oval head screw terminal box aluminium galvanized DIN 7985, 4.8 M6 x 16 (38050154)






666.



2JES-07


384001-03


Parallel key built-in motor steel DIN 6885 A6 x 6 x 45 (38400103)






667.



2JES-07


302233-91


piston aluminium alloy Ø34 (30223391)






668.



2JES-07


347019-01


protection device SE-B1 230V-50/60Hz (34701901)






669.



2JES-07


366201-16


Protective Cap Span of the jaw: 20 Plastic - GRP 3/4"-16 UNF / L=36 mm (36620116)






670.



2JES-07


382231-22


Retaining ring with lugs wrist pin spring steel DIN 472 Ø10 x 1 (38223122)






671.



2JES-07


361501-22


Schrader valve oil fill connection 1/4" - 18 NPTF (36150122)






672.



2JES-07


315027-01


Screw for grounding Terminal plate M6 x 40 (31502701)






673.



2JES-07


366100-01


Sealing Plug cylinder head brass 1/8" - 27 NPTF (36610001)






674.



2JES-07


361315-10


shut-off valve suction side brazed connection Ø16 L (36131510)






675.



2JES-07


361315-11


shut-off valve Discharge side brazed connection Ø12 L (36131511)






676.



2JES-07


361815-01


Sight Glass steel / glass 1 1/8" - 18 UNEF (36181501)






677.



2JES-07


382201-05


Single coil spring washer built-in motor spring steel DIN 127 A10 (38220105)






678.



2JES-07


325900-05


spring washer wrist pin Ø19 x Ø10,5 x 0,15 (32590005)






679.



2JES-07


362012-04


suction gas filter suction shut-off valve LA 42 (36201204)






680.



2JES-07


343509-01


terminal box 202 x 95 x 57 (34350901)






681.



2JES-07


345504-01


Terminal plate 48 x 32 x 39 (34550401)






682.



2JES-07


345500-15


Terminal plate 6-Lead 52 x 52 x 39 (34550015)






683.



2JES-07


343428-01


terminal plate kit (34342801)






684.



2JES-07


312103-01


Thrust washer Motor side Ø33 x Ø26,5 x 3 (31210301)






685.



2JES-07


382150-05


thrust washer spring steel Ø9 (38215005)






686.



2JES-07


375079-01


Train plug (37507901)






687.



2JES-07


304055-05


valve plate Ø34 (30405505)






688.



2JES-07


370000-19


vibration damper set rubber (37000019)






689.



2JES-07


383401-42


wrist pin DIN 73126 Ø10 x Ø6 x 28 (38340142)







Manufacturers of BITZER COMPRESSOR PARTS
