COMPRESSOR PARTS > BITZER > II

Sr. No.


Model

OEM Part No.

Description

1.



IV, V, VI, VII


320200-04

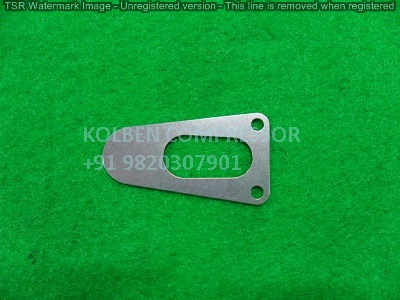

Suction Reed 54.4X29.8X0.4-To Fit Bitzer Ⅳ,Ⅴ,Ⅵ,Ⅶ






2.



II, III

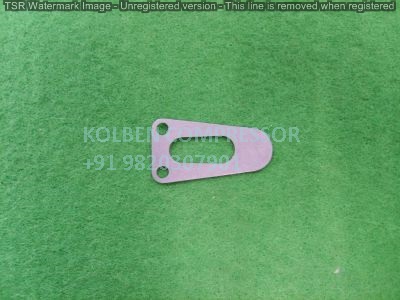

320200-03


Suction Reed 43.8X23.3X0.4-To Fit Bitzer Ⅱ,Ⅲ






3.



I, II, III

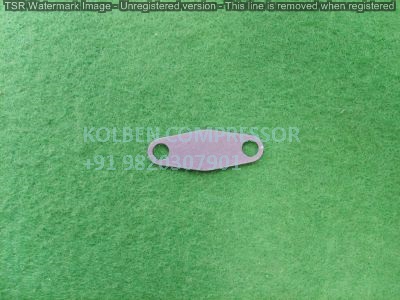

320210-01


Discharge Reed 39.5X14.0X0.4-To Fit Bitzer 0,Ⅰ,Ⅱ,Ⅲ

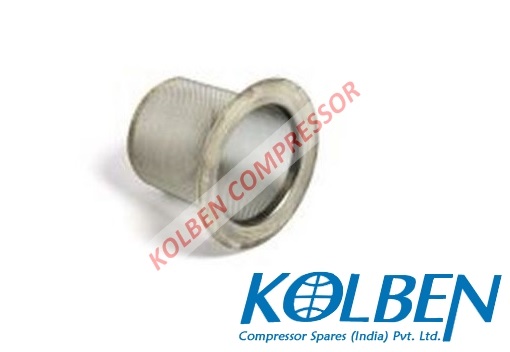

4.



4N, 4NC , 4NCS, 4PC, 4PCS, VII


362001-08


Suction Gas Filter 70.0X49.3X55.2-To Fit Bitzer 4Ncs20,4N,4Nc20, 4Ncs,4Pc15,4Pcs,Ⅶ

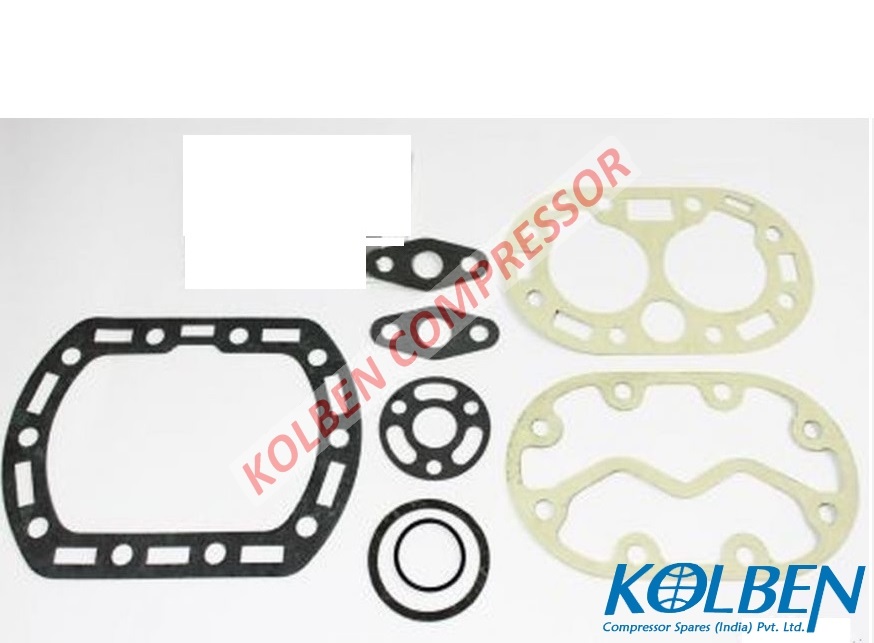

5.



III


372800-04


Gasket Set-To Fit Bitzer Iii






6.



II


311107-02


bearing bush connecting rod Ø14 x Ø12 x 12 (31110702)






7.



II


315020-02

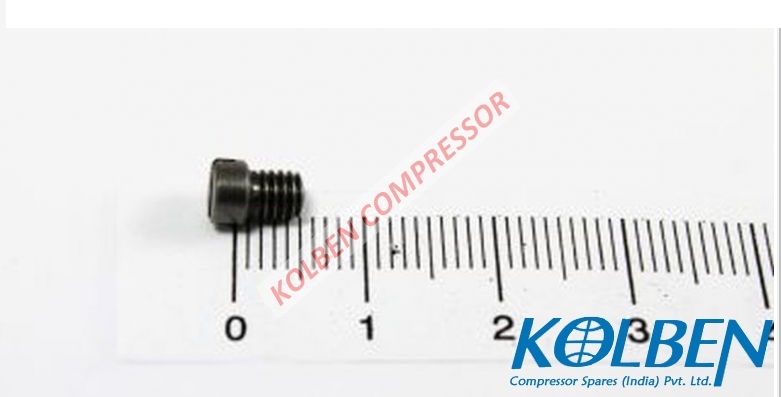

cheese head screw M4 x 4 (31502002)

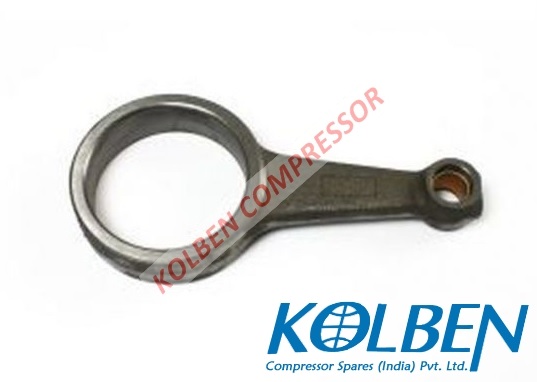

8.



II


302118-07


connecting rod using utmost care Ø55 x Ø12 x 50 (30211807)






9.



II

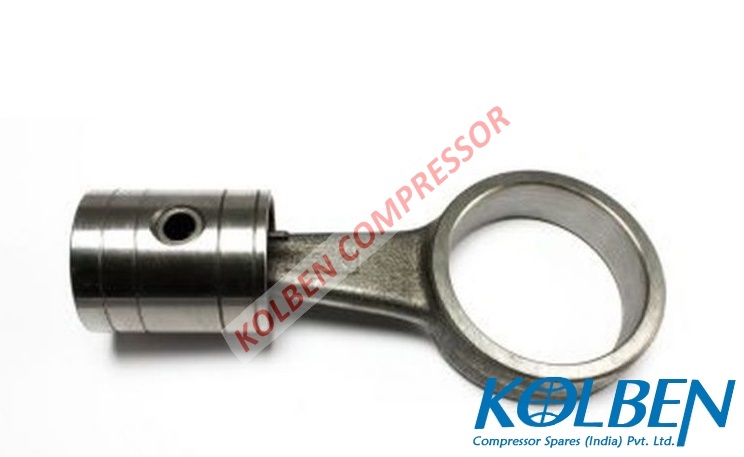

302239-03


connecting rod / piston (30223903)

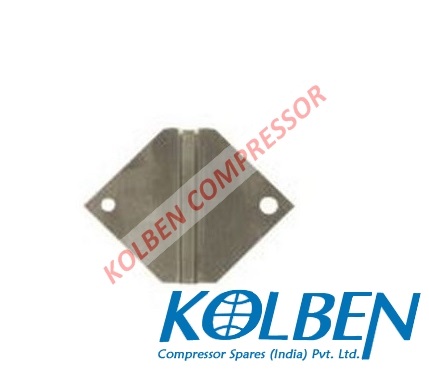

10.



II


320315-01


covering plate for cylinder 28 x 28 x 0,2 (32031501)

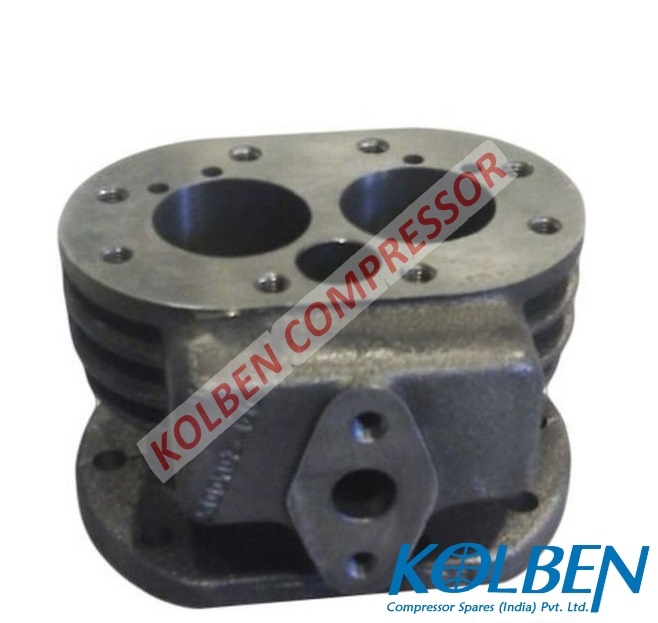

11.



II


300102-01


cylinder 140 x 124 x 85 (30010201)






12.



II

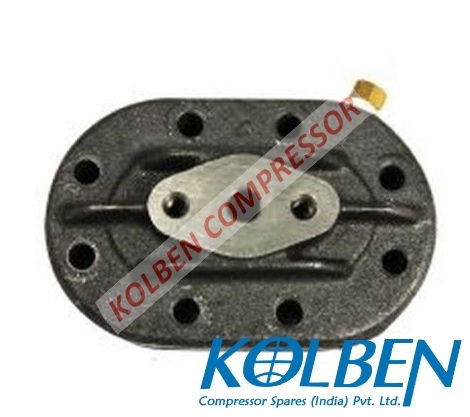

302302-01


cylinder head air-cooled grey cast iron 135 x 87 x 43 (30230201)






13.



II


383023-02


dowel pin 2,5 x 26 (38302302)

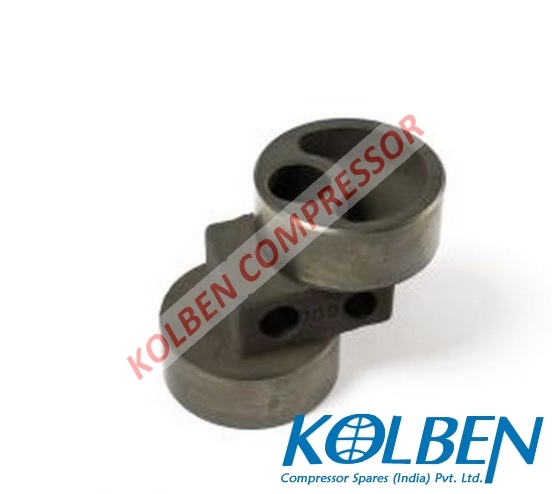

14.



II


302002-01


eccentric Ø55 x 68 (30200201)






15.



II

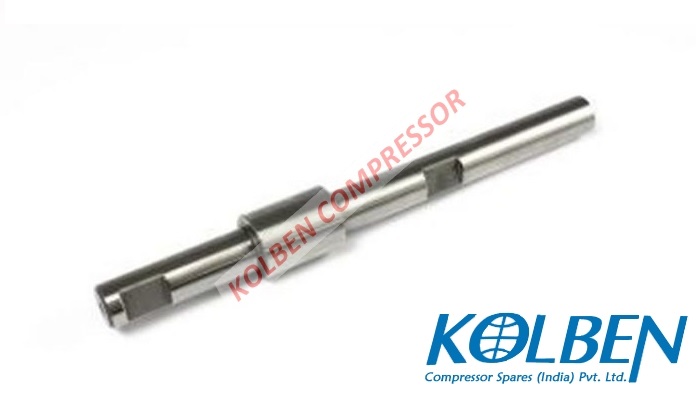

310001-01


eccentric shaft Ø27 x 232 (31000101)






16.



II


303123-10

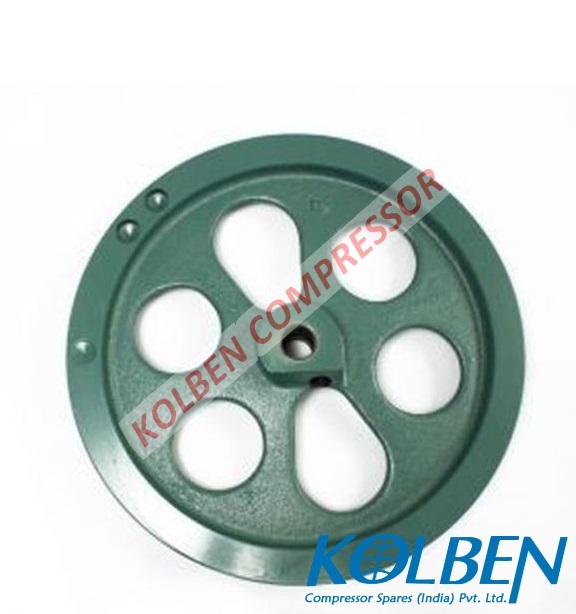

flywheel Ø260 x 39,5 (30312310)






17.



II

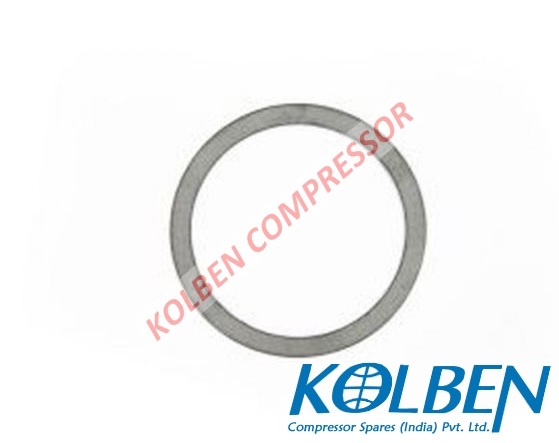

372300-02


gasket side cover Ø51 x Ø43 x 0,5 (37230002)






18.



II

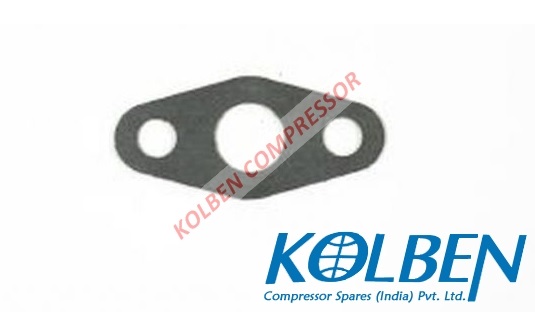

372701-01


gasket discharge shut-off valve 61 x 28 x 1 (37270101)






19.



II

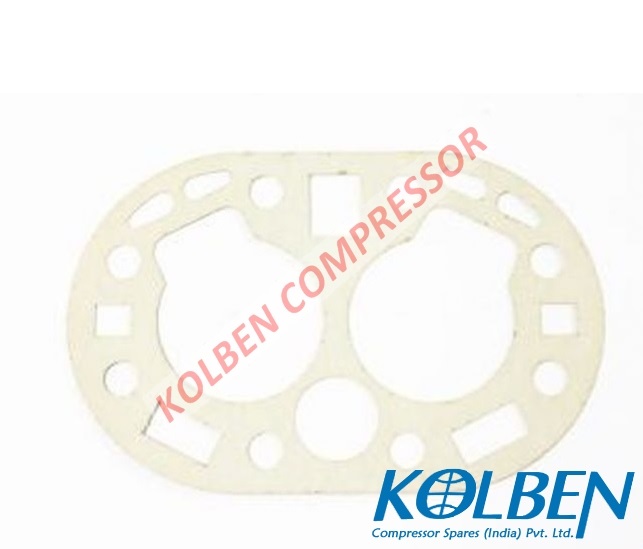

372502-01


gasket valve plate 87 x 135 x 0,5 (37250201)






20.



II

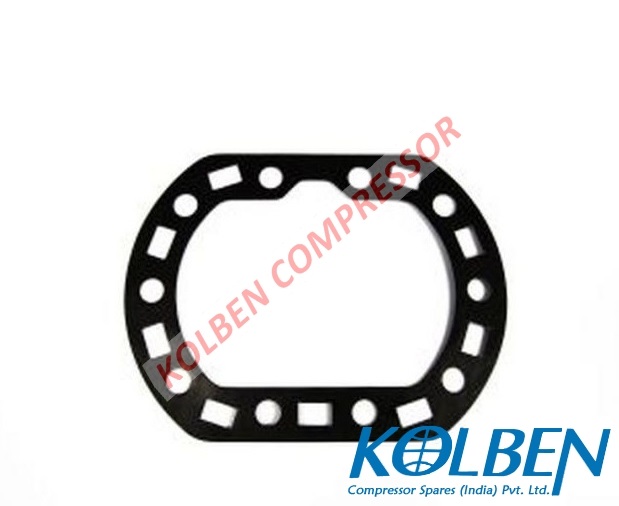

372402-01


gasket 140 x 108 x 0,5 (37240201)

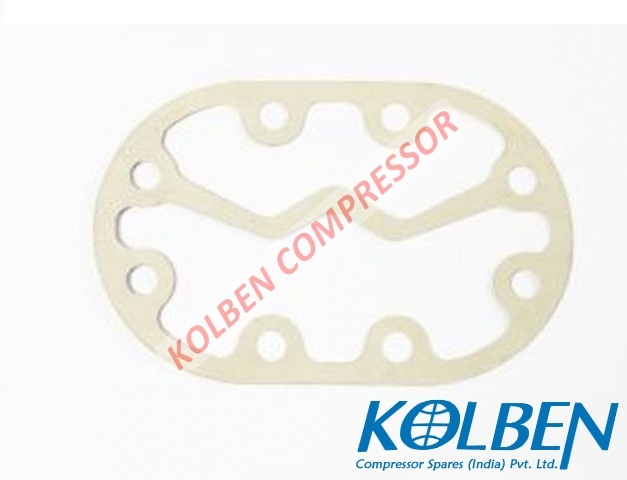

21.



II


372602-01


gasket cylinder head 135 x 87 x 0,5 (37260201)






22.



II

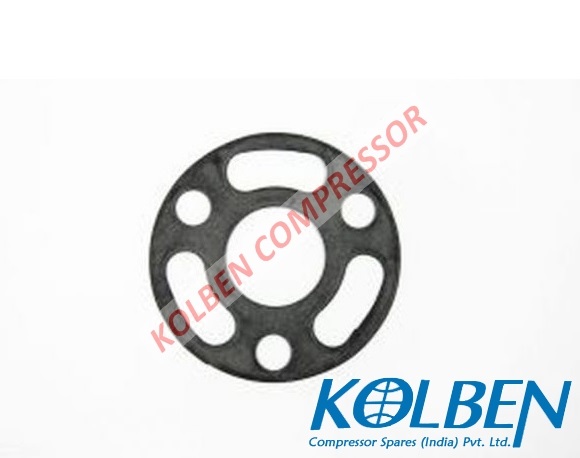

372310-01


gasket sealing cover Ø50 x Ø20 x 0,5 (37231001)

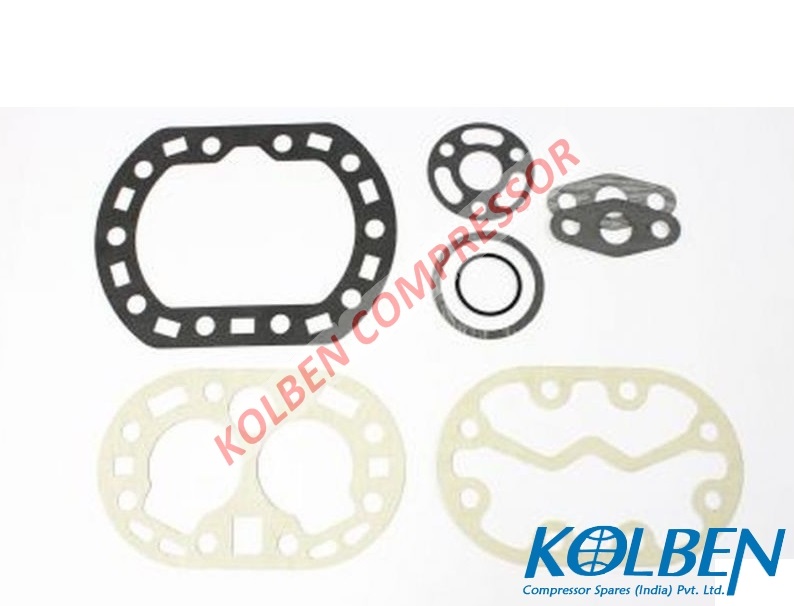

23.



II


372800-03


gasket set (37280003)






24.



II


380055-01


hexagon head screw DIN 931, 10.9 M8 x 50 (38005501)






25.



II

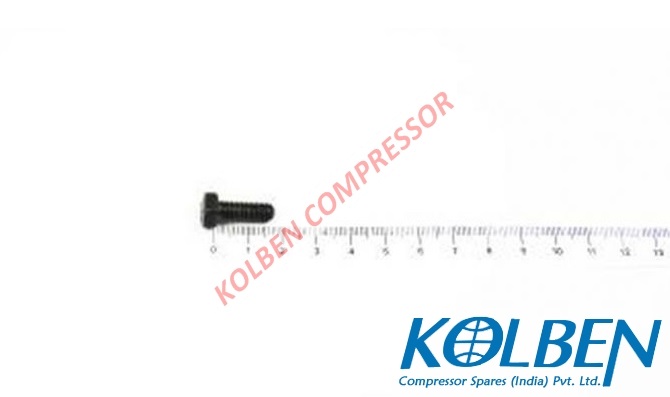

380154-04


hexagon head screw DIN 933, 10.9 M6 x 16 (38015404)






26.



II


380155-05


hexagon head screw DIN 933, 10.9 M8 x 20 (38015505)






27.



II

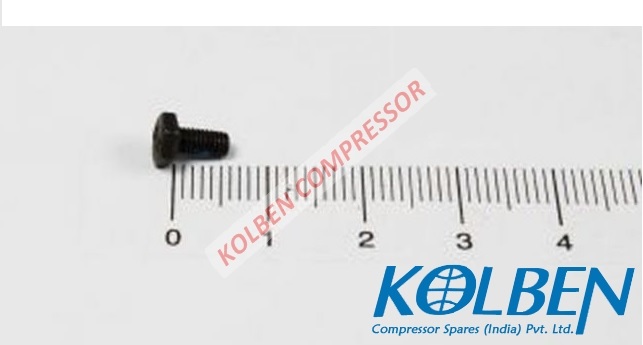

380101-91


hexagon head screw coated DIN 933, 8.8 M3 x 6 (38010191)






28.



II


380154-05

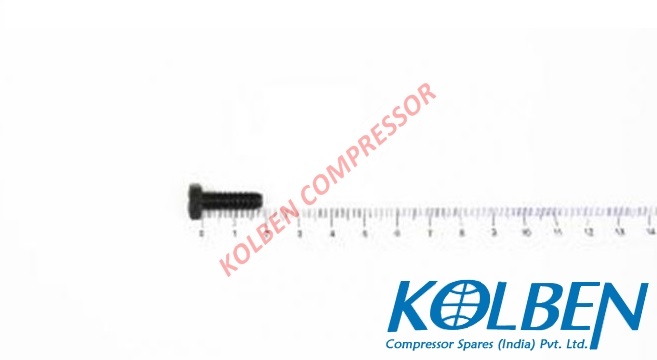

hexagon head screw DIN 933, 10.9 M6 x 18 (38015405)






29.



II


380154-06


hexagon head screw DIN 933, 10.9 M6 x 20 (38015406)






30.



II


315000-01


hexagon head screw M4 x 14 (31500001)






31.



II


381101-04


hexagon nut DIN 934, 8.8 M6 (38110104)






32.



II


381101-05


hexagon nut DIN 934, 8.8 M8 (38110105)






33.



II

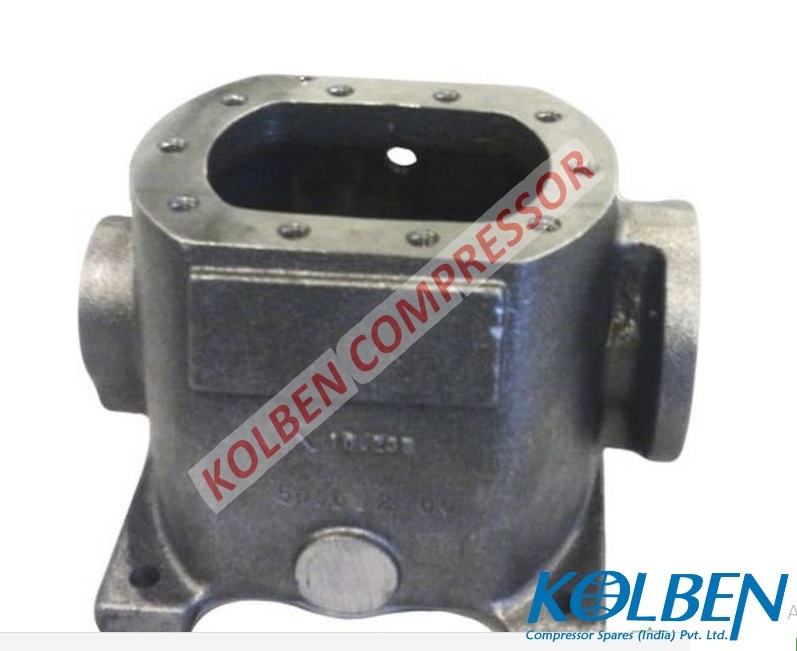

300002-01


housing grey cast iron 181 x 160 x 119 (30000201)






34.



II


313100-01


insert plate Ø10 x 4,5 (31310001)






35.



II


324018-01


locking plate 39,5 x 8,2 x 2,6 (32401801)






36.



II


372001-04


O-ring violet HCFC, (CFC) Ø23 x 3 (37200104)






37.



II

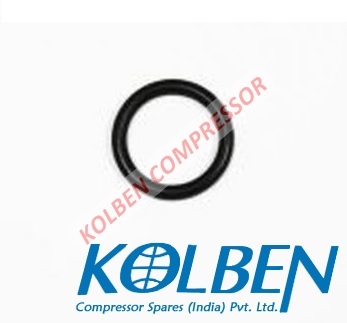

372001-02


O-ring violet HCFC, (CFC) Ø18 x 3 (37200102)






38.



II


372003-01


O-ring sight glass Ø26,7 x 1,78 (37200301)

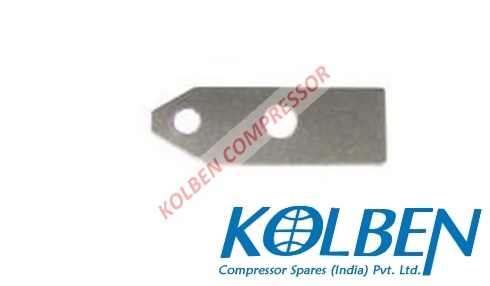

39.



II


320308-03


oil splasher plate 62 x 21 x 1 (32030803)






40.



II


302202-01

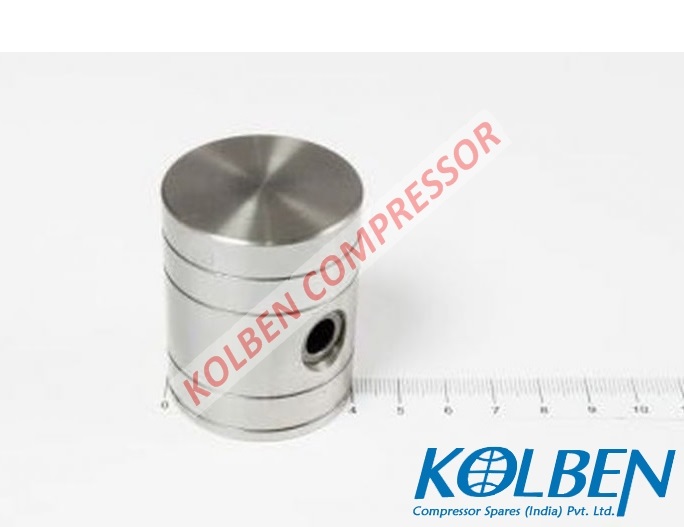

piston grey cast iron Ø40 x 50 x Ø12 (30220201)






41.



II


325000-23


pressure spring steel 2,0 x Ø10,5 x 20 (32500023)






42.



II


325000-18


pressure spring steel 0,8 x Ø6,2 x 10,5 (32500018)






43.



II


366201-17


Protective Cap Span of the jaw: 20 Plastic - GRP 3/4"-16 UNF / L=43 mm (36620117)






44.



II


320230-01


retainer 39,6 x 14,5 x 1,3 (32023001)

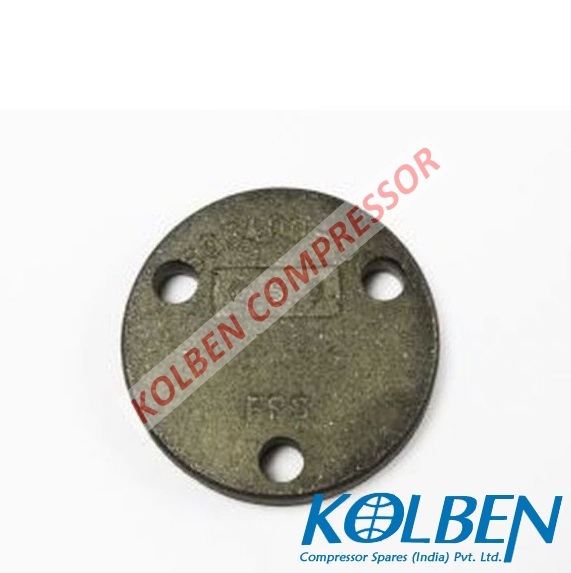

45.



II


305412-01


sealing cover Ø50 x 10 (30541201)






46.



II


366202-01


sealing nut 7/16" - 20 UNF (36620201)






47.



II


366110-01


Sealing plug steel 1/8“ - 27 NPTF (36611001)






48.



II


366110-08


Sealing Plug steel 1/4" - 18NPTF (36611008)






49.



II


366111-21


sealing plug 1/4" - 18 NPTF (36611121)

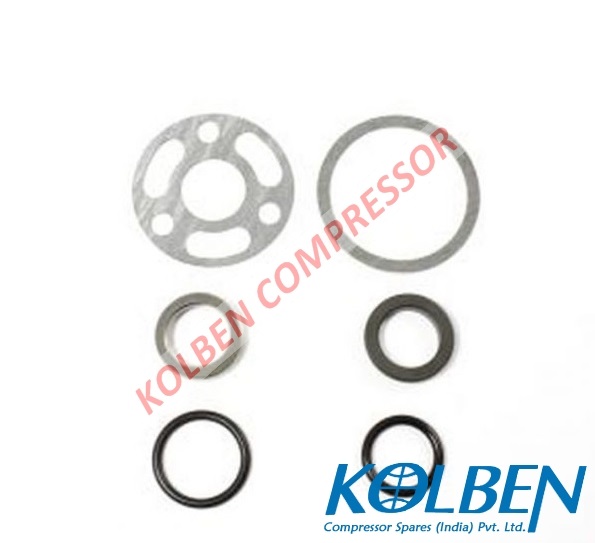

50.



II


374008-02


shaft seal (37400802)






51.



II


361315-02


shut-off valve brazed connection PS45/DN10/S19(12/2LA42)TX/AF1 Ø12 (1/2 (36131502)






52.



II


305301-01

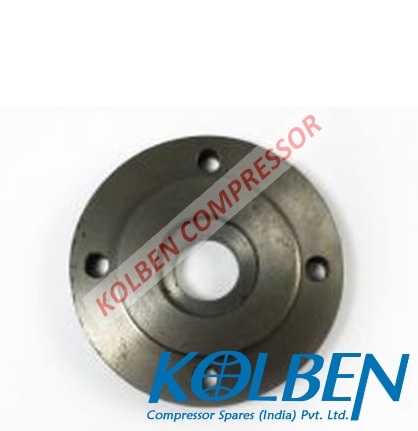

side cover Ø80 x 12 (30530101)

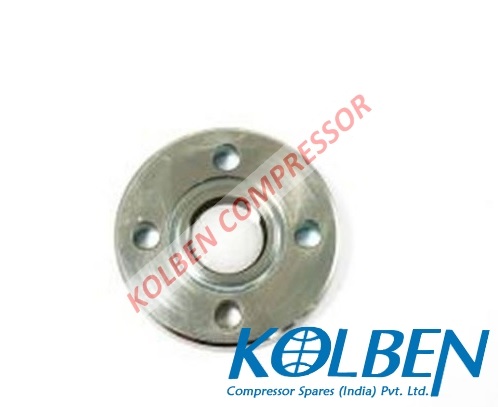

53.



II


361802-01


sight glass Ø56 x 7 (36180201)






54.



II


382201-04


single coil spring washer spring steel DIN 127 B8 (38220104)






55.



II


362000-02

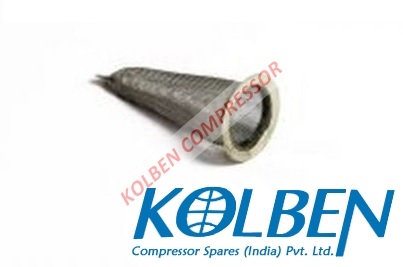

suction gas filter Ø20 x 45 (36200002)






56.



II


315100-04


threaded key flywheel M8, Ø12 x 58 (31510004)






57.



II


315100-01


threaded key M6, Ø10 x 52 (31510001)






58.



II

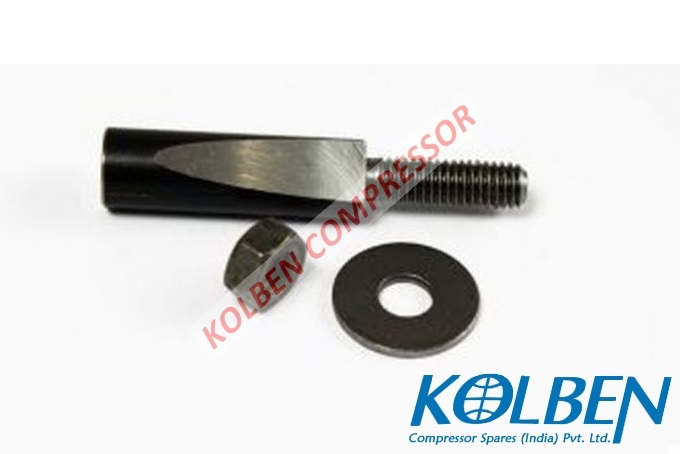

315107-07


threaded key eccentric (31510707)






59.



II


315107-02

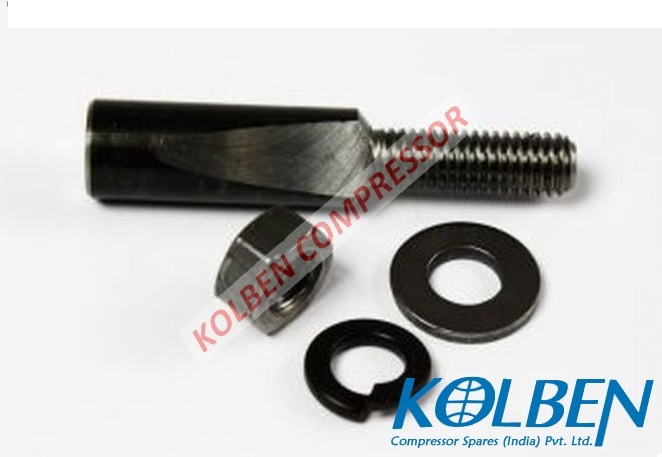

threaded key flywheel (31510702)

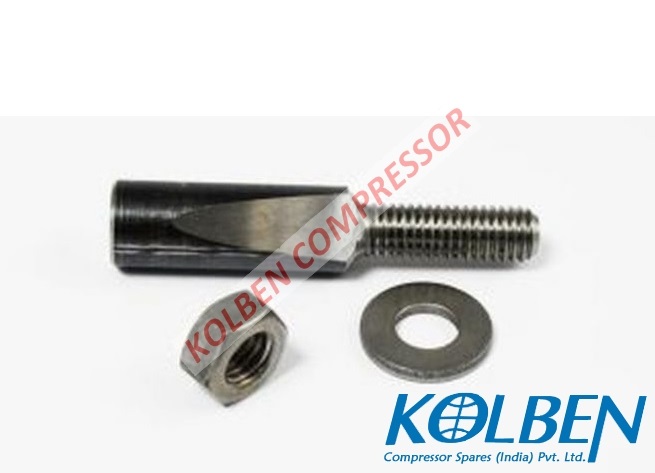

60.



II


315107-08


threaded key eccentric (31510708)






61.



II

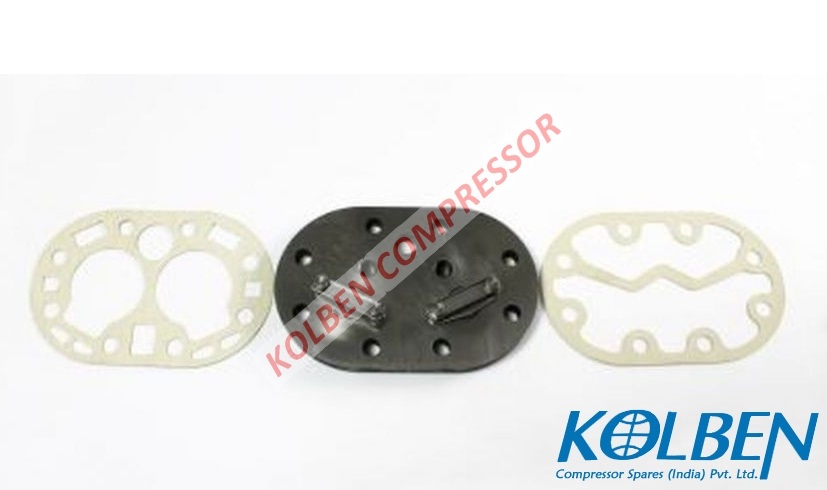

304050-03


valve plate Ø40 (30405003)






62.



II


320200-03


valve reed 44 x 24,1 x 0,25 (32020003)






63.



II


320210-01


valve reed 39,6 x 14,3 x 0,3 (32021001)






64.



II

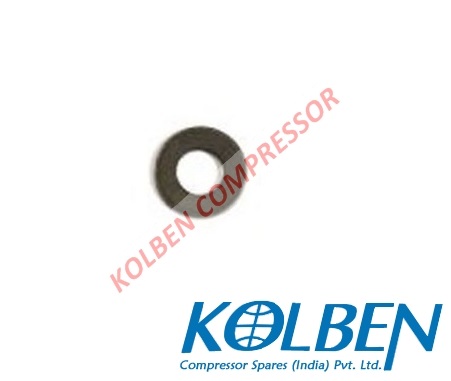

382011-02


washer DIN 134 A8, 4 (38201102)






65.



II


382021-02


washer steel DIN 9021 A6, 4 (38202102)






66.



II

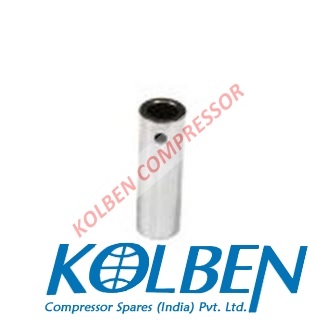

383401-12


wrist pin Ø12 x 8 x 36,8 (38340112)






67.



III


311103-01


bearing bush connecting rod Ø18 x Ø14,8 x 22,9 (31110301)






68.



III


315020-02


cheese head screw M4 x 4 (31502002)






69.



III

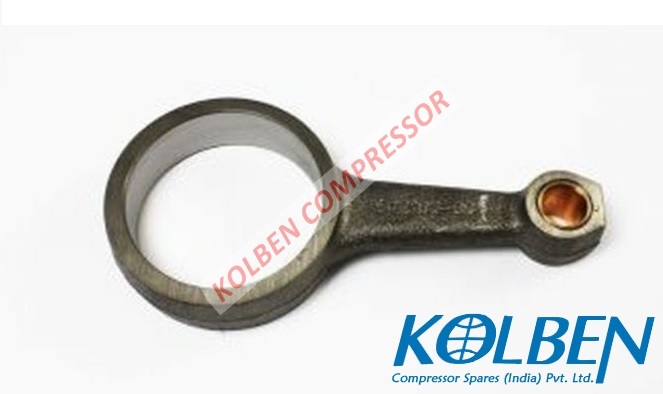

302118-01


connecting rod using utmost care Ø65 x Ø15 x 112 (30211801)






70.



III

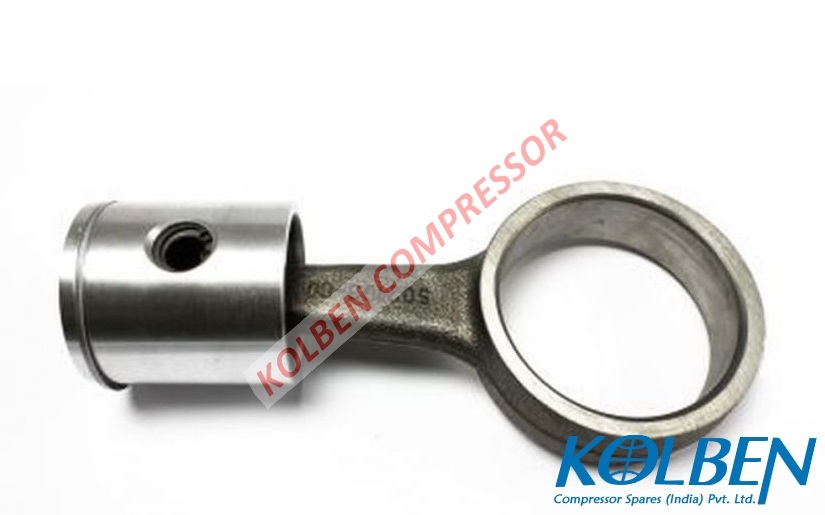

302239-04


connecting rod / piston (30223904)






71.



III


320315-01


covering plate for cylinder 28 x 28 x 0,2 (32031501)






72.



III

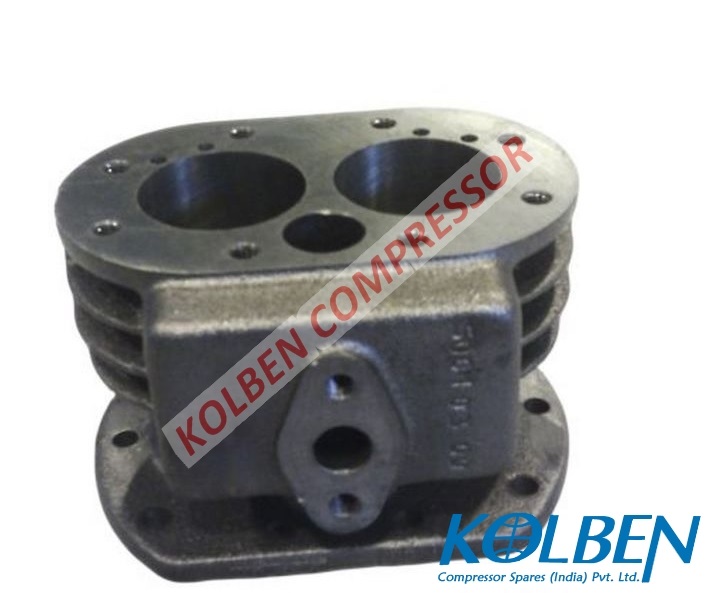

300103-01


cylinder grey cast iron 160 x 131 x 100 (30010301)

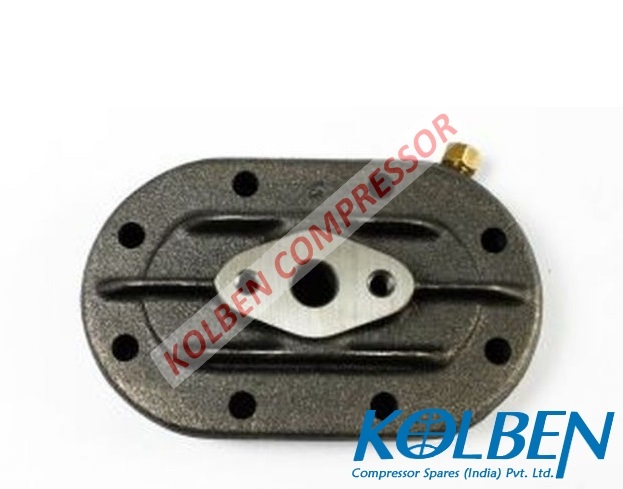

73.



III


302303-01


cylinder head air-cooled grey cast iron 155 x 95 x 43 (30230301)






74.



III

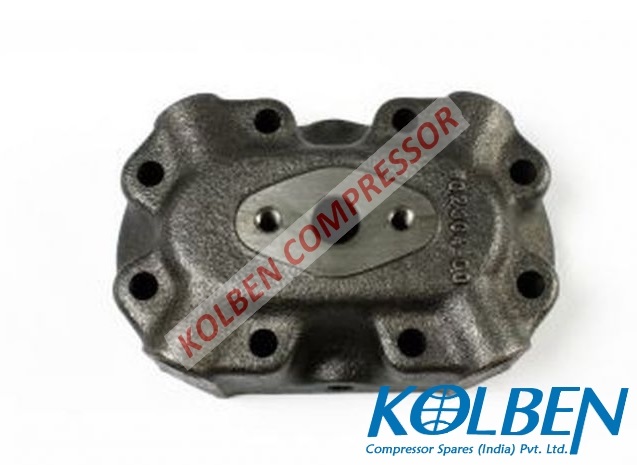

302304-01


cylinder head water-cooled grey cast iron 155 x 95 x 49 (30230401)

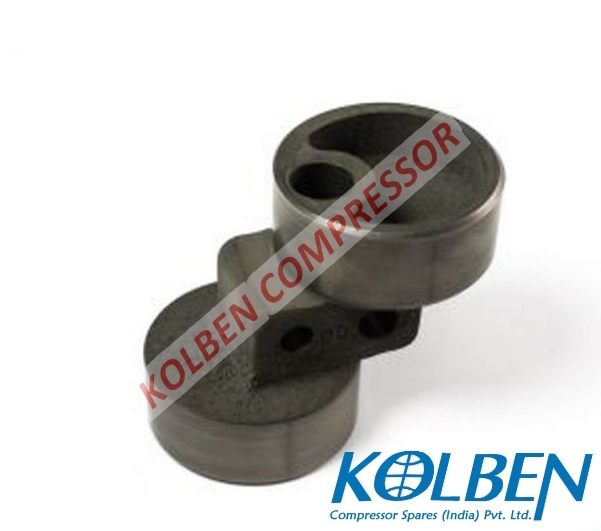

75.



III


302003-01


eccentric Ø65 x 82 (30200301)






76.



III


310001-01


eccentric shaft Ø27 x 232 (31000101)






77.



III


303123-10


flywheel Ø260 x 39,5 (30312310)






78.



III


372310-01


gasket sealing cover Ø50 x Ø20 x 0,5 (37231001)






79.



III

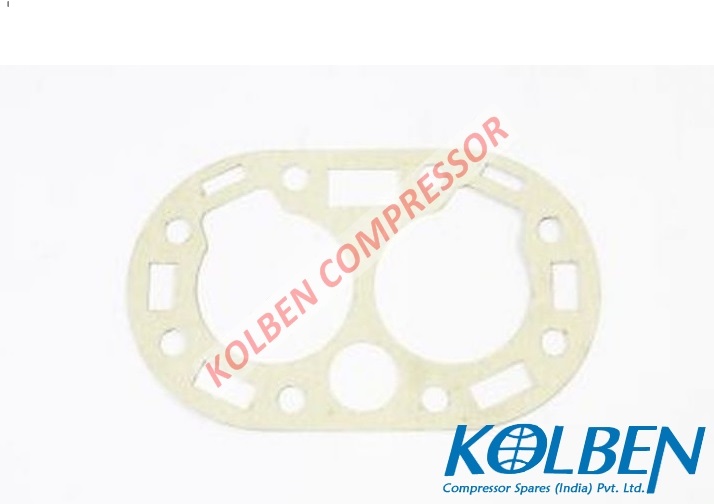

372503-01


gasket valve plate 95 x 155 x 0,5 (37250301)






80.



III


372300-02


gasket side cover Ø51 x Ø43 x 0,5 (37230002)

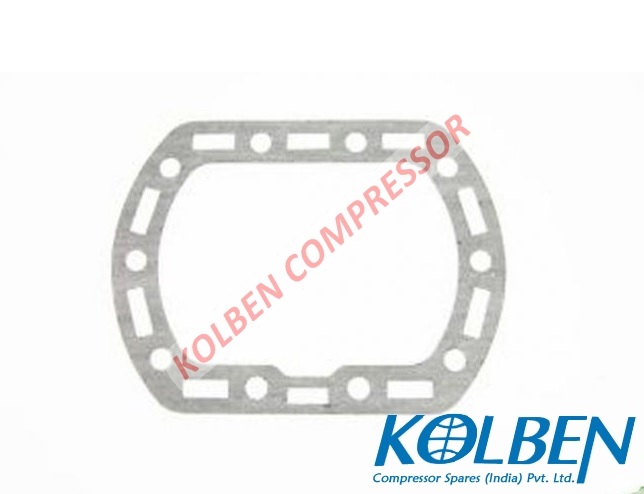

81.



III


372403-01


gasket 160 x 122 x 0,5 (37240301)






82.



III


372603-01

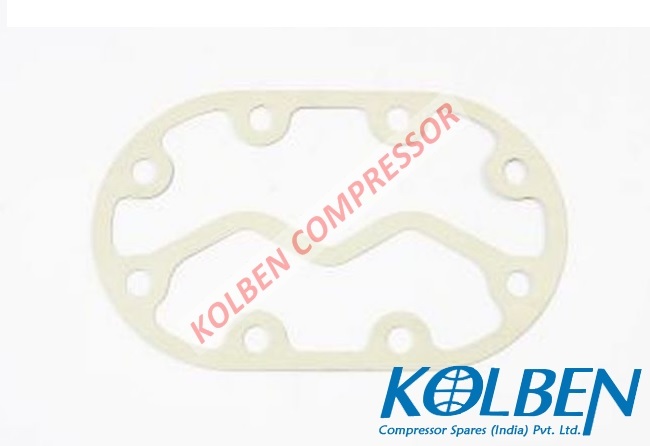

gasket cylinder head 155 x 95 x 0,5 (37260301)






83.



III


372701-01


gasket discharge shut-off valve 61 x 28 x 1 (37270101)






84.



III


380101-91


hexagon head screw coated DIN 933, 8.8 M3 x 6 (38010191)






85.



III


315000-01


hexagon head screw M4 x 14 (31500001)






86.



III

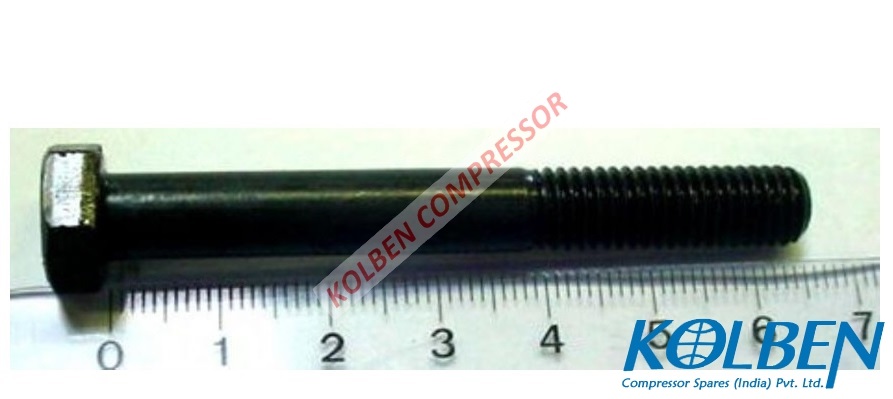

380055-07


hexagon head screw DIN 931, 10.9 M8 x 65 (38005507)






87.



III


380154-06


hexagon head screw DIN 933, 10.9 M6 x 20 (38015406)






88.



III


380154-04


hexagon head screw DIN 933, 10.9 M6 x 16 (38015404)






89.



III


380055-01


hexagon head screw DIN 931, 10.9 M8 x 50 (38005501)






90.



III


380155-05


hexagon head screw DIN 933, 10.9 M8 x 20 (38015505)






91.



III


380154-05


hexagon head screw DIN 933, 10.9 M6 x 18 (38015405)






92.



III


381101-05


hexagon nut DIN 934, 8.8 M8 (38110105)






93.



III


381101-04


hexagon nut DIN 934, 8.8 M6 (38110104)






94.



III

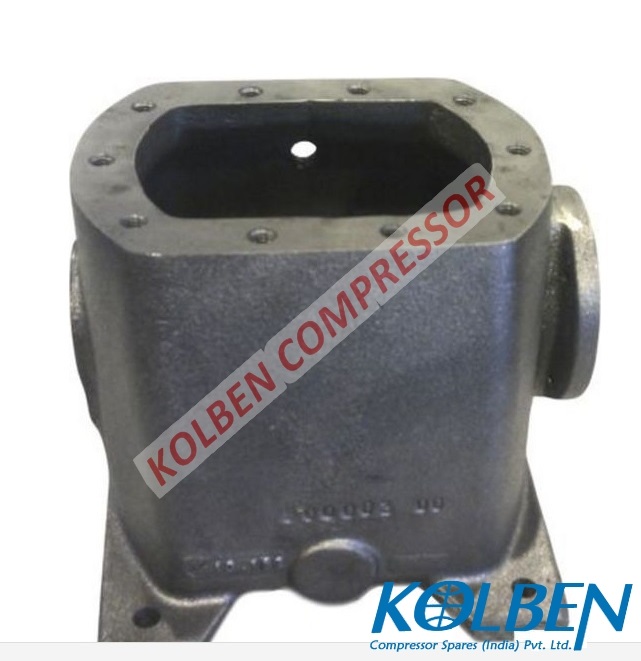

300003-01


housing grey cast iron 181 x 200 x 139 (30000301)






95.



III


313100-01


insert plate Ø10 x 4,5 (31310001)






96.



III


324018-01


locking plate 39,5 x 8,2 x 2,6 (32401801)

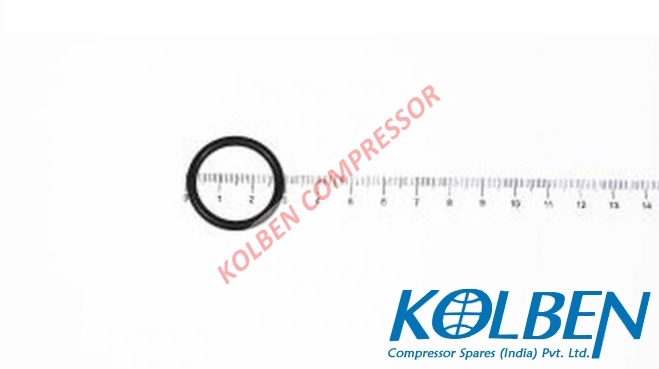

97.



III


372001-04


O-ring violet HCFC, (CFC) Ø23 x 3 (37200104)






98.



III


372001-02


O-ring violet HCFC, (CFC) Ø18 x 3 (37200102)

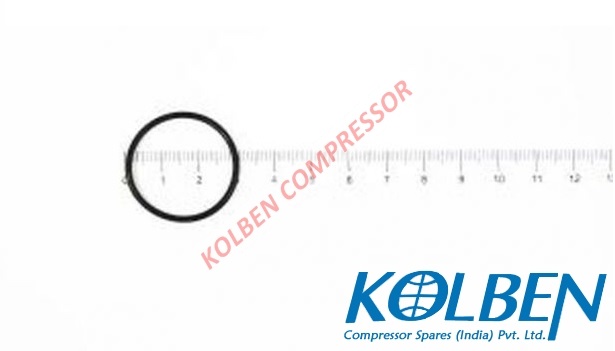

99.



III


372003-01


O-ring sight glass Ø26,7 x 1,78 (37200301)






100.



III


320308-03


oil splasher plate 62 x 21 x 1 (32030803)






101.



III


302233-93


piston aluminium alloy Ø50 x 55 x Ø15 (30223393)






102.



III


382300-93


piston ring Ø50 x 2 (38230093)






103.



III


325000-18


pressure spring steel 0,8 x Ø6,2 x 10,5 (32500018)

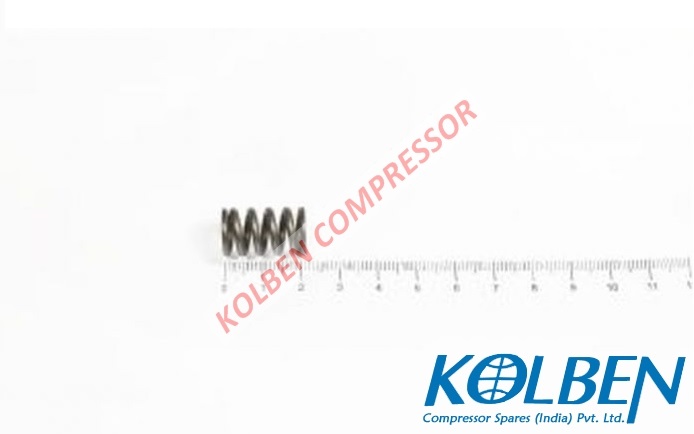

104.



III


325000-23


pressure spring steel 2,0 x Ø10,5 x 20 (32500023)






105.



III


366201-17


Protective Cap Span of the jaw: 20 Plastic - GRP 3/4"-16 UNF / L=43 mm (36620117)






106.



III


320230-01


retainer 39,6 x 14,5 x 1,3 (32023001)






107.



III


382231-02


retaining ring with lugs spring steel DIN 472 Ø15 x 1 (38223102)






108.



III


305412-01


sealing cover Ø50 x 10 (30541201)






109.



III


366202-01


sealing nut 7/16" - 20 UNF (36620201)






110.



III


366110-01


Sealing plug steel 1/8“ - 27 NPTF (36611001)






111.



III


366110-08


Sealing Plug steel 1/4" - 18NPTF (36611008)

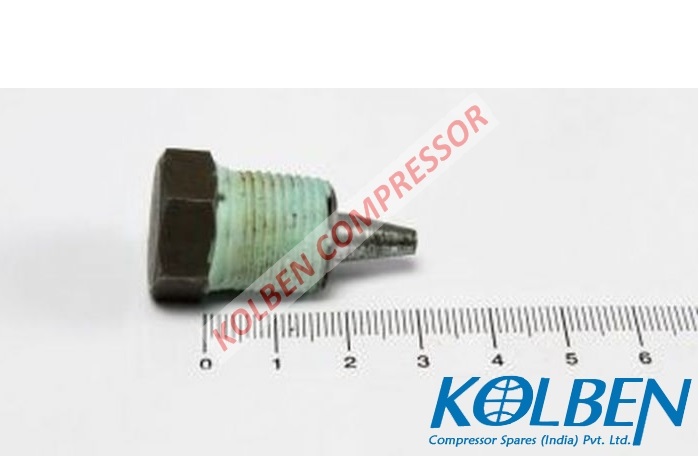

112.



III


366111-22


sealing plug 3/8" - 18 NPTF (36611122)






113.



III


374008-02


shaft seal (37400802)






114.



III


361315-10


shut-off valve brazed connection Ø16 L (36131510)






115.



III


361315-02


shut-off valve brazed connection PS45/DN10/S19(12/2LA42)TX/AF1 Ø12 (1/2 (36131502)






116.



III


305301-01


side cover Ø80 x 12 (30530101)






117.



III


361802-01


sight glass Ø56 x 7 (36180201)






118.



III


382201-04


single coil spring washer spring steel DIN 127 B8 (38220104)






119.



III


362000-02


suction gas filter Ø20 x 45 (36200002)






120.



III


315100-04


threaded key flywheel M8, Ø12 x 58 (31510004)






121.



III


315100-01


threaded key M6, Ø10 x 52 (31510001)






122.



III


315107-07


threaded key eccentric (31510707)






123.



III


315107-02


threaded key flywheel (31510702)






124.



III


315107-08


threaded key eccentric (31510708)

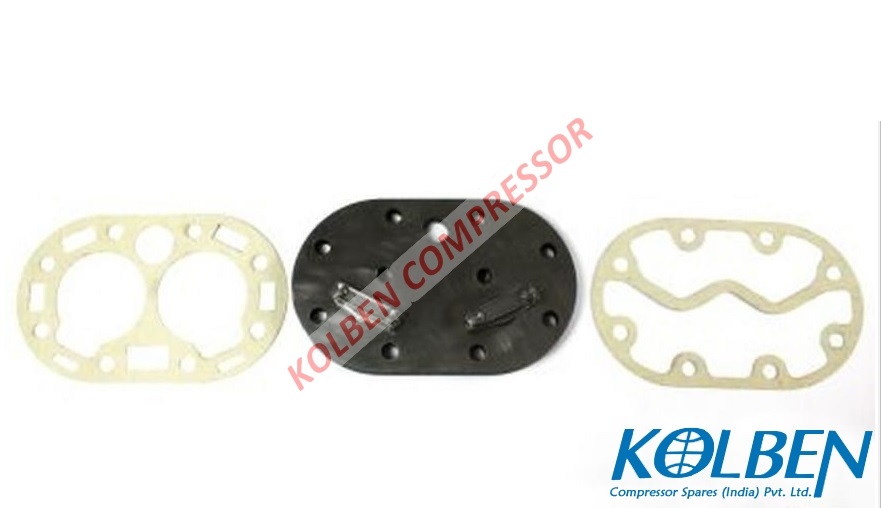

125.



III


304050-04


valve plate Ø50 (30405004)






126.



III


320200-04


valve reed 44 x 24,1 x 0,25 (32020004)






127.



III


320210-01


valve reed 39,6 x 14,3 x 0,3 (32021001)






128.



III


382021-02


washer steel DIN 9021 A6, 4 (38202102)






129.



III


382011-02


washer DIN 134 A8, 4 (38201102)

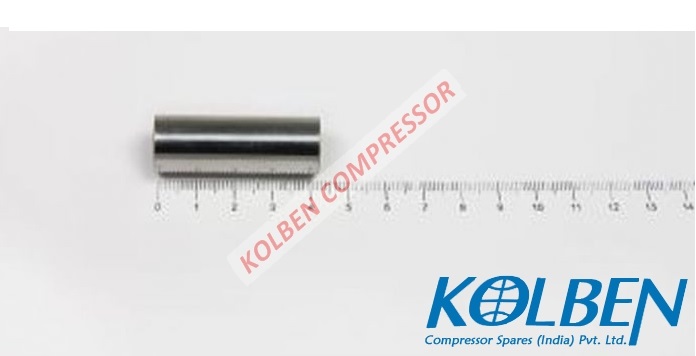

130.



III


383401-14


wrist pin Ø15 x Ø9 x 42 (38340114)






131.



VIIW


311100-13


bearing bush Ø44 x Ø40 x 50N (31110013)






132.



VIIW


311103-05


bearing bush connecting rod Ø33 x Ø27,8 x 50 (31110305)






133.



VIIW


311100-10


bearing bush face side Ø60 x Ø55 x 40 (31110010)






134.



VIIW


315020-02


cheese head screw M4 x 4 (31502002)






135.



VIIW


380603-01


cheese head screw DIN 912, 8.8 M12 x 50 (38060301)






136.



VIIW


367121-01


clamping plate 80 x 80 (36712101)






137.



VIIW


302118-04


connecting rod using utmost care Ø135 x Ø28 x 260 (30211804)






138.



VIIW


302239-08


connecting rod / piston (30223908)

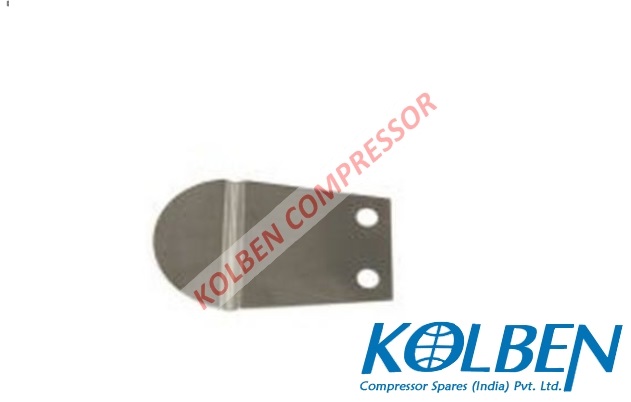

139.



VIIW


320315-03


covering plate for cylinder 48 x 32 x 0,3 (32031503)






140.



VIIW


300107-01


cylinder grey cast iron 360 x 270 x 231,5 (30010701)






141.



VIIW


302310-01


cylinder head water-cooled grey cast iron 335 x 200 x 77 (30231001)






142.



VIIW


302007-01


eccentric Ø135 x 200 (30200701)






143.



VIIW


310005-01


eccentric shaft steel Ø55 x 578 (31000501)






144.



VIIW


303404-51


flywheel Ø500 x 91 (30340451)






145.



VIIW


372407-01


gasket 320 x 260 x 1 (37240701)






146.



VIIW


372303-01


gasket Ø52 x Ø37 x 2 (37230301)






147.



VIIW


372301-02


gasket Ø70 x Ø54 x 1 (37230102)






148.



VIIW


372507-01


gasket valve plate 200 x 335 x 1 (37250701)






149.



VIIW


372607-01


gasket cylinder head 335 x 200 x 1 (37260701)






150.



VIIW


372301-06


gasket ide cover Ø100 x Ø95 x 1 (37230106)






151.



VIIW


372704-01


Gasket discharge shut-off valve 91 x 52 x 1 (37270401)






152.



VIIW


372312-03


gasket sealing cover Ø80 x Ø60 x 1 (37231203)






153.



VIIW


372200-04


gasket eflon Ø38 x Ø35 x 1,5 (37220004)






154.



VIIW

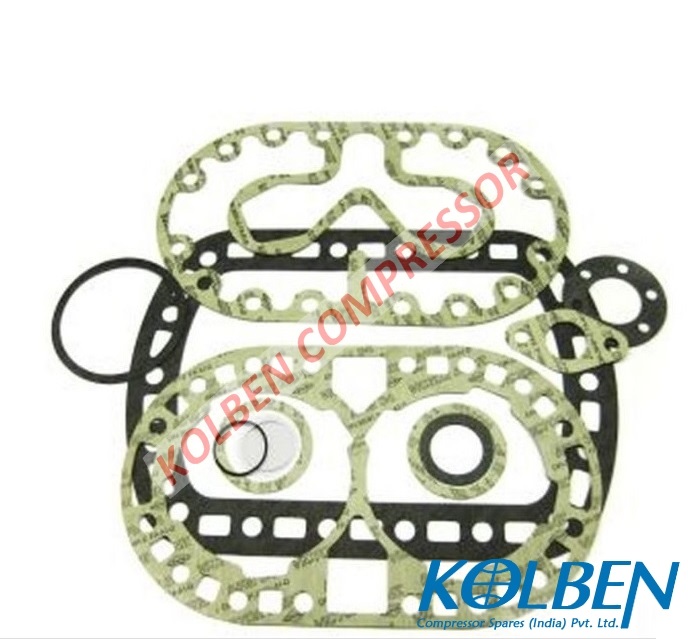

372800-08


gasket set (37280008)






155.



VIIW


380155-08


hexagon head screw DIN 933, 10.9 M8 x 30 (38015508)






156.



VIIW

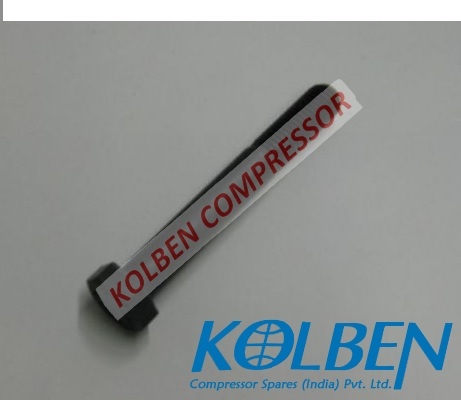

380057-05


hexagon head screw DIN 931, 10.9 M12 x 90 (38005705)






157.



VIIW


380154-06


hexagon head screw DIN 933, 10.9 M6 x 20 (38015406)






158.



VIIW

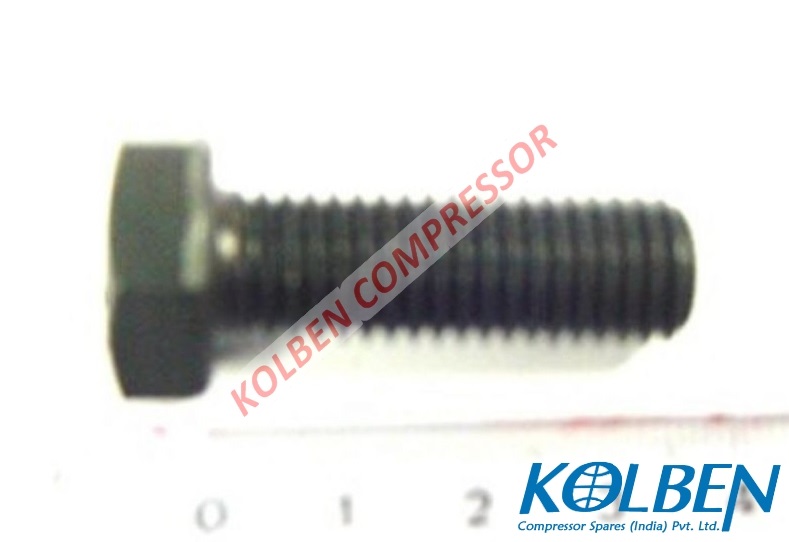

380157-03


hexagon head screw coated DIN 933, 10.9 M12 x 35 (38015703)






159.



VIIW


380007-52


hexagon head screw galvanized DIN 931, 8.8 M12 x 80 (38000752)






160.



VIIW


380153-02


Hexagon head screw steel DIN 933, 10.9 M5 x 10 (38015302)






161.



VIIW


315000-03


hexagon head screw M5 x 21,5 (31500003)






162.



VIIW


380156-05


hexagon head screw DIN 933, 10.9 M10 x 25 (38015605)






163.



VIIW


380102-91


hexagon head screw coated DIN 933, 8.8 M4 x 6 (38010291)






164.



VIIW

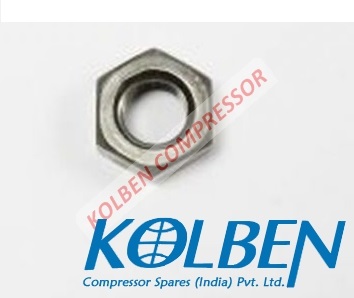

381101-07


hexagon nut DIN 934, 8.8 M12 (38110107)






165.



VIIW


381107-07


hexagon nut DIN 934, 8.8 M12 (38110707)






166.



VIIW


300025-04


housing 445 x 380 x 320 (30002504)






167.



VIIW


313100-01


insert plate Ø10 x 4,5 (31310001)






168.



VIIW


324018-02


locking plate 53,5 x 8,2 x 2,6 (32401802)






169.



VIIW

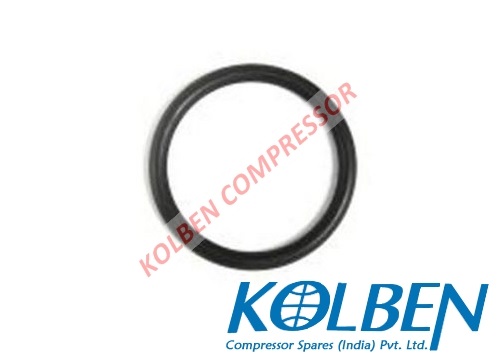

372001-14


O-ring violet HCFC, (CFC) Ø45 x 5 (37200114)






170.



VIIW


372003-15


O-ring sight glass Ø36,3 x 1,78 (37200315)






171.



VIIW

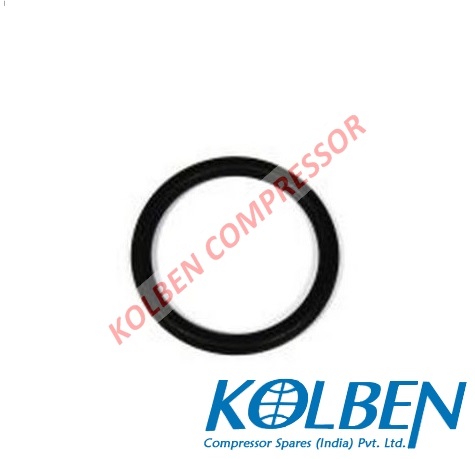

372001-11


O-ring violet HCFC, (CFC) Ø40 x 5 (37200111)






172.



VIIW

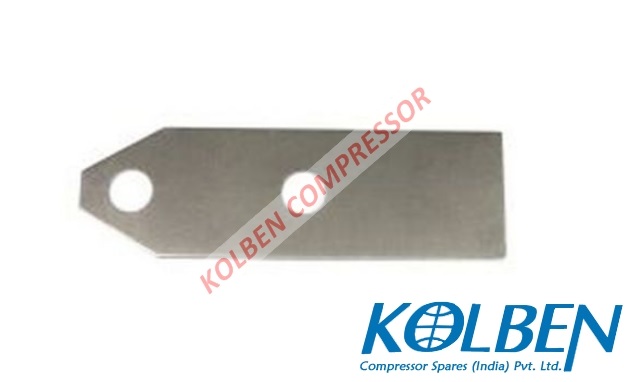

320308-07


oil splasher plate 127 x 40 x 1,5 (32030807)






173.



VIIW


365321-14


pipe connection steel brazing and welding bush Ø42 (1 5/8") (36532114)






174.



VIIW


366000-07


pipe connection steel copper-plated brazed connection Ø35, 1 3/4" - 12 UN (36600007)






175.



VIIW

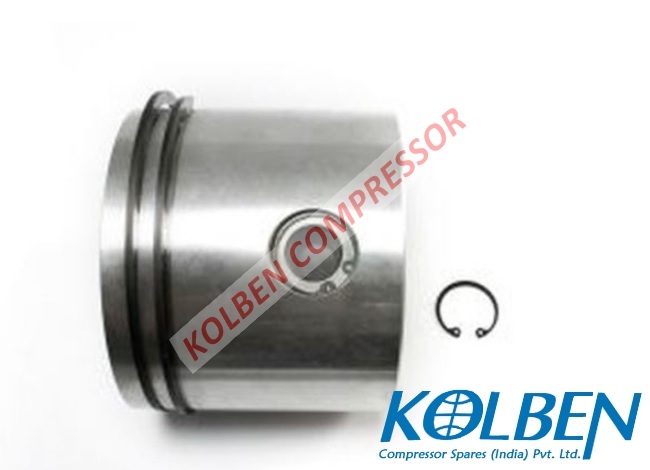

302233-20


piston aluminium alloy Ø120 x 100 x Ø28 (30223320)






176.



VIIW

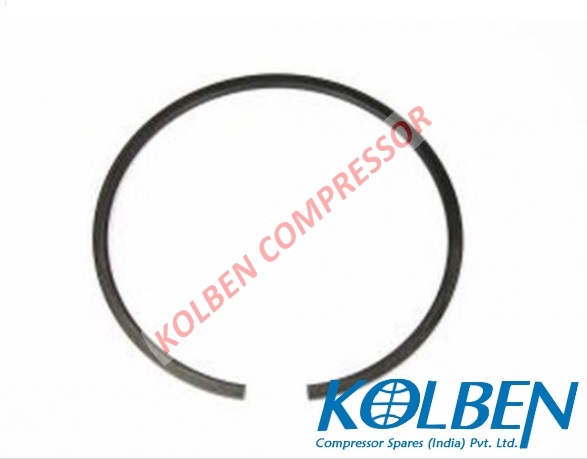

382300-41


piston ring Ø120 x 2,5 (38230041)






177.



VIIW

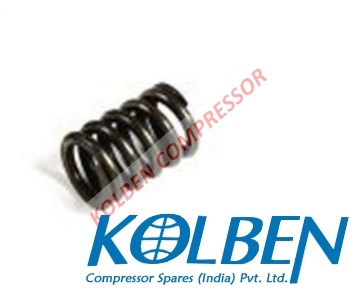

325000-21


pressure spring steel 3,5 x Ø18 x 31,5 (32500021)






178.



VIIW


325000-20


pressure spring steel 1,2 x Ø7 x 15,5 (32500020)






179.



VIIW


366201-22


Protective Cap Span of the jaw: 27 Plastic - GRP M27 x 2 / L=70 mm (36620122)






180.



VIIW


366201-19


Protective Cap Span of the jaw: 27 Plastic - GRP M24 x 2 / L=57,5 mm (36620119)






181.



VIIW


320230-03


retainer 55 x 19,2 x 2 (32023003)






182.



VIIW


382231-07


retaining ring with lugs spring steel DIN 472 Ø28 x 1,2 (38223107)






183.



VIIW

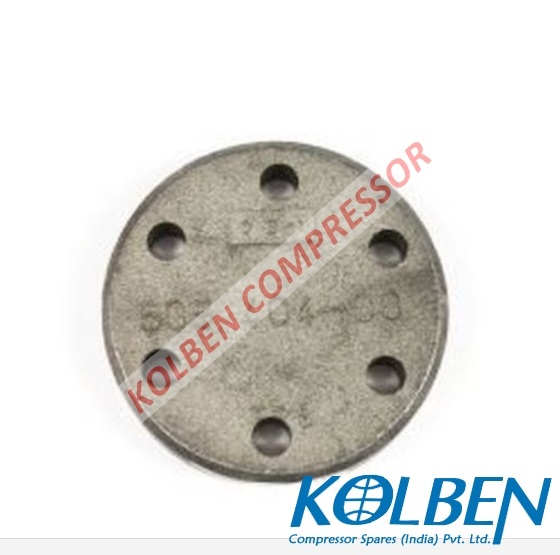

305412-05


sealing cover Ø80 x 16 (30541205)






184.



VIIW


366202-01


sealing nut 7/16" - 20 UNF (36620201)






185.



VIIW


366110-09


sealing plug steel 3/8" - 18 NPTF (36611009)






186.



VIIW


366110-08


Sealing Plug steel 1/4" - 18NPTF (36611008)






187.



VIIW

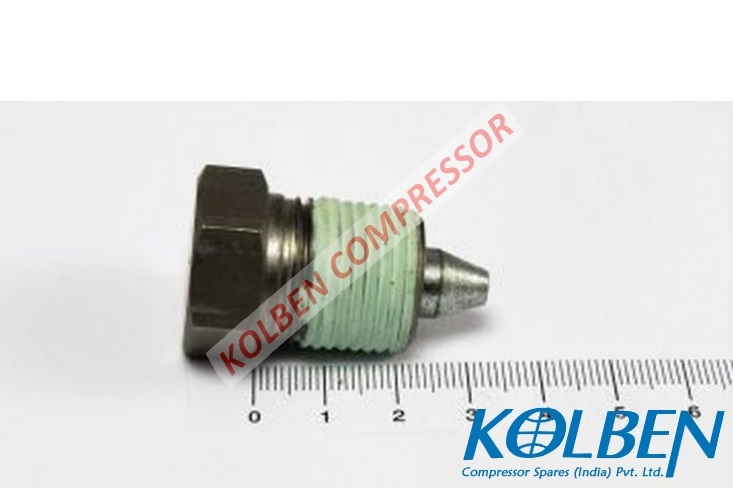

366111-23


sealing plug 1/2" - 14 NPTF (36611123)






188.



VIIW


366110-10


sealing plug steel 1/2" - 14 NPTF (36611010)






189.



VIIW


366110-01


sealing plug steel 1/8“ - 27 NPTF (36611001)






190.



VIIW

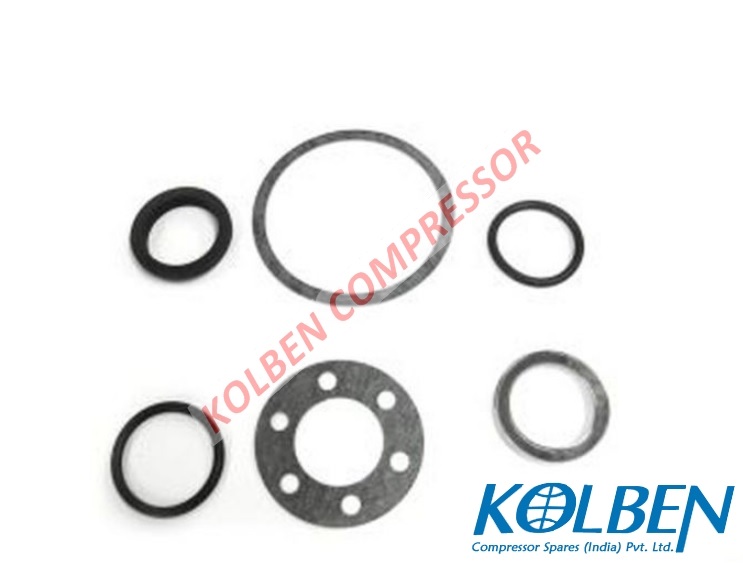

374008-06


shaft seal (37400806)






191.



VIIW


361338-01


shut-off valve Ø42 (1 5/8") (36133801)






192.



VIIW


361310-08


shut-off valve brazing and welding bush Ø35 (1 3/8") (36131008)






193.



VIIW

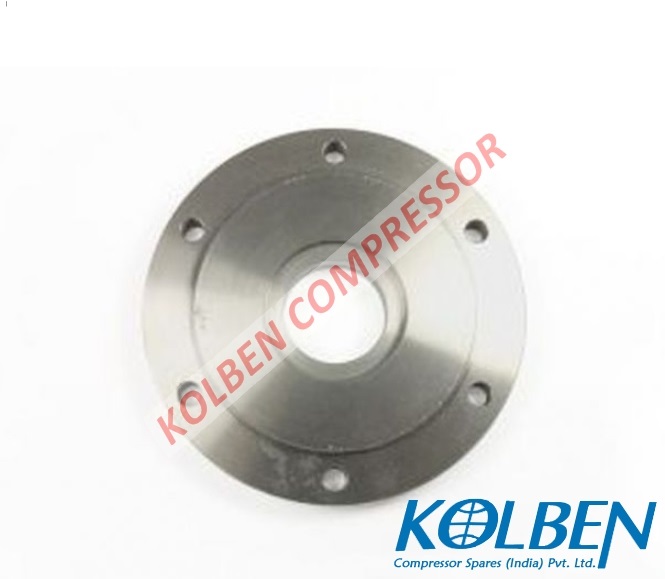

305305-01


side cover Ø150 x 18 (30530501)






194.



VIIW


361802-02


sight glass Ø67 x 8,5 (36180202)






195.



VIIW


382201-06


single coil spring washer spring steel DIN 127 A12 (38220106)






196.



VIIW

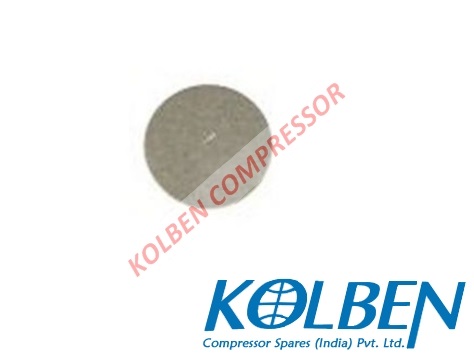

320501-04


spacer washer spring compensation Ø22 x 0,5 (32050104)






197.



VIIW


320321-01


stopper plate 190 x 73,5 x 0,75 (32032101)






198.



VIIW


362001-08


suction gas filter Ø50 x 57 (36200108)






199.



VIIW

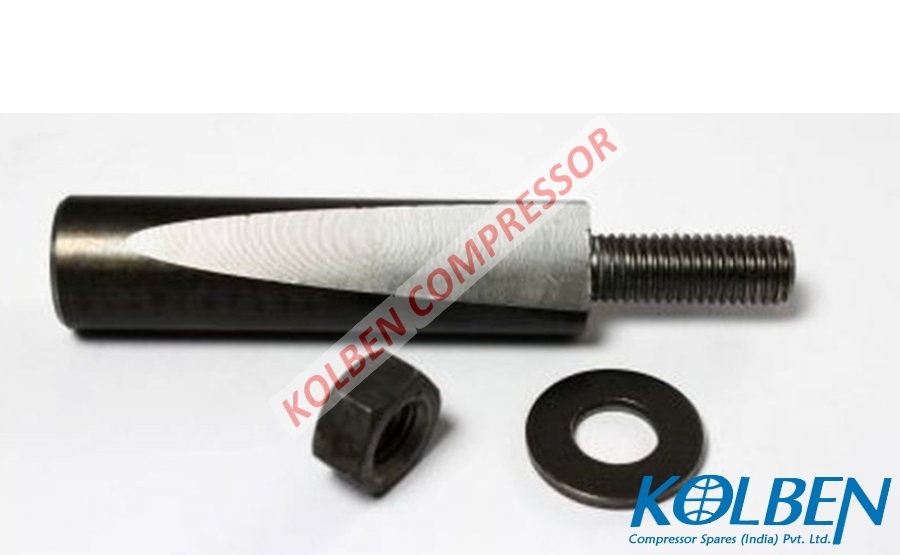

315107-12


threaded key eccentric (31510712)






200.



VIIW


315100-08


threaded key M12, Ø22 x 118 (31510008)






201.



VIIW

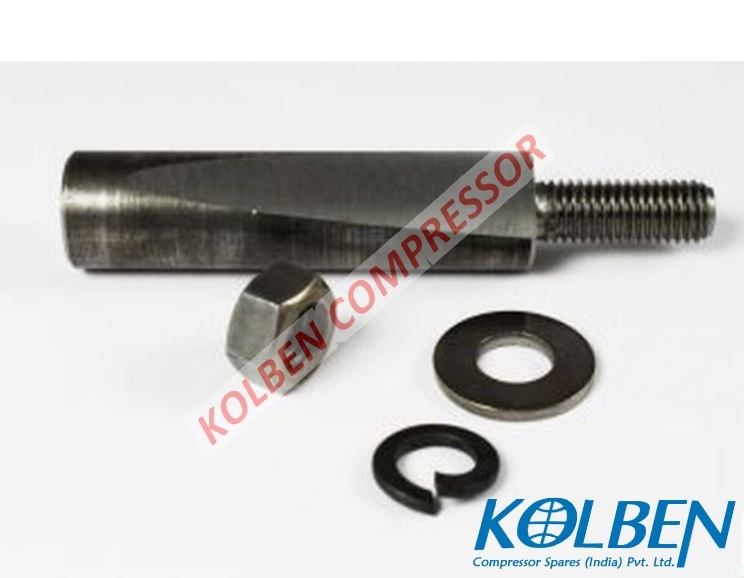

315107-05


threaded key flywheel (31510705)






202.



VIIW


382150-05


thrust washer spring steel Ø9 (38215005)






203.



VIIW

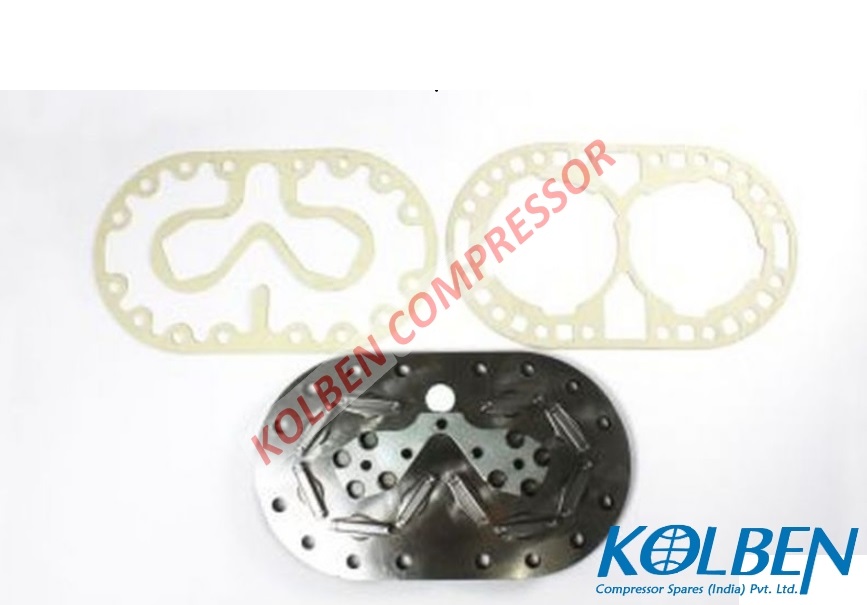

304050-08


valve plate Ø120 (30405008)






204.



VIIW


320200-04


valve reed 44 x 24,1 x 0,25 (32020004)






205.



VIIW


320210-03


valve reed 55 x 19 x 0,5 (32021003)






206.



VIIW

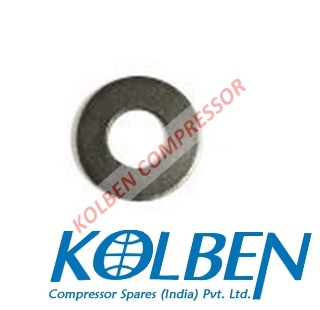

382011-04


washer steel DIN 134 A13 (38201104)






207.



VIIW


382001-02


washer brass DIN 125 A5, 3 (38200102)






208.



VIIW

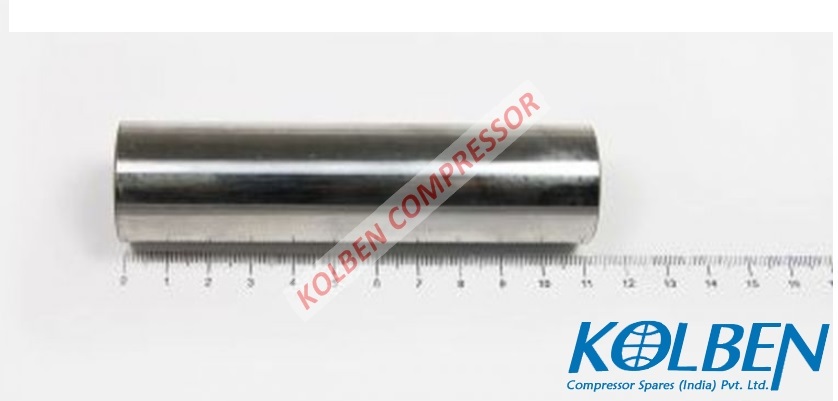

383401-22


wrist pin Ø28 x 19 x 108 (38340122)







Manufacturers of BITZER COMPRESSOR PARTS
