Sr. No. |
Image |
Model |
OEM Part No. |
Description |
|
|
1. |
|
IV, V, VI, VII |
320200-04 |
Suction Reed 54.4X29.8X0.4-To Fit Bitzer Ⅳ,Ⅴ,Ⅵ,Ⅶ
|
|
|
2. |
|
II, III |
320200-03 |
Suction Reed 43.8X23.3X0.4-To Fit Bitzer Ⅱ,Ⅲ
|
|
|
3. |
|
I, II, III |
320210-01 |
Discharge Reed 39.5X14.0X0.4-To Fit Bitzer 0,Ⅰ,Ⅱ,Ⅲ
|
|
|
4. |
|
IV, V |
320210-02 |
Discharge Reed 54.8X19.1X0.5-To Fit Bitzer Ⅳ,Ⅴ
|
|
|
5. |
|
2N, 2T, V, VI |
362001-01 |
Suction Gas Filter 35.0X29.0X40.1-To Fit Bitzer 2N2,2N,2Q,2T2,2U,Ⅴ,Ⅵ
|
|
|
6. |
|
4N, 4NC , 4NCS, 4PC, 4PCS, VII |
362001-08 |
Suction Gas Filter 70.0X49.3X55.2-To Fit Bitzer 4Ncs20,4N,4Nc20, 4Ncs,4Pc15,4Pcs,Ⅶ
|
|
|
7. |
|
III |
372800-04 |
Gasket Set-To Fit Bitzer Iii
|
|
|
8. |
|
IV |
372800-05 |
Gasket Set-To Fit Bitzer Iv
|
|
|
9. |
|
VI |
372800-07 |
Gasket Set-To Fit Bitzer Vi
|
|
|
10. |
|
VIW |
313100-01 |
insert plate Ø10 x 4,5 (31310001)
|
|
|
11. |
|
VIW |
324018-02 |
locking plate 53,5 x 8,2 x 2,6 (32401802)
|
|
|
12. |
|
VIW |
372001-11 |
O-ring violet HCFC, (CFC) Ø40 x 5 (37200111)
|
|
|
13. |
|
VIW |
372001-08 |
O-ring violet HCFC, (CFC) Ø35 x 5 (37200108)
|
|
|
14. |
|
VIW |
372003-15 |
O-ring sight glassMØ36,3 x 1,78M(37200315)
|
|
|
15. |
|
VIW |
320308-06 |
oil splasher plate 114 x 35 x 1,5 (32030806)
|
|
|
16. |
|
VIW |
366000-07 |
pipe connection steel copper-plated brazed connection Ø35, 1 3/4" - 12 UN (36600007)
|
|
|
17. |
|
VIW |
366000-06 |
pipe connection steel copper-plated brazed connection Ø28, 1 3/4" - 12 UN (36600006)
|
|
|
18. |
|
VIW |
302233-18 |
piston aluminium alloy Ø105 x 90 x Ø25 (30223318)
|
|
|
19. |
|
VIW |
382300-39 |
piston ring Ø105 x 2,5 (38230039)
|
|
|
20. |
|
VIW |
325000-21 |
pressure spring steel 3,5 x Ø18 x 31,5 (32500021)
|
|
|
21. |
|
VIW |
325000-20 |
pressure spring steel 1,2 x Ø7 x 15,5 (32500020)
|
|
|
22. |
|
VIW |
366201-19 |
Protective Cap Span of the jaw: 27 Plastic - GRP M24 x 2 / L=57,5 mm (36620119)
|
|
|
23. |
|
VIW |
320230-03 |
retainer 55 x 19,2 x 2 (32023003)
|
|
|
24. |
|
VIW |
382231-06 |
retaining ring with lugs spring steel DIN 472 Ø25 x 1,2 (38223106)
|
|
|
25. |
|
VIW |
305412-02 |
sealing cover Ø55 x 10 (30541202)
|
|
|
26. |
|
VIW |
366202-01 |
sealing nut 7/16" - 20 UNF (36620201)
|
|
|
27. |
|
VIW |
366111-23 |
sealing plug 1/2" - 14 NPTF (36611123)
|
|
|
28. |
|
VIW |
366110-08 |
Sealing Plug steel 1/4" - 18NPTF (36611008)
|
|
|
29. |
|
VIW |
366110-09 |
sealing plug steel 3/8" - 18 NPTF (36611009)
|
|
|
30. |
|
VIW |
366110-01 |
Sealing plug steel 1/8“ - 27 NPTF (36611001)
|
|
|
31. |
|
VIW |
374008-05 |
shaft seal (37400805)
|
|
|
32. |
|
VIW |
361310-08 |
shut-off valve brazing and welding bush Ø35 (1 3/8") (36131008)
|
|
|
33. |
|
VIW |
361310-07 |
shut-off valve brazing and welding bush Ø28 (1 1/8") (36131007)
|
|
|
34. |
|
VIW |
305304-01 |
side cover Ø125 x 18 (30530401)
|
|
|
35. |
|
VIW |
361802-02 |
sight glass Ø67 x 8,5 (36180202)
|
|
|
36. |
|
VIW |
382201-06 |
single coil spring washer spring steel DIN 127 A12 (38220106)
|
|
|
37. |
|
VIW |
320501-04 |
spacer washer spring compensation Ø22 x 0,5 (32050104)
|
|
|
38. |
|
VIW |
362001-01 |
suction gas filter Ø30 x 40 (36200101)
|
|
|
39. |
|
VIW |
315100-08 |
threaded key flywheel M12, Ø22 x 118 (31510008)
|
|
|
40. |
|
VIW |
315107-12 |
threaded key eccentric (31510712)
|
|
|
41. |
|
VIW |
315107-05 |
threaded key flywheel (31510705)
|
|
|
42. |
|
VIW |
304050-07 |
valve plate Ø105 (30405007)
|
|
|
43. |
|
VIW |
320200-04 |
valve reed 44 x 24,1 x 0,25 (32020004)
|
|
|
44. |
|
VIW |
320210-03 |
valve reed 55 x 19 x 0,5 (32021003)
|
|
|
45. |
|
VIW |
382011-04 |
washer steel DIN 134 A13 (38201104)
|
|
|
46. |
|
VIW |
383401-20 |
wrist pin Ø25 x 16 x 94 (38340120)
|
|
|
47. |
|
I |
311107-02 |
bearing bush connecting rod Ø14 x Ø12 x 12 (31110702)
|
|
|
48. |
|
I |
315020-01 |
cheese head screw M2,3 x 3,5 (31502001)
|
|
|
49. |
|
I |
302118-06 |

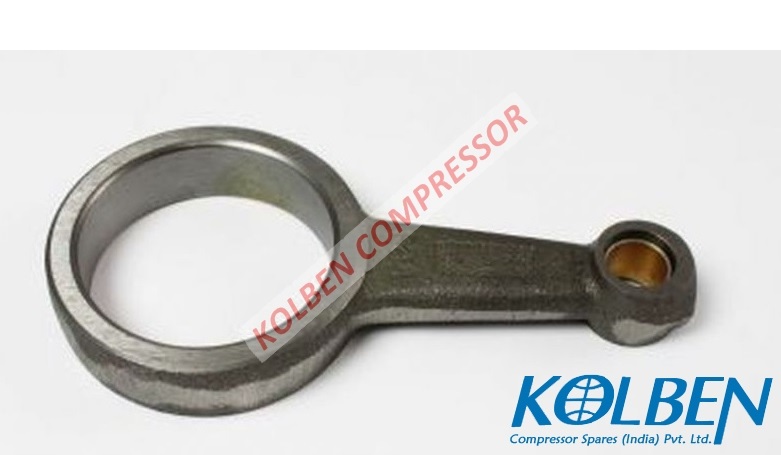

connecting rod using utmost care Ø50 x Ø12 x 85 (30211806)
|
|
|
50. |
|
I |
302239-02 |

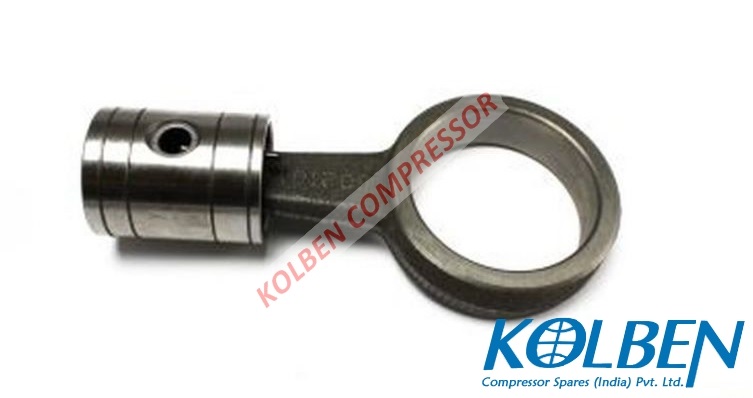

connecting rod / piston (30223902)
|
|
|
51. |
|
I |
320315-01 |
covering plate for cylinder 28 x 28 x 0,2 (32031501)
|
|
|
52. |
|
I |
300101-01 |

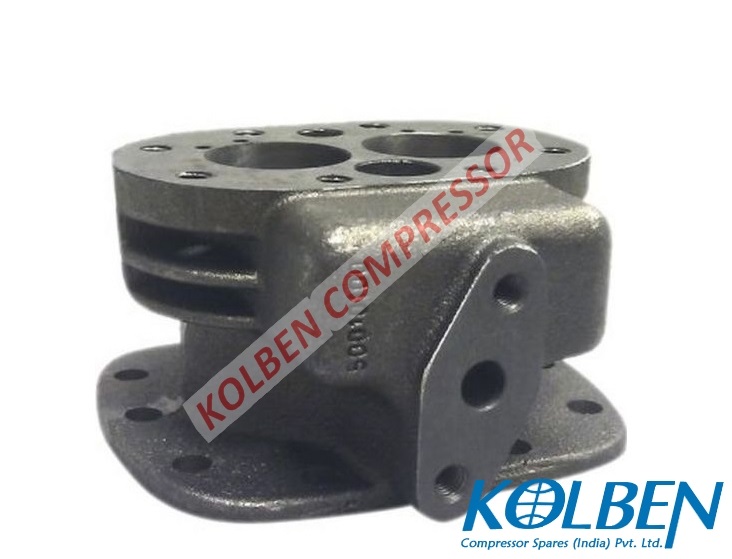

cylinder 130 x 130 x 72 (30010101)
|
|
|
53. |
|
I |

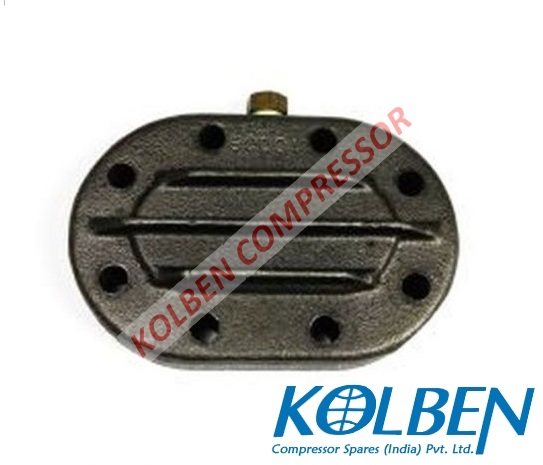

302301-01 |
cylinder head air-cooled grey cast iron 121 x 80 x 31 (30230101)
|
|
|
54. |
|
I |
383023-02 |
dowel pin 2,5 x 26 (38302302)
|
|
|
55. |
|
I |

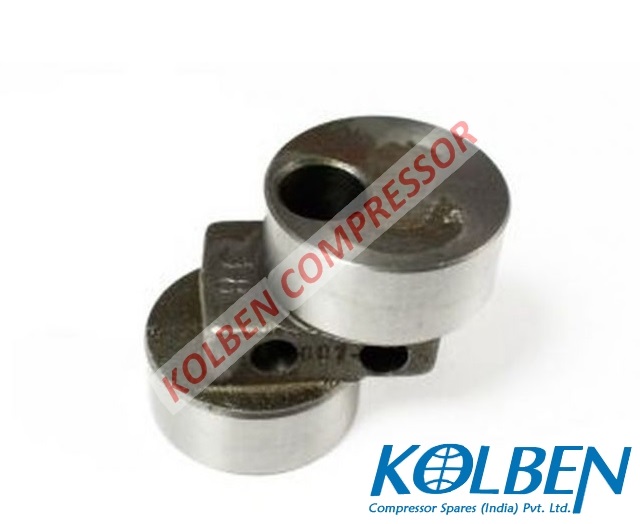

302001-01 |
eccentric Ø50 x 61 (30200101)
|
|
|
56. |
|
I |
310000-01 |
eccentric shaft steel Ø23 x 178 (31000001)
|
|
|
57. |
|
I |
303125-01 |
flywheel Ø180 x 28 (30312501)
|
|
|
58. |
|
I |
372701-01 |
gasket discharge shut-off valve 61 x 28 x 1 (37270101)
|
|
|
59. |
|
I |
372300-01 |
gasket side cover Ø45 x Ø35 x 5 (37230001)
|
|
|
60. |
|
I |

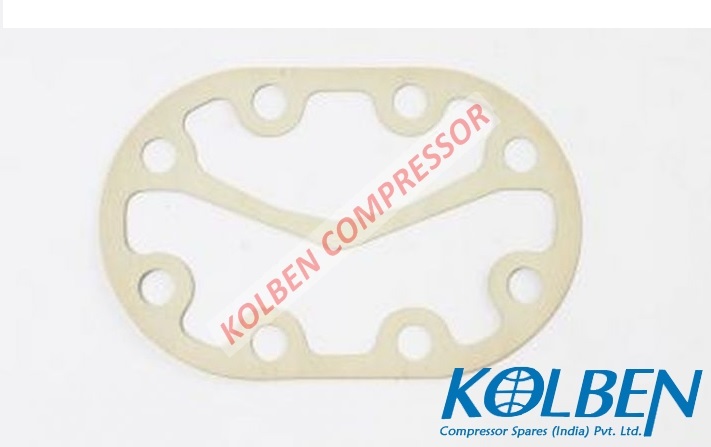

372601-01 |
gasket cylinder head 121 x 80 x 0,5 (37260101)
|
|
|
61. |
|
I |
372310-01 |
gasket sealing cover Ø50 x Ø20 x 0,5 (37231001)
|
|
|
62. |
|
I |
372401-01 |

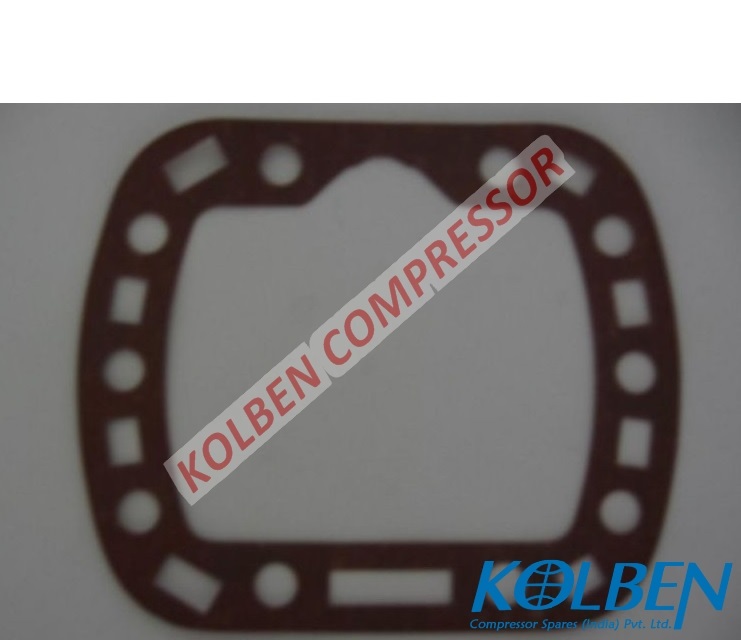

gasket 130 x 110 x 0,5 (37240101)
|
|
|
63. |
|
I |

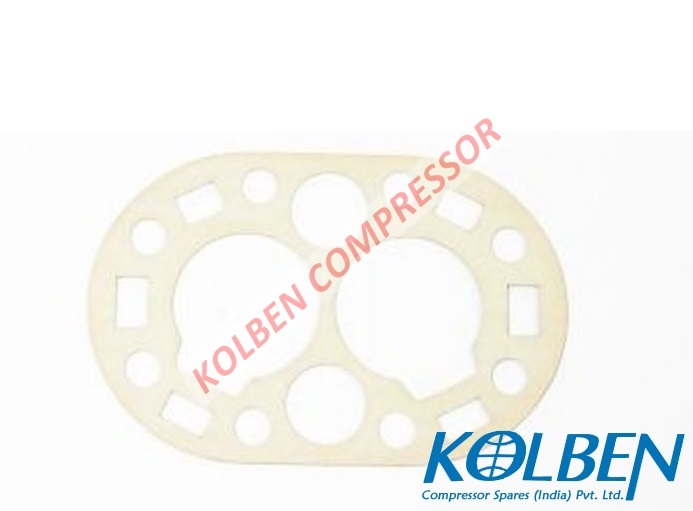

372501-01 |
gasket valve plate 80 x 121 x 0,5 (37250101)
|
|
|
64. |
|
I |
372800-02 |

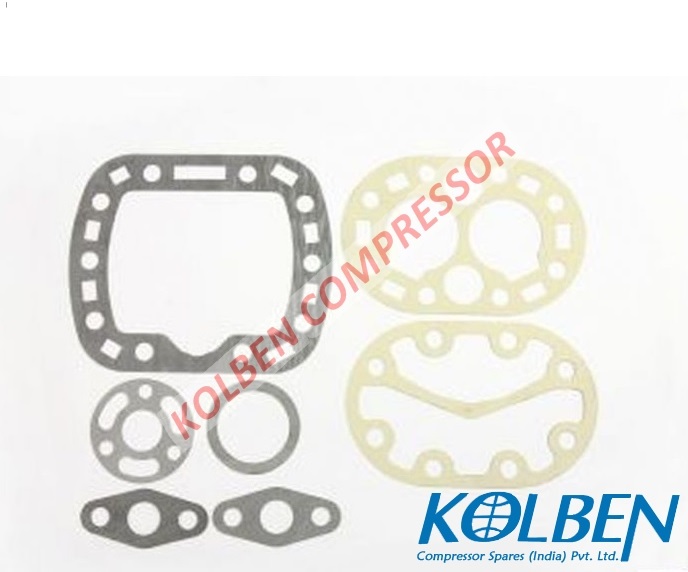

gasket set (37280002)
|
|
|
65. |
|
I |
380101-91 |
hexagon head screw coated DIN 933, 8.8 M3 x 6 (38010191)
|
|
|
66. |
|
I |
380155-05 |
hexagon head screw DIN 933, 10.9 M8 x 20 (38015505)
|
|
|
67. |
|
I |

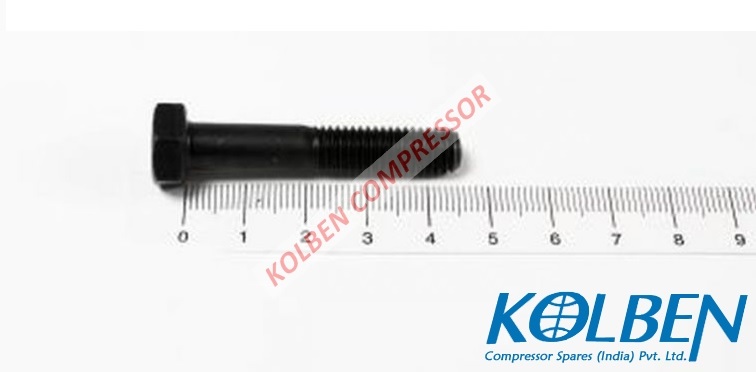

380055-03 |
hexagon head screw DIN 931, 10.9 M8 x 45 (38005503)
|
|
|
68. |
|
I |
380154-04 |
hexagon head screw DIN 933, 10.9 M6 x 16 (38015404)
|
|
|
69. |
|
I |
380154-06 |
hexagon head screw DIN 933, 10.9 M6 x 20 (38015406)
|
|
|
70. |
|
I |
315000-01 |
hexagon head screw M4 x 14 (31500001)
|
|
|
71. |
|
I |
381101-04 |
hexagon nut DIN 934, 8.8 M6 (38110104)
|
|
|
72. |
|
I |

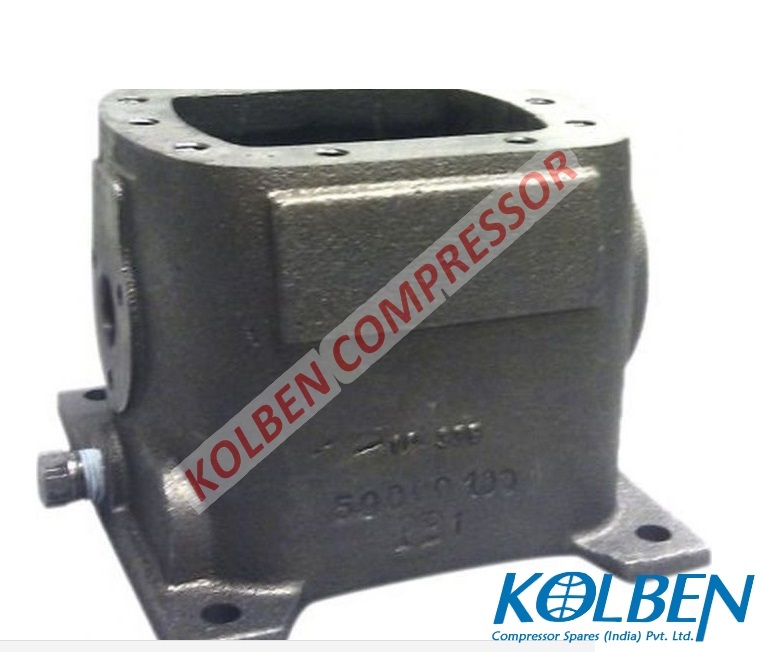

300001-01 |
housing grey cast iron 143 x 160 x 110 (30000101)
|
|
|
73. |
|
I |
313100-01 |
insert plate Ø10 x 4,5 (31310001)
|
|
|
74. |
|
I |
324018-01 |
locking plate 39,5 x 8,2 x 2,6 (32401801)
|
|
|
75. |
|
I |
372001-01 |
O-ring violet HCFC, (CFC) Ø14 x 3 (37200101)
|
|
|
76. |
|
I |
372001-02 |
O-ring violet HCFC, (CFC) Ø18 x 3 (37200102)
|
|
|
77. |
|
I |
320308-02 |

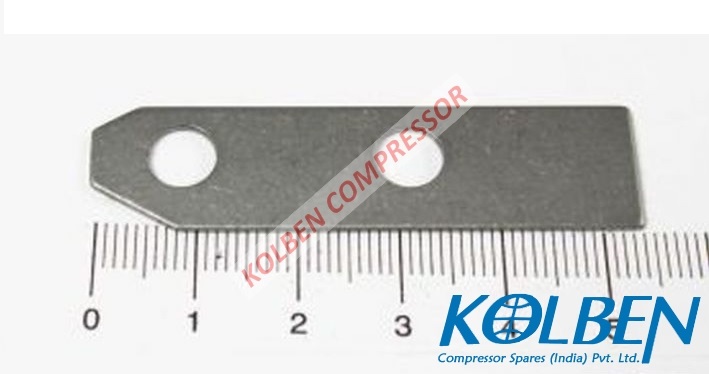

oil splasher plate 55 x 14 x 1 (32030802)
|
|
|
78. |
|
I |
302201-01 |

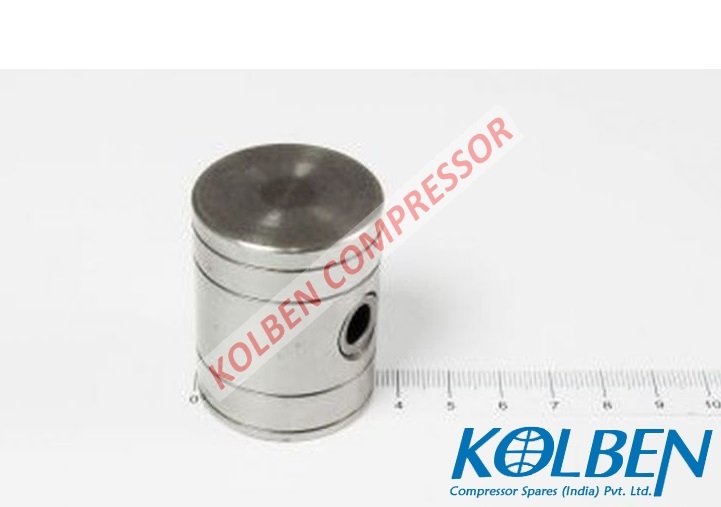

piston grey cast iron Ø35 x 45 x Ø12 (30220101)
|
|
|
79. |
|
I |
325000-23 |
pressure spring spring steel 2,0 x Ø10,5 x 20 (32500023)
|
|
|
80. |
|
I |
325000-18 |
pressure spring spring steel 0,8 x Ø6,2 x 10,5 (32500018)
|
|
|
81. |
|
I |
366201-17 |
Protective Cap Span of the jaw: 20 Plastic - GRP 3/4"-16 UNF / L=43 mm (36620117)
|
|
|
82. |
|
I |
320230-01 |
retainer 39,6 x 14,5 x 1,3 (32023001)
|
|
|
83. |
|
I |
305412-01 |
sealing cover Ø50 x 10 (30541201)
|
|
|
84. |
|
I |
366202-01 |
sealing nut 7/16" - 20 UNF (36620201)
|
|
|
85. |
|
I |
366111-21 |
sealing plug 1/4" - 18 NPTF (36611121)
|
|
|
86. |
|
I |
366110-01 |
Sealing plug steel 1/8“ - 27 NPTF (36611001)
|
|
|
87. |
|
I |
366110-08 |
Sealing Plug steel 1/4" - 18NPTF (36611008)
|
|
|
88. |
|
I |
374008-01 |
shaft seal (37400801)
|
|
|
89. |
|
I |
361315-01 |
shut-off valve brazed connection PS45/DN8/S19(10/2LA42)TX/AF1 Ø10 (3/8 (36131501)
|
|
|
90. |
|
I |
361315-02 |
shut-off valve brazed connection PS45/DN10/S19(12/2LA42)TX/AF1 Ø12 (1/2 (36131502)
|
|
|
91. |
|
I |
305300-01 |
side cover Ø70 x 10 (30530001)
|
|
|
92. |
|
I |
362000-01 |
suction gas filter Ø17 x 38 (36200001)
|
|
|
93. |
|
I |
315100-01 |
threaded key flywheel M6, Ø10 x 52 (31510001)
|
|
|
94. |
|
I |
315107-01 |
threaded key flywheel (31510701)
|
|
|
95. |
|
I |
315107-06 |
threaded key eccentric (31510706)
|
|
|
96. |
|
I |
382150-01 |
thrust washer spring steel S6 (38215001)
|
|
|
97. |
|
I |

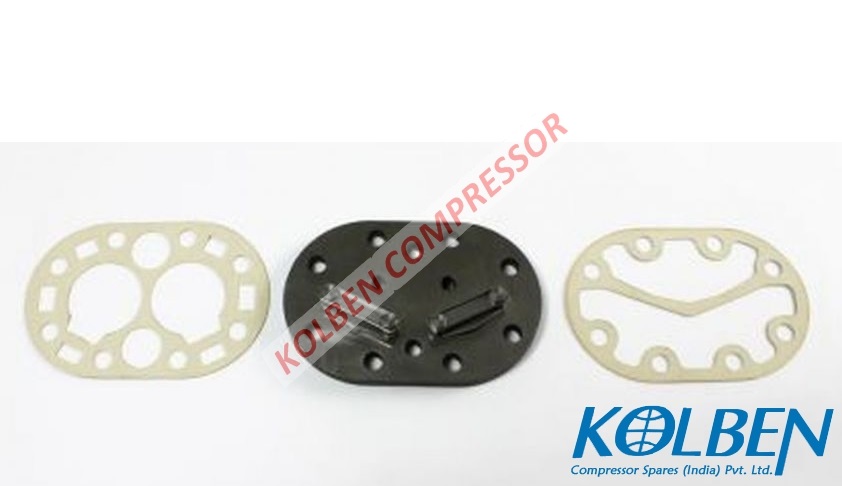

304050-02 |
valve plate Ø35 (30405002)
|
|
|
98. |
|
I |
320200-02 |
valve reed 38 x 17,4 x 0,25 (32020002)
|
|
|
99. |
|
I |
320210-01 |
valve reed 39,6 x 14,3 x 0,3 (32021001)
|
|
|
100. |
|
I |
382001-03 |
washer brass DIN 125 A6, 4 (38200103)
|
|
|
101. |
|
I |
383401-10 |
wrist pin Ø12 x 8 x 32 (38340110)
|
|
|
102. |
|
II |
311107-02 |
bearing bush connecting rod Ø14 x Ø12 x 12 (31110702)
|
|
|
103. |
|
II |
315020-02 |
cheese head screw M4 x 4 (31502002)
|
|
|
104. |
|
II |
302118-07 |
connecting rod using utmost care Ø55 x Ø12 x 50 (30211807)
|
|
|
105. |
|
II |
302239-03 |
connecting rod / piston (30223903)
|
|
|
106. |
|
II |
320315-01 |
covering plate for cylinder 28 x 28 x 0,2 (32031501)
|
|
|
107. |
|
II |
300102-01 |
cylinder 140 x 124 x 85 (30010201)
|
|
|
108. |
|
II |
302302-01 |
cylinder head air-cooled grey cast iron 135 x 87 x 43 (30230201)
|
|
|
109. |
|
II |
383023-02 |
dowel pin 2,5 x 26 (38302302)
|
|
|
110. |
|
II |
302002-01 |
eccentric Ø55 x 68 (30200201)
|
|
|
111. |
|
II |
310001-01 |
eccentric shaft Ø27 x 232 (31000101)
|
|
|
112. |
|
II |
303123-10 |
flywheel Ø260 x 39,5 (30312310)
|
|
|
113. |
|
II |
372300-02 |
gasket side cover Ø51 x Ø43 x 0,5 (37230002)
|
|
|
114. |
|
II |
372701-01 |
gasket discharge shut-off valve 61 x 28 x 1 (37270101)
|
|
|
115. |
|
II |
372502-01 |
gasket valve plate 87 x 135 x 0,5 (37250201)
|
|
|
116. |
|
II |
372402-01 |
gasket 140 x 108 x 0,5 (37240201)
|
|
|
117. |
|
II |
372602-01 |
gasket cylinder head 135 x 87 x 0,5 (37260201)
|
|
|
118. |
|
II |
372310-01 |
gasket sealing cover Ø50 x Ø20 x 0,5 (37231001)
|
|
|
119. |
|
II |
372800-03 |
gasket set (37280003)
|
|
|
120. |
|
II |
380055-01 |
hexagon head screw DIN 931, 10.9 M8 x 50 (38005501)
|
|
|
121. |
|
II |
380154-04 |
hexagon head screw DIN 933, 10.9 M6 x 16 (38015404)
|
|
|
122. |
|
II |
380155-05 |
hexagon head screw DIN 933, 10.9 M8 x 20 (38015505)
|
|
|
123. |
|
II |
380101-91 |
hexagon head screw coated DIN 933, 8.8 M3 x 6 (38010191)
|
|
|
124. |
|
II |
380154-05 |
hexagon head screw DIN 933, 10.9 M6 x 18 (38015405)
|
|
|
125. |
|
II |
380154-06 |
hexagon head screw DIN 933, 10.9 M6 x 20 (38015406)
|
|
|
126. |
|
II |
315000-01 |
hexagon head screw M4 x 14 (31500001)
|
|
|
127. |
|
II |
381101-04 |
hexagon nut DIN 934, 8.8 M6 (38110104)
|
|
|
128. |
|
II |
381101-05 |
hexagon nut DIN 934, 8.8 M8 (38110105)
|
|
|
129. |
|
II |
300002-01 |
housing grey cast iron 181 x 160 x 119 (30000201)
|
|
|
130. |
|
II |
313100-01 |
insert plate Ø10 x 4,5 (31310001)
|
|
|
131. |
|
II |
324018-01 |
locking plate 39,5 x 8,2 x 2,6 (32401801)
|
|
|
132. |
|
II |
372001-04 |
O-ring violet HCFC, (CFC) Ø23 x 3 (37200104)
|
|
|
133. |
|
II |
372001-02 |
O-ring violet HCFC, (CFC) Ø18 x 3 (37200102)
|
|
|
134. |
|
II |
372003-01 |
O-ring sight glass Ø26,7 x 1,78 (37200301)
|
|
|
135. |
|
II |
320308-03 |
oil splasher plate 62 x 21 x 1 (32030803)
|
|
|
136. |
|
II |
302202-01 |
piston grey cast iron Ø40 x 50 x Ø12 (30220201)
|
|
|
137. |
|
II |
325000-23 |
pressure spring steel 2,0 x Ø10,5 x 20 (32500023)
|
|
|
138. |
|
II |
325000-18 |
pressure spring steel 0,8 x Ø6,2 x 10,5 (32500018)
|
|
|
139. |
|
II |
366201-17 |
Protective Cap Span of the jaw: 20 Plastic - GRP 3/4"-16 UNF / L=43 mm (36620117)
|
|
|
140. |
|
II |
320230-01 |
retainer 39,6 x 14,5 x 1,3 (32023001)
|
|
|
141. |
|
II |
305412-01 |
sealing cover Ø50 x 10 (30541201)
|
|
|
142. |
|
II |
366202-01 |
sealing nut 7/16" - 20 UNF (36620201)
|
|
|
143. |
|
II |
366110-01 |
Sealing plug steel 1/8“ - 27 NPTF (36611001)
|
|
|
144. |
|
II |
366110-08 |
Sealing Plug steel 1/4" - 18NPTF (36611008)
|
|
|
145. |
|
II |
366111-21 |
sealing plug 1/4" - 18 NPTF (36611121)
|
|
|
146. |
|
II |
374008-02 |
shaft seal (37400802)
|
|
|
147. |
|
II |
361315-02 |
shut-off valve brazed connection PS45/DN10/S19(12/2LA42)TX/AF1 Ø12 (1/2 (36131502)
|
|
|
148. |
|
II |
305301-01 |
side cover Ø80 x 12 (30530101)
|
|
|
149. |
|
II |
361802-01 |
sight glass Ø56 x 7 (36180201)
|
|
|
150. |
|
II |
382201-04 |
single coil spring washer spring steel DIN 127 B8 (38220104)
|
|
|
151. |
|
II |
362000-02 |
suction gas filter Ø20 x 45 (36200002)
|
|
|
152. |
|
II |
315100-04 |
threaded key flywheel M8, Ø12 x 58 (31510004)
|
|
|
153. |
|
II |
315100-01 |
threaded key M6, Ø10 x 52 (31510001)
|
|
|
154. |
|
II |
315107-07 |
threaded key eccentric (31510707)
|
|
|
155. |
|
II |
315107-02 |
threaded key flywheel (31510702)
|
|
|
156. |
|
II |
315107-08 |
threaded key eccentric (31510708)
|
|
|
157. |
|
II |
304050-03 |
valve plate Ø40 (30405003)
|
|
|
158. |
|
II |
320200-03 |
valve reed 44 x 24,1 x 0,25 (32020003)
|
|
|
159. |
|
II |
320210-01 |
valve reed 39,6 x 14,3 x 0,3 (32021001)
|
|
|
160. |
|
II |
382011-02 |
washer DIN 134 A8, 4 (38201102)
|
|
|
161. |
|
II |
382021-02 |
washer steel DIN 9021 A6, 4 (38202102)
|
|
|
162. |
|
II |
383401-12 |
wrist pin Ø12 x 8 x 36,8 (38340112)
|
|
|
163. |
|
III |
311103-01 |
bearing bush connecting rod Ø18 x Ø14,8 x 22,9 (31110301)
|
|
|
164. |
|
III |
315020-02 |
cheese head screw M4 x 4 (31502002)
|
|
|
165. |
|
III |
302118-01 |
connecting rod using utmost care Ø65 x Ø15 x 112 (30211801)
|
|
|
166. |
|
III |
302239-04 |
connecting rod / piston (30223904)
|
|
|
167. |
|
III |
320315-01 |
covering plate for cylinder 28 x 28 x 0,2 (32031501)
|
|
|
168. |
|
III |
300103-01 |
cylinder grey cast iron 160 x 131 x 100 (30010301)
|
|
|
169. |
|
III |
302303-01 |
cylinder head air-cooled grey cast iron 155 x 95 x 43 (30230301)
|
|
|
170. |
|
III |
302304-01 |
cylinder head water-cooled grey cast iron 155 x 95 x 49 (30230401)
|
|
|
171. |
|
III |
302003-01 |
eccentric Ø65 x 82 (30200301)
|
|
|
172. |
|
III |
310001-01 |
eccentric shaft Ø27 x 232 (31000101)
|
|
|
173. |
|
III |
303123-10 |
flywheel Ø260 x 39,5 (30312310)
|
|
|
174. |
|
III |
372310-01 |
gasket sealing cover Ø50 x Ø20 x 0,5 (37231001)
|
|
|
175. |
|
III |
372503-01 |
gasket valve plate 95 x 155 x 0,5 (37250301)
|
|
|
176. |
|
III |
372300-02 |
gasket side cover Ø51 x Ø43 x 0,5 (37230002)
|
|
|
177. |
|
III |
372403-01 |
gasket 160 x 122 x 0,5 (37240301)
|
|
|
178. |
|
III |
372603-01 |
gasket cylinder head 155 x 95 x 0,5 (37260301)
|
|
|
179. |
|
III |
372701-01 |
gasket discharge shut-off valve 61 x 28 x 1 (37270101)
|
|
|
180. |
|
III |
380101-91 |
hexagon head screw coated DIN 933, 8.8 M3 x 6 (38010191)
|
|
|
181. |
|
III |
315000-01 |
hexagon head screw M4 x 14 (31500001)
|
|
|
182. |
|
III |
380055-07 |
hexagon head screw DIN 931, 10.9 M8 x 65 (38005507)
|
|
|
183. |
|
III |
380154-06 |
hexagon head screw DIN 933, 10.9 M6 x 20 (38015406)
|
|
|
184. |
|
III |
380154-04 |
hexagon head screw DIN 933, 10.9 M6 x 16 (38015404)
|
|
|
185. |
|
III |
380055-01 |
hexagon head screw DIN 931, 10.9 M8 x 50 (38005501)
|
|
|
186. |
|
III |
380155-05 |
hexagon head screw DIN 933, 10.9 M8 x 20 (38015505)
|
|
|
187. |
|
III |
380154-05 |
hexagon head screw DIN 933, 10.9 M6 x 18 (38015405)
|
|
|
188. |
|
III |
381101-05 |
hexagon nut DIN 934, 8.8 M8 (38110105)
|
|
|
189. |
|
III |
381101-04 |
hexagon nut DIN 934, 8.8 M6 (38110104)
|
|
|
190. |
|
III |
300003-01 |
housing grey cast iron 181 x 200 x 139 (30000301)
|
|
|
191. |
|
III |
313100-01 |
insert plate Ø10 x 4,5 (31310001)
|
|
|
192. |
|
III |
324018-01 |
locking plate 39,5 x 8,2 x 2,6 (32401801)
|
|
|
193. |
|
III |
372001-04 |
O-ring violet HCFC, (CFC) Ø23 x 3 (37200104)
|
|
|
194. |
|
III |
372001-02 |
O-ring violet HCFC, (CFC) Ø18 x 3 (37200102)
|
|
|
195. |
|
III |
372003-01 |
O-ring sight glass Ø26,7 x 1,78 (37200301)
|
|
|
196. |
|
III |
320308-03 |
oil splasher plate 62 x 21 x 1 (32030803)
|
|
|
197. |
|
III |
302233-93 |
piston aluminium alloy Ø50 x 55 x Ø15 (30223393)
|
|
|
198. |
|
III |
382300-93 |
piston ring Ø50 x 2 (38230093)
|
|
|
199. |
|
III |
325000-18 |
pressure spring steel 0,8 x Ø6,2 x 10,5 (32500018)
|
|
|
200. |
|
III |
325000-23 |
pressure spring steel 2,0 x Ø10,5 x 20 (32500023)
|
|
|
201. |
|
III |
366201-17 |
Protective Cap Span of the jaw: 20 Plastic - GRP 3/4"-16 UNF / L=43 mm (36620117)
|
|
|
202. |
|
III |
320230-01 |
retainer 39,6 x 14,5 x 1,3 (32023001)
|
|
|
203. |
|
III |
382231-02 |
retaining ring with lugs spring steel DIN 472 Ø15 x 1 (38223102)
|
|
|
204. |
|
III |
305412-01 |
sealing cover Ø50 x 10 (30541201)
|
|
|
205. |
|
III |
366202-01 |
sealing nut 7/16" - 20 UNF (36620201)
|
|
|
206. |
|
III |
366110-01 |
Sealing plug steel 1/8“ - 27 NPTF (36611001)
|
|
|
207. |
|
III |
366110-08 |
Sealing Plug steel 1/4" - 18NPTF (36611008)
|
|
|
208. |
|
III |
366111-22 |
sealing plug 3/8" - 18 NPTF (36611122)
|
|
|
209. |
|
III |
374008-02 |
shaft seal (37400802)
|
|
|
210. |
|
III |
361315-10 |
shut-off valve brazed connection Ø16 L (36131510)
|
|
|
211. |
|
III |
361315-02 |
shut-off valve brazed connection PS45/DN10/S19(12/2LA42)TX/AF1 Ø12 (1/2 (36131502)
|
|
|
212. |
|
III |
305301-01 |
side cover Ø80 x 12 (30530101)
|
|
|
213. |
|
III |
361802-01 |
sight glass Ø56 x 7 (36180201)
|
|
|
214. |
|
III |
382201-04 |
single coil spring washer spring steel DIN 127 B8 (38220104)
|
|
|
215. |
|
III |
362000-02 |
suction gas filter Ø20 x 45 (36200002)
|
|
|
216. |
|
III |
315100-04 |
threaded key flywheel M8, Ø12 x 58 (31510004)
|
|
|
217. |
|
III |
315100-01 |
threaded key M6, Ø10 x 52 (31510001)
|
|
|
218. |
|
III |
315107-07 |
threaded key eccentric (31510707)
|
|
|
219. |
|
III |
315107-02 |
threaded key flywheel (31510702)
|
|
|
220. |
|
III |
315107-08 |
threaded key eccentric (31510708)
|
|
|
221. |
|
III |
304050-04 |
valve plate Ø50 (30405004)
|
|
|
222. |
|
III |
320200-04 |
valve reed 44 x 24,1 x 0,25 (32020004)
|
|
|
223. |
|
III |
320210-01 |
valve reed 39,6 x 14,3 x 0,3 (32021001)
|
|
|
224. |
|
III |
382021-02 |
washer steel DIN 9021 A6, 4 (38202102)
|
|
|
225. |
|
III |
382011-02 |
washer DIN 134 A8, 4 (38201102)
|
|
|
226. |
|
III |
383401-14 |
wrist pin Ø15 x Ø9 x 42 (38340114)
|
|
|
227. |
|
IV |
311104-07 |
bearing bush Ø23 x Ø20 x 13,5 (31110407)
|
|
|
228. |
|
IV |
311104-09 |
bearing bush face side Ø34 x Ø30 x 20 (31110409)
|
|
|
229. |
|
IV |
311103-02 |
bearing bush connecting rod Ø22 x Ø17,8 x 27,9 (31110302)
|
|
|
230. |
|
IV |
311104-06 |
bearing bush face side Ø34 x Ø30 x 20 (31110406)
|
|
|
231. |
|
IV |
315020-02 |
cheese head screw M4 x 4 (31502002)
|
|
|
232. |
|
IV |
380306-02 |
Cheese head screw DIN 912, 10.9 M8 x 20 (38030602)
|
|
|
233. |
|
IV |
302118-02 |
connecting rod using utmost care Ø75 x Ø18 x 149,5 (30211802)
|
|
|
234. |
|
IV |
302239-05 |
connecting rod / piston (30223905)
|
|
|
235. |
|
IV |
320315-01 |
covering plate for cylinder 28 x 28 x 0,2 (32031501)
|
|
|
236. |
|
IV |
300104-01 |
cylinder 200 x 165 x 135 (30010401)
|
|
|
237. |
|
IV |
302306-01 |
cylinder head water-cooled grey cast iron 191 x 118 x 52 (30230601)
|
|
|
238. |
|
IV |
302305-01 |
cylinder head air-cooled grey cast iron 191 x 118 x 46 (30230501)
|
|
|
239. |
|
IV |
302014-01 |
eccentric Ø75 x 103 (30201401)
|
|
|
240. |
|
IV |
310002-01 |
eccentric shaft steel Ø30 x 289 (31000201)
|
|
|
241. |
|
IV |
303219-51 |
flywheel Ø380 x 52 (30321951)
|
|
|
242. |
|
IV |
372310-02 |
gasket sealing cover Ø56 x Ø22 x 0,5 (37231002)
|
|
|
243. |
|
IV |
372300-03 |
gasket side cover Ø62 x Ø52 x 0,5 (37230003)
|
|
|
244. |
|
IV |
372702-03 |
gasket 35 x 60 x 1 (37270203)
|
|
|
245. |
|
IV |
372200-03 |
Gasket teflon Ø25,4 x Ø22,2 x 1,5 (37220003)
|
|
|
246. |
|
IV |
372604-01 |
gasket cylinder head 191 x 118 x 0,75 (37260401)
|
|
|
247. |
|
IV |
372404-01 |
gasket 200 x 150 x 0,5 (37240401)
|
|
|
248. |
|
IV |
372504-01 |
gasket valve plate 118 x 191 x 0,75 (37250401)
|
|
|
249. |
|
IV |
380101-91 |
hexagon head screw coated DIN 933, 8.8 M3 x 6 (38010191)
|
|
|
250. |
|
IV |
380155-05 |
hexagon head screw DIN 933, 10.9 M8 x 20 (38015505)
|
|
|
251. |
|
IV |
315000-02 |
hexagon head screw M4 x 17,5 (31500002)
|
|
|
252. |
|
IV |
380055-04 |
hexagon head screw DIN 931, 10.9 M8 x 55 (38005504)
|
|
|
253. |
|
IV |
380155-06 |
hexagon head screw DIN 933, 10.9 M8 x 22 (38015506)
|
|
|
254. |
|
IV |
380055-08 |
hexagon head screw DIN 931, 10.9 M8 x 70 (38005508)
|
|
|
255. |
|
IV |
380154-06 |
hexagon head screw DIN 933, 10.9 M6 x 20 (38015406)
|
|
|
256. |
|
IV |
381101-05 |
hexagon nut DIN 934, 8.8 M8 (38110105)
|
|
|
257. |
|
IV |
381101-04 |
hexagon nut DIN 934, 8.8 M6 (38110104)
|
|
|
258. |
|
IV |
300025-01 |
housing 250 x 223 x 171 (30002501)
|
|
|
259. |
|
IV |
313100-01 |
insert plate Ø10 x 4,5 (31310001)
|
|
|
260. |
|
IV |
324018-02 |
locking plate 53,5 x 8,2 x 2,6 (32401802)
|
|
|
261. |
|
IV |
372001-03 |
O-ring violet HCFC, (CFC) Ø20 x 3,5 (37200103)
|
|
|
262. |
|
IV |
372001-05 |
O-ring violet HCFC, (CFC) Ø23 x 3,5 (37200105)
|
|
|
263. |
|
IV |
372003-15 |
O-ring sight glass Ø36,3 x 1,78 (37200315)
|
|
|
264. |
|
IV |
320308-04 |
oil splasher plate 74 x 30 x 1 (32030804)
|
|
|
265. |
|
IV |
366000-03 |
pipe connection Brazed connection steel copper-plated Ø22, 1 1/4" - 12 UNF (36600003)
|
|
|
266. |
|
IV |
302233-14 |
piston aluminium alloy Ø65 x 59,9 x Ø18 (30223314)
|
|
|
267. |
|
IV |
382300-35 |
piston ring Ø65 x 2 (38230035)
|
|
|
268. |
|
IV |
325000-19 |
pressure spring steel 1,1 x Ø6,5 x 13 (32500019)
|
|
|
269. |
|
IV |
325000-24 |
pressure spring steel 2,2 x Ø12,7 x 23 (32500024)
|
|
|
270. |
|
IV |
366201-17 |
Protective Cap Span of the jaw: 20 Plastic - GRP 3/4"-16 UNF / L=43 mm (36620117)
|
|
|
271. |
|
IV |
320230-02 |
retainer 55 x 19,2 x 2 (32023002)
|
|
|
272. |
|
IV |
382231-03 |
retaining ring with lugs spring steel DIN 472 Ø18 x 1 (38223103)
|
|
|
273. |
|
IV |
305412-02 |
sealing cover Ø55 x 10 (30541202)
|
|
|
274. |
|
IV |
366202-01 |
sealing nut 7/16" - 20 UNF (36620201)
|
|
|
275. |
|
IV |
366110-01 |
Sealing plug steel 1/8“ - 27 NPTF (36611001)
|
|
|
276. |
|
IV |
366110-08 |
Sealing Plug steel 1/4" - 18NPTF (36611008)
|
|
|
277. |
|
IV |
366111-21 |
sealing plug 1/4" - 18 NPTF (36611121)
|
|
|
278. |
|
IV |
374008-03 |
shaft seal (37400803)
|
|
|
279. |
|
IV |
361315-10 |
shut-off valve brazed connection Ø16 L (36131510)
|
|
|
280. |
|
IV |
361310-05 |
shut-off valve brazing and welding bush Ø22 (1 7/8") (36131005)
|
|
|
281. |
|
IV |
305302-01 |
side cover Ø95 x 30 (30530201)
|
|
|
282. |
|
IV |
361802-02 |
sight glass Ø67 x 8,5 (36180202)
|
|
|
283. |
|
IV |
382201-04 |
single coil spring washer spring steel DIN 127 B8 (38220104)
|
|
|
284. |
|
IV |
320501-02 |
spacer washer spring compensation Ø15 x 0,5 (32050102)
|
|
|
285. |
|
IV |
362001-03 |
suction gas filter Ø23 x 36 (36200103)
|
|
|
286. |
|
IV |
315100-05 |
threaded key M8, Ø14 x 54 (31510005)
|
|
|
287. |
|
IV |
315107-10 |
threaded key eccentric (31510710)
|
|
|
288. |
|
IV |
315100-02 |
threaded key M6, Ø12 x 52 (31510002)
|
|
|
289. |
|
IV |
315107-09 |
threaded key eccentric (31510709)
|
|
|
290. |
|
IV |
315107-03 |
threaded key flywheel (31510703)
|
|
|
291. |
|
IV |
304050-05 |
valve plate Ø65 (30405005)
|
|
|
292. |
|
IV |
320210-02 |
valve reed 54 x 19 x 0,5 (32021002)
|
|
|
293. |
|
IV |
320200-04 |
valve reed 44 x 24,1 x 0,25 (32020004)
|
|
|
294. |
|
IV |
382011-02 |
washer DIN 134 A8, 4 (38201102)
|
|
|
295. |
|
IV |
382021-02 |
washer steel DIN 9021 A6, 4 (38202102)
|
|
|
296. |
|
IV |
383401-16 |
wrist pin Ø18 x 12 x 56 (38340116)
|
|
|
297. |
|
VIIW |
311100-13 |
bearing bush Ø44 x Ø40 x 50N (31110013)
|
|
|
298. |
|
VIIW |
311103-05 |
bearing bush connecting rod Ø33 x Ø27,8 x 50 (31110305)
|
|
|
299. |
|
VIIW |
311100-10 |
bearing bush face side Ø60 x Ø55 x 40 (31110010)
|
|
|
300. |
|
VIIW |
315020-02 |
cheese head screw M4 x 4 (31502002)
|
|
|
301. |
|
VIIW |
380603-01 |
cheese head screw DIN 912, 8.8 M12 x 50 (38060301)
|
|
|
302. |
|
VIIW |
367121-01 |
clamping plate 80 x 80 (36712101)
|
|
|
303. |
|
VIIW |
302118-04 |
connecting rod using utmost care Ø135 x Ø28 x 260 (30211804)
|
|
|
304. |
|
VIIW |
302239-08 |
connecting rod / piston (30223908)
|
|
|
305. |
|
VIIW |
320315-03 |
covering plate for cylinder 48 x 32 x 0,3 (32031503)
|
|
|
306. |
|
VIIW |
300107-01 |
cylinder grey cast iron 360 x 270 x 231,5 (30010701)
|
|
|
307. |
|
VIIW |
302310-01 |
cylinder head water-cooled grey cast iron 335 x 200 x 77 (30231001)
|
|
|
308. |
|
VIIW |
302007-01 |
eccentric Ø135 x 200 (30200701)
|
|
|
309. |
|
VIIW |
310005-01 |
eccentric shaft steel Ø55 x 578 (31000501)
|
|
|
310. |
|
VIIW |
303404-51 |
flywheel Ø500 x 91 (30340451)
|
|
|
311. |
|
VIIW |
372407-01 |
gasket 320 x 260 x 1 (37240701)
|
|
|
312. |
|
VIIW |
372303-01 |
gasket Ø52 x Ø37 x 2 (37230301)
|
|
|
313. |
|
VIIW |
372301-02 |
gasket Ø70 x Ø54 x 1 (37230102)
|
|
|
314. |
|
VIIW |
372507-01 |
gasket valve plate 200 x 335 x 1 (37250701)
|
|
|
315. |
|
VIIW |
372607-01 |
gasket cylinder head 335 x 200 x 1 (37260701)
|
|
|
316. |
|
VIIW |
372301-06 |
gasket ide cover Ø100 x Ø95 x 1 (37230106)
|
|
|
317. |
|
VIIW |
372704-01 |
Gasket discharge shut-off valve 91 x 52 x 1 (37270401)
|
|
|
318. |
|
VIIW |
372312-03 |
gasket sealing cover Ø80 x Ø60 x 1 (37231203)
|
|
|
319. |
|
VIIW |
372200-04 |
gasket eflon Ø38 x Ø35 x 1,5 (37220004)
|
|
|
320. |
|
VIIW |
372800-08 |
gasket set (37280008)
|
|
|
321. |
|
VIIW |
380155-08 |
hexagon head screw DIN 933, 10.9 M8 x 30 (38015508)
|
|
|
322. |
|
VIIW |
380057-05 |
hexagon head screw DIN 931, 10.9 M12 x 90 (38005705)
|
|
|
323. |
|
VIIW |
380154-06 |
hexagon head screw DIN 933, 10.9 M6 x 20 (38015406)
|
|
|
324. |
|
VIIW |
380157-03 |
hexagon head screw coated DIN 933, 10.9 M12 x 35 (38015703)
|
|
|
325. |
|
VIIW |
380007-52 |
hexagon head screw galvanized DIN 931, 8.8 M12 x 80 (38000752)
|
|
|
326. |
|
VIIW |
380153-02 |
Hexagon head screw steel DIN 933, 10.9 M5 x 10 (38015302)
|
|
|
327. |
|
VIIW |
315000-03 |
hexagon head screw M5 x 21,5 (31500003)
|
|
|
328. |
|
VIIW |
380156-05 |
hexagon head screw DIN 933, 10.9 M10 x 25 (38015605)
|
|
|
329. |
|
VIIW |
380102-91 |
hexagon head screw coated DIN 933, 8.8 M4 x 6 (38010291)
|
|
|
330. |
|
VIIW |
381101-07 |
hexagon nut DIN 934, 8.8 M12 (38110107)
|
|
|
331. |
|
VIIW |
381107-07 |
hexagon nut DIN 934, 8.8 M12 (38110707)
|
|
|
332. |
|
VIIW |
300025-04 |
housing 445 x 380 x 320 (30002504)
|
|
|
333. |
|
VIIW |
313100-01 |
insert plate Ø10 x 4,5 (31310001)
|
|
|
334. |
|
VIIW |
324018-02 |
locking plate 53,5 x 8,2 x 2,6 (32401802)
|
|
|
335. |
|
VIIW |
372001-14 |
O-ring violet HCFC, (CFC) Ø45 x 5 (37200114)
|
|
|
336. |
|
VIIW |
372003-15 |
O-ring sight glass Ø36,3 x 1,78 (37200315)
|
|
|
337. |
|
VIIW |
372001-11 |
O-ring violet HCFC, (CFC) Ø40 x 5 (37200111)
|
|
|
338. |
|
VIIW |
320308-07 |
oil splasher plate 127 x 40 x 1,5 (32030807)
|
|
|
339. |
|
VIIW |
365321-14 |
pipe connection steel brazing and welding bush Ø42 (1 5/8") (36532114)
|
|
|
340. |
|
VIIW |
366000-07 |
pipe connection steel copper-plated brazed connection Ø35, 1 3/4" - 12 UN (36600007)
|
|
|
341. |
|
VIIW |
302233-20 |
piston aluminium alloy Ø120 x 100 x Ø28 (30223320)
|
|
|
342. |
|
VIIW |
382300-41 |
piston ring Ø120 x 2,5 (38230041)
|
|
|
343. |
|
VIIW |
325000-21 |
pressure spring steel 3,5 x Ø18 x 31,5 (32500021)
|
|
|
344. |
|
VIIW |
325000-20 |
pressure spring steel 1,2 x Ø7 x 15,5 (32500020)
|
|
|
345. |
|
VIIW |
366201-22 |
Protective Cap Span of the jaw: 27 Plastic - GRP M27 x 2 / L=70 mm (36620122)
|
|
|
346. |
|
VIIW |
366201-19 |
Protective Cap Span of the jaw: 27 Plastic - GRP M24 x 2 / L=57,5 mm (36620119)
|
|
|
347. |
|
VIIW |
320230-03 |
retainer 55 x 19,2 x 2 (32023003)
|
|
|
348. |
|
VIIW |
382231-07 |
retaining ring with lugs spring steel DIN 472 Ø28 x 1,2 (38223107)
|
|
|
349. |
|
VIIW |
305412-05 |
sealing cover Ø80 x 16 (30541205)
|
|
|
350. |
|
VIIW |
366202-01 |
sealing nut 7/16" - 20 UNF (36620201)
|
|
|
351. |
|
VIIW |
366110-09 |
sealing plug steel 3/8" - 18 NPTF (36611009)
|
|
|
352. |
|
VIIW |
366110-08 |
Sealing Plug steel 1/4" - 18NPTF (36611008)
|
|
|
353. |
|
VIIW |
366111-23 |
sealing plug 1/2" - 14 NPTF (36611123)
|
|
|
354. |
|
VIIW |
366110-10 |
sealing plug steel 1/2" - 14 NPTF (36611010)
|
|
|
355. |
|
VIIW |
366110-01 |
sealing plug steel 1/8“ - 27 NPTF (36611001)
|
|
|
356. |
|
VIIW |
374008-06 |
shaft seal (37400806)
|
|
|
357. |
|
VIIW |
361338-01 |
shut-off valve Ø42 (1 5/8") (36133801)
|
|
|
358. |
|
VIIW |
361310-08 |
shut-off valve brazing and welding bush Ø35 (1 3/8") (36131008)
|
|
|
359. |
|
VIIW |
305305-01 |
side cover Ø150 x 18 (30530501)
|
|
|
360. |
|
VIIW |
361802-02 |
sight glass Ø67 x 8,5 (36180202)
|
|
|
361. |
|
VIIW |
382201-06 |
single coil spring washer spring steel DIN 127 A12 (38220106)
|
|
|
362. |
|
VIIW |
320501-04 |
spacer washer spring compensation Ø22 x 0,5 (32050104)
|
|
|
363. |
|
VIIW |
320321-01 |
stopper plate 190 x 73,5 x 0,75 (32032101)
|
|
|
364. |
|
VIIW |
362001-08 |
suction gas filter Ø50 x 57 (36200108)
|
|
|
365. |
|
VIIW |
315107-12 |
threaded key eccentric (31510712)
|
|
|
366. |
|
VIIW |
315100-08 |
threaded key M12, Ø22 x 118 (31510008)
|
|
|
367. |
|
VIIW |
315107-05 |
threaded key flywheel (31510705)
|
|
|
368. |
|
VIIW |
382150-05 |
thrust washer spring steel Ø9 (38215005)
|
|
|
369. |
|
VIIW |
304050-08 |
valve plate Ø120 (30405008)
|
|
|
370. |
|
VIIW |
320200-04 |
valve reed 44 x 24,1 x 0,25 (32020004)
|
|
|
371. |
|
VIIW |
320210-03 |
valve reed 55 x 19 x 0,5 (32021003)
|
|
|
372. |
|
VIIW |
382011-04 |
washer steel DIN 134 A13 (38201104)
|
|
|
373. |
|
VIIW |
382001-02 |
washer brass DIN 125 A5, 3 (38200102)
|
|
|
374. |
|
VIIW |
383401-22 |
wrist pin Ø28 x 19 x 108 (38340122)
|
|
|
375. |
|
VIW |
311100-12 |
bearing bush Ø39 x Ø35 x 50 (31110012)
|
|
|
376. |
|
VIW |
311103-04 |
bearing bush connecting rod Ø30 x Ø24,8 x 45 (31110304)
|
|
|
377. |
|
VIW |
311100-09 |
bearing bush face side Ø55 x Ø50 x 30 (31110009)
|
|
|
378. |
|
VIW |
315020-02 |
cheese head screw M4 x 4 (31502002)
|
|
|
379. |
|
VIW |
302118-03 |
connecting rod using utmost care Ø120 x Ø25 x 235 (30211803)
|
|
|
380. |
|
VIW |
302239-07 |
connecting rod / piston (30223907)
|
|
|
381. |
|
VIW |
320315-03 |
covering plate for cylinder 48 x 32 x 0,3 (32031503)
|
|
|
382. |
|
VIW |
300106-01 |
cylinder grey cast iron 320 x 243 x 204 (30010601)
|
|
|
383. |
|
VIW |
302309-01 |
cylinder head water-cooled grey cast iron 298 x 180 x 70 (30230901)
|
|
|
384. |
|
VIW |
302006-01 |
eccentric Ø120 x 178 (30200601)
|
|
|
385. |
|
VIW |
310004-01 |
eccentric shaft Ø50 x 505 (31000401)
|
|
|
386. |
|
VIW |
303316-51 |
flywheel Ø450 x 69 (30331651)
|
|
|
387. |
|
VIW |
372506-01 |
gasket valve plate 180 x 298 x 1 (37250601)
|
|
|
388. |
|
VIW |
372606-01 |
gasket cylinder head 298 x 180 x 1 (37260601)
|
|
|
389. |
|
VIW |
372301-04 |
gasket side cover Ø89 x Ø77 x 1 (37230104)
|
|
|
390. |
|
VIW |
372310-02 |
gasket sealing cover Ø56 x Ø22 x 0,5 (37231002)
|
|
|
391. |
|
VIW |
372704-01 |
Gasket discharge shut-off valve 91 x 52 x 1 (37270401)
|
|
|
392. |
|
VIW |
372406-01 |
gasket 320 x 240 x 1 (37240601)
|
|
|
393. |
|
VIW |
372200-04 |
gasket teflon Ø38 x Ø35 x 1,5 (37220004)
|
|
|
394. |
|
VIW |
372800-07 |
gasket set (37280007)
|
|
|
395. |
|
VIW |
380056-08 |
hexagon head screw DIN 931, 10.9 M10 x 85 (38005608)
|
|
|
396. |
|
VIW |
380157-03 |
hexagon head screw coated DIN 933, 10.9 M12 x 35 (38015703)
|
|
|
397. |
|
VIW |
380156-05 |
hexagon head screw DIN 933, 10.9 M10 x 25 (38015605)
|
|
|
398. |
|
VIW |
380102-91 |
hexagon head screw coated DIN 933, 8.8 M4 x 6 (38010291)
|
|
|
399. |
|
VIW |
380155-05 |
hexagon head screw DIN 933, 10.9 M8 x 20 (38015505)
|
|
|
400. |
|
VIW |
380154-06 |
hexagon head screw DIN 933, 10.9 M6 x 20 (38015406)
|
|
|
401. |
|
VIW |
380155-08 |
hexagon head screw DIN 933, 10.9 M8 x 30 (38015508)
|
|
|
402. |
|
VIW |
315000-03 |
hexagon head screw M5 x 21,5 (31500003)
|
|
|
403. |
|
VIW |
381101-07 |
hexagon nut DIN 934, 8.8 M12 (38110107)
|
|
|
404. |
|
VIW |
381107-07 |
hexagon nut DIN 934, 8.8 M12 (38110707)
|
|
|
405. |
|
VIW |
300025-03 |
housing 398 x 330 x 292 (30002503)
|
|
