COMPRESSOR PARTS > BITZER > H

Sr. No.


Model

OEM Part No.

Description

1.



4H, 6H


302297-37

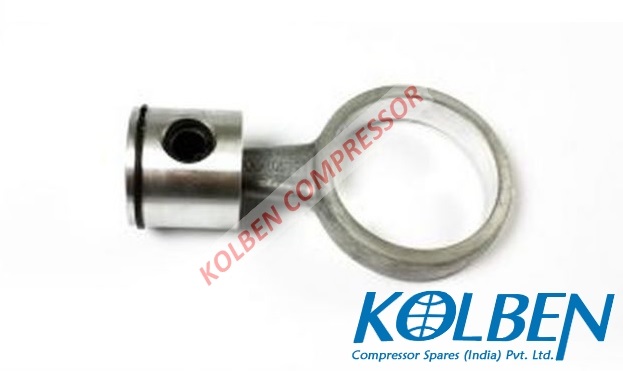

Piston - Piston Ring - Conrod Assy -Std-To Fit Bitzer 4H15,4H25,4H.2, S6H20,6H25,6H35 ( 70 Mm )






2.



4H, 6H


302233-05


Piston - Pin 70.0(Std)X 18.0Xcr1.50Xp1.50X200559-To Fit Bitzer H






3.



4HE, 6HE


302233-97

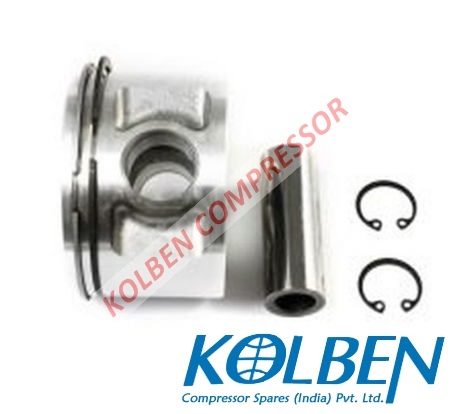

Piston - Pin E 70.0(Std)X18.0Xcr1.50Xp1.50X200559 -To Fit Bitzer 6He-28 Ecoline






4.



4J, 6J, 4H, 6H, 4G, 6G


383401-06


Piston - Pin 20.0X55.9-To Fit Bitzer M,J,H,G






5.



4J, 6J, 4H, 6H, 4G, 6G


302115-01


Conrod 45.0(Std)/79.4(Std)/20.0/Bush -To Fit Bitzer S4G12,J,F,H,G






6.



4J, 6J, 4H, 6H, 4G, 6G



Conrod 45.0(-0.250)/79.4(+0.125)/ 20.0/Bush-To Fit Bitzer S4G12,J,F,H






7.



4J, 6J, 4H, 6H, 4G, 6G



Conrod 45.0(-0.500)/79.4(+0.250)/ 20.0/Bush-To Fit Bitzer S4G12,J,F,H






8.



4J, 6J, 4H, 6H, 4G, 6G



Conrod 45.0(-1.000)/79.4(+0.500)/ 20.0/Bush-To Fit Bitzer S4G12,J,F,H






9.



4NC, 4NCS, 4HE, 6HE


382300-55

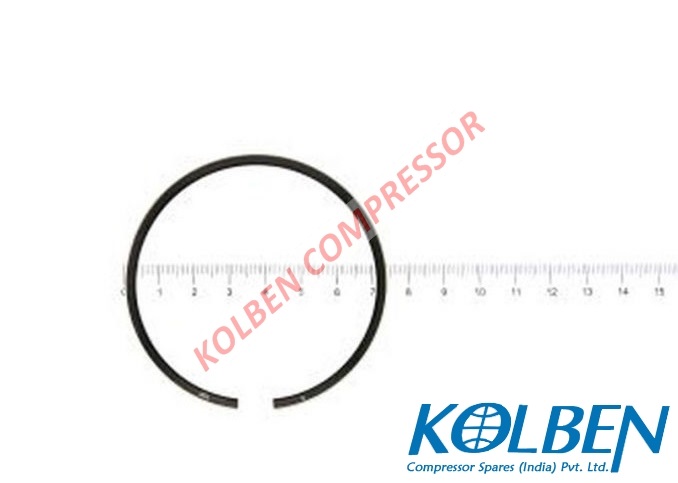

Piston Ring 70.0(Std)-Cr1.50-To Fit Bitzer 4Ncs,4Nc,4Nes,4Ne,4H, 4He,6H,6He,S6H,4H.2,6H.2






10.



4NC, 4NCS, 4HE, 6HE

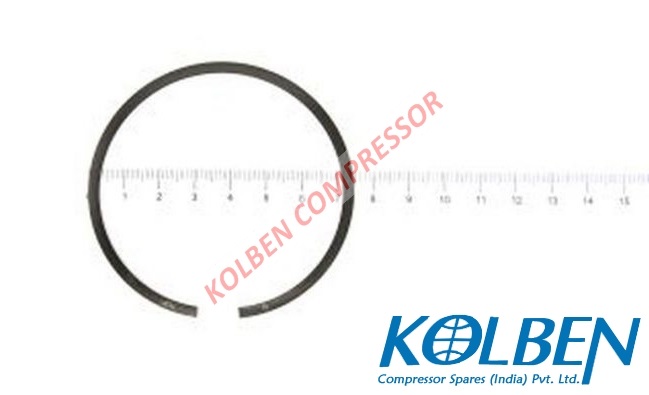

382310-22


Piston Ring 70.0(Std)-P1.50-To Fit Bitzer 4Ncs,4Nc,4Nes,4Ne,4H,4He,6H, 6He,S6H,4H.2,6H.2






11.



4G, 4H, 4J



Discharge Reed 43.5X16.0X0.3-To Fit Bitzer 4J13,4H15,4G20,6F50,S6J16






12.



F, G, H, J, P



Discharge Spring 43.5X16.0X0.3-To Fit Bitzer G,H,J,M,F,P,S6H






13.



F, G, H, J



Discharge Reed 50.0X16.5X0.3-To Fit Bitzer J,M,H,G,F






14.



2HC, 4FC



Suction Reed 54.0X17.0X21.9-To Fit Bitzer 2Hc1,2Hc2,2Gc2,4Fc3,4Fc5






15.



4NC, 6H



Suction Reed 82.0X19.0X0.6 For Piston 65,70-To Fit Bitzer 4Nc12,,6J22,4H15, 6H25,S6J16,S6H20






16.



J, H



Suction Reed 82.8X19.0-To Fit Bitzer M,J,H






17.



6HE



Suction Reed For 65,70Mm 82.03X23.11-To Fit Bitzer 6He-28






18.



4H, 4J


301007-06

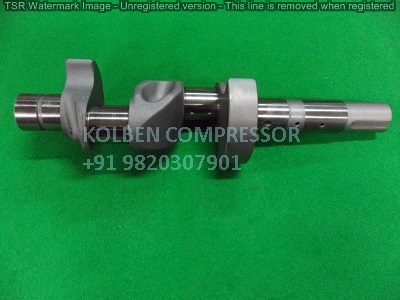

Crankshaft 44.9X44.9(2+2)X44.9 -467Mm-To Fit Bitzer4H-15.2,S4G12, 4J13






19.



4G, 4H


301007-07


Crankshaft 44.9X44.9(2+2)X44.9 -522Mm-To Fit Bitzer 4G-20.2,4G-30.2, 4H-25.2,S4G12






20.



6HE


301007-10

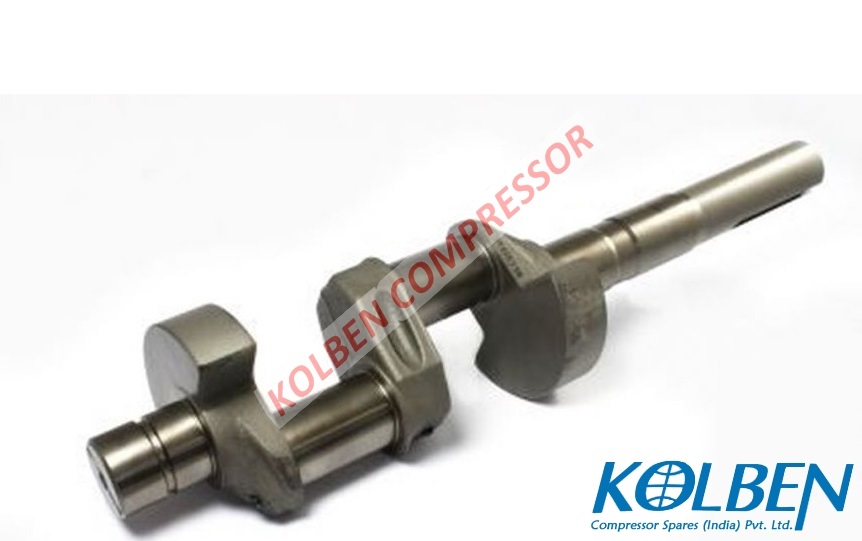

Crankshaft 44.9X44.9(3+3)X44.9 X41.9-570Mm-To Fit Bitzer S6G-25.2, S6F30,6H-25.2,6H-35.2,S6J-16.2






21.



2FC, 2GC, 2HC

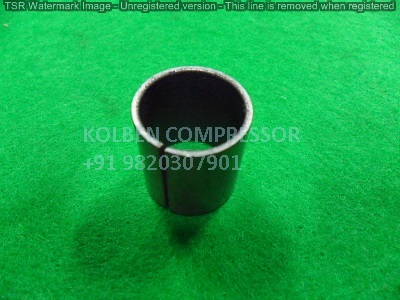

311112-05


Bearing Pump Side(Teflon) 23.0X20.0(Std)X25.0-To Fit Bitzer 2Fc,2Fl,2Gc,2Gl,2Hc,2Kc






22.



2G, 2H


311112-06


Bearing Motor Side(Teflon) 28.0X25.0(Std)X25.0-To Fit Bitzer 2Hl1,2Gl2,2Fl2






23.



N, T, F, G, H, J



Main Bushing Insert 50.0X45.0(-0.25Mm) -To Fit Bitzer N,T,F,G,H,J, S4G,S6F,S6H,S6J






24.



N, T, F, G, H, J



Main Bushing Insert 50.0X45.0(-0.50Mm) -To Fit Bitzer N,T,F,G,H,J, S4G,S6F,S6H,S6J






25.



N, T, F, G, H, J


311100-04


Main Bush Insert 50.0X45.0(Std)X47.0- 3Hole-To Fit Bitzer N,T,F,G,H, J,S4G,S6F,S6H,S6J






26.



G, H


311100-08


Main Bush 75.0X70.1(Std)X70.0-3 Hole-To Fit Bitzer G,H,6F,S6F2,S6G2,S6H2






27.



4J, 4H, 6F, 6G


374027-01


Shaft Seal,Thrust Collar And Spring Set 42.1-To Fit Bitzer 4J-13.2,4H-25.2,6F-40.2,6G-40.2






28.



4H, 6F, 6G


374017-03


Shaft Seal Assy-Metal Bellows 50.0-To Fit Bitzer 4H/6F/6G/Open






29.



4H, 6F


320500-06


Thrust Washer 62.0X48.0X1.7-To Fit Bitzer 4J13,6F50,4H,6F






30.



4H, 6F


320500-07


Thrust Washer 62.0X48.0X1.7-To Fit Bitzer 4J13,6F50,4H,6F






31.



4G, 4H, 6F, 6G, 6H


320500-08


Thrust Washer 86.0X71.0X1.7-Oil Groove(4)-To Fit Bitzer 4G.2,4H.2,6F.2, 6G.2,6H.2,S6F.2,S6G.2,S6H.2






32.



2FC, 2GC, 2HC


372617-01


Head Gasket 128.1-To Fit Bitzer 2Fc2,2Gc2,2Hc2






33.



2HC


372512-04

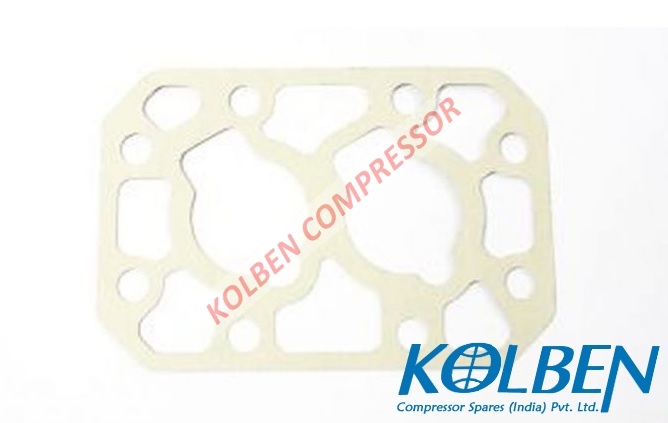

Valve Plate Gasket(38.0) 128.1X29.5-To Fit Bitzer 2Hc2

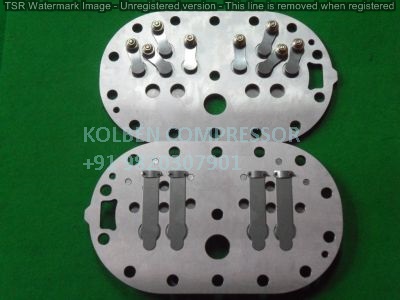

34.



4J, 6J, 4H, 6H


304016-01


Valve Plate Assy Without Gasket 10.0X8-15.4X4-24.0-To Fit Bitzer 65.0=4J13,4J22,6J22,6J33






35.



6H


304016-09L


Valve Plate Assy Without Gasket 10.0X8-15.4X4-3/4Nptf-To Fit Bitzer 65.0=S6J16,70.0=S6H20,S6H

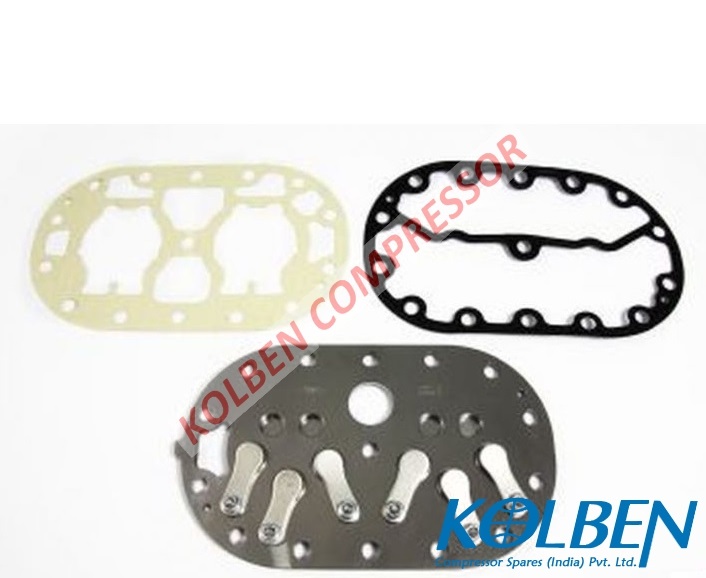

36.



6HE


304063-32


Valve Plate Assy Without Gasket(70.0)-To Fit Bitzer 6He-28 Pin






37.



4G, 4H, 6F, 6G, 6H, 6J


372616-03


Head Gasket 224.3-To Fit Bitzer 4G2,4H2,4H,4J,6F2,6F,6G2, 6G,6H,6J,S4G,S6F2,S6F, S6G2,S6G,S6H2,S6H,S6J






38.



6J, 6H, 6G, 6F


372616-04


Head Gasket 224.3-To Fit Bitzer S6J16,S6H20,S6H,S6G25,S6F30

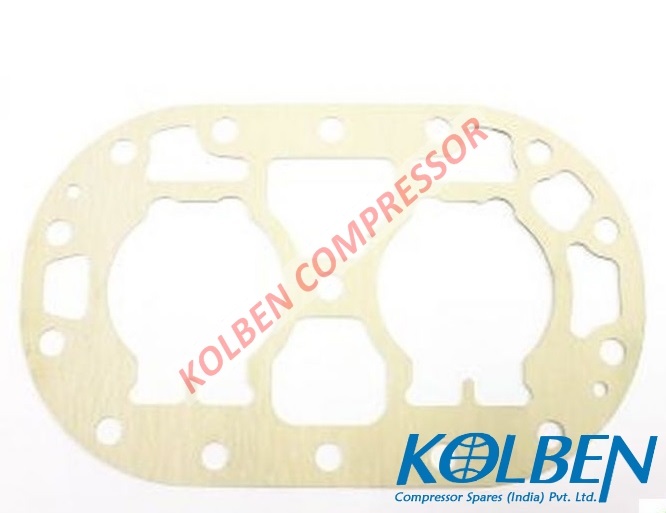

39.



6H, 6H


372511-09


Valve Plate Gasket(70.0) 224.0X70.8-To Fit Bitzer S6H20,S6H






40.



4J, 4P, 4N, 4V, 4G, 6H, 6G, 4H, 6J, 6F


343416-02


Terminal Plate Kit-To Fit Bitzer 4J,4P,4N,4V,4G,6H,6G,4H,6J,6F






41.



2CC, 2DC, 2EC, 2FC, 2GC, 2HC


362012-01


Suction Gas Filter 62.1X23.5X41.6-To Fit Bitzer 2Cc,2Dc,2Ec,2Fc,2Gc,2Hc






42.



6F, 6G, 6H


362002-06


Suction Gas Filter 67.0X50.0X145.0-To Fit Bitzer S6F2,S6F,S6G2,S6G,S6H2,S6H,S6J






43.



F, G, H, J


362004-02


Suction Gas Filter-To Fit Bitzer F,G,H,J






44.



G, H, F


362004-01


Suction Gas Filter-To Fit Bitzer G,H,F-Open Type






45.



G, H, F, 4J


305125-03


Bearing Cover Complete Included Oil Pump-To Fit Bitzer G,H,F,4J






46.



4G, 4H, 4J, 6F, 6J, 6GC, 4HE


362503-02


Oil Pump Assy-To Fit Bitzer 4G20,4H15,4J13,6F40,6J33,8Gc50, 4He15






47.



F, G, H, J, N


361802-02


Sight Glass 67X8.5-To Fit Bitzer H,J,F,G,N






48.



2HC

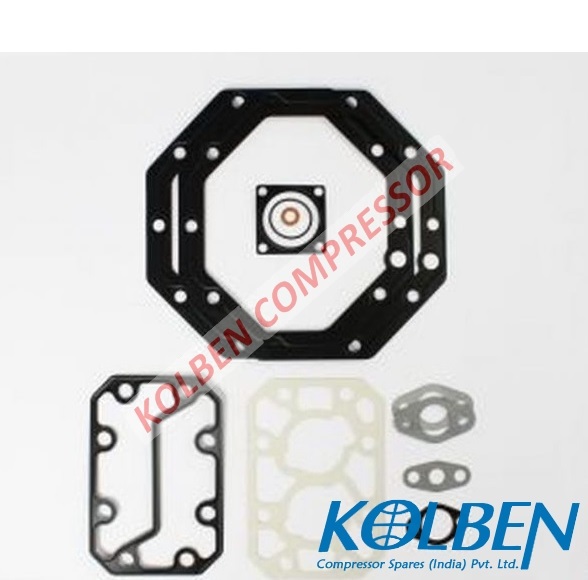

372830-01


Gasket Set(38.0)-To Fit Bitzer 2Hc-1.2






49.



4H


372811-03


Gasket Set(70.0)-To Fit Bitzer 4H-15.2






50.



4H


372811-06

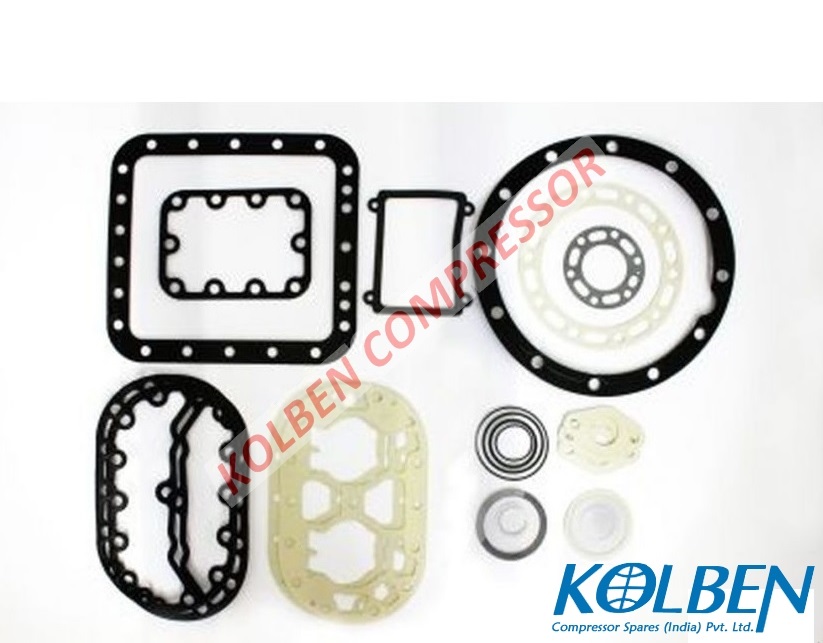

Gasket Set(70.0)-To Fit Bitzer 4H-25.2






51.



4H


372812-01

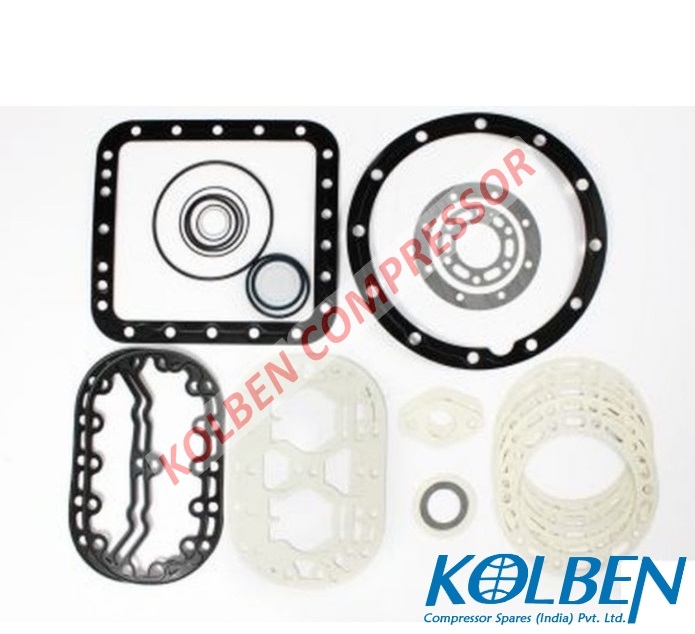

Gasket Set(70.0)-To Fit Bitzer 4H.2






52.



6H


372811-07


Gasket Set(70.0)-To Fit Bitzer 6H-25.2,6H-35.2

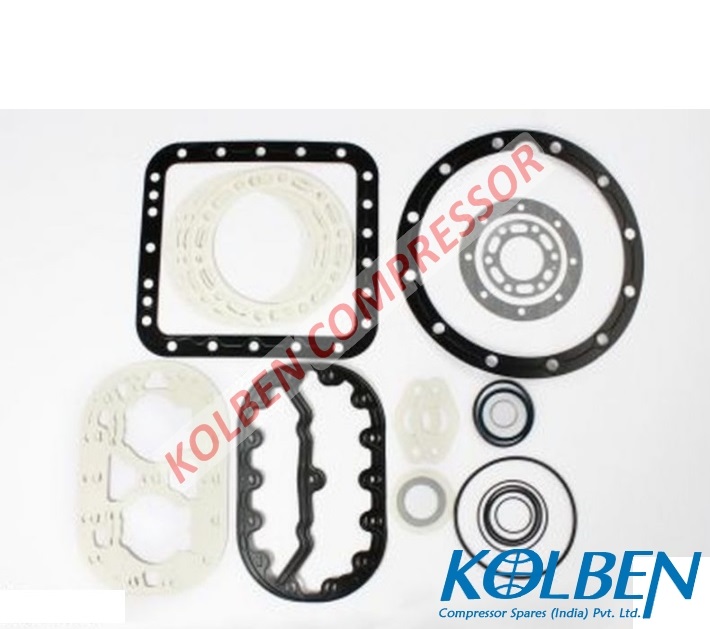

53.



6H


372812-03


Gasket Set-To Fit Bitzer 6H.2






54.



6H


372816-02


Gasket Set(70.0)-To Fit Bitzer S6H-20.2






55.



4J , 4H , 4G , 4F , 6J , 6H , 6G , 6F


311110-04


Bearing crankcase/pump (standard) 4/6-J/H/G/F






56.



4J , 4H , 4G , 4F , 6J , 6H , 6G , 6F


N/A


Bearing crankcase/pump (-25mm u/size) J/H/G/F






57.



4J , 4H , 4G , 4F , 6J , 6H , 6G , 6F


N/A


Bearing crankcase/pump (-50mm u/size) J/H/G/F






58.



4H , 4G , 4F , 6H , 6G , 6F


311100-08


Bearing seal-end (standard) 4/6H-G-F






59.



4J , 4H , 4G , 4F , 6J , 6H , 6G , 6F


320500-06


Thrust-washer crankcase 4/6- J/H/G/F






60.



4J , 4H , 4G , 4F , 6J , 6H , 6G , 6F


320500-07


Thrust-washer pump-end 4/6- J/H/G/F






61.



4J , 4H , 4G , 4F , 6J , 6H , 6G , 6F


320500-08


Thrust-washer seal-end 4/6- J/H/G/F






62.



4J , 4H , 4G , 4F , 6J , 6H , 6G , 6F


374027-01


Thrust-collar & spring assy for models 4-6/J/H/G/F






63.



4J , 4H , 4G , 4F , 6J , 6H , 6G , 6F


302115-01


Con-rod (standard) 4/6-J/H/G/F






64.



4J , 4H , 4G , 4F , 6J , 6H , 6G , 6F


N/A


Con-rod (-0.25mm u/size) 4-6-J/H/G/F






65.



4J , 4H , 4G , 4F , 6J , 6H , 6G , 6F


N/A


Con-rod (-0.50mm u/size) 4-6-J/H/G/F






66.



6H , 4H

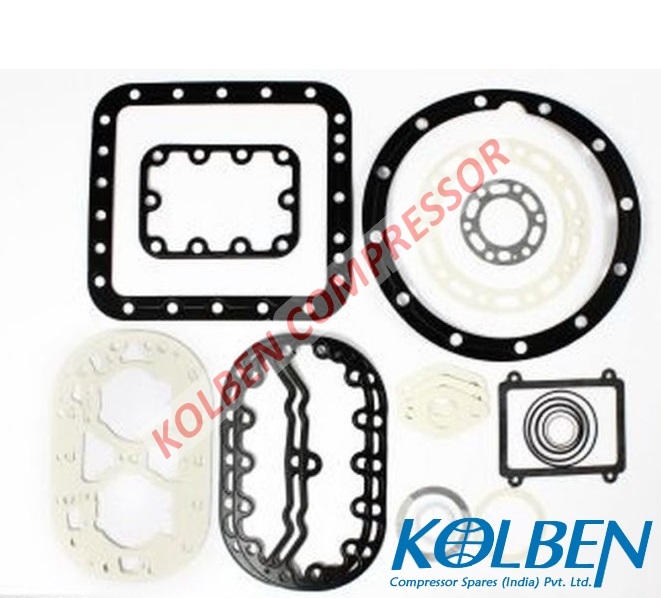

372811-07


Gasket set for 70mm bore 4/6-H






67.



4J , 4H , 4G , 4F , 6J , 6H , 6G , 6F


343213-04


Heater 240v/140W 4/6- J/H/G/F






68.



6J , 6H


346306-46


Stator & Rotor set 380/420v PWS 18.5kw/25HP for 6J/H

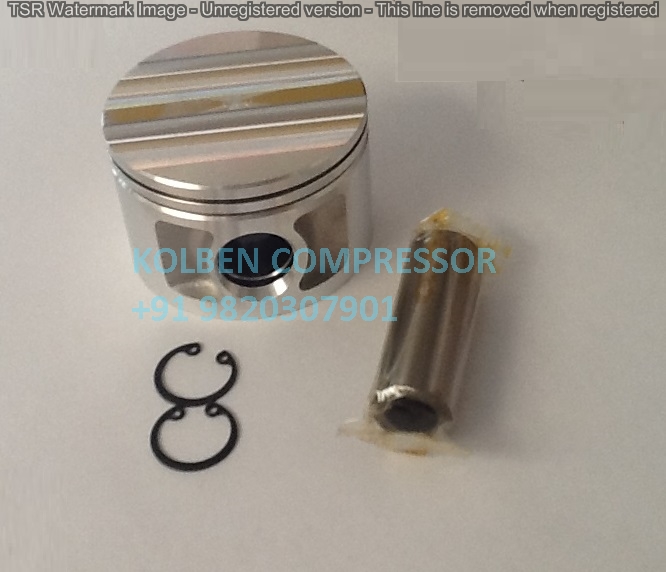

69.



4H,6H


302232-05


Piston & pin (standard) 4/6-H






70.



4J,6J,4H,6H,4G,6G


383401-06


Pin for 65/70/75mm piston 20mm o/dx56mm long






71.



4J , 4H , 4G , 4F , 6J , 6H , 6G , 6F


362500-01


Pump (1st Generation) for models 4/6-J/H/G/F






72.



4J , 4H , 4G , 4F , 6J , 6H , 6G , 6F


362503-02


Pump (2nd Generation) for models 4/6J/H/G/F






73.



6H , 4H


382300-55


Ring 70.00mm (std) top chrome 4-6/H






74.



6H , 4H


N/A


Ring 70.50mm (o/size) top chrome 4-6/H






75.



6H , 4H


382310-22


Ring 70.00mm (std) 2nd phos.4-6/H






76.



6H , 4H


N/A


Ring 70.50mm (o/size) 2nd phos. 4-6-H






77.



4J , 4H , 4G , 4F , 6J , 6H , 6G , 6F


374017-03


Shaft Seal assembly for models 4/6-H-G-F






78.



4J , 4H , 4G , 4F , 6J , 6H , 6G , 6F


343416-02


Electrical plate assm 10HP+ models 4-6/J/H/G/F






79.



6J , 6H , 4J , 4H


320201-08

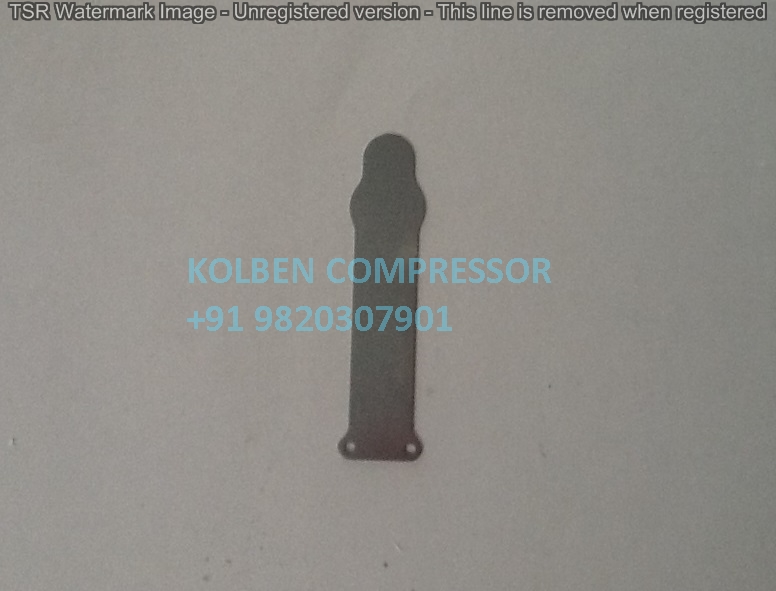

Valve reed suction (65/70mm bore) 4/6-M/J/H






80.



6HE



Valve reed suction 70mm for models 6HE






81.

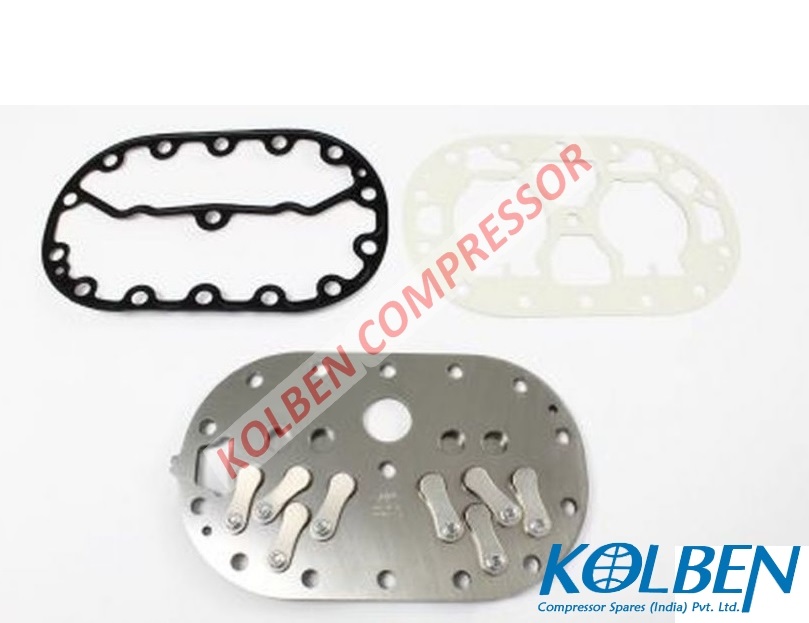

4H,6H,4J,6J


304051-02


Valve plate assm for models 4-6J/H






82.



4J , 4H , 4G , 4F , 6J , 6H , 6G , 6F


383013-03


Valve reed suction pin (2.5x8mm) for models 2/4/6






83.



4J , 4H , 4G , 4F , 6J , 6H , 6G , 6F


383011-02


Valve plate locating pin (6x20mm) models 4-6/J>F






84.



6H , 6G , 6F


N/A


Valve plate clinch stud (M5 x 16) 6H/G/F






85.



4J , 4H , 4G , 4F , 6J , 6H , 6G , 6F


374017-03


BZ Shaft Seal assembly for models 4/6-H-G-F






86.



6H-35.2


311100-04


bearing bush Motor side Ø50 x Ø45 x 47,5 (31110004)






87.



6H-35.2


311100-05


bearing bush Crankcase side Ø50 x Ø45 x 47,5 (31110005)






88.



6H-35.2


320500-06


thrust washer Motor side Ø62 x Ø48 x 1,7 (32050006)






89.



6H-35.2


301007-10


crankshaft Stroke 55mm Ø45 x 570 (30100710)






90.



6H-35.2


366112-01


sealing screw conic DIN 906 M8 x 1 (36611201)






91.

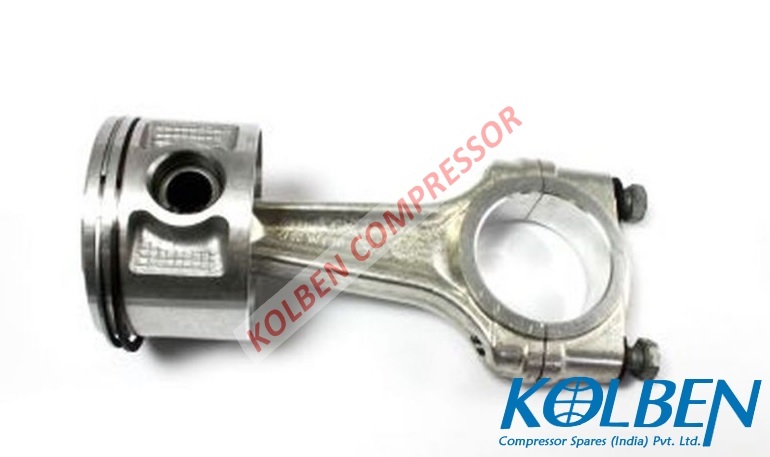

6H-35.2


302297-37


connecting rod / piston Ø70 (30229737)






92.



6H-35.2


302115-50


connecting rod (30211550)






93.



6H-35.2


383021-11


clamping sleeve 10 x 0,75 x 29 (38302111)






94.



6H-35.2


382141-01


retaining ring with lugs spring steel DIN 6796 - FSt A8 (38214101)






95.



6H-35.2


380105-09


hexagon head screw DIN 933, 8.8 M8 x 45 (38010509)






96.



6H-35.2


311103-06


bearing bush connecting rod Ø23 x Ø19 x 22,5 (31110306)






97.



6H-35.2


302233-97


piston aluminium alloy Ø70 (30223397)






98.



6H-35.2


383401-06


wrist pin DIN 73126 Ø20 x Ø13 x 56 (38340106)






99.



6H-35.2


382231-04


retaining ring with lugs spring steel DIN 472 Ø20 x 1 (38223104)






100.



6H-35.2


382300-55


compression ring Piston diameter 69,96mm Ø70 x 1,5 (38230055)






101.



6H-35.2


382310-22


compression ring Piston diameter 69,96mm Ø70 x 1,5 (38231022)






102.



6H-35.2


372314-03


gasket bearing cover Ø182 x Ø133 x 1 (37231403)






103.



6H-35.2


305125-03


bearing cover complete inclusive oil pump (30512503)






104.



6H-35.2


361101-01


oil pressure relief valve SW17 x 29 (36110101)






105.



6H-35.2


382402-01


gasket ring aluminium DIN 7603 A10 x 15 x 1 (38240201)






106.



6H-35.2


320500-07


thrust washer oil pump side Ø62 x Ø48 x 1,7 (32050007)






107.



6H-35.2


380306-32


Cheese Head Screw bearing cover DIN 912, 10.9 DIN 912, 10.9 M10 x 30 (38030632)






108.



6H-35.2


372001-19


O-ring oil pump CR Ø74 x 2 (37200119)






109.



6H-35.2


380155-05


hexagon head screw oil pump DIN 933, 10.9M8 x 20 (38015505)






110.



6H-35.2


380339-01


Hexsocket Cheese Head Screw ISO 4762, 10.9 - A2K M10 x 30 (38033901)






111.



6H-35.2


320314-01


fixing plate MP54 140 x 40 x 3 (32031401)






112.



6H-35.2


382002-01


washer brass DIN 125 A4, 3 (38200201)






113.



6H-35.2


382201-51


single coil spring washer spring steel galvanized DIN 127 A4, 3 (38220151)






114.



6H-35.2


380507-51


cheese head screw 4.8 galvanized M4 x 8 (38050751)






115.



6H-35.2


347320-33


differential oil pressure cut-out MP54 115V/230V-50/60Hz 100 x 50 x 130 (34732033)






116.



6H-35.2


361500-22


Schrader valve (36150022)






117.



6H-35.2


312030-03


thrust collar Ø62 x 7 (31203003)






118.



6H-35.2


372001-13


O-ring CR Ø45 x 3 (37200113)






119.



6H-35.2


325900-02


spring washer Ø58,5 x Ø46 x 0,5 (32590002)






120.



6H-35.2


312006-05


ring spring washer Ø 42,1 x Ø 58 x 5 (31200605)






121.



6H-35.2


374027-03


shaft seal bearing bush (37402703)






122.



6H-35.2


384102-01


gib-headed key Stator steel DIN 6887 5 x 5 x 60 (38410201)






123.



6H-35.2


384001-19


parallel key steel DIN 6885 A12 x 8 x 110 (38400119)






124.



6H-35.2


320502-04


thrust washer steel Ø54 x Ø17 x 5 (32050204)






125.



6H-35.2


382150-04


thrust washer spring steel S16 (38215004)

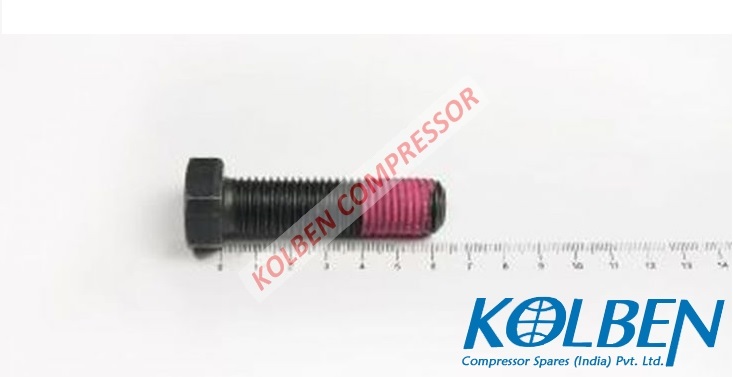

126.



6H-35.2


380166-04


hexagon head screw DIN 931, 10.9 M16 x 60 (38016604)






127.



6H-35.2


325910-01


retaining ring with lugs spring steel Ø230 (32591001)






128.



6H-35.2


362004-02


suction gas filter Ø220 x 50 (36200402)






129.



6H-35.2


372315-03


gasket housing cover Ø286 x Ø236 x 0,38 (37231503)






130.



6H-35.2


305900-03


housing cover (30590003)






131.



6H-35.2


366110-02


Sealing Plug steel 1/4" - 18 NPTF (36611002)






132.



6H-35.2


380057-11


hexagon head screw housing cover DIN 931, 10.9 M12 x 150 (38005711)






133.



6H-35.2


380057-14


hexagon head screw housing cover DIN 931, 10.9 M12 x 180 (38005714)






134.



6H-35.2


372301-03


gasket suction shut-off valve Ø76 x Ø60 x 1 (37230103)






135.



6H-35.2


380009-53


hexagon head screw suction shut-off valve 8.8 galvanized DIN 931, 8.8 M16 x 100 (38000953)






136.



6H-35.2


361338-04


Shut-Off Valve suction side Ø54 (2 1/8") (36133804)






137.



6H-35.2


365321-03


Pipe Connection brazed and welding bush steel Ø54 (2 1/8") (36532103)






138.



6H-35.2


372303-02


Gasket Pipe connection Ø75 x Ø61 x 2 (37230302)






139.



6H-35.2


367121-02


Clamping Plate suction shut-off valve 110 x 110 (36712102)






140.



6H-35.2


380109-09


Hexagon Head Screw clamping plate DIN 933, 8.8 M16 x 55 (38010909)






141.



6H-35.2


375014-05


Protective Cap Span of the jaw: 36 Plastic - GRP M36 x 1,5 / L=67 mm (37501405)






142.



6H-35.2


366114-24


sealing screw with magnet oil drain inclusive O-Ring gasket M26 (36611424)






143.



6H-35.2


382403-04


Gasket Ring oil drain aluminium DIN 7603 A26 x 31 x 2 (38240304)






144.



6H-35.2


325000-34


pressure spring spring steel Ø23,5 x 28 x 1,8 (32500034)






145.



6H-35.2


362003-01


oil filter Ø20 x 200 (36200301)






146.



6H-35.2


360110-06


oil return system (36011006)






147.



6H-35.2


372003-15


O-ring sight glass CR Ø36,3 x 1,78 (37200315)






148.



6H-35.2


361802-02


sight glass steel / glass Ø67 x 8,5 (36180202)






149.



6H-35.2


380154-06


hexagon head screw DIN 933, 10.9 M6 x 20 (38015406)






150.



6H-35.2


366110-10


sealing plug oil equalising bore steel 1/2" - 14 NPTF (36611010)






151.



6H-35.2


366110-05


sealing plug gas equalising bore steel 3/4" - 14 NPTF (36611005)






152.



6H-35.2


372415-02


gasket bottom plate (37241502)






153.



6H-35.2


320307-04


bottom plate steel 270 x 360 x 12 (32030704)






154.



6H-35.2


380156-05


hexagon head screw bottom plate DIN 933, 10.9 M10 x 25 (38015605)






155.



6H-35.2


370004-01


vibration damper set Crankcase side spring brown Lo = 42 (37000401)






156.



6H-35.2


325002-01


damper element Crankcase side spring steel brown Lo=42 (32500201)






157.



6H-35.2


370004-03


vibration damper set Motor side spring blue Lo = 48 (37000403)






158.



6H-35.2


325002-03


damper element Motor side spring steel blue Lo=48 (32500203)






159.



6H-35.2


327309-01


foot 369 x 60 x 13 x Ø21 (32730901)






160.



6H-35.2


361110-01


gas equalising valve (36111001)






161.



6H-35.2


361100-21


pressure relief valve 34 bar 3/4" - 14 NPTF - p=34bar (36110021)






162.



6H-35.2


372704-01


Gasket blind flange 91 x 52 x 1 (37270401)






163.



6H-35.2


367015-15


blind flange steel 91 x 52 x 13. Bo. 1/8" NPTF (36701515)






164.



6H-35.2


380156-06


hexagon head screw blind flange coated DIN 933, 10.9 M10 x 30 (38015606)






165.



6H-35.2


380306-23


Cheese Head Screw discharge shut-off valve DIN 912, 10.9 M10 x 25 (38030623)






166.



6H-35.2

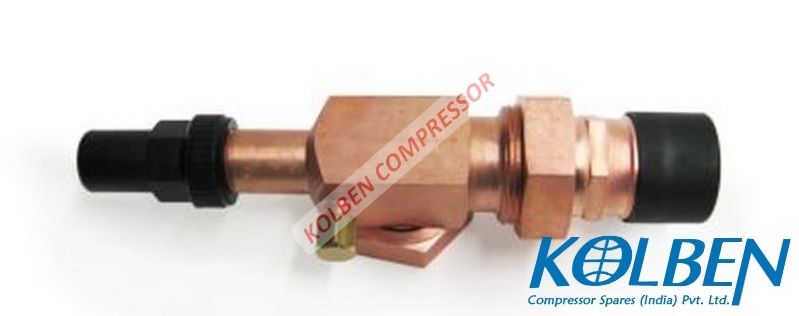

361311-02


shut-off valve Discharge side brazing and welding bush Ø35 (1 3/8") - 1 3/4" (36131102)






167.



6H-35.2

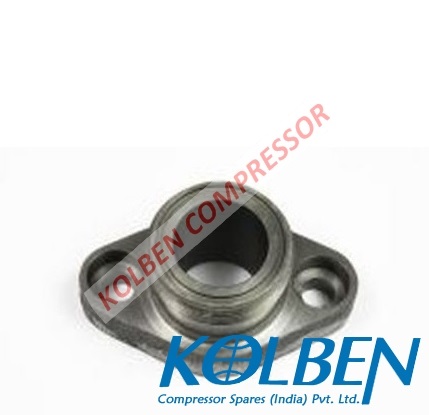

367023-01


flange steel 91 x 48 x 52, 1 3/4" (36702301)






168.



6H-35.2


372200-04


gasket teflon Ø38 x Ø35 x 1,5 (37220004)






169.



6H-35.2


366000-07


pipe connection discharge shut-off valve steel copper-plated brazed connection Ø35, 1 3/4" - 12 UN (36600007)






170.



6H-35.2


366201-19


Protective Cap Span of the jaw: 27 Plastic - GRP M24 x 2 / L=57,5 mm (36620119)






171.



6H-35.2


366202-01


sealing nut 7/16" - 20 UNF (36620201)






172.



6H-35.2


366110-01


Sealing plug steel 1/8“ - 27 NPTF (36611001)






173.



6H-35.2


304051-02


valve plate Ø70 (30405102)






174.



6H-35.2


372511-09


gasket 253 x 155 x 1,0 Ø70 (37251109)






175.



6H-35.2


372616-03


gasket Retall 253 x 155 x 0,5 (37261603)






176.



6H-35.2


302360-22


cylinder head air-cooled (30236022)






177.



6H-35.2


380056-03


hexagon head screw DIN 931, 10.9 M10 x 60 (38005603)






178.



6H-35.2


302360-03


cylinder head water-cooled 253 x 155 x 64 (30236003)






179.



6H-35.2


302326-02


cylinder head water-cooled grey cast iron 253 x 155 x 64 (30232602)






180.



6H-35.2


380391-55


sealing screw conic brass R 3/4 (38039155)






181.



6H-35.2


327000-01


parallel pin 6H 11 x 20 (32700001)






182.



6H-35.2


380358-01


Set screw coated DIN 916 M10 x 12 (38035801)






183.



6H-35.2


343416-02


terminal plate kit (34341602)






184.



6H-35.2


372421-14


gasket 163 x 118 x 0,5 (37242114)






185.



6H-35.2


304900-01


terminal plate 165 x 120 x 15,5 (30490001)






186.



6H-35.2


343417-07


connection to ground, complete grounding (34341707)






187.



6H-35.2


372124-03


gasket only needed for terminal box IP66 165 x 120 x 3 (37212403)






188.



6H-35.2


375002-03


insulating plate 85 x 25 x 6 (37500203)






189.



6H-35.2


375001-03


pressure bush Ø8 x Ø24 x 8 (37500103)






190.



6H-35.2


375000-03


gasket ring Ø16 x Ø8 x 8,5 (37500003)






191.



6H-35.2


382042-03


washer copper 8 x 1,6 (38204203)






192.



6H-35.2


381301-05


hexagon nut brass M8 (38130105)






193.



6H-35.2


382002-02


washer brass DIN 125 A5, 3 (38200202)






194.



6H-35.2


381301-03


hexagon nut brass M5 (38130103)






195.



6H-35.2


382152-01


thrust washer DIN 127 S 8 (38215201)






196.



6H-35.2


302915-02


cable connector brass (30291502)






197.



6H-35.2


320318-03


connection bridge brass A 5,4 (32031803)






198.



6H-35.2


343414-08


terminal plate kit (34341408)






199.



6H-35.2


343414-07


terminal plate kit (34341407)






200.



6H-35.2


375002-01


insulating plate 53 x 18 x 6,5 (37500201)






201.



6H-35.2


375001-01


pressure bush Ø4,5 x Ø18,5 x 8,5 (37500101)






202.



6H-35.2


375000-01


gasket ring Ø4,5 x Ø18,5 x 8,5 (37500001)






203.



6H-35.2


345923-06


insulating plate (34592306)






204.



6H-35.2


343413-01


conversion kit (34341301)






205.



6H-35.2


380306-89


cheese head screw 10.9 galvanized M10 x 20 (38030689)






206.



6H-35.2


321202-01


centering plate steel 167 x 122 x 12 (32120201)






207.



6H-35.2


372120-01


gasket 133 x 117 x 2 (37212001)






208.



6H-35.2


300950-17


terminal box black aluminium cast 313 x 175 x 84 (30095017)






209.



6H-35.2


380508-51


Cheese head screw galvanized DIN 7985, 4.8 M5 x 20 (38050851)






210.



6H-35.2


305914-45


Cover black 313 x 175 x 11 (30591445)






211.



6H-35.2


347028-01


protection device SE-B2 230V-50/60Hz (34702801)






212.



6H-35.2


380507-52


Cross Recessed Raised Screw 4.8 galvanized M4 x 10 (38050752)






213.



6H-35.2


380501-54


Oval head screw galvanized DIN 7985, 4.8 M6 x 16 (38050154)






214.



6H-35.2


372811-07


gasket set (37281107)






215.



6H-35.2


346332-46


built-in motor 24 kW, 4-pole 380..420V Y/YY-3-50Hz, 440..480V Y/YY-3-60Hz Ø223 x 222 (34633246)






216.



6H-35.2


372124-01


gasket terminal box aluminium 165 x 120 x 3 (37212401)






217.



6H-35.2


372138-02


gasket terminal box aluminium (37213802)






218.



6H-35.2


343213-12


Crankcase heater heating capacity: 140W 230V-1-50/60Hz (34321312)






219.



6H-35.2


389002-01


electric connector of the machine / device capacity control DIN 43650 DIN 43650 Typ GDM 209 (38900201)






220.



6H-35.2

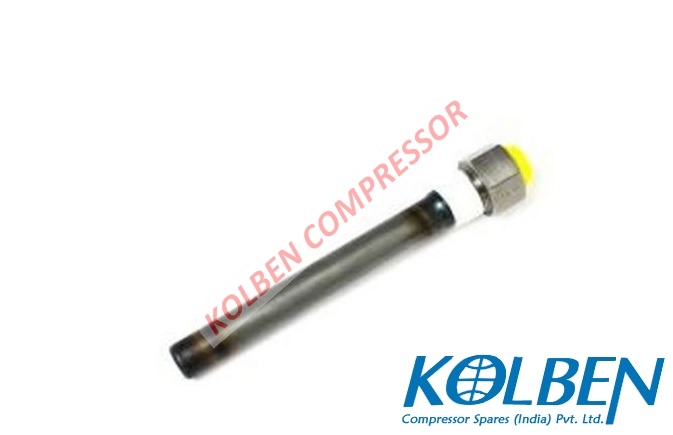

345906-02


heater sleeve for 140W heater 43315 (34590602)






221.



6HE-35


311100-04


bearing bush Motor side Ø50 x Ø45 x 47,5 (31110004)






222.



6HE-35


311100-05


bearing bush Crankcase side Ø50 x Ø45 x 47,5 (31110005)






223.



6HE-35


320500-06


thrust washer Motor side Ø62 x Ø48 x 1,7 (32050006)






224.



6HE-35


301007-10


crankshaft Ø45 x 570 (30100710)






225.



6HE-35


366112-01


sealing screw conic DIN 906 M8 x 1 (36611201)






226.



6HE-35


302297-37


connecting rod / piston Ø70 (30229737)






227.



6HE-35

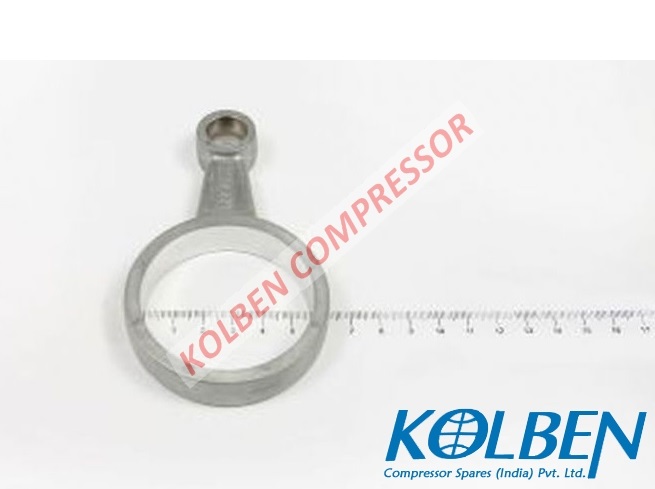

302115-50


connecting rod (30211550)






228.



6HE-35


382141-01


retaining ring with lugs spring steel DIN 6796 - FSt A8 (38214101)






229.



6HE-35

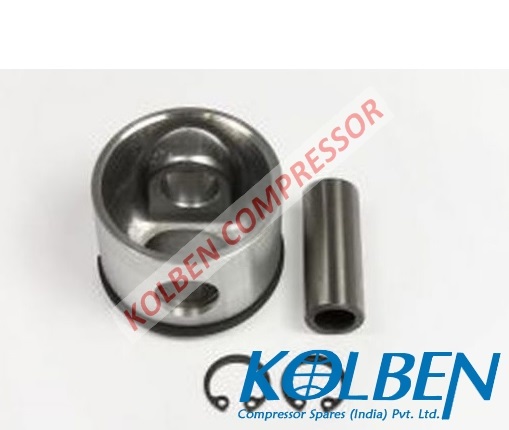

302233-97


piston aluminium alloy Ø70 (30223397)






230.



6HE-35


383401-06


wrist pin DIN 73126 Ø20 x Ø13 x 56 (38340106)






231.



6HE-35


382231-04


retaining ring with lugs spring steel DIN 472 Ø20 x 1 (38223104)






232.



6HE-35


382300-55


compression ring Piston diameter 69,96mm Ø70 x 1,5 (38230055)






233.



6HE-35


382310-22


compression ring Piston diameter 69,96mm Ø70 x 1,5 (38231022)






234.



6HE-35


372314-03


gasket bearing cover Ø182 x Ø133 x 1 (37231403)






235.



6HE-35


305125-03


bearing cover complete inclusive oil pump (30512503)






236.



6HE-35


361101-01


oil pressure relief valve SW17 x 29 (36110101)






237.



6HE-35


382402-01


gasket ring aluminium DIN 7603 A10 x 15 x 1 (38240201)






238.



6HE-35


320500-07


thrust washer oil pump side Ø62 x Ø48 x 1,7 (32050007)






239.



6HE-35


380306-32


Cheese Head Screw bearing cover DIN 912, 10.9 M10 x 30 (38030632)






240.



6HE-35


372001-19


O-ring oil pump Ø74 x 2 (37200119)






241.



6HE-35


380155-05


hexagon head screw oil pump DIN 933, 10.9 M8 x 20 (38015505)






242.



6HE-35


380339-01


Hexsocket Cheese Head Screw ISO 4762, 10.9 - A2K M10 x 30 (38033901)






243.



6HE-35


320314-01


fixing plate MP54 140 x 40 x 3 (32031401)






244.



6HE-35


382002-01


washer brass DIN 125 A4, 3 (38200201)






245.



6HE-35


382201-51


single coil spring washer spring steel galvanized DIN 127 A4, 3 (38220151)






246.



6HE-35


380507-51


cheese head screw 4.8 galvanized M4 x 8 (38050751)






247.



6HE-35


347320-33


differential oil pressure cut-out MP54 115V/230V-50/60Hz 100 x 50 x 130 (34732033)






248.



6HE-35


361500-22


Schrader valve (36150022)






249.



6HE-35


372001-13


O-ring Ø45 x 3 (37200113)






250.



6HE-35


374027-03


shaft seal bearing bush (37402703)






251.



6HE-35


384102-01


gib-headed key Stator steel DIN 6887 5 x 5 x 60 (38410201)






252.



6HE-35


384001-19


parallel key steel DIN 6885 A12 x 8 x 110 (38400119)






253.



6HE-35


320502-04


thrust washer steel Ø54 x Ø17 x 5 (32050204)






254.



6HE-35


382150-04


thrust washer spring steel S16 (38215004)






255.



6HE-35


380166-04


hexagon head screw DIN 931, 10.9 M16 x 60 (38016604)






256.



6HE-35


325910-01


retaining ring with lugs spring steel (32591001)






257.



6HE-35


362004-02


suction gas filter Ø220 x 50 (36200402)






258.



6HE-35


372315-03


gasket housing cover Ø286 x Ø236 x 0,38 (37231503)






259.



6HE-35


305900-03


housing cover (30590003)






260.



6HE-35


377108-52


Insulation for motor housing cover (37710852)






261.



6HE-35


366110-02


Sealing Plug steel 1/4" - 18 NPTF (36611002)






262.



6HE-35


380057-11


hexagon head screw housing cover DIN 931, 10.9 M12 x 150 (38005711)






263.



6HE-35


380057-14


hexagon head screw housing cover DIN 931, 10.9 M12 x 180 (38005714)






264.



6HE-35


372301-03


gasket suction shut-off valve Ø76 x Ø60 x 1 (37230103)






265.



6HE-35


380009-53


hexagon head screw suction shut-off valve 8.8 galvanized DIN 931, 8.8 M16 x 100 (38000953)






266.



6HE-35


361338-04


Shut-Off Valve suction side Ø54 (2 1/8") (36133804)






267.



6HE-35


365321-03


Pipe Connection brazed and welding bush steel Ø54 (2 1/8") (36532103)






268.



6HE-35


372303-02


Gasket Pipe connection Ø75 x Ø61 x 2 (37230302)






269.



6HE-35


367121-02


Clamping Plate suction shut-off valve 110 x 110 (36712102)






270.



6HE-35


380109-09


Hexagon Head Screw clamping plate DIN 933, 8.8 M16 x 55 (38010909)






271.



6HE-35


375014-05


Protective Cap Span of the jaw: 36 Plastic - GRP M36 x 1,5 / L=67 mm (37501405)






272.



6HE-35


366114-24


sealing screw with magnet oil drain inclusive O-Ring gasket M26 (36611424)






273.



6HE-35


382403-04


Gasket Ring oil drain aluminium DIN 7603 A26 x 31 x 2 (38240304)






274.



6HE-35


325000-34


pressure spring spring steel Ø23,5 x 28 x 1,8 (32500034)






275.



6HE-35


362003-01


oil filter Ø20 x 200 (36200301)






276.



6HE-35


360110-06


oil return system (36011006)






277.



6HE-35


372003-15


O-ring sight glass Ø36,3 x 1,78 (37200315)






278.



6HE-35


361802-02


sight glass steel / glass Ø67 x 8,5 (36180202)






279.



6HE-35


380154-06


hexagon head screw DIN 933, 10.9 M6 x 20 (38015406)






280.



6HE-35


366110-10


sealing plug oil equalising bore steel 1/2" - 14 NPTF (36611010)






281.



6HE-35


366110-05


sealing plug gas equalising bore steel 3/4" - 14 NPTF (36611005)






282.



6HE-35


372415-02


gasket (37241502)






283.



6HE-35


320307-04


bottom plate steel 270 x 360 x 12 (32030704)






284.



6HE-35


380156-05


hexagon head screw bottom plate DIN 933, 10.9 M10 x 25 (38015605)






285.



6HE-35


370004-01


vibration damper set Crankcase side spring brown Lo = 42 (37000401)






286.



6HE-35


325002-01


damper element Crankcase side spring steel brown Lo=42 (32500201)






287.



6HE-35


370004-03


vibration damper set Motor side spring blue Lo = 48 (37000403)






288.



6HE-35


325002-03


damper element Motor side spring steel blue Lo=48 (32500203)






289.



6HE-35


327309-01


foot 369 x 60 x 13 x Ø21 (32730901)






290.



6HE-35


361110-01


gas equalising valve (36111001)






291.



6HE-35


361100-21

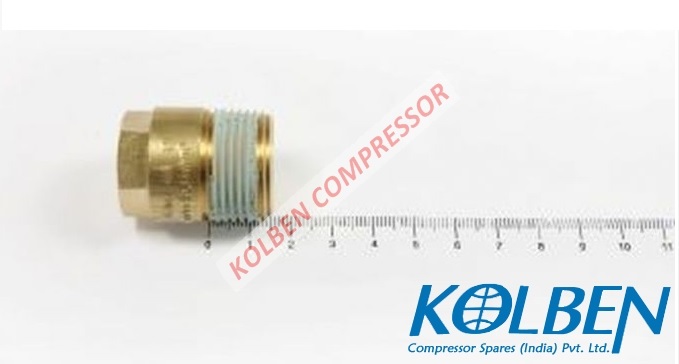

pressure relief valve 34 bar 3/4" - 14 NPTF - p=34bar (36110021)






292.



6HE-35


372704-01


Gasket blind flange 91 x 52 x 1 (37270401)






293.



6HE-35


367015-15


blind flange steel 91 x 52 x 13. Bo. 1/8" NPTF (36701515)






294.



6HE-35


380156-06


hexagon head screw blind flange coated DIN 933, 10.9 M10 x 30 (38015606)






295.



6HE-35


380306-23


Cheese Head Screw discharge shut-off valve DIN 912, 10.9 M10 x 25 (38030623)






296.



6HE-35


361354-05


shut-off valve Discharge side brazed connection Ø35 L (1 3/8") - 2" (36135405)






297.



6HE-35


367021-06


Flange with thread 91 x 48 x 52 , - 2" (36702106)






298.



6HE-35


372200-07


Gasket Ring Ø45,5 x Ø42,5 x 1,5 (37220007)






299.



6HE-35


366000-07


pipe connection discharge shut-off valve steel copper-plated brazed connection Ø35, 1 3/4" - 12 UN (36600007)






300.



6HE-35


372200-04


gasket Pipe connection teflon Ø38 x Ø35 x 1,5 (37220004)






301.



6HE-35


366201-19


Protective Cap Span of the jaw: 27 Plastic - GRP M24 x 2 / L=57,5 mm (36620119)






302.



6HE-35


366202-01


sealing nut 7/16" - 20 UNF (36620201)






303.



6HE-35


366110-01


Sealing plug steel 1/8“ - 27 NPTF (36611001)






304.



6HE-35


304063-23

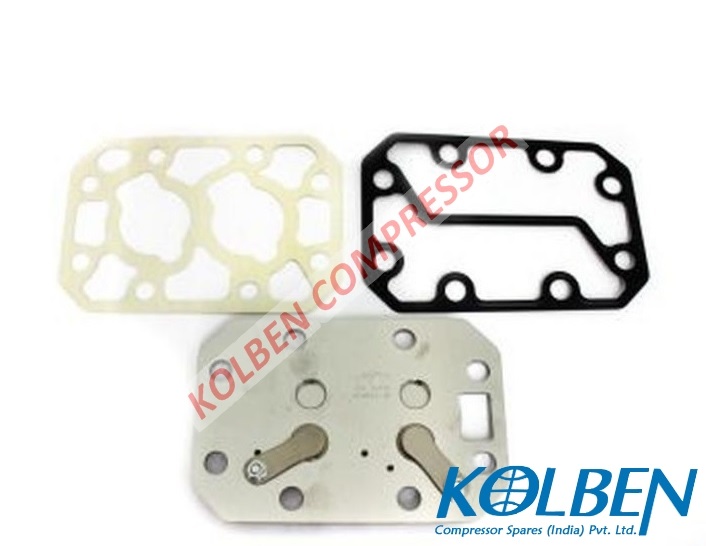

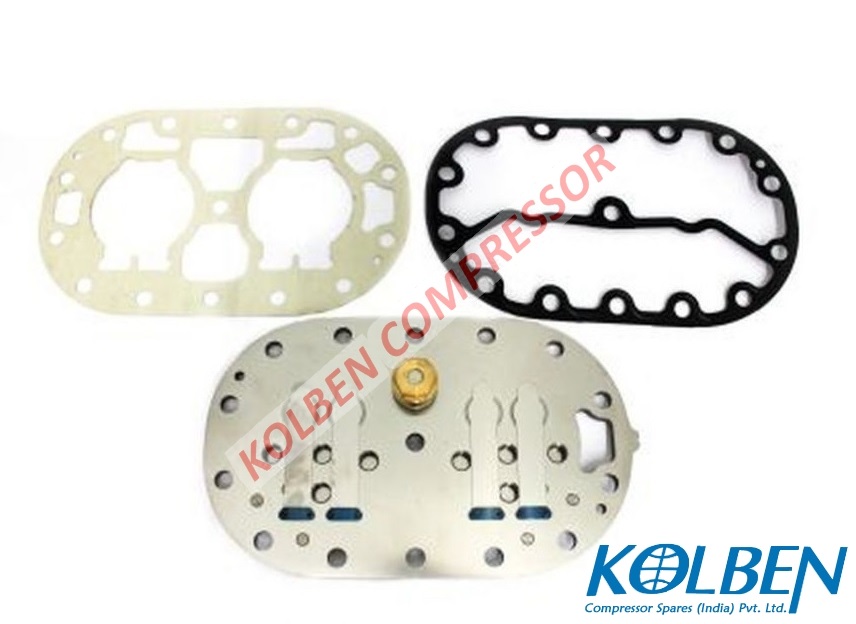

Valve plate Ø70 (30406323)






305.



6HE-35


372511-09


gasket 253 x 155 x 1,0 Ø70 (37251109)






306.



6HE-35


372616-03


gasket Retall 253 x 155 x 0,5 (37261603)






307.



6HE-35


302360-33


Cylinder head air-cooled Air cooled 155 x 253 x 62 (30236033)






308.



6HE-35


380056-03


hexagon head screw DIN 931, 10.9 M10 x 60 (38005603)






309.



6HE-35


302360-03


cylinder head water-cooled Water cooled 253 x 155 x 64 (30236003)






310.



6HE-35


302326-05


cylinder head Water cooled 253 x 155 x 60,5 (30232605)






311.



6HE-35


380391-55


sealing screw conic brass R 3/4 (38039155)






312.



6HE-35


380056-07


hexagon head screw DIN 931, 10.9 M10 x 80 (38005607)






313.



6HE-35


327000-01


parallel pin 6H 11 x 20 (32700001)






314.



6HE-35


380358-01


Set screw coated DIN 916 M10 x 12 (38035801)






315.



6HE-35


343416-02


terminal plate kit (34341602)






316.



6HE-35


372421-14


gasket Terminal plate 163 x 118 x 0,5 (37242114)






317.



6HE-35


304900-01


terminal plate 165 x 120 x 15,5 (30490001)






318.



6HE-35


343417-07

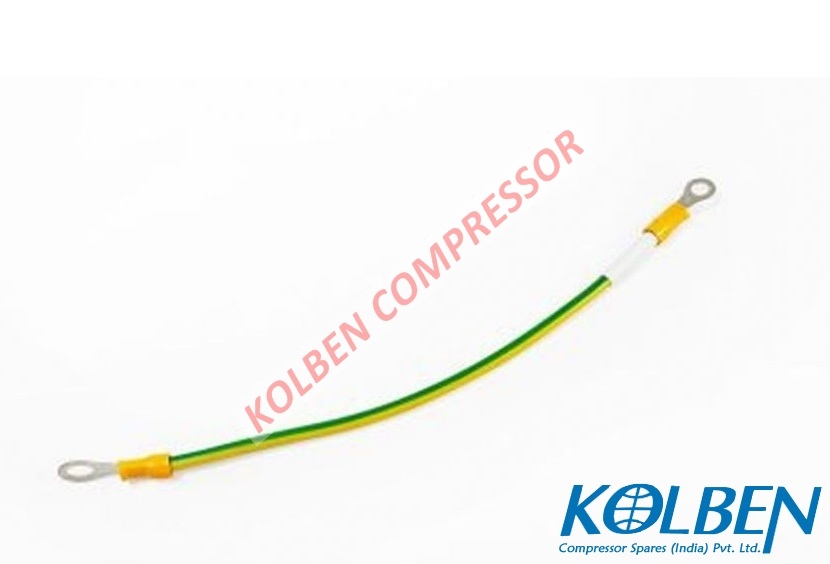

connection to ground, complete grounding (34341707)






319.



6HE-35


372124-03


gasket only needed for terminal box IP66 165 x 120 x 3 (37212403)






320.



6HE-35


375002-03


insulating plate 85 x 25 x 6 (37500203)






321.



6HE-35


375001-03


pressure bush Ø8 x Ø24 x 8 (37500103)






322.



6HE-35


375000-03


gasket ring Ø16 x Ø8 x 8,5 (37500003)






323.



6HE-35


382042-03


washer copper 8 x 1,6 (38204203)






324.



6HE-35


381301-05


hexagon nut brass M8 (3813010)5






325.



6HE-35


382002-02


washer brass DIN 125 A5, 3 (38200202)






326.



6HE-35


381301-03


hexagon nut brass M5 (38130103)






327.



6HE-35


382152-01


thrust washer DIN 127 S 8 (38215201)






328.



6HE-35


302915-02


cable connector brass (30291502)

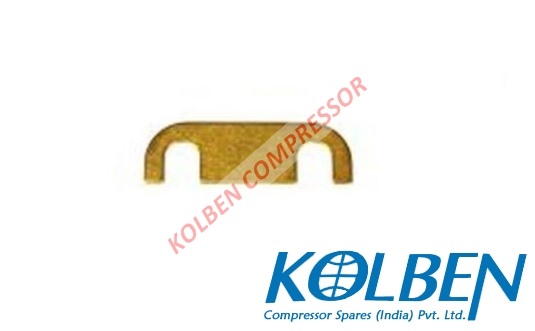

329.



6HE-35


320318-01


connection bridge 46 x 15 x 1 (32031801)






330.



6HE-35


343414-08


terminal plate kit (34341408)






331.



6HE-35


343414-07


terminal plate kit (34341407)






332.



6HE-35


375002-01


insulating plate 53 x 18 x 6,5 (37500201)






333.



6HE-35


375001-01


pressure bush Ø4,5 x Ø18,5 x 8,5 (37500101)






334.



6HE-35


375000-01


gasket ring Ø4,5 x Ø18,5 x 8,5 (37500001)






335.



6HE-35


345923-06


insulating plate (34592306)






336.



6HE-35


343413-01


conversion kit (34341301)






337.



6HE-35


380306-89


cheese head screw 10.9 galvanized DIN 912, 10.9 M10 x 20 (38030689)






338.



6HE-35


321202-01


centering plate steel 167 x 122 x 12 (32120201)






339.



6HE-35


372120-01


gasket 133 x 117 x 2 (37212001)






340.



6HE-35


300950-17


terminal box black aluminium cast 313 x 175 x 84 (30095017)






341.



6HE-35


380508-51


Cheese head screw galvanized DIN 7985, 4.8 M5 x 20 (38050851)






342.



6HE-35


305914-45


Cover black 313 x 175 x 11 (30591445)






343.



6HE-35


347028-01


protection device SE-B2 230V-50/60Hz (34702801)






344.



6HE-35


380507-52


Cross Recessed Raised Screw 4.8 galvanized M4 x 10 (38050752)






345.



6HE-35


380501-54


Oval head screw galvanized DIN 7985, 4.8 M6 x 16 (38050154)






346.



6HE-35


372811-07

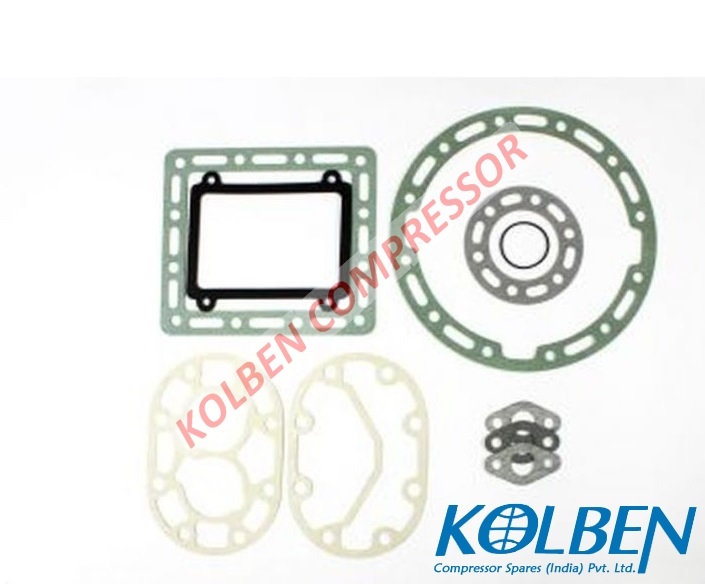

gasket set (37281107)






347.



6HE-35


346332-46


built-in motor 24 kW, 4-pole 380..420V Y/YY-3-50Hz, 440..480V Y/YY-3-60Hz Ø223 x 222 (34633246)






348.



6HE-35


372124-01


gasket terminal box aluminium 165 x 120 x 3 (37212401)






349.



6HE-35


372138-02


gasket terminal box aluminium (37213802)






350.



6HE-35


343213-12


Crankcase heater heating capacity: 140W 230V-1-50/60Hz (34321312)






351.



6HE-35


389002-01


electric connector of the machine / device capacity control DIN 43650 Typ GDM 209 (38900201)






352.



6HE-35


345906-02


heater sleeve for 140W heater 43315 (34590602)






353.



6HE-35


302355-27


Capacity regulator (30235527)






354.



6HE-35


302354-08


cylinder head (30235408)






355.



6HE-35


383103-04


half length reserve taper grooved dowel pin steel Ø3 x 8 (38310304)






356.



6HE-35


347654-02


piston Ø31,4 x 34,4 x Ø9 (34765402)






357.



6HE-35


347600-03


solenoid valve 230V-50/60Hz (34760003)






358.



6HE-35


372712-01


gasket Retall 89 x 52 x 0,25 (37271201)






359.



6HE-35

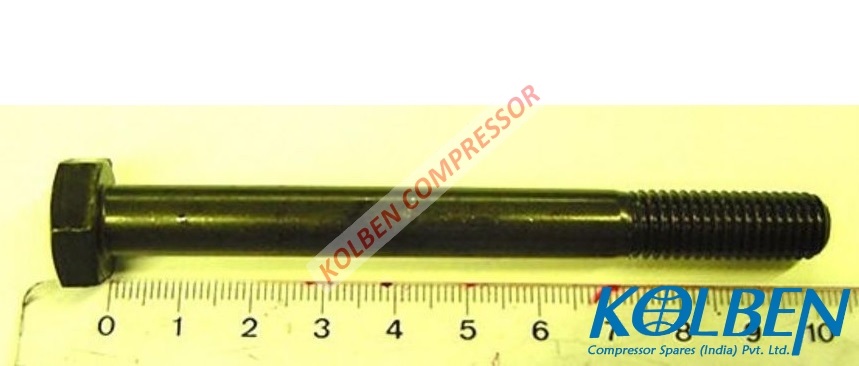

380056-10


hexagon head screw DIN 931, 10.9 M10 x 100 (38005610)






360.



6HE-35


343309-02


coil 230V-50/60Hz (34330902)






361.



6HE-35


347690-02


solenoid valve (34769002)






362.



6HE-35


302357-14


start unloading without discharge gas temperature sensor Air cooled (30235714)






363.



6HE-35


302356-06


cylinder head (30235606)






364.



6HE-35


347650-03


piston for SU cylinder head with muffler Ø31,7 x 20,8 (34765003)






365.



6HE-35


325010-06


spring spring steel Ø20 x 40 (32501006)






366.



6HE-35


347600-04


solenoid valve 230V-50/60Hz (34760004)






367.



6HE-35


347691-02


solenoid valve (34769102)






368.



6HE-35


347023-03


PTC-sensor 140° C (34702303)






369.



4H-25.2


311100-04


bearing bush Ø50 x Ø45 x 47,5 (31110004)






370.



4H-25.2


311103-06


bearing bush connecting rod Ø23 x Ø19 x 22,5 (31110306)






371.



4H-25.2


311100-05


bearing bush Crankcase side Ø50 x Ø45 x 47,5 (31110005)






372.



4H-25.2


305125-03


bearing cover complete inclusive oil pump (30512503)






373.



4H-25.2


367015-15


blind flange steel 91 x 52 x 13. Bo. 1/8" NPTF (36701515)






374.



4H-25.2


320307-04


bottom plate steel 270 x 360 x 12 (32030704)






375.



4H-25.2


346306-46


built-in motor 16 kW, 4-pole 380..420V Y/YY-3-50Hz, 440..480V Y/YY-3-60Hz Ø223 x 190,5 (34630646)






376.



4H-25.2


302915-02


cable connector brass (30291502)






377.



4H-25.2


321202-01


centering plate steel 167 x 122 x 12 (32120201)






378.



4H-25.2


380508-51


Cheese head screw galvanized DIN 7985, 4.8 M5 x 20 (38050851)






379.



4H-25.2


380306-89


cheese head screw 10.9 galvanized DIN 912, 10.9 M10 x 20 (38030689)






380.



4H-25.2


380306-32


Cheese Head Screw bearing cover DIN 912, 10.9 M10 x 30 (38030632)






381.



4H-25.2


380507-51


cheese head screw 4.8 galvanized M4 x 8 (38050751)






382.



4H-25.2


367121-02


Clamping Plate suction shut-off valve 110 x 110 (36712102)






383.



4H-25.2


383021-11


clamping sleeve 10 x 0,75 x 29 (38302111)






384.



4H-25.2


382310-22


compression ring Piston diameter 69,96mm Ø70 x 1,5 (38231022)






385.



4H-25.2


382300-55


compression ring Piston diameter 69,96mm Ø70 x 1,5 (38230055)






386.



4H-25.2


302115-50

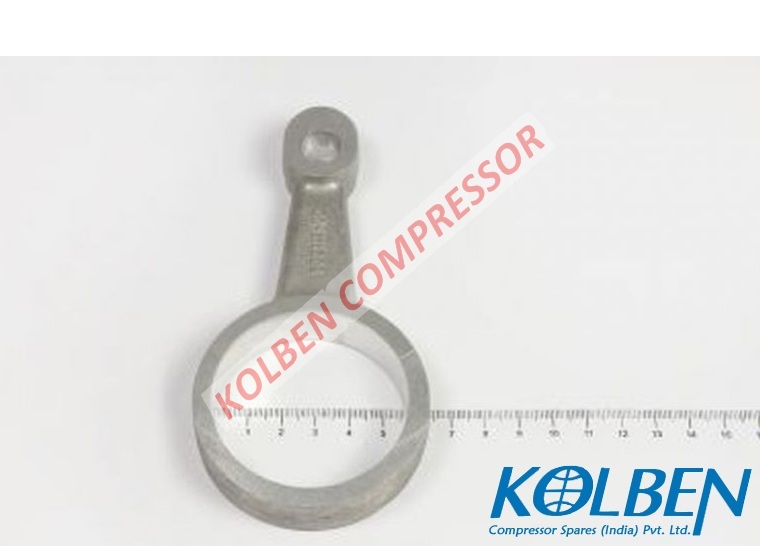

connecting rod (30211550)






387.



4H-25.2


302297-37

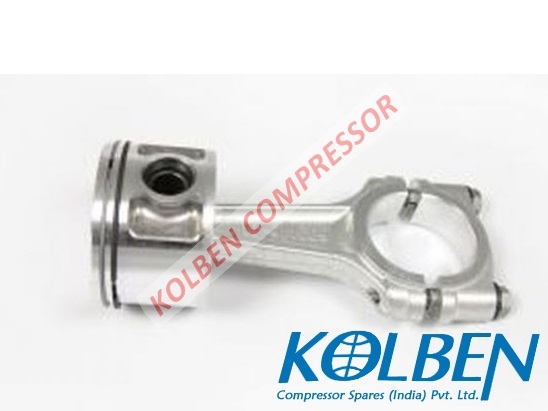

connecting rod / piston Ø70 (30229737)






388.



4H-25.2


320318-03


connection bridge brass A 5,4 (32031803)






389.



4H-25.2


343417-07


connection to ground, complete groundin (34341707)






390.



4H-25.2


343413-01


conversion kit (34341301)






391.



4H-25.2


305914-45


Cover black 313 x 175 x 11 (30591445)






392.



4H-25.2


343213-12


Crankcase heater heating capacity: 140W 230V-1-50/60Hz (34321312)






393.



4H-25.2


301007-07


crankshaft Stroke 55mm Ø45 x 522 (30100707)






394.



4H-25.2


380507-52


Cross Recessed Raised Screw 4.8 galvanized M4 x 10 (38050752)






395.



4H-25.2


302360-03


cylinder head water-cooled Water cooled 253 x 155 x 64 (30236003)






396.



4H-25.2


302326-05


cylinder head water-cooled Water cooled 253 x 155 x 60,5 (30232605)






397.



4H-25.2


302360-22


cylinder head air-cooled (30236022)






398.



4H-25.2


325002-02


damper element Motor side spring steel red Lo=42 (32500202)






399.



4H-25.2


325002-01


damper element Crankcase side spring steel brown Lo=42 (32500201)






400.



4H-25.2


347320-33


differential oil pressure cut-out MP54 115V/230V-50/60Hz 100 x 50 x 130 (34732033)






401.



4H-25.2


389002-01


electric connector of the machine / device capacity control DIN 43650 Typ GDM 209 (38900201)






402.



4H-25.2


320314-01


fixing plate MP54 140 x 40 x 3 (32031401)






403.



4H-25.2


327309-01


foot 369 x 60 x 13 x Ø21 (32730901)






404.



4H-25.2


361110-03


gas equalising valve (36111003)






405.



4H-25.2


372314-03


gasket bearing cover Ø182 x Ø133 x 1 (37231403)






406.



4H-25.2


372704-01


Gasket discharge shut-off valve 91 x 52 x 1 (37270401)






407.



4H-25.2


372303-02


Gasket Pipe connection Ø75 x Ø61 x 2 (37230302)






408.



4H-25.2


372120-01


gasket 133 x 117 x 2 (37212001)






409.



4H-25.2


372124-03


gasket only needed for terminal box IP66 165 x 120 x 3 (37212403)






410.



4H-25.2


372421-14


gasket 163 x 118 x 0,5 (37242114)






411.



4H-25.2


372301-03


gasket suction shut-off valve Ø76 x Ø60 x 1 (37230103)






412.



4H-25.2


372415-02


gasket bottom plate (37241502)






413.



4H-25.2


372124-01


gasket terminal box aluminium 165 x 120 x 3 (37212401)






414.



4H-25.2


372315-03


gasket housing cover Ø286 x Ø236 x 0,38 (37231503)






415.



4H-25.2


372616-03


gasket Retall 253 x 155 x 0,5 (37261603)






416.



4H-25.2


372511-09


gasket 253 x 155 x 1,0 Ø70 (37251109)






417.



4H-25.2


372200-04


gasket Pipe connection teflon Ø38 x Ø35 x 1,5 (37220004)






418.



4H-25.2


372138-02


gasket terminal box aluminium (37213802)






419.



4H-25.2


375000-01


gasket ring Ø4,5 x Ø18,5 x 8,5 (37500001)






420.



4H-25.2


382402-01


gasket ring aluminium DIN 7603 A10 x 15 x 1 (38240201)






421.



4H-25.2


375000-03


gasket ring Ø16 x Ø8 x 8,5 (37500003)






422.



4H-25.2


382403-04


Gasket Ring oil drain aluminium DIN 7603 A26 x 31 x 2 (38240304)






423.



4H-25.2


372811-06


gasket set (37281106)






424.



4H-25.2


384102-01


gib-headed key Stator steel DIN 6887 5 x 5 x 60 (38410201)






425.



4H-25.2


345906-02


heater sleeve for 140W heater 43315 (34590602)






426.



4H-25.2


380156-06


hexagon head screw blind flange coated DIN 933, 10.9 M10 x 30 (38015606)






427.



4H-25.2


380057-11


hexagon head screw housing cover DIN 931, 10.9 M12 x 150 (38005711)






428.



4H-25.2


380156-05


hexagon head screw bottom plate DIN 933, 10.9 M10 x 25 (38015605)






429.



4H-25.2


380166-05


hexagon head screw coated DIN 931, 10.9 M16 x 55 (38016605)






430.



4H-25.2


380056-03


hexagon head screw DIN 931, 10.9 M10 x 60 (38005603)






431.



4H-25.2


380109-09


Hexagon Head Screw clamping plate DIN 933, 8.8 M16 x 55 (38010909)






432.



4H-25.2


380009-53


hexagon head screw suction shut-off valve 8.8 galvanized DIN 931, 8.8 M16 x 100 (38000953)






433.



4H-25.2


380155-05


hexagon head screw oil pump DIN 933, 10.9 M8 x 20 (38015505)






434.



4H-25.2


380105-09


hexagon head screw DIN 933, 8.8 M8 x 45 (38010509)






435.



4H-25.2


380154-06


hexagon head screw DIN 933, 10.9 M6 x 20 (38015406)






436.



4H-25.2


380057-14


hexagon head screw housing cover DIN 931, 10.9 M12 x 180 (38005714)






437.



4H-25.2


381301-05


hexagon nut brass M8 (38130105)






438.



4H-25.2


381301-03


hexagon nut brass M5 (38130103)






439.



4H-25.2


380339-01


Hexsocket Cheese Head Screw ISO 4762, 10.9 - A2K M10 x 30 (38033901)






440.



4H-25.2


300028-02


housing Ø70 (30002802)






441.



4H-25.2


305218-01


housing cove grey cast iron Ø286 x 166 (30521801)






442.



4H-25.2


345923-06


insulating plate (34592306)






443.



4H-25.2


375002-01


insulating plate 53 x 18 x 6,5 (37500201)






444.



4H-25.2


375002-03


insulating plate 85 x 25 x 6 (37500203)






445.



4H-25.2


372003-15


O-ring sight glass Ø36,3 x 1,78 (37200315)






446.



4H-25.2


372001-13


O-ring Ø45 x 3 (37200113)






447.



4H-25.2


372001-19


O-ring oil pump Ø74 x 2 (37200119)






448.



4H-25.2


362003-01


oil filter Ø20 x 200 (36200301)






449.



4H-25.2


361101-01


oil pressure relief valve SW17 x 29 (36110101)






450.



4H-25.2


360110-06


oil return system (36011006)






451.



4H-25.2


380501-54


Oval head screw galvanized DIN 7985, 4.8 M6 x 16 (38050154)






452.



4H-25.2


384001-19


parallel key steel DIN 6885 A12 x 8 x 110 (38400119)






453.



4H-25.2


327000-01


parallel pin 6H 11 x 20 (32700001)






454.



4H-25.2


366000-06


pipe connection discharge shut-off valve steel copper-plated brazed connection Ø28, 1 3/4" - 12 UN (36600006)






455.



4H-25.2


365321-03


Pipe Connection brazed and welding bush steel Ø54 (2 1/8") (36532103)






456.



4H-25.2


302233-97


piston aluminium alloy Ø70 (30223397)






457.



4H-25.2


375001-03


pressure bush Ø8 x Ø24 x 8 (37500103)






458.



4H-25.2


375001-01


pressure bush Ø4,5 x Ø18,5 x 8,5 (37500101)






459.



4H-25.2


361100-21


pressure relief valve 34 bar 3/4" - 14 NPTF - p=34bar (36110021)






460.



4H-25.2


325000-34


pressure spring spring steel Ø23,5 x 28 x 1,8 (32500034)






461.



4H-25.2


347028-01


protection device SE-B2 230V-50/60Hz (34702801)






462.



4H-25.2


375014-05


Protective Cap Span of the jaw: 36 Plastic - GRP M36 x 1,5 / L=67 mm (37501405)






463.



4H-25.2


366201-19


Protective Cap Span of the jaw: 27 Plastic - GRP M24 x 2 / L=57,5 mm (36620119)






464.



4H-25.2


382231-04


retaining ring with lugs spring steel DIN 472 Ø20 x 1 (38223104)






465.



4H-25.2


325910-01


retaining ring with lugs spring steel Ø230 (32591001)






466.



4H-25.2


382141-01


retaining ring with lugs spring steel DIN 6796 - FSt A8 (38214101)






467.



4H-25.2


312006-05


ring spring washer Ø 42,1 x Ø 58 x 5 (31200605)






468.



4H-25.2


366202-01


sealing nut 7/16" - 20 UNF (36620201)






469.



4H-25.2


366110-10


sealing plug oil equalising bore steel 1/2" - 14 NPTF (3661101)






470.



4H-25.2


366110-02


Sealing Plug steel 1/4" - 18 NPTF (36611002)






471.



4H-25.2


366110-05


sealing plug gas equalising bore steel 3/4" - 14 NPTF (36611005)






472.



4H-25.2


366110-01


Sealing plug steel 1/8“ - 27 NPTF (36611001)






473.



4H-25.2


366112-01


sealing screw conic DIN 906 M8 x 1 (36611201)






474.



4H-25.2


380391-55


sealing screw conic brass R 3/4 (38039155)






475.



4H-25.2


366114-24


sealing screw with magnet oil drain inclusive O-Ring gasket M26 (36611424)






476.



4H-25.2


380358-01


Set screw coated DIN 916 M10 x 12 (38035801)






477.



4H-25.2


374027-03


shaft seal bearing bush (37402703)






478.



4H-25.2


361310-07


shut-off valve Discharge side brazing and welding bush Ø28 (1 1/8") (36131007)






479.



4H-25.2


361338-04


Shut-Off Valve suction side Ø54 (2 1/8") (36133804)






480.



4H-25.2


361802-02


sight glass Ø67 x 8,5 (36180202)






481.



4H-25.2


382201-51


single coil spring washer spring steel galvanized DIN 127 A4, 3 (38220151)






482.



4H-25.2


325900-02


spring washer Ø58,5 x Ø46 x 0,5 (32590002)






483.



4H-25.2


362004-02


suction gas filter Ø220 x 50 (36200402)






484.



4H-25.2


300950-17


terminal box black aluminium cast 313 x 175 x 84 (30095017)






485.



4H-25.2


304900-01


terminal plate 165 x 120 x 15,5 (30490001)






486.



4H-25.2


343414-08


terminal plate kit (34341408)






487.



4H-25.2


343414-07


terminal plate kit (34341407)






488.



4H-25.2


343416-02


terminal plate kit (34341602)






489.



4H-25.2


312030-03


thrust collar Ø62 x 7 (31203003)






490.



4H-25.2


320500-06


thrust washer Motor side Ø62 x Ø48 x 1,7 (32050006)






491.



4H-25.2


320502-04


thrust washer steel Ø54 x Ø17 x 5 (32050204)






492.



4H-25.2


382152-01


thrust washer DIN 127 S 8 (38215201)






493.



4H-25.2


320500-07


thrust washer oil pump side Ø62 x Ø48 x 1,7 (32050007)






494.



4H-25.2


304051-02


valve plate Ø70 (30405102)






495.



4H-25.2


370004-02


vibration damper set Motor side spring red Lo=42 (37000402)






496.



4H-25.2


370004-01


vibration damper set Crankcase side spring brown Lo = 42 (37000401)






497.



4H-25.2


382002-02


washer brass DIN 125 A5, 3 (38200202)






498.



4H-25.2


382042-03


washer copper 8 x 1,6 (38204203)






499.



4H-25.2


382002-01


washer brass DIN 125 A4, 3 (38200201)






500.



4H-25.2


383401-06


wrist pin DIN 73126 Ø20 x Ø13 x 56 (38340106)






501.



4HE-25


311100-05


bearing bush Crankcase side Ø50 x Ø45 x 47,5 (31110005)






502.



4HE-25


311100-04


bearing bush Ø50 x Ø45 x 47,5 (31110004)






503.



4HE-25


305125-03


bearing cover complete inclusive oil pump (30512503)






504.



4HE-25


367015-15


blind flange steel 91 x 52 x 13. Bo. 1/8" NPTF (36701515)






505.



4HE-25


320307-04


bottom plate steel 270 x 360 x 12 (32030704)






506.



4HE-25


346306-46


built-in motor 16 kW, 4-pole 380..420V Y/YY-3-50Hz, 440..480V Y/YY-3-60Hz Ø223 x 190,5 (34630646)






507.



4HE-25


344006-03


cable grounding for grounding (34400603)






508.



4HE-25


302915-02


cable connector brass (30291502)






509.



4HE-25


321202-01


centering plate steel 167 x 122 x 12 (32120201)






510.



4HE-25


380507-51


cheese head screw 4.8 galvanized M4 x 8 (38050751)






511.



4HE-25


380306-89


cheese head screw 10.9 galvanized DIN 912, 10.9 M10 x 20 (38030689)






512.



4HE-25


380508-51


Cheese head screw galvanized DIN 7985, 4.8 M5 x 20 (38050851)






513.



4HE-25


380306-32


Cheese Head Screw bearing cover DIN 912, 10.9 M10 x 30 (38030632)






514.



4HE-25


367121-02


Clamping Plate 110 x 110 (36712102)






515.



4HE-25


382300-55


compression ring Piston diameter 69,96mm Ø70 x 1,5 (38230055)






516.



4HE-25


382310-22


compression ring Piston diameter 69,96mm Ø70 x 1,5 (38231022)






517.



4HE-25


302115-52


connecting rod (30211552)






518.



4HE-25


302298-67


connecting rod / piston Ø70 (30229867)






519.



4HE-25


343413-01


conversion kit (34341301)






520.



4HE-25


305914-45


Cover black 313 x 175 x 11 (30591445)






521.



4HE-25


343213-12


Crankcase heater heating capacity: 140W 230V-1-50/60Hz (34321312)






522.



4HE-25


301007-07


crankshaft Stroke 55mm Ø45 x 522 (30100707)






523.



4HE-25


380507-52


Cross Recessed Raised Screw 4.8 galvanized M4 x 10 (38050752)






524.



4HE-25


380501-52


cross recessed raised screw grounding Cross recessed raised 4.8 galvanized M6 x 12 (38050152)






525.



4HE-25


302360-38


cylinder head air-cooled (30236038)






526.



4HE-25


325002-02


damper element Motor side spring steel red Lo=42 (32500202)






527.



4HE-25


325002-01


damper element Crankcase side spring steel brown Lo=42 (32500201)






528.



4HE-25


347320-33


differential oil pressure cut-out MP54 115V/230V-50/60Hz 100 x 50 x 130 (34732033)






529.



4HE-25


347319-11


differential oil pressure cut-out Delta-P II 230V-50/60Hz (34731911)






530.



4HE-25


389002-01


electric connector of the machine / device DIN 43650 Typ GDM 209 (38900201)






531.



4HE-25


320314-01


fixing plate MP54 140 x 40 x 3 (32031401)






532.



4HE-25


327309-01


foot 369 x 60 x 13 x Ø21 (32730901)






533.



4HE-25


361110-03


gas equalising valve (36111003)






534.



4HE-25


372616-03


gasket Retall 253 x 155 x 0,5 (37261603)






535.



4HE-25


372704-01


Gasket blind flange 91 x 52 x 1 (37270401)






536.



4HE-25


372704-05


gasket discharge shut-off valve Ø34 x 1,0 - LA 66 (37270405)






537.



4HE-25


372415-02


gasket (37241502)






538.



4HE-25


372120-01


gasket 133 x 117 x 2 (37212001)






539.



4HE-25


372511-09


gasket 253 x 155 x 1,0 Ø70 (37251109)






540.



4HE-25


372124-01


gasket terminal box aluminium 165 x 120 x 3 (37212401)






541.



4HE-25


372138-02


gasket terminal box aluminium (37213802)






542.



4HE-25


372303-02


Gasket Pipe connection Ø75 x Ø61 x 2 (37230302)






543.



4HE-25


372315-03


gasket housing cover Ø286 x Ø236 x 0,38 (37231503)






544.



4HE-25


372301-03


gasket suction shut-off valve Ø76 x Ø60 x 1 (37230103)






545.



4HE-25


372314-03


gasket bearing cover Ø182 x Ø133 x 1 (37231403)






546.



4HE-25


372124-03


gasket only needed for terminal box IP66 165 x 120 x 3 (37212403)






547.



4HE-25


372421-14


gasket 163 x 118 x 0,5 (37242114)






548.



4HE-25


382402-01


gasket ring aluminium DIN 7603 A10 x 15 x 1 (38240201)






549.



4HE-25


382403-04


Gasket Ring oil drain aluminium DIN 7603 A26 x 31 x 2 (38240304)






550.



4HE-25


382403-01


Gasket Ring aluminium DIN 7603 A20 x 24 x 1,5 (38240301)






551.



4HE-25


372811-06


gasket set (37281106)






552.



4HE-25


384102-01


gib-headed key Stator steel DIN 6887 5 x 5 x 60 (38410201)






553.



4HE-25


345906-02


heater sleeve for 140W heater 43315 (34590602)






554.



4HE-25


380009-53


hexagon head screw suction shut-off valve 8.8 galvanized DIN 931, 8.8 M16 x 100 (38000953)






555.



4HE-25


380156-06


hexagon head screw discharge shut-off valve coated DIN 933, 10.9 M10 x 30 (38015606)






556.



4HE-25


380156-05


hexagon head screw DIN 933, 10.9 M10 x 25 (38015605)






557.



4HE-25


380166-05


hexagon head screw coated DIN 931, 10.9 M16 x 55 (38016605)






558.



4HE-25


380154-06


hexagon head screw DIN 933, 10.9 M6 x 20 (38015406)






559.



4HE-25


380155-05


hexagon head screw oil pump DIN 933, 10.9 M8 x 20 (38015505)






560.



4HE-25


380056-14


hexagon head screw DIN 931, 10.9 M10 x 70 (38005614)






561.



4HE-25


380056-20


hexagon head screw DIN 931, 10.9 M10 x 90 (38005620)






562.



4HE-25


380004-53


hexagon head screw grounding ISO 4014, 8.8 - A2K M6 x 35 (38000453)






563.



4HE-25


380057-11


hexagon head screw housing cover DIN 931, 10.9 M12 x 150 (38005711)






564.



4HE-25


380057-14


hexagon head screw housing cover DIN 931, 10.9 M12 x 180 (38005714)






565.



4HE-25


380109-09


Hexagon Head Screw clamping plate DIN 933, 8.8 M16 x 55 (38010909)






566.



4HE-25


381301-05


hexagon nut brass M8 (38130105)






567.



4HE-25


381108-01


hexagon nut M5 (38110801)






568.



4HE-25


380339-01


Hexsocket Cheese Head Screw ISO 4762, 10.9 - A2K M10 x 30 (38033901)






569.



4HE-25


300028-02


housing Ø70 (30002802)






570.



4HE-25


305900-03


housing cover (30590003)






571.



4HE-25


377108-52


Insulation for motor housing cover (37710852)






572.



4HE-25


345950-01


Metal Plate For Grounding aluminium M6 (34595001)






573.



4HE-25


372001-19


O-ring oil pump Ø74 x 2 (37200119)






574.



4HE-25


372003-15


O-ring sight glass Ø36,3 x 1,78 (37200315)






575.



4HE-25


362003-01


oil filter Ø20 x 200 (36200301)






576.



4HE-25


361101-01


oil pressure relief valve SW17 x 29 (36110101)






577.



4HE-25


362503-02


oil pump (36250302)






578.



4HE-25


360110-06


oil return system (36011006)






579.



4HE-25


380501-54


Oval head screw galvanized DIN 7985, 4.8 M6 x 16 (38050154)






580.



4HE-25


384001-19


parallel key steel DIN 6885 A12 x 8 x 110 (38400119)






581.



4HE-25


327000-01


parallel pin 6H 11 x 20 (32700001)






582.



4HE-25


365321-03


Pipe Connection brazed and welding bush steel Ø54 (2 1/8") (36532103)






583.



4HE-25


302233-97


piston aluminium alloy Ø70 (30223397)






584.



4HE-25


361110-06


Pressure relief valve 37 bar 3/4 (36111006)






585.



4HE-25


325000-34


pressure spring spring steel Ø23,5 x 28 x 1,8 (32500034)






586.



4HE-25


347028-01


protection device SE-B2 230V-50/60Hz (34702801)






587.



4HE-25


366201-19


Protective Cap Span of the jaw: 27 Plastic - GRP M24 x 2 / L=57,5 mm (36620119)






588.



4HE-25


375014-05


Protective Cap Span of the jaw: 36 Plastic - GRP M36 x 1,5 / L=67 mm (37501405)






589.



4HE-25


325910-01


retaining ring with lugs spring steel Ø230 (32591001)






590.



4HE-25


382231-04


retaining ring with lugs spring steel DIN 472 Ø20 x 1 (38223104)






591.



4HE-25


361500-22


Schrader valve (36150022)






592.



4HE-25


366110-01


Sealing plug steel 1/8“ - 27 NPTF (36611001)






593.



4HE-25


366110-02


Sealing Plug steel 1/4" - 18 NPTF (36611002)






594.



4HE-25


366110-10


sealing plug oil equalising bore steel 1/2" - 14 NPTF (36611010)






595.



4HE-25


366110-05


sealing plug gas equalising bore steel 3/4" - 14 NPTF (36611005)






596.



4HE-25


366112-01


sealing screw conic DIN 906 M8 x 1 (36611201)






597.



4HE-25


366114-24


sealing screw with magnet oil drain inclusive O-Ring gasket M26 (36611424)






598.



4HE-25


380358-01


Set screw coated DIN 916 M10 x 12 (38035801)






599.



4HE-25


374027-03


shaft seal bearing bush (37402703)






600.



4HE-25


361315-13


shut-off valve Discharge side Ø28 (1 1/8") (36131513)






601.



4HE-25


361338-04


Shut-Off Valve suction side Ø54 (2 1/8") (36133804)






602.



4HE-25


361802-02


sight glass Ø67 x 8,5 (36180202)






603.



4HE-25


382201-51


single coil spring washer spring steel galvanized DIN 127 A4, 3 (38220151)






604.



4HE-25


311018-01


Spacer Sleeve Ø14 x Ø6,3 x 21,4 (31101801)






605.



4HE-25


362004-02


suction gas filter Ø220 x 50 (36200402)






606.



4HE-25


300950-17


terminal box black aluminium cast 313 x 175 x 84 (30095017)






607.



4HE-25


345506-24


terminal plate optimized condensation sequence optimized condensation sequence (34550624)






608.



4HE-25


343416-02


terminal plate kit (34341602)






609.



4HE-25


320502-04


thrust washer steel Ø54 x Ø17 x 5 (32050204)






610.



4HE-25


382150-04


thrust washer spring steel S16 (38215004)






611.



4HE-25


320500-07


thrust washer oil pump side Ø62 x Ø48 x 1,7 (32050007)






612.



4HE-25


320500-06


thrust washer Crankcase side Ø62 x Ø48 x 1,7 (32050006)






613.



4HE-25


382150-01


thrust washer spring steel S6 (38215001)






614.



4HE-25


382152-01


thrust washer DIN 127 S 8 (38215201)






615.



4HE-25


382101-54


toothed washer grounding spring steel galvanized DIN 6797 A6, 4 (38210154)






616.



4HE-25


304063-33


valve plate (30406333)






617.



4HE-25


370004-01


vibration damper set Crankcase side spring brown Lo = 42 (37000401)






618.



4HE-25


370004-02


vibration damper set Motor side spring red Lo=42 (37000402)






619.



4HE-25


382002-01


washer brass DIN 125 A4, 3 (38200201)






620.



4HE-25


383401-06


wrist pin DIN 73126 Ø20 x Ø13 x 56 (38340106)






621.



S6H.2


311100-08


bearing bush Crankcase side Ø75 x Ø70 x 70 (31110008)






622.



S6H.2


311103-06


bearing bush connecting rod Ø23 x Ø19 x 22,5 (31110306)






623.



S6H.2


311100-04


bearing bush Ø50 x Ø45 x 47,5 (31110004)






624.



S6H.2


305125-03


bearing cover complete inclusive oil pump (30512503)






625.



S6H.2


367015-15


blind flange steel 91 x 52 x 13. Bo. 1/8" NPTF (36701515)






626.



S6H.2


302400-01


bottom plate grey cast iron 350 x 315 x 54 (30240001)






627.



S6H.2


380306-32


Cheese Head Screw intermediate pressure mixing pipe DIN 912, 10.9 M10 x 30 (38030632)






628.



S6H.2


380306-23


Cheese Head Screw discharge shut-off valve DIN 912, 10.9 M10 x 25 (38030623)






629.



S6H.2


380507-51


cheese head screw 4.8 galvanized M4 x 8 (38050751)






630.



S6H.2


380306-26


cheese head screw bottom plate DIN 912, 10.9 M10 x 55 (38030626)






631.



S6H.2


367121-01


clamping plate 80 x 80 (36712101)






632.



S6H.2


383021-11


clamping sleeve 10 x 0,75 x 29 (38302111)






633.



S6H.2


382310-22


compression ring Piston diameter 69,96mm Ø70 x 1,5 (38231022)






634.



S6H.2


382300-55


compression ring Piston diameter 69,96mm Ø70 x 1,5 (38230055)






635.



S6H.2


302115-50


connecting rod (30211550)






636.



S6H.2


302297-37


connecting rod / piston Ø70 (30229737)






637.



S6H.2


343213-12


Crankcase heater heating capacity: 140W 230V-1-50/60Hz (34321312)






638.



S6H.2


301007-08


crankshaft Stroke 55mm Ø45 x 554 (30100708)






639.



S6H.2


302360-16


cylinder head low pressure stage 155 x 253 x 62,5 (30236016)






640.



S6H.2


302360-14


cylinder head high pressure side 155 x 253 x 68 (30236014)






641.



S6H.2


347320-33


differential oil pressure cut-out MP54 115V/230V-50/60Hz 100 x 50 x 130 (34732033)






642.



S6H.2


389002-01


electric connector of the machine / device DIN 43650 Typ GDM 209 (38900201)






643.



S6H.2


361404-04


expansion valve operation with liquid subcooler TEVI 2, nozzle 03 R 404A (36140404)






644.



S6H.2


380902-02


eye bolt DIN 580 M12 (38090202)






645.



S6H.2


362101-05


filter drier Operation without subcooler brazed connection Ø10 (36210105)






646.



S6H.2


320314-01


fixing plate MP54 140 x 40 x 3 (32031401)






647.



S6H.2


367023-01


flange steel 91 x 48 x 52, 1 3/4" (36702301)






648.



S6H.2


361110-01


gas equalising valve (36111001)






649.



S6H.2


372616-03


gasket low pressure stage Retall 253 x 155 x 0,5 (37261603)






650.



S6H.2


372313-02


gasket Ø142 x Ø106,5 x 0,5 (37231302)






651.



S6H.2


372303-01


gasket Ø52 x Ø37 x 2 (37230301)






652.



S6H.2


372200-04


gasket teflon Ø38 x Ø35 x 1,5 (37220004)






653.



S6H.2


372301-02


gasket Suction gas filter Ø70 x Ø54 x 1 (37230102)






654.



S6H.2


372301-03


gasket suction shut-off valve Ø76 x Ø60 x 1 (37230103)






655.



S6H.2


372712-01


gasket suction gas line Retall 89 x 52 x 0,25 (37271201)






656.



S6H.2


372415-02


gasket bottom plate (37241502)






657.



S6H.2


372511-04


gasket valve plate 253 x 155 x 1,2 Ø70 (37251104)






658.



S6H.2


372704-01


Gasket blind flange 91 x 52 x 1 (37270401)






659.



S6H.2


372616-04


gasket high pressure side Retall 253 x 155 x 0,5 (37261604)






660.



S6H.2


372315-03


gasket housing cover Ø286 x Ø236 x 0,38 (37231503)






661.



S6H.2


382403-04


Gasket Ring oil drain aluminium DIN 7603 A26 x 31 x 2 (38240304)






662.



S6H.2


382402-01


gasket ring aluminium DIN 7603 A10 x 15 x 1 (38240201)






663.



S6H.2


382501-05


gasket ring NBR felt ring G58 x 50 x 4 (38250105)






664.



S6H.2


372816-09


gasket set (37281609)






665.



S6H.2


372807-01


gasket set bearing cover Ø182 x Ø133 x 1/ 0,8/ 0,75 /0,6 /0,5 (37280701)






666.



S6H.2


381214-01


grooved nut M40 x 1,5 (38121401)






667.



S6H.2


345906-02


heater sleeve for 140W heater 43315 (34590602)






668.



S6H.2


380154-02


hexagon head screw steel DIN 933, 10.9 M6 x 12 (38015402)






669.



S6H.2


380156-06


hexagon head screw blind flange coated DIN 933, 10.9 M10 x 30 (38015606)






670.



S6H.2


380057-15


hexagon head screw coated DIN 931, 10.9 M12 x 50 (38005715)






671.



S6H.2


380007-52


hexagon head screw galvanized DIN 931, 8.8 M12 x 80 (38000752)






672.



S6H.2


380056-03


hexagon head screw DIN 931, 10.9 M10 x 60 (38005603)






673.



S6H.2


380057-06


hexagon head screw housing cover DIN 931, 10.9 M12 x 100 (38005706)






674.



S6H.2


380166-12


Hexagon Head Screw coated ISO 4017 - Precote85 M16 x 50 (38016612)






675.



S6H.2


380156-09


Hexagon Head Screw DIN 933, 10.9 M10 x 45 (38015609)






676.



S6H.2


380057-07


hexagon head screw housing cover DIN 931, 10.9 M12 x 110 (38005707)






677.



S6H.2


380155-08


hexagon head screw DIN 933, 10.9 M8 x 30 (38015508)






678.



S6H.2


380155-05


hexagon head screw oil pump DIN 933, 10.9 M8 x 20 (38015505)






679.



S6H.2


380056-12


hexagon head screw DIN 931, 10.9 M10 x 120 (38005612)






680.



S6H.2


380154-06


hexagon head screw DIN 933, 10.9 M6 x 20 (38015406)






681.



S6H.2


380105-09


hexagon head screw DIN 933, 8.8 M8 x 45 (38010509)






682.



S6H.2


380339-01


Hexsocket Cheese Head Screw ISO 4762, 10.9 - A2K M10 x 30 (38033901)






683.



S6H.2


300026-06


housing Ø70 (30002606)






684.



S6H.2


305214-01


housing cover grey cast iron Ø286 x 112 (30521401)






685.



S6H.2


377003-02


insulation main pipe (37700302)






686.



S6H.2


377002-01


insulation intermediate pressure mixing pipe Armaflex (37700201)






687.



S6H.2


367015-21


intermediate flange steel 91 x 52 x 13 (36701521)






688.



S6H.2


360504-02


intermediate pressure mixing pipe (36050402)






689.



S6H.2


372001-25


O-ring stationary ring Ø63,09 x 3,53 (37200125)






690.



S6H.2


372003-15


O-ring sight glass Ø36,3 x 1,78 (37200315)






691.



S6H.2


372001-19


O-ring oil pump Ø74 x 2 (37200119)






692.



S6H.2


372001-20


O-ring housing cover Ø126 x 4 (37200120)






693.



S6H.2


372003-28


O-ring Ø47x Ø4 (37200328)






694.



S6H.2


362003-01


oil filter Ø20 x 200 (36200301)






695.



S6H.2


361101-01


oil pressure relief valve SW17 x 29 (36110101)






696.



S6H.2


360110-07


oil return system (36011007)






697.



S6H.2


384001-06


parallel key steel DIN 6885 A8 x 7 x 45 (38400106)






698.



S6H.2


327000-01


parallel pin 6H 11 x 20 (32700001)






699.



S6H.2


360101-03


pipe oil return Ø6 x 1 (36010103)






700.



S6H.2


360401-16


pipe injection pipe Ø6 x 1 (36040116)






701.



S6H.2


366000-07


pipe connection steel copper-plated brazed connection Ø35, 1 3/4" - 12 UN (36600007)






702.



S6H.2


365321-14


pipe connection steel brazing and welding bush Ø42 (1 5/8") (36532114)






703.



S6H.2


302233-97


piston aluminium alloy Ø70 (30223397)






704.



S6H.2


361100-21


pressure relief valve 34 bar 3/4" - 14 NPTF - p=34bar (36110021)






705.



S6H.2


361100-23


pressure relief valve 15 bar, low pressure side (36110023)






706.



S6H.2


325000-34


pressure spring steel Ø23,5 x 28 x 1,8 (32500034)






707.



S6H.2


366201-19


Protective Cap Span of the jaw: 27 Plastic - GRP M24 x 2 / L=57,5 mm (36620119)






708.



S6H.2


366201-22


Protective Cap Span of the jaw: 27 Plastic - GRP M27 x 2 / L=70 mm (36620122)






709.



S6H.2


347023-03


PTC-sensor 140° C (34702303)






710.



S6H.2


303602-11


pulley Taper-lock bush grey cast iron Ø224, 5R, SPA (30360211)






711.



S6H.2


382141-01


retaining ring with lugs spring steel DIN 6796 - FSt A8 (38214101)






712.



S6H.2


382231-04


retaining ring with lugs spring steel DIN 472 Ø20 x 1 (38223104)






713.



S6H.2


361500-22


Schrader valve (36150022)






714.



S6H.2


361500-01


Schrader valve T-piece brass Jul-16 (36150001)






715.



S6H.2


305413-07


sealing cover Ø142 x 31 (30541307)






716.



S6H.2


366202-01


sealing nut 7/16" - 20 UNF (36620201)






717.



S6H.2


366110-05


sealing plug low pressure stage steel 3/4" - 14 NPTF (36611005)






718.



S6H.2


366104-22


sealing plug separation wall brass 3/4" - 14 NPTF (36610422)






719.



S6H.2


366110-02


Sealing Plug steel 1/4" - 18 NPTF (36611002)






720.



S6H.2


366110-01


Sealing plug steel 1/8“ - 27 NPTF (36611001)






721.



S6H.2


366110-10


sealing plug oil equalising bore steel 1/2" - 14 NPTF (36611010)






722.



S6H.2


366110-09


sealing plug bottom plate steel 3/8" - 18 NPTF (36611009)






723.



S6H.2


366112-02


sealing screw conic M12 x 1,5 (36611202)






724.



S6H.2


366114-24


sealing screw with magnet oil drain inclusive O-Ring gasket M26 (36611424)






725.



S6H.2


374017-03


shaft seal (37401703)






726.



S6H.2


374001-06


shaft seal rotating unit (37400106)






727.



S6H.2


361310-08


shut-off valve Discharge side brazing and welding bush Ø35 (1 3/8") (36131008)






728.



S6H.2


361311-02


shut-off valve Discharge side brazing and welding bush Ø35 (1 3/8") - 1 3/4" (36131102)






729.



S6H.2


361338-01


shut-off valve suction side Ø42 (1 5/8") (36133801)






730.



S6H.2


361802-02


sight glass Ø67 x 8,5 (36180202)






731.



S6H.2


361822-01


sight glass brazed connection Ø10 x 109 (36182201)






732.



S6H.2


382201-51


single coil spring washer spring steel galvanized DIN 127 A4, 3 (38220151)






733.



S6H.2


347100-02


solenoid valve liquid injection Brazed connection EVR 6 230V-50/60Hz Ø10 L (34710002)






734.



S6H.2


353002-08


subcooler 317 x 76 x 47 (35300208)






735.



S6H.2


362002-06


suction gas filter Ø50 x 140 (36200206)






736.



S6H.2


360503-02


suction header (36050302)






737.



S6H.2


320500-08


thrust washer Crankcase side Ø86 x Ø71 x 1,7 (32050008)






738.



S6H.2


320500-07


thrust washer oil pump side Ø62 x Ø48 x 1,7 (32050007)






739.



S6H.2


382112-01


toothed washer (38211201)






740.



S6H.2


304016-10


valve plate low pressure stage Pressure relief valve included Low pressure side D 70 mm (30401610)






741.



S6H.2


304016-02


valve plate high pressure side complete High pressure side D 70 mm (30401602)






742.



S6H.2


304016-06


valve plate low pressure stage Sealing plug included Low pressure side D 70 mm (30401606)






743.



S6H.2


382002-01


washer brass DIN 125 A4, 3 (38200201)






744.



S6H.2


383401-06


wrist pin DIN 73126 Ø20 x Ø13 x 56 (38340106)






745.



2HC-2.2


343021-01


additional fan 230V-1-50/60Hz (34302101)






746.



2HC-2.2


382091-11


Adjusting washer Motor side Ø32 x Ø22 x 2 (38209111)






747.



2HC-2.2


311112-15


bearing bush Crankcase side Ø23 x Ø20 x 25 (31111215)






748.



2HC-2.2


311112-16


bearing bush Motor side Ø25 x Ø28 x 25 (31111216)






749.



2HC-2.2


305107-73


bearing cover Crankcase side (30510773)






750.



2HC-2.2


346019-12


built-in motor 1.1 kW, 4-pole 220..240V D-3-50Hz, 380..420V Y-3-50Hz, 265..290V D-3-60Hz, 440..480V Y-3-60Hz Ø160 (34601912)






751.



2HC-2.2


344119-01


cable 1 x 2,5, 2 x 100 (34411901)






752.



2HC-2.2


380306-02


Cheese head screw discharge shut-off valve DIN 912, 10.9 M8 x 20 (38030602)






753.



2HC-2.2


382300-79


compression ring piston Ø38 x 1,5 (38230079)






754.



2HC-2.2


302129-01


connecting rod Ø55 x Ø15 x 72 (30212901)






755.



2HC-2.2


302297-90


connecting rod / piston (30229790)






756.



2HC-2.2


343417-14


connection to ground, complete (34341714)






757.



2HC-2.2


343224-02


crankcase heater 100-240V-60W-PTC Ø11 x 95 (34322402)






758.



2HC-2.2


302360-12


cylinder head 152 x 102 x 51,5 (30236012)






759.



2HC-2.2


313000-17


Disk built-in motor Ø30 x Ø10,5 x 6 (31300017)






760.



2HC-2.2


301109-50


Eccentric shaft Ø55 x 245 (30110950)






761.



2HC-2.2


320354-02


Eyebolt 51 x 30 x 4 (32035402)






762.



2HC-2.2


372938-01


Gasket Terminal plate 52 x 52 x 0,38 (37293801)






763.



2HC-2.2


372512-04


gasket valve plate 152 x 102 x 0,7 (37251204)






764.



2HC-2.2


372617-01


Gasket cylinder head Retall 152 x 102 x 0,38 (37261701)






765.



2HC-2.2


372702-03


gasket suction shut-off valve 35 x 60 x 1 (37270203)






766.



2HC-2.2


372713-01


Gasket discharge shut-off valve 24 x 52 x 1 (37271301






767.



2HC-2.2


372937-01


Gasket bearing cover Retall 202 x 202 x 0,38 (37293701)






768.



2HC-2.2


372718-01


Gasket Terminal plate Retall 32 x 48 x 0,38 (37271801)






769.



2HC-2.2


382401-30


Gasket ring oil drain copper A8 x 14 x 2 (38240130)






770.



2HC-2.2


372200-10


gasket ring sight glass teflon Ø31,9 x 1,6 x 1,8 (37220010)






771.



2HC-2.2


372830-01


gasket set (37283001)






772.



2HC-2.2


380155-07


Hexagon head screw housing cover DIN 933, 10.9 M8 x 25 (38015507)






773.



2HC-2.2


380104-05


Hexagon head screw Terminal plate DIN 933, 8.8 M6 x 18 (38010405)






774.



2HC-2.2


380155-54


hexagon head screw DIN 933, 10.9 M8 x 25 (38015554)






775.



2HC-2.2


380153-02


Hexagon head screw oil splasher plate steel DIN 933, 10.9 M5 x 10 (38015302)






776.



2HC-2.2


380056-04


hexagon head screw cylinder head DIN 931, 10.9 M10 x 65 (38005604)






777.



2HC-2.2


380169-01


Hexagon head screw built-in motor coated DIN 933, 10.9 M10 x 30 (38016901)






778.



2HC-2.2


305227-01


housing cover Motor side grey cast iron 202 x 202 x 18 (30522701)






779.



2HC-2.2


321105-02


oil splasher plate steel Ø156 x 33 (32110502)






780.



2HC-2.2


380501-54


Oval head screw terminal box aluminium galvanized DIN 7985, 4.8 M6 x 16 (38050154)






781.



2HC-2.2


384001-03


Parallel key built-in motor steel DIN 6885 A6 x 6 x 45 (38400103)






782.



2HC-2.2


302233-67


piston aluminium alloy Ø38 (30223367)






783.



2HC-2.2


347019-01


protection device SE-B1 230V-50/60Hz (34701901)






784.



2HC-2.2


366201-16


Protective Cap Span of the jaw: 20 Plastic - GRP 3/4"-16 UNF / L=36 mm (36620116)






785.



2HC-2.2


382231-02


retaining ring with lugs wrist pin spring steel DIN 472 Ø15 x 1 (38223102)






786.



2HC-2.2


343610-16


rotor fixing built-in motor (34361016)






787.



2HC-2.2


361501-22


Schrader valve oil fill connection 1/4" - 18 NPT (36150122)






788.



2HC-2.2


315027-01


Screw for grounding Terminal plate M6 x 40 (31502701)






789.



2HC-2.2


366100-01


Sealing Plug cylinder head brass 1/8" - 27 NPTF (36610001)






790.



2HC-2.2


375030-25


sealing plug Ø11,2 x 13,0 x 10 (37503025)






791.



2HC-2.2


361315-11


shut-off valve Discharge side brazed connection Ø12 L (36131511)






792.



2HC-2.2


361315-10


shut-off valve suction side brazed connection Ø16 L (36131510)






793.



2HC-2.2


361815-01


Sight Glass steel / glass 1 1/8" - 18 UNEF (36181501)






794.



2HC-2.2


382201-05


Single coil spring washer built-in motor spring steel DIN 127 A10 (38220105)






795.



2HC-2.2


320525-01


spring washer wrist pin Ø22 x Ø15,1 x 0,8 (32052501)






796.



2HC-2.2


362012-01


suction gas filter suction shut-off valve Ø34 x 62 x 41,7 (36201201)






797.



2HC-2.2


343509-01


terminal box 202 x 95 x 57 (34350901)






798.



2HC-2.2


345500-15


Terminal plate 6-Lead 52 x 52 x 39 (34550015)






799.



2HC-2.2


345504-01


Terminal plate 48 x 32 x 39 (34550401)






800.



2HC-2.2


343428-01


terminal plate kit (34342801)






801.



2HC-2.2


312103-01


Thrust washer Motor side Ø33 x Ø26,5 x 3 (31210301)






802.



2HC-2.2


382150-05


thrust washer spring steel Ø9 (38215005)






803.



2HC-2.2


304055-01


valve plate Ø38 (30405501)






804.



2HC-2.2


370000-19


vibration damper set rubber (37000019)






805.



2HC-2.2


383401-38


wrist pin DIN 73126 Ø15 x Ø10 x 30 (38340138)






806.



2HES-2


311112-16


bearing bush Motor side Ø25 x Ø28 x 25 (31111216)






807.



2HES-2


311112-15


bearing bush Crankcase side Ø23 x Ø20 x 25 (31111215)






808.



2HES-2


305107-74


bearing cover Crankcase side (30510774)






809.



2HES-2


346019-12


built-in motor 1.1 kW, 4-pole 220..240V D-3-50Hz, 380..420V Y-3-50Hz, 265..290V D-3-60Hz, 440..480V Y-3-60Hz Ø160 (34601912)






810.



2HES-2


380306-02


Cheese head screw discharge shut-off valve DIN 912, 10.9 M8 x 20 (38030602)






811.



2HES-2


382300-79


compression ring piston Ø38 x 1,5 (38230079)






812.



2HES-2


302129-01


connecting rod Ø55 x Ø15 x 72 (30212901)






813.



2HES-2


302297-90


connecting rod / piston (30229790)






814.



2HES-2


343417-14


connection to ground, complete (34341714)






815.



2HES-2


343224-02


crankcase heater 100-240V-60W-PTC Ø11 x 95 (34322402)






816.



2HES-2


302360-12


cylinder head 152 x 102 x 51,5 (30236012)






817.



2HES-2


313000-17


Disk built-in motor Ø30 x Ø10,5 x 6 (31300017)






818.



2HES-2


301109-50


Eccentric shaft Ø55 x 245 (30110950)






819.



2HES-2


320354-02


Eye bolt 51 x 30 x 4 (32035402)






820.



2HES-2


372718-01


Gasket Terminal plate Retall 32 x 48 x 0,38 (37271801)






821.



2HES-2


372938-01


Gasket Terminal plate 52 x 52 x 0,38 (37293801)






822.



2HES-2


372702-03


gasket suction shut-off valve 35 x 60 x 1 (37270203)






823.



2HES-2


372713-01


Gasket discharge shut-off valve 24 x 52 x 1 (37271301)






824.



2HES-2


372617-01


Gasket cylinder head Retall 152 x 102 x 0,38 (37261701)






825.



2HES-2


372512-04


gasket valve plate 152 x 102 x 0,7 (37251204)






826.



2HES-2


372937-02


gasket bearing cover 202 x 202 x 0,38 (37293702)






827.



2HES-2


372200-10


gasket ring sight glass teflon Ø31,9 x 1,6 x 1,8 (37220010)






828.



2HES-2


382401-30


Gasket ring oil drain copper A8 x 14 x 2 (38240130)






829.



2HES-2


372830-01


gasket set (37283001)






830.



2HES-2


380155-54


hexagon head screw housing cover DIN 933, 10.9 M8 x 25 (38015554)






831.



2HES-2


380056-04


hexagon head screw cylinder head DIN 931, 10.9 M10 x 65 (38005604)






832.



2HES-2


380056-14


hexagon head screw cylinder head DIN 931, 10.9 M10 x 70 (38005614)






833.



2HES-2


380153-02


Hexagon head screw oil splasher plate steel DIN 933, 10.9 M5 x 10 (38015302)






834.



2HES-2


380169-01


Hexagon head screw built-in motor coated DIN 933, 10.9 M10 x 30 (38016901)






835.



2HES-2


380104-05


Hexagon head screw Terminal plate DIN 933, 8.8 M6 x 18 (38010405)






836.



2HES-2


305227-02


housing cover Motor side 202 x 202 x 18 (30522702)






837.



2HES-2


321105-02


oil splasher plate steel Ø156 x 33 (32110502)






838.



2HES-2


380501-54


Oval head screw terminal box aluminium galvanized DIN 7985, 4.8 M6 x 16 (38050154)






839.



2HES-2


384001-03


Parallel key built-in motor steel DIN 6885 A6 x 6 x 45 (38400103)






840.



2HES-2


302233-67


piston aluminium alloy Ø38 (30223367)






841.



2HES-2


347019-01


protection device SE-B1 230V-50/60Hz (34701901)






842.



2HES-2


366201-16


Protective Cap Span of the jaw: 20 Plastic - GRP 3/4"-16 UNF / L=36 mm (36620116)






843.



2HES-2


382231-02


retaining ring with lugs wrist pin spring steel DIN 472 Ø15 x 1 (38223102)






844.



2HES-2


361501-22


Schrader valve oil fill connection 1/4" - 18 NPTF (36150122)






845.



2HES-2


315027-01


Screw for grounding Terminal plate M6 x 40 (31502701)






846.



2HES-2


366100-01


Sealing Plug cylinder head brass 1/8" - 27 NPTF (36610001)






847.



2HES-2


361315-10


shut-off valve suction side brazed connection Ø16 L (36131510)






848.



2HES-2


361315-11


shut-off valve Discharge side brazed connection Ø12 L (36131511)






849.



2HES-2


361815-01


Sight Glass 1 1/8" - 18 UNEF (36181501)






850.



2HES-2


382201-05


Single coil spring washer built-in motor spring steel DIN 127 A10 (38220105)






851.



2HES-2


320525-01


spring washer wrist pin Ø22 x Ø15,1 x 0,8 (32052501)






852.



2HES-2


362012-04


suction gas filter suction shut-off valve LA 42 (36201204)






853.



2HES-2


343509-01


terminal box 202 x 95 x 57 (34350901)






854.



2HES-2


345504-01


Terminal plate 48 x 32 x 39 (34550401)






855.



2HES-2


345500-15


Terminal plate 6-Lead 52 x 52 x 39 (34550015)






856.



2HES-2


343428-01


terminal plate kit (34342801)






857.



2HES-2


312103-01


Thrust washer Motor side Ø33 x Ø26,5 x 3 (31210301)






858.



2HES-2


382150-05


thrust washer spring steel Ø9 (38215005)






859.



2HES-2


375079-01


Train plug (37507901)






860.



2HES-2


304055-01


valve plate Ø38 (30405501)






861.



2HES-2


370000-19


vibration damper set rubber (37000019)






862.



2HES-2


383401-38


wrist pin DIN 73126 Ø15 x Ø10 x 30 (38340138)






863.



2HL-1.2


311112-16


bearing bush Motor side Ø25 x Ø28 x 25 (31111216)






864.



2HL-1.2


311112-15


bearing bush Ø23 x Ø20 x 25 (31111215)






865.



2HL-1.2


305107-06


bearing cover (30510706)






866.



2HL-1.2


367017-01


blind flange steel 58 x 36 x 10 (36701701)






867.



2HL-1.2


320307-01


bottom plate steel 244 x 156 x 16 (32030701)






868.



2HL-1.2


345900-02


cable strap (34590002)






869.



2HL-1.2


380507-51


cheese head screw 4.8 galvanized M4 x 8 (38050751)






870.



2HL-1.2


380508-51


Cheese head screw galvanized DIN 7985, 4.8 M5 x 20 (38050851)






871.



2HL-1.2


382300-01


compression ring Ø40 x 2 (38230001)






872.



2HL-1.2


302111-01


connecting rod Ø50 x Ø12 x 85,5 (30211101)






873.



2HL-1.2


302297-49


connecting rod / piston (30229749)






874.



2HL-1.2


320318-02


connection bridge (32031802)






875.



2HL-1.2


343208-23


crankcase heater heating capacity: 70W 230V-1-50/60Hz (34320823)






876.



2HL-1.2


380507-52


Cross Recessed Raised Screw 4.8 galvanized M4 x 10 (38050752)






877.



2HL-1.2


380501-52


cross recessed raised screw Cross recessed raised 4.8 galvanized M6 x 12 (38050152)






878.



2HL-1.2


302360-17


cylinder head air-cooled Air cooled 165 x 112 x 36 (30236017)






879.



2HL-1.2


375023-02


damper element 55 Shore Ø30 x 30 (37502302)






880.



2HL-1.2


302011-01


eccentric grey cast iron Ø55 x 73 (30201101)






881.



2HL-1.2


310007-01


eccentric shaft steel Ø25 x 240,5 (31000701)






882.



2HL-1.2


389002-01


electric connector of the machine / device DIN 43650 Typ GDM 209 (38900201)






883.



2HL-1.2


327305-01


foot 242 x 30 x 8 (32730501)






884.



2HL-1.2


361110-02


gas equalising valve steel 3/4" - 14 NPTF (36111002)






885.



2HL-1.2


372509-02


gasket Ø40, 112 x 165 x 0,7 (37250902)






886.



2HL-1.2


372312-05


gasket Ø98 x Ø58 x 1 (37231205)






887.



2HL-1.2


372120-01


gasket 133 x 117 x 2 (37212001)






888.



2HL-1.2


372411-01


gasket bottom plate 176 x 156 x 1 (37241101)






889.



2HL-1.2


372315-01


gasket Ø220 x Ø178 x 1 (37231501)






890.



2HL-1.2


372609-01


gasket valve plate 165 x 112 x 1 (37260901)






891.



2HL-1.2


372702-03


gasket 35 x 60 x 1 (37270203)






892.



2HL-1.2


372138-01


gasket Ø 2,5 x 780 (37213801)






893.



2HL-1.2


375000-01


gasket ring Ø4,5 x Ø18,5 x 8,5 (37500001)






894.



2HL-1.2


372802-01


gasket set (37280201)






895.



2HL-1.2


383103-02


half length reserve taper grooved dowel pin steel DIN 1474 2,5 x 8 (38310302)






896.



2HL-1.2


345906-05


heater sleeve for 70W heater 43315 (34590605)






897.



2HL-1.2


380154-06


hexagon head screw DIN 933, 10.9 M6 x 20 (38015406)






898.



2HL-1.2


380155-05


hexagon head screw DIN 933, 10.9 M8 x 20 (38015505)






899.



2HL-1.2


380169-01


Hexagon head screw coated DIN 933, 10.9 M10 x 30 (38016901)






900.



2HL-1.2


380056-02


hexagon head screw DIN 931, 10.9 M10 x 55 (38005602)






901.



2HL-1.2


380153-02


Hexagon head screw steel DIN 933, 10.9 M5 x 10 (38015302)






902.



2HL-1.2


380155-07


Hexagon head screw DIN 933, 10.9 M8 x 25 (38015507)






903.



2HL-1.2


381101-04


hexagon nut DIN 934, 8.8 M6 (38110104)






904.



2HL-1.2


381301-02


hexagon nut brass M4 (38130102)






905.



2HL-1.2


375002-01


insulating plate 53 x 18 x 6,5 (37500201)






906.



2HL-1.2


372003-15


O-ring sight glass Ø36,3 x 1,78 (37200315)






907.



2HL-1.2


321105-01


oil splasher plate steel Ø175 x 29 (32110501)






908.



2HL-1.2


384001-03


Parallel key steel DIN 6885 A6 x 6 x 45 (38400103)






909.



2HL-1.2


302233-25


piston aluminium alloy Ø40 x 44 (30223325)






910.



2HL-1.2


375001-01


pressure bush Ø4,5 x Ø18,5 x 8,5 (37500101)






911.



2HL-1.2


325000-03


pressure spring steel Ø17,2 x Ø26 x 1,8 (32500003)






912.



2HL-1.2


347028-01


protection device SE-B2 230V-50/60Hz (34702801)






913.



2HL-1.2


366201-17


Protective Cap Span of the jaw: 20 Plastic - GRP 3/4"-16 UNF / L=43 mm (36620117)






914.



2HL-1.2


382231-01


retaining ring with lugs spring steel DIN 472 Ø12 x 1 (38223101)






915.



2HL-1.2


324309-02


retaining ring with lugs steel 33 x 20 x 1 (32430902)






916.



2HL-1.2


366202-01


sealing nut 7/16" - 20 UNF (36620201)






917.



2HL-1.2


366110-08


Sealing Plug steel 1/4" - 18NPTF (36611008)






918.



2HL-1.2


366110-01


Sealing plug steel 1/8“ - 27 NPTF (36611001)






919.



2HL-1.2


361315-02


shut-off valve brazed connection PS45/DN10/S19(12/2LA42)TX/AF1 Ø12 (1/2 (36131502)






920.



2HL-1.2


361315-10


shut-off valve brazed connection Ø16 L (36131510)






921.



2HL-1.2


361802-02


sight glass steel / glass Ø67 x 8,5 (36180202)






922.



2HL-1.2


311011-01


spacer ring eccentric Ø32 x Ø21 x 15,5 (31101101)






923.



2HL-1.2


311016-01


spacer sleeve SW36 x Ø22 x 12 (31101601)






924.



2HL-1.2


362001-03


suction gas filter Ø23 x 36 (36200103)






925.



2HL-1.2


343517-56


terminal box aluminium 250 x 178 x 76,5 (34351756)






926.



2HL-1.2


343414-07


terminal plate kit (34341407)






927.



2HL-1.2


343414-05


terminal plate kit (34341405)






928.



2HL-1.2


343414-06


terminal plate kit (34341406)






929.



2HL-1.2


315100-03


threaded key M6, Ø10 x 52 (31510003)






930.



2HL-1.2


311010-02


thrust collar Ø19 x Ø13 x 8 (31101002)






931.



2HL-1.2


320500-02


thrust washer Crankcase side Ø40 x Ø25 x 1,5 (32050002)






932.



2HL-1.2


382150-01


thrust washer spring steel S6 (38215001)






933.



2HL-1.2


320503-01


thrust washer steel Ø30 x 10,5 x 3,5 (32050301)






934.



2HL-1.2


382150-05


thrust washer spring steel Ø9 (38215005)






935.



2HL-1.2


304053-01


valve plate Ø40 (30405301)






936.



2HL-1.2


370000-02


vibration damper set 55 Shore rubber Ø30 x 30 (37000002)






937.



2HL-1.2


382021-02


washer steel DIN 9021 A6, 4 (38202102)






938.



2HL-1.2


382002-01


washer brass DIN 125 A4, 3 (38200201)






939.



2HL-1.2


383401-01


wrist pin Ø12 x 8 x 33 (38340101)






940.



4H.2


311103-06


bearing bush connecting rod Ø23 x Ø19 x 22,5 (31110306)






941.



4H.2


311100-08


bearing bush Crankcase side Ø75 x Ø70 x 70 (31110008)






942.



4H.2


311100-04


bearing bush Ø50 x Ø45 x 47,5 (31110004)






943.



4H.2


305125-03


bearing cover complete inclusive oil pump (30512503)






944.



4H.2


367015-15


blind flange steel 91 x 52 x 13. Bo. 1/8" NPTF (36701515)






945.



4H.2


302400-01


bottom plate grey cast iron 350 x 315 x 54 (30240001)






946.



4H.2


380302-05


Cheese Head Screw clamping plate DIN 912, 10.9 M12 x 50 (38030205)






947.



4H.2


380507-51


cheese head screw 4.8 galvanized M4 x 8 (38050751)






948.



4H.2


380306-32


Cheese Head Screw bearing cover DIN 912, 10.9 M10 x 30 (38030632)






949.



4H.2


380306-26


cheese head screw bottom plate DIN 912, 10.9 M10 x 55 (38030626)






950.



4H.2


367121-01


clamping plate suction shut-off valve 80 x 80 (36712101)






951.



4H.2


383021-11


clamping sleeve 10 x 0,75 x 29 (38302111)






952.



4H.2


382300-55


compression ring Piston diameter 69,96mm Ø70 x 1,5 (38230055)






953.



4H.2


382310-22


compression ring Piston diameter 69,96mm Ø70 x 1,5 (38231022)






954.



4H.2


302115-50


connecting rod (30211550)






955.



4H.2


302297-37


connecting rod / piston Ø70 (30229737)






956.



4H.2


343213-12


Crankcase heater heating capacity: 140W 230V-1-50/60Hz (34321312)






957.



4H.2


301007-03


crankshaft Stroke 55mm Ø45 x 532 (30100703)






958.



4H.2


302360-03


cylinder head water-cooled Water cooled 253 x 155 x 64 (30236003)






959.



4H.2


302360-22


cylinder head air-cooled (30236022)






960.



4H.2


347320-33


differential oil pressure cut-out MP54 115V/230V-50/60Hz 100 x 50 x 130 (34732033)






961.



4H.2


389002-01


electric connector of the machine / device DIN 43650 Typ GDM 209 (38900201)






962.



4H.2


380902-02


eye bolt DIN 580 M12 (38090202)






963.



4H.2


320314-01


fixing plate MP54 140 x 40 x 3 (32031401)






964.



4H.2


361110-03


gas equalising valve (36111003)






965.



4H.2


372616-03


gasket Retall 253 x 155 x 0,5 (37261603)






966.



4H.2


372301-02


gasket suction shut-off valve Ø70 x Ø54 x 1 (37230102)






967.



4H.2


372313-02


gasket Ø142 x Ø106,5 x 0,5 (37231302)






968.



4H.2


372511-09


gasket 253 x 155 x 1,0 Ø70 (37251109)






969.



4H.2


372200-04


gasket Pipe connection teflon Ø38 x Ø35 x 1,5 (37220004)






970.



4H.2


372303-01


gasket Pipe connection Ø52 x Ø37 x 2 (37230301)






971.



4H.2


372704-01


Gasket blind flange 91 x 52 x 1 (37270401)






972.



4H.2


372315-03


gasket housing cover Ø286 x Ø236 x 0,38 (37231503)






973.



4H.2


372415-02


gasket bottom plate (37241502)






974.



4H.2


382501-05


gasket ring NBR felt ring G58 x 50 x 4 (38250105)






975.



4H.2


382402-01


gasket ring aluminium DIN 7603 A10 x 15 x 1 (38240201)






976.



4H.2


382403-04


Gasket Ring oil drain aluminium DIN 7603 A26 x 31 x 2 (38240304)






977.



4H.2


372807-01


gasket set bearing cover Ø182 x Ø133 x 1/ 0,8/ 0,75 /0,6 /0,5 (37280701)






978.



4H.2


372812-01


gasket set (37281201)






979.



4H.2


381214-01


grooved nut M40 x 1,5 (38121401)






980.



4H.2


345906-02


heater sleeve for 140W heater 43315 (34590602)






981.



4H.2


380154-02


hexagon head screw steel DIN 933, 10.9 M6 x 12 (38015402)






982.



4H.2


380007-52


hexagon head screw suction shut-off valve galvanized DIN 931, 8.8 M12 x 80 (38000752)






983.



4H.2


380156-06


hexagon head screw blind flange coated DIN 933, 10.9 M10 x 30 (38015606)






984.



4H.2


380057-06


hexagon head screw housing cover DIN 931, 10.9 M12 x 100 (38005706)






985.



4H.2


380105-09


hexagon head screw DIN 933, 8.8 M8 x 45 (38010509)






986.



4H.2


380156-05


hexagon head screw discharge shut-off valve DIN 933, 10.9 M10 x 25 (38015605)






987.



4H.2


380155-08


hexagon head screw DIN 933, 10.9 M8 x 30 (38015508)






988.



4H.2


380057-07


hexagon head screw housing cover DIN 931, 10.9 M12 x 110 (38005707)






989.



4H.2


380056-03


hexagon head screw DIN 931, 10.9 M10 x 60 (38005603)






990.



4H.2


380155-05


hexagon head screw oil pump DIN 933, 10.9 M8 x 20 (38015505)






991.



4H.2


380154-06


hexagon head screw DIN 933, 10.9 M6 x 20 (38015406)






992.



4H.2


380339-01


Hexsocket Cheese Head Screw ISO 4762, 10.9 - A2K M10 x 30 (38033901)






993.



4H.2


300026-04


housing Ø70(30002604)






994.



4H.2


305214-02


housing cover grey cast iron Ø286 x 112 (30521402)






995.



4H.2


372003-28


O-ring Ø47x Ø4 (37200328)






996.



4H.2


372001-20


O-ring housing cover Ø126 x 4 (37200120)






997.



4H.2


372001-25


O-ring stationary ring Ø63,09 x 3,53 (37200125)






998.



4H.2


372001-19


O-ring oil pump Ø74 x 2 (37200119)






999.



4H.2


372003-15


O-ring sight glass Ø36,3 x 1,78 (37200315)






1000.



4H.2


362003-01


oil filter Ø20 x 200 (36200301)






1001.



4H.2


361101-01


oil pressure relief valve SW17 x 29 (36110101)






1002.



4H.2


360110-07


oil return system (36011007)






1003.



4H.2


384001-06


parallel key steel DIN 6885 A8 x 7 x 45 (38400106)






1004.



4H.2


327000-01


parallel pin 6H 11 x 20 (32700001)






1005.



4H.2


360101-03


pipe oil return Ø6 x 1 (36010103)






1006.



4H.2


366000-06


pipe connection discharge shut-off valve steel copper-plated brazed connection Ø28, 1 3/4" - 12 UN (36600006)






1007.



4H.2


365321-14


pipe connection steel brazing and welding bush Ø42 (1 5/8") (36532114)






1008.



4H.2


302233-97


piston aluminium alloy Ø70 (30223397)






1009.



4H.2


361100-21


pressure relief valve 34 bar 3/4" - 14 NPTF - p=34bar (36110021)






1010.



4H.2


325000-34


pressure spring steel Ø23,5 x 28 x 1,8 (32500034)






1011.



4H.2


366201-22


Protective Cap Span of the jaw: 27 Plastic - GRP M27 x 2 / L=70 mm (36620122)






1012.



4H.2


366201-19


Protective Cap Span of the jaw: 27 Plastic - GRP M24 x 2 / L=57,5 mm (36620119)






1013.



4H.2


303602-11


pulley Taper-lock bush grey cast iron Ø224, 5R, SPA (30360211)






1014.



4H.2


382231-04


retaining ring with lugs spring steel DIN 472 Ø20 x 1 (38223104)






1015.



4H.2


382141-01


retaining ring with lugs spring steel DIN 6796 - FSt A8 (38214101)






1016.



4H.2


361500-22


Schrader valve (36150022)






1017.



4H.2


305413-07


sealing cover Ø142 x 31 (30541307)






1018.



4H.2


366202-01


sealing nut 7/16" - 20 UNF (36620201)






1019.



4H.2


366110-09


sealing plug bottom plate steel 3/8" - 18 NPTF (36611009)






1020.



4H.2


366110-01


Sealing plug steel 1/8“ - 27 NPTF (36611001)






1021.



4H.2


366110-02


Sealing Plug steel 1/4" - 18 NPTF (36611002)






1022.



4H.2


366110-05


sealing plug gas equalising bore steel 3/4" - 14 NPTF (36611005)






1023.



4H.2


366110-10


sealing plug oil equalising bore steel 1/2" - 14 NPTF (36611010)






1024.



4H.2


366112-02


sealing screw conic M12 x 1,5 (36611202)






1025.



4H.2


380391-55


sealing screw conic brass R 3/4 (38039155)






1026.



4H.2


366114-24


sealing screw with magnet oil drain inclusive O-Ring gasket M26 (36611424)






1027.



4H.2


374017-03


shaft seal (37401703)






1028.



4H.2


374001-06


shaft seal rotating unit (37400106)






1029.



4H.2


361310-07


shut-off valve Discharge side brazing and welding bush Ø28 (1 1/8") (36131007)






1030.



4H.2


361338-01


shut-off valve suction side Ø42 (1 5/8") (36133801)






1031.



4H.2


361802-02


sight glass Ø67 x 8,5 (36180202)






1032.



4H.2


382201-51


single coil spring washer spring steel galvanized DIN 127 A4, 3 (38220151)






1033.



4H.2


362004-01


suction gas filter Ø228 x 32 (36200401)






1034.



4H.2


320500-08


thrust washer Crankcase side Ø86 x Ø71 x 1,7 (32050008)






1035.



4H.2


320500-07


thrust washer oil pump side Ø62 x Ø48 x 1,7 (32050007)






1036.



4H.2


382150-01


thrust washer spring steel S6 (38215001)






1037.



4H.2


382112-01


toothed washer (38211201)






1038.



4H.2


304051-02


valve plate Ø70 (30405102)






1039.



4H.2


382002-01


washer brass DIN 125 A4, 3 (38200201)






1040.



6H.2


311103-06


bearing bush connecting rod Ø23 x Ø19 x 22,5 (31110306)






1041.



6H.2


311100-08


bearing bush Crankcase side Ø75 x Ø70 x 70 (31110008)






1042.



6H.2


311100-04


bearing bush Ø50 x Ø45 x 47,5 (31110004)






1043.



6H.2


305125-03


bearing cover complete inclusive oil pump (30512503)






1044.



6H.2


367015-15


blind flange steel 91 x 52 x 13. Bo. 1/8" NPTF (36701515)






1045.



6H.2


302400-01


bottom plate grey cast iron 350 x 315 x 54 (30240001)






1046.



6H.2


380306-23


Cheese Head Screw discharge shut-off valve DIN 912, 10.9 M10 x 25 (38030623)






1047.



6H.2


380306-26


cheese head screw bottom plate DIN 912, 10.9 M10 x 55 (38030626)






1048.



6H.2


380507-51


cheese head screw 4.8 galvanized M4 x 8 (38050751)






1049.



6H.2


380306-32


Cheese Head Screw bearing cover DIN 912, 10.9 M10 x 30 (38030632)






1050.



6H.2


367121-02


Clamping Plate suction shut-off valve 110 x 110 (36712102)






1051.



6H.2


383021-11


clamping sleeve 10 x 0,75 x 29 (38302111)






1052.



6H.2


382300-55


compression ring Piston diameter 69,96mm Ø70 x 1,5 (38230055)






1053.



6H.2


382310-22


compression ring Piston diameter 69,96mm Ø70 x 1,5 (38231022)






1054.



6H.2


302115-50


connecting rod (30211550)






1055.



6H.2


302297-37


connecting rod / piston Ø70 (30229737)






1056.



6H.2


343213-12


Crankcase heater heating capacity: 140W 230V-1-50/60Hz (34321312)






1057.



6H.2


301007-08


crankshaft Stroke 55mm Ø45 x 554 (30100708)






1058.



6H.2


302360-22


cylinder head air-cooled (30236022)






1059.



6H.2


302360-03


cylinder head water-cooled Water cooled 253 x 155 x 64 (30236003)






1060.



6H.2


347320-33


differential oil pressure cut-out MP54 115V/230V-50/60Hz 100 x 50 x 130 (34732033)






1061.



6H.2


389002-01


electric connector of the machine / device capacity control DIN 43650 Typ GDM 209 (38900201)






1062.



6H.2


380902-02


eye bolt DIN 580 M12 (38090202)






1063.



6H.2


320314-01


fixing plate MP54 140 x 40 x 3 (32031401)






1064.



6H.2


367023-01


flange steel 91 x 48 x 52, 1 3/4" (36702301)






1065.



6H.2


361110-01


gas equalising valve (36111001)






1066.



6H.2


372200-04


gasket Pipe connection teflon Ø38 x Ø35 x 1,5 (37220004)






1067.



6H.2


372315-03


gasket housing cover Ø286 x Ø236 x 0,38 (37231503)






1068.



6H.2


372616-03


gasket Retall 253 x 155 x 0,5 (37261603)






1069.



6H.2


372704-01


Gasket blind flange 91 x 52 x 1 (37270401)






1070.



6H.2


372415-02


gasket bottom plate (37241502)






1071.



6H.2


372313-02


gasket Ø142 x Ø106,5 x 0,5 (37231302)






1072.



6H.2


372303-02


Gasket Pipe connection Ø75 x Ø61 x 2 (37230302)






1073.



6H.2


372511-09


gasket 253 x 155 x 1,0 Ø70 (37251109)






1074.



6H.2


372301-03


gasket suction shut-off valve Ø76 x Ø60 x 1 (37230103)






1075.



6H.2


382501-05


gasket ring NBR felt ring G58 x 50 x 4 (38250105)






1076.



6H.2


382403-04


Gasket Ring oil drain aluminium DIN 7603 A26 x 31 x 2 (38240304)






1077.



6H.2


382402-01


gasket ring aluminium DIN 7603 A10 x 15 x 1 (38240201)






1078.



6H.2


372812-03


gasket set (37281203)






1079.



6H.2


372807-01


gasket set bearing cover Ø182 x Ø133 x 1/ 0,8/ 0,75 /0,6 /0,5 (37280701)






1080.



6H.2


381214-01


grooved nut M40 x 1,5 (38121401)






1081.



6H.2


345906-02


heater sleeve for 140W heater 43315 (34590602)






1082.



6H.2


380109-09


Hexagon Head Screw clamping plate DIN 933, 8.8 M16 x 55 (38010909)






1083.



6H.2


380154-02


hexagon head screw steel DIN 933, 10.9 M6 x 12 (38015402)






1084.



6H.2


380009-53


hexagon head screw suction shut-off valve 8.8 galvanized DIN 931, 8.8 M16 x 100 (38000953)






1085.



6H.2


380057-07


hexagon head screw housing cover DIN 931, 10.9 M12 x 110 (38005707)






1086.



6H.2


380105-09


hexagon head screw DIN 933, 8.8 M8 x 45 (38010509)






1087.



6H.2


380156-06


hexagon head screw blind flange coated DIN 933, 10.9 M10 x 30 (38015606)






1088.



6H.2


380056-03


hexagon head screw DIN 931, 10.9 M10 x 60 (38005603)






1089.



6H.2


380057-06


hexagon head screw housing cover DIN 931, 10.9 M12 x 100 (38005706)






1090.



6H.2


380155-08


hexagon head screw DIN 933, 10.9 M8 x 30 (38015508)






1091.



6H.2


380155-05


hexagon head screw oil pump DIN 933, 10.9 M8 x 20 (38015505)






1092.



6H.2


380154-06


hexagon head screw DIN 933, 10.9 M6 x 20 (38015406)






1093.



6H.2


380339-01


Hexsocket Cheese Head Screw ISO 4762, 10.9 - A2K M10 x 30 (38033901)






1094.



6H.2


300026-06


housing Ø70 (30002606)






1095.



6H.2


305214-01


housing cover grey cast iron Ø286 x 112 (30521401)






1096.



6H.2


372001-19


O-ring oil pump Ø74 x 2 (37200119)






1097.



6H.2


372001-20


O-ring housing cover Ø126 x 4 (37200120)






1098.



6H.2


372003-28


O-ring Ø47x Ø4 (37200328)






1099.



6H.2


372003-15


O-ring sight glass Ø36,3 x 1,78 (37200315)






1100.



6H.2


372001-25


O-ring stationary ring Ø63,09 x 3,53 (37200125)






1101.



6H.2


362003-01


oil filter Ø20 x 200 (36200301)






1102.



6H.2


361101-01


oil pressure relief valve SW17 x 29 (36110101)






1103.



6H.2


360110-07


oil return system (36011007)






1104.



6H.2


384001-06


parallel key steel DIN 6885 A8 x 7 x 45 (38400106)






1105.



6H.2


327000-01


parallel pin 6H 11 x 20 (32700001)






1106.



6H.2


360101-03


pipe oil return Ø6 x 1 (36010103)






1107.



6H.2


366000-07


pipe connection discharge shut-off valve steel copper-plated brazed connection Ø35, 1 3/4" - 12 UN (36600007)






1108.



6H.2


365321-03


Pipe Connection brazed and welding bush steel Ø54 (2 1/8") (36532103)






1109.



6H.2


302233-97


piston aluminium alloy Ø70 (30223397)






1110.



6H.2


361100-21


pressure relief valve 34 bar 3/4" - 14 NPTF - p=34bar (36110021)






1111.



6H.2


325000-34


pressure spring steel Ø23,5 x 28 x 1,8 (32500034)






1112.



6H.2


366201-19


Protective Cap Span of the jaw: 27 Plastic - GRP M24 x 2 / L=57,5 mm (36620119)






1113.



6H.2


375014-05


Protective Cap Span of the jaw: 36 Plastic - GRP M36 x 1,5 / L=67 mm (37501405)






1114.



6H.2


303602-11


pulley Taper-lock bush grey cast iron Ø224, 5R, SPA (30360211)






1115.



6H.2


382231-04


retaining ring with lugs spring steel DIN 472 Ø20 x 1 (38223104)






1116.



6H.2


382141-01


retaining ring with lugs spring steel DIN 6796 - FSt A8 (38214101)






1117.



6H.2


361500-22


Schrader valve (36150022)






1118.



6H.2


305413-07


sealing cover Ø142 x 31 (30541307)






1119.



6H.2


366202-01


sealing nut 7/16" - 20 UNF (36620201)






1120.



6H.2


366110-01


Sealing plug steel 1/8“ - 27 NPTF (36611001)






1121.



6H.2


366110-10


sealing plug oil equalising bore steel 1/2" - 14 NPTF (36611010)






1122.



6H.2


366110-05


sealing plug gas equalising bore steel 3/4" - 14 NPTF (36611005)






1123.



6H.2


366110-09


sealing plug bottom plate steel 3/8" - 18 NPTF (36611009)






1124.



6H.2


366110-02


Sealing Plug steel 1/4" - 18 NPTF (36611002)






1125.



6H.2


366112-02


sealing screw conic M12 x 1,5 (36611202)






1126.



6H.2


380391-55


sealing screw conic brass R 3/4 (38039155)






1127.



6H.2


366114-24


sealing screw with magnet oil drain inclusive O-Ring gasket M26 (36611424)






1128.



6H.2


374001-06


shaft seal rotating unit (37400106)






1129.



6H.2


374017-03


shaft seal (37401703)






1130.



6H.2


361311-02


shut-off valve Discharge side brazing and welding bush Ø35 (1 3/8") - 1 3/4" (36131102)






1131.



6H.2


361338-04


Shut-Off Valve suction side Ø54 (2 1/8") (36133804)






1132.



6H.2


361802-02


sight glass Ø67 x 8,5 (36180202)






1133.



6H.2


382201-51


single coil spring washer spring steel galvanized DIN 127 A4, 3 (38220151)






1134.



6H.2


362004-01


suction gas filter Ø228 x 32 (36200401)






1135.



6H.2


320500-08


thrust washer Crankcase side Ø86 x Ø71 x 1,7 (32050008)






1136.



6H.2


382150-01


thrust washer spring steel S6 (38215001)






1137.



6H.2


320500-07


thrust washer oil pump side Ø62 x Ø48 x 1,7 (32050007)






1138.



6H.2


382112-01


toothed washer (38211201)






1139.



6H.2


304051-02


valve plate Ø70 (30405102)






1140.



6H.2


382002-01


washer brass DIN 125 A4, 3 (38200201)






1141.



6H.2


383401-06


wrist pin DIN 73126 Ø20 x Ø13 x 56 (38340106)







Manufacturers of BITZER COMPRESSOR PARTS
