COMPRESSOR PARTS > BITZER > G

Sr. No.


Model

OEM Part No.

Description

1.



2GC


302297-91


Piston - Piston Ring - Conrod Assy -Std-To Fit Bitzer 2Gc2 ( 41Mm )






2.



4G, 6G


302297-31


Piston - Piston Ring - Conrod Assy -Std-To Fit Bitzer 4G,S4G ( 75 Mm )






3.



4G, 6G


302297-40


Piston - Piston Ring - Conrod Assy-Std -To Fit Bitzer 4G20,4G30,6G-30.2,6G40 ( 75 Mm )






4.



2GC, 4FC


302233-70


Piston - Pin 41.0(Std)X10.8Xp1.48X150319 -To Fit Bitzer 2Gc2,4Fc-3.2,4Fc-5.2






5.



4G, 6G


302233-96


Piston - Pin 75.0(Std)X 18.0Xcr1.50Xp1.50X200559-To Fit Bitzer S4G12,G






6.



4J, 6J, 4H, 6H, 4G, 6G


383401-06


Piston - Pin 20.0X55.9-To Fit Bitzer M,J,H,G






7.



4J, 6J, 4H, 6H, 4G, 6G


302115-01


Conrod 45.0(Std)/79.4(Std)/20.0/Bush -To Fit Bitzer S4G12,J,F,H,G






8.



4J, 6J, 4H, 6H, 4G, 6G



Conrod 45.0(-0.250)/79.4(+0.125)/ 20.0/Bush-To Fit Bitzer S4G12,J,F,H






9.



4J, 6J, 4H, 6H, 4G, 6G



Conrod 45.0(-0.500)/79.4(+0.250)/ 20.0/Bush-To Fit Bitzer S4G12,J,F,H






10.



4J, 6J, 4H, 6H, 4G, 6G



Conrod 45.0(-1.000)/79.4(+0.500)/ 20.0/Bush-To Fit Bitzer S4G12,J,F,H






11.



2GC, 2FC


302129-01


Conrod 55.0(Std)-36.9(Std)-15.0 -To Fit Bitzer 2Hc1,2Hc2,2Gc2,2Fc2,2Fc3






12.



2GC, 2 FC



Conrod 55.0(-0.25Mm)-To Fit Bitzer 2Hc1,2Hc2,2Gc2,2Fc2,2Fc3






13.



2GC, 2FC



Conrod 55.0(0.50Mm)-To Fit Bitzer 2Hc1,2Hc2,2Gc2,2Fc2,2Fc3






14.



2GC, 2FC


382300-82


Piston Ring 41.0(Std)-P1.50-To Fit Bitzer 2Gc2,4Fc






15.



2GC, 2FC


382300-84


Piston Ring 41.0(Std)-Cr1.00-To Fit Bitzer 2Gc,2Ges,4Fc,4Fes






16.



4G, 6G


382300-58


Piston Ring 75.0(Std)-Cr1.50-To Fit Bitzer 4G,8Gc60,4Ge,6G,6Ge,8Gc50, 8Ge50,8Ge60,S6G,4G.2,6G.2






17.



4G, 6G


382310-25


Piston Ring 75.0(Std)-P1.50-To Fit Bitzer 4G,8Gc60,4Ge,6G, 6Ge,8Gc50, 8Ge50,8Ge60,S6G,4G.2,6G.2






18.



4G, 4H, 4J



Discharge Reed 43.5X16.0X0.3-To Fit Bitzer 4J13,4H15,4G20,6F50,S6J16






19.



F, G, H, J, P



Discharge Spring 43.5X16.0X0.3-To Fit Bitzer G,H,J,M,F,P,S6H






20.



F, G, H, J



Discharge Reed 50.0X16.5X0.3-To Fit Bitzer J,M,H,G,F






21.



4EC, 8GC



Discharge Reed 50.5X19.0X0.4-To Fit Bitzer 2Dl3,4Ec4,8Gc60






22.



4EC, 8GC



Discharge Spring 50.5X19.0X0.4-To Fit Bitzer 2Dl3,4Ec4,8Gc60






23.



G



Suction Reed 84.5X19.2X0.6 For Piston 75-To Fit Bitzer G






24.



4G, 6G



Suction Reed 85.5X19.0-To Fit Bitzer 4/6G






25.



8GC



Suction Reed 85.5X50.1X0.6-To Fit Bitzer 8Gc50/60






26.



4G, 4H


301007-07


Crankshaft 44.9X44.9(2+2)X44.9 -522Mm-To Fit Bitzer 4G-20.2,4G-30.2, 4H-25.2,S4G12






27.



6G


301007-16


Crankshaft 44.9X44.9(3+3)X44.9 X41.9-603Mm-To Fit Bitzer 6F50, 6G30.2,6G-40.2,6F40






28.



2FC, 2GC, 2HC


311112-05


Bearing Pump Side(Teflon) 23.0X20.0(Std)X25.0-To Fit Bitzer 2Fc,2Fl,2Gc,2Gl,2Hc,2Kc






29.



2G, 2H


311112-06


Bearing Motor Side(Teflon) 28.0X25.0(Std)X25.0-To Fit Bitzer 2Hl1,2Gl2,2Fl2






30.



N, T, F, G, H, J



Main Bushing Insert 50.0X45.0(-0.25Mm) -To Fit Bitzer N,T,F,G,H,J, S4G,S6F,S6H,S6J






31.



N, T, F, G, H, J



Main Bushing Insert 50.0X45.0(-0.50Mm) -To Fit Bitzer N,T,F,G,H,J, S4G,S6F,S6H,S6J






32.



N, T, F, G, H, J


311100-04


Main Bush Insert 50.0X45.0(Std)X47.0- 3Hole-To Fit Bitzer N,T,F,G,H, J,S4G,S6F,S6H,S6J






33.



8FC, 8GC



Bearing Bush 55.0X50.0(-0.25Mm) X50.0-3 Hole-To Fit Bitzer 8Fc70,8Fc60,8Gc50,8Gc60






34.



8FC, 8GC



Bearing Bush 55.0X50.0(-0.50Mm) X50.0-3 Hole-To Fit Bitzer 8Fc70,8Fc60,8Gc50,8Gc60






35.



8FC, 8GC


311112-18


Bearing Bush 55.0X50.0(Std)X50.0-3 Hole-To Fit Bitzer 8Fc70,8Fc60,8Gc50,8Gc60






36.



G, H


311100-08


Main Bush 75.0X70.1(Std)X70.0-3 Hole-To Fit Bitzer G,H,6F,S6F2,S6G2,S6H2






37.



4J, 4H, 6F, 6G


374027-01


Shaft Seal,Thrust Collar And Spring Set 42.1-To Fit Bitzer 4J-13.2,4H-25.2,6F-40.2,6G-40.2






38.



4H, 6F, 6G


374017-03


Shaft Seal Assy-Metal Bellows 50.0-To Fit Bitzer 4H/6F/6G/Open






39.



8FC, 8GC


320500-09


Thrust Washer 65.0X53.0X1.9-To Fit Bitzer 8Fc60,8Gc50






40.



4G, 4H, 6F, 6G, 6H


320500-08


Thrust Washer 86.0X71.0X1.7-Oil Groove(4)-To Fit Bitzer 4G.2,4H.2,6F.2, 6G.2,6H.2,S6F.2,S6G.2,S6H.2






41.



2FC, 2GC, 2HC


372617-01


Head Gasket 128.1-To Fit Bitzer 2Fc2,2Gc2,2Hc2






42.



2GC


372513-04


Valve Plate Gasket(41.0) 128.1X42.6-To Fit Bitzer 2Gc2






43.



4G, 6G


304051-03


Valve Plate Assy Without Gasket(60.0,75.0) 10.0X8-15.4X4-24.0-To Fit Bitzer 4G-30.2,6G.2,6G-40.2






44.



4G, 6G


304016-13


Valve Plate Assy Without Gasket(60.0,75.0) 10.0X8-15.4X4-3/4Nptf-To Fit Bitzer S4G12,S6G,S6G25






45.



4G, 4H, 6F, 6G, 6H, 6J


372616-03


Head Gasket 224.3-To Fit Bitzer 4G2,4H2,4H,4J,6F2,6F,6G2, 6G,6H,6J,S4G,S6F2,S6F, S6G2,S6G,S6H2,S6H,S6J






46.



6J, 6H, 6G, 6F


372616-04


Head Gasket 224.3-To Fit Bitzer S6J16,S6H20,S6H,S6G25,S6F30






47.



4G, 6G


372511-06


Valve Plate Gasket(75.0) 224.0X76.0-To Fit Bitzer S4G12,S6G,S6G25






48.



8GC


304060-01


Valve Plate Assy Without Gasket,Seal Plug,Relief Valve(75.0) 12.5X6-17.0X4-31.0-To Fit Bitzer 8Gc50,8Gc60






49.



8GC


372518-05


Valve Plate Gasket(75.0) 224.5X77.0-To Fit Bitzer 8Gc50






50.



6GE


304063-34


Valve Plate Complete-To Fit Bitzer 6Ge-34






51.



GE


304063-22


Valve Plate Complete-To Fit Bitzer Ge






52.



8GC


361100-29


Pressure Relief Valve(34Bar)-To Fit Bitzer 8Gc50,8Gc60






53.



4J, 4P, 4N, 4V, 4G, 6H, 6G, 4H, 6J, 6F


343416-02


Terminal Plate Kit-To Fit Bitzer 4J,4P,4N,4V,4G,6H,6G,4H,6J,6F






54.



8GC


345500-10


Terminal Plate-To Fit Bitzer 8Gc50






55.



2CC, 2DC, 2EC, 2FC, 2GC, 2HC


362012-01


Suction Gas Filter 62.1X23.5X41.6-To Fit Bitzer 2Cc,2Dc,2Ec,2Fc,2Gc,2Hc






56.



4G


362001-10


Suction Gas Filter 35.0X29.0X59.4-To Fit Bitzer 4G,S4G






57.



6F, 6G, 6H


362002-06


Suction Gas Filter 67.0X50.0X145.0-To Fit Bitzer S6F2,S6F,S6G2,S6G,S6H2,S6H,S6J






58.



F, G, H, J


362004-02


Suction Gas Filter-To Fit Bitzer F,G,H,J






59.



8FC, 8GC


362004-03


Suction Gas Filter-To Fit Bitzer 8Fc60,8Gc50






60.



G, H, F


362004-01


Suction Gas Filter-To Fit Bitzer G,H,F-Open Type






61.



G, H, F, 4J


305125-03


Bearing Cover Complete Included Oil Pump-To Fit Bitzer G,H,F,4J






62.



4G, 4H, 4J, 6F, 6J, 6GC, 4HE


362503-02


Oil Pump Assy-To Fit Bitzer 4G20,4H15,4J13,6F40,6J33,8Gc50, 4He15






63.



F, G, H, J, N


361802-02


Sight Glass 67X8.5-To Fit Bitzer H,J,F,G,N






64.



2GC


372830-02


Gasket Set(41.0)-To Fit Bitzer 2Gc-2.2






65.



4G


372812-02


Gasket Set(75.0),Open Type-To Fit Bitzer 4G.2






66.



4G


372818-01


Gasket Set(75.0,60.0)-To Fit Bitzer S4G-12.2






67.



4G, 4F


372811-04


Gasket Set(75.0)-To Fit Bitzer 4G,4F

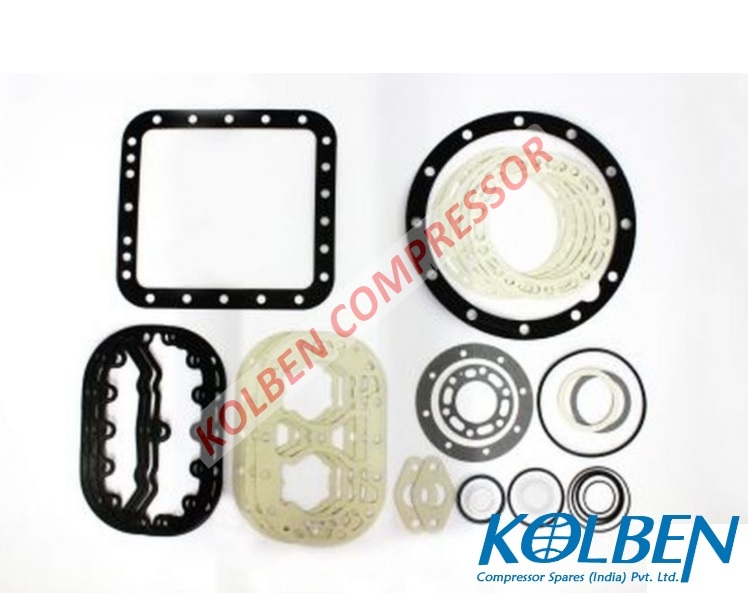

68.



6G


372812-04


Gasket Set(75.0)-To Fit Bitzer 6G.2






69.



6G


372816-03


Gasket Set(75.0)-To Fit Bitzer S6G-25.2






70.



6G


372811-08


Gasket Set(75.0)-To Fit Bitzer 6G-30.2,6G-40.2






71.



8GC


372839-01


Gasket Set(75.0)-To Fit Bitzer 8Gc-50.2,8Gc-60.2






72.



4J , 4H , 4G , 4F , 6J , 6H , 6G , 6F


311110-04


Bearing crankcase/pump (standard) 4/6-J/H/G/F






73.



4J , 4H , 4G , 4F , 6J , 6H , 6G , 6F


N/A


Bearing crankcase/pump (-25mm u/size) J/H/G/F






74.



4J , 4H , 4G , 4F , 6J , 6H , 6G , 6F


N/A


Bearing crankcase/pump (-50mm u/size) J/H/G/F






75.



4H , 4G , 4F , 6H , 6G , 6F


311100-08


Bearing seal-end (standard) 4/6H-G-F






76.



8FC , 8GC


311112-02


Bearing man for models 8FC/8GC






77.



4J , 4H , 4G , 4F , 6J , 6H , 6G , 6F


320500-06


Thrust-washer crankcase 4/6- J/H/G/F






78.



4J , 4H , 4G , 4F , 6J , 6H , 6G , 6F


320500-07


Thrust-washer pump-end 4/6- J/H/G/F






79.



4J , 4H , 4G , 4F , 6J , 6H , 6G , 6F


320500-08


Thrust-washer seal-end 4/6- J/H/G/F






80.



4J , 4H , 4G , 4F , 6J , 6H , 6G , 6F


374027-01


Thrust-collar & spring assy for models 4-6/J/H/G/F






81.



8GC , 8FC


320500-09


Thrust washer for 8GC/8FC






82.



4J , 4H , 4G , 4F , 6J , 6H , 6G , 6F


302115-01


Con-rod (standard) 4/6-J/H/G/F






83.



4J , 4H , 4G , 4F , 6J , 6H , 6G , 6F


N/A


Con-rod (-0.25mm u/size) 4-6-J/H/G/F






84.



4J , 4H , 4G , 4F , 6J , 6H , 6G , 6F


N/A


Con-rod (-0.50mm u/size) 4-6-J/H/G/F






85.



4G , 6G


372811-08


Gasket set for 75mm bore 4/6-G






86.



8GC , 8FC


372839-01


Gasket kit 8GC/8FC






87.



4J , 4H , 4G , 4F , 6J , 6H , 6G , 6F


343213-04


Heater 240v/140W 4/6- J/H/G/F






88.



6G


346318-46


Stator & Rotor set 380/420v PWS 22.0/30HP for 6M/G






89.



6G , 6F


346330-46


Stator & Rotor set 380/420v PWS 30.0/40HP for 6G/F






90.



2GC, 4FC


302233-70


Piston complete (41.00mm) 2GC/4FC






91.



4G,6G


302232-08


Piston & pin (standard) 4/6-G






92.



4J,6J,4H,6H,4G,6G


383401-06


Pin for 65/70/75mm piston 20mm o/dx56mm long






93.



4J , 4H , 4G , 4F , 6J , 6H , 6G , 6F


362500-01


Pump (1st Generation) for models 4/6-J/H/G/F






94.



4J , 4H , 4G , 4F , 6J , 6H , 6G , 6F


362503-02


Pump (2nd Generation) for models 4/6J/H/G/F






95.



2GC


372300-82


Piston ring 41mm for models 2GC/4FC






96.



6G , 4G


382300-58


Ring 75.00mm (std) top chrome 4-6/G






97.



6G , 4G


N/A


Ring 75.50mm (o/size) top chrome 4-6/G






98.



6G , 4G


382310-25


Ring 75.00mm (std) 2nd phos.4-6/G






99.



6G , 4G


N/A


Ring 75.50mm (o/size) 2nd phos.4-6/G






100.



4J , 4H , 4G , 4F , 6J , 6H , 6G , 6F


374017-03


Shaft Seal assembly for models 4/6-H-G-F






101.



4J , 4H , 4G , 4F , 6J , 6H , 6G , 6F


343416-02


Electrical plate assm 10HP+ models 4-6/J/H/G/F






102.



8G , 8FC


345500-10


Terminal plate assm 8G/FC HS64/74 CSH75






103.



4G , 6G


320201-10


Valve reed suction (75mm bore) 4/6-G






104.



6GE



Valve reed suction 75mm for models 6GE






105.



8GC



Valve reed suction for models 8GC






106.



8GC



Valve reed discharge for models 8GC






107.



8GC



Valve reed discharge spring for models 8GC






108.



4G , 6G


304051-03


Valve plate assm for models 4-6/G






109.



8GC


304060-01


Valve plate assembly (with plug) models 8GC






110.



8GC


304060-02


Valve plate assembly (with PRV) models 8GC






111.



4J , 4H , 4G , 4F , 6J , 6H , 6G , 6F


383013-03


Valve reed suction pin (2.5x8mm) for models 2/4/6






112.



4J , 4H , 4G , 4F , 6J , 6H , 6G , 6F


383011-02


Valve plate locating pin (6x20mm) models 4-6/J>F






113.



6H , 6G , 6F


N/A


Valve plate clinch stud (M5 x 16) 6H/G/F






114.



8G , 8FC


361100-29


Valve pressure relief (34 Bar)for vpa 8G/F-C






115.



4J , 4H , 4G , 4F , 6J , 6H , 6G , 6F


374017-03


BZ Shaft Seal assembly for models 4/6-H-G-F







Manufacturers of BITZER COMPRESSOR PARTS
