COMPRESSOR PARTS > BITZER > 6F

Sr. No.


Model

OEM Part No.

Description

1.



4F, 6F


302297-43


Piston - Piston Ring - Conrod Assy -Std-To Fit Bitzer 4F,6F2,6F,S6F2, S6F ( 82 Mm )

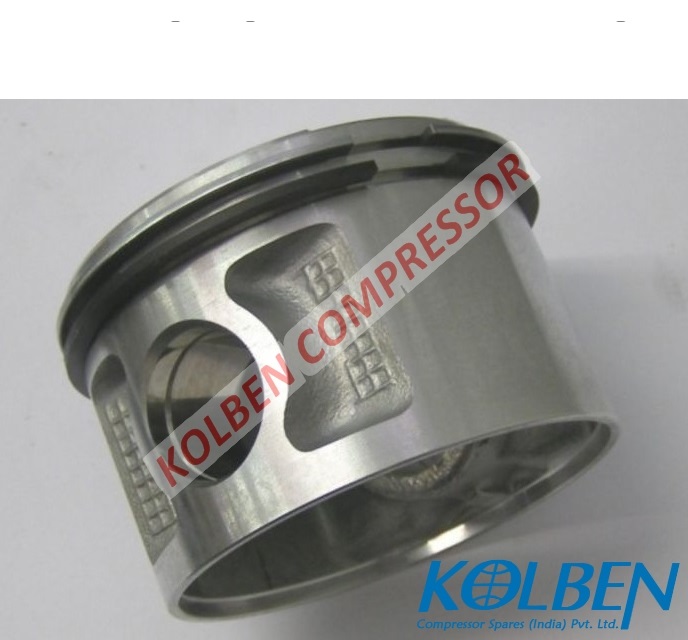

2.



4F, 6F


302233-11


Piston - Pin 82.0(Std)X 18.0Xcr1.50Xp1.50X200598-To Fit Bitzer F






3.

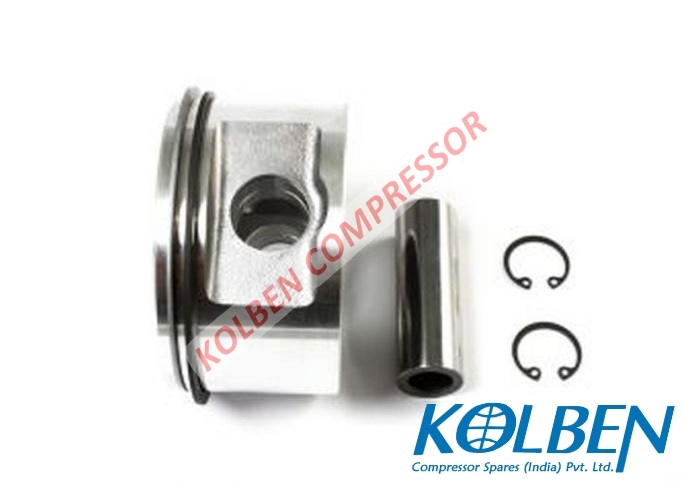

6FE


302233-95


Piston - Pin 82.0(Std)-To Fit Bitzer 6Fe,Ecoline






4.



4F, 6F


383401-26


Piston - Pin 20.0X59.8-To Fit Bitzer F






5.



4F, 6F


382300-61


Piston Ring 82.0(Std)-Cr1.50-To Fit Bitzer 4F,8Fc70,4Fe,6F,6Fe,8Fc60, 8Fe60,8Fe70,S6F,6F.2






6.



4F, 6F

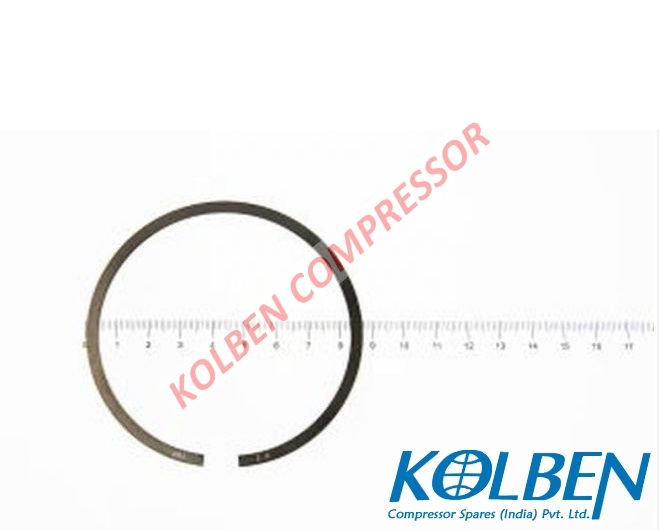

382310-28


Piston Ring 82.0(Std)-P1.50-To Fit Bitzer 4F,8Fc70,4Fe,6F,6Fe,8Fc60, 8Fe60,8Fe70,S6F,6F.2






7.



6F



Suction Reed 92.5X23.0X0.6 For Piston 82-To Fit Bitzer S6F,S6F30,S6F,6F40, 6F50,6F






8.



4J, 4H, 6F, 6G

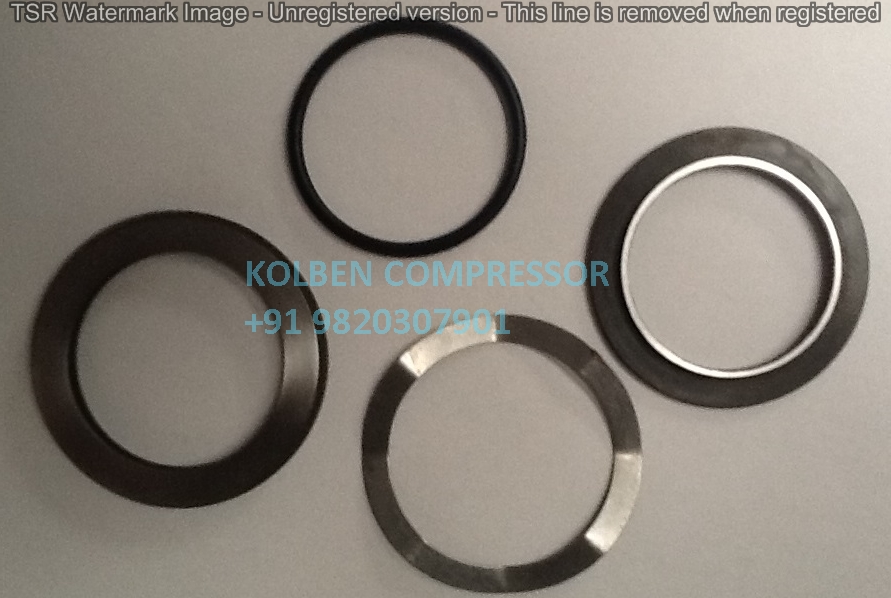

374027-01


Shaft Seal,Thrust Collar And Spring Set 42.1-To Fit Bitzer 4J-13.2,4H-25.2,6F-40.2,6G-40.2






9.



4H, 6F, 6G

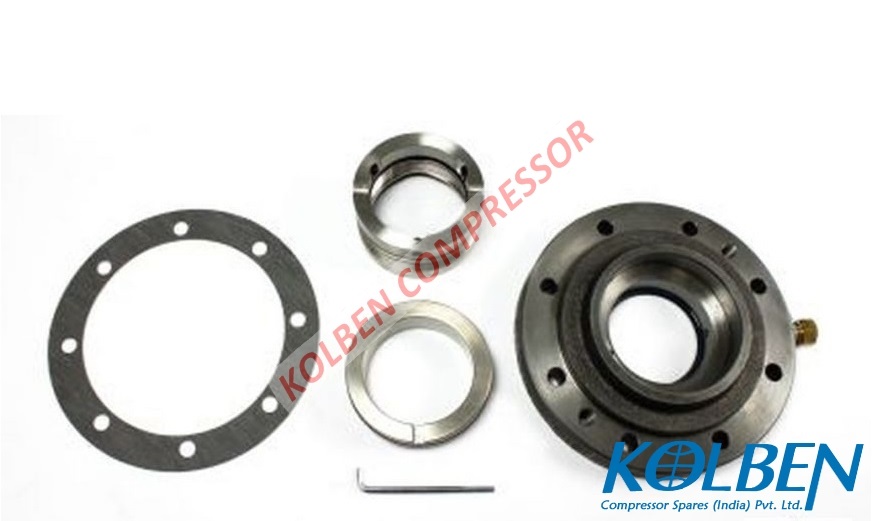

374017-03

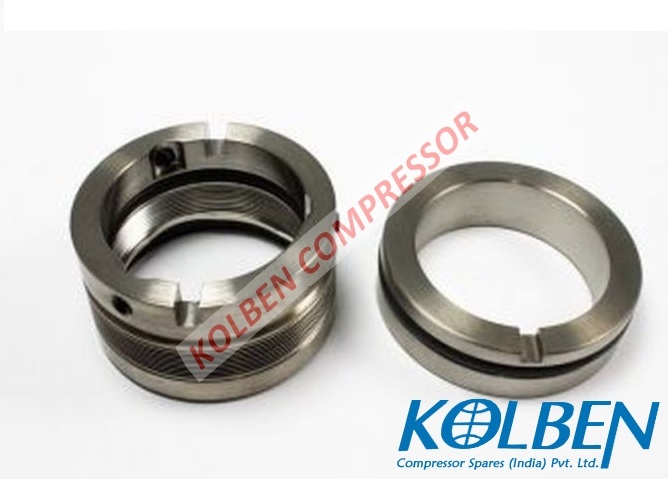

Shaft Seal Assy-Metal Bellows 50.0-To Fit Bitzer 4H/6F/6G/Open






10.



4H, 6F


320500-06


Thrust Washer 62.0X48.0X1.7-To Fit Bitzer 4J13,6F50,4H,6F

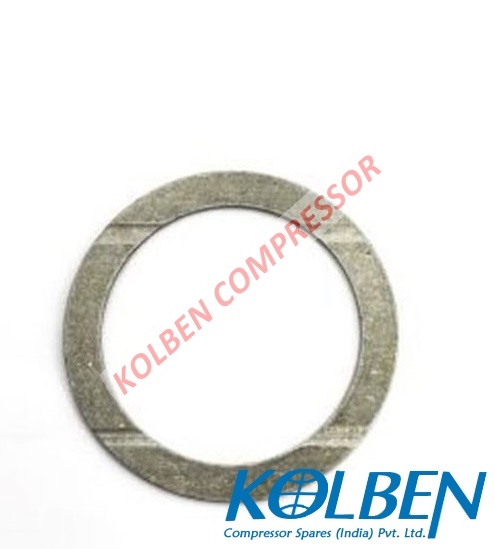

11.



4H, 6F


320500-07


Thrust Washer 62.0X48.0X1.7-To Fit Bitzer 4J13,6F50,4H,6F






12.



4G, 4H, 6F, 6G, 6H


320500-08


Thrust Washer 86.0X71.0X1.7-Oil Groove(4)-To Fit Bitzer 4G.2,4H.2,6F.2, 6G.2,6H.2,S6F.2,S6G.2,S6H.2

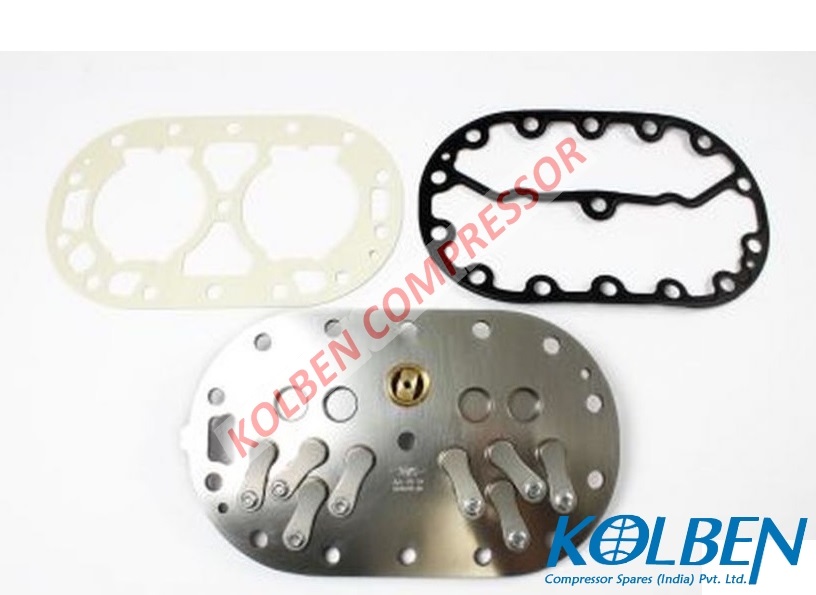

13.



6F,


304016-04

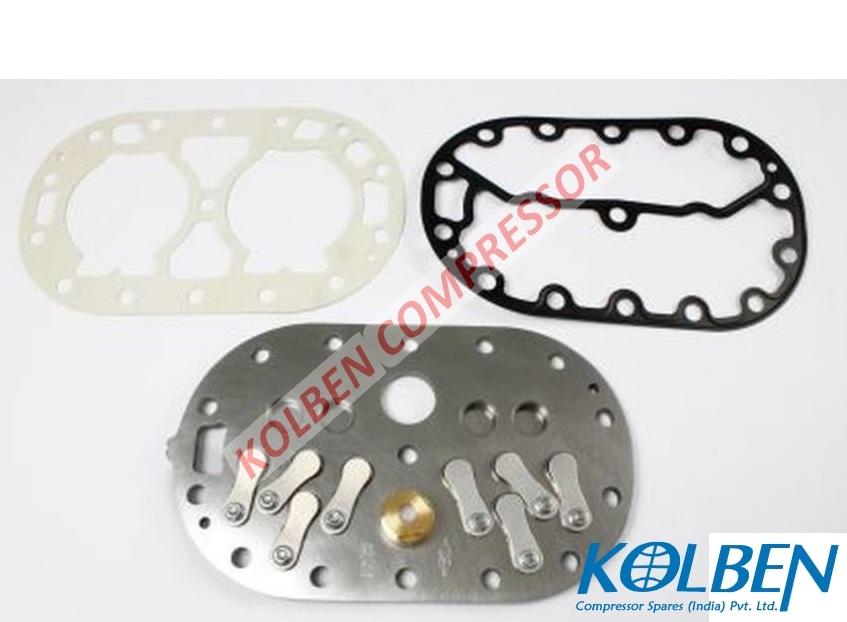

Valve Plate Assy Without Gasket(82.0) 10.0X8-18.5X4-31.0-To Fit Bitzer 6F40,6F50,6F,S6F,S6F30






14.



6F, 4N, 4P, 4T

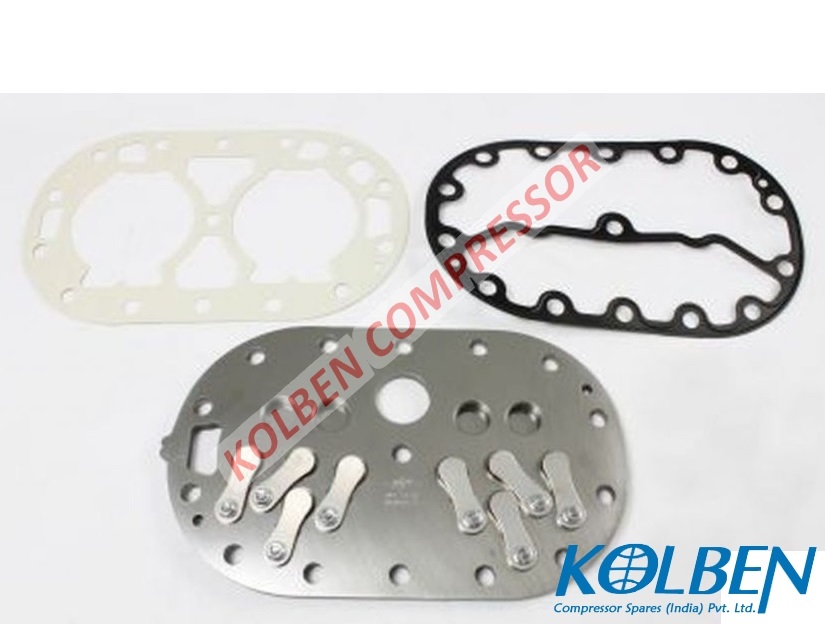

304051-15


Valve Plate Assy Without Gasket,Relief Valve(82.0) 10.0X8-18.5X4-3/4Nptf-To Fit Bitzer S6F30,S6F






15.



6F, 4N, 4P, 4T


304016-08


Valve Plate Assy Without Gasket,Seal Plug(82.0) 10.0X8-18.5X4-3/4Nptf-31.0-To Fit Bitzer S6F,S6F30






16.



6F



Valve Plate Assy Without Gasket(82.0)-To Fit Bitzer 6F40,6F50,6F






17.



6FE


304063-35


Valve Plate Complete-To Fit Bitzer 6Fe-44

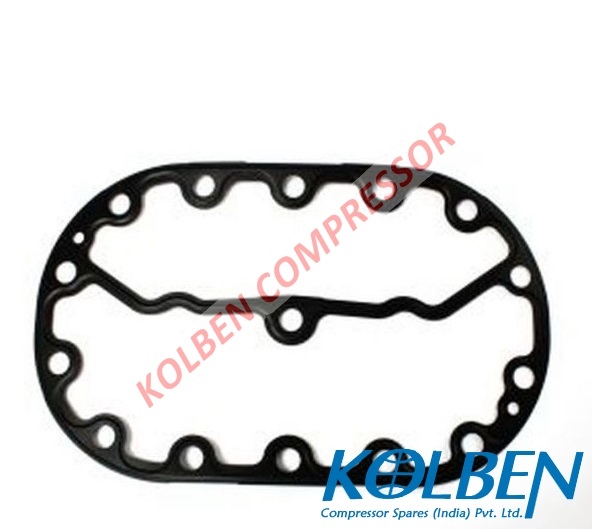

18.



4G, 4H, 6F, 6G, 6H, 6J


372616-03


Head Gasket 224.3-To Fit Bitzer 4G2,4H2,4H,4J,6F2,6F,6G2, 6G,6H,6J,S4G,S6F2,S6F, S6G2,S6G,S6H2,S6H,S6J

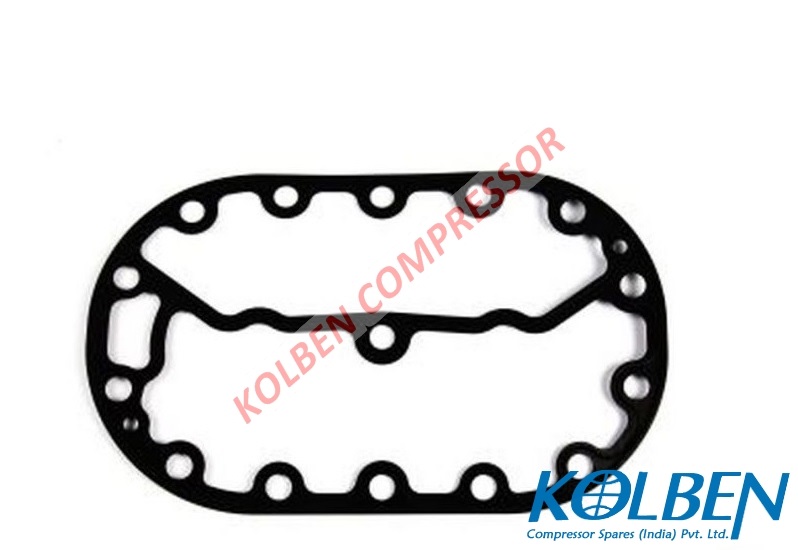

19.



6J, 6H, 6G, 6F


372616-04


Head Gasket 224.3-To Fit Bitzer S6J16,S6H20,S6H,S6G25,S6F30






20.



6F

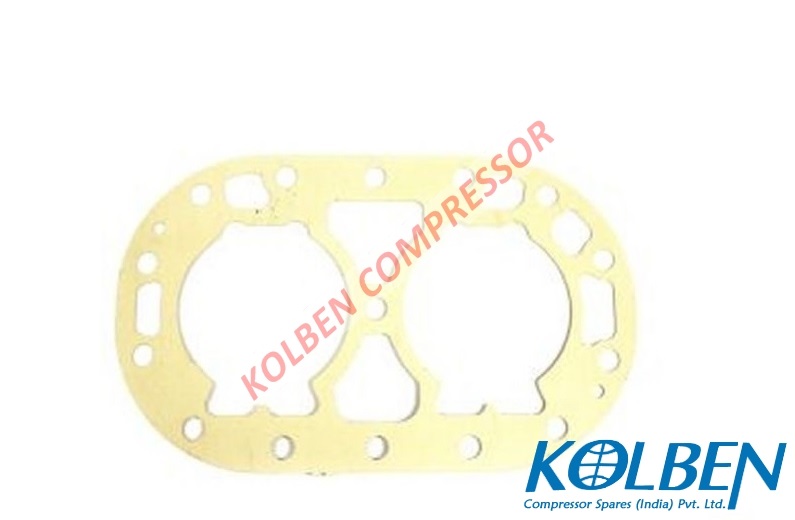

372511-07

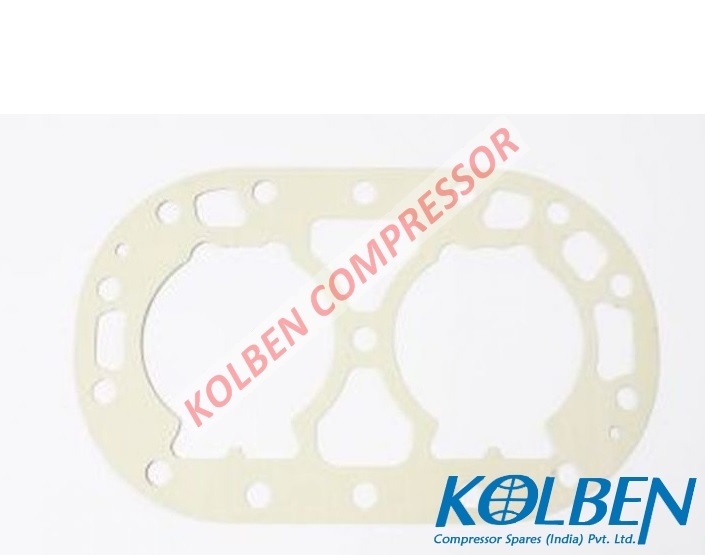

Valve Plate Gasket(82.0) 224.0X83.2-To Fit Bitzer S6F30,S6F






21.



4J, 4P, 4N, 4V, 4G, 6H, 6G, 4H, 6J, 6F

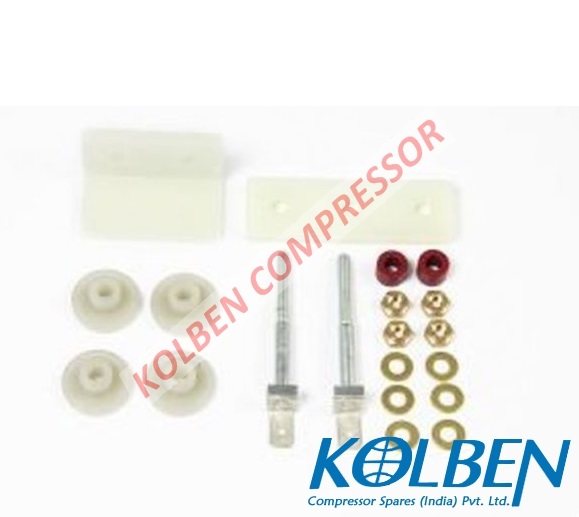

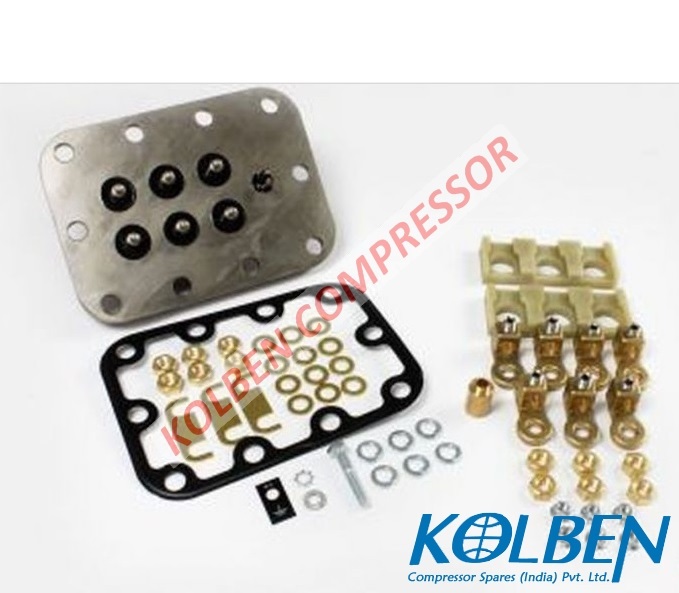

343416-02

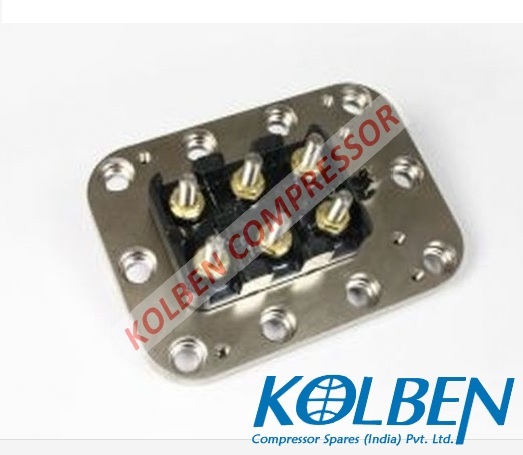

Terminal Plate Kit-To Fit Bitzer 4J,4P,4N,4V,4G,6H,6G,4H,6J,6F






22.



6F, 6G, 6H


362002-06


Suction Gas Filter 67.0X50.0X145.0-To Fit Bitzer S6F2,S6F,S6G2,S6G,S6H2,S6H,S6J






23.



4J, 6F


362003-01


Oil Filter 23.1X19.0X200.0-To Fit Bitzer 4J13,6F50,6F






24.



4G, 4H, 4J, 6F, 6J, 6GC, 4HE


362503-02


Oil Pump Assy-To Fit Bitzer 4G20,4H15,4J13,6F40,6J33,8Gc50, 4He15

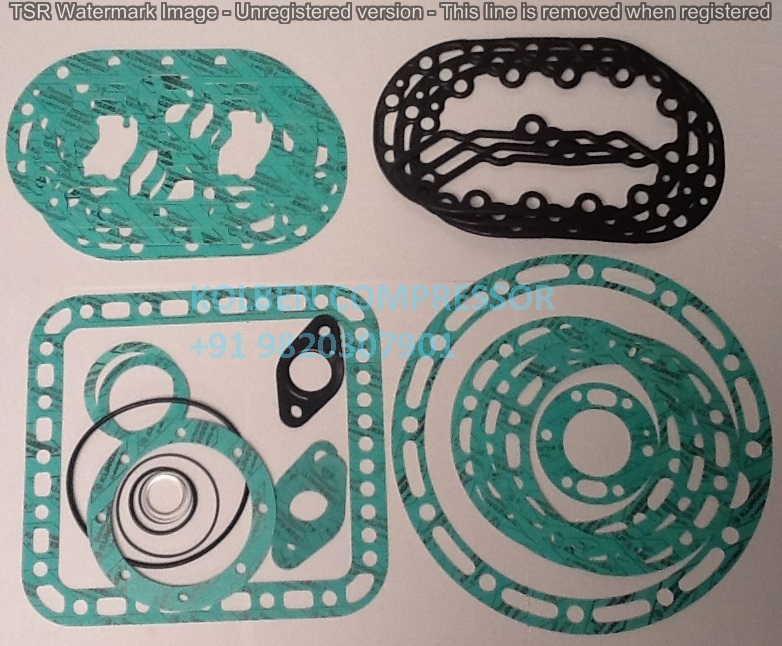

25.



6F


372812-05


Gasket Set(82.0)-To Fit Bitzer 6F.2






26.



6F


372816-04


Gasket Set(82.0)-To Fit Bitzer S6F-30.2






27.



6F


372811-09

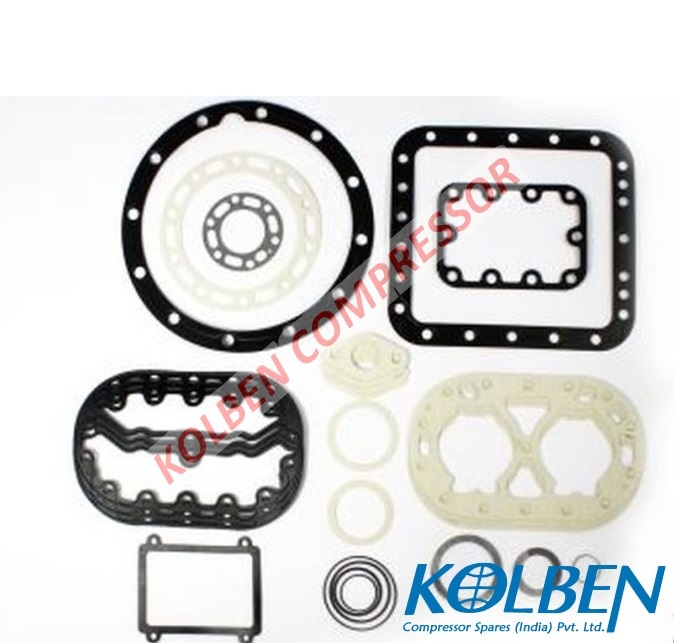

Gasket Set(82.0)-To Fit Bitzer 6F-40.2,6F-50.2






28.



4J , 4H , 4G , 4F , 6J , 6H , 6G , 6F


311110-04


Bearing crankcase/pump (standard) 4/6-J/H/G/F






29.



4J , 4H , 4G , 4F , 6J , 6H , 6G , 6F


N/A


Bearing crankcase/pump (-25mm u/size) J/H/G/F






30.



4J , 4H , 4G , 4F , 6J , 6H , 6G , 6F


N/A


Bearing crankcase/pump (-50mm u/size) J/H/G/F






31.



4H , 4G , 4F , 6H , 6G , 6F

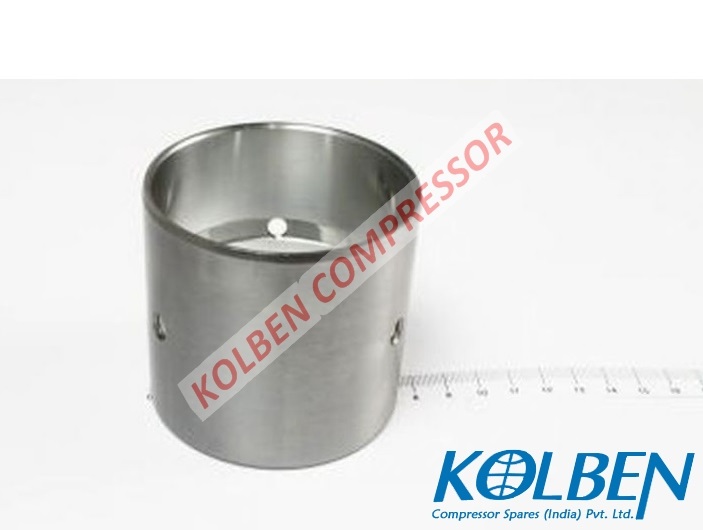

311100-08


Bearing seal-end (standard) 4/6H-G-F






32.



4J , 4H , 4G , 4F , 6J , 6H , 6G , 6F


320500-06


Thrust-washer crankcase 4/6- J/H/G/F






33.



4J , 4H , 4G , 4F , 6J , 6H , 6G , 6F


320500-07


Thrust-washer pump-end 4/6- J/H/G/F






34.



4J , 4H , 4G , 4F , 6J , 6H , 6G , 6F


320500-08


Thrust-washer seal-end 4/6- J/H/G/F






35.



4J , 4H , 4G , 4F , 6J , 6H , 6G , 6F


374027-01


Thrust-collar & spring assy for models 4-6/J/H/G/F






36.



4J , 4H , 4G , 4F , 6J , 6H , 6G , 6F

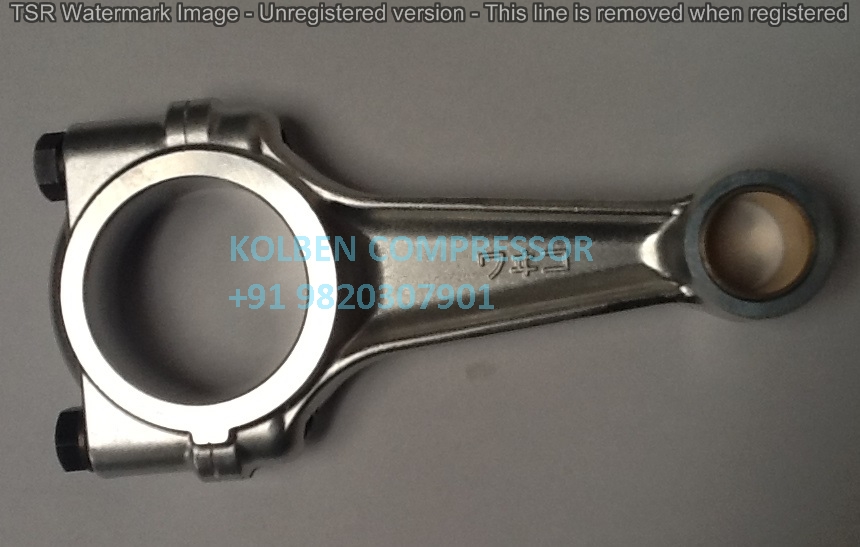

302115-01


Con-rod (standard) 4/6-J/H/G/F






37.



4J , 4H , 4G , 4F , 6J , 6H , 6G , 6F


N/A


Con-rod (-0.25mm u/size) 4-6-J/H/G/F






38.



4J , 4H , 4G , 4F , 6J , 6H , 6G , 6F


N/A


Con-rod (-0.50mm u/size) 4-6-J/H/G/F






39.



6F


372811-09


Gasket set for 82mm bore 6-F






40.



6F


372812-05


Gasket set for 82mm bore 6-F (open drive)

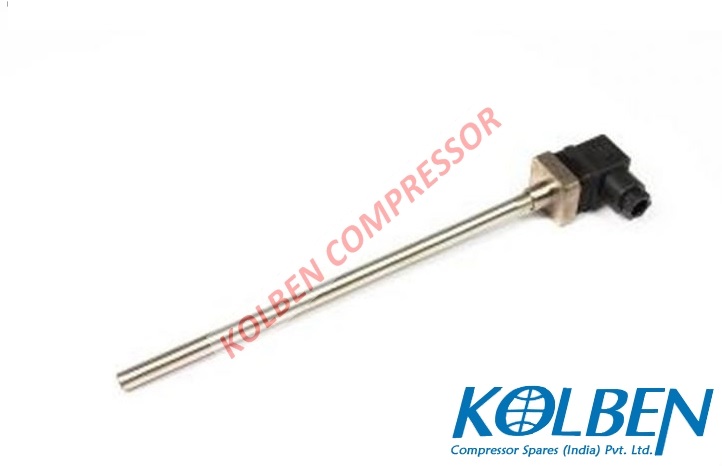

41.



4J , 4H , 4G , 4F , 6J , 6H , 6G , 6F


343213-04


Heater 240v/140W 4/6- J/H/G/F






42.



6G , 6F


346330-46


Stator & Rotor set 380/420v PWS 30.0/40HP for 6G/F






43.



6F


302232-11

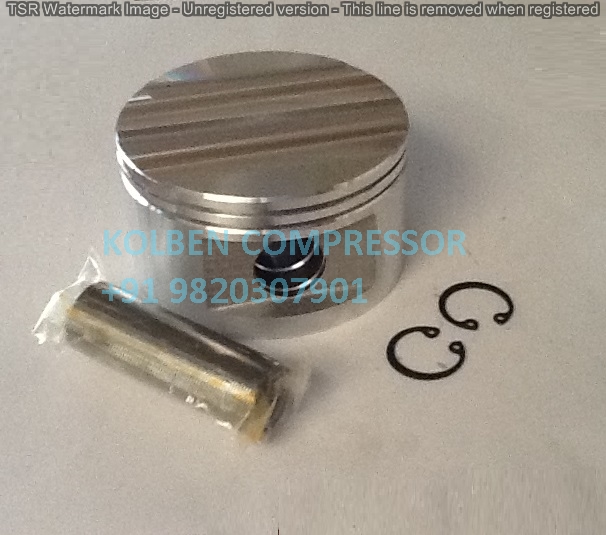

Piston & pin (standard) 6-F






44.



6F


383401-26


Piston pin 20mm o/d x 60mm l/g for models 6F






45.



4J , 4H , 4G , 4F , 6J , 6H , 6G , 6F

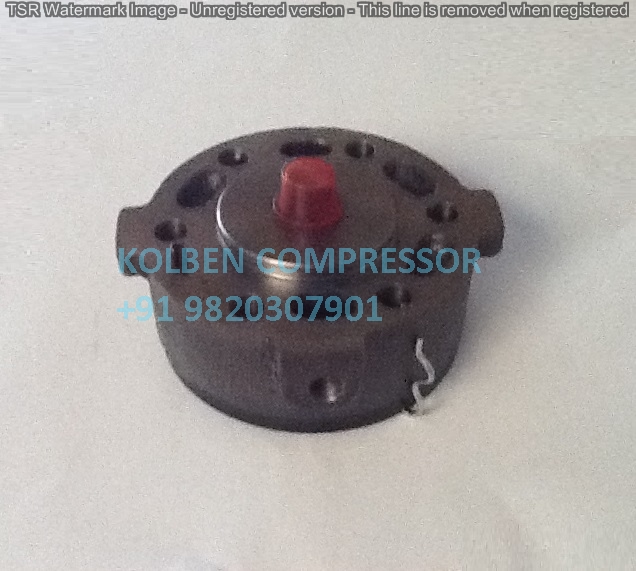

362500-01


Pump (1st Generation) for models 4/6-J/H/G/F






46.



4J , 4H , 4G , 4F , 6J , 6H , 6G , 6F


362503-02


Pump (2nd Generation) for models 4/6J/H/G/F

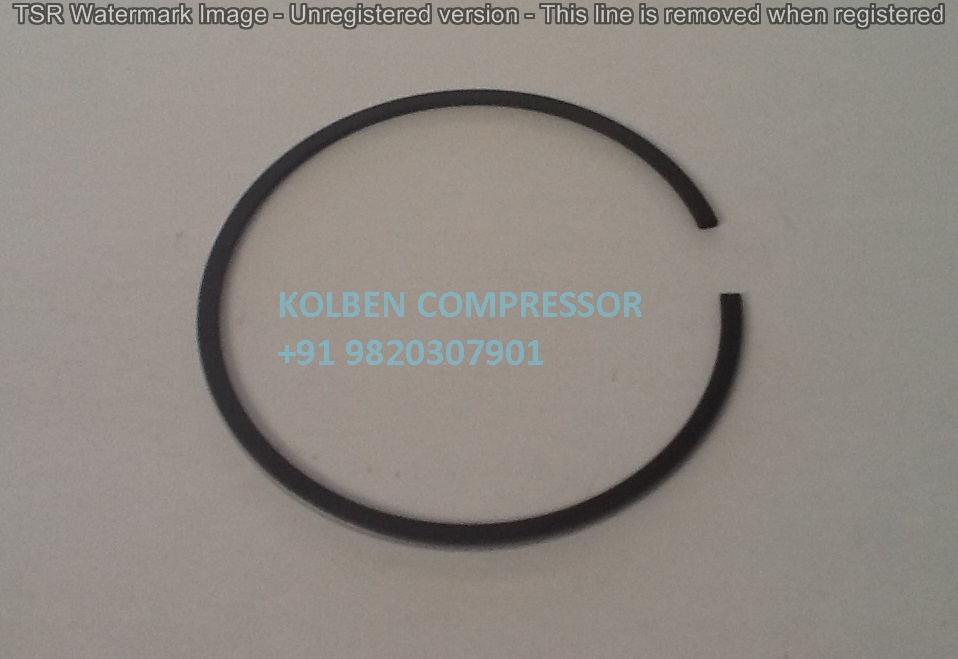

47.



6F


382310-61


Ring 82.00mm (std) top chrome 6-F






48.



6F


N/A


Ring 82.50mm (o/size) top chrome 6-F






49.



6F


382310-28


Ring 82.00mm (std) 2nd phos.6-F






50.



6F


N/A


Ring 82.50mm (o/size) 2nd phos.6-F






51.



4J , 4H , 4G , 4F , 6J , 6H , 6G , 6F


374017-03


Shaft Seal assembly for models 4/6-H-G-F






52.



4J , 4H , 4G , 4F , 6J , 6H , 6G , 6F


343416-02


Electrical plate assm 10HP+ models 4-6/J/H/G/F






53.



6F

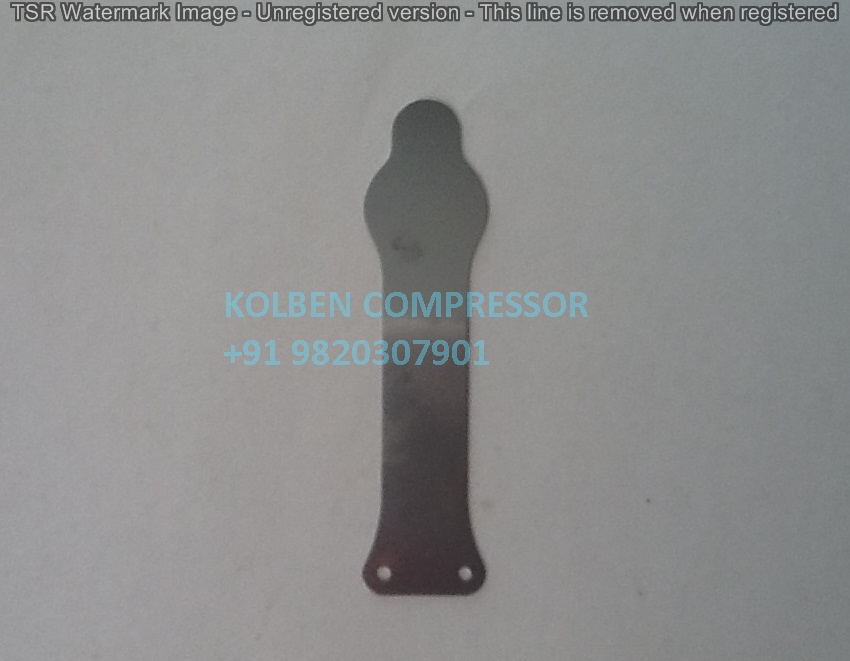

320201-07


Valve reed suction (82mm bore) 6-F

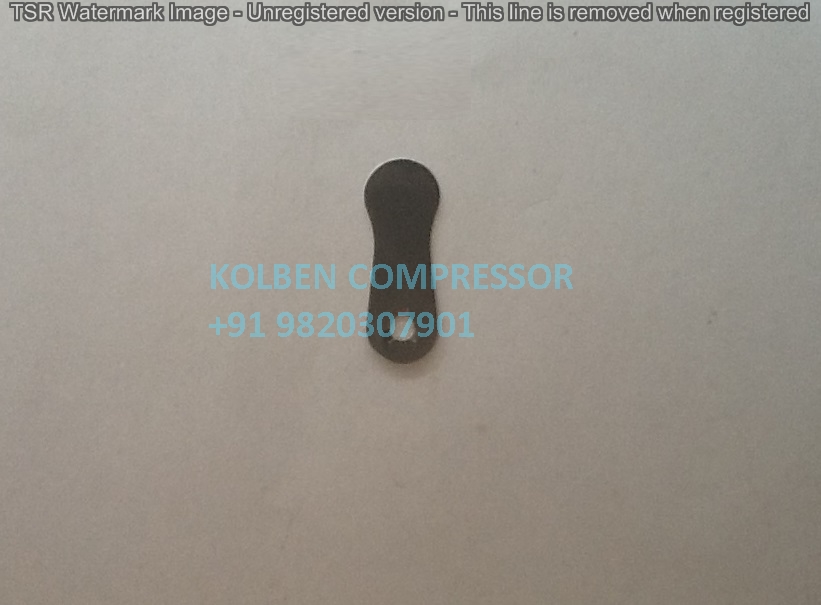

54.



4F , 4J , 6J , 6F


320210-09


Valve reed discharge (flat) 4-6J>F






55.



4F , 4J , 6J , 6F


320210-08


Valve reed discharge (spring) 4-6J>F






56.



4F , 4J , 6J , 6F

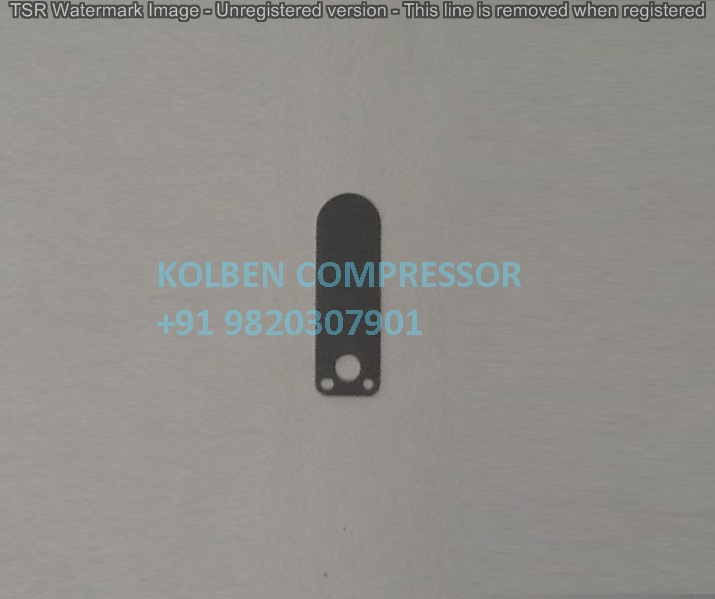

320210-06


Valve reed discharge for 1st Gen 4-6/J>F






57.



6FE



Valve reed suction 82mm for models 6FE






58.



6F


304051-15


Valve plate assm for models 6-F






59.



4J , 4H , 4G , 4F , 6J , 6H , 6G , 6F


383013-03

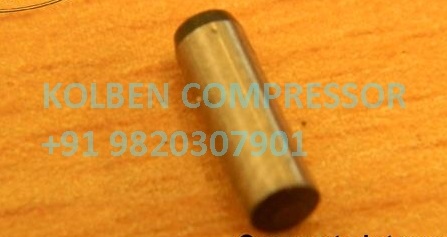

Valve reed suction pin (2.5x8mm) for models 2/4/6






60.



4J , 4H , 4G , 4F , 6J , 6H , 6G , 6F


383011-02


Valve plate locating pin (6x20mm) models 4-6/J>F






61.



6H , 6G , 6F


N/A


Valve plate clinch stud (M5 x 16) 6H/G/F






62.



6J , 6F , 4J , 4F


361100-01


Valve pressure relief (34bar discharge) for 4-6J>F






63.



6J , 6F , 4J , 4F

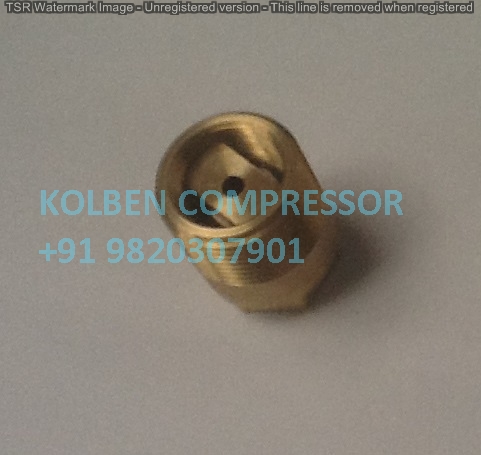

361100-03


Valve pressure relief (15bar diff) for 4-6J>F






64.



4J , 4H , 4G , 4F , 6J , 6H , 6G , 6F


374017-03


BZ Shaft Seal assembly for models 4/6-H-G-F






65.



6F-50.2


311100-04

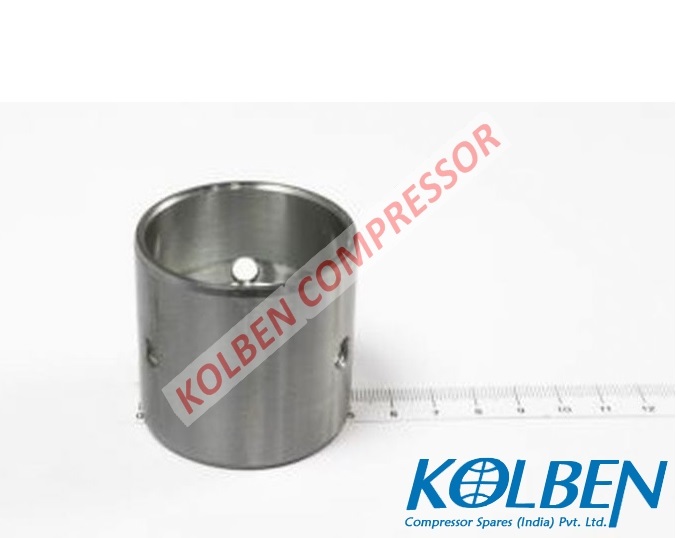

bearing bush Motor side Ø50 x Ø45 x 47,5 (31110004)






66.

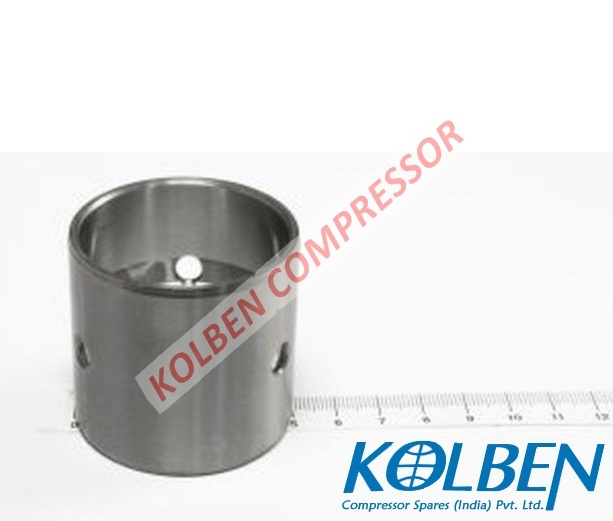

6F-50.2


311100-05


bearing bush Crankcase side Ø50 x Ø45 x 47,5 (31110005)






67.



6F-50.2


320500-06


thrust washer Motor side Ø62 x Ø48 x 1,7 (32050006)






68.

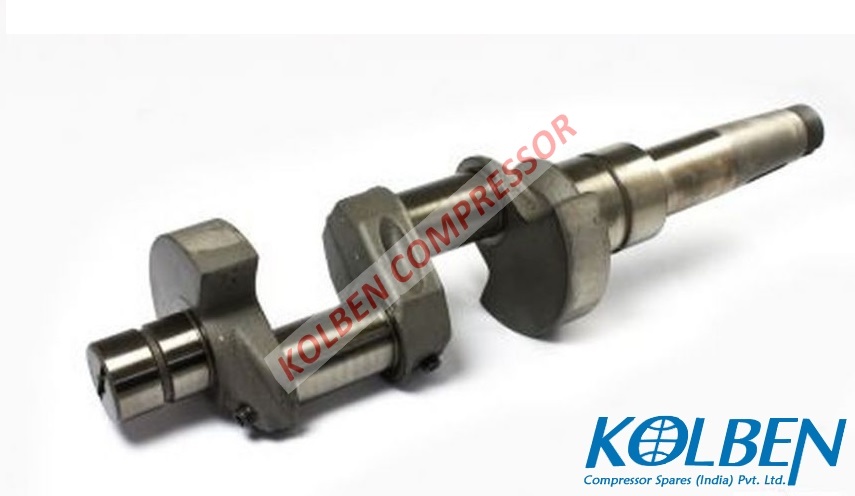

6F-50.2


301007-16


crankshaft Stroke 55mm Ø45 x 603 (30100716)






69.



6F-50.2


366112-01


sealing screw conic DIN 906 M8 x 1 (36611201)






70.



6F-50.2


302297-43


connecting rod / piston Ø82 (30229743)






71.



6F-50.2


302115-50


connecting rod (30211550)






72.



6F-50.2


383021-11


clamping sleeve 10 x 0,75 x 29 (38302111)






73.



6F-50.2

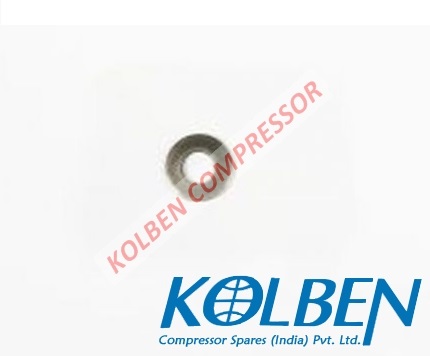

382141-01


retaining ring with lugs spring steel DIN 6796 - FSt A8 (38214101)






74.



6F-50.2


380105-09


hexagon head screw DIN 933, 8.8 M8 x 45 (38010509)






75.



6F-50.2


311103-06


bearing bush connecting rod Ø23 x Ø19 x 22,5 (31110306)






76.



6F-50.2


302233-95


Piston Ø82 (30223395)






77.



6F-50.2


383401-26

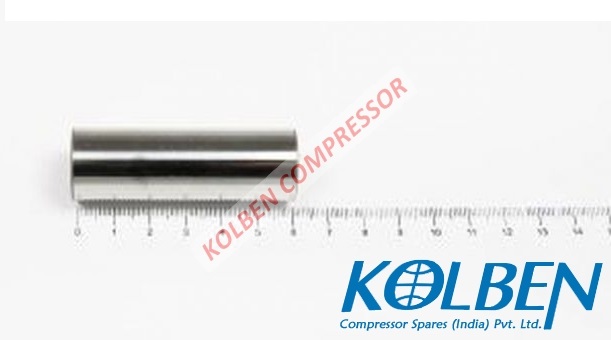

wrist pin Ø20 x Ø13 x 60 (38340126)






78.



6F-50.2


382231-04


retaining ring with lugs spring steel DIN 472 Ø20 x 1 (38223104)






79.

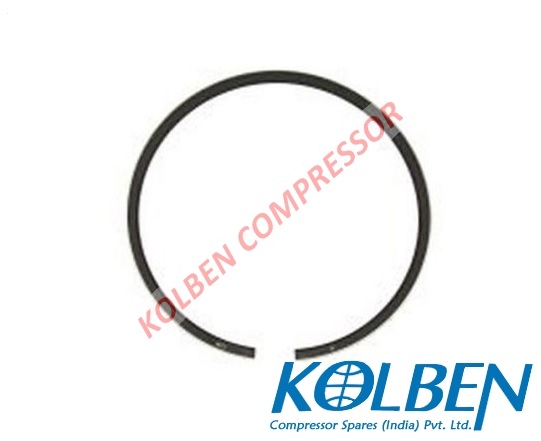

6F-50.2


382300-61


compression ring Piston diameter 81,96mm Ø82 x 1,5 (38230061)






80.



6F-50.2


382310-28


compression ring Piston diameter 81,96mm Ø82 x 1,5 (38231028)






81.

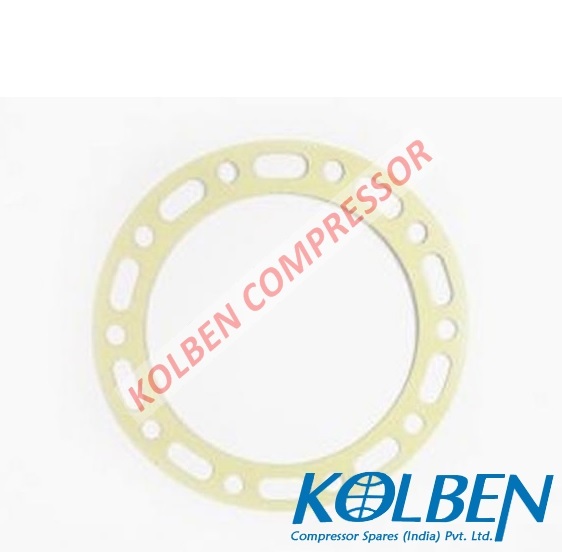

6F-50.2


372314-03


gasket bearing cover Ø182 x Ø133 x 1 (37231403)






82.



6F-50.2


305125-03

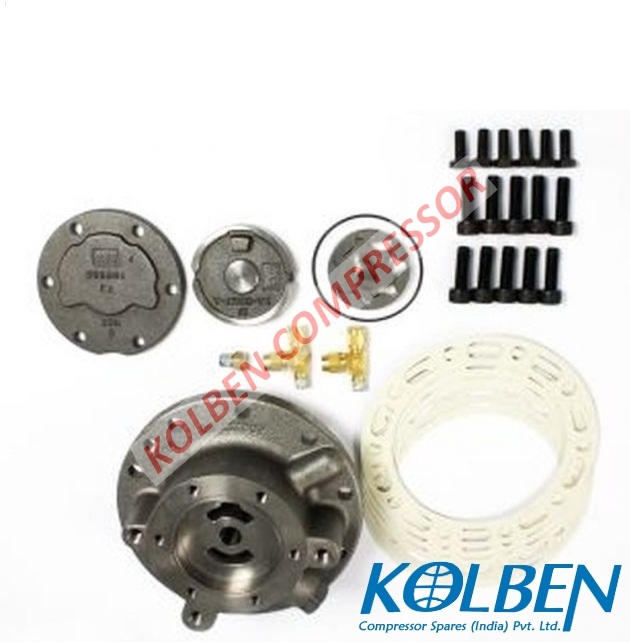

bearing cover complete inclusive oil pump (30512503)






83.



6F-50.2


361101-01


oil pressure relief valve SW17 x 29 (36110101)






84.



6F-50.2

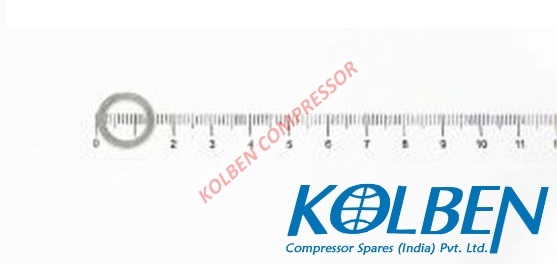

382402-01


gasket ring aluminium DIN 7603 A10 x 15 x 1 (38240201)






85.



6F-50.2


320500-07


thrust washer oil pump side Ø62 x Ø48 x 1,7 (32050007)






86.

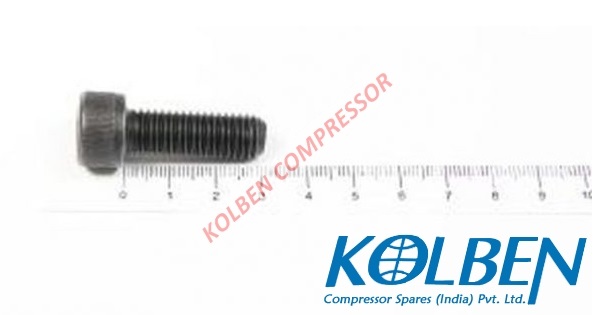

6F-50.2


380306-32


Cheese Head Screw bearing cover DIN 912, 10.9 DIN 912, 10.9 M10 x 30 (38030632)






87.



6F-50.2


372001-19


O-ring oil pump CR Ø74 x 2 (37200119)






88.



6F-50.2


380155-05

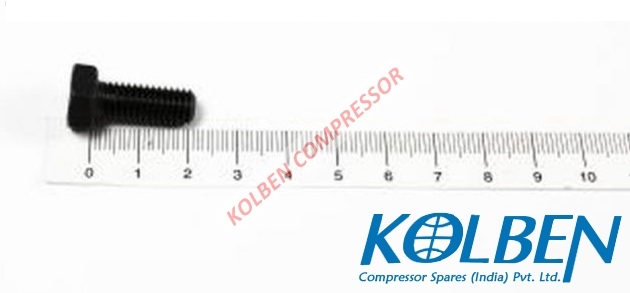

hexagon head screw oil pump DIN 933, 10.9 M8 x 20 (38015505)






89.



6F-50.2


380339-01


Hexsocket Cheese Head Screw ISO 4762, 10.9 - A2K M10 x 30 (38033901)






90.



6F-50.2


320314-01

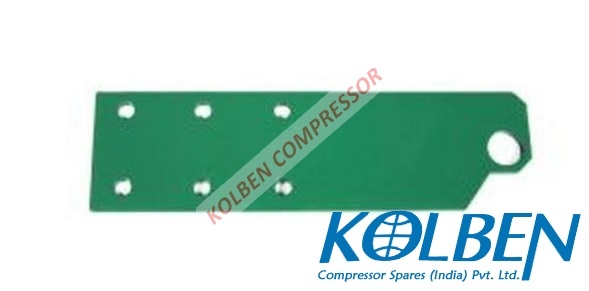

fixing plate MP54 140 x 40 x 3 (32031401)






91.



6F-50.2


382002-01


washer brass DIN 125 A4, 3 (38200201)






92.



6F-50.2


382201-51


single coil spring washer spring steel galvanized DIN 127 A4, 3 (38220151)






93.



6F-50.2


380507-51


cheese head screw 4.8 galvanized M4 x 8 (38050751)






94.



6F-50.2


347320-33

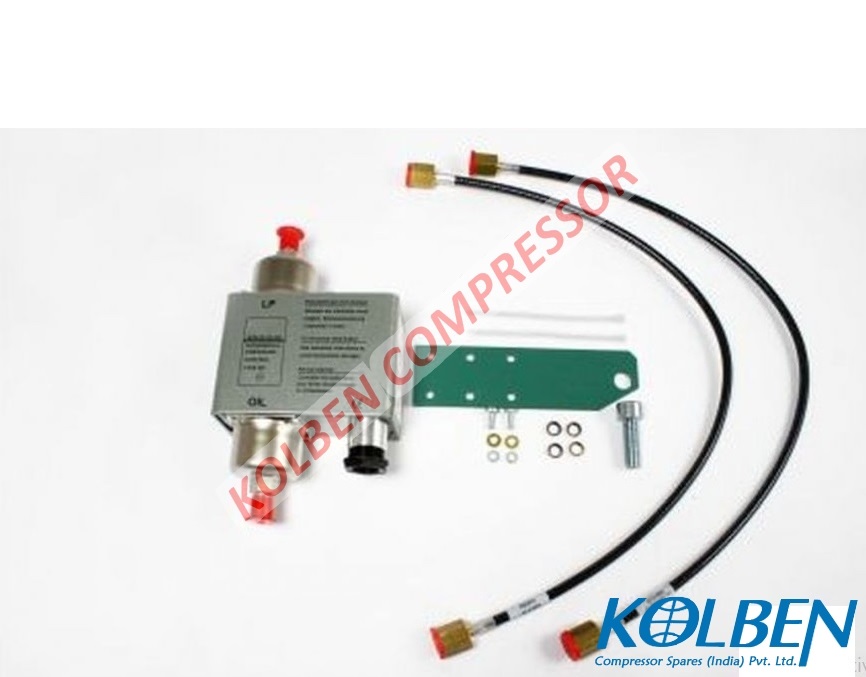

differential oil pressure cut-out MP54 115V/230V-50/60Hz 100 x 50 x 130 (34732033)






95.



6F-50.2


361500-22


Schrader valve (36150022)






96.



6F-50.2


312030-03


thrust collar Ø62 x 7 (31203003)






97.



6F-50.2


372001-13


O-ring CR Ø45 x 3 (37200113)






98.



6F-50.2


325900-02

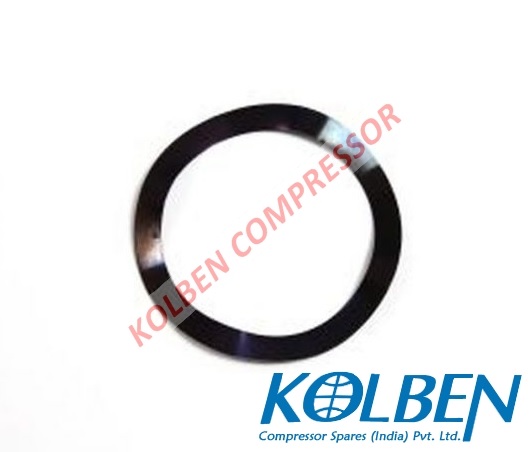

spring washer Ø58,5 x Ø46 x 0,5 (32590002)






99.



6F-50.2


312006-05


ring spring washer Ø 42,1 x Ø 58 x 5 (31200605)






100.



6F-50.2


374027-03


shaft seal bearing bush (37402703)

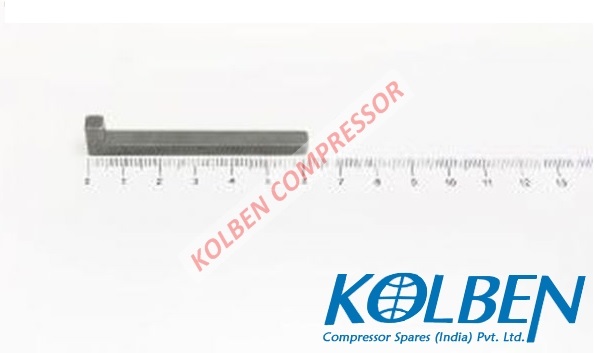

101.



6F-50.2


384102-01


gib-headed key Stator steel DIN 6887 5 x 5 x 60 (38410201)






102.



6F-50.2


384001-19

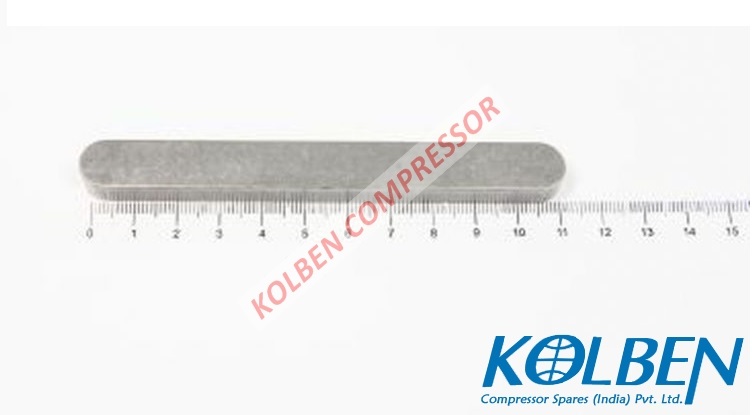

parallel key steel DIN 6885 A12 x 8 x 110 (38400119)






103.



6F-50.2


320502-04

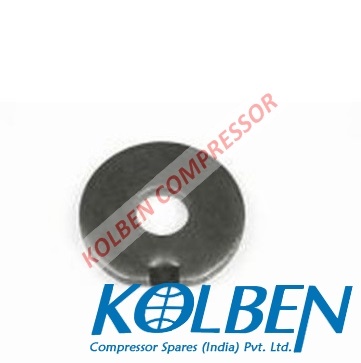

thrust washer steel Ø54 x Ø17 x 5 (32050204)






104.



6F-50.2


382150-04


thrust washer spring steel S16 (38215004)






105.



6F-50.2


380166-03


hexagon head screw coated DIN 933, 10.9 M16 x 40 (38016603)






106.



6F-50.2


325910-01


retaining ring with lugs spring steel Ø230 (32591001)






107.



6F-50.2


362004-02


suction gas filter Ø220 x 50 (36200402)






108.

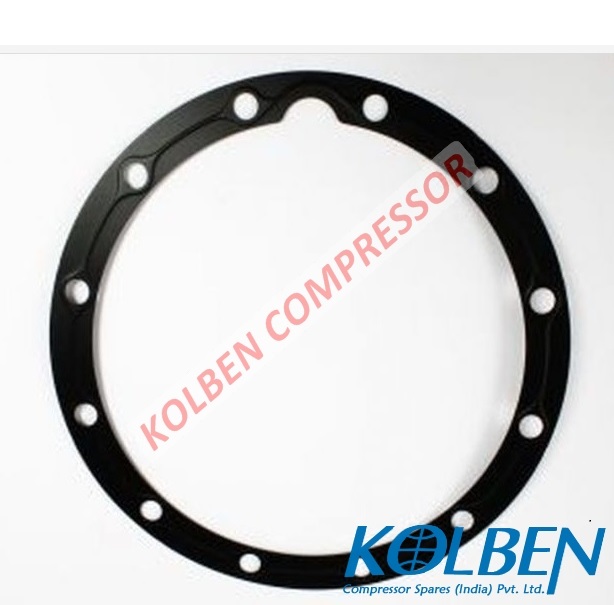

6F-50.2


372315-03


gasket housing cover Ø286 x Ø236 x 0,38 (37231503)






109.



6F-50.2


305900-03


housing cover (30590003)






110.



6F-50.2


366110-02

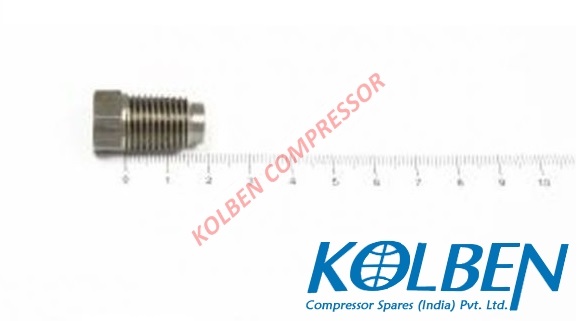

Sealing Plug steel 1/4" - 18 NPTF (36611002)






111.

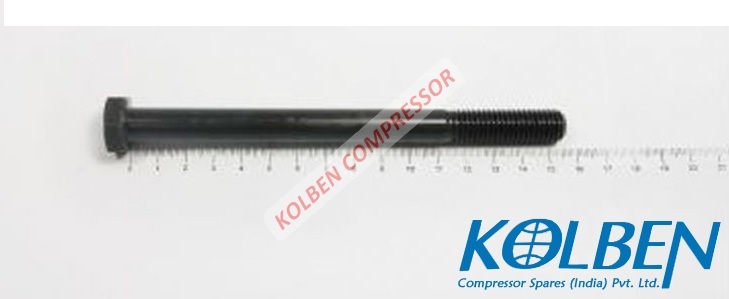

6F-50.2


380057-11


hexagon head screw housing cover DIN 931, 10.9 M12 x 150 (38005711)






112.



6F-50.2


380057-14


hexagon head screw housing cover DIN 931, 10.9 M12 x 180 (38005714)






113.



6F-50.2


372301-03


gasket suction shut-off valve Ø76 x Ø60 x 1 (37230103)






114.



6F-50.2


380009-53


hexagon head screw suction shut-off valve 8.8 galvanized DIN 931, 8.8 M16 x 100 (38000953)






115.



6F-50.2


361338-04


Shut-Off Valve suction side Ø54 (2 1/8") (36133804)






116.



6F-50.2

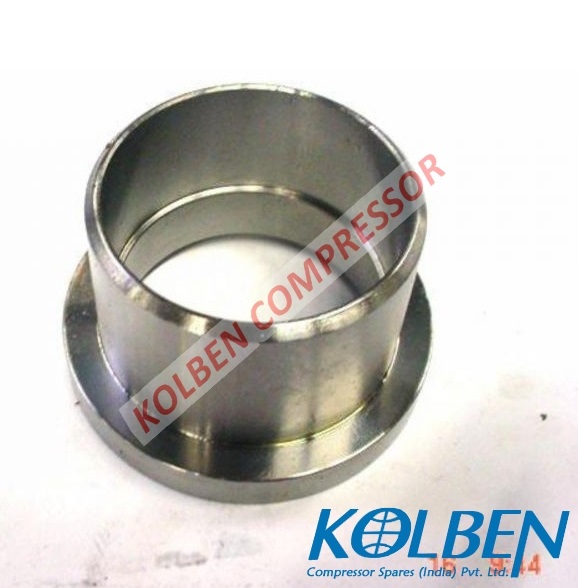

365321-03


Pipe Connection brazed and welding bush steel Ø54 (2 1/8") (36532103)






117.



6F-50.2


372303-02

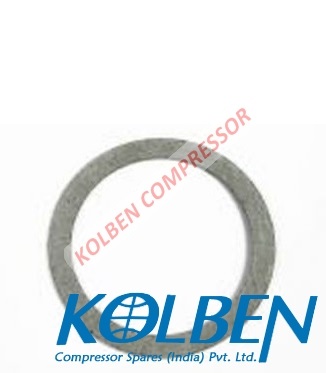

Gasket Pipe connection Ø75 x Ø61 x 2 (37230302)






118.

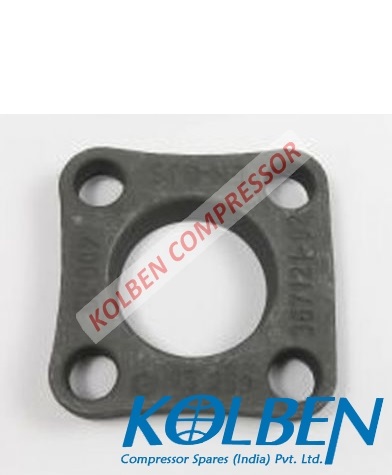

6F-50.2


367121-02

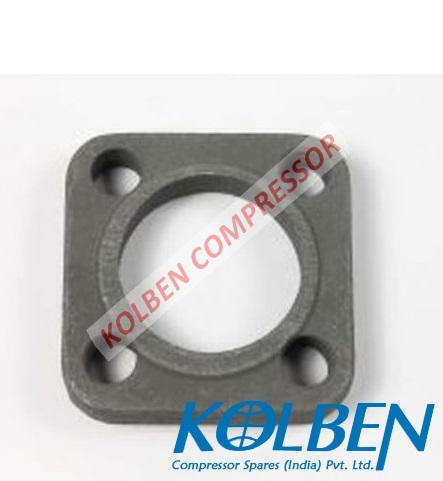

Clamping Plate suction shut-off valve 110 x 110 (36712102)

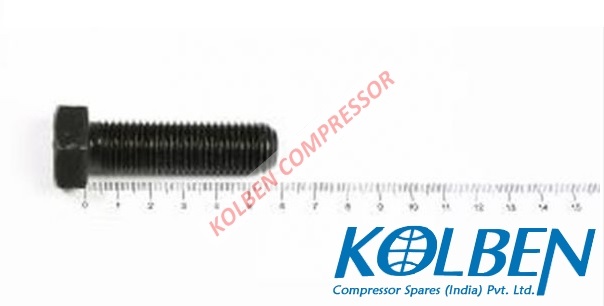

119.



6F-50.2


380109-09


Hexagon Head Screw clamping plate DIN 933, 8.8 M16 x 55 (38010909)






120.



6F-50.2


375014-05

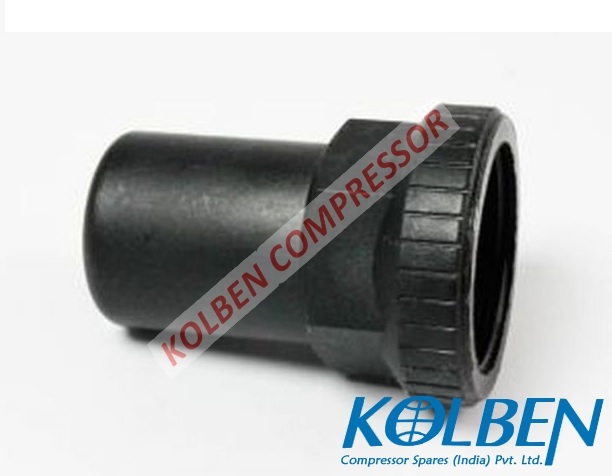

Protective Cap Span of the jaw: 36 Plastic - GRP M36 x 1,5 / L=67 mm (37501405)






121.



6F-50.2


366114-24


sealing screw with magnet oil drain inclusive O-Ring gasket M26 (36611424)






122.



6F-50.2


382403-04


Gasket Ring oil drain aluminium DIN 7603 A26 x 31 x 2 (38240304)






123.



6F-50.2


325000-34


pressure spring spring steel Ø23,5 x 28 x 1,8 (32500034)






124.



6F-50.2


362003-01


oil filter Ø20 x 200 (36200301)

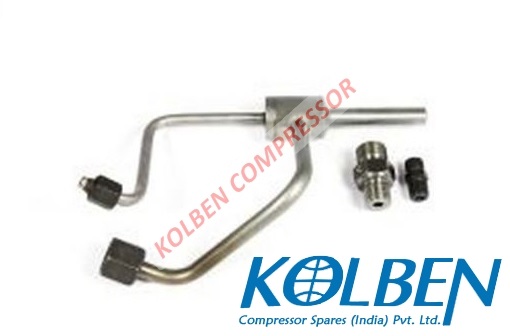

125.



6F-50.2


360110-06

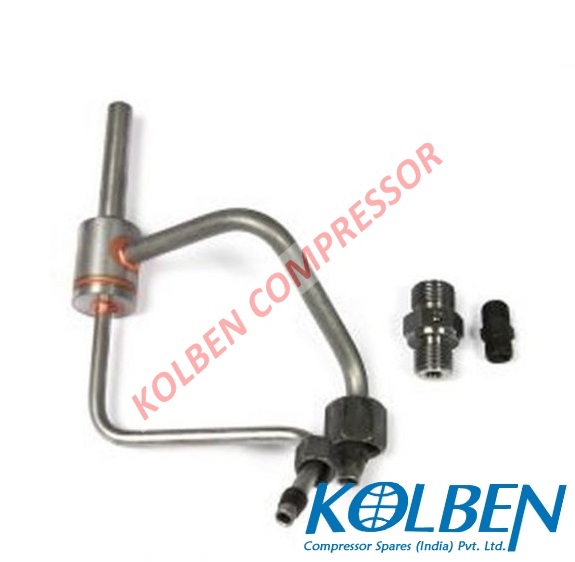

oil return system (36011006)






126.



6F-50.2


372003-15

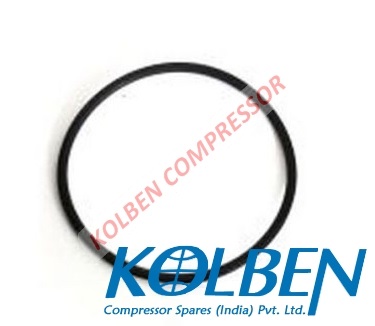

O-ring sight glass Ø36,3 x 1,78 (37200315)

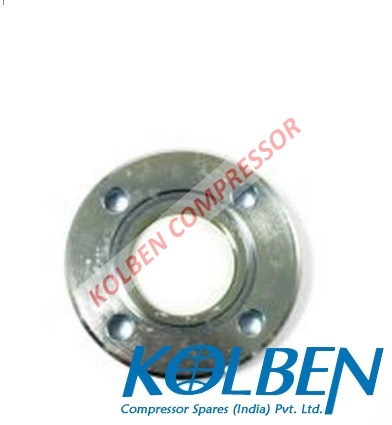

127.



6F-50.2


361802-02


sight glass steel / glass Ø67 x 8,5 (36180202)






128.



6F-50.2


380154-06


hexagon head screw DIN 933, 10.9 M6 x 20 (38015406)






129.



6F-50.2


366110-10

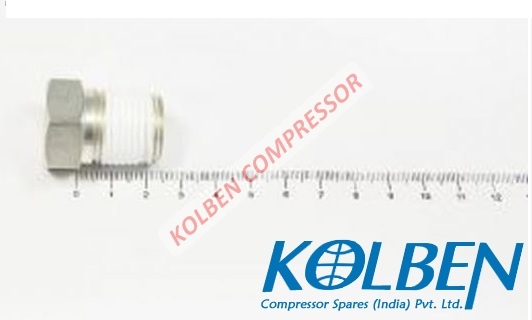

sealing plug oil equalising bore steel 1/2" - 14 NPTF (36611010)






130.



6F-50.2


366110-05

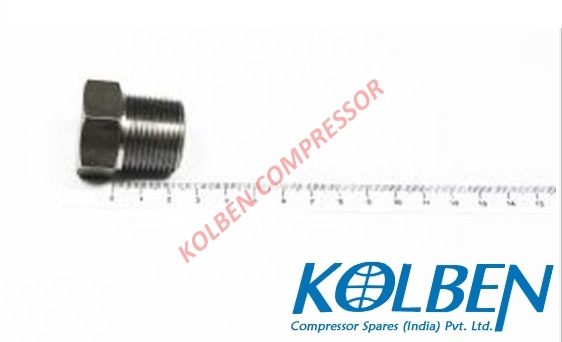

sealing plug gas equalising bore steel 3/4" - 14 NPTF (36611005)

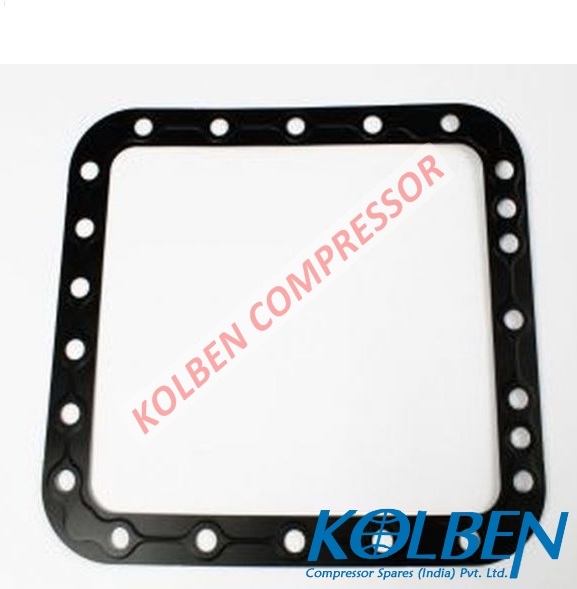

131.



6F-50.2


372415-02


gasket bottom plate (37241502)






132.



6F-50.2


320307-04


bottom plate steel 270 x 360 x 12 (32030704)

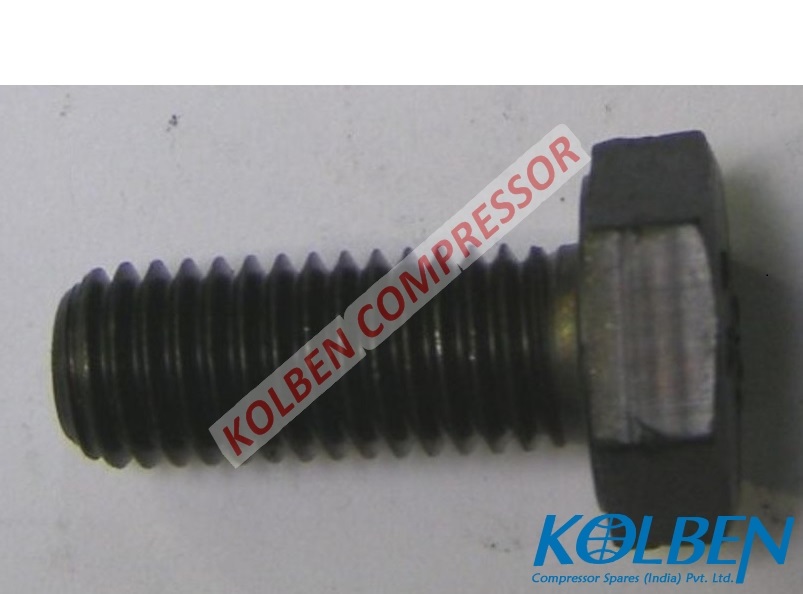

133.



6F-50.2


380156-05


hexagon head screw bottom plate DIN 933, 10.9 M10 x 25 (38015605)






134.



6F-50.2


370004-01

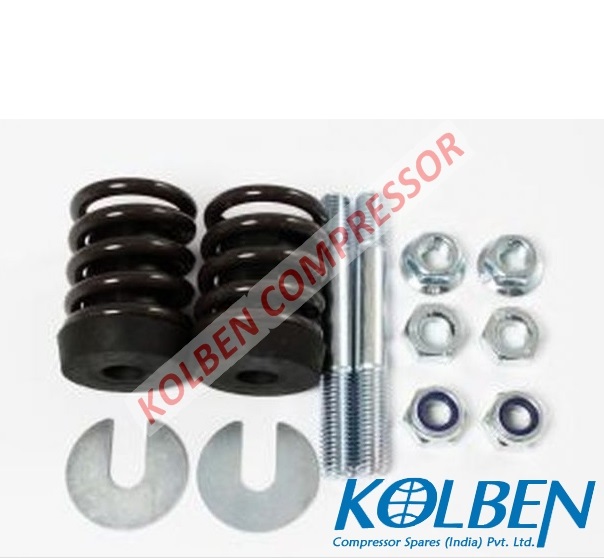

vibration damper set Crankcase side spring brown Lo = 42 (37000401)

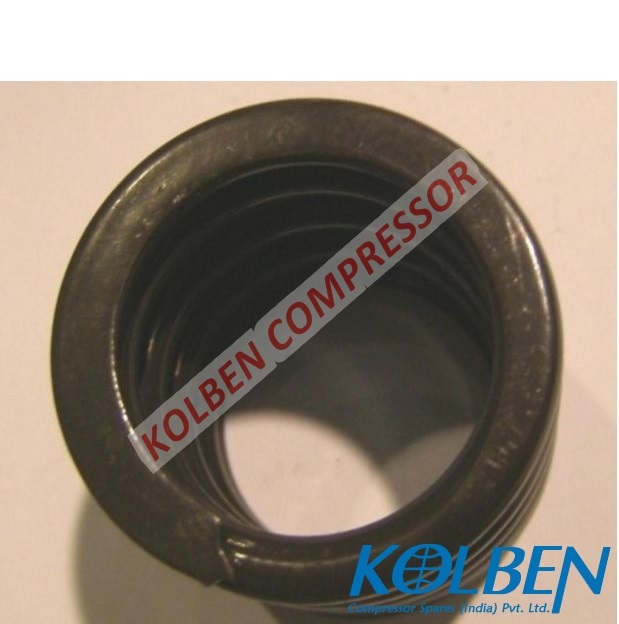

135.



6F-50.2


325002-01


damper element Crankcase side spring steel brown Lo=42 (32500201)






136.



6F-50.2


370004-03


vibration damper set Motor side spring blue Lo = 48 (37000403)






137.



6F-50.2

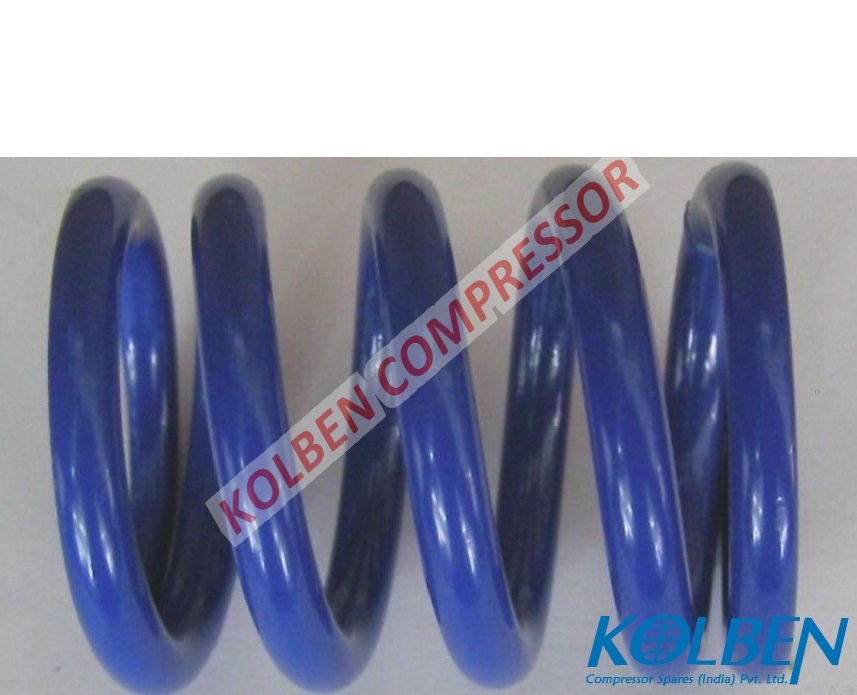

325002-03


damper element Motor side spring steel blue Lo=48 (32500203)






138.



6F-50.2


327309-01

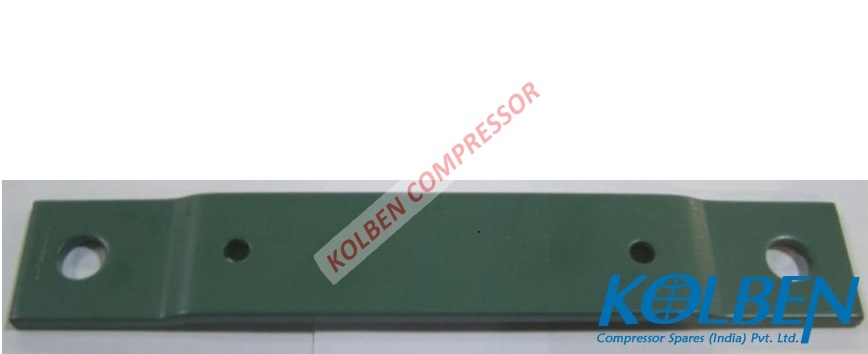

foot 369 x 60 x 13 x Ø21 (32730901)






139.



6F-50.2


361110-01


gas equalising valve (36111001)

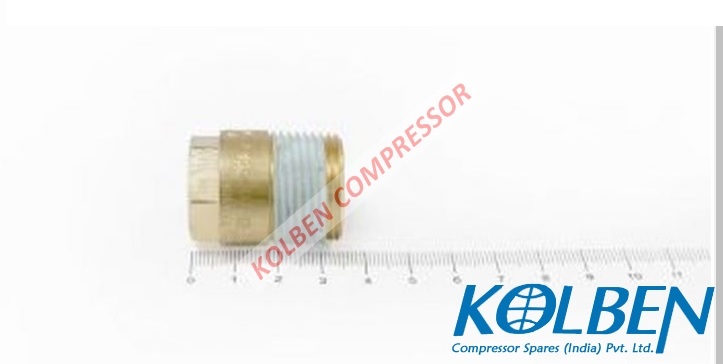

140.



6F-50.2


361100-21


pressure relief valve 34 bar 3/4" - 14 NPTF - p=34bar (36110021)






141.



6F-50.2


372704-01


Gasket intermediate flange h=25 91 x 52 x 1 (37270401)

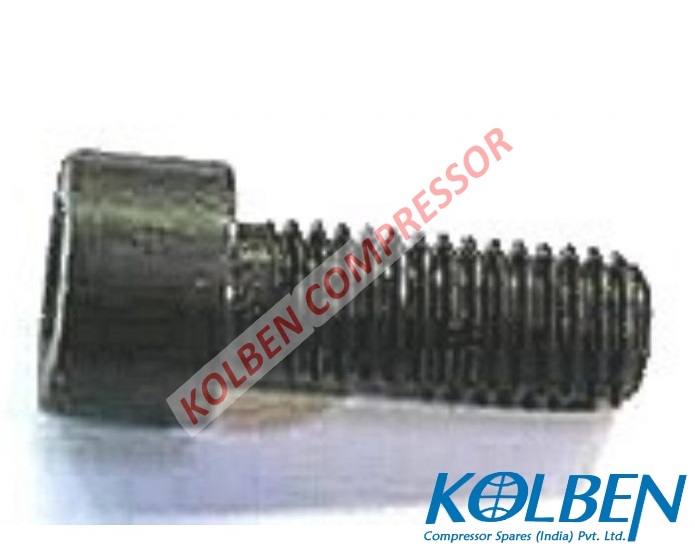

142.



6F-50.2


380306-23


Cheese Head Screw intermediate flange h=25 DIN 912, 10.9 M10 x 25 (38030623)






143.



6F-50.2


372301-02


gasket discharge shut-off valve Ø70 x Ø54 x 1 (37230102)






144.



6F-50.2


380007-52

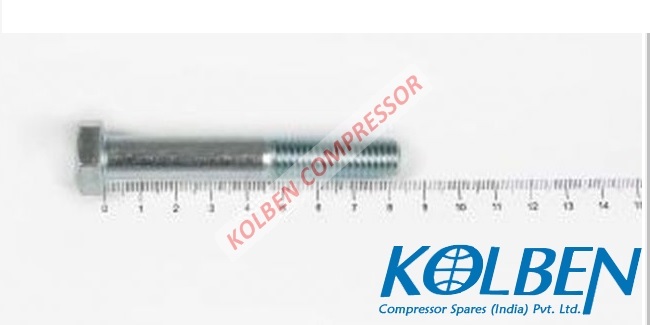

hexagon head screw discharge shut-off valve galvanized DIN 931, 8.8 M12 x 80 (38000752)






145.



6F-50.2


361338-01


shut-off valve Discharge side Ø42 (1 5/8") (36133801)






146.



6F-50.2


365321-14

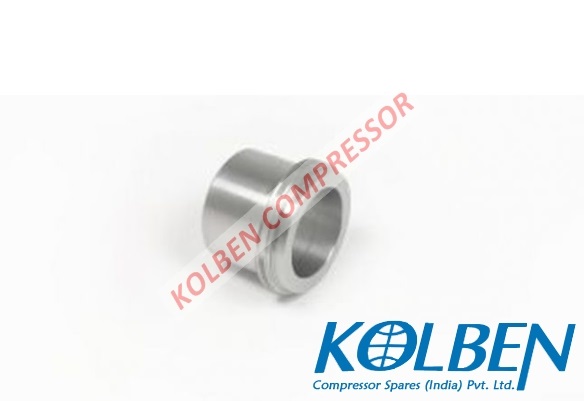

pipe connection discharge shut-off valve steel brazing and welding bush Ø42 (1 5/8") (36532114)

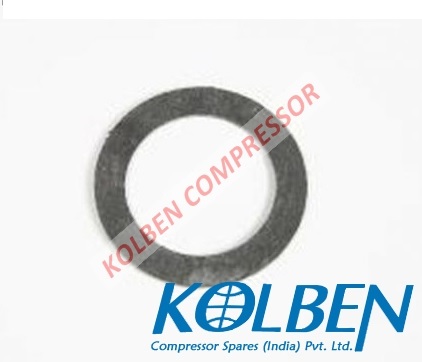

147.



6F-50.2


372303-01


gasket Ø52 x Ø37 x 2 (37230301)






148.



6F-50.2


366201-22


Protective Cap Span of the jaw: 27 Plastic - GRP M27 x 2 / L=70 mm (36620122)






149.



6F-50.2


366110-01

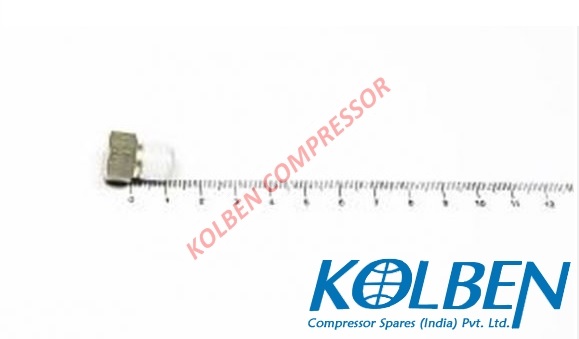

Sealing Plug steel 1/4" - 18 NPTF (36611001)






150.



6F-50.2


304051-15


valve plate Ø82 (30405115)






151.



6F-50.2


372511-07


gasket 253 x 155 x 1,0 Ø82 (37251107)






152.



6F-50.2


372616-03


gasket Retall 253 x 155 x 0,5 (37261603)






153.



6F-50.2


302360-22


cylinder head air-cooled (30236022)






154.



6F-50.2


380056-03


hexagon head screw DIN 931, 10.9 M10 x 60 (38005603)






155.



6F-50.2


302360-03


cylinder head water-cooled Water cooled 253 x 155 x 64 (30236003)






156.



6F-50.2


302326-02


cylinder head water-cooled grey cast iron 253 x 155 x 64 (30232602)






157.



S6F.2


311100-08


bearing bush Crankcase side Ø75 x Ø70 x 70 (31110008)






158.



S6F.2


311100-04


bearing bush Ø50 x Ø45 x 47,5 (31110004)






159.



S6F.2


311103-06


bearing bush connecting rod Ø23 x Ø19 x 22,5 (31110306)






160.



S6F.2


305125-03


bearing cover complete inclusive oil pump (30512503)

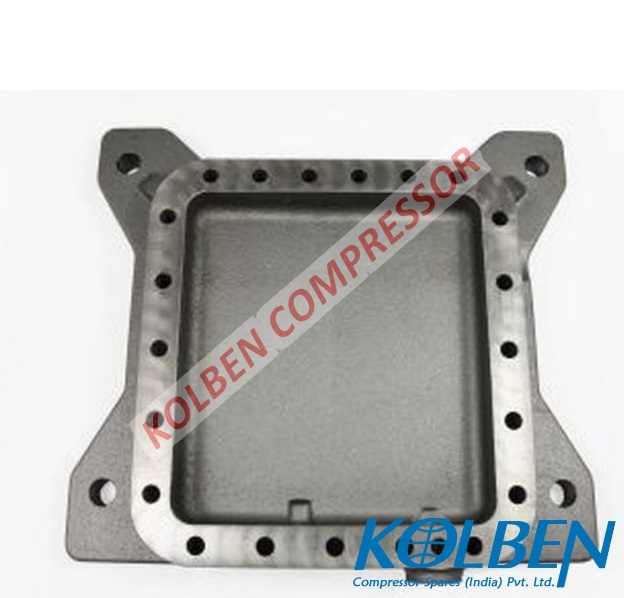

161.



S6F.2


302400-01


bottom plate grey cast iron 350 x 315 x 54 (30240001)






162.



S6F.2


380306-32


Cheese Head Screw bearing cover DIN 912, 10.9 M10 x 30 (38030632)






163.



S6F.2


380302-05

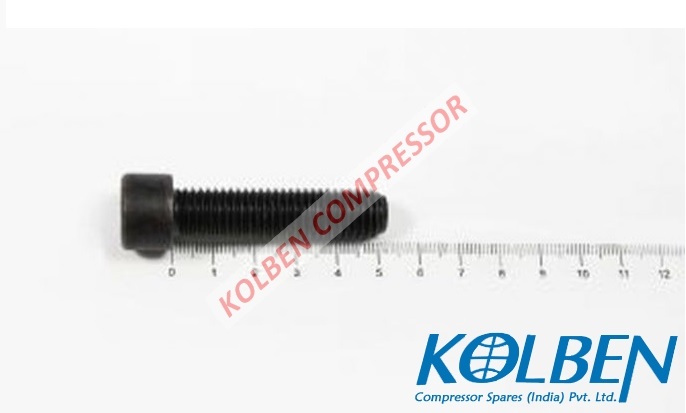

Cheese Head Screw DIN 912, 10.9 M12 x 50 (38030205)






164.



S6F.2


380306-23


Cheese Head Screw intermediate flange h=25 DIN 912, 10.9 M10 x 25 (38030623)






165.



S6F.2


380507-51


cheese head screw 4.8 galvanized M4 x 8 (38050751)






166.



S6F.2

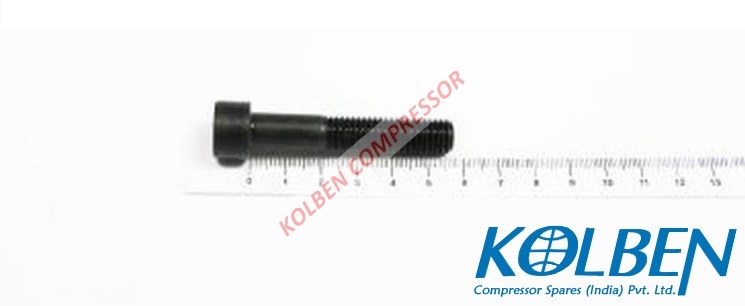

380306-26


cheese head screw bottom plate DIN 912, 10.9 M10 x 55 (38030626)

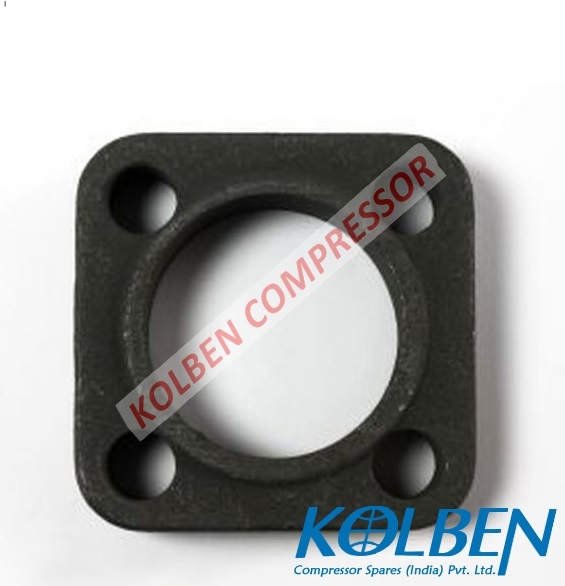

167.



S6F.2


367121-08


clamping plate 80 x 80 (36712108)






168.



S6F.2


383021-11


clamping sleeve 10 x 0,75 x 29 (38302111)






169.



S6F.2


382300-61


compression ring Piston diameter 81,96mm Ø82 x 1,5 (38230061)






170.



S6F.2


382310-28


compression ring Piston diameter 81,96mm Ø82 x 1,5 (38231028)






171.



S6F.2


302115-50


connecting rod (30211550)






172.



S6F.2


302297-43


connecting rod / piston Ø82 (30229743)






173.



S6F.2


343213-12


Crankcase heater heating capacity: 140W 230V-1-50/60Hz (34321312)






174.



S6F.2


301007-08


crankshaft Stroke 55mm Ø45 x 554 (30100708)






175.



S6F.2


302360-14


cylinder head high pressure side 155 x 253 x 68 (30236014)

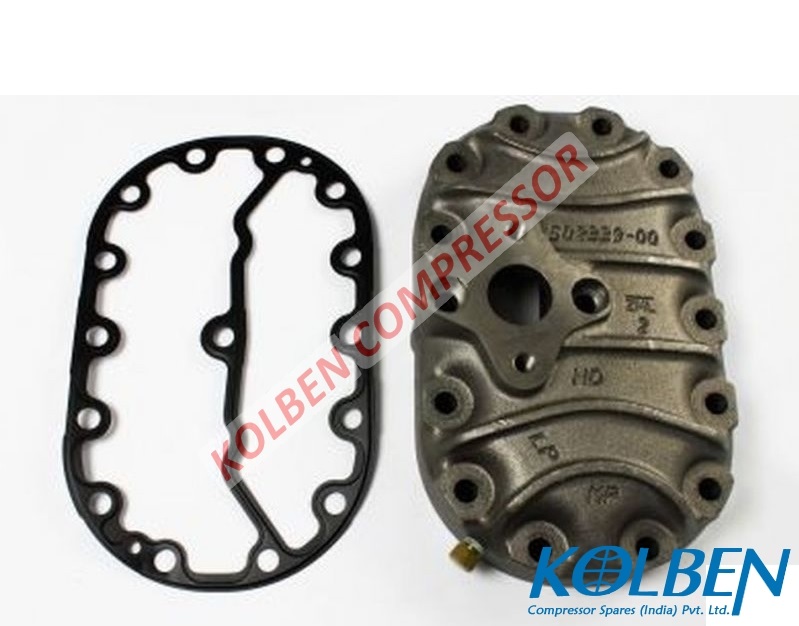

176.



S6F.2


302360-16


cylinder head low pressure stage 155 x 253 x 62,5 (30236016)






177.



S6F.2


347320-33


differential oil pressure cut-out MP54 115V/230V-50/60Hz 100 x 50 x 130 (34732033)

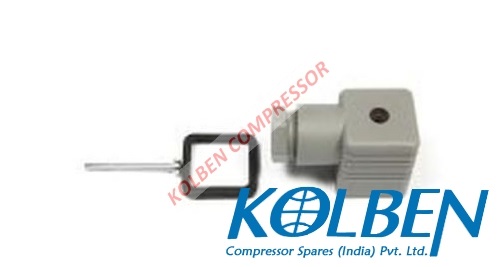

178.



S6F.2


389002-01


electric connector of the machine / device DIN 43650 Typ GDM 209 (38900201)






179.



S6F.2


361404-06

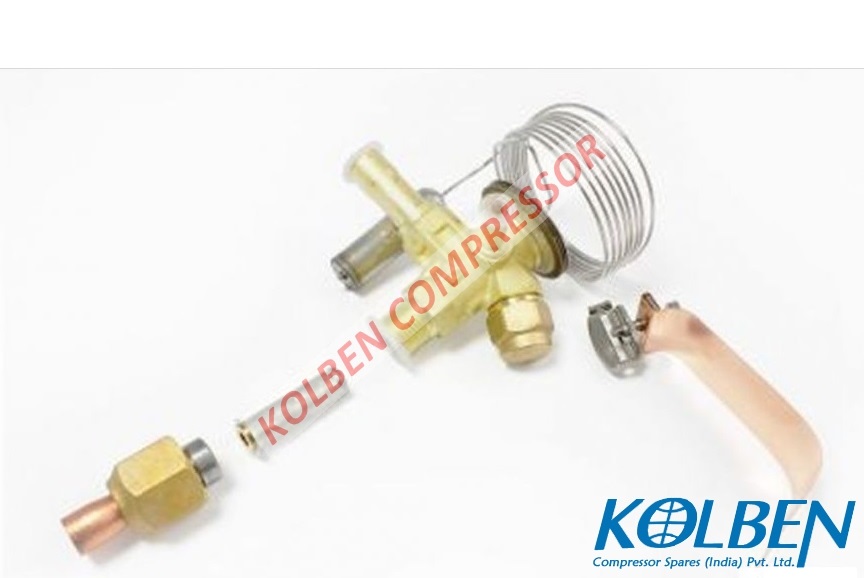

expansion valve operation with liquid subcooler R22 TEVI 2, nozzle 05 (36140406)






180.



S6F.2

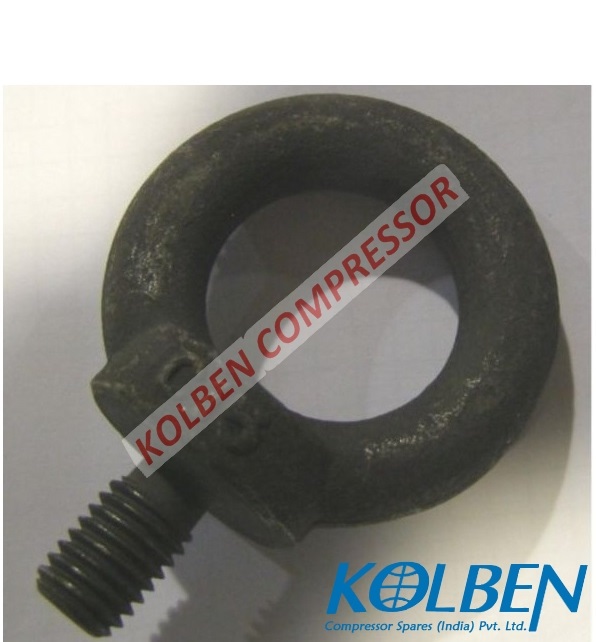

380902-02


eye bolt DIN 580 M12 (38090202)






181.



S6F.2


362101-05

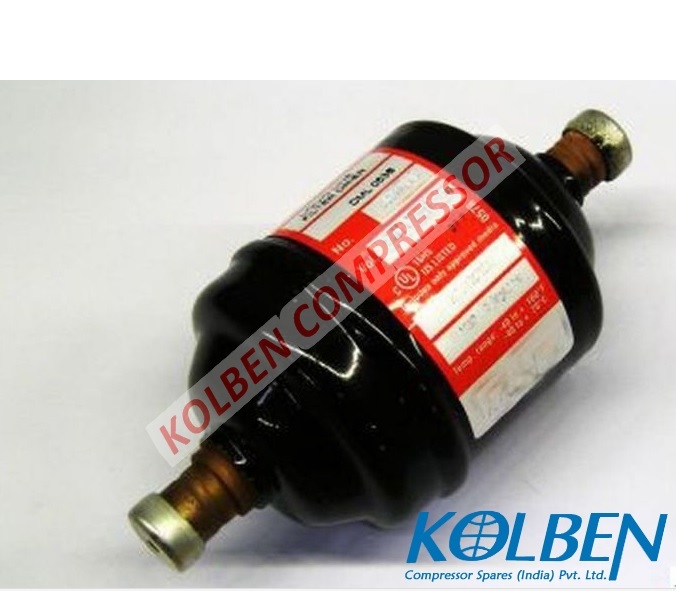

filter drier Operation without subcooler brazed connection Ø10 (36210105)






182.



S6F.2


320314-01


fixing plate MP54 140 x 40 x 3 (32031401)






183.



S6F.2


361110-01


gas equalising valve (36111001)






184.

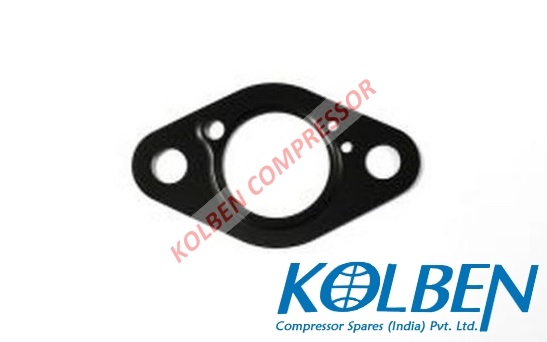

S6F.2


372712-01


gasket suction gas line Retall 89 x 52 x 0,25 (37271201)






185.



S6F.2


372301-02


gasket Suction gas filter Ø70 x Ø54 x 1 (37230102)






186.



S6F.2


372704-02


gasket discharge shut-off valve Retall 89 x 51 x 1 (37270402)






187.



S6F.2


372616-03


gasket low pressure stage Retall 253 x 155 x 0,5 (37261603)






188.



S6F.2


372301-03


gasket suction shut-off valve Ø76 x Ø60 x 1 (37230103)






189.



S6F.2


372704-01


Gasket intermediate flange h=25 91 x 52 x 1 (37270401)






190.



S6F.2


372616-04


gasket high pressure side Retall 253 x 155 x 0,5 (37261604)






191.



S6F.2


372415-02


gasket bottom plate (37241502)






192.



S6F.2


372511-08


gasket valve plate 253 x 155 x 1,2 Ø82 (37251108)






193.



S6F.2


372303-01


gasket Ø52 x Ø37 x 2 (37230301)






194.



S6F.2


372200-04

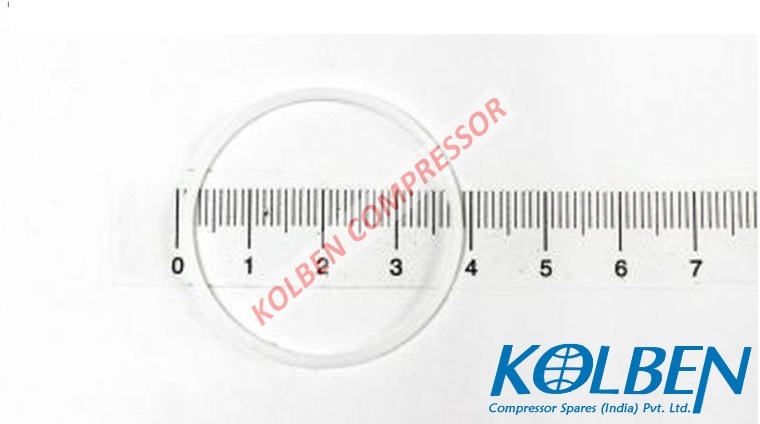

gasket teflon Ø38 x Ø35 x 1,5 (37220004)

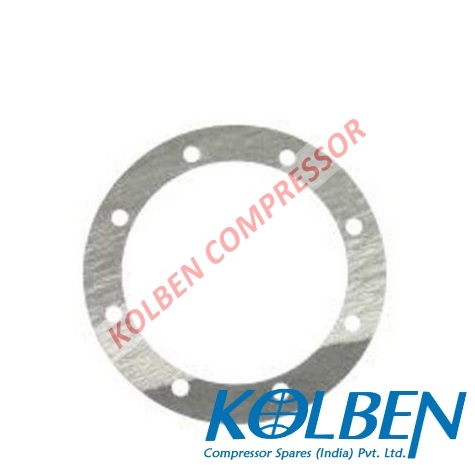

195.



S6F.2


372313-02


gasket Ø142 x Ø106,5 x 0,5 (37231302)






196.



S6F.2


372315-03


gasket housing cover Ø286 x Ø236 x 0,38 (37231503)






197.



S6F.2


382402-01


gasket ring aluminium DIN 7603 A10 x 15 x 1 (38240201)






198.



S6F.2


382403-04


Gasket Ring oil drain aluminium DIN 7603 A26 x 31 x 2 (38240304)






199.



S6F.2


382501-05


gasket ring NBR felt ring G58 x 50 x 4 (38250105)






200.



S6F.2


372807-01


gasket set bearing cover Ø182 x Ø133 x 1/ 0,8/ 0,75 /0,6 /0,5 (37280701)






201.



S6F.2


372816-11


gasket set (37281611)

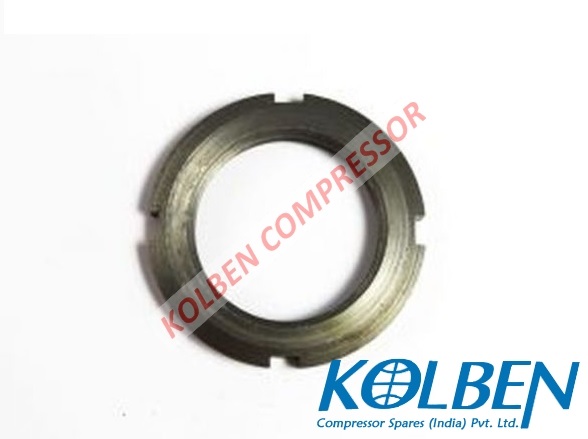

202.



S6F.2


381214-01


grooved nut M40 x 1,5 (38121401)

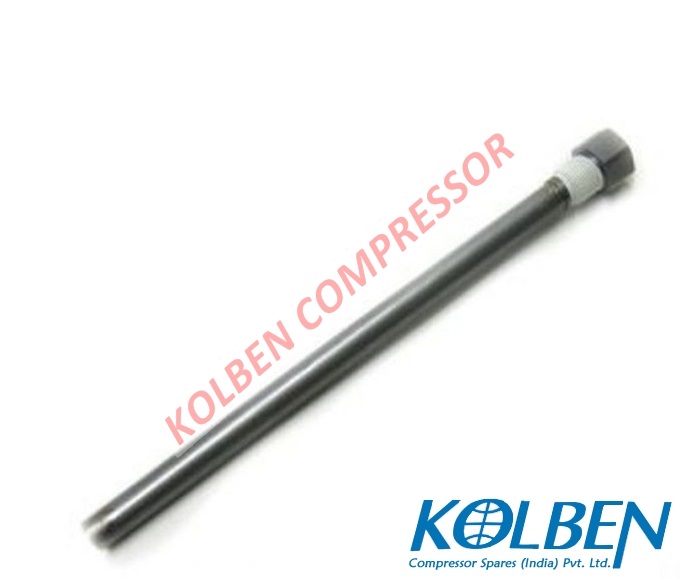

203.



S6F.2


345906-02


heater sleeve for 140W heater 43315 (34590602)






204.

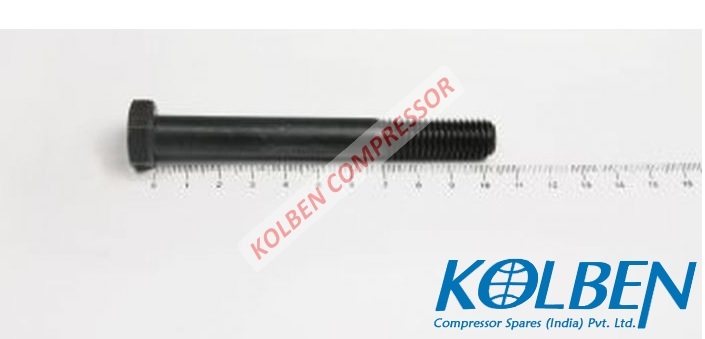

S6F.2


380057-06


hexagon head screw housing cover DIN 931, 10.9 M12 x 100 (38005706)






205.



S6F.2

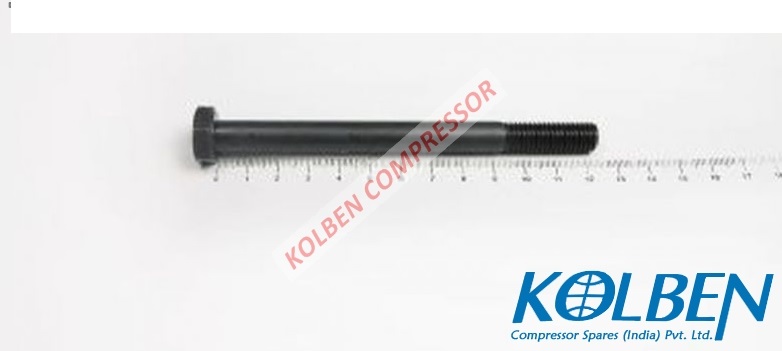

380056-12


hexagon head screw DIN 931, 10.9 M10 x 120 (38005612)






206.



S6F.2


380155-05


hexagon head screw oil pump DIN 933, 10.9 M8 x 20 (38015505)

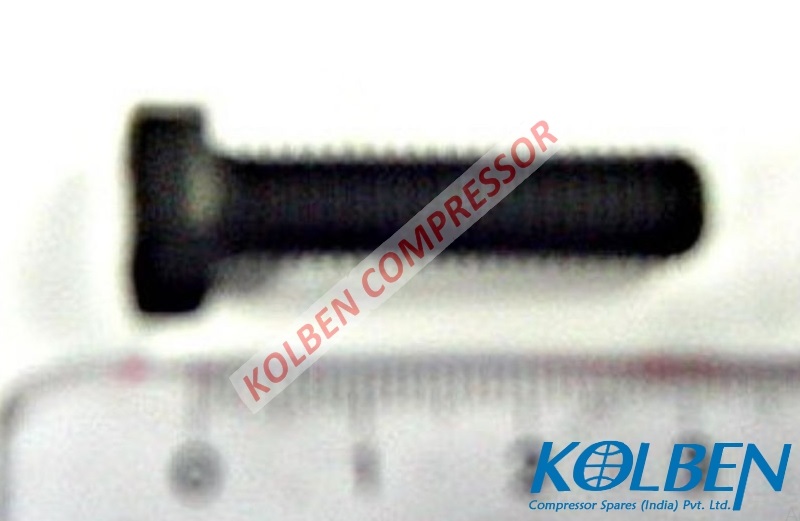

207.



S6F.2


380155-08


hexagon head screw DIN 933, 10.9 M8 x 30 (38015508)






208.



S6F.2


380156-09


Hexagon Head Screw DIN 933, 10.9 M10 x 45 (38015609)






209.



S6F.2


380154-02

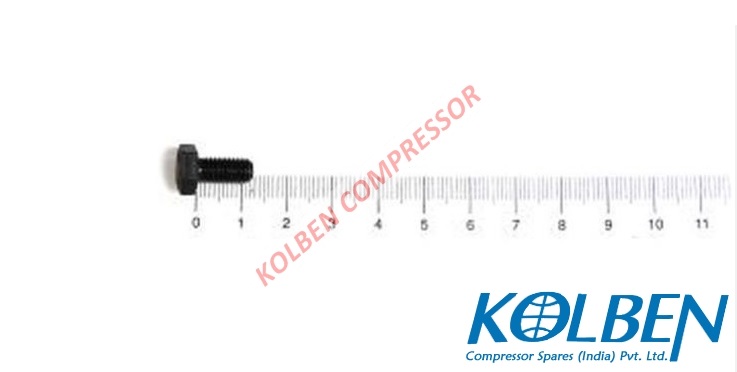

hexagon head screw steel DIN 933, 10.9 M6 x 12 (38015402)






210.



S6F.2


380007-52


hexagon head screw galvanized DIN 931, 8.8 M12 x 80 (38000752)






211.



S6F.2


380105-09


hexagon head screw DIN 933, 8.8 M8 x 45 (38010509)






212.



S6F.2


380166-12


Hexagon Head Screw coated ISO 4017 - Precote85 M16 x 50 (38016612)






213.



S6F.2


380056-03


hexagon head screw DIN 931, 10.9 M10 x 60 (38005603)

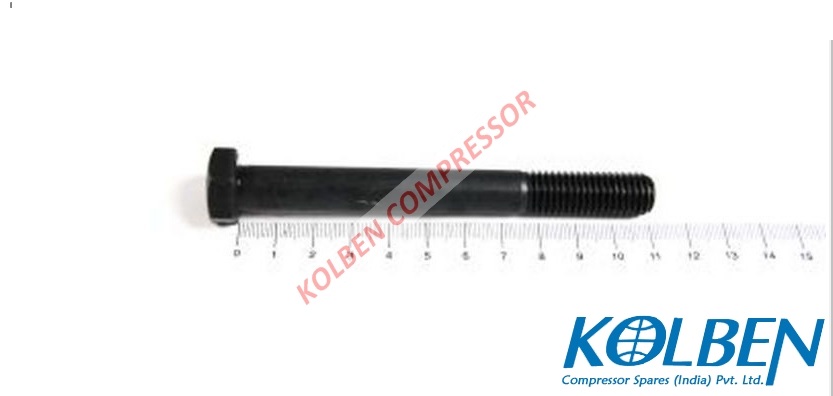

214.



S6F.2


380057-07


hexagon head screw housing cover DIN 931, 10.9 M12 x 110(38005707)






215.



S6F.2


380154-06


hexagon head screw DIN 933, 10.9 M6 x 20 (38015406)






216.



S6F.2


380339-01


Hexsocket Cheese Head Screw ISO 4762, 10.9 - A2K M10 x 30 (38033901)






217.



S6F.2


300026-08


housing Ø82 (30002608)

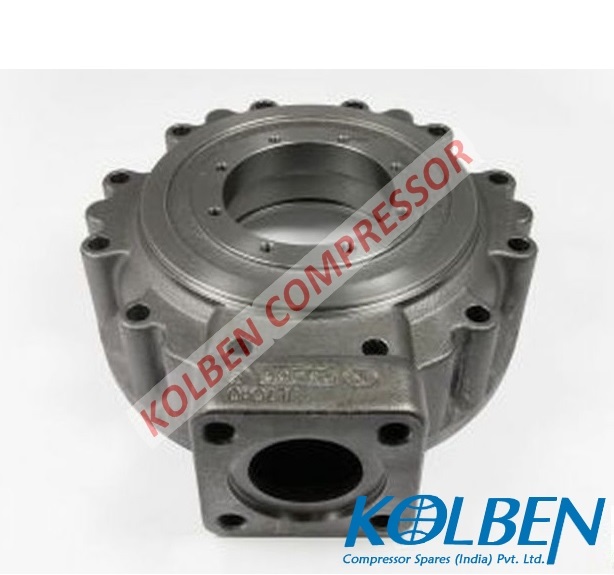

218.



S6F.2


305214-01


housing cover grey cast iron Ø286 x 112 (30521401)






219.



S6F.2


377002-01

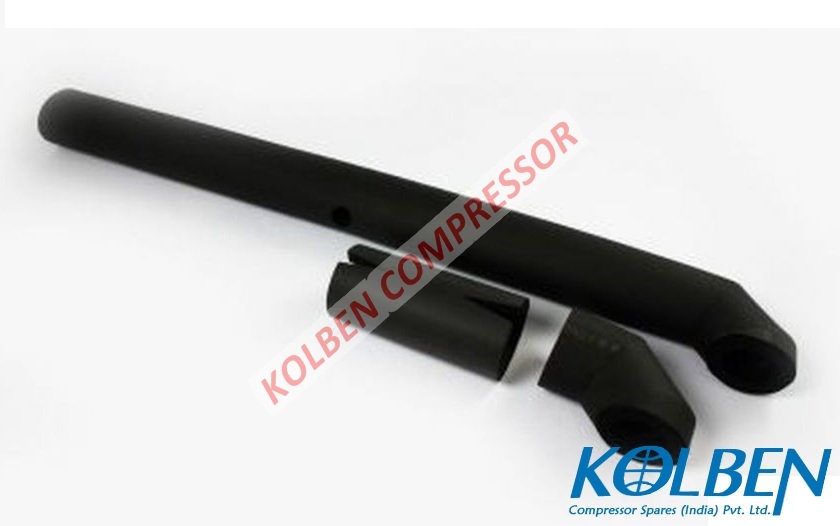

insulation intermediate pressure mixing pipe Armaflex (37700201)

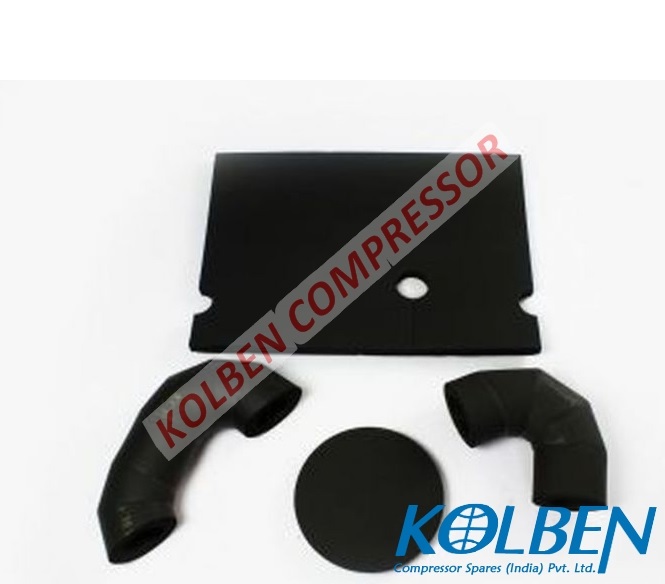

220.



S6F.2


377003-02


insulation main pipe (37700302)






221.



S6F.2


300903-01


intermediate flange grey cast iron 225 x 96 x 93 (30090301)






222.



S6F.2


367015-21

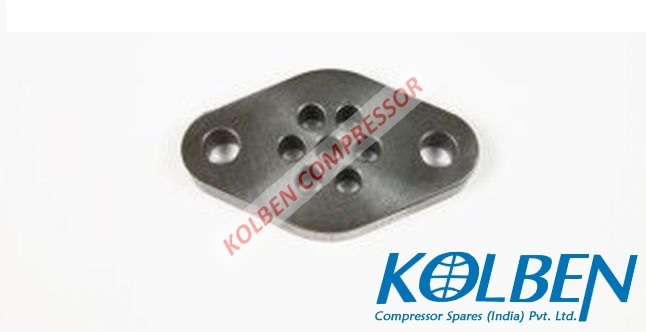

intermediate flange steel 91 x 52 x 13 (36701521)






223.



S6F.2

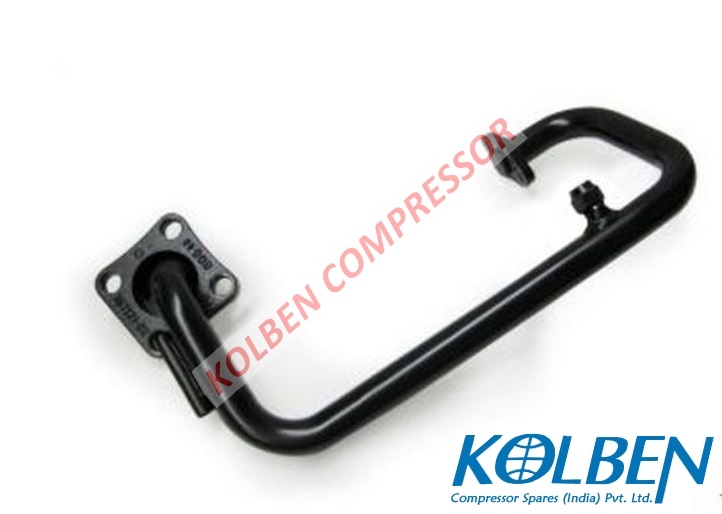

360504-02


intermediate pressure mixing pipe (36050402)






224.



S6F.2


372001-19


O-ring oil pump Ø74 x 2 (37200119)






225.



S6F.2

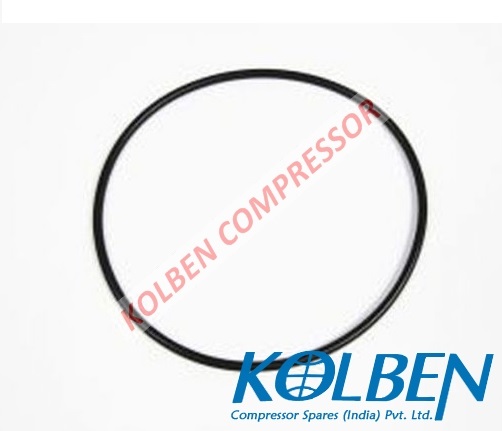

372001-20


O-ring housing cover Ø126 x 4 (37200120)






226.



S6F.2


372003-15


O-ring sight glass Ø36,3 x 1,78 (37200315)

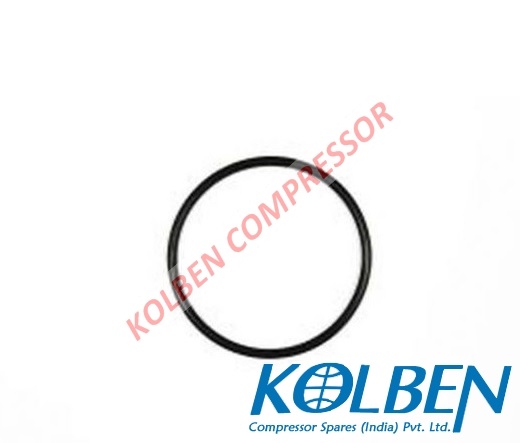

227.



S6F.2


372001-25


O-ring stationary ring Ø63,09 x 3,53 (37200125)






228.



S6F.2

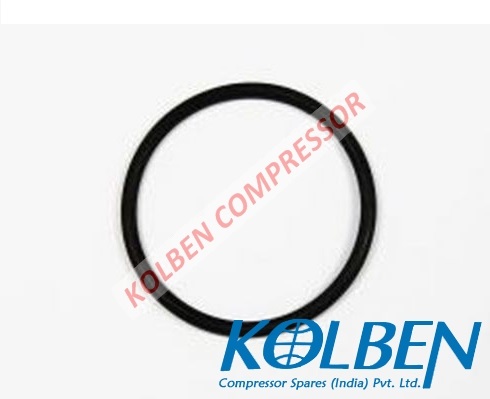

372003-28


O-ring Ø47x Ø4 (37200328)






229.



S6F.2


362003-01


oil filter Ø20 x 200 (36200301)






230.



S6F.2


361101-01


oil pressure relief valve SW17 x 29 (36110101)






231.



S6F.2


360110-07


oil return system (36011007)






232.



S6F.2


384001-06


parallel key steel DIN 6885 A8 x 7 x 45 (38400106)






233.



S6F.2


327000-01


parallel pin 6H 11 x 20 (32700001)






234.



S6F.2


360101-03


pipe oil return Ø6 x 1 (36010103)

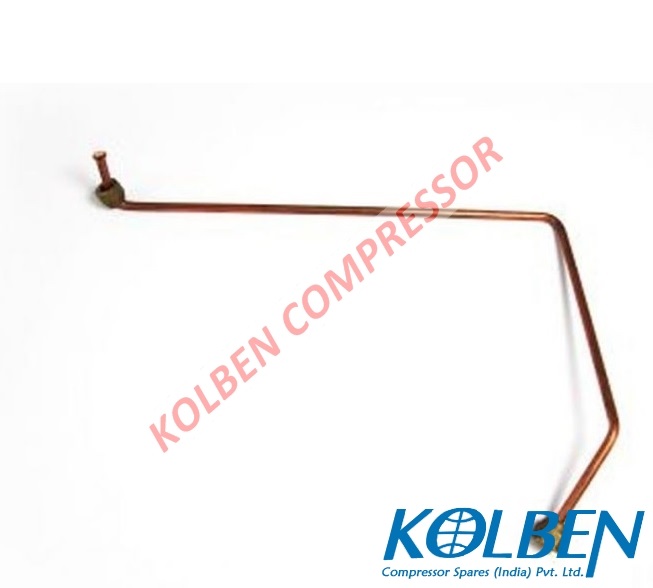

235.



S6F.2


360401-16


pipe injection pipe Ø6 x 1 (36040116)






236.



S6F.2

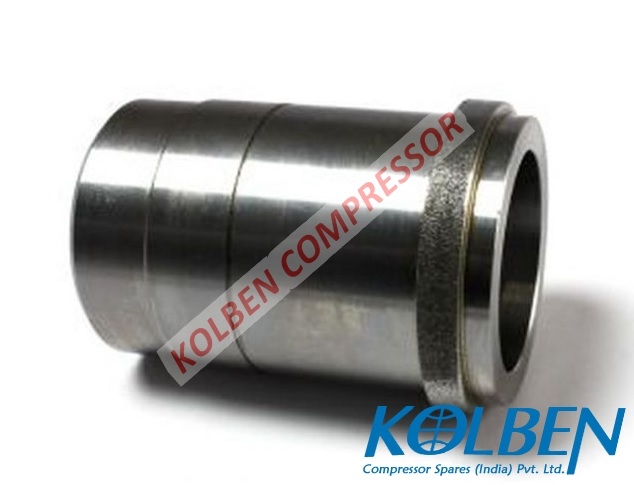

365321-08


pipe connection steel brazing and welding bush Ø42 (1 5/8') Ø54 (2 1/8') (36532108)






237.



S6F.2


365321-14


pipe connection discharge shut-off valve steel brazing and welding bush Ø42 (1 5/8") (36532114)






238.



S6F.2


366000-07


pipe connection steel copper-plated brazed connection Ø35, 1 3/4" - 12 UN (36600007)






239.



S6F.2


302233-11


piston aluminium alloy Ø82 (30223311)






240.



S6F.2


361100-21


pressure relief valve high pressure side 34 bar 3/4" - 14 NPTF - p=34bar (36110021)






241.



S6F.2


325000-34


pressure spring steel Ø23,5 x 28 x 1,8 (32500034)






242.



S6F.2


347028-01


protection device SE-B2 230V-50/60Hz (34702801)






243.



S6F.2


366201-22


Protective Cap Span of the jaw: 27 Plastic - GRP M27 x 2 / L=70 mm (36620122)






244.



S6F.2


366201-19


Protective Cap Span of the jaw: 27 Plastic - GRP M24 x 2 / L=57,5 mm (36620119)






245.



S6F.2

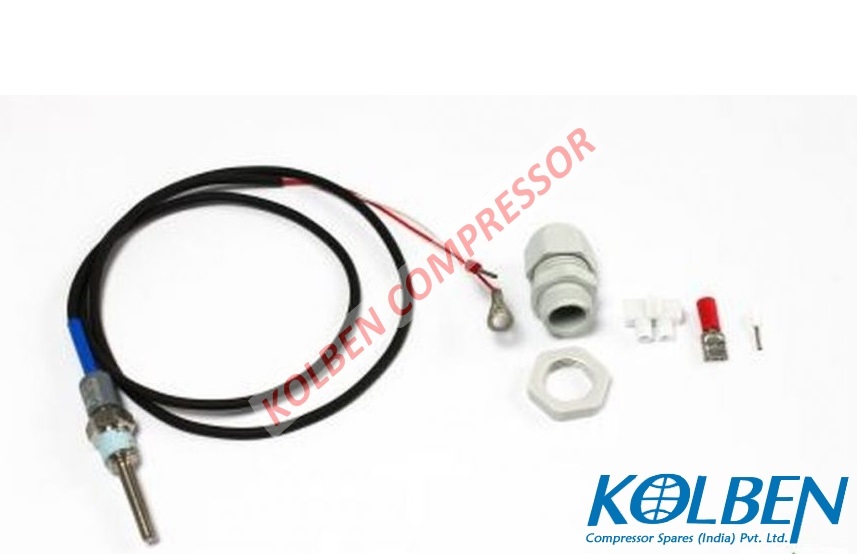

347023-03


PTC-sensor 140° C (34702303)






246.



S6F.2


303602-11

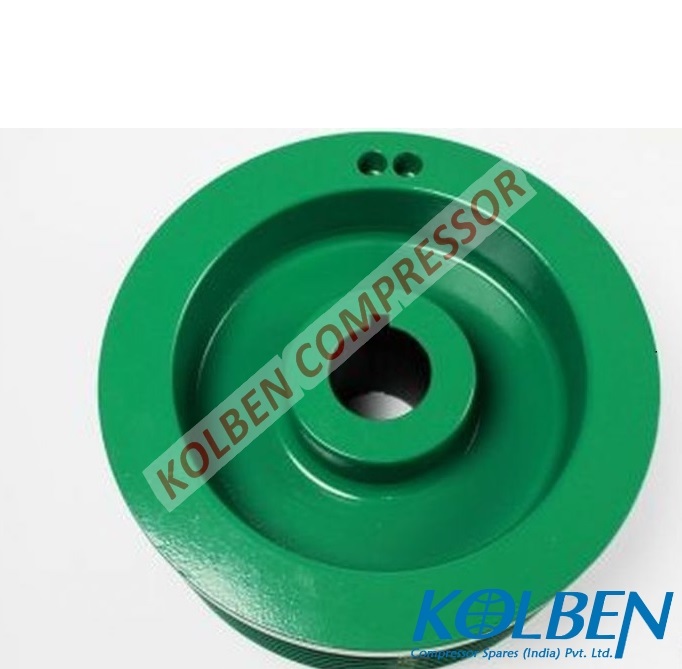

pulley Taper-lock bush grey cast iron Ø224, 5R, SPA (30360211)






247.



S6F.2


382141-01


retaining ring with lugs spring steel DIN 6796 - FSt A8 (38214101)






248.



S6F.2


382231-04


retaining ring with lugs spring steel DIN 472 Ø20 x 1 (38223104)

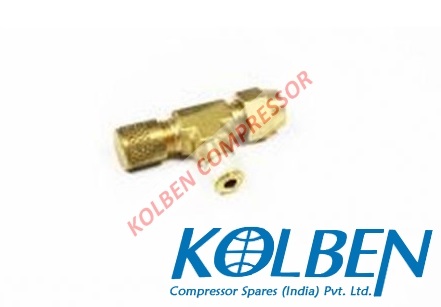

249.



S6F.2


361500-01


Schrader valve T-piece brass Jul-16 (36150001)






250.



S6F.2


361500-22


Schrader valve (36150022)






251.



S6F.2


305413-07


sealing cover Ø142 x 31 (30541307)






252.



S6F.2

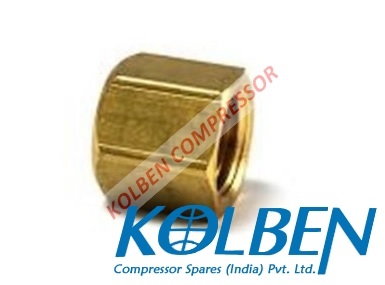

366202-01


sealing nut 7/16" - 20 UNF (36620201)






253.



S6F.2


366110-02


Sealing Plug steel 1/4" - 18 NPTF (36611002)






254.



S6F.2


366110-01


Sealing plug steel 1/8“ - 27 NPTF (36611001)






255.



S6F.2


366110-10


sealing plug oil equalising bore steel 1/2" - 14 NPTF (36611010)






256.



S6F.2


366104-22


sealing plug separation wall brass 3/4" - 14 NPTF (36610422)






257.



S6F.2


366110-09

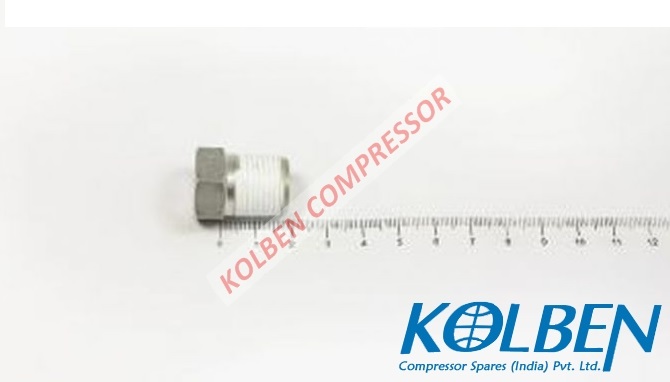

sealing plug bottom plate steel 3/8" - 18 NPTF (36611009)






258.



S6F.2


366110-05


sealing plug gas equalising bore steel 3/4" - 14 NPTF (36611005)






259.



S6F.2


366112-02


sealing screw conic M12 x 1,5 (36611202)






260.



S6F.2


366114-24


sealing screw with magnet oil drain inclusive O-Ring gasket M26 (36611424)






261.



S6F.2


374017-03


shaft sea (37401703)






262.



S6F.2


374001-06


shaft seal rotating unit (37400106)






263.



S6F.2


361313-01


Shut-Off Valve Discharge side without hexagon head screws (pos. 131) brazing and welding bush Ø42 (1 5/8") (36131301)






264.



S6F.2


361310-08

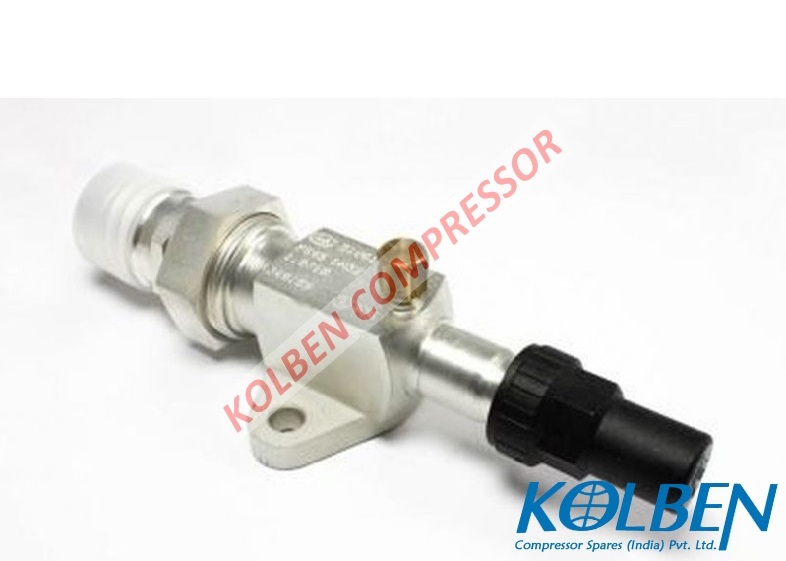

shut-off valve Discharge side brazing and welding bush Ø35 (1 3/8") (36131008)






265.



S6F.2


361338-02


shut-off valve suction side Ø42 (1 5/8") (36133802)






266.



S6F.2


361822-01

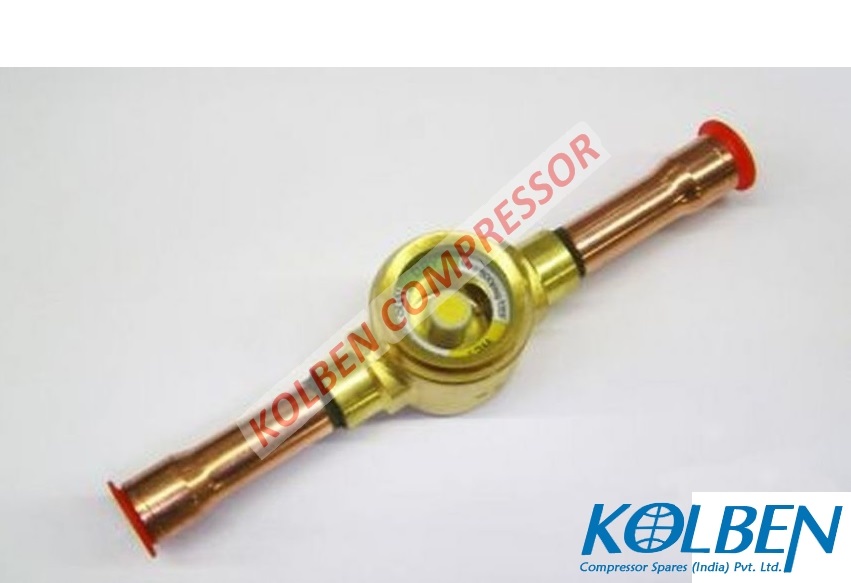

sight glass brazed connection Ø10 x 109 (36182201)






267.



S6F.2


361802-02


sight glass Ø67 x 8,5 (36180202)






268.



S6F.2


382201-51


single coil spring washer spring steel galvanized DIN 127 A4, 3 (38220151)






269.



S6F.2


347100-02


solenoid valve liquid injection Brazed connection EVR 6 230V-50/60Hz Ø10 L (34710002)






270.



S6F.2


353002-08


subcooler 317 x 76 x 47 (35300208)






271.



S6F.2


362002-06


suction gas filter Ø50 x 140 (36200206)






272.



S6F.2


360503-02

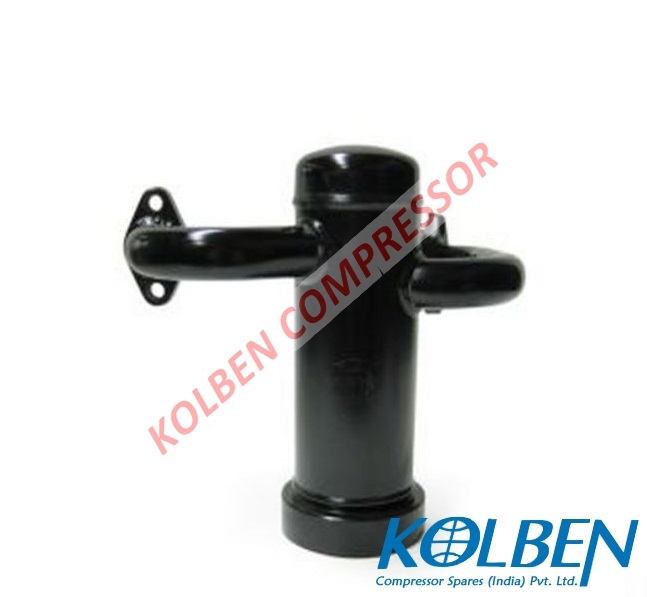

suction header (36050302)






273.



S6F.2


320500-08


thrust washer Crankcase side Ø86 x Ø71 x 1,7 (32050008)






274.



S6F.2


320500-07


thrust washer oil pump side Ø62 x Ø48 x 1,7 (32050007)






275.

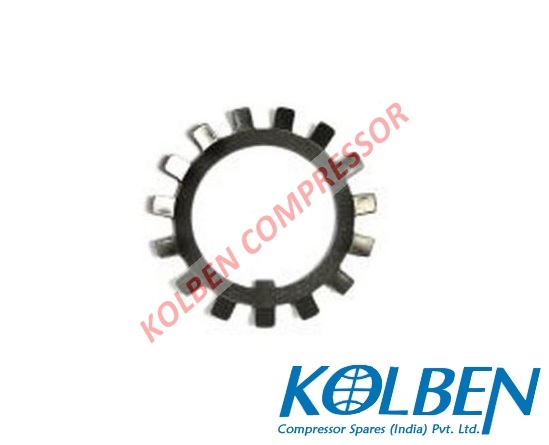

S6F.2


382112-01


toothed washer (38211201)






276.



S6F.2


304016-04


valve plate high pressure side High pressure side D 82 mm (30401604)






277.



S6F.2


304016-08


valve plate low pressure stage Sealing plug included Low pressure side D 82 mm (30401608)






278.



S6F.2


304016-12


valve plate low pressure stage Pressure relief valve included Low pressure side D 82 mm (30401612)






279.



S6F.2


382002-01


washer brass DIN 125 A4, 3 (38200201)






280.



S6F.2


383401-26


wrist pin Ø20 x Ø13 x 60 (38340126)






281.



6F-50.2

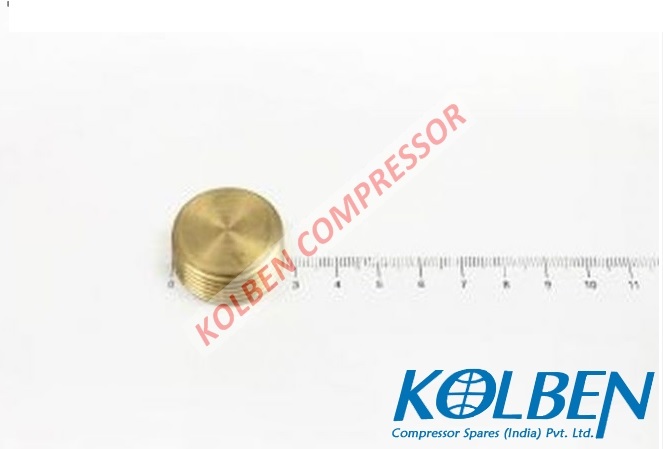

380391-55


sealing screw conic brass R 3/4 (38039155)






282.



6F-50.2


327000-01


parallel pin 6H 11 x 20 (32700001)






283.



6F-50.2


380358-01

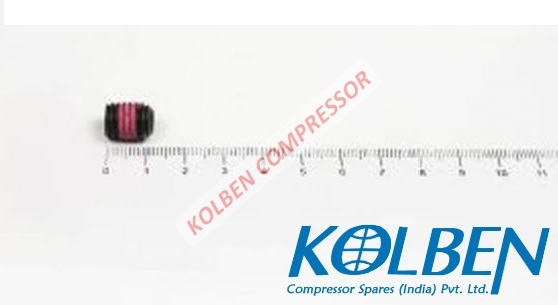

Set screw coated DIN 916 M10 x 12 (38035801)






284.



6F-50.2


300903-01


intermediate flange grey cast iron 225 x 96 x 93 (30090301)






285.



6F-50.2


343416-02


terminal plate kit (34341602)






286.



6F-50.2

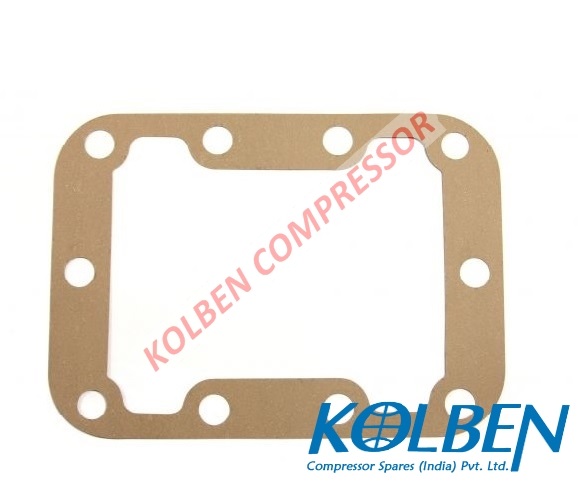

372421-14


gasket 163 x 118 x 0,5 (37242114)






287.



6F-50.2


304900-01


terminal plate 165 x 120 x 15,5 (30490001)






288.



6F-50.2


343417-07


connection to ground, complete grounding (34341707)






289.



6F-50.2


372124-03


gasket only needed for terminal box IP66 165 x 120 x 3 (37212403)






290.



6F-50.2

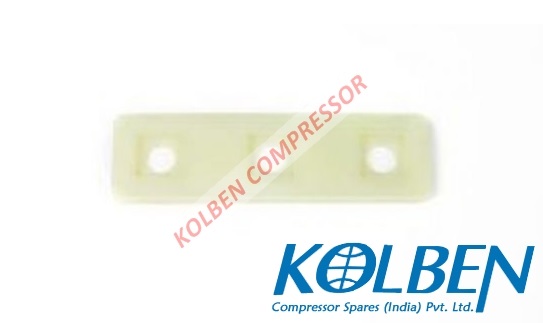

375002-03


insulating plate 85 x 25 x 6 (37500203)






291.



6F-50.2

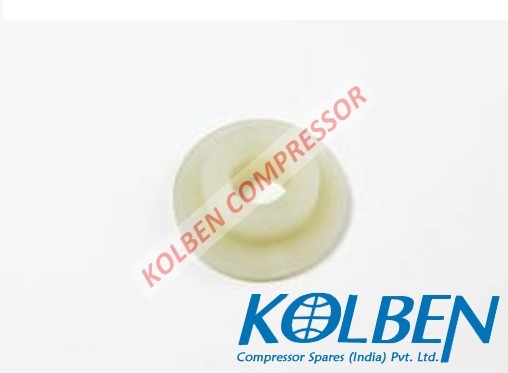

375001-03


pressure bush Ø8 x Ø24 x 8 (37500103)






292.

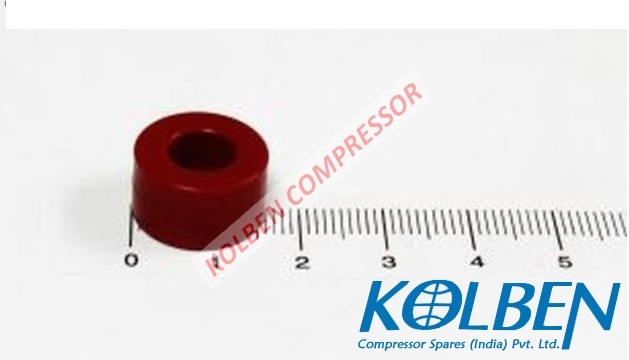

6F-50.2


375000-03


gasket ring Ø16 x Ø8 x 8,5 (37500003)






293.



6F-50.2


382042-03


washer copper 8 x 1,6 (38204203)






294.



6F-50.2


381301-05


hexagon nut brass M8 (38130105)






295.



6F-50.2


382002-02

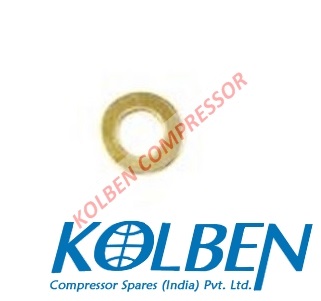

washer brass DIN 125 A5, 3 (38200202)






296.



6F-50.2

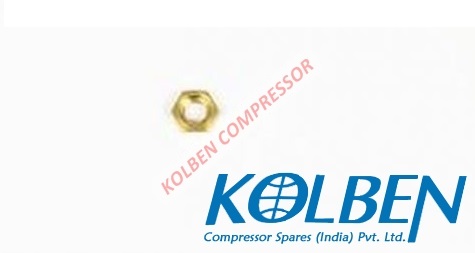

381301-03


hexagon nut brass M5 (38130103)






297.

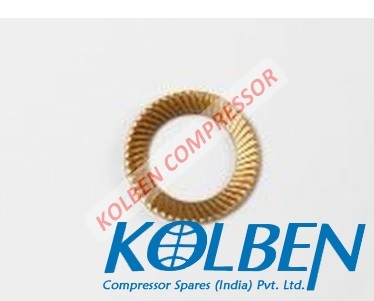

6F-50.2


382152-01


thrust washer DIN 127 S 8 (38215201)






298.



6F-50.2


302915-02

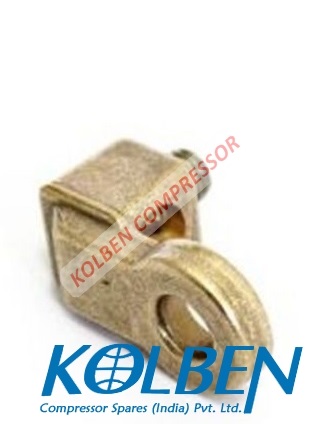

cable connector brass (30291502)






299.

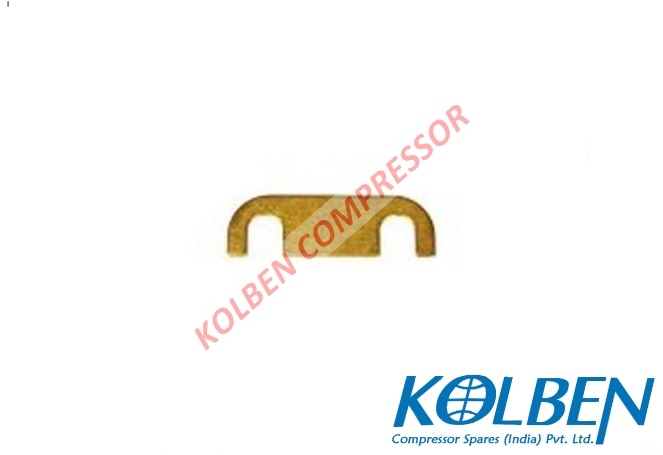

6F-50.2


320318-03


connection bridge brass A 5,4 (32031803)






300.



6F-50.2


343414-08


terminal plate kit (34341408)






301.



6F-50.2


343414-07


terminal plate kit (34341407)






302.



6F-50.2


375002-01


insulating plate 53 x 18 x 6,5 (37500201)






303.

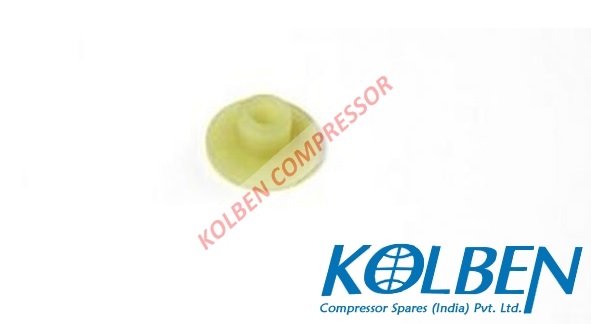

6F-50.2


375001-01


pressure bush Ø4,5 x Ø18,5 x 8,5 (37500101)






304.



6F-50.2

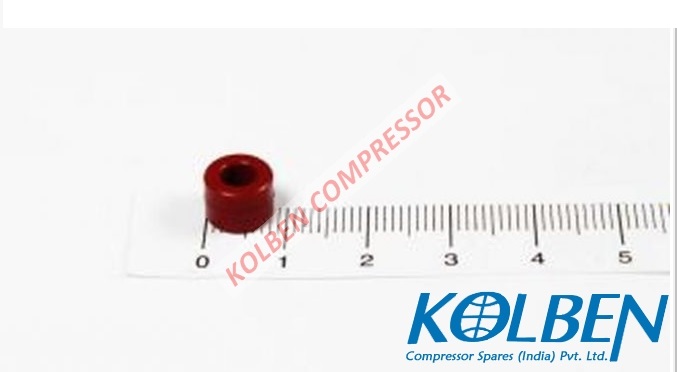

375000-01


gasket ring Ø4,5 x Ø18,5 x 8,5 (37500001)






305.



6F-50.2


345923-06


insulating plate (34592306)






306.



6F-50.2


343413-01

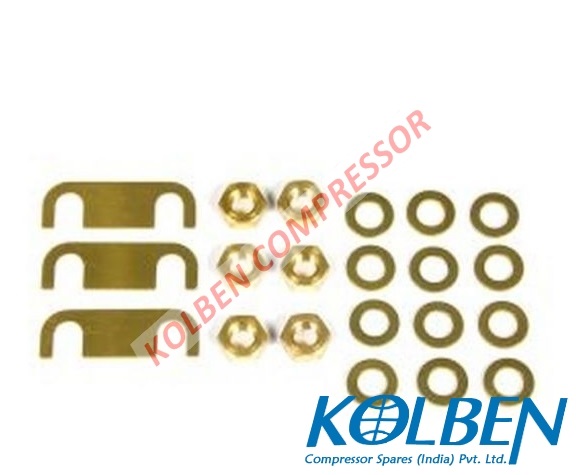

conversion kit (34341301)






307.



6F-50.2


380306-89


cheese head screw 10.9 galvanized DIN 912, 10.9 M10 x 20 (38030689)






308.



6F-50.2


321202-01


centering plate steel 167 x 122 x 12 (32120201)






309.



6F-50.2

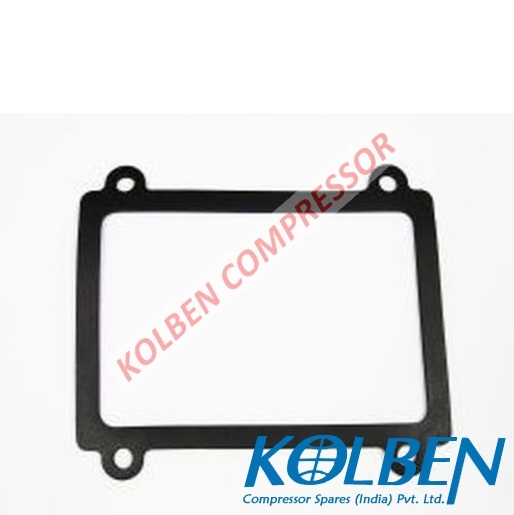

372120-01


gasket 133 x 117 x 2 (37212001)






310.



6F-50.2


300950-17


terminal box black aluminium cast 313 x 175 x 84 (30095017)






311.



6F-50.2

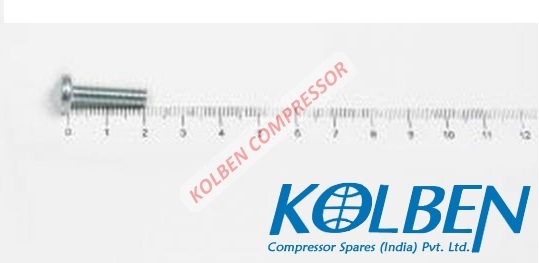

380508-51


Cheese head screw galvanized DIN 7985, 4.8 M5 x 20 (38050851)






312.



6F-50.2


305914-45


Cover black 313 x 175 x 11 (38050851)






313.



6F-50.2


347028-01


protection device SE-B2 230V-50/60Hz (34702801)






314.



6F-50.2


380507-52


Cross Recessed Raised Screw 4.8 galvanized M4 x 10 (38050752)






315.



6F-50.2

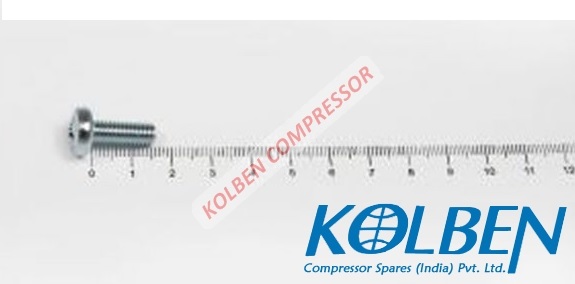

380501-54


Oval head screw galvanized DIN 7985, 4.8 M6 x 16 (38050154)






316.



6F-50.2


372811-09


gasket set (37281109)






317.



6F-50.2


346331-51


built-in motor 37 kW, 4-pole 380..400V Y/YY-3-50Hz, 440..460V Y/YY-3-60Hz Ø223 x 234,9 (34633151)






318.



6F-50.2


367121-01


clamping plate 80 x 80 (36712101)






319.



6F-50.2


380302-05


Cheese Head Screw DIN 912, 10.9 M12 x 50 (38030205)






320.



6F-50.2

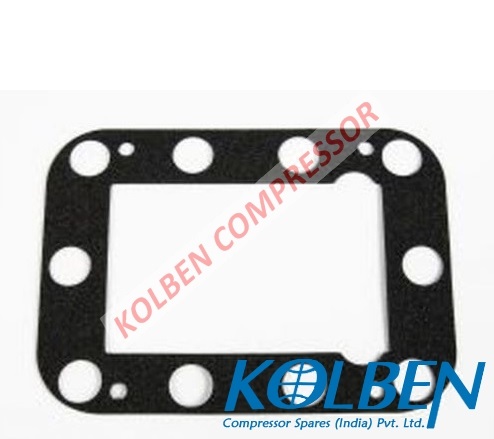

372124-01


gasket terminal box aluminium 165 x 120 x 3 (37212401)






321.

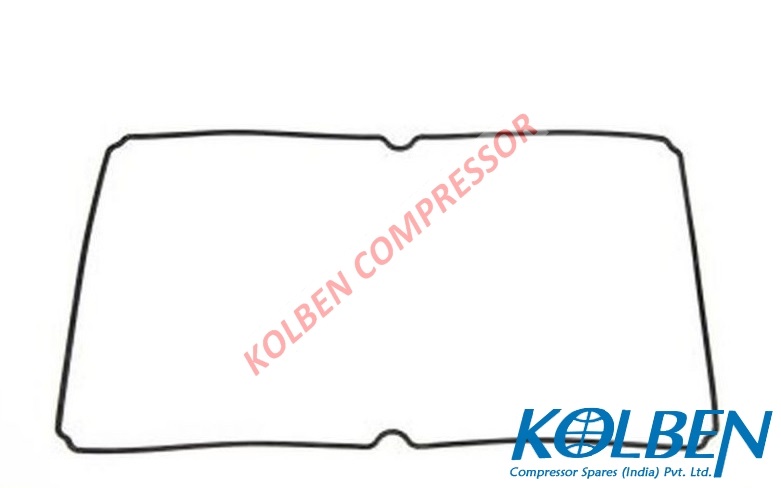

6F-50.2


372138-02


gasket terminal box aluminium (37213802)






322.



6F-50.2


343213-12


Crankcase heater heating capacity: 140W 230V-1-50/60Hz (34321312)






323.



6F-50.2


345906-02


heater sleeve for 140W heater 43315 (34590602)






324.



6FE-50


311100-04


bearing bush Motor side Ø50 x Ø45 x 47,5 (31110004)






325.



6FE-50


311100-05


bearing bush Crankcase side Ø50 x Ø45 x 47,5 (31110005)






326.



6FE-50


320500-06


thrust washer Motor side Ø62 x Ø48 x 1,7 (32050006)






327.



6FE-50


301007-16


crankshaft Stroke 55mm Ø45 x 603 (30100716)






328.



6FE-50


366112-01


sealing screw conic DIN 906 M8 x 1 (36611201)






329.



6FE-50

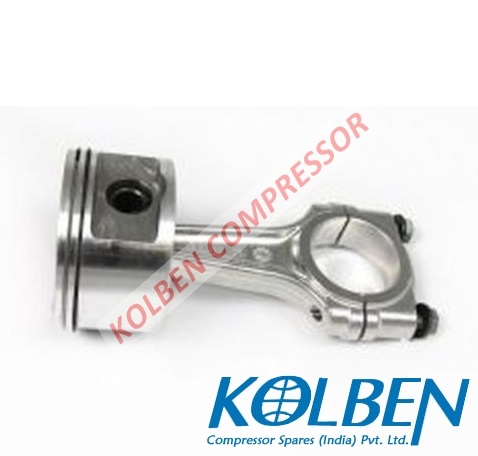

302298-69


connecting rod / piston Ø82 (30229869)






330.



6FE-50


302115-52


connecting rod (30211552)






331.



6FE-50


302233-95


Piston Ø82 (30223395)






332.



6FE-50


383401-26


wrist pin Ø20 x Ø13 x 60 (38340126)






333.



6FE-50


382231-04


retaining ring with lugs spring stee DIN 472 Ø20 x 1 (38223104)






334.



6FE-50


382300-61


compression ring Piston diameter 81,96mm Ø82 x 1,5 (38230061)






335.



6FE-50


382310-28


compression ring Piston diameter 81,96mm Ø82 x 1,5 (38231028)






336.



6FE-50


372314-03


gasket bearing cover Ø182 x Ø133 x 1 (37231403)






337.



6FE-50


305125-03


bearing cover complete inclusive oil pump (30512503)






338.



6FE-50


361101-01


oil pressure relief valve SW17 x 29 (36110101)






339.



6FE-50


382402-01


gasket ring aluminium DIN 7603 A10 x 15 x 1 (38240201)






340.



6FE-50


320500-07


thrust washer oil pump side Ø62 x Ø48 x 1,7 (32050007)






341.



6FE-50


380306-32


Cheese Head Screw bearing cover DIN 912, 10.9 M10 x 30 (38030632)






342.



6FE-50


362503-02


oil pump (36250302)






343.



6FE-50


372001-19


O-ring oil pump Ø74 x 2 (37200119)






344.



6FE-50


380155-05


hexagon head screw oil pump DIN 933, 10.9 M8 x 20 (38015505)






345.



6FE-50


380339-01


Hexsocket Cheese Head Screw ISO 4762, 10.9 - A2K M10 x 30 (38033901)






346.



6FE-50


320314-01


fixing plate MP54 140 x 40 x 3 (32031401)






347.



6FE-50


382002-01


washer brass DIN 125 A4, 3 (38200201)






348.



6FE-50


382201-51


single coil spring washer spring steel galvanized DIN 127 A4, 3 (38220151)






349.



6FE-50


380507-51


cheese head screw 4.8 galvanized M4 x 8 (38050751)






350.



6FE-50


347320-33


differential oil pressure cut-out MP54 115V/230V-50/60Hz 100 x 50 x 130 (34732033)






351.



6FE-50


361500-22


Schrader valve (36150022)






352.



6FE-50


374027-03


shaft seal bearing bush (37402703)






353.



6FE-50


384102-01


gib-headed key Stator steel DIN 6887 5 x 5 x 60 (38410201)






354.



6FE-50

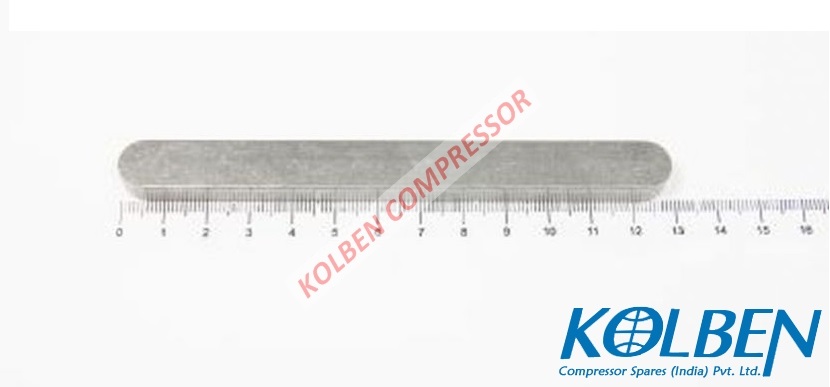

384001-24


parallel key steel DIN 6885 A12 x 8 x 125 (38400124)






355.



6FE-50


320502-04


thrust washer steel Ø54 x Ø17 x 5 (32050204)






356.



6FE-50


382150-04


thrust washer spring stee S16 (38215004)






357.



6FE-50


380166-03


hexagon head screw coated DIN 933, 10.9 M16 x 40 (38016603)






358.



6FE-50


325910-01


retaining ring with lugs spring stee Ø230 (32591001)






359.



6FE-50


362004-02


suction gas filter Ø220 x 50 (36200402)






360.



6FE-50


372315-03


gasket housing cover Ø286 x Ø236 x 0,38 (37231503)






361.



6FE-50


305900-03


housing cover (30590003)






362.



6FE-50


377108-52


Insulation for motor housing cover (37710852)






363.



6FE-50


366110-02


Sealing Plug steel 1/4" - 18 NPTF (36611002)






364.



6FE-50


380057-11


hexagon head screw housing cover DIN 931, 10.9 M12 x 150 (38005711)






365.



6FE-50


380057-14


hexagon head screw housing cover DIN 931, 10.9 M12 x 180 (38005714)






366.



6FE-50


372301-03


gasket suction shut-off valve Ø76 x Ø60 x 1 (37230103)






367.



6FE-50


380009-53


hexagon head screw suction shut-off valve 8.8 galvanized DIN 931, 8.8 M16 x 100 (38000953)






368.



6FE-50


361338-04


Shut-Off Valve suction side Ø54 (2 1/8") Ø54 (2 1/8") (36133804)






369.



6FE-50


365321-03


Pipe Connection brazed and welding bush steel Ø54 (2 1/8") (36532103)






370.



6FE-50


372303-02


Gasket Pipe connection Ø75 x Ø61 x 2 (37230302)






371.



6FE-50


367121-02


Clamping Plate suction shut-off valve 110 x 110 (36712102)






372.



6FE-50


380109-09


Hexagon Head Screw clamping plate DIN 933, 8.8 M16 x 55 (38010909)






373.



6FE-50


375014-05


Protective Cap Span of the jaw: 36 Plastic - GRP M36 x 1,5 / L=67 mm (37501405)






374.



6FE-50


366114-24


sealing screw with magnet oil drain inclusive O-Ring gasket M26 (36611424)






375.



6FE-50


382403-04


Gasket Ring oil drain aluminium DIN 7603 A26 x 31 x 2 (38240304)






376.



6FE-50


325000-34


pressure spring Ø23,5 x 28 x 1,8 (32500034)






377.



6FE-50


362003-01


oil filter Ø20 x 200 (36200301)






378.



6FE-50


360110-06


oil return system (36011006)






379.



6FE-50


372003-15


O-ring sight glass Ø36,3 x 1,78 (37200315)






380.



6FE-50


361802-02


sight glass steel / glass Ø67 x 8,5 (36180202)






381.



6FE-50


380154-06


hexagon head screw DIN 933, 10.9 M6 x 20 (38015406)






382.



6FE-50


366110-10


sealing plug oil equalising bore steel 1/2" - 14 NPTF (36611010)






383.



6FE-50


366110-05


sealing plug gas equalising bore steel 3/4" - 14 NPTF (36611005)






384.



6FE-50


372415-02


gasket bottom plate (37241502)






385.



6FE-50


320307-04


bottom plate steel 270 x 360 x 12 (32030704)






386.



6FE-50


380156-05


hexagon head screw bottom plate DIN 933, 10.9 M10 x 25 (38015605)






387.



6FE-50


370004-01


vibration damper set Crankcase side spring brown Lo = 42 (37000401)






388.



6FE-50


325002-01


damper element Crankcase side spring stee brown Lo=42 (32500201)






389.



6FE-50


370004-03


vibration damper set Motor side spring blue Lo = 48 (37000403)






390.



6FE-50


325002-03


damper element Motor side spring stee blue Lo=48 (32500203)






391.



6FE-50


327309-01


foot 369 x 60 x 13 x Ø21 (32730901)






392.



6FE-50


361110-01


gas equalising valve (36111001)






393.



6FE-50


361110-06


Pressure relief valve 37 bar 3/4" (36111006)






394.



6FE-50


372704-01


Gasket 91 x 52 x 1 (37270401)






395.



6FE-50


380306-23


Cheese Head Screw DIN 912, 10.9 M10 x 25 (38030623)






396.



6FE-50


372301-02


gasket discharge shut-off valve Ø70 x Ø54 x 1 (37230102)






397.



6FE-50


380007-52


hexagon head screw discharge shut-off valve galvanized DIN 931, 8.8 M12 x 80 (38000752)






398.



6FE-50


361338-01


shut-off valve Discharge side Ø42 (1 5/8") (36133801)






399.



6FE-50


365321-14


pipe connection discharge shut-off valve steel brazing and welding bush Ø42 (1 5/8") (36532114)






400.



6FE-50


372303-01


gasket discharge shut-off valve Ø52 x Ø37 x 2 (37230301)






401.



6FE-50


366201-22


Protective Cap Span of the jaw: 27 Plastic - GRP M27 x 2 / L=70 mm (36620122)






402.



6FE-50


366110-01


Sealing plug steel 1/8“ - 27 NPTF (36611001)






403.



6FE-50


304063-35


valve plate (30406335)






404.



6FE-50


372511-07


gasket 253 x 155 x 1,0 Ø82 (37251107)






405.



6FE-50


372616-03


gasket Retall 253 x 155 x 0,5 (37261603)






406.



6FE-50


302360-38

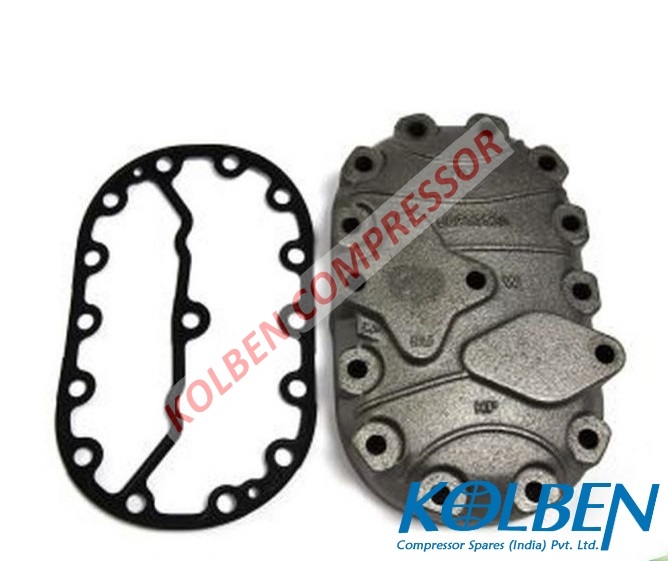

cylinder head air-cooled (302360380






407.



6FE-50

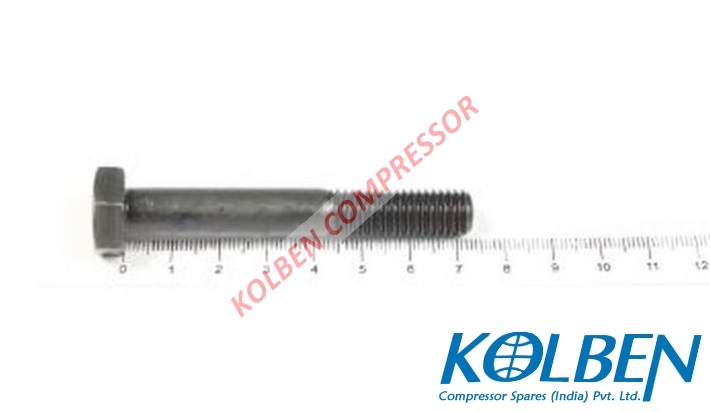

380056-14


hexagon head screw DIN 931, 10.9 M10 x 70 (38005614)






408.



6FE-50

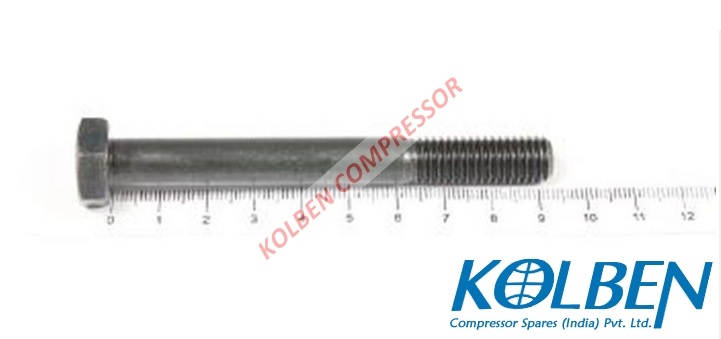

380056-20


hexagon head screw DIN 931, 10.9 M10 x 90 (38005620)






409.



6FE-50


327000-01


parallel pin 6H 11 x 20 (32700001)






410.



6FE-50


380358-01


Set screw coated DIN 916 M10 x 12 (38035801)






411.



6FE-50


300903-01


intermediate flange grey cast iron 225 x 96 x 93 (30090301)






412.



6FE-50


343416-02


terminal plate kit (34341602)






413.



6FE-50


372421-14


gasket Terminal plate 163 x 118 x 0,5 (37242114)






414.



6FE-50


345950-01


Metal Plate For Grounding aluminium M6 (34595001)






415.



6FE-50


382150-01


thrust washer spring stee S6 (38215001)






416.



6FE-50


380004-53


hexagon head screw grounding ISO 4014, 8.8 - A2K M6 x 35 (38000453)






417.



6FE-50


372124-03


gasket only needed for terminal box IP66 165 x 120 x 3 (37212403)






418.



6FE-50


311018-01

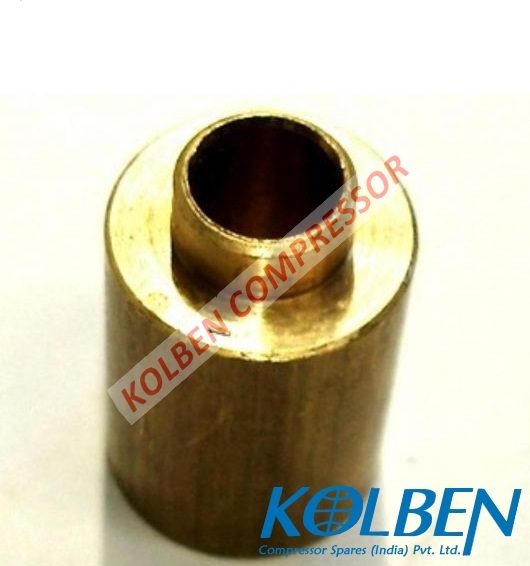

Spacer Sleeve Ø14 x Ø6,3 x 21,4 (31101801)






419.



6FE-50


382101-54

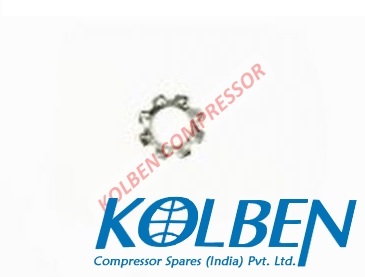

toothed washer spring steel galvanized DIN 6797 A6, 4 (38210154)






420.



6FE-50


345506-24


terminal plate optimized condensation sequence optimized condensation sequence (34550624)






421.



6FE-50


381108-01

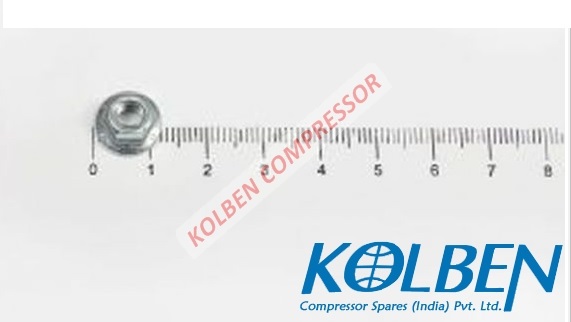

hexagon nut M5 (38110801)






422.



6FE-50


382152-01


thrust washer DIN 127 S 8 (38215201)






423.



6FE-50


302915-02


cable connector brass (30291502)






424.



6FE-50


381301-05


hexagon nut brass M8 (38130105)






425.



6FE-50


343413-01


conversion kit (34341301)






426.



6FE-50


380306-89


cheese head screw 10.9 galvanized DIN 912, 10.9 M10 x 20 (38030689)






427.



6FE-50


321202-01


centering plate steel 167 x 122 x 12 (3212)0201)






428.



6FE-50


372120-01


gasket 133 x 117 x 2 (37212001)






429.



6FE-50


300950-17


terminal box black aluminium cast 313 x 175 x 84 (30095017)






430.



6FE-50


380508-51


Cheese head screw galvanized DIN 7985, 4.8 M5 x 20 (38050851)






431.



6FE-50


305914-45


Cover black 313 x 175 x 11 (30591445)






432.



6FE-50


347028-01


protection device SE-B2 230V-50/60Hz (34702801)






433.



6FE-50


380507-52


Cross Recessed Raised Screw 4.8 galvanized M4 x 10 (38050752)






434.



6FE-50


380501-54


Oval head screw galvanized DIN 7985, 4.8 M6 x 16 (38050154)






435.



6FE-50


372811-09


gasket set (37281109)






436.



6FE-50


346331-51


built-in motor 37 kW, 4-pole 380..400V Y/YY-3-50Hz, 440..460V Y/YY-3-60Hz Ø223 x 234,9 (34633151)






437.



6FE-50


367121-01


clamping plate 80 x 80 (36712101)






438.



6FE-50


380302-05


Cheese Head Screw DIN 912, 10.9 M12 x 50 (38030205)






439.



6FE-50


372124-01


gasket terminal box aluminium 165 x 120 x 3 (37212401)






440.



6FE-50


372138-02


gasket terminal box aluminium (37213802)






441.



6FE-50


343213-12


Crankcase heater heating capacity: 140W 230V-1-50/60Hz (34321312)






442.



6FE-50


389002-01


electric connector of the machine / device DIN 43650 Typ GDM 209 (38900201)






443.



6FE-50


345906-02


heater sleeve for 140W heater 43315 (34590602)






444.



6FE-50


344006-04


cable grounding for grounding M6 x 220 (34400604)






445.



6FE-50


380501-52


cross recessed raised screw grounding Cross recessed raised 4.8 galvanized M6 x 12 (38050152)






446.



6FE-50


382403-01

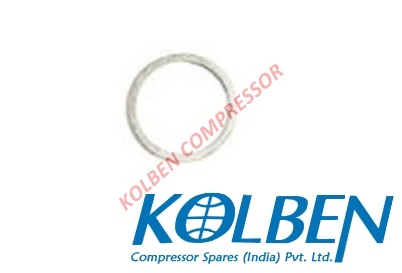

Gasket Ring aluminium DIN 7603 A20 x 24 x 1,5 (38240301)






447.



6FE-50


347319-11

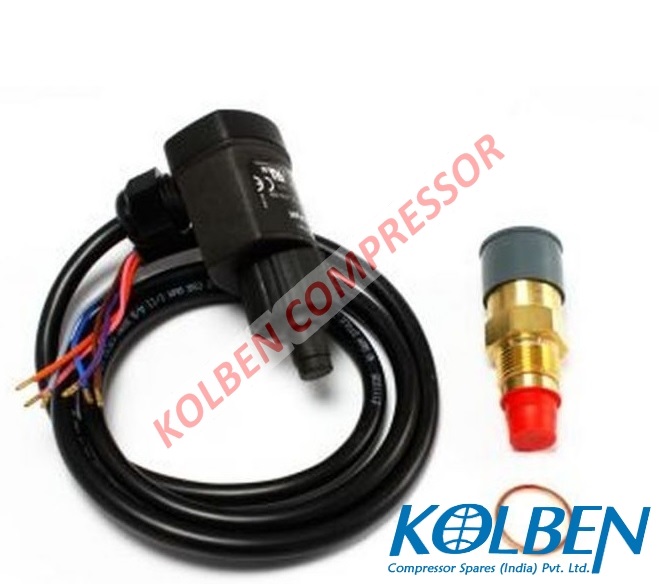

differential oil pressure cut-out Delta-P II 230V-50/60Hz (34731911)






448.



6F.2


311100-08


bearing bush Crankcase side Ø75 x Ø70 x 70 (31110008)






449.



6F.2


311100-04


bearing bush Ø50 x Ø45 x 47,5 (31110004)






450.



6F.2


311103-06


bearing bush connecting rod Ø23 x Ø19 x 22,5 (31110306)






451.



6F.2


305125-03


bearing cover complete inclusive oil pump (30512503)






452.



6F.2


302400-01


bottom plate grey cast iron350 x 315 x 54(30240001)






453.



6F.2


380306-26


cheese head screw bottom plate DIN 912, 10.9 M10 x 55 (38030626)






454.



6F.2


380306-23


Cheese Head Screw intermediate flange h=25 DIN 912, 10.9 M10 x 25 (38030623)






455.



6F.2


380306-32


Cheese Head Screw bearing cover DIN 912, 10.9 M10 x 30 (38030632)






456.



6F.2


380302-05


Cheese Head Screw DIN 912, 10.9 M12 x 50 (38030205)






457.



6F.2


380507-51


cheese head screw 4.8 galvanized M4 x 8 (38050751)






458.



6F.2


367121-02


Clamping Plate suction shut-off valve 110 x 110 (36712102)






459.



6F.2


383021-11


clamping sleeve 10 x 0,75 x 29 (38302111)






460.



6F.2


382300-61


compression ring Piston diameter 81,96mm Ø82 x 1,5 (38230061)






461.



6F.2


382310-28


compression ring Piston diameter 81,96mm Ø82 x 1,5 (38231028)






462.



6F.2


302115-50


connecting rod (30211550)






463.



6F.2


302297-43


connecting rod / piston Ø82 (30229743)






464.



6F.2


343213-12


Crankcase heater heating capacity: 140W 230V-1-50/60Hz (34321312)






465.



6F.2


301007-08


crankshaft Stroke 55mm Ø45 x 554 (30100708)






466.



6F.2


302360-22


cylinder head air-cooled (30236022)






467.



6F.2


302360-03


cylinder head water-cooled 253 x 155 x 64 (30236003)






468.



6F.2


347320-33


differential oil pressure cut-out MP54 115V/230V-50/60Hz 100 x 50 x 130 (34732033)






469.



6F.2


389002-01


electric connector of the machine / device capacity control DIN 43650 Typ GDM 209 (38900201)






470.



6F.2


380902-02


eye bolt DIN 580 M12 (38090202)






471.



6F.2


320314-01


fixing plate MP54 140 x 40 x 3 (32031401)






472.



6F.2


361110-01


gas equalising valve (36111001)






473.



6F.2


372616-03


gasket Retall 253 x 155 x 0,5 (37261603)






474.



6F.2


372315-03


gasket housing cover Ø286 x Ø236 x 0,38 (37231503)






475.



6F.2


372704-01


Gasket intermediate flange h=25 91 x 52 x 1 (37270401)






476.



6F.2


372415-02


gasket bottom plate (37241502)






477.



6F.2


372303-02


Gasket Pipe connection Ø75 x Ø61 x 2 (37230302)






478.



6F.2


372511-07


gasket 253 x 155 x 1,0 Ø82 (37251107)






479.



6F.2


372313-02


gasket Ø142 x Ø106,5 x 0,5 (37231302)






480.



6F.2


372301-03


gasket suction shut-off valve Ø76 x Ø60 x 1 (37230103)






481.



6F.2


372301-02


gasket discharge shut-off valve Ø70 x Ø54 x 1 (37230102)






482.



6F.2


372303-01


gasket Ø52 x Ø37 x 2 (37230301)






483.



6F.2


382402-01


gasket ring aluminium DIN 7603 A10 x 15 x 1 (38240201)






484.



6F.2


382403-04


Gasket Ring oil drain aluminium DIN 7603 A26 x 31 x 2 (38240304)






485.



6F.2


382501-05


gasket ring NBR felt ring G58 x 50 x 4 (38250105)






486.



6F.2


372812-05


gasket set (37281205)






487.



6F.2


372807-01


gasket set bearing cover Ø182 x Ø133 x 1/ 0,8/ 0,75 /0,6 /0,5 (37280701)






488.



6F.2


381214-01


grooved nut M40 x 1,5 (38121401)






489.



6F.2


345906-02


heater sleeve for 140W heater 43315 (34590602)






490.



6F.2


380155-05


hexagon head screw oil pump DIN 933, 10.9 M8 x 20 (38015505)






491.



6F.2


380109-09


Hexagon Head Screw clamping plate DIN 933, 8.8 M16 x 55 (38010909)






492.



6F.2


380007-52


hexagon head screw discharge shut-off valve galvanized DIN 931, 8.8 M12 x 80 (38000752)






493.



6F.2


380154-02


hexagon head screw steel DIN 933, 10.9 M6 x 12 (38015402)






494.



6F.2


380057-07


hexagon head screw housing cover DIN 931, 10.9 M12 x 110 (38005707)






495.



6F.2


380056-03


hexagon head screw DIN 931, 10.9 M10 x 60 (38005603)






496.



6F.2


380154-06


hexagon head screw DIN 933, 10.9 M6 x 20 (38015406)






497.



6F.2


380155-08


hexagon head screw DIN 933, 10.9 M8 x 30 (38015508)






498.



6F.2


380009-53


hexagon head screw suction shut-off valve 8.8 galvanized DIN 931, 8.8 M16 x 100 (38000953)






499.



6F.2


380105-09


hexagon head screw DIN 933, 8.8 M8 x 45 (38010509)






500.



6F.2


380057-06


hexagon head screw housing cover DIN 931, 10.9 M12 x 100 (38005706)






501.



6F.2


380339-01


Hexsocket Cheese Head Screw ISO 4762, 10.9 - A2K M10 x 30 (38033901)






502.



6F.2


300026-08


housing Ø82 (30002608)






503.



6F.2


305214-01


housing cover grey cast iron Ø286 x 112 (30521401)






504.



6F.2


300903-01


intermediate flange grey cast iron 225 x 96 x 93 (30090301)






505.



6F.2


372003-15


O-ring sight glass Ø36,3 x 1,78 (37200315)






506.



6F.2


372001-25


O-ring stationary ring Ø63,09 x 3,53 (37200125)






507.



6F.2


372003-28


O-ring Ø47x Ø4 (37200328)






508.



6F.2


372001-20


O-ring housing cover Ø126 x 4 (37200120)






509.



6F.2


372001-19


O-ring oil pump Ø74 x 2 (37200119)






510.



6F.2


362003-01


oil filter Ø20 x 200 (36200301)






511.



6F.2


361101-01


oil pressure relief valve SW17 x 29 (36110101)






512.



6F.2


360110-07


oil return system (36011007)






513.



6F.2


384001-06


parallel key steel DIN 6885 A8 x 7 x 45 (38400106)






514.



6F.2


327000-01


parallel pin 6H 11 x 20 (32700001)






515.



6F.2


360101-03


pipe oil return Ø6 x 1 (36010103)






516.



6F.2


365321-03


Pipe Connection brazed and welding bush steel Ø54 (2 1/8") (36532103)






517.



6F.2


365321-14


pipe connection discharge shut-off valve steel brazing and welding bush Ø42 (1 5/8") (36532114)






518.



6F.2


302233-95


Piston Ø82 (30223395)






519.



6F.2


361100-21


pressure relief valve 34 bar 3/4" - 14 NPTF - p=34bar (36110021)






520.



6F.2


325000-34


pressure spring steel Ø23,5 x 28 x 1,8 (32500034)






521.



6F.2


366201-22


Protective Cap Span of the jaw: 27 Plastic - GRP M27 x 2 / L=70 mm (36620122)






522.



6F.2


375014-05


Protective Cap Span of the jaw: 36 Plastic - GRP M36 x 1,5 / L=67 mm (37501405)






523.



6F.2


303602-11


pulley Taper-lock bush grey cast iron Ø224, 5R, SPA (30360211)






524.



6F.2


382231-04


retaining ring with lugs spring steel DIN 472 Ø20 x 1 (38223104)






525.



6F.2


382141-01


retaining ring with lugs spring steel DIN 6796 - FSt A8 (38214101)






526.



6F.2


361500-22


Schrader valve (36150022)






527.



6F.2


305413-07


sealing cover Ø142 x 31 (30541307)






528.



6F.2


366110-02


Sealing Plug steel 1/4" - 18 NPTF (36611002)






529.



6F.2


366110-01


Sealing plug steel 1/8“ - 27 NPTF (36611001)






530.



6F.2


366110-10


sealing plug oil equalising bore steel 1/2" - 14 NPTF (36611010)






531.



6F.2


366110-09


sealing plug bottom plate steel 3/8" - 18 NPTF (36611009)






532.



6F.2


366110-05


sealing plug gas equalising bore steel 3/4" - 14 NPTF (36611005)






533.



6F.2


380391-55


sealing screw conic brass R 3/4 (38039155)






534.



6F.2


366112-02


sealing screw conic M12 x 1,5 (36611202)






535.



6F.2


366114-24


sealing screw with magnet oil drain inclusive O-Ring gasket M26 (36611424)






536.



6F.2


374001-06


shaft seal rotating unit (37400106)






537.



6F.2


374017-03


shaft seal (37401703)






538.



6F.2


361338-04


Shut-Off Valve suction side Ø54 (2 1/8") (36133804)






539.



6F.2


361338-01


shut-off valve Discharge side Ø42 (1 5/8") (36133801)






540.



6F.2


361802-02


sight glass steel / glass Ø67 x 8,5 (36180202)






541.



6F.2


382201-51


single coil spring washer spring steel galvanized DIN 127 A4, 3 (38220151)






542.



6F.2


362004-01


suction gas filter Ø228 x 32 (36200401)






543.



6F.2


320500-07


thrust washer oil pump side Ø62 x Ø48 x 1,7 (32050007)






544.



6F.2


320500-08


thrust washer Crankcase side Ø86 x Ø71 x 1,7 (32050008)






545.



6F.2


382150-01


thrust washer spring steel S6 (38215001)






546.



6F.2


382112-01


toothed washer (38211201)






547.



6F.2


304051-15


valve plate Ø82 (30405115)






548.



6F.2


382002-01


washer brass DIN 125 A4, 3 (38200201)






549.



6F.2


383401-26


wrist pin Ø20 x Ø13 x 60 (38340126)







Manufacturers of BITZER COMPRESSOR PARTS
