COMPRESSOR PARTS > BITZER > 4VCS

Sr. No.


Model

OEM Part No.

Description

1.



4VC, 4VCS


302297-09

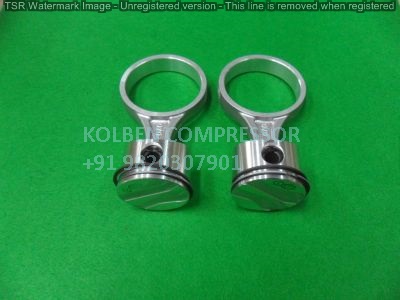

Piston - Piston Ring - Conrod Assy (55.0X1.5X70.0)-(Right+Left=Set)-Std- To Fit Bitzer 4Vc6






2.



4VC, 4VCS


302297-09R


Piston - Pin(Right) 55.0(Std)X 12.4Xcr1.48Xp1.48X160459 -To Fit Bitzer 4Vc6,4Vcs6,Ves6






3.



4VC, 4VCS


302297-09L


Piston - Pin(Left) 55.0(Std)X 12.4Xcr1.48Xp1.48X160459 -To Fit Bitzer 4Vc6,4Vcs6,4Ves6






4.



4VC, 4VCS, 4PC


311135-01


Bearing Bush 50.0X45.0(Std)X40.0-Ptfe-Std-To Fit Bitzer 4Vc12,4Vcs12, 4Nes14,4Pc






5.



4NC, 4NCS, 4PC, 4PCS, 4VC, 4VCS, 4TC, 4TCS


320500-10


Thrust Washer 66.0X48.0X1.6-To Fit Bitzer 4Nc,4Ncs,4Pc,4Pcs, 4Tc,4Tcs,4Vc,4Vcs






6.



4VC, 4VCS


304063-02


Valve Plate Assy Without Gasket(55.0) 10.5X4-13.0X4-To Fit Bitzer 4Vc6,4Vcs10






7.



4VC, 4VCS


372515-09


Valve Plate Gasket(55.0) 168.1X55.7-To Fit Bitzer 4Vc6,4Vcs10






8.



4VC, 4VCS, 4PC, 4TC, 4TCS, 4NC, 4NCS

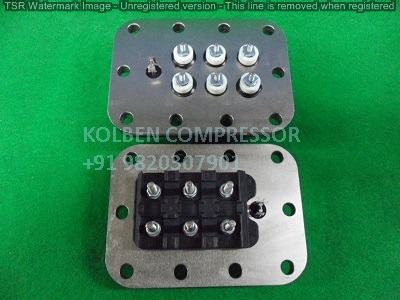

345506-01


Terminal Plate-To Fit Bitzer 4Vc,4Vcs,4Ve,4Tc, 4Tcs,4Pc,4Pcs,4Pe,4Nc,4Ncs






9.



4VC , 4VCS


N/A


Piston & pin (standard) 55.00mm L/H 4VC






10.



4VC, 4VCS


N/A


Piston & pin (standard) 55.00mm R/H 4VC






11.



4VCS-10.2


302926-07


balance weight (30292607)






12.



4VCS-10.2


302952-03


balance weight rotor (30295203)






13.



4VCS-10.2


311135-01


Bearing bush oil centrifuge Ø50 x Ø45 x 40 (31113501)






14.



4VCS-10.2


305107-78


bearing cover Oil level monitoring (30510778)






15.



4VCS-10.2


346265-46


built-in motor 7.4 kW, 4-pole 380..420V Y/YY-3-50Hz, 440..480V Y/YY-3-60Hz Ø223 (34626546)






16.



4VCS-10.2


380306-23


Cheese Head Screw suction shut-off valve DIN 912, 10.9 M10 x 25 (38030623)






17.



4VCS-10.2


380301-37


cheese head screw balance weight DIN 912, 8.8 M8 x 12 (38030137)






18.



4VCS-10.2


380402-06


cheese head screw protection device brass M4 x 16 (38040206)






19.



4VCS-10.2


380306-04


cheese head screw balance weight DIN 912, 10.9 M8 x 30 (38030604)






20.



4VCS-10.2


380508-51


Cheese head screw cover for terminal box galvanized DIN 7985, 4.8 M5 x 20 (38050851)






21.



4VCS-10.2


382310-16


Compression ring Piston diameter 54,96mm Ø55 x 1,5 (38231016)






22.



4VCS-10.2


382300-99


compression ring Ø55 x 1,0 (38230099)






23.



4VCS-10.2


302131-02


connecting rod Ø70 x Ø16 x 90 (30213102)






24.



4VCS-10.2


302298-46


connecting rod / piston Kit - right / left Ø55 (30229846)






25.



4VCS-10.2


343219-04


crankcase heater 0..140 W, 200-260 V (PTC) 200-260V (34321904)






26.



4VCS-10.2


302360-20


cylinder head air-cooled (30236020)






27.



4VCS-10.2


382001-05


disk rotor spring steel DIN 125 A17 (38200105)






28.



4VCS-10.2


301117-03


eccentric shaft (30111703)






29.



4VCS-10.2


380902-01


eye bolt DIN 580 M10 (38090201)






30.



4VCS-10.2


372704-01


Gasket suction shut-off valve 91 x 52 x 1 (37270401)






31.



4VCS-10.2


372515-09


gasket valve plate 191 x 115 x 1,1 (37251509)






32.



4VCS-10.2


372949-02


gasket housing cover 14 - Hole 275 x 275 x 0,38 (37294902)






33.



4VCS-10.2


372623-01


gasket cylinder head Retall 191 x 115 x 0,49 (37262301)






34.



4VCS-10.2


372200-01


Gasket PTFE Ø14,3 x 1,5 (37220001)






35.



4VCS-10.2


372145-01


gasket terminal box aluminium for terminal box 286 x 181 x 2 (37214501)






36.



4VCS-10.2


372421-14


gasket Terminal plate 163 x 118 x 0,5 (37242114)






37.



4VCS-10.2


372704-05


gasket discharge shut-off valve Ø34 x 1,0 - LA 66 (37270405)






38.



4VCS-10.2


382403-01


Gasket Ring oil level monitoring aluminium DIN 7603 A20 x 24 x 1,5 (38240301)






39.



4VCS-10.2


382403-05


Gasket Ring oil drain aluminium DIN 7603 A22 x 27 x 1,5 (38240305)






40.



4VCS-10.2


382401-31


gasket ring copper A10 x 16 x 2 (38240131)






41.



4VCS-10.2


372841-04


gasket set (37284104)






42.



4VCS-10.2


384101-05


gib-headed key Stator steel DIN 6887 5 x 5 x 36 (38410105)






43.



4VCS-10.2


383103-04


half length reserve taper grooved dowel pin valve plate steel Ø3 x 8 (38310304)






44.



4VCS-10.2


380056-21


hexagon head screw cylinder head DIN 931, 10.9 M10 x 50 (38005621)






45.



4VCS-10.2


380156-06


hexagon head screw coated DIN 933, 10.9 M10 x 30 (38015606)






46.



4VCS-10.2


380166-10


hexagon head screw rotor coated DIN 933, 10.9 M16 x 70 (38016610)






47.



4VCS-10.2


380056-04


hexagon head screw cylinder head DIN 931, 10.9 M10 x 65 (38005604)






48.



4VCS-10.2


380056-14


hexagon head screw cylinder head DIN 931, 10.9 M10 x 70 (38005614)






49.



4VCS-10.2


380104-05


Hexagon head screw sight glass DIN 933, 8.8 M6 x 18 (38010405)






50.



4VCS-10.2


381101-56


hexagon nut screw for grounding DIN 934 M10 (38110156)






51.



4VCS-10.2


380306-83


Hexsocket Cheese Head Screw Terminal plate DIN 912, 10.9 M10 x 25 (38030683)






52.



4VCS-10.2


300085-01


housing Ø55 (30008501)






53.



4VCS-10.2


305235-01


housing cover suction side grey cast iron 275 x 275 x 45 (30523501)






54.



4VCS-10.2


345950-03


metal plate for grounding screw for grounding aluminium M10 (34595003)






55.



4VCS-10.2


372003-39


O-ring sight glass Ø33 x 2,5 (37200339)






56.



4VCS-10.2


321105-06


oil centrifuge steel (32110506)






57.



4VCS-10.2


362003-02


oil filter Ø14 x 105 (36200302)






58.



4VCS-10.2


347334-03


oil level monitoring 230V 50/60 Hz (34733403)






59.



4VCS-10.2


361914-01


oil service valve (36191401)






60.



4VCS-10.2


380501-54


Oval head screw terminal box aluminium galvanized DIN 7985, 4.8 M6 x 16 (38050154)






61.



4VCS-10.2


384001-16


parallel key built-in motor steel DIN 6885 A12 x 8 x 80 (38400116)






62.



4VCS-10.2


325000-01


pressure spring steel Ø18 x 28 x 1,25 (32500001)






63.



4VCS-10.2


347019-01


protection device motor overheat protection SE-B1 230V-50/60Hz (34701901)






64.



4VCS-10.2


366201-19


Protective Cap Span of the jaw: 27 Plastic - GRP M24 x 2 / L=57,5 mm (36620119)






65.



4VCS-10.2


366201-17


Protective Cap Span of the jaw: 20 Plastic - GRP 3/4"-16 UNF / L=43 mm (36620117)






66.



4VCS-10.2


382231-18


retaining ring with lugs spring steel DIN 472 Ø16 x 1 (38223118)






67.



4VCS-10.2


361501-01


Schrader Valve brass 1/8"-27 NPTF (36150101)






68.



4VCS-10.2


314104-21


screwed nipple coated 1/2" - 14NPTF x 48 (31410421)






69.



4VCS-10.2


366100-01


Sealing Plug CIC system brass 1/8" - 27 NPTF (36610001)






70.



4VCS-10.2


366110-02


Sealing Plug oil fill connection steel 1/4" - 18 NPTF (36611002)






71.



4VCS-10.2


366103-21


sealing plug oil service valve brass 1/2" - 14 NPTF (36610321)






72.



4VCS-10.2


380910-03


Sealing Screw oil supply monitoring DIN 908, 5.8 M20 x 1,5 (38091003)






73.



4VCS-10.2


366124-01


sealing screw oil drain permanent magnet M22 x 1,5 (36612401)






74.



4VCS-10.2


380358-01


Set screw coated DIN 916 M10 x 12 (38035801)






75.



4VCS-10.2


361315-12


shut-off valve Discharge side brazing and welding bush PS45/DN20/S30TX/22 Ø22 (7/8) (36131512)






76.



4VCS-10.2


361315-18


shut-off valve suction side brazing and welding bush Ø28 (1 1/8") (36131518)






77.



4VCS-10.2


361802-03


sight glass Ø60 x 7 (36180203)






78.



4VCS-10.2


382201-55


Single Coil Spring Washer screw for grounding spring steel galvanized DIN 127 A6, 4 (38220155)






79.



4VCS-10.2


382201-04


single coil spring washer spring steel DIN 127 B8 (38220104)






80.



4VCS-10.2


311004-03


spacer sleeve steel Ø60 x Ø42,1 x 7,4 (31100403)






81.



4VCS-10.2


311012-09


spacer sleeve screw for grounding Ø20 x Ø11 x 12 (31101209)






82.



4VCS-10.2


362001-15


suction gas filter Ø30 x 78 (36200115)






83.



4VCS-10.2


343507-02


terminal box standard 244 x 189 x 85 (34350702)






84.



4VCS-10.2


345507-01


terminal plate 6-Lead 165 x 120 x 10 (34550701)






85.



4VCS-10.2


345506-03


terminal plate cannot be delivered separately 165 x 120 x 11,5 (34550603)






86.



4VCS-10.2


380912-01


threaded bolt grounding 6-Lead DIN 976 M10 x 80 (38091201)






87.



4VCS-10.2


320500-10


thrust washer Crankcase side Ø66 x Ø48 x 1,6 (32050010)






88.



4VCS-10.2


304063-02


valve plate Ø55 (30406302)






89.



4VCS-10.2


370003-05


vibration damper set Crankcase side yellow spring (37000305)






90.



4VCS-10.2


370003-07


vibration damper set brown spring (37000307)






91.



4VCS-10.2


382002-04


Washer screw for grounding brass DIN 125 10,5 (38200204)






92.



4VCS-10.2


382002-01


washer brass DIN 125 A4, 3 (38200201)






93.



4VCS-10.2


383401-43


wrist pin connecting rod / piston DIN 73126 Ø16 x Ø9 x 46 (38340143)
