COMPRESSOR PARTS > BITZER > 4PCS

Sr. No.


Model

OEM Part No.

Description

1.



4PC, 4PCS


302297-11

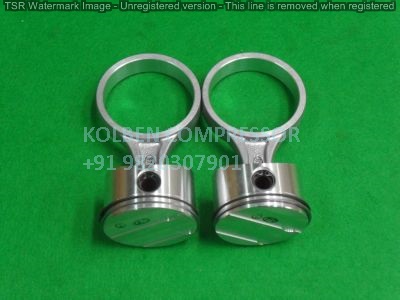

Piston - Piston Ring - Conrod Assy (65.0X1.50X70)-(Right+Left=Set-2Pcs)-Std-To Fit Bitzer 4Pc






2.



4PC, 4PCS


302297-11R


Piston - Pin(Right) 64.9(Std)X12.4Xcr1.50Xp1.50X160489 -To Fit Bitzer 4Pes10,4Pc10,4Pcs8,4Pcs10






3.



4PC, 4PCS



Piston - Pin(Left) 64.9(Std)X 12.4Xcr1.50Xp1.50X160489 -To Fit Bitzer 4Pes10,4Pc10, 4Pcs8,4Pcs10






4.



4PC, 4PCS


383401-44


Piston - Pin 16.0X51.9-To Fit Bizer






5.



4PC, 4PCS


382300-46


Piston Ring 65.0(Std)-Cr1.50-To Fit Bitzer 4Pcs,4Pc,4Pes,4Pe,4J,4Je, 6J,6Je,S6J






6.



4PC, 4PCS


382310-13


Piston Ring 65.0(Std)-P1.50-To Fit Bitzer 4Pcs,4Pc,4Pes,4Pe,4J,4Je,6J, 6Je,S6J






7.



4PC, 4PCS


382303-02


Piston Ring 65.0(Std)-Cr1.00-To Fit Bitzer 4Pcs,4Pc,4Pes,4Pe






8.



4PC, 4PCS


382310-42


Piston Ring 60.0(Std)-P1.00-To Fit Bitzer 4Pcs,4Pc,4Pes,4Pe






9.



4PC, 4PCS



Suction Reed 76.0X18.9X0.6-To Fit Bitzer 4Pc10,4Pcs8,4Pcs12






10.



4NCS, 4PCS, 4TCS


301117-04


Crankshaft 44.9X69.9(2+2)X44.9 -376Mm-To Fit Bitzer 4Ncs-12.2, 4Pcs-15.2,4Tcs12,4Ncs20






11.



4NC, 4NCS, 4PC, 4PCS, 4VC, 4VCS, 4TC, 4TCS


320500-10


Thrust Washer 66.0X48.0X1.6-To Fit Bitzer 4Nc,4Ncs,4Pc,4Pcs, 4Tc,4Tcs,4Vc,4Vcs






12.



4PC, 4PCS


304063-06


Valve Plate Assy Without Gasket(65.0) 10.5X6-15.5X4-To Fit Bitzer 4Pc10,4Pcs8,4Pcs12






13.



4VC, 4TCS, 4PC, 4PCS, 4NC


372623-01


Head Gasket 168.4-To Fit Bitzer 4Vc, 4Tcs,4Pc, 4Pcs,4Nc






14.



4PC, 4PCS


372515-11


Valve Plate Gasket(65.0) 167.3X66.0-To Fit Bitzer 4Pc10,4Pcs8,4Pcs12






15.



4N, 4NC , 4NCS, 4PC, 4PCS, VII


362001-08


Suction Gas Filter 70.0X49.3X55.2-To Fit Bitzer 4Ncs20,4N,4Nc20, 4Ncs,4Pc15,4Pcs,?






16.



4PCS


372841-02


Gasket Set(65.0)-To Fit Bitzer 4Pc






17.



4PC,4PCS


N/A


Piston & pin (left-hand) 65mm 4PC






18.



4PC,4PCS


N/A


Piston & pin (right-hand) 65mm 4PC







Manufacturers of BITZER COMPRESSOR PARTS
