COMPRESSOR PARTS > BITZER > 4N

Sr. No.


Model

OEM Part No.

Description

1.



2N, 4N


302297-24


Piston - Piston Ring - Conrod Assy -Std-To Fit Bitzer 2N (60 Mm )






2.



4NC, 4NCS


302297-12


Piston - Piston Ring - Conrod Assy -(Right+Left=Set)-Std-To Fit Bitzer 4Nc12,4Nc20,4Nes ( 70 Mm )






3.



4NC, 4NCS


302.97-12R


Piston - Pin(Right) 69.9(Std)X 12.4Xcr1.48Xp1.48X160550 -To Fit Bitzer 4Nc12,4Nc20, 4Ncs12,4Ncs10,4Ncs20






4.



4NC, 4NCS


302.97-12L


Piston - Pin(Left) 69.9(Std)X 12.4Xcr1.48Xp1.48X160550 -To Fit Bitzer 4Nc12,4Nc20, 4Ncs12,4Ncs10,4Ncs20






5.



4NE, 4NES



Piston - Pin(Right)70.0X 12.5Xcr0.97Xp0.97X160550- To Fit Bitzer 4Nes12 Ecoline






6.



4NE, 4NES



Piston - Pin(Left) 70.0X 12.5Xcr0.97Xp0.97X160550- To Fit Bitzer 4Nes12 Ecoline






7.



4NC, 4NCS


383401-45


Piston - Pin 16.0X55.0-To Fit Bitzer






8.



2N, 4N


383401-04


Piston - Pin 20.0X44.7-To Fit Bitzer






9.



2N, 4N, 4P


302117-05


Conrod 45.00(Std)/79.4(Std)X112.0/20.0 -To Fit Bitzer S4N-Low,2N,4N,4P






10.



2N, 4N, 4P



Conrod 45.00(-0.25)/79.4(+0.12)X112.0/20.0 -To Fit Bitzer S4N-Low,2N,4N,4P






11.



2N, 4N, 4P



Conrod 45.00(-0.50)/79.4(+0.25)X112.0/20.0 -To Fit Bitzer S4N-Low,2N,4N,4P






12.



4VC, 4TC, 4PC, 4NC


302131-02


Conrod 70.0(Std)-46.9(Std)-16.0-To Fit Bitzer 4Vc,4Tc,4Pc, 4Tcs,4Nc,4Ves,4Tes,4Nes






13.



4VC, 4TC, 4PC, 4NC



Conrod 70.0(-0.25Mm)-To Fit Bitzer 4Vc6,4Tc12,4Pc10,4Nc12, 4Ves6,4Tes12






14.



4VC, 4TC, 4PC, 4NC



Conrod 70.0(-0.50Mm) -46.9(+0.25Mm)-16.0-To Fit Bitzer 4Vc6,4Tc12,4Pc10,4Nc12, 4Ves6,4Tes12






15.



2N, 4T, 4N, 2T, 2N


382300-52


Piston Ring 60.0(Std)-Cr1.50-To Fit Bitzer 2Q,2N,4Tcs,4Tc,4Tes,4Te,4T,4N, S4T,S4N, S4G,2T.2,2N.2,4T.2,4N.2,






16.



2N, 4T, 4N, 2T, 2N


382310-19


Piston Ring 60.0(Std)-P1.50-To Fit Bitzer 2Q,2N,4Tcs,4Tc,4Tes,4Te,4T,4N, S4T,S4N,S4G,2T.2,2N.2,4T.2,4N.2,






17.



4NC, 4NCS, 4HE, 6HE


382300-55


Piston Ring 70.0(Std)-Cr1.50-To Fit Bitzer 4Ncs,4Nc,4Nes,4Ne,4H, 4He,6H,6He,S6H,4H.2,6H.2






18.



4NC, 4NCS, 4HE, 6HE


382310-22


Piston Ring 70.0(Std)-P1.50-To Fit Bitzer 4Ncs,4Nc,4Nes,4Ne,4H,4He,6H, 6He,S6H,4H.2,6H.2






19.



4NC, 4NCS


382303-03


Piston Ring 70.0(Std)-Cr1.00-To Fit Bitzer 4Ncs,4Nc,4Nes,4Ne






20.



4NC, 4NCS


382310-43


Piston Ring 70.0(Std)-P1.00-To Fit Bitzer 4Ncs,4Nc,4Nes,4Ne






21.



4P, 4N, 4T



Discharge Reed 42.5X16.0-To Fit Bitzer 2Hc2,4P10,4N12,2Q4,4T8,2U5,4Z5, 4V10






22.



4VC, 4TC , 4NC



Discharge Reed 43.9X16.8X0.3-To Fit Bitzer 4Vc6,4Tc8,4Pc10






23.



4VC, 4TC , 4NC



Discharge Spring 43.9X16.8X0.3-To Fit Bitzer 4Vc6,4Tc8,4Pc10






24.



4TC, 4N



Suction Reed 72.0X35.0-To Fit Bitzer 4Tc8,4N12,2Q4,4T8,S4T5






25.



4N, 4P, 4T, 2N, 2P, 2T



Suction Reed 72.0X33.5X0.5-To Fit Bitzer 2,4 N,T,P






26.



4N



Suction Reed 69.3X33.2X0.5-To Fit Bitzer 4N-Old






27.



4NC, 6H



Suction Reed 82.0X19.0X0.6 For Piston 65,70-To Fit Bitzer 4Nc12,,6J22,4H15, 6H25,S6J16,S6H20






28.



4NCS, 4PCS, 4TCS


301117-04


Crankshaft 44.9X69.9(2+2)X44.9 -376Mm-To Fit Bitzer 4Ncs-12.2, 4Pcs-15.2,4Tcs12,4Ncs20






29.



4NC, 4PC, 4TC


301117-02


Crankshaft 44.9X69.9(2+2)X44.9 -413Mm-To Fit Bitzer 4Nc-12.2,4Nc-20.2,4Pc15,4Tc-12.2






30.



2N, 4T, 4N, 2T


311100-17


Bearing Bush 50.0X45.1(Std)X40.6 -3Hole-To Fit Bitzer 2N,2Q,2T,2U,4P, 4V-10.2,4Z,S4N,S4T






31.



4N, 4V


311100-14


Bearing Bush 55.0X50.0(Std)X30.0-To Fit Bitzer 4Z5,4N20,4V-10.2






32.



4N, 4P, 4T


374011-11


Shaft Seal Assy 42.7-To Fit Bitzer 4N,4P,4T






33.



4NC, 4NCS, 4PC, 4PCS, 4VC, 4VCS, 4TC, 4TCS


320500-10


Thrust Washer 66.0X48.0X1.6-To Fit Bitzer 4Nc,4Ncs,4Pc,4Pcs, 4Tc,4Tcs,4Vc,4Vcs






34.



4T, 4N


320500-05


Thrust Washer 62.0X50.5X1.7-To Fit Bitzer 4Z5,4N20,4T,4N






35.



4NC, 4NCS


304063-08


Valve Plate Assy Without Gasket(70.0) 10.5X6-15.5X4-To Fit Bitzer 4Nc12,4Ncs10,4Ncs20






36.



4NE, 4NES


304063-31

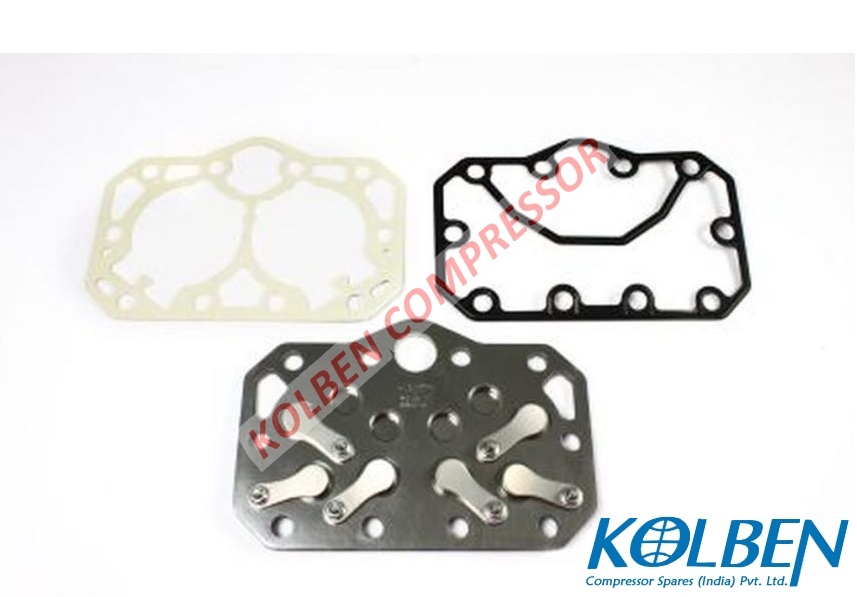

Valve Plate Assy(70.0)-To Fit Bitzer 4Ne12, 4Nes12 Ecoline From 2013.April






37.



4NE, 4NES


304063-27

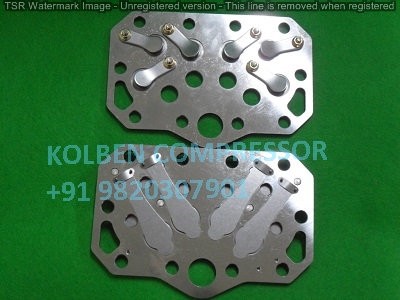

Valve Plate Assy(70.0)-To Fit Bitzer 4Ne20, 4Nes12 Until 2013.March






38.



4VC, 4TCS, 4PC, 4PCS, 4NC


372623-01


Head Gasket 168.4-To Fit Bitzer 4Vc, 4Tcs,4Pc, 4Pcs,4Nc






39.



4NC, 4NCS


372515-08


Valve Plate Gasket(70.0) 167.2X70.1-To Fit Bitzer 4Nc12,4Ncs10,4Ncs20






40.



4N, 2N


304056-03


Valve Plate Assy Without Gasket(60.0) 9.6X6-13.0X4-To Fit Bitzer 4N,4N12,4N20,2N,2N5,2N7






41.



4P, 4N, 4T


372611-05


Head Gasket 153.0-To Fit Bitzer 4P10,4N12,S4T5,2Q6,4T8,4T






42.



4N, 4T


372611-03


Head Gasket 152.8-To Fit Bitzer S4N,S4T






43.



4N, 4T


372611-02


Head Gasket 152.8-To Fit Bitzer S4T,S4N






44.



2N, 4N, 4T


372510-12


Valve Plate Gasket(60.0) 153.0X61.6-To Fit Bitzer 4N12,2Q6,2N5,S4T5,4T8.4T






45.



6F, 4N, 4P, 4T


304051-15


Valve Plate Assy Without Gasket,Relief Valve(82.0) 10.0X8-18.5X4-3/4Nptf-To Fit Bitzer S6F30,S6F






46.



6F, 4N, 4P, 4T


304016-08


Valve Plate Assy Without Gasket,Seal Plug(82.0) 10.0X8-18.5X4-3/4Nptf-31.0-To Fit Bitzer S6F,S6F30






47.



4N, 4P, 4T, 4F


361100-21


Pressure Relief Valve-34Bar-3/4Nptf-To Fit Bitzer






48.



4N, 4P, 4T, 4F


361100-23


Pressure Relief Valve-15Bar-3/4Nptf-To Fit Bitzer






49.



4VC, 4VCS, 4PC, 4TC, 4TCS, 4NC, 4NCS


345506-01


Terminal Plate-To Fit Bitzer 4Vc,4Vcs,4Ve,4Tc, 4Tcs,4Pc,4Pcs,4Pe,4Nc,4Ncs






50.



4J, 4P, 4N, 4V, 4G, 6H, 6G, 4H, 6J, 6F


343416-02


Terminal Plate Kit-To Fit Bitzer 4J,4P,4N,4V,4G,6H,6G,4H,6J,6F






51.



4N, 4T


362001-11


Suction Gas Filter 25.0X19.0X50.0-To Fit Bitzer S4N,S4T






52.



4NCS, 4NC, 4PC, 4TC, 4VC


362001-15


Suction Gas Filter 70.0X50.0X54.5-To Fit Bitzer 4Ncs,4Nc,4Pc,4Tc,4Tc,4Vc, 4Vc






53.



4N, 4NC , 4NCS, 4PC, 4PCS, VII


362001-08


Suction Gas Filter 70.0X49.3X55.2-To Fit Bitzer 4Ncs20,4N,4Nc20, 4Ncs,4Pc15,4Pcs,Ⅶ






54.



4N, 4P, 4T


362001-09


Suction Gas Filter 35.0X29.0X105.0-To Fit Bitzer 4N2,4P2,4P,4T2,4T,4V,4Z






55.



2T, 4NC, 4P, 4PC, 4TC, 4VC,


362503-01


Oil Pump Assy-To Fit Bitzer 2T,4Nc12,4P15, 4Pc10,4Tc12,4Vc6,S4Bcf-5.2Y-25.D,4V-10.2






56.



4N


372808-08

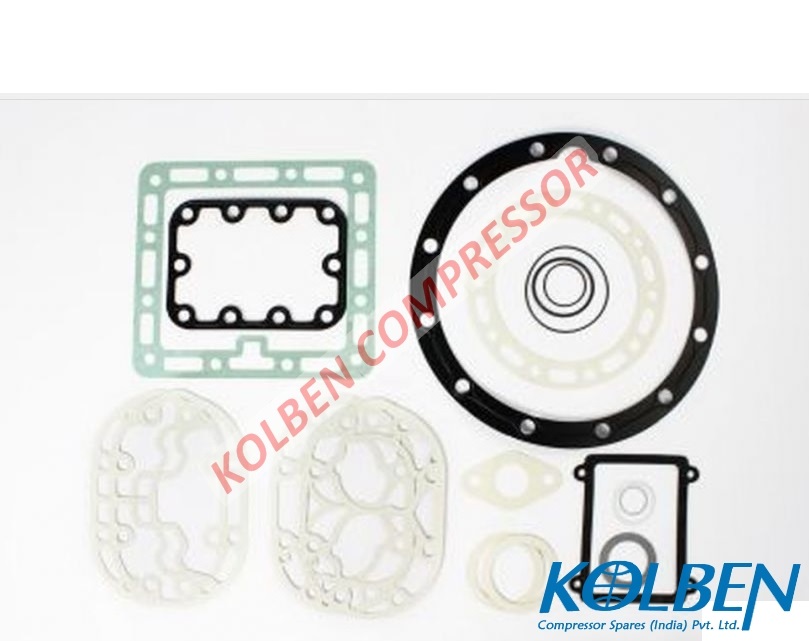

Gasket Set(60.0)-To Fit Bitzer 4N20






57.



4NC


372841-01


Gasket Set(70.0)-To Fit Bitzer 4Nc






58.



4T, 4N


372810-02


Gasket Set(60.0)-To Fit Bitzer 4T.2,4N.2






59.



4T, 4N


372817-01


Gasket Set(48.0,60.0)-To Fit Bitzer S4T-5.2,S4N-8.2






60.



4N , 4P, 4T


311100-07


Bearing crankcase 4N>4Z






61.



4N, 4P, 4T


311100-17


Bearing pump-end 4N>4Z






62.



4NC , 4VC


311112-07


Bearing main for models 4VC>4NC






63.



4N


320500-05


Thrust-washer crankcase 4N>4Z






64.



4NC , 4VC


320500-10


Thrust washer 4NC>4VC






65.



4N , 4P


302117-01

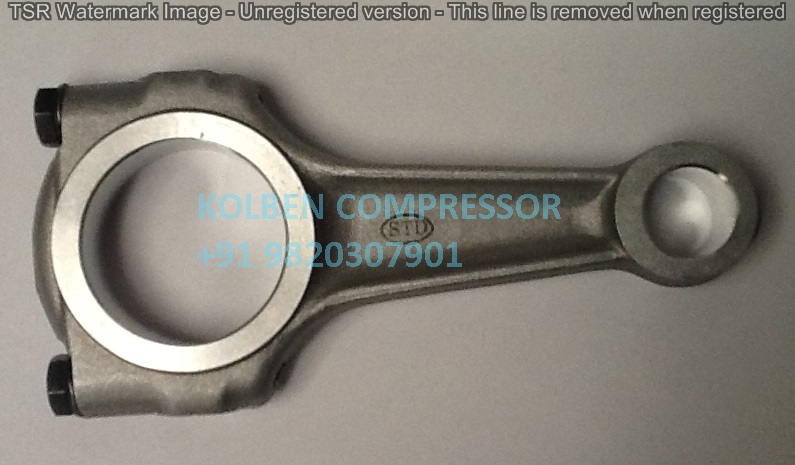

Con-rod (standard) 4N/4P






66.



4N , 4P


N/A


Con-rod (-0.50mm u/size) 4N/4P






67.



4VC , 4TC , 4PC , 4NC


302131-02


Con-rod for models 4VC/4TC/4PC/4NC






68.



4N


372810-02


Gasket set 4N12/20






69.



4P , 4T , 4N


372810-02


Gasket set for 4P/4T/4N.2 open drive






70.



4PC , 4NC


372841-01/02


Gasket kit 4PC/4NC






71.



4N , 4P , 4T , 4V


0


Heater 240v/100W for models 4N/P/T/V/Z






72.



2N,4N


302232-16

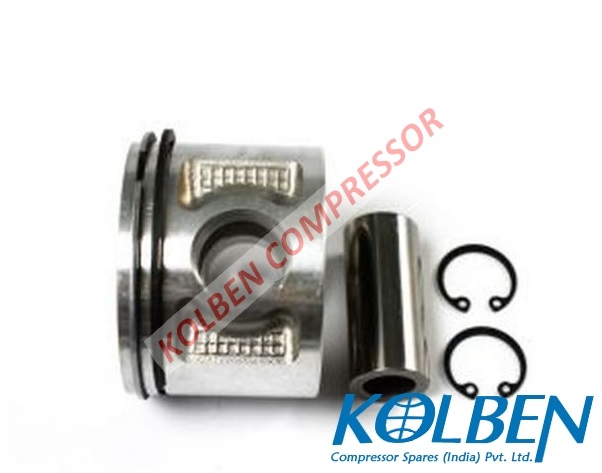

Piston & pin (standard) 2Q/2N/4N






73.



4NC,4NCS


N/A


Piston & pin (left-hnd) 70mm 4NC






74.



4NC,4NCS


N/A


Piston & pin (right-hand) 70mm 4NC






75.



4N, 4P,


383401-04

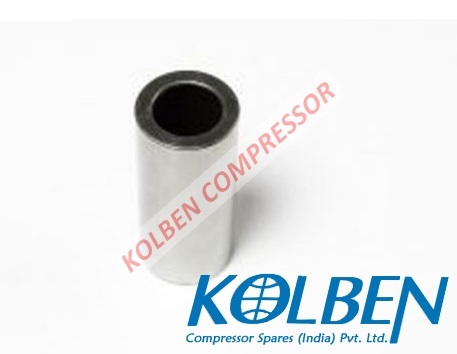

Pin for 55/60mm piston 20mm o/d x 45mm long






76.



4N , 4P , 4V


362503-01


Pump for models 4N/P/V/Z






77.



4T , 4N


382300-64


Piston ring 48.00mm x 2mm (std) H/S S4T/S4N






78.



4N , 2N , 4T


382300-14


Ring 60.00mm (std) top chrome 2Q,2/4N,4T






79.



4T , 4N


N/A


Ring 60.50mm (o/size) top chrome 2Q,4T,4N






80.



4T , 4N , 2N


382310-19


Ring 60.00mm (std) 2nd phos.2Q,2N/4N,4T






81.



4T , 4N , 2N


N/A


Ring 60.50mm (o/size) 2nd phos. 2Q,2N/4N,4T






82.



4N , 4T


374011-11


Shaft Seal assembly for models 4N/4T






83.



4N , 4P , 4T , 4V , 4NC


345506-01


Terminal plate assm octagon 4T/V/P/NC






84.



2N , 4T , 4N


320202-02


Valve reed suction (60.00mm bore) 2Q/2N/4T/4N






85.



4N , 4P , 4T , 4V , 2N , 2P , 2T, TV



Valve reed discharge (flat) 2-4V/T/N/P






86.



4N , 4P , 4T , 4V , 2N , 2P , 2T, TV



Valve reed discharge (spring) 2-4V/T/P/N






87.



4PC , 4NC



Valve reed discharge (flat) 4PC 4NC






88.



4NC


304063-08


Valve plate assembly for models 4NC






89.



2N,4N


304052-02


Valve plate assm for models 2N/4N/4P






90.



4N-20.2


311100-17


bearing bush Ø50 x Ø45 x 40,7 (31110017)






91.



4N-20.2


311100-07


bearing bush Motor side Ø55 x Ø50 x 30 (31110007)






92.



4N-20.2


311100-14


bearing bush Crankcase side Ø55 x Ø50 x 30 (31110014)






93.



4N-20.2


305125-01


bearing cover (30512501)






94.



4N-20.2


320307-03


bottom plate steel 220 x 200 x 12 x Ø21 (32030703)






95.



4N-20.2


346294-46


built-in motor 14.7 kW, 4-pole 380..420V Y/YY-3-50Hz, 440..480V Y/YY-3-60Hz Ø223 (34629446)






96.



4N-20.2


302915-02


cable connector separate out using filters brass (30291502)






97.



4N-20.2


321202-01


centering plate steel 167 x 122 x 12 (32120201)






98.



4N-20.2


380508-51


Cheese head screw galvanized DIN 7985, 4.8 M5 x 20 (38050851)






99.



4N-20.2


380306-32


Cheese Head Screw DIN 912, 10.9 M10 x 30 (38030632)






100.



4N-20.2


380306-22


cheese head screw DIN 912, 10.9 M10 x 20 (38030622)






101.



4N-20.2


380507-51


cheese head screw 4.8 galvanized M4 x 8 (38050751)






102.



4N-20.2


367121-01


clamping plate 80 x 80 (36712101)






103.



4N-20.2


383021-10


clamping sleeve DIN 7346 Ø8 x 18 (38302110)






104.



4N-20.2


382300-52


compression ring Piston diameter 59,96mm Ø60 x 1,5 (38230052)






105.



4N-20.2


302117-05

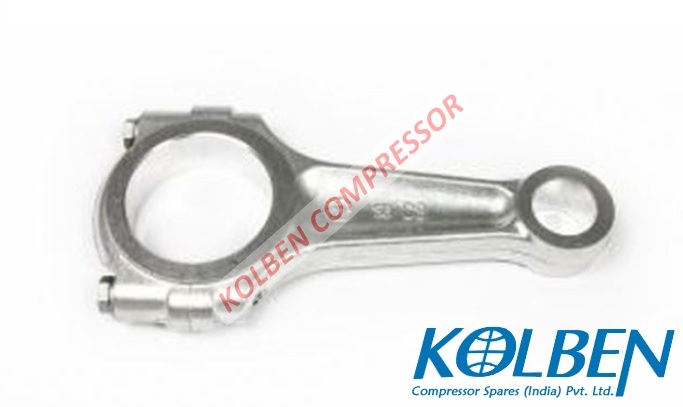

connecting rod Ø45 x Ø20 x 112 (30211705)






106.



4N-20.2


302297-24

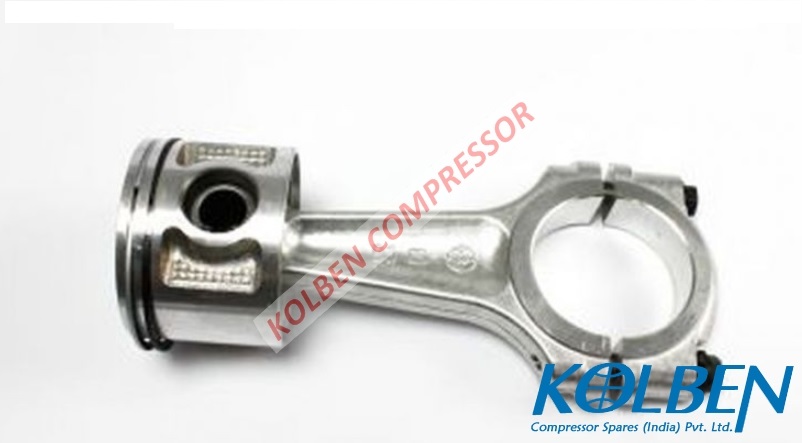

connecting rod / piston (30229724)






107.



4N-20.2


320318-03


connection bridge brass A 5,4 (32031803)






108.



4N-20.2


343417-07


connection to ground, complete (34341707)






109.



4N-20.2


343413-01


conversion kit violet (34341301)






110.



4N-20.2


305914-45


Cover black 313 x 175 x 11 (30591445)






111.



4N-20.2


343208-34


Crankcase Heater heating capacity: 100W 230V-1-50/60Hz (34320834)






112.



4N-20.2


301007-02

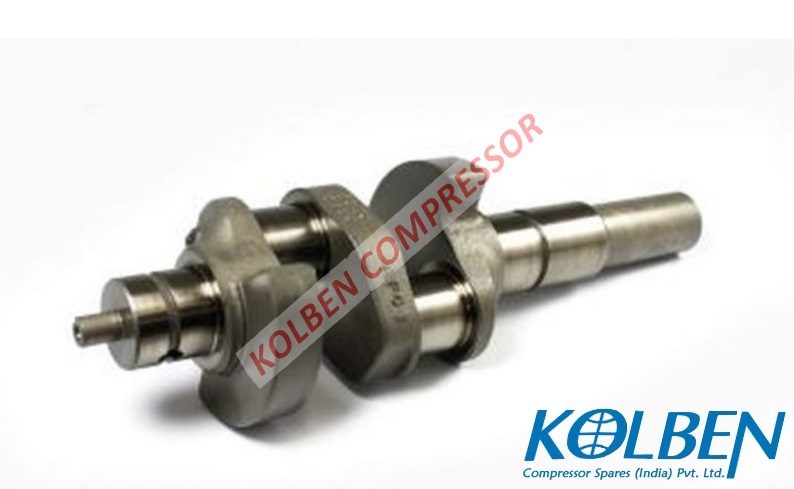

crankshaft Stroke 57mm Ø45 x 422 (30100702)






113.



4N-20.2


380507-52

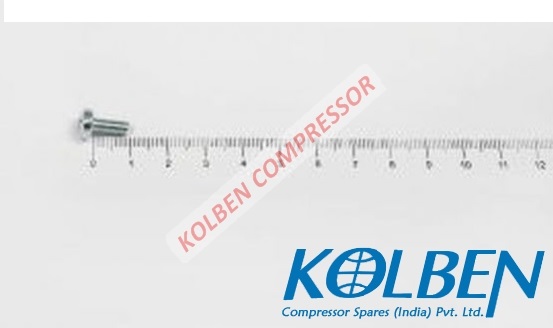

Cross Recessed Raised Screw 4.8 galvanized M4 x 10 (38050752)






114.



4N-20.2


302360-01


cylinder head water-cooled Water cooled (30236001)






115.



4N-20.2


302360-11


cylinder head air-cooled Air cooled 196 x 127 x 55 (30236011)






116.



4N-20.2


325002-06


damper element green spring steel 46 mm (32500206)






117.



4N-20.2


325002-05


damper element yellow spring steel 42 mm (32500205)






118.



4N-20.2


347320-33


differential oil pressure cut-out MP54 115V/230V-50/60Hz 100 x 50 x 130 (34732033)






119.



4N-20.2


389002-01


electric connector of the machine / device DIN 43650 Typ GDM 209 (38900201)






120.



4N-20.2


320314-01


fixing plate MP54 140 x 40 x 3 (32031401)






121.



4N-20.2


327309-02


foot 315 x 40 x 8 x Ø21 (32730902)






122.



4N-20.2


361110-01


gas equalising valve (36111001)






123.



4N-20.2


372413-01


gasket 220 x 200 x 1 (37241301)






124.



4N-20.2


372510-12


gasket Ø60, 127 x 196 x 0,9 (37251012)






125.



4N-20.2


372704-01


Gasket discharge shut-off valve 91 x 52 x 1 (37270401)






126.



4N-20.2


372124-01


gasket violet 165 x 120 x 3 (37212401)






127.



4N-20.2


372611-01


gasket valve plate Capacity control 192 x 127 x 0,75 (37261101)






128.



4N-20.2


372303-01


gasket Ø52 x Ø37 x 2 (37230301)






129.



4N-20.2


372315-03


gasket Ø286 x Ø236 x 0,38 (37231503)






130.



4N-20.2


372314-03


gasket Ø182 x Ø133 x 1 (37231403)






131.



4N-20.2


372200-04


gasket teflon Ø38 x Ø35 x 1,5 (37220004)






132.



4N-20.2


372301-02


gasket Ø70 x Ø54 x 1 (37230102)






133.



4N-20.2


372138-02


gasket (37213802)






134.



4N-20.2


372421-14


gasket 163 x 118 x 0,5 (37242114)






135.



4N-20.2


372120-01


gasket 133 x 117 x 2 (37212001)






136.



4N-20.2


382403-05


Gasket Ring aluminium DIN 7603 A22 x 27 x 1,5 (38240305)






137.



4N-20.2


375000-01


gasket ring Ø4,5 x Ø18,5 x 8,5 (37500001)






138.



4N-20.2


375000-03


gasket ring Ø16 x Ø8 x 8,5 (37500003)






139.



4N-20.2


372808-08


gasket set (37280808)






140.



4N-20.2


384101-05


gib-headed key steel DIN 6887 5 x 5 x 36 (38410105)






141.



4N-20.2


345906-04


heater sleeve for 100W heater (34590604)






142.



4N-20.2


380156-05


hexagon head screw DIN 933, 10.9 M10 x 25 (38015605)






143.



4N-20.2


380057-15


hexagon head screw coated DIN 931, 10.9 M12 x 50 (38005715)






144.



4N-20.2


380056-07


hexagon head screw DIN 931, 10.9 M10 x 80 (38005607)






145.



4N-20.2


380155-05


hexagon head screw DIN 933, 10.9 M8 x 20 (38015505)






146.



4N-20.2

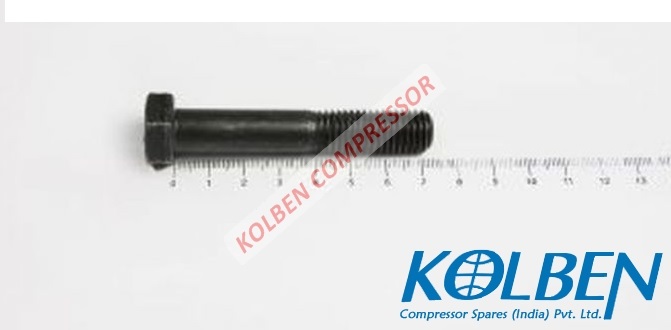

380057-03


hexagon head screw DIN 931, 10.9 M12 x 70 (38005703)






147.



4N-20.2

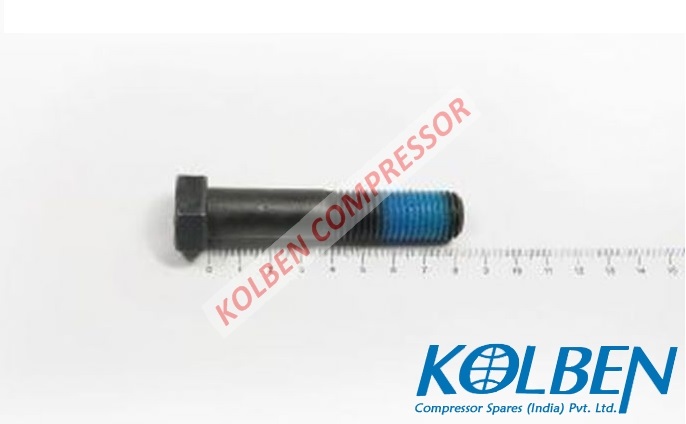

380069-04


Hexagon Head Screw coated DIN 933, 10.9 M16 x 80 (38006904)






148.



4N-20.2


380035-01


hexagon head screw M6 x 40 (38003501)






149.



4N-20.2


380154-06


hexagon head screw DIN 933, 10.9 M6 x 20 (38015406)






150.



4N-20.2


380057-52


hexagon head screw galvanized DIN 931, 10.9 M12 x 125 (38005752)






151.



4N-20.2


381301-05


hexagon nut brass M8 (38130105)






152.



4N-20.2


381301-03


hexagon nut brass M5 (38130103)






153.



4N-20.2


380339-01


Hexsocket Cheese Head Screw ISO 4762, 10.9 - A2K M10 x 30 (38033901)






154.



4N-20.2


300027-13


housing Ø60 (30002713)






155.



4N-20.2

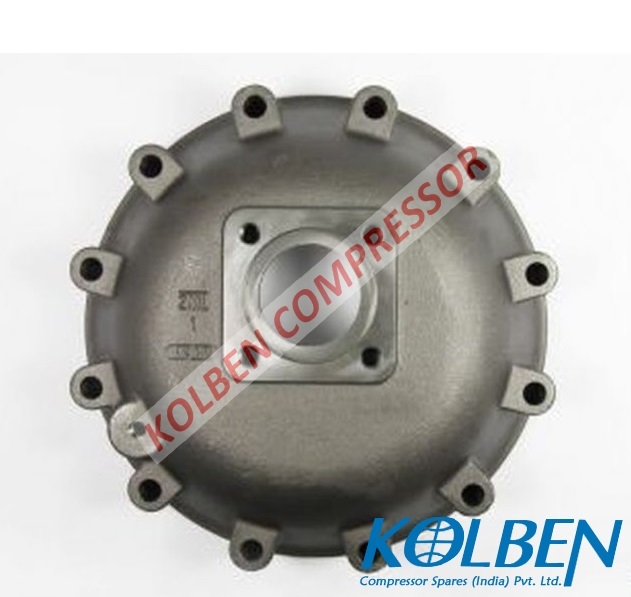

305217-01


housing cover grey cast iron Ø286 x 82 (30521701)






156.



4N-20.2


375002-03


insulating plate 85 x 25 x 6 (37500203)






157.



4N-20.2


345923-06


insulating plate (34592306)






158.



4N-20.2


375002-01


insulating plate 53 x 18 x 6,5 (37500201)






159.



4N-20.2


311004-01


intermediary Ø60 x Ø42 x 31 (31100401)






160.



4N-20.2


372001-16


O-ring Ø50 x 3 (37200116)






161.



4N-20.2


372003-15


O-ring Ø36,3 x 1,78 (37200315)






162.



4N-20.2


372001-19


O-ring Ø74 x 2 (37200119)






163.



4N-20.2


362003-02


oil filter Ø14 x 105 (36200302)






164.



4N-20.2


362503-01


oil pump in view of grey cast iron (36250301)






165.



4N-20.2


360110-08


oil return system (36011008)






166.



4N-20.2


382310-19


oil scraper ring Piston diameter 59,96mm Ø60 x 1,5 (38231019)






167.



4N-20.2


380501-54


Oval head screw galvanized DIN 7985, 4.8 M6 x 16 (38050154)






168.



4N-20.2

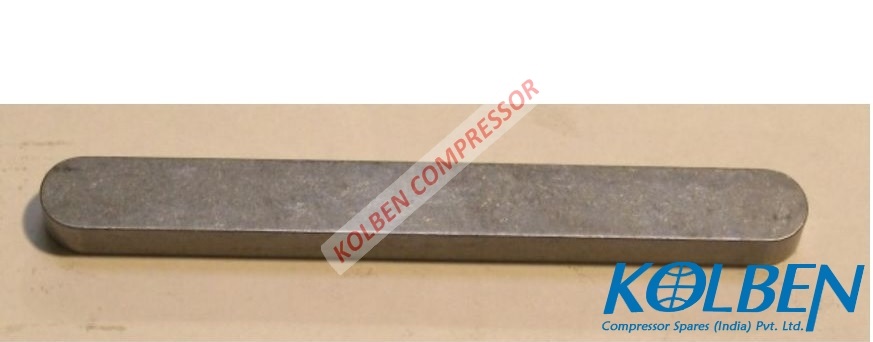

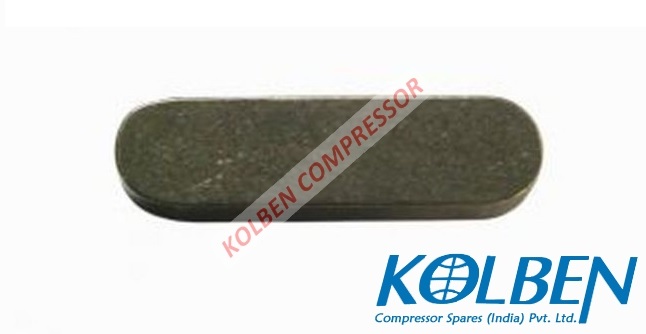

384001-17


parallel key steel DIN 6885 A12 x 8 x 90 (38400117)






169.



4N-20.2


365321-14


pipe connection steel brazing and welding bush Ø42 (1 5/8") (36532114)






170.



4N-20.2


366000-06


pipe connection steel copper-plated brazed connection Ø28, 1 3/4" - 12 UN (36600006)






171.



4N-20.2


302232-16


piston aluminium alloy Ø55 (30223216)






172.



4N-20.2


375001-03


pressure bush Ø8 x Ø24 x 8 (37500103)






173.



4N-20.2


375001-01


pressure bush Ø4,5 x Ø18,5 x 8,5 (37500101)






174.



4N-20.2


325000-06


pressure spring steel Ø60 x 32 (32500006)






175.



4N-20.2


325000-01


pressure spring spring steel Ø18 x 28 x 1,25 (32500001)






176.



4N-20.2


347028-01


protection device SE-B2 230V-50/60Hz (34702801)






177.



4N-20.2


366201-22


Protective Cap Span of the jaw: 27 Plastic - GRP M27 x 2 / L=70 mm (36620122)






178.



4N-20.2


366201-19


Protective Cap Span of the jaw: 27 Plastic - GRP M24 x 2 / L=57,5 mm (36620119)






179.



4N-20.2


382231-04


retaining ring with lugs spring steel DIN 472 Ø20 x 1 (38223104)






180.



4N-20.2


361500-01


Schrader valve T-piece brass Jul-16 (36150001)






181.



4N-20.2


366202-01


sealing nut 7/16" - 20 UNF (36620201)






182.



4N-20.2


366100-01


Sealing Plug brass 1/8" - 27 NPTF (36610001)






183.



4N-20.2


366110-01


Sealing plug steel 1/8“ - 27 NPTF (36611001)






184.



4N-20.2


366110-10


sealing plug steel 1/2" - 14 NPTF (36611010)






185.



4N-20.2


366110-02


Sealing Plug steel 1/4" - 18 NPTF (36611002)






186.



4N-20.2


366110-08


Sealing Plug steel 1/4" - 18NPTF (36611008)






187.



4N-20.2


366124-01


sealing screw permanent magnet M22 x 1,5 (36612401)






188.



4N-20.2


366112-01


sealing screw conic DIN 906 M8 x 1 (36611201)






189.



4N-20.2


380358-01


Set screw coated DIN 916 M10 x 12 (38035801)






190.



4N-20.2


361338-01


shut-off valve Ø42 (1 5/8") (36133801)






191.



4N-20.2


361310-07


shut-off valve brazing and welding bush Ø28 (1 1/8") (36131007)






192.



4N-20.2


361802-02


sight glass steel / glass Ø67 x 8,5 (36180202)






193.



4N-20.2


382141-02


single coil spring washer spring steel A6 (38214102)






194.



4N-20.2


382201-51


single coil spring washer spring steel galvanized DIN 127 A4, 3 (38220151)






195.



4N-20.2


362001-08


suction gas filter Ø50 x 57 (36200108)






196.



4N-20.2


300950-17


terminal box black aluminium cast 313 x 175 x 84 (30095017)






197.



4N-20.2


304900-01


terminal plat 165 x 120 x 15,5 (30490001)






198.



4N-20.2


343414-08


terminal plate kit (34341408)






199.



4N-20.2


343414-07


terminal plate kit (34341407)






200.



4N-20.2


343416-02


terminal plate kit (34341602)






201.



4N-20.2


312030-02


thrust collar Ø65 x 7 (31203002)






202.



4N-20.2


382150-04


thrust washer spring steel S16 (38215004)






203.



4N-20.2


382152-01


thrust washer DIN 127 S 8 (38215201)






204.



4N-20.2


320502-04


thrust washer steel Ø54 x Ø17 x 5 (32050204)






205.



4N-20.2

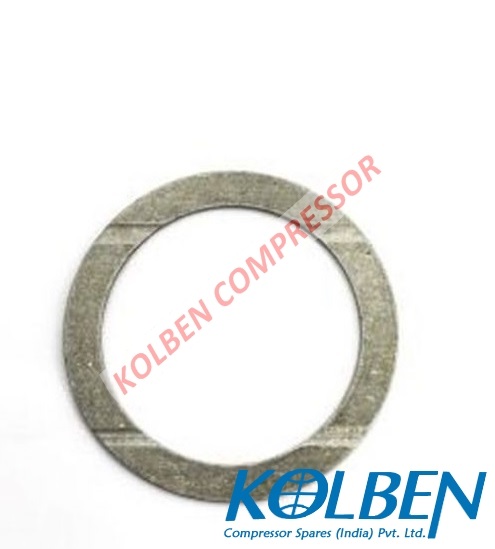

320500-07


thrust washer Ø62 x Ø48 x 1,7 (32050007)






206.



4N-20.2


320500-05


thrust washer Motor side Ø62 x Ø50,5 x 1,7 (32050005)






207.



4N-20.2


304052-04


valve plate Ø60 (30405204)






208.



4N-20.2


370003-03


vibration damper set Motor side green spring Lo=46 (37000303)






209.



4N-20.2


370003-02


vibration damper set Crankcase side yellow spring Lo=42 (37000302)






210.



4N-20.2


382042-03


washer copper 8 x 1,6 (38204203)






211.



4N-20.2


382002-02


washer brass DIN 125 A5, 3 (38200202)






212.



4N-20.2


382002-01


washer brass DIN 125 A4, 3 (38200201)






213.



4N-20.2


383401-04


wrist pin Ø20 x Ø13 x 45 (38340104)






214.



4NC-20.2


302926-08


balance weight (30292608)






215.



4NC-20.2


311135-01


Bearing bush oil centrifuge Ø50 x Ø45 x 40 (31113501)






216.



4NC-20.2


305139-01


bearing cover (30513901)






217.



4NC-20.2


346294-46


built-in motor 14.7 kW, 4-pole 380..420V Y/YY-3-50Hz, 440..480V Y/YY-3-60Hz Ø223 (34629446)






218.



4NC-20.2


380508-51


Cheese head screw cover for terminal box galvanized DIN 7985, 4.8 M5 x 20 (38050851)






219.



4NC-20.2


380306-04


cheese head screw balance weight DIN 912, 10.9 M8 x 30 (38030604)






220.



4NC-20.2


380302-05


Cheese Head Screw suction shut-off valve DIN 912, 10.9 M12 x 50 (38030205)






221.



4NC-20.2


380402-06


cheese head screw protection device brass M4 x 16 (38040206)






222.



4NC-20.2


380306-32


Cheese Head Screw DIN 912, 10.9 M10 x 30 (38030632)






223.



4NC-20.2


367121-01


clamping plate suction shut-off valve 80 x 80 (36712101)






224.



4NC-20.2


302131-02


connecting rod Ø70 x Ø16 x 90 (30213102)






225.



4NC-20.2


302298-49


connecting rod / piston Kit - right / left Ø70 (30229849)






226.



4NC-20.2


343219-04


crankcase heater 0..140 W, 200-260 V (PTC) 200-260V (34321904)






227.



4NC-20.2


301117-02


crankshaft (30111702)






228.



4NC-20.2


302360-20


cylinder head air-cooled (30236020)






229.



4NC-20.2


382001-05


disk rotor spring steel DIN 125 A17 (38200105)






230.



4NC-20.2


380902-01


eye bolt DIN 580 M10 (38090201)






231.



4NC-20.2


372949-02


gasket housing cover 14 - Hole 275 x 275 x 0,38 (37294902)






232.



4NC-20.2


372421-14


gasket Terminal plate 163 x 118 x 0,5 (37242114)






233.



4NC-20.2


372623-01


gasket cylinder head Retall 191 x 115 x 0,49 (37262301)






234.



4NC-20.2


372301-02


gasket suction shut-off valve Ø70 x Ø54 x 1 (37230102)






235.



4NC-20.2


372303-01


gasket Pipe connection Ø52 x Ø37 x 2 (37230301)






236.



4NC-20.2


372200-01


Gasket PTFE Ø14,3 x 1,5 (37220001)






237.



4NC-20.2


372704-05


gasket discharge shut-off valve Ø34 x 1,0 - LA 66 (37270405)






238.



4NC-20.2


372145-01


gasket terminal box aluminium for terminal box 286 x 181 x 2 (37214501)






239.



4NC-20.2


372515-08


gasket valve plate 191 x 115 x 1,1 (37251508)






240.



4NC-20.2


382403-01


Gasket Ring oil pressure monitoring aluminium DIN 7603 A20 x 24 x 1,5 (38240301)






241.



4NC-20.2


382401-31


gasket ring copper A10 x 16 x 2 (38240131)






242.



4NC-20.2


382403-05


Gasket Ring oil drain aluminium DIN 7603 A22 x 27 x 1,5 (38240305)






243.



4NC-20.2


372841-01


gasket set (37284101)






244.



4NC-20.2


384101-05


gib-headed key Stator steel DIN 6887 5 x 5 x 36 (38410105)






245.



4NC-20.2


383103-04


half length reserve taper grooved dowel pin valve plate steel Ø3 x 8 (38310304)






246.



4NC-20.2


380056-14


hexagon head screw cylinder head DIN 931, 10.9 M10 x 70 (38005614)






247.



4NC-20.2


380104-05


Hexagon head screw sight glass DIN 933, 8.8 M6 x 18 (38010405)






248.



4NC-20.2


380056-21


hexagon head screw cylinder head DIN 931, 10.9 M10 x 50 (38005621)






249.



4NC-20.2


380156-06


hexagon head screw discharge shut-off valve coated DIN 933, 10.9 M10 x 30 (38015606)






250.



4NC-20.2


380007-52


hexagon head screw suction shut-off valve galvanized DIN 931, 8.8 M12 x 80 (38000752)






251.



4NC-20.2


380155-05


hexagon head screw oil pump DIN 933, 10.9 M8 x 20 (38015505)






252.



4NC-20.2


380166-10


hexagon head screw rotor coated DIN 933, 10.9 M16 x 70 (38016610)






253.



4NC-20.2


380056-04


hexagon head screw cylinder head DIN 931, 10.9 M10 x 65 (38005604)






254.



4NC-20.2


381101-56


hexagon nut screw for grounding DIN 934 M10 (38110156)






255.



4NC-20.2


380306-83


Hexsocket Cheese Head Screw Terminal plate DIN 912, 10.9 M10 x 25 (38030683)






256.



4NC-20.2


300085-04


housing Ø70 (30008504)






257.



4NC-20.2


305236-01


housing cover suction side grey cast iron 275 x 275 x 65 (30523601)






258.



4NC-20.2


345950-03


metal plate for grounding screw for grounding for grounding aluminium M10 (34595003)






259.



4NC-20.2


372003-27


O-ring Ø10,82 x 1,78 (37200327)






260.



4NC-20.2


372003-39


O-ring sight glass Ø33 x 2,5 (37200339)






261.



4NC-20.2


372001-19


O-ring oil pump Ø74 x 2 (37200119)






262.



4NC-20.2


362003-02


oil filter Ø14 x 105 (36200302)






263.



4NC-20.2


347334-03


oil level monitoring 230V 50/60 Hz (34733403)






264.



4NC-20.2


361101-01


oil pressure relief valve SW17 x 29 (36110101)






265.



4NC-20.2


362503-01


oil pump oil pump grey cast iron (36250301)






266.



4NC-20.2


361914-01


oil service valve (36191401)






267.



4NC-20.2


380501-54


Oval head screw terminal box aluminium galvanized DIN 7985, 4.8 M6 x 16 (38050154)






268.



4NC-20.2


384001-16


parallel key built-in motor steel DIN 6885 A12 x 8 x 80 (38400116)






269.



4NC-20.2


365321-14


pipe connection suction side steel brazing and welding bush Ø42 (1 5/8") (36532114)






270.



4NC-20.2


382310-43


piston ring Ø70 x 1,0 (38231043)






271.



4NC-20.2


382303-03


piston ring Ø70 x 1,0 (38230303)






272.



4NC-20.2


325000-01


pressure spring spring steel Ø18 x 28 x 1,25 (32500001)






273.



4NC-20.2


347019-01


protection device motor overheat protection SE-B1 230V-50/60Hz (34701901)






274.



4NC-20.2


366201-22


Protective Cap suction shut-off valve Span of the jaw: 27 Plastic - GRP M27 x 2 / L=70 mm (36620122)






275.



4NC-20.2


366201-19


Protective Cap Span of the jaw: 27 Plastic - GRP M24 x 2 / L=57,5 mm (36620119)






276.



4NC-20.2


382231-18


retaining ring with lugs spring steel DIN 472 Ø16 x 1 (38223118)






277.



4NC-20.2


361500-01


Schrader valve oil pressure connection T-piece brass Jul-16 (36150001)






278.



4NC-20.2


361501-01


Schrader Valve brass 1/8"-27 NPTF (36150101)






279.



4NC-20.2


314104-21


screwed nipple coated 1/2" - 14NPTF x 48 (31410421)






280.



4NC-20.2


366104-22


sealing plug brass 3/4" - 14 NPTF (36610422)






281.



4NC-20.2


366103-21


sealing plug oil service valve brass 1/2" - 14 NPTF (36610321)






282.



4NC-20.2


366110-08


Sealing Plug suction shut-off valve steel1/4" - 18NPTF (36611008)






283.



4NC-20.2


366100-01


Sealing Plug CIC system brass 1/8" - 27 NPTF (36610001)






284.



4NC-20.2


366110-02


Sealing Plug oil fill connection steel 1/4" - 18 NPTF (36611002)






285.



4NC-20.2


366124-01


sealing screw permanent magnet M22 x 1,5 (36612401)






286.



4NC-20.2


366123-01


sealing screw oil pressure monitoring M20 x 1,5 (36612301)






287.



4NC-20.2


380358-01


Set screw coated DIN 916 M10 x 12 (38035801)






288.



4NC-20.2


361338-01


shut-off valve suction side Ø42 (1 5/8") (36133801)






289.



4NC-20.2


361315-13


shut-off valve Discharge side Ø28 (1 1/8") (36131513)






290.



4NC-20.2


361802-03


sight glass steel / glass Ø60 x 7 (36180203)






291.



4NC-20.2


382201-55


Single Coil Spring Washer screw for grounding spring steel galvanized DIN 127 A6, 4 (38220155)






292.



4NC-20.2


382201-04


single coil spring washer balance weight spring steel DIN 127 B8 (38220104)






293.



4NC-20.2


311004-02


spacer sleeve steel Ø60 x Ø42,1 x 30,6 (31100402)






294.



4NC-20.2


311012-09


spacer sleeve screw for grounding Ø20 x Ø11 x 12 (31101209)






295.



4NC-20.2


362001-08


suction gas filter Ø50 x 57 (36200108)






296.



4NC-20.2


343507-02


terminal box standard 244 x 189 x 85 (34350702)






297.



4NC-20.2


345507-01


terminal plate 6-Lead 165 x 120 x 10 (34550701)






298.



4NC-20.2


345506-03


terminal plate cannot be delivered separately 165 x 120 x 11,5 (34550603)






299.



4NC-20.2


380912-01


threaded bolt grounding 6-Lead DIN 976 M10 x 80 (38091201)






300.



4NC-20.2


320500-10


thrust washer Crankcase side Ø66 x Ø48 x 1,6 (32050010)






301.



4NC-20.2


304063-08

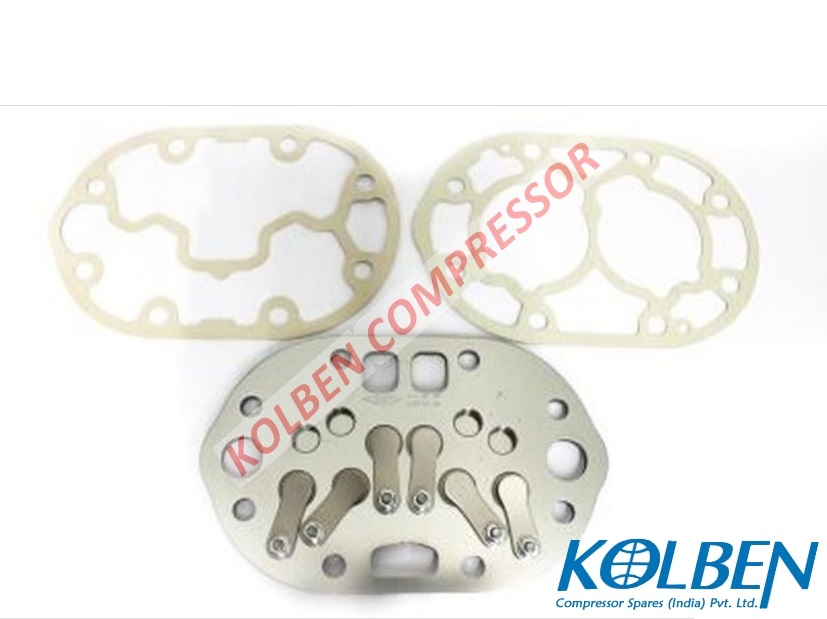

valve plate Ø70 (30406308)






302.



4NC-20.2


370003-07


vibration damper set brown spring (37000307)






303.



4NC-20.2


370003-05


vibration damper set Crankcase side yellow spring (37000305)






304.



4NC-20.2


382002-04


Washer screw for grounding brass DIN 125 10,5 (38200204)






305.



4NC-20.2


382002-01


washer brass DIN 125 A4, 3 (38200201)






306.



4NC-20.2


383401-45


wrist pin connecting rod / piston DIN 73126 Ø16 x Ø9 x 55 (38340145)






307.



4NCS-20.2


302926-08


balance weight (30292608)






308.



4NCS-20.2


302952-03


balance weight rotor (30295203)






309.



4NCS-20.2


311135-01


Bearing bush oil centrifuge Ø50 x Ø45 x 40 (31113501)






310.



4NCS-20.2


305107-78


bearing cover Oil level monitoring (30510778)






311.



4NCS-20.2


346294-46


built-in motor 14.7 kW, 4-pole 380..420V Y/YY-3-50Hz, 440..480V Y/YY-3-60Hz Ø223 (34629446)






312.



4NCS-20.2


380402-06


cheese head screw protection device brass M4 x 16 (38040206)






313.



4NCS-20.2


380306-04


cheese head screw oil centrifuge DIN 912, 10.9 M8 x 30 (38030604)






314.



4NCS-20.2


380302-05


Cheese Head Screw suction shut-off valve DIN 912, 10.9 M12 x 50 (38030205)






315.



4NCS-20.2


380508-51


Cheese head screw cover for terminal box galvanized DIN 7985, 4.8 M5 x 20 (38050851)






316.



4NCS-20.2


380301-37


cheese head screw balance weight DIN 912, 8.8 M8 x 12 (38030137)






317.



4NCS-20.2


367121-01


clamping plate suction shut-off valve 80 x 80 (36712101)






318.



4NCS-20.2


302131-02

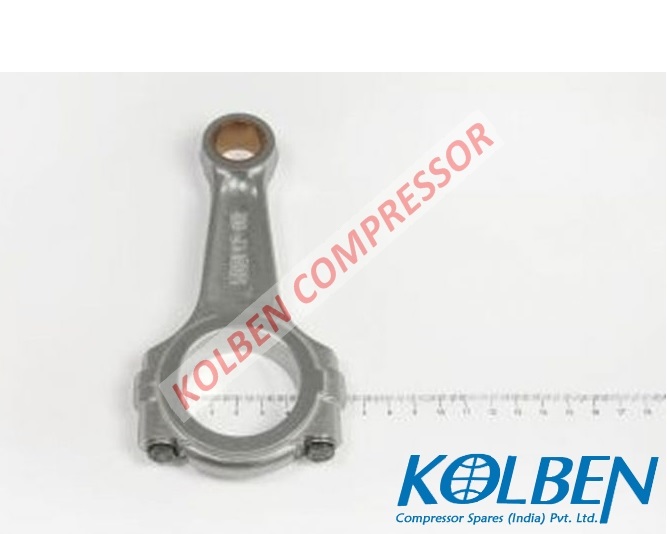

connecting rod Ø70 x Ø16 x 90 (30213102)






319.



4NCS-20.2


302298-49


connecting rod / piston Kit - right / left Ø70 (30229849)






320.



4NCS-20.2


343219-04


crankcase heater 0..140 W, 200-260 V (PTC) 200-260V (34321904)






321.



4NCS-20.2


302360-20

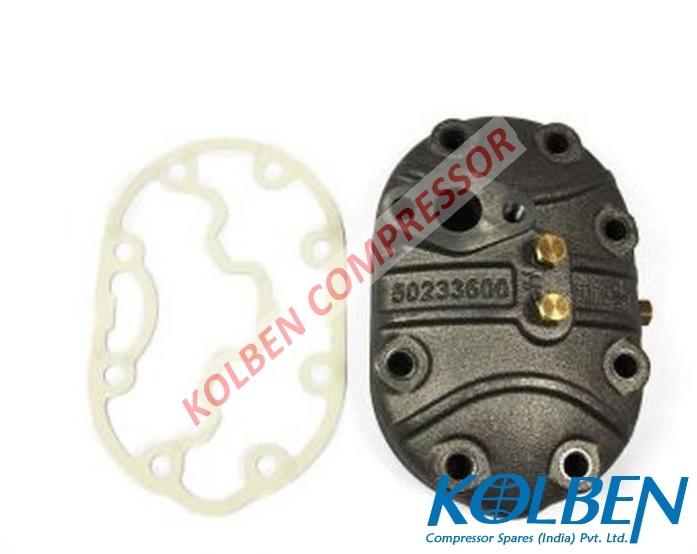

cylinder head air-cooled (30236020)






322.



4NCS-20.2


382001-05


disk rotor spring steel DIN 125 A17 (38200105)






323.



4NCS-20.2


301117-04


eccentric shaft (30111704)






324.



4NCS-20.2


380902-01


eye bolt DIN 580 M10 (38090201)






325.



4NCS-20.2


372200-01


Gasket PTFE Ø14,3 x 1,5 (37220001)






326.



4NCS-20.2


372301-02


gasket suction shut-off valve Ø70 x Ø54 x 1 (37230102)






327.



4NCS-20.2


372704-05


gasket discharge shut-off valve Ø34 x 1,0 - LA 66 (37270405)






328.



4NCS-20.2


372949-02


gasket housing cover 14 - Hole 275 x 275 x 0,38 (37294902)






329.



4NCS-20.2


372303-01


gasket Pipe connection Ø52 x Ø37 x 2 (37230301)






330.



4NCS-20.2


372515-08

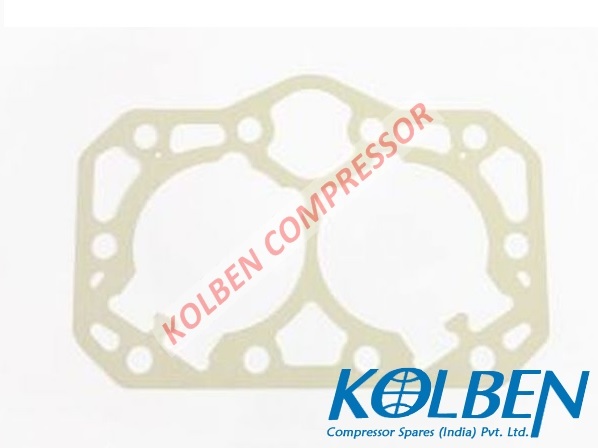

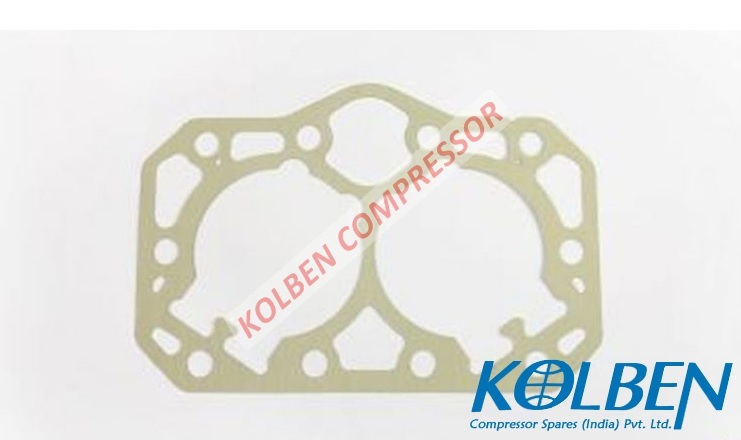

gasket valve plate 191 x 115 x 1,1 (37251508)






331.



4NCS-20.2


372623-01


gasket cylinder head Retall 191 x 115 x 0,49 (37262301)






332.



4NCS-20.2


372145-01


gasket terminal box aluminium for terminal box 286 x 181 x 2 (37214501)






333.



4NCS-20.2


372421-14


gasket Terminal plate 163 x 118 x 0,5 (37242114)






334.



4NCS-20.2


382403-05


Gasket Ring oil drain aluminium DIN 7603 A22 x 27 x 1,5 (38240305)






335.



4NCS-20.2


382403-01


Gasket Ring oil supply monitoring aluminium DIN 7603 A20 x 24 x 1,5 (38240301)






336.



4NCS-20.2


382401-31


gasket ring copper A10 x 16 x 2 (38240131)






337.



4NCS-20.2


372841-01


gasket set (37284101)






338.



4NCS-20.2


384101-05


gib-headed key Stator steel DIN 6887 5 x 5 x 36 (38410105)






339.



4NCS-20.2


383103-04


half length reserve taper grooved dowel pin valve plate steel Ø3 x 8 (38310304)






340.



4NCS-20.2


380007-52


hexagon head screw suction shut-off valve galvanized DIN 931, 8.8 M12 x 80 (38000752)






341.



4NCS-20.2


380156-06


hexagon head screw discharge shut-off valve coated DIN 933, 10.9 M10 x 30 (38015606)






342.



4NCS-20.2


380056-21


hexagon head screw cylinder head DIN 931, 10.9 M10 x 50 (38005621)






343.



4NCS-20.2


380104-05


Hexagon head screw sight glass DIN 933, 8.8 M6 x 18 (38010405)






344.



4NCS-20.2


380056-04


hexagon head screw cylinder head DIN 931, 10.9 M10 x 65 (38005604)






345.



4NCS-20.2


380166-10


hexagon head screw rotor coated DIN 933, 10.9 M16 x 70 (38016610)






346.



4NCS-20.2


380056-14


hexagon head screw cylinder head DIN 931, 10.9 M10 x 70 (38005614)






347.



4NCS-20.2


381101-56


hexagon nut screw for grounding DIN 934 M10 (38110156)






348.



4NCS-20.2


380306-83


Hexsocket Cheese Head Screw Terminal plate DIN 912, 10.9 M10 x 25 (38030683)






349.



4NCS-20.2


300085-04


housing Ø70 (30008504)






350.



4NCS-20.2


305236-01


housing cover suction side grey cast iron 275 x 275 x 65 (30523601)






351.



4NCS-20.2


345950-03


metal plate for grounding screw for grounding aluminium M10 (34595003)






352.



4NCS-20.2


372003-39


O-ring sight glass Ø33 x 2,5 (37200339)






353.



4NCS-20.2


321105-06


oil centrifuge steel (32110506)






354.



4NCS-20.2


362003-02


oil filter Ø14 x 105 (36200302)






355.



4NCS-20.2


347334-03


oil level monitoring 230V 50/60 Hz (34733403)






356.



4NCS-20.2


361914-01


oil service valve (36191401)






357.



4NCS-20.2


380501-54


Oval head screw terminal box aluminium galvanized DIN 7985, 4.8 M6 x 16 (38050154)






358.



4NCS-20.2


384001-16


parallel key built-in motor steel DIN 6885 A12 x 8 x 80 (38400116)






359.



4NCS-20.2


365321-14


pipe connection suction side steel brazing and welding bush Ø42 (1 5/8") (36532114)






360.



4NCS-20.2


382310-43


piston ring Ø70 x 1,0 (38231043)






361.



4NCS-20.2


382303-03


piston ring Ø70 x 1,0 (38230303)






362.



4NCS-20.2


325000-01


pressure spring steel Ø18 x 28 x 1,25 (32500001)






363.



4NCS-20.2


347019-01


protection device motor overheat protection SE-B1 230V-50/60Hz (34701901)






364.



4NCS-20.2


366201-22


Protective Cap suction shut-off valve Span of the jaw: 27 Plastic - GRP M27 x 2 / L=70 mm (36620122)






365.



4NCS-20.2


366201-19


Protective Cap Span of the jaw: 27 Plastic - GRP M24 x 2 / L=57,5 mm (36620119)






366.



4NCS-20.2


382231-18


retaining ring with lugs spring steel DIN 472 Ø16 x 1 (38223118)






367.



4NCS-20.2


361501-01


Schrader Valve brass 1/8"-27 NPTF (36150101)






368.



4NCS-20.2


314104-21


screwed nipple coated 1/2" - 14NPTF x 48 (31410421)






369.



4NCS-20.2


366103-21


sealing plug oil service valve brass 1/2" - 14 NPTF (36610321)






370.



4NCS-20.2


366110-08


Sealing Plug suction shut-off valve steel 1/4" - 18NPTF (36611008)






371.



4NCS-20.2


366100-01


Sealing Plug CIC system brass 1/8" - 27 NPTF (36610001)






372.



4NCS-20.2


366110-02


Sealing Plug oil fill connection steel 1/4" - 18 NPTF (36611002)






373.



4NCS-20.2


366124-01


sealing screw oil drain permanent magnet M22 x 1,5(36612401)






374.



4NCS-20.2


380910-03


Sealing Screw oil supply monitoring DIN 908, 5.8 M20 x 1,5 (38091003)






375.



4NCS-20.2


380358-01


Set screw coated DIN 916 M10 x 12 (38035801)






376.



4NCS-20.2


361315-13


shut-off valve Discharge side Ø28 (1 1/8") (36131513)






377.



4NCS-20.2


361338-01


shut-off valve suction side Ø42 (1 5/8") (36133801)






378.



4NCS-20.2


361802-03


sight glass steel / glass Ø60 x 7 (36180203)






379.



4NCS-20.2


382201-04


single coil spring washer balance weight spring steel DIN 127 B8 (38220104)






380.



4NCS-20.2


382201-55


Single Coil Spring Washer screw for grounding spring steel galvanized DIN 127 A6, 4 (38220155)






381.



4NCS-20.2


311004-02


spacer sleeve steel Ø60 x Ø42,1 x 30,6 (31100402)






382.



4NCS-20.2


311012-09


spacer sleeve screw for grounding Ø20 x Ø11 x 12 (31101209)






383.



4NCS-20.2


362001-08


suction gas filter Ø50 x 57 (36200108)






384.



4NCS-20.2


343507-02


terminal box standard 244 x 189 x 85 (34350702)






385.



4NCS-20.2


345506-03


terminal plate cannot be delivered separately 165 x 120 x 11,5 (34550603)






386.



4NCS-20.2


345507-01


terminal plate 6-Lead 165 x 120 x 10 (34550701)






387.



4NCS-20.2


380912-01


threaded bolt grounding 6-Lead DIN 976 M10 x 80 (38091201)






388.



4NCS-20.2


320500-10


thrust washer Motor side Ø66 x Ø48 x 1,6 (32050010)






389.



4NCS-20.2


304063-08


valve plate Ø70 (30406308)






390.



4NCS-20.2


370003-05


vibration damper set Crankcase side yellow spring (37000305)






391.



4NCS-20.2


370003-07


vibrationdamper set brown spring (37000307)






392.



4NCS-20.2


382002-04


Washer screw for grounding brass DIN 125 10,5 (38200204)






393.



4NCS-20.2


382002-01


washer brass DIN 125 A4, 3 (38200201)






394.



4NCS-20.2


383401-45


wrist pin connecting rod / piston DIN 73126 Ø16 x Ø9 x 55 (38340145)






395.



4NE-20


302952-03


balance weight rotor (30295203)






396.



4NE-20


302926-08


balance weight (30292608)






397.



4NE-20


311135-01


Bearing bush oil centrifuge Ø50 x Ø45 x 40 (31113501)






398.



4NE-20


305139-01


bearing cover (30513901)






399.



4NE-20


305107-78


bearing cover Oil level monitoring (30510778)






400.



4NE-20


346294-46


built-in motor 14.7 kW, 4-pole 380..420V Y/YY-3-50Hz, 440..480V Y/YY-3-60Hz Ø223 (34629446)






401.



4NE-20


380302-05


Cheese Head Screw suction shut-off valve DIN 912, 10.9 M12 x 50 (38030205)






402.



4NE-20


380344-01


Cheese Head Screw balance weight ISO 4762, 10.9 M8 x 30 (38034401)






403.



4NE-20


380508-51


Cheese head screw cover for terminal box galvanized DIN 7985, 4.8 M5 x 20 (38050851)






404.



4NE-20


380301-37


cheese head screw balance weight DIN 912, 8.8 M8 x 12 (38030137)






405.



4NE-20


380306-04


cheese head screw oil centrifuge DIN 912, 10.9 M8 x 30 (38030604)






406.



4NE-20


380402-06


cheese head screw protection device brass M4 x 16 (38040206)






407.



4NE-20


367121-01


clamping plate suction shut-off valve 80 x 80 (36712101)






408.



4NE-20


302131-02


connecting rod Ø70 x Ø16 x 90 (30213102)






409.



4NE-20


302298-49


connecting rod / piston Kit - right / left Ø70 (30229849)






410.



4NE-20


343219-04


crankcase heater 0..140 W, 200-260 V (PTC) 200-260V (34321904)






411.



4NE-20


301117-02


crankshaft (30111702)






412.



4NE-20


302360-37


cylinder head air-cooled (30236037)






413.



4NE-20


382001-05


disk rotor spring steel DIN 125 A17 (38200105)






414.



4NE-20


380902-01


eye bolt DIN 580 M10 (38090201)






415.



4NE-20


372704-05


gasket discharge shut-off valve Ø34 x 1,0 - LA 66 (37270405)






416.



4NE-20


372515-12


gasket valve plate Ø70, 191 x 115 x 1,0 (37251512)






417.



4NE-20


372623-01


gasket cylinder head Retall 191 x 115 x 0,49 (37262301)






418.



4NE-20


372200-01


Gasket PTFE Ø14,3 x 1,5 (37220001)






419.



4NE-20


372949-02


gasket housing cover 14 - Hole 275 x 275 x 0,38 (37294902)






420.



4NE-20


372303-01


gasket Pipe connection Ø52 x Ø37 x 2 (37230301)






421.



4NE-20


372421-14


gasket Terminal plate 163 x 118 x 0,5 (37242114)






422.



4NE-20


372301-02


gasket suction shut-off valve Ø70 x Ø54 x 1 (37230102)






423.



4NE-20


372429-04


Gasket terminal Box standard for terminal box 360 x 290 x 2 (37242904)






424.



4NE-20


382403-05


Gasket Ring aluminium DIN 7603 A22 x 27 x 1,5 (38240305)






425.



4NE-20


382403-01


Gasket Ring oil supply monitoring aluminium DIN 7603 A20 x 24 x 1,5 (38240301)






426.



4NE-20


382401-31


gasket ring oil drain copper A10 x 16 x 2 (38240131)






427.



4NE-20


372841-01


gasket set (37284101)






428.



4NE-20


384101-05


gib-headed key Stator steel DIN 6887 5 x 5 x 36 (38410105)






429.



4NE-20


383103-04


half length reserve taper grooved dowel pin valve plate steel Ø3 x 8 (38310304)






430.



4NE-20


380156-06


hexagon head screw discharge shut-off valve coated DIN 933, 10.9 M10 x 30 (38015606)






431.



4NE-20


380056-21


hexagon head screw cylinder head DIN 931, 10.9 M10 x 50 (38005621)






432.



4NE-20


380007-52


hexagon head screw suction shut-off valve galvanized DIN 931, 8.8 M12 x 80 (38000752)






433.



4NE-20


380056-14


hexagon head screw cylinder head DIN 931, 10.9 M10 x 70 (38005614)






434.



4NE-20


380104-05


Hexagon head screw sight glass DIN 933, 8.8 M6 x 18 (38010405)






435.



4NE-20


380166-10


hexagon head screw rotor coated DIN 933, 10.9 M16 x 70 (38016610)






436.



4NE-20


380155-05


hexagon head screw DIN 933, 10.9 M8 x 20 (38015505)






437.



4NE-20


381101-56


hexagon nut screw for grounding DIN 934 M10 (38110156)






438.



4NE-20


380306-83


Hexsocket Cheese Head Screw Terminal plate DIN 912, 10.9 M10 x 25 (38030683)






439.



4NE-20


300085-04


housin Ø70 (30008504)






440.



4NE-20


305236-01


housing cover suction side grey cast iron 275 x 275 x 65 (30523601)






441.



4NE-20


345950-03


metal plate for grounding screw for grounding for grounding aluminium M10 (34595003)






442.



4NE-20


372003-39


O-ring sight glass Ø33 x 2,5 (37200339)






443.



4NE-20


372003-27


O-ring Ø10,82 x 1,78 (37200327)






444.



4NE-20


372001-19


O-ring Ø74 x 2 (37200119)






445.



4NE-20


321105-06


oil centrifuge steel (32110506)






446.



4NE-20


362003-02


oil filter Ø14 x 105 (36200302)






447.



4NE-20


347334-03


oil level monitoring 230V 50/60 Hz (34733403)






448.



4NE-20


361101-01


oil pressure relief valve SW17 x 29 (36110101)






449.



4NE-20


362503-01


oil pump grey cast iron (36250301)






450.



4NE-20


361914-01


oil service valve (36191401)






451.



4NE-20


380501-54


Oval head screw terminal box aluminium galvanized DIN 7985, 4.8 M6 x 16 (38050154)






452.



4NE-20


384001-16


parallel key built-in motor steel DIN 6885 A12 x 8 x 80 (38400116)






453.



4NE-20


365321-14


pipe connection suction side steel brazing and welding bush Ø42 (1 5/8") (36532114)






454.



4NE-20


382303-03


piston ring Ø70 x 1,0 (38230303)






455.



4NE-20


382310-43


piston ring Ø70 x 1,0 (38231043)






456.



4NE-20


325000-01


pressure spring spring steel Ø18 x 28 x 1,25 (32500001)






457.



4NE-20


347019-01


protection device motor overheat protection SE-B1 230V-50/60Hz (34701901)






458.



4NE-20


366201-22


Protective Cap suction shut-off valve Span of the jaw: 27 Plastic - GRP M27 x 2 / L=70 mm (36620122)






459.



4NE-20


366201-19


Protective Cap Span of the jaw: 27 Plastic - GRP M24 x 2 / L=57,5 mm (36620119)






460.



4NE-20


382231-18


retaining ring with lugs spring steel DIN 472 Ø16 x 1 (38223118)






461.



4NE-20


361501-01


Schrader Valve brass 1/8"-27 NPTF (36150101)






462.



4NE-20


361500-01


Schrader valve T-piece brass Jul-16 (36150001)






463.



4NE-20


314104-21


screwed nipple coated 1/2" - 14NPTF x 48 (31410421)






464.



4NE-20


366100-01


Sealing Plug CIC system brass 1/8" - 27 NPTF (36610001)






465.



4NE-20


366103-21


sealing plug oil service valve brass 1/2" - 14 NPTF (36610321)






466.



4NE-20


366110-08


Sealing Plug suction shut-off valve steel 1/4" - 18NPTF (36611008)






467.



4NE-20


366110-02


Sealing Plug oil fill connection steel 1/4" - 18 NPTF (36611002)






468.



4NE-20


380910-03


Sealing Screw oil supply monitoring DIN 908, 5.8 M20 x 1,5 (38091003)






469.



4NE-20


366124-01


sealing screw permanent magnet M22 x 1,5 (36612401)






470.



4NE-20


380358-01


Set screw coated DIN 916 M10 x 12 (38035801)






471.



4NE-20


361315-13


shut-off valve Discharge side Ø28 (1 1/8") (36131513)






472.



4NE-20


361338-01


shut-off valve suction side Ø42 (1 5/8") (36133801)






473.



4NE-20


361802-03


sight glass Ø60 x 7 (36180203)






474.



4NE-20


382201-55


Single Coil Spring Washer screw for grounding spring steel galvanized DIN 127 A6, 4 (38220155)






475.



4NE-20


382201-04


single coil spring washer spring steel DIN 127 B8 (38220104)






476.



4NE-20


311004-02


spacer sleeve steel Ø60 x Ø42,1 x 30,6 (31100402)






477.



4NE-20


311012-09


spacer sleeve screw for grounding Ø20 x Ø11 x 12 (31101209)






478.



4NE-20


362001-08


suction gas filter Ø50 x 57 (36200108)






479.



4NE-20


343507-02


terminal box standard 244 x 189 x 85 (34350702)






480.



4NE-20


345507-01


terminal plate 6-Lead 165 x 120 x 10 (34550701)






481.



4NE-20


345506-03


terminal plate cannot be delivered separately 165 x 120 x 11,5 (34550603)






482.



4NE-20


380912-01


threaded bolt grounding 6-Lead DIN 976 M10 x 80 (38091201)






483.



4NE-20


320500-10


thrust washer Crankcase side Ø66 x Ø48 x 1,6 (32050010)






484.



4NE-20


304063-31


valve plate (30406331)






485.



4NE-20


370003-05


vibration damper set Crankcase side yellow spring (37000305)






486.



4NE-20


370003-07


vibration damper set brown spring (37000307)






487.



4NE-20


382002-04


Washer screw for grounding brass DIN 125 10,5 (38200204)






488.



4NE-20


382002-01


washer brass DIN 125 A4, 3 (38200201)






489.



4NE-20


383401-45


wrist pin connecting rod / piston DIN 73126 Ø16 x Ø9 x 55 (38340145)






490.



4NES-20


302926-08


balance weight (30292608)






491.



4NES-20


302952-03


balance weight rotor (30295203)






492.



4NES-20


311135-01


Bearing bush oil centrifuge Ø50 x Ø45 x 40 (31113501)






493.



4NES-20


305107-78


bearing cover Oil level monitoring (30510778)






494.



4NES-20


346294-46


built-in motor 14.7 kW, 4-pole 380..420V Y/YY-3-50Hz, 440..480V Y/YY-3-60Hz Ø223 (34629446)






495.



4NES-20


380302-05


Cheese Head Screw suction shut-off valve DIN 912, 10.9 M12 x 50 (38030205)






496.



4NES-20


380508-51


Cheese head screw cover for terminal box galvanized DIN 7985, 4.8 M5 x 20 (38050851)






497.



4NES-20


380402-06


cheese head screw protection device brass M4 x 16 (38040206)






498.



4NES-20


380344-01


Cheese Head Screw balance weight ISO 4762, 10.9 M8 x 30 (38034401)






499.



4NES-20


367121-01


clamping plate suction shut-off valve 80 x 80 (36712101)






500.



4NES-20


302131-02


connecting rod Ø70 x Ø16 x 90 (30213102)






501.



4NES-20


302298-49


connecting rod / piston Kit - right / left Ø70 (30229849)






502.



4NES-20


343219-04


crankcase heater 0..140 W, 200-260 V (PTC) 200-260V (34321904)






503.



4NES-20


302360-37


cylinder head air-cooled (30236037)






504.



4NES-20


382001-05


disk rotor spring steel DIN 125 A17 (38200105)






505.



4NES-20


301117-04


eccentric shaft (30111704)






506.



4NES-20


380902-01


eye bolt DIN 580 M10 (38090201)






507.



4NES-20


372515-16


gasket valve plate 191 x 115 x 0,9 (37251516)






508.



4NES-20


372301-02


gasket suction shut-off valve Ø70 x Ø54 x 1 (37230102)






509.



4NES-20


372704-05


gasket discharge shut-off valve Ø34 x 1,0 - LA 66 (37270405)






510.



4NES-20


372303-01


gasket Pipe connection Ø52 x Ø37 x 2 (37230301)






511.



4NES-20


372623-01


gasket cylinder head Retall 191 x 115 x 0,49 (37262301)






512.



4NES-20


372200-01


Gasket PTFE Ø14,3 x 1,5 (37220001)






513.



4NES-20


372949-02


gasket housing cover 14 - Hole 275 x 275 x 0,38 (37294902)






514.



4NES-20


372429-04


Gasket terminal Box standard for terminal box 360 x 290 x 2 (37242904)






515.



4NES-20


372421-14


gasket Terminal plate 163 x 118 x 0,5 (37242114)






516.



4NES-20


382401-31


gasket ring oil drain copper A10 x 16 x 2 (38240131)






517.



4NES-20


382403-01


Gasket Ring oil level monitoring aluminium DIN 7603 A20 x 24 x 1,5 (38240301)






518.



4NES-20


372841-01


gasket set (37284101)






519.



4NES-20


384101-05


gib-headed key Stator steel DIN 6887 5 x 5 x 36 (38410105)






520.



4NES-20


383103-04


half length reserve taper grooved dowel pin valve plate steel Ø3 x 8 (38310304)






521.



4NES-20


380056-14


hexagon head screw cylinder head DIN 931, 10.9 M10 x 70 (38005614)






522.



4NES-20


380166-10


hexagon head screw rotor coated DIN 933, 10.9 M16 x 70 (38016610)






523.



4NES-20


380156-06


hexagon head screw coated DIN 933, 10.9 M10 x 30 (38015606)






524.



4NES-20


380104-05


Hexagon head screw sight glass DIN 933, 8.8 M6 x 18 (38010405)






525.



4NES-20


380056-21


hexagon head screw cylinder head DIN 931, 10.9 M10 x 50 (38005621)






526.



4NES-20


380007-52


hexagon head screw suction shut-off valve galvanized DIN 931, 8.8 M12 x 80 (38000752)






527.



4NES-20


381101-56


hexagon nut screw for grounding DIN 934 M10 (38110156)






528.



4NES-20


380306-83


Hexsocket Cheese Head Screw Terminal plate DIN 912, 10.9 M10 x 25 (38030683)






529.



4NES-20


300085-04


housing Ø70 (30008504)






530.



4NES-20


305236-01


housing cover suction side grey cast iron 275 x 275 x 65 (30523601)






531.



4NES-20


345950-03


metal plate for grounding screw for grounding for grounding aluminium M10 (34595003)






532.



4NES-20


372003-39


O-ring sight glass Ø33 x 2,5 (37200339)






533.



4NES-20


321105-06


oil centrifuge steel (32110506)






534.



4NES-20


347334-03


oil level monitoring 230V 50/60 Hz (34733403)






535.



4NES-20


361914-01


oil service valve (36191401)






536.



4NES-20


380501-54


Oval head screw terminal box aluminium galvanized DIN 7985, 4.8 M6 x 16 (38050154)






537.



4NES-20


384001-16


parallel key built-in motor steel DIN 6885 A12 x 8 x 80 (38400116)






538.



4NES-20


365321-14


pipe connection suction side steel brazing and welding bush Ø42 (1 5/8") (36532114)






539.



4NES-20


382310-43


piston ring Ø70 x 1,0 (38231043)






540.



4NES-20


382303-03


piston ring Ø70 x 1,0 (38230303)






541.



4NES-20


347019-01


protection device motor overheat protection SE-B1 230V-50/60Hz (34701901)






542.



4NES-20


366201-19


Protective Cap Span of the jaw: 27 Plastic - GRP M24 x 2 / L=57,5 mm (36620119)






543.



4NES-20


366201-22


Protective Cap suction shut-off valve Span of the jaw: 27 Plastic - GRP M27 x 2 / L=70 mm (36620122)






544.



4NES-20


382231-18


retaining ring with lugs spring steel DIN 472 Ø16 x 1 (38223118)






545.



4NES-20


361501-01


Schrader Valve brass 1/8"-27 NPTF (36150101)






546.



4NES-20


314104-21


screwed nipple coated 1/2" - 14NPTF x 48 (31410421)






547.



4NES-20


366100-01


Sealing Plug CIC system brass 1/8" - 27 NPTF (36610001)






548.



4NES-20


366110-08


Sealing Plug suction shut-off valve steel 1/4" - 18NPTF (36611008)






549.



4NES-20


366110-02


Sealing Plug oil fill connection steel 1/4" - 18 NPTF (36611002)






550.



4NES-20


380910-03


Sealing Screw oil supply monitoring DIN 908, 5.8 M20 x 1,5 (38091003)






551.



4NES-20


380358-01


Set screw coated DIN 916 M10 x 12 (38035801)






552.



4NES-20


361338-01


shut-off valve suction side Ø42 (1 5/8") (36133801)






553.



4NES-20


361315-13


shut-off valve Discharge side Ø28 (1 1/8") (36131513)






554.



4NES-20


361802-03


sight glassMØ60 x 7 (36180203)






555.



4NES-20


382201-55


Single Coil Spring Washer screw for grounding spring steel galvanized DIN 127 A6, 4 (38220155)






556.



4NES-20


311004-02


spacer sleeve steel Ø60 x Ø42,1 x 30,6 (31100402)






557.



4NES-20


311012-09


spacer sleeve screw for grounding Ø20 x Ø11 x 12 (31101209)






558.



4NES-20


362001-08


suction gas filter Ø50 x 57 (36200108)






559.



4NES-20


343507-02


terminal box standard 244 x 189 x 85 (34350702)






560.



4NES-20


345507-01


terminal plate 6-Lead 165 x 120 x 10 (34550701)






561.



4NES-20


345506-03


terminal plate cannot be delivered separately 165 x 120 x 11,5 (34550603)






562.



4NES-20


380912-01


threaded bolt grounding 6-Lead DIN 976 M10 x 80 (38091201)






563.



4NES-20


382152-01


thrust washer DIN 127 S 8 (38215201)






564.



4NES-20


320500-10


thrust washer Crankcase side Ø66 x Ø48 x 1,6 (32050010)






565.



4NES-20


304063-31


valve plate (30406331)






566.



4NES-20


370003-07


vibration damper set brown spring (37000307)






567.



4NES-20


370003-05


vibration damper set Crankcase side yellow spring (37000305)






568.



4NES-20


382002-04


Washer screw for grounding brass DIN 125 10,5 (38200204)






569.



4NES-20


382002-01


washer brass DIN 125 A4, 3 (38200201)






570.



4NES-20


383401-45


wrist pin connecting rod / piston DIN 73126 Ø16 x Ø9 x 55 (38340145)






571.



S4N.8.2


34341301


conversion kit violet (34341301)






572.



S4N.8.2


36140404


expansion valve operation with liquid subcooler TEVI 2, nozzle 03 R 404A (36140404)






573.



S4N.8.2


34341602


terminal plate kit (34341602)






574.



S4N.8.2


36050702


intermediate pressure mixing pipe (36050702)






575.



S4N.8.2


30236028


cylinder head High pressure side (30236028)






576.



S4N.8.2


30236029


cylinder head Low pressure side (30236029)






577.



S4N.8.2


34590604


heater sleeve for 100W heater (34590604)






578.



S4N.8.2


34320834


Crankcase Heater heating capacity: 100W 230V-1-50/60Hz (34320834)






579.



S4N.8.2


36011008


oil return system (36011008)






580.



S4N.8.2


30229724


connecting rod / piston (30229724)






581.



S4N.8.2


34341407


terminal plate kit (34341407)






582.



S4N.8.2


34341404


terminal plate kit (34341404)






583.



S4N.8.2


30291502


cable connector separate out using filters brass (30291502)






584.



S4N.8.2


34341403


terminal plate kit (34341403)






585.



S4N.8.2


36111001


gas equalising valve (36111001)






586.



S4N.8.2


34341708


connection to ground, (34341708)






587.



S4N.8.2


34702303


PTC-sensor (34702303)






588.



S4N.8.2


37700501


insulation intermediate pressure mixing pipe Armaflex (37700501)






589.



S4N.8.2


37281701


gasket set (37281701)






590.



S4N.8.2


34702805


protection device SE-B2 24V-DC (34702805)






591.



S4N.8.2


30211751


connecting rod High pressure side (30211751)






592.



S4N.8.2


34700401


protection device INT389 230V-50/60Hz (34700401)






593.



S4N.8.2


34700402


protection device INT389 115V-50/60Hz (34700402)






594.



S4N.8.2


34700403


protection device 230V 50/60 Hz INT389R 230V-50/60Hz (34700403)






595.



S4N.8.2


30512501


bearing cover (30512501)






596.



S4N.8.2


34700405


protection device 115V 50/60 Hz INT389R 115V-50/60Hz (34700405)






597.



S4N.8.2


34703504


protection device SE-B3 110V/230V-50/60Hz (34703504)






598.



S4N.8.2


36250301


oil pump grey cast iron (36250301)






599.



S4N.8.2


34702804


protection device SE-B2 24V-50/60Hz (34702804)






600.



S4N.8.2


36611010


sealing plug steel (36611010)






601.



S4N.8.2


36611002


Sealing Plug steel (36611002)






602.



S4N.8.2


36610001


Sealing Plug brass (36610001)






603.



S4N.8.2


36620117


Protective Cap Span of the jaw: 20 Plastic - GRP (36620117)






604.



S4N.8.2


38410105


gib-headed key steel DIN 6887 (38410105)






605.



S4N.8.2


36150001


Schrader valve T-piece brass (36150001)






606.



S4N.8.2


32500205


damper element yellow spring steel (32500205)






607.



S4N.8.2


32500206


damper element green spring steel (32500206)






608.



S4N.8.2


37500201


insulating plate (37500201)






609.



S4N.8.2


37270701


gasket Hole spacing 48 (37270701)






610.



S4N.8.2


37500202


insulating plate (37500202)






611.



S4N.8.2


37500601


intermediate plate (37500601)






612.



S4N.8.2


37270401


Gasket (37270401)






613.



S4N.8.2


34732033


differential oil pressure cut-out MP54 115V/230V-50/60Hz (34732033)






614.



S4N.8.2


37261102


gasket Low pressure side (37261102)






615.



S4N.8.2


37261103


gasket High pressure side (37261103)






616.



S4N.8.2


37212001


gasket (37212001)






617.



S4N.8.2


32031401


fixing plate MP54 (32031401)






618.



S4N.8.2


37242115


gasket (37242115)






619.



S4N.8.2


37212401


gasket violet (37212401)






620.



S4N.8.2


30490002


terminal plate (30490002)






621.



S4N.8.2


32120201


centering plate steel (32120201)






622.



S4N.8.2


37241301


gasket (37241301)






623.



S4N.8.2


32030703


bottom plate steel (32030703)






624.



S4N.8.2


34351756


terminal box aluminium (34351756)






625.



S4N.8.2


32730902


foot (32730902)






626.



S4N.8.2


35300207


subcooler (35300207)






627.



S4N.8.2


38200201


washer brass DIN 125 (38200201)






628.



S4N.8.2


38220151


single coil spring washer spring steel galvanized DIN 127 (38220151)






629.



S4N.8.2


38200202


washer brass DIN 125 (38200202)






630.



S4N.8.2


32031803


connection bridge brass (32031803)






631.



S4N.8.2


38214102


single coil spring washer spring steel (38214102)






632.



S4N.8.2


38200203


Disk brass DIN 125 (38200203)






633.



S4N.8.2


38400112


parallel key (38400112)






634.



S4N.8.2


38240305


Gasket Ring aluminium DIN 7603 (38240305)






635.



S4N.8.2


37000302


vibration damper set Crankcase side yellow spring (37000302)






636.



S4N.8.2


37000303


vibration damper set Motor side green spring (37000303)






637.



S4N.8.2


38050751


cheese head screw 4.8 galvanized (38050751)






638.



S4N.8.2


38050752


Cross Recessed Raised Screw 4.8 galvanized (38050752)






639.



S4N.8.2


38130103


hexagon nut brass (38130103)






640.



S4N.8.2


38050851


Cheese head screw galvanized DIN 7985, 4.8 (38050851)






641.



S4N.8.2


38130104


Hexagon nut Brass DIN 934 (38130104)






642.



S4N.8.2


38050154


Oval head screw galvanized DIN 7985, 4.8 (38050154)






643.



S4N.8.2


38015406


hexagon head screw DIN 933, 10.9 (38015406)






644.



S4N.8.2


38003501


hexagon head screw (38003501)






645.



S4N.8.2


36611201


sealing screw conic DIN 906 (36611201)






646.



S4N.8.2


38015505


hexagon head screw DIN 933, 10.9 (38015505)






647.



S4N.8.2


38035801


Set screw coated DIN 916 (38035801)






648.



S4N.8.2


38030622


cheese head screw DIN 912, 10.9 (38030622)






649.



S4N.8.2


38030623


Cheese Head Screw DIN 912, 10.9 (38030623)






650.



S4N.8.2


38015605


hexagon head screw DIN 933, 10.9 (38015605)






651.



S4N.8.2


38033901


Hexsocket Cheese Head Screw ISO 4762, 10.9 - A2K (38033901)






652.



S4N.8.2


38030632


Cheese Head Screw DIN 912, 10.9 (38030632)






653.



S4N.8.2


38015606


hexagon head screw coated DIN 933, 10.9 (38015606)






654.



S4N.8.2


38005604


hexagon head screw DIN 931, 10.9 (38005604)






655.



S4N.8.2


38030628


cheese head screw DIN 912, 10.9 (38030628)






656.



S4N.8.2


38005702


hexagon head screw DIN 931, 10.9 (38005702)






657.



S4N.8.2


38016612


Hexagon Head Screw coated ISO 4017 - Precote85 (38016612)






658.



S4N.8.2


36612401


sealing screw permanent magnet (36612401)






659.



S4N.8.2


38215201


thrust washer DIN 127 (38215201)






660.



S4N.8.2


38215004


thrust washer spring steel (38215004)






661.



S4N.8.2


38900201


electric connector of the machine / device start unloading DIN 43650 (38900201)






662.



S4N.8.2


37213801


gasket (37213801)






663.



S4N.8.2


37500001


gasket ring(37500001)






664.



S4N.8.2


37500101


pressure bush (37500101)






665.



S4N.8.2


36040118


pipe (36040118)






666.



S4N.8.2


37500102


pressure bush (37500102)






667.



S4N.8.2


38302110


clamping sleeve DIN 7346 (38302110)






668.



S4N.8.2


36210105


filter drier Operation without subcooler brazed connection (36210105)






669.



S4N.8.2


34710002


solenoid valve subcooling circuit Brazed connection EVR 6 230V-50/60Hz (34710002)






670.



S4N.8.2


36182201


sight glass brazed connection (36182201)






671.



S4N.8.2


37500002


gasket ring (37500002)






672.



S4N.8.2


36200302


oil filter (36200302)






673.



S4N.8.2


38340102


wrist pin High pressure side (38340102)






674.



S4N.8.2


32500001


pressure spring spring steel (32500001)






675.



S4N.8.2


38223104


retaining ring with lugs spring steel DIN 472(38223104)






676.



S4N.8.2


36200111


suction gas filter (36200111)






677.



S4N.8.2


38340104


wrist pin (38340104)






678.



S4N.8.2


36131013


shut-off valve Hole spacing 48 brazing and welding bush (36131013)






679.



S4N.8.2


36600003


pipe connection Brazed connection steel copper-plated (36600003)






680.



S4N.8.2


37220003


Gasket teflon (37220003)






681.



S4N.8.2


36131014


shut-off valve Hole spacing 48 brazing and welding bush (36131014)






682.



S4N.8.2


36600004


pipe connection large connection steel copper-plated (36600004)






683.



S4N.8.2


37200315


O-ring (37200315)






684.



S4N.8.2


30100702


crankshaft Stroke 57mm (30100702)






685.



S4N.8.2


30211705


connecting rod (30211705)






686.



S4N.8.2


30223331


piston aluminium alloy (30223331)






687.



S4N.8.2


30229765


connecting rod / piston (30229765)






688.



S4N.8.2


30401701


valve plate High pressure side (30401701)






689.



S4N.8.2


30004301


housing grey cast iron (30004301)






690.



S4N.8.2


38230064


compression ring (38230064)






691.



S4N.8.2


37200116


O-ring (37200116)






692.



S4N.8.2


31110017


bearing bush (31110017)






693.



S4N.8.2


32050204


thrust washer steel (32050204)






694.



S4N.8.2


30223216


piston aluminium alloy (30223216)






695.



S4N.8.2


31110014


bearing bush Crankcase side (31110014)






696.



S4N.8.2


31110007


bearing bush Motor side (31110007)






697.



S4N.8.2


37251011


gasket (37251011)






698.



S4N.8.2


31200602


ring (31200602)






699.



S4N.8.2


32590002


spring washer (32590002)






700.



S4N.8.2


30401702


valve plate Low pressure side (30401702)






701.



S4N.8.2


38231019


oil scraper ring Piston diameter 59,96mm (38231019)






702.



S4N.8.2


38230052


compression ring Piston diameter 59,96mm (38230052)






703.



S4N.8.2


37251012


gasket (37251012)






704.



S4N.8.2


32050007


thrust washer (32050007)






705.



S4N.8.2


32050005


thrust washer Crankcase side (32050005)






706.



S4N.8.2


31200501


retaining ring (31200501)






707.



S4N.8.2


31203002


thrust collar (31203002)






708.



S4N.8.2


36180202


sight glass (36180202)






709.



S4N.8.2


37200119


O-ring (37200119)






710.



S4N.8.2


37231403


gasket (37231403)






711.



S4N.8.2


34626046


built-in motor Standard voltages 5.9 kW, 4-pole 380..420V Y/YY-3-50Hz, 440..480V Y/YY-3-60Hz(34626046)






712.



S4N.8.2


30520601


housing cover grey cast iron (30520601)






713.



S4N.8.2


37231502


gasket (37231502)






714.



4N.2


311100-14


bearing bush violet Ø55 x Ø50 x 30 (31110014)






715.



4N.2


311100-17


bearing bush Ø50 x Ø45 x 40,7 (31110017)






716.



4N.2


305125-01


bearing cover (30512501)






717.



4N.2


302405-02


bottom plate steel 290 x 315 x 27 (30240502)






718.



4N.2


380306-32


Cheese Head Screw DIN 912, 10.9 M10 x 30 (38030632)






719.



4N.2


380402-07


cheese head screw DIN 84 M5 x 12 (38040207)






720.



4N.2


380507-51


cheese head screw 4.8 galvanized M4 x 8 (38050751)






721.



4N.2


383021-10


clamping sleeve DIN 7346 Ø8 x 18 (38302110)






722.



4N.2


382300-52


compression ring Piston diameter 59,96mm Ø60 x 1,5 (38230052)






723.



4N.2


302117-05


connecting rod Ø45 x Ø20 x 112 (30211705)






724.



4N.2


302297-24


connecting rod / piston (30229724)






725.



4N.2


343208-34


Crankcase Heater heating capacity: 100W 230V-1-50/60Hz (34320834)






726.



4N.2


301007-12


crankshaft Ø50 x 422 (30100712)






727.



4N.2


302360-01


cylinder head Water cooled (30236001)






728.



4N.2


302360-11


cylinder head air-cooled Air cooled 196 x 127 x 55 (30236011)






729.



4N.2


347320-33


differential oil pressure cut-out MP54 115V/230V-50/60Hz 100 x 50 x 130 (34732033)






730.



4N.2


389002-01


electric connector of the machine / device DIN 43650 Typ GDM 209 (38900201)






731.



4N.2


320314-01


fixing plate MP54 140 x 40 x 3 (32031401)






732.



4N.2


361110-01


gas equalising valve (36111001)






733.



4N.2


372704-01


Gasket discharge shut-off valve 91 x 52 x 1 (37270401)






734.



4N.2


372200-04


gasket teflon Ø38 x Ø35 x 1,5 (37220004)






735.



4N.2


372510-12


gasket Ø60, 127 x 196 x 0,9 (37251012)






736.



4N.2


372414-01


gasket 290 x 220 x 1 (37241401)






737.



4N.2


372611-01


gasket valve plate Capacity control 192 x 127 x 0,75 (37261101)






738.



4N.2


372312-01


gasket sealing cover Ø124 x Ø90,5 x 0,5 (37231201)






739.



4N.2


382501-04


gasket ring NBR felt ring G52 x 42 x 4 (38250104)






740.



4N.2


382403-05


Gasket Ring aluminium DIN 7603 A22 x 27 x 1,5 (38240305)






741.



4N.2


372810-02


gasket set (37281002)






742.



4N.2


372807-01


gasket set bearing cover Ø182 x Ø133 x 1/ 0,8/ 0,75 /0,6 /0,5 (37280701)






743.



4N.2


384102-03


gib-headed key start menu steel 12 x 8 x 46 (38410203)






744.



4N.2


345906-04


heater sleeve for 100W heater (34590604)






745.



4N.2


380056-07


hexagon head screw DIN 931, 10.9 M10 x 80 (38005607)






746.



4N.2


380035-01


hexagon head screw M6 x 40 (38003501)






747.



4N.2


380156-05


hexagon head screw DIN 933, 10.9 M10 x 25 (38015605)






748.



4N.2


380155-05


hexagon head screw DIN 933, 10.9 M8 x 20 (38015505)






749.



4N.2


380156-06


hexagon head screw coated DIN 933, 10.9 M10 x 30 (38015606)






750.



4N.2


380155-07


Hexagon head screw DIN 933, 10.9 M8 x 25 (38015507)






751.



4N.2


380154-06


hexagon head screw DIN 933, 10.9 M6 x 20 (38015406)






752.



4N.2


380339-01


Hexsocket Cheese Head Screw ISO 4762, 10.9 - A2K M10 x 30 (38033901)






753.



4N.2


300026-11


housing Ø60 (30002611)






754.



4N.2


386301-01


needle roller Ø3 x 8 / G2 (38630101)






755.



4N.2


372001-19


O-ring Ø74 x 2 (37200119)






756.



4N.2


372001-10


O-ring Ø39,69 x 3,53 (37200110)






757.



4N.2


372003-15


O-ring Ø36,3 x 1,78 (37200315)






758.



4N.2


372001-16


O-ring Ø50 x 3 (37200116)






759.



4N.2


362003-02


oil filter Ø14 x 105 (36200302)






760.



4N.2


361105-01


oil pressure relief valve (36110501)






761.



4N.2


361204-01


oil pressure relief valve (36120401)






762.



4N.2


362503-01


oil pump in view of grey cast iron (36250301)






763.



4N.2


382310-19


oil scraper ring Piston diameter 59,96mm Ø60 x 1,5 (38231019)






764.



4N.2


366000-06


pipe connection steel copper-plated brazed connection Ø28, 1 3/4" - 12 UN (36600006)






765.



4N.2


366000-07


pipe connection steel copper-plated brazed connection Ø35, 1 3/4" - 12 UN (36600007)






766.



4N.2


302232-16


piston aluminium alloy Ø55 (30223216)






767.



4N.2


325000-01


pressure spring steel Ø18 x 28 x 1,25 (32500001)






768.



4N.2


366201-19


Protective Cap Span of the jaw: 27 Plastic - GRP M24 x 2 / L=57,5 mm (36620119)






769.



4N.2


303312-11


pulley Taper-lock bush grey cast iron 3 x SPA x Ø230 x Ø50 (30331211)






770.



4N.2


382231-04


retaining ring with lugs spring steel DIN 472 Ø20 x 1 (38223104)






771.



4N.2


361500-01


Schrader valve T-piece brass Jul-16 (36150001)






772.



4N.2


366202-01


sealing nut 7/16" - 20 UNF (36620201)






773.



4N.2


366100-01


Sealing Plug brass 1/8" - 27 NPTF (36610001)






774.



4N.2


366110-10


sealing plug steel 1/2" - 14 NPTF (36611010)






775.



4N.2


380391-52


sealing plug 1" - 11 1/2" NPTF (38039152)






776.



4N.2


366110-02


Sealing Plug steel 1/4" - 18 NPTF (36611002)






777.



4N.2


366124-01


sealing screw permanent magnet M22 x 1,5 (36612401)






778.



4N.2


374011-11


shaft seal HFCKW (R22, R12, ...) (37401111)






779.



4N.2


374010-05


shaft seal NH3, HFC rotating part (37401005)






780.



4N.2


305416-05


shaft seal (30541605)






781.



4N.2


361310-08


shut-off valve brazing and welding bush Ø35 (1 3/8") (36131008)






782.



4N.2


361310-07


shut-off valve brazing and welding bush Ø28 (1 1/8") (36131007)






783.



4N.2


361802-02


sight glass Ø67 x 8,5 (36180202)






784.



4N.2


382201-51


single coil spring washer spring steel galvanized DIN 127 A4, 3 (38220151)






785.



4N.2


382141-02


single coil spring washer spring steel A6 (38214102)






786.



4N.2


362001-09


suction gas filter Ø30 x 105 (36200109)






787.



4N.2


312030-02


thrust collar Ø65 x 7 (31203002)






788.



4N.2


320500-07


thrust washer Ø62 x Ø48 x 1,7 (32050007)






789.



4N.2


320500-05


thrust washer Ø62 x Ø50,5 x 1,7 (32050005)






790.



4N.2


304052-04


valve plate Ø60 (30405204)






791.



4N.2


382002-01


washer brass DIN 125 A4, 3 (38200201)






792.



4N.2


383401-04


wrist pin Ø20 x Ø13 x 45 (38340104)







Manufacturers of BITZER COMPRESSOR PARTS
