COMPRESSOR PARTS > BITZER > 2EC

Sr. No.


Model

OEM Part No.

Description

1.



2EC, 4EC


302297-96

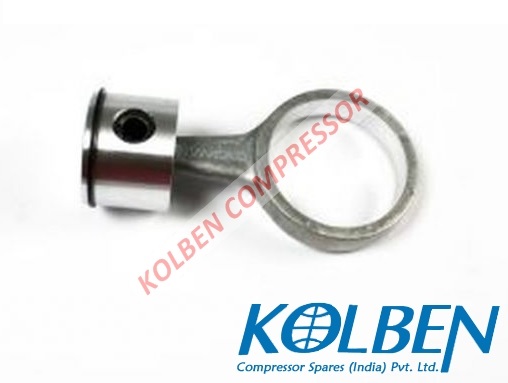

Piston - Piston Ring - Conrod Assy -Std-To Fit Bitzer2Ec2,2Ec3,4Ec4, 4Ec6 ( 46 Mm )






2.



2FC, 2EC, 4EC


302233-73


Piston - Pin 46.0(Std)X10.8Xp1.50X150379 -To Fit Bitzer 2Ec2,2Ec3,2Fc2,2Fc3,4Ec4,4Ec6






3.



2EC, 4EC, 2CC, 4CC, 2DC, 4DC, 4FC


302134-01


Conrod 58.3(Std)-46.2(Std)-15.0 -To Fit Bitzer 2Ec2,2Cc4,4Fc3,4Cc9,4Dc5






4.



2EC, 4EC, 2CC, 4CC, 2DC, 4DC, 4FC



Conrod 58.3(-0.25Mm)-To Fit Bitzer 2Ec2,2Cc4,4Fc3,4Cc9






5.



2EC, 4EC, 2CC, 4CC, 2DC, 4DC, 4FC



Conrod 58.3(-0.50Mm)-To Fit Bitzer 2Ec2,2Cc4,4Fc3,4Cc9






6.



2EC, 2FC, 4EC


382300-85


Piston Ring 46.0(Std)-P1.50-To Fit Bitzer 2Ec,2Fc,4Ec






7.



2FC, 2EC, 4EC


382300-86


Piston Ring 46.0(Std)-Cr1.00-To Fit Bitzer 2Fc.2Ec,2Fes,2Ees,4Ec, 4Ees






8.



4EC, 4P, 2P, 2EC



Suction Reed 60.4X17.5X0.4-To Fit Bitzer 4Ec,2P,4P,2Ec






9.



2EC, 4EC


304059-01

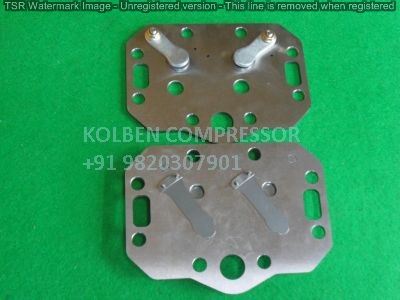

Valve Plate Assy Without Gasket(46.0) 12.0X2-14.0X2-To Fit Bitzer 2Ec2,2Ec3,4Ec4,4Ec6






10.



2EC, 4EC


372517-03


Valve Plate Gasket(46.0) 143.2X47.6-To Fit Bitzer 2Ec2,2Ec3,4Ec4,4Ec6






11.



2CC, 2DC, 2EC, 2FC, 2GC, 2HC


362012-01


Suction Gas Filter 62.1X23.5X41.6-To Fit Bitzer 2Cc,2Dc,2Ec,2Fc,2Gc,2Hc






12.



2EC


372835-01

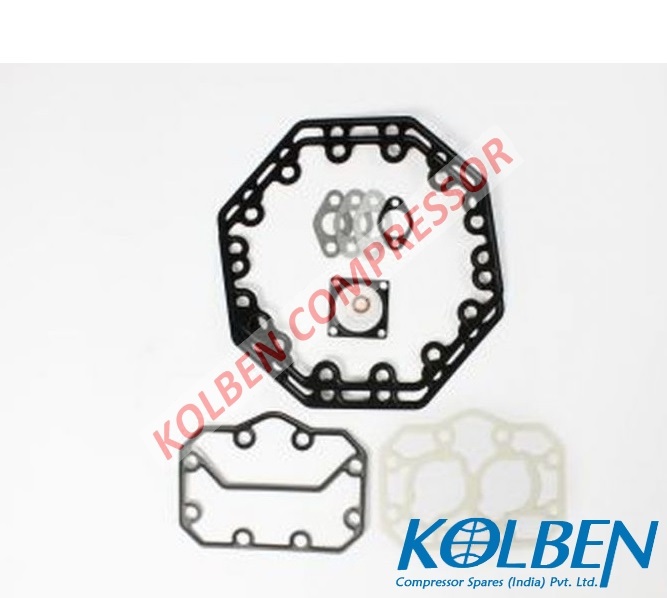

Gasket Set(46.0)-To Fit Bitzer 2Ec






13.



2EC , 4CC


311112-01

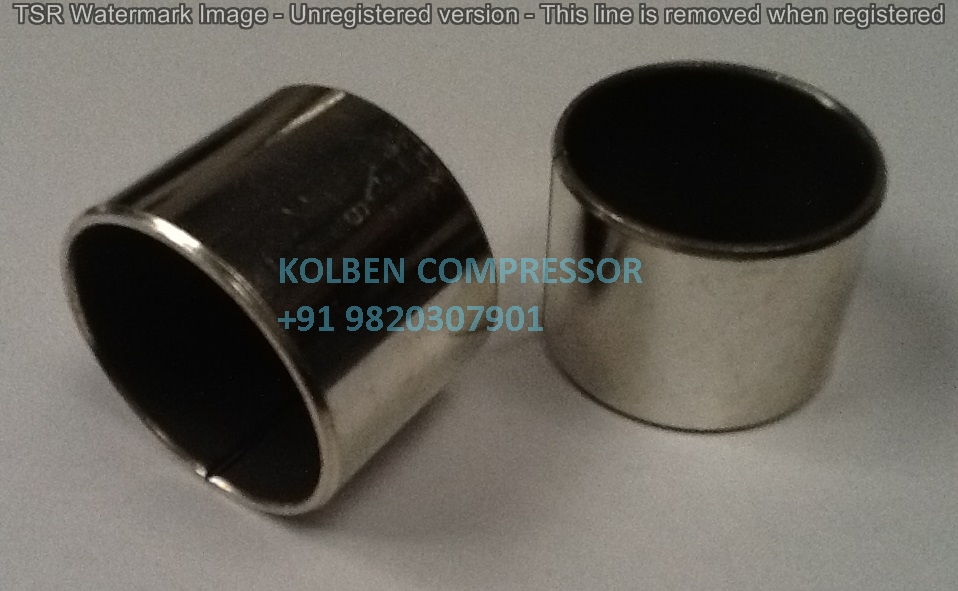

Bearing main 2EC>4CC






14.



2CC , 4CC , 2DC , 4DC , 2EC , 4EC


302134-01


Con-rod 2/4 EC/DC/CC & 4FC






15.



2FC,2EC,4EC


302233-73


Piston complete (46.00mm) 2FC-2EC-4EC







Manufacturers of BITZER COMPRESSOR PARTS
