Sr. No. |
Image |
Model |
OEM Part No. |
Description |
|
|

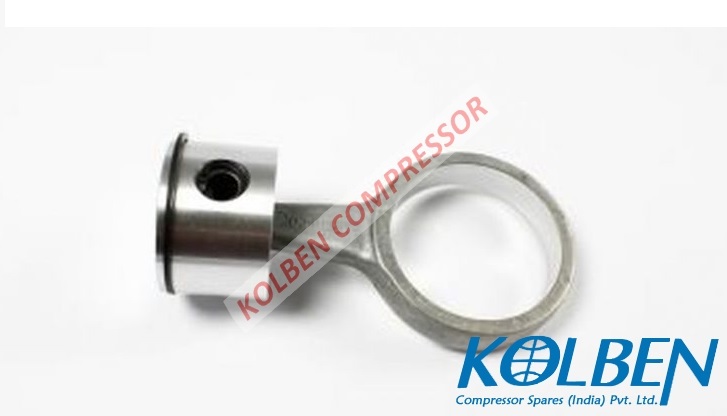

1. |
|
2DC, 4DC |
302297-97 |
Piston - Piston Ring - Conrod Assy -Std-To Fit Bitzer 2Dc2,2Dc3,4Dc5, 4Dc7
|
|
|

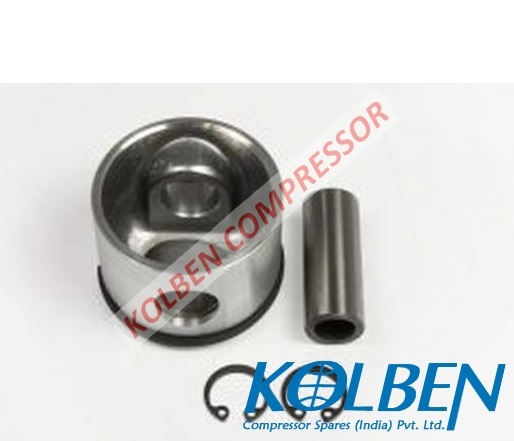

2. |
|
2DC, 4DC |
302277-01 |
Piston - Pin 50.0(Std)X 10.7Xp1.50X150419-To Fit Bitzer 2Dc2, 2Dc-3.2,4Dc5,4Dc7
|
|
|
3. |
|
2EC, 4EC, 2CC, 4CC, 2DC, 4DC, 4FC |
302134-01 |
Conrod 58.3(Std)-46.2(Std)-15.0 -To Fit Bitzer 2Ec2,2Cc4,4Fc3,4Cc9,4Dc5
|
|
|
4. |
|
2EC, 4EC, 2CC, 4CC, 2DC, 4DC, 4FC |
|
Conrod 58.3(-0.25Mm)-To Fit Bitzer 2Ec2,2Cc4,4Fc3,4Cc9
|
|
|
5. |
|
2EC, 4EC, 2CC, 4CC, 2DC, 4DC, 4FC |
|
Conrod 58.3(-0.50Mm)-To Fit Bitzer 2Ec2,2Cc4,4Fc3,4Cc9
|
|
|
6. |
|
2DC, 4DC |
382300-95 |

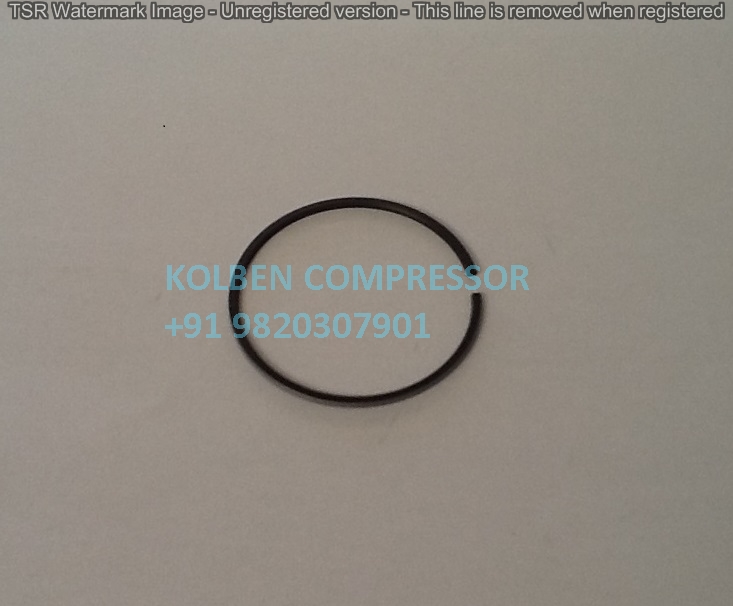

Piston Ring 50.0(Std)-P1.50-To Fit Bitzer 2Dc,4Dc
|
|
|
7. |
|
2DC, 4DC |
382300-94 |

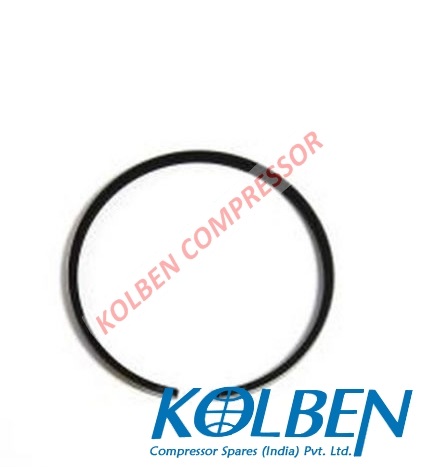

Piston Ring 50.0(Std)-Cr1.00-To Fit Bitzer 2Dc,2Des,4Dc,4Des
|
|
|
8. |
|
2DC, 4DC |
|
Suction Reed 62.8X34.6X0.4-To Fit Bitzer 2Dc-3.2,4Cc6,4Dc-7.2
|
|
|

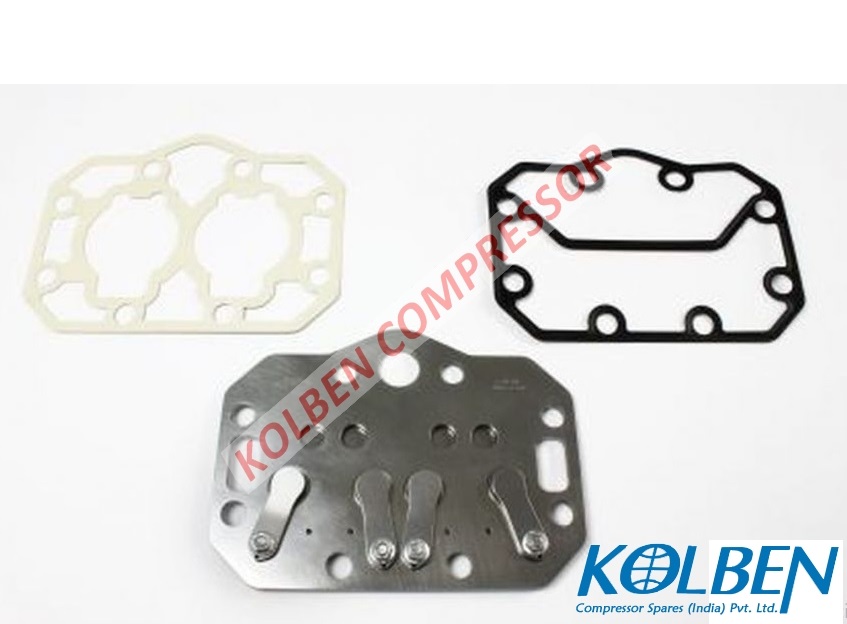

9. |
|
2DC, 4DC, 2CC, 4CC |
304059-03 |
Valve Plate Assy Without Gasket 9.5X4-12.0X4-To Fit Bitzer 50.0=2Dc2,2Dc3 55.0=4Dc5,4Dc-7.2,2Cc3,2Cc4, 4Cc6,4Cc9
|
|
|

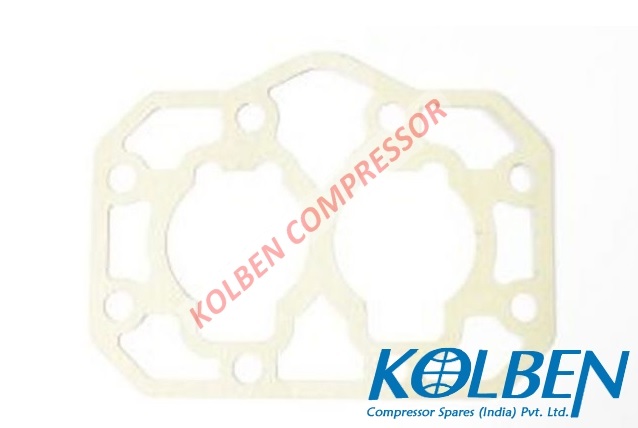

10. |
|
2DC |
372517-05 |
Valve Plate Gasket(50.0) 143.5X51.2-To Fit Bitzer 2Dc2,2Dc3
|
|
|
11. |
|
2CC, 2DC, 2EC, 2FC, 2GC, 2HC |
362012-01 |
Suction Gas Filter 62.1X23.5X41.6-To Fit Bitzer 2Cc,2Dc,2Ec,2Fc,2Gc,2Hc
|
|
|

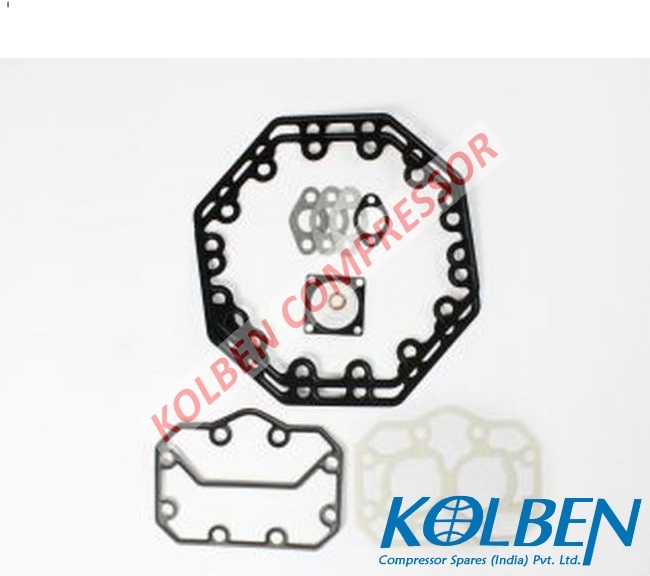

12. |
|
2DC |
372835-02 |
Gasket Set(50.0)-To Fit Bitzer 2Dc
|
|
|
13. |
|
2CC , 4CC , 2DC , 4DC , 2EC , 4EC |
302134-01 |
Con-rod 2/4 EC/DC/CC & 4FC
|
|
|

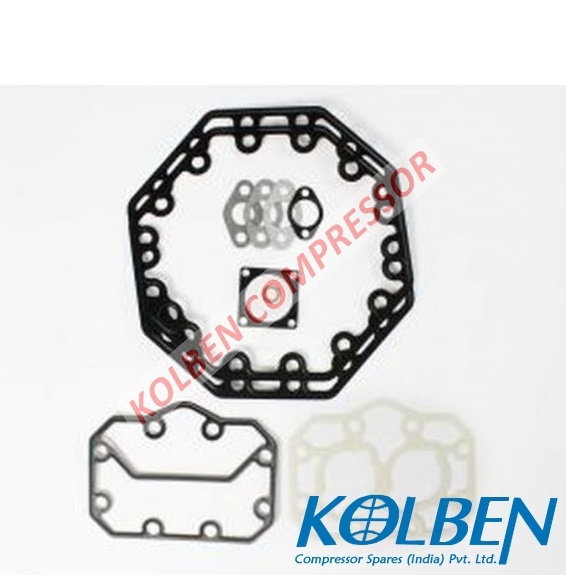

14. |
|
2DC , 4DC |
372835-06 |
Gasket set 2/4-DC (50mm)
|
|
|
15. |
|
2DC , 4DC |
372835-03/07 |
Gasket set 2/4-CC (55mm)
|
|
|
16. |
|
2DC,4DC |
302277-01 |
Piston complete (50.00mm) 2DC/4DC
|
|
|
17. |
|
2DC , 4DC |
382300-95 |
Piston ring 50mm for models 2DC/4DC
|
|
|
18. |
|
2DC-3.2 |
311125-01 |
Bearing bush Ø40 x Ø36 x 30 (31112501)
|
|
|
19. |
|
2DC-3.2 |
305107-41 |
Bearing cover (30510741)
|
|
|

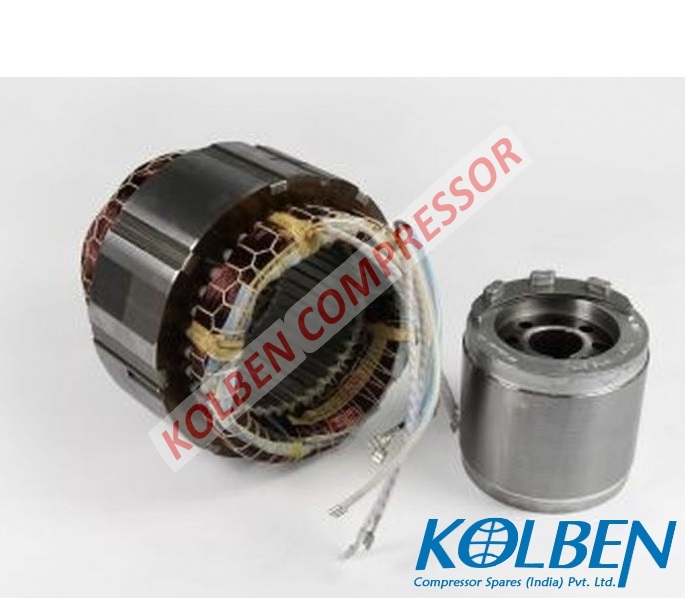

20. |
|
2DC-3.2 |
346147-12 |
built-in motor 2.2 kW, 4-pole 220..240V D-3-50Hz, 380..415V Y-3-50Hz, 265..290V D-3-60Hz 440..480V Y-3-60Hz Ø190 (34614712)
|
|
|
21. |
|
2DC-3.2 |
344119-01 |
cable 1 x 2,5, 2 x 100 (34411901)
|
|
|
22. |
|
2DC-3.2 |
380306-02 |
Cheese head screw suction shut-off valve DIN 912, 10.9 M8 x 20 (38030602)
|
|
|
23. |
|
2DC-3.2 |
382300-94 |
compression ring 50 x 1 (38230094)
|
|
|
24. |
|
2DC-3.2 |
302134-01 |
connecting rod Ø58,3 x Ø15 x 83 (30213401)
|
|
|
25. |
|
2DC-3.2 |
302297-97 |
connecting rod / piston (30229797)
|
|
|
26. |
|
2DC-3.2 |
343417-14 |
connection to ground, complete (34341714)
|
|
|
27. |
|
2DC-3.2 |
343219-01 |
crankcase heater 0..120 W, 200-260 V (PTC) 200-260V Ø11 x 113 (34321901)
|
|
|
28. |
|
2DC-3.2 |
302360-13 |
cylinder head 165 x 123 x 43 (30236013)
|
|
|
29. |
|
2DC-3.2 |
313000-24 |
disk Motor side Ø45 x Ø33,1 x 2 (31300024)
|
|
|
30. |
|
2DC-3.2 |
301108-50 |
eccentric shaft Ø58,3 x 290 (30110850)
|
|
|
31. |
|
2DC-3.2 |
320354-02 |
Eyebolt 51 x 30 x 4 (32035402)
|
|
|
32. |
|
2DC-3.2 |
372618-01 |
gasket cylinder head Retall 165 x 124 x 0,38 (37261801)
|
|
|
33. |
|
2DC-3.2 |
372938-01 |
Gasket Terminal plate 52 x 52 x 0,38 (37293801)
|
|
|
34. |
|
2DC-3.2 |
372702-03 |
gasket 35 x 60 x 1 (37270203)
|
|
|
35. |
|
2DC-3.2 |
372517-05 |
gasket valve plate 165 x 124 x 0,8 (37251705)
|
|
|
36. |
|
2DC-3.2 |
372937-03 |
gasket housing cover 14 - Hole 2241 x 241 x 0,38 (37293703)
|
|
|
37. |
|
2DC-3.2 |
372718-01 |
Gasket Terminal plate Retall 32 x 48 x 0,38 (37271801)
|
|
|
38. |
|
2DC-3.2 |
382401-31 |
gasket ring oil drain copper A10 x 16 x 2 (38240131)
|
|
|
39. |
|
2DC-3.2 |
372200-10 |
gasket ring sight glass teflon Ø31,9 x 1,6 x 1,8 (37220010)
|
|
|
40. |
|
2DC-3.2 |
372835-02 |
gasket set (37283502)
|
|
|
41. |
|
2DC-3.2 |
380154-02 |
hexagon head screw oil splasher plate steel DIN 933, 10.9 M6 x 12 (38015402)
|
|
|
42. |
|
2DC-3.2 |
380056-04 |
hexagon head screw cylinder head DIN 931, 10.9 M10 x 65 (38005604)
|
|
|
43. |
|
2DC-3.2 |
380104-05 |
Hexagon head screw Terminal plate DIN 933, 8.8 M6 x 18 (38010405)
|
|
|
44. |
|
2DC-3.2 |
380156-06 |
hexagon head screw housing cover coated DIN 933, 10.9 M10 x 30 (38015606)
|
|
|
45. |
|
2DC-3.2 |
380056-03 |
hexagon head screw cylinder head DIN 931, 10.9 M10 x 60 (38005603)
|
|
|
46. |
|
2DC-3.2 |
380167-02 |
hexagon head screw built-in motor coated DIN 933, 10.9 M12 x 40 (38016702)
|
|
|
47. |
|
2DC-3.2 |
380155-05 |
hexagon head screw discharge shut-off valve DIN 933, 10.9 M8 x 20 (38015505)
|
|
|
48. |
|
2DC-3.2 |
380228-02 |
Hexagon Head Screw ISO 4017 - 10.9 - A2K M10 x 30 (38022802)
|
|
|
49. |
|
2DC-3.2 |
305229-01 |
housing cover Motor side grey cast iron 241,2 x 241,2 x 20 (30522901)
|
|
|
50. |
|
2DC-3.2 |
321105-04 |
oil splasher plate steel Ø185 x 54 (3211050)
|
|
|
51. |
|
2DC-3.2 |
380501-54 |
Oval head screw terminal box aluminium galvanized DIN 7985, 4.8 M6 x 16 (38050154)
|
|
|
52. |
|
2DC-3.2 |
384003-01 |
parallel key built-in motor steel DIN 6885 A10 x 6 x 36 (38400301)
|
|
|
53. |
|
2DC-3.2 |
302277-01 |
piston complete Ø50 (30227701)
|
|
|
54. |
|
2DC-3.2 |
347019-01 |
protection device SE-B1 230V-50/60Hz (34701901)
|
|
|
55. |
|
2DC-3.2 |
366201-16 |
Protective Cap Span of the jaw: 20 Plastic - GRP 3/4"-16 UNF / L=36 mm (36620116)
|
|
|
56. |
|
2DC-3.2 |
366201-17 |
Protective Cap Span of the jaw: 20 Plastic - GRP 3/4"-16 UNF / L=43 mm (36620117)
|
|
|
57. |
|
2DC-3.2 |
382231-02 |
retaining ring with lugs wrist pin spring steel DIN 472 Ø15 x 1 (38223102)
|
|
|
58. |
|
2DC-3.2 |
343610-02 |
rotor fixing built-in motor (34361002)
|
|
|
59. |
|
2DC-3.2 |
361501-22 |
Schrader valve oil fill connection 1/4" - 18 NPTF (36150122)
|
|
|
60. |
|
2DC-3.2 |
315027-01 |
Screw for grounding Terminal plate M6 x 40 (31502701)
|
|
|
61. |
|
2DC-3.2 |
375030-25 |
sealing plug Ø11,2 x 13,0 x 10 (37503025)
|
|
|
62. |
|
2DC-3.2 |
366100-01 |
Sealing Plug cylinder head brass 1/8" - 27 NPTF (36610001)
|
|
|
63. |
|
2DC-3.2 |
361315-10 |
shut-off valve Discharge side brazed connection Ø16 L (36131510)
|
|
|
64. |
|
2DC-3.2 |
361315-05 |
shut-off valve suction side brazed connection Ø22 L (36131505)
|
|
|
65. |
|
2DC-3.2 |
361815-01 |
Sight Glass steel / glass 1 1/8" - 18 UNEF (36181501)
|
|
|
66. |
|
2DC-3.2 |
382201-06 |
single coil spring washer built-in motor spring steel DIN 127 A12 (38220106)
|
|
|
67. |
|
2DC-3.2 |
320525-01 |
spring washer wrist pin Ø22 x Ø15,1 x 0,8 (32052501)
|
|
|
68. |
|
2DC-3.2 |
362012-01 |
suction gas filter suction shut-off valve Ø34 x 62 x 41,7 (36201201)
|
|
|
69. |
|
2DC-3.2 |
343509-01 |
terminal box 202 x 95 x 57 (34350901)
|
|
|
70. |
|
2DC-3.2 |
345500-15 |
Terminal plate 6-Lead 52 x 52 x 39 (34550015)
|
|
|
71. |
|
2DC-3.2 |
345504-01 |
Terminal plate 48 x 32 x 39 (34550401)
|
|
|
72. |
|
2DC-3.2 |
343428-01 |
terminal plate kit (34342801)
|
|
|
73. |
|
2DC-3.2 |
320502-02 |
thrust washer built-in motor steel Ø45 x Ø12,5 x 3,5 (32050202)
|
|
|
74. |
|
2DC-3.2 |
382150-01 |
thrust washer spring steel S6 (38215001)
|
|
|
75. |
|
2DC-3.2 |
312103-02 |
thrust washer Motor side Ø46 x Ø37,5 x 3 (31210302)
|
|
|
76. |
|
2DC-3.2 |
304059-03 |
valve plate Ø50 (30405903)
|
|
|
77. |
|
2DC-3.2 |
370000-20 |
vibration damper set rubber (37000020)
|
|
|

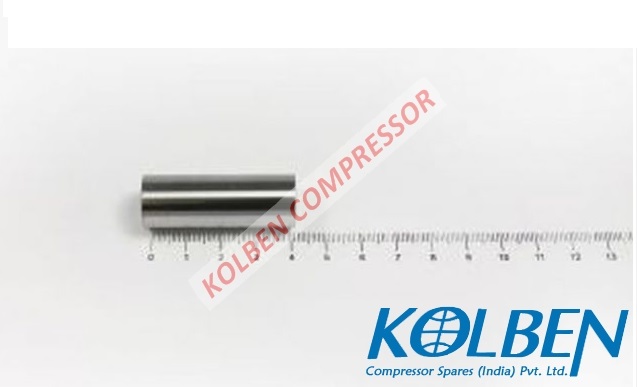

78. |
|
2DC-3.2 |
383401-48 |
wrist pin DIN 73126 Ø15 x Ø10 x 42 (38340148)
|
|
