COMPRESSOR PARTS > BOCK > HG

Sr. No.


Model

OEM Part No.

Description

1.



HG


80297

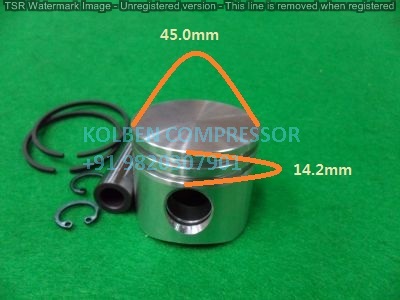

Piston - Pin - Circlip - Piston Ring 45.0 (Stdx14.2X38.9 -P2.46/Uc2.46-1533 -To Fit Bock Ha,Hg






2.



HG, FK40


80105

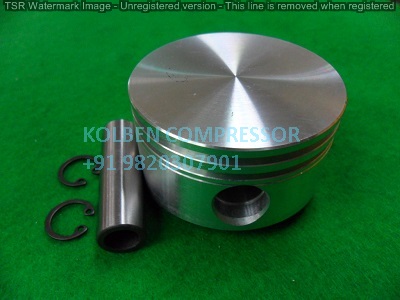

Piston - Pin - Piston Ring 65.0 (Std)X14.2X42.0-P2.48/Uc2.48 -1550-To Fit Bock Ha,Hg,Fk24,Fk30,Fk40,Fk50






3.



HG, F5


8035


Piston - Pin - Circlip - Piston Ring 70.0 (Std)X19.9X 53.9Xdome28.9- P2.48/Uc2.48-2060- To Fit Bock Hg5,F5,F6,Am5






4.



HG


80047

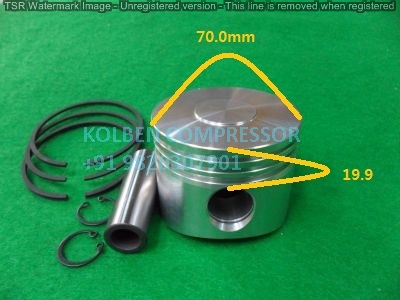

Piston - Pin - Circlip - Piston Ring 70.0 (Std)X19.9X 53.9Xdome28.9 -P1.96/Uc1.96/Oil2.96-Hole- 2060-To Fit Bock F5Nh3,Ha5,Ha6,Hg5, Hg6,Hg7,Hg8,






5.



HG


80048

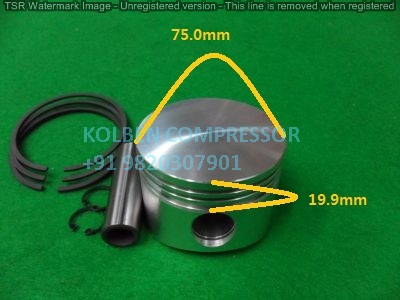

Piston - Pin - Circlip - Piston Ring 75.0 (Std)X19.9X 54.9-2P1.98/ Oil2.98-2066-To Fit Bock Hg5/830, Ha5/830,Ha6/1240, Hg6/1240,Hg7/1860, Hg8/2830






6.



HG


80106

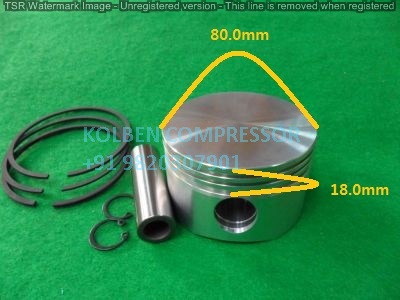

Piston - Pin - Circlip - Piston Ring 80.0(Std)X18.0X48.9 - P1.98/Uc1.98/Oil2.98-2066- To Fit Bock Hg6, Ha5/945,Ha6/1410, Hg6/1410,Hg7/2110, Hg8/3220,Hg5/945, Hz7,F14/1166,F14/1366 +16New.F18/2735






7.



HG


8894

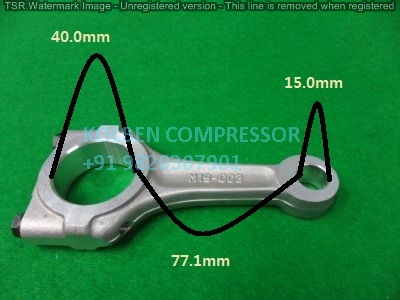

Conrod 40.0(Std)X77.1(Std)X15.0-To Fit Bock Ha4,Hg4,Am5,Hgx4






8.



HG



Conrod 40.0(-0.50Mm)X77.1(+0.25Mm)X15.0-To Fit Bock Ha4,Hg4,Am5






9.



HG


8307

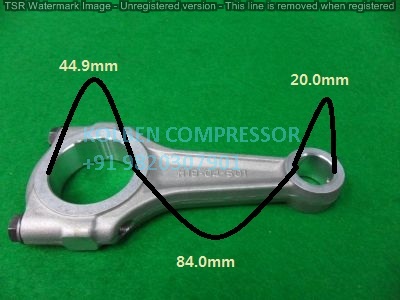

Conrod 44.9(Std)X84.0(Std)X20.0-To Fit Bock Ha5,F5,Am5/847,Hg5/945-4S






10.



HG


8306


Conrod 45.0(Std)X87.9(Std)X20.0-To Fit Bock Ha6,Hg6,Hg7,Am5/724






11.



HG



Conrod 45.0(-0.50Mm)X87.9(+0.25Mm)X20.0-To Fit Bock Ha6,Hg6,Hg7,Am5






12.



HG


80229


Conrod-Std-To Fit Bock Hg8






13.



HG



Shut-Off Valve-To Fit Bock Hg5/725






14.



HG


06367+68+69


Piston Ring Set(3Pcs) 80.0-P1.98/Uc1.98/Oil2.98 -To Fit Bock Hg5/945-4S,Ha6,Am5, F14/1166






15.



F3, F4, FK4, HG



Discharge Reed 42.5X16.0X0.3-To Fit Bock F3/4,Fk40,Hg4






16.



FK40, HG



Suction Reed 76.4X37.7X0.5-To Fit Bock Fk40,Hg4






17.



F14, F16, HG



Suction Reed 104.3X56.9X0.5-To Fit Bock F14,F16,Fz16,Hg






18.



HG


0


BK Bearing bush (white metal) for models HG7






19.



HG


0


BK Bearing spacer for models HG7






20.



HG


0


BK Bearing bush (ptfe) for models HG7






21.



HG


0


BK Gasket set for models HG4






22.



HG


0


BK Gasket set for models HG5






23.



HG


0


BK Heater 240v/80W for models HG4






24.



HG


0


BK Heater 240v/140W for models HG5/6/7






25.



HG


0


BK Piston complete (70.00mm) for HH/HG-5/6/7






26.



HG


0


BK Piston complete (80.00mm) for HG-8






27.



HG


0


BK (BOM) Valve plate assm for HG6 & HG7






28.



HG


0


BK (BOM) Valve plate assm for HG8







Manufacturers of BOCK COMPRESSOR PARTS
