Sr. No. |
Image |
Model |
OEM Part No. |
Description |
|
|
1. |
|
FK4, FK3, FK40, F3, F4 |
80103 |
Piston - Pin - Piston Ring 55.0(Std)X14.3X38.9- P2.48/Uc2.48-1545- To Fit Bock Fk4,Fk30,F3,F4,Am3,Fk40,Am4/466-4
|
|
|
2. |
|
F3, F4, FK4 |
8304 |
Conrod 30.0(Std)X67.4(Std)X15.0-To Fit Bock F3,F4,Fk4-Old,Am4/466-4
|
|
|
3. |
|
F3, F4, FK4 |
|
Conrod 30.0(-0.50Mm)X67.4(+0.25Mm)X15.0 -To Fit Bock F3,F4,Fk4(Old)
|
|
|
4. |
|
F3, F4, FK4 |
5380+5390 |
Piston Ring Set(2Pcs) 55.0-P2.48/Uc2.48-To Fit Bock F3,F4,Fk4
|
|
|
5. |
|
F3, F4, FK4, HG |
|
Discharge Reed 42.5X16.0X0.3-To Fit Bock F3/4,Fk40,Hg4
|
|
|
6. |
|
F3, F4 |
|
Discharge Reed Spring 42.5X16.0X0.3-To Fit Bock F3,F4
|
|
|
7. |
|
F3, F4, FK4 |
|
Suction Reed 65.0X34.0X0.5-To Fit Bock F3,F4/Am4,Fk4
|
|
|
8. |
|
F4 |
07224 of 08055 |

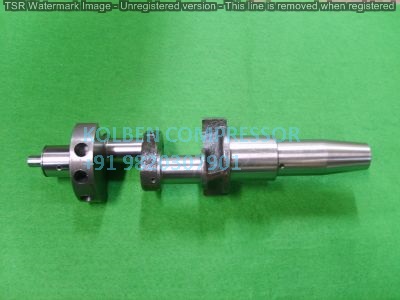

Crankshaft 35.0X30.0(2)X30.0(2)X50.0X40.0-To Fit Bock F4
|
|
|
9. |
|
F4, F5 |
8008 |
Shaft Seal Assy With Cover Plate 40.0-To Fit Bock F4,F5,Fx Am4/466-4,Am4/306-4
|
|
|
10. |
|
F4 |
8158 |
Front Bearing Set-To Fit Bock F4
|
|
|
11. |
|
F4, F5 |
8157 |
Rear Bearing Bare-To Fit Bock F4,F5
|
|
|
12. |
|
F3, F4, FK4 |
07149 of 08198 |
Valve Plate Complete Without Gasket(55)-To Fit Bock F3,F4,Fk4, Am4/466-4,Am4/306-4
|
|
|
13. |
|
F3, F4 |
5010 |
Upper Valve Plate Gasket 178.6-To Fit Bock F3,F4
|
|
|
14. |
|
F3, F4 |
5028 |
Low Valve Plate Gasket 178.0X56 -To Fit Bockf3,F4
|
|
|
15. |
|
F4, F5 |
4442 |
Oil Filter Cpl Base Plate 170.05-To Fit Bock Am4,Am5,F4,F5,Am4/466-4
|
|
|
16. |
|
F4, F5 |
8044 |
Set Gear Wheel Oil Pump-To Fit Bock F4,F5,Am4/466-4,Am4/306-4
|
|
|
17. |
|
F4 |
8071 |

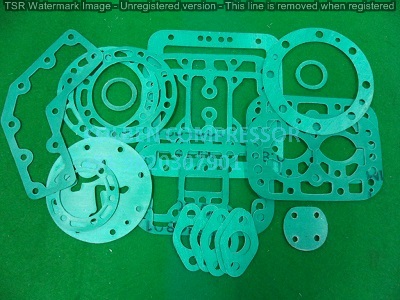

Gasket Set-To Fit Bock F4,Am4/466-4, Am4/306-4
|
|
Manufacturers of BOCK COMPRESSOR PARTS
|
|
|
